Product type	Toaster
Brand	Tefal
Model	Subito TT1762
Number of slices	2
Power	850 W
Voltage	220-240 V
Frequency	50/60 Hz
Power cable length	0.85 m
Housing material	Plastic and metal
Crumb tray	Removable
Ejection system	Mechanical with power cut-off
Browning control	6 positions
Automatic shut-off function	Yes
Cancel function	Yes
Use	Household, indoor, altitude < 4000 m
Cleaning	Damp cloth, empty crumb tray
Safety	Automatic shut-off, mechanical ejection, do not immerse
Dimensions (L x W x H)	27 x 18 x 20 cm
Weight	1.2 kg
Warranty	2 years
Included accessories	None

Frequently Asked Questions - Subito TT1762 TEFAL

How to use the Tefal Subito TT1762 toaster?

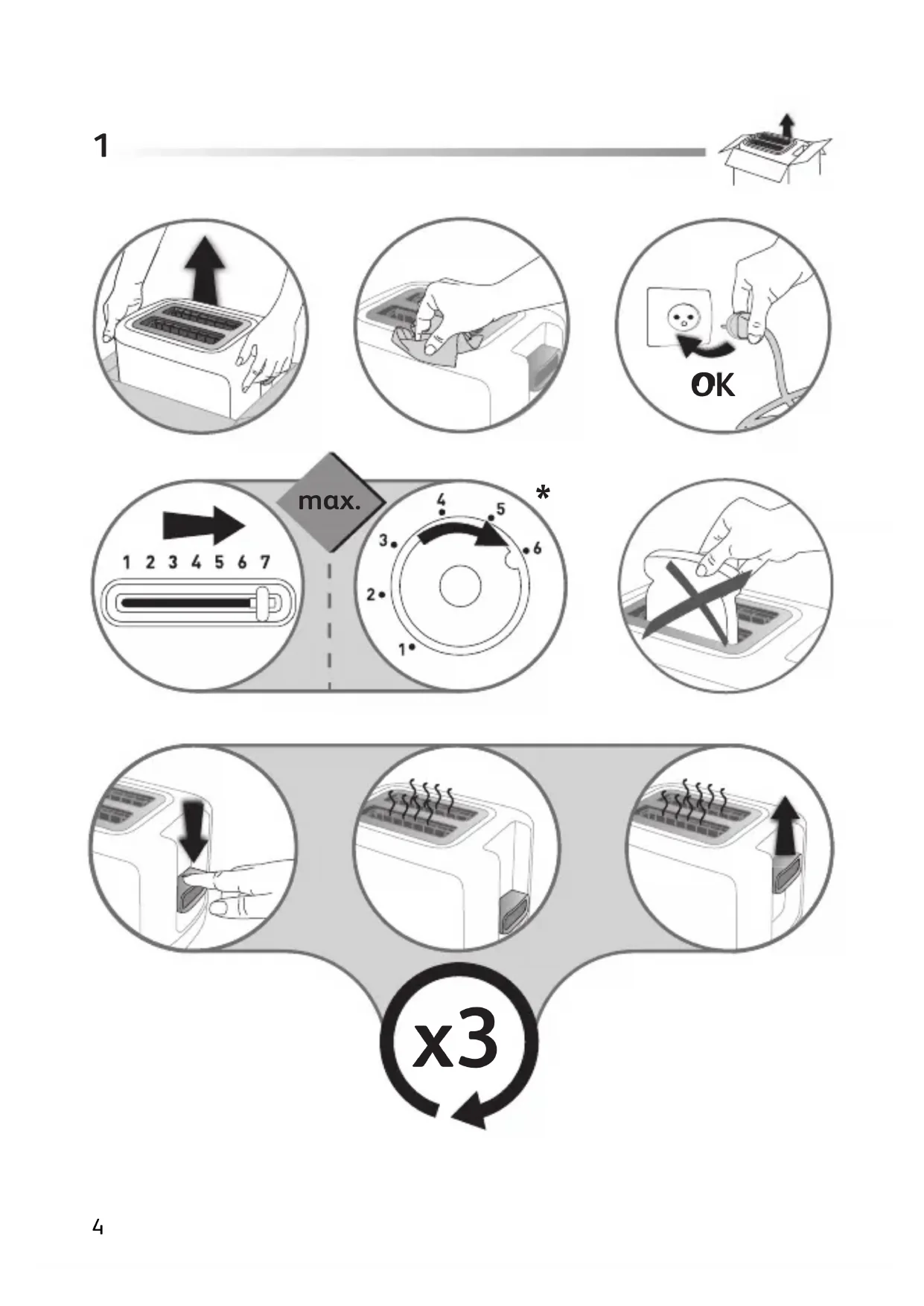

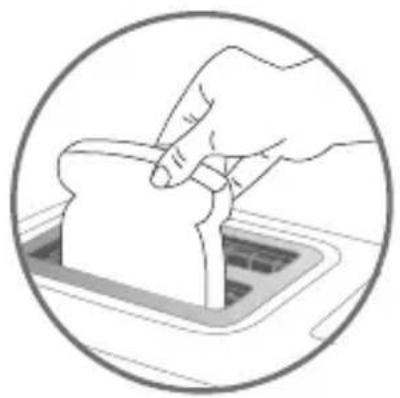

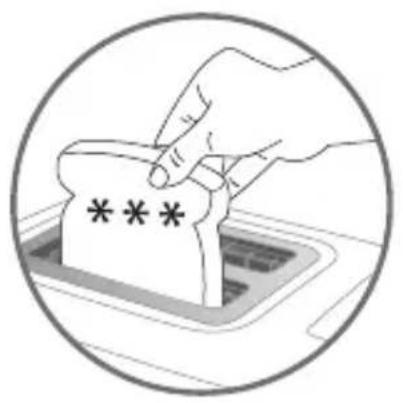

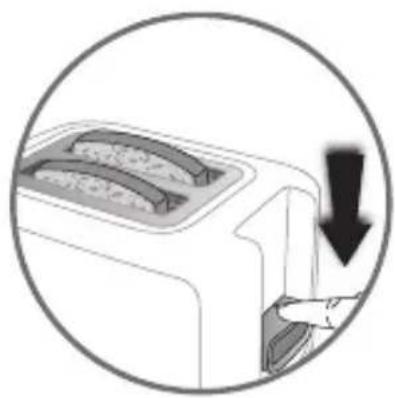

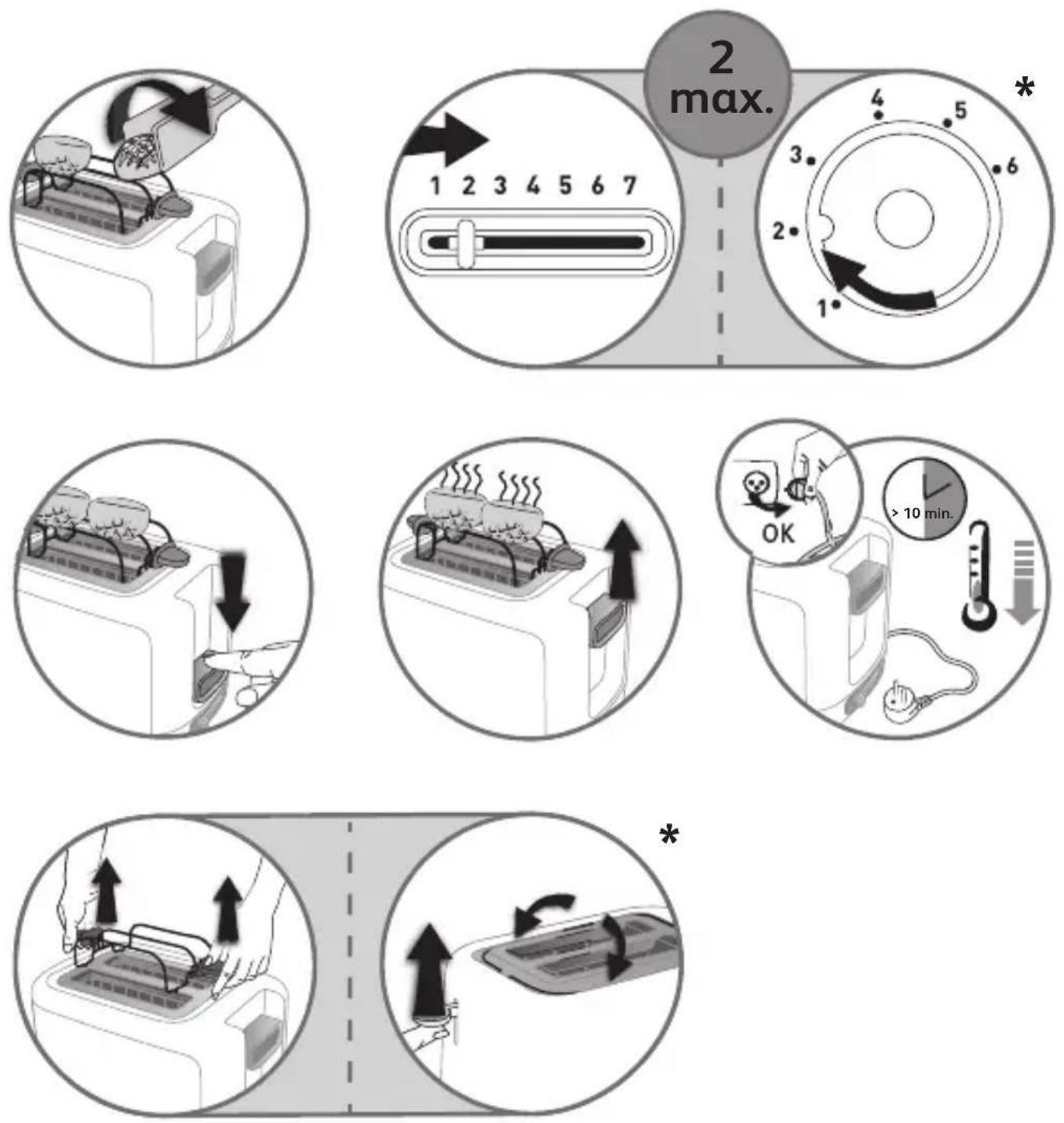

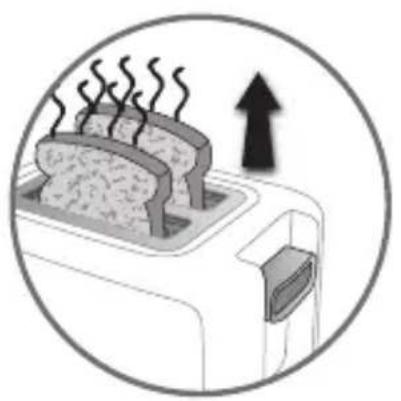

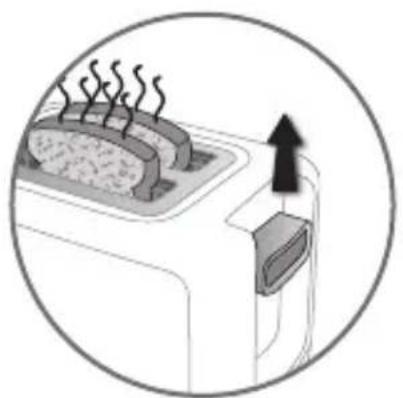

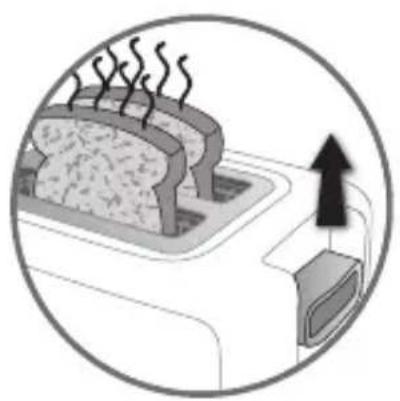

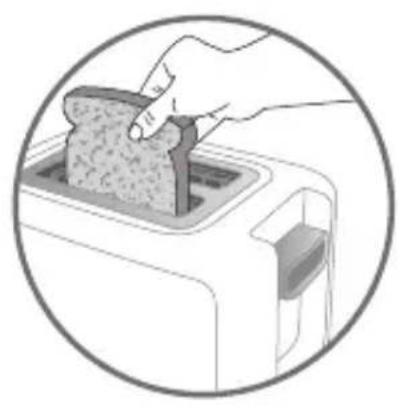

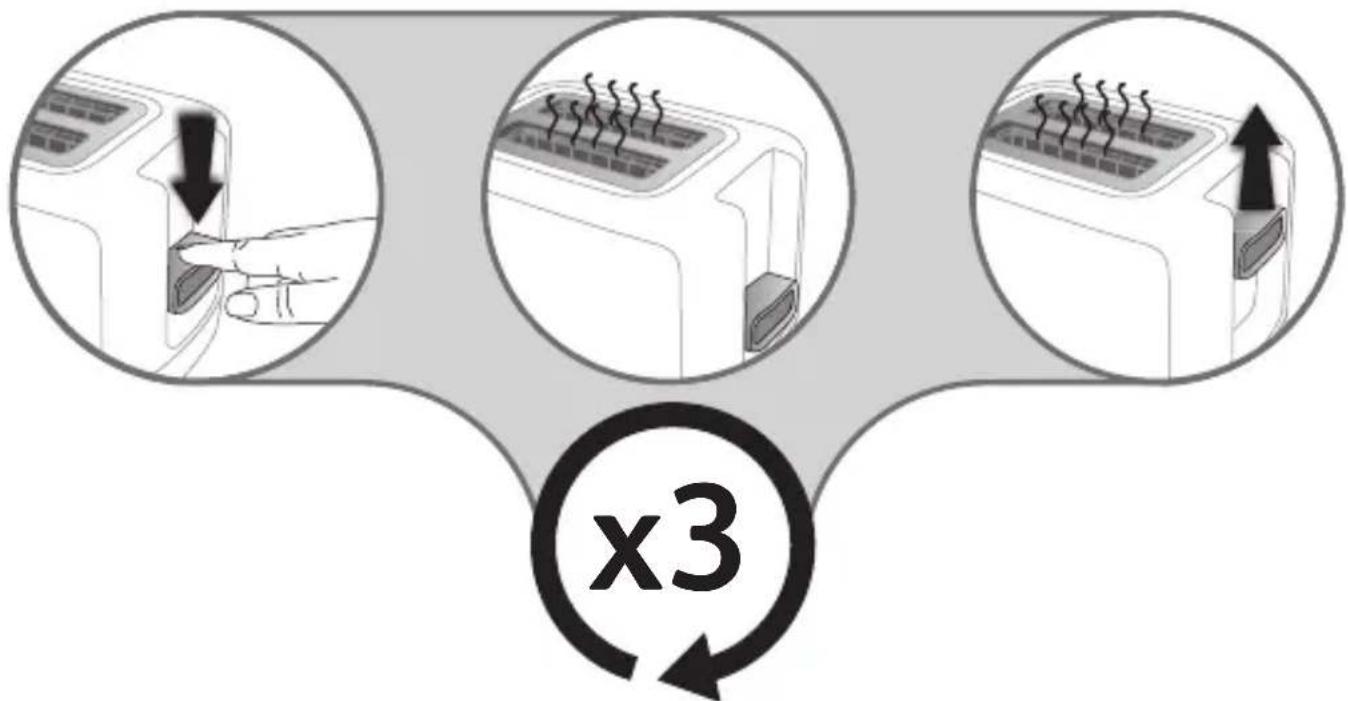

Plug in the appliance, place the bread slices in the slots, set the desired browning (6 positions), then lower the lever. The toaster stops automatically at the end of the cycle.

How to clean the toaster?

Unplug the appliance and allow it to cool. Use a damp cloth to clean the exterior. Regularly empty the removable crumb tray located under the appliance.

Can I toast pastries or bread with icing?

No, do not toast pastries or bread that could melt or drip, as this may damage the appliance or cause a fire.

What to do if bread gets stuck in the toaster?

Unplug the appliance and allow it to cool. Carefully remove the bread with tongs or a wooden utensil (no metal). Do not force with metal objects.

The toaster does not turn on, what to do?

Check that the plug is properly inserted and the lever is lowered. If the problem persists, the cable may be damaged. Contact authorized customer service.

Can I use an extension cord with the toaster?

Yes, but only use an extension cord in good condition, with a grounded plug and a conductor cross-section at least equal to the supplied cable.

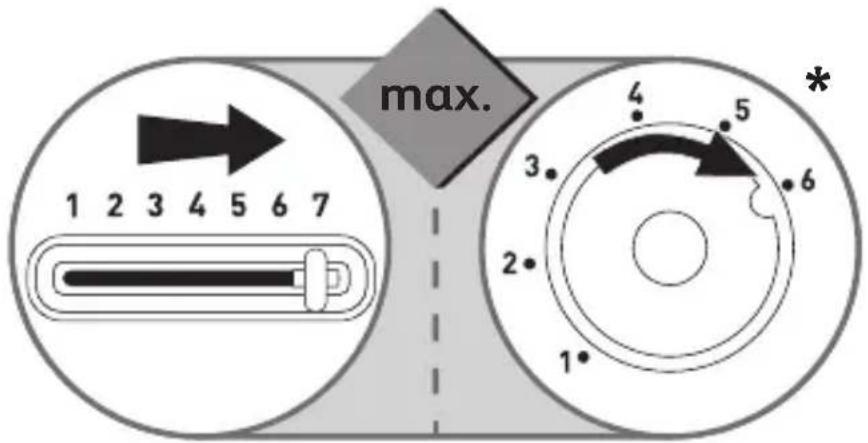

How to adjust the browning of the bread?

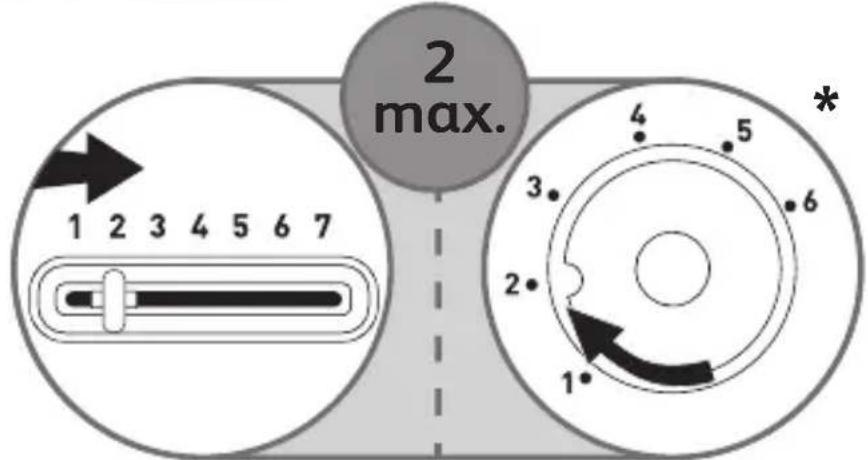

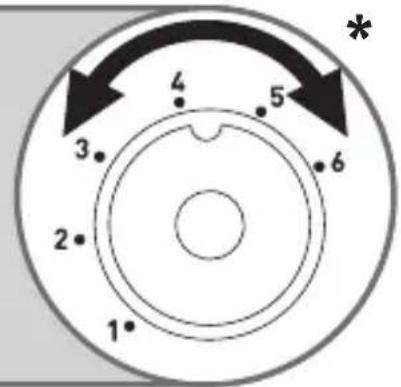

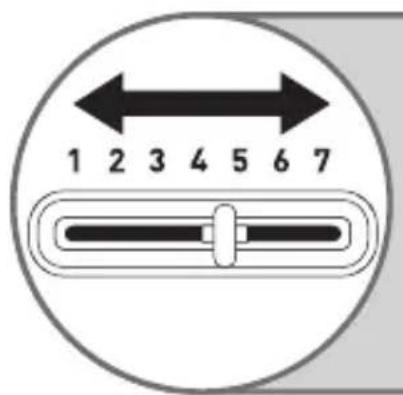

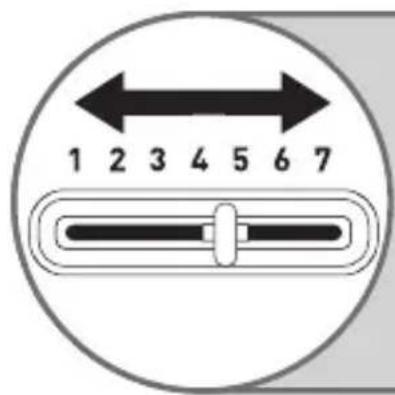

Turn the control knob to the desired setting (1 for light, 6 for dark). For first use, start with a medium setting (3 or 4).

Can I place the toaster near curtains or combustible materials?

No, never place the appliance near curtains, shelves or furniture. Bread can burn and cause a fire. Maintain a safe distance.

The power cord is damaged, what to do?

Do not use the appliance. The cable must be replaced by the manufacturer, its service agent or similarly qualified person to avoid any hazard.

Is this appliance suitable for children?

The appliance can be used by children aged 8 years and above under supervision. Children shall not clean or maintain the appliance unless they are older than 8 years and supervised.

USER MANUAL Subito TT1762 TEFAL

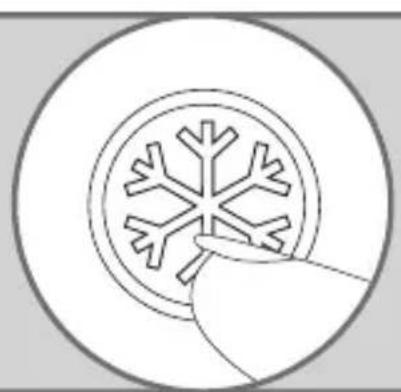

Function to defrost bread

Fonction pour décongeler du pain - Functie om brood te ontdooien - Auftaufunktion - Arresto in qualsiasi momento - Funcion para descongelar el pan - Foncao de descongelacao do pao - Aetoupyia Eanaywatooc - Ekmek buz czozme fonksiyonu - jzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjzjz

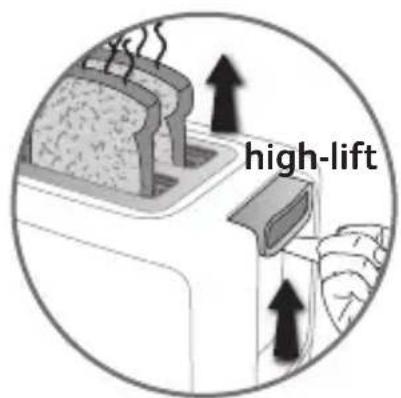

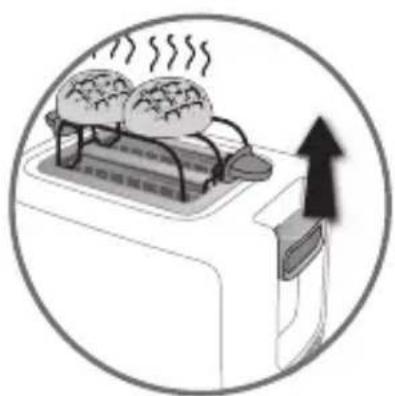

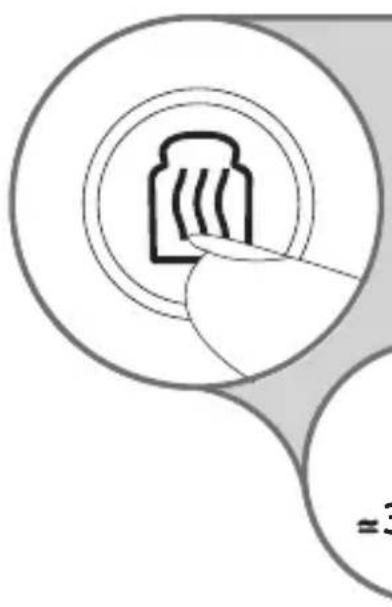

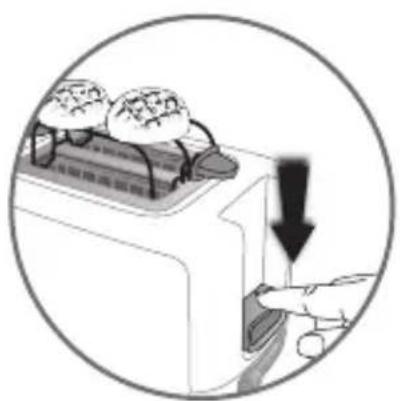

Automatic function to reheat bread

Fonction automatique pour rechauffer du pain - Automatische functie om brood opnieuw op te warmen - Automatische Aufwärmfunktion - Funzione automatica di riscaldamento del pane - Funcion automatica para recalentar el pan - Funcao automatica de reaquecimento do pao - Autóματη λειτουργία ζεστάματος ψωμιόύ - Otomatik ekmek ἔπινης fonksiyonu -

funktion for opvarming af brd - Funksjonen automatisk gjenoppvarming av brd - Automatisk Funktion for att varma upp brd - Automaattinen toiminto leivan lammittamiseksi - autend abel giin

1

2

3

4

5

6

7

CONSIGNES DE SECURITE PRECAUTIONS IMPORTANTES :

VOORZORGSGMAATREGELEN:

SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS:

• This appliance is not intended to be operated using an external timer or separate remote control system.

• Your appliance is intended for domestic use inside the home only at an altitude below 4000 ~m . It is not intended to be used in following applications, and the guarantee will not apply for:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children must be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar quality persons in order to avoid a hazard.

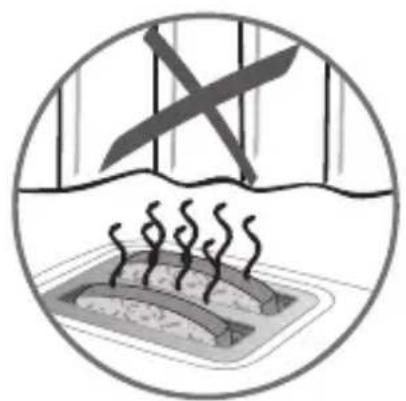

• Bread can burn, therefore the appliance must not be used near or below curtains and other combustible materials such as curtains, drapes or wood (shelving, cupboards...) it should be attended when in use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.

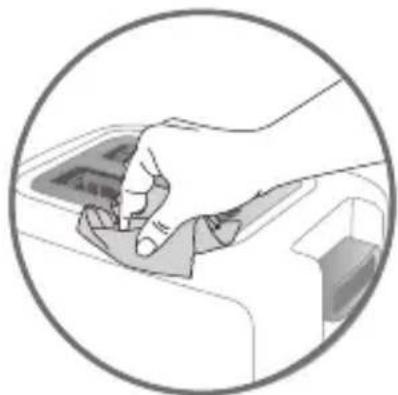

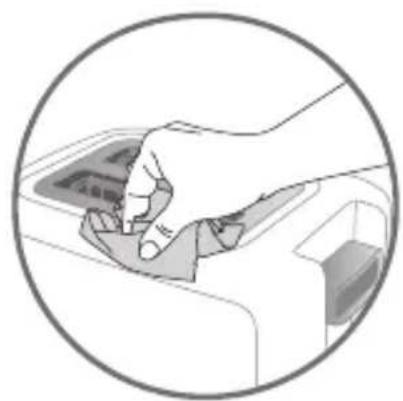

• Use a dust cloth on parts that come into contact with bread.

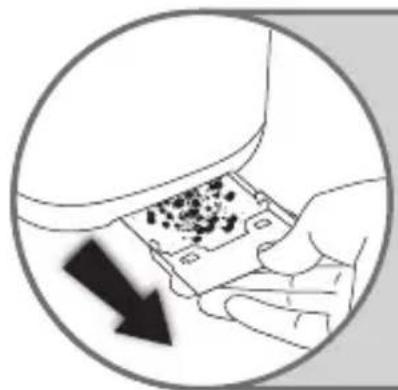

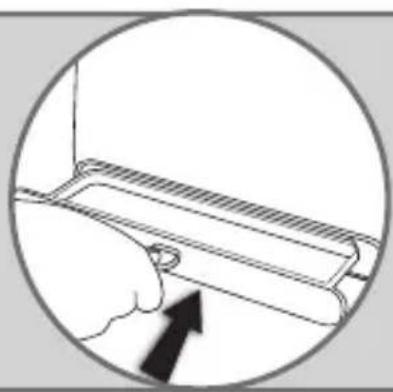

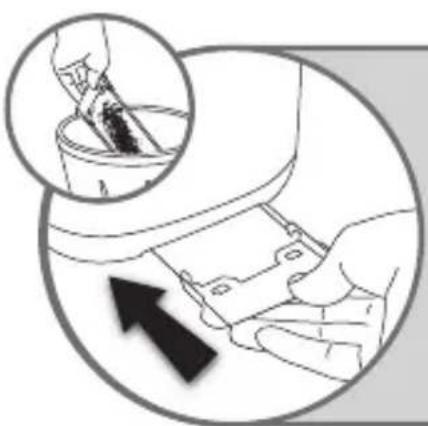

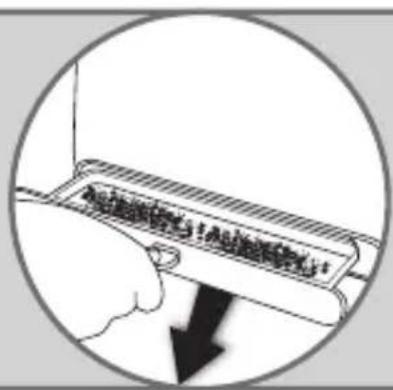

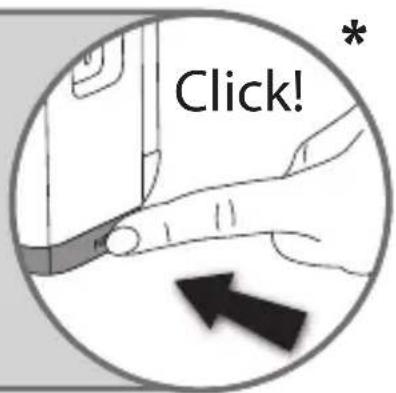

• Make sure you dispose of any crumbs regularly by emptying the crumb-tray which is on the lower part of the toaster.
  The temperature of the accessible surfaces may be high when the appliance is in operation. Do not touch the hot surfaces of the appliance.

For your safety, this appliance conforms with applicable standards and regulations (Directives on low voltage, electromagnetic compatibility, materials in contact with foodstuffs, environment, etc.)

In accordance with the CSC notice of 2/12/04, this product features a mechanical design allowing the bread ejection mechanism to be detached from the power cut-off element.

• Check that the electricity supply voltage corresponds to the voltage indicated on the appliance (ac current only).
• Given the many standards in effect, if this toaster is used in a country other than the country where it was purchased, have it checked by an approved service centre (see enclosed after sales service information).
• Check that the electricity installation is sufficient to supply the power required by this appliance.

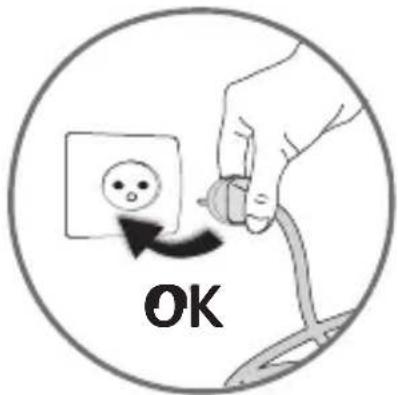

• Always plug the toaster into an earthed socket.
• Use extension leads which are in good condition, with an earthed connection, and with a minimum rating of 10A .

TO PREVENT ANY ACCIDENTS

When using electrical appliances, basic safety precautions should always be followed:

DO:

• Carefully read and follow all the instructions for use.
• Close supervision is necessary when the toaster is used by or near children or certain disabled persons who are not familiar with these instructions and should only use this toaster under surveillance of a responsible adult.

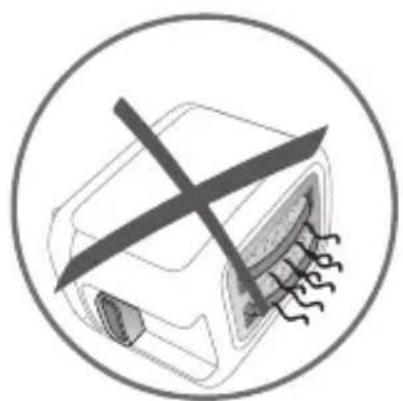

• The toaster must always be used in the upright position, never on its side or tilted forwards or backwards.

Before each use make sure that the crumb tray is fitted correctly.

• Regularly remove crumbs from the crumb tray.
• The bread control lever must be in the "Up" position before plugging in or unplugging the appliance.
• Unplug the appliance if it shows any working abnormalities.

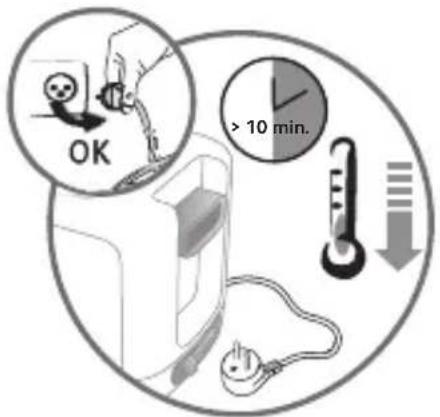

• Unplug from the power socket when not in use during and before cleaning. Allow to cool down before cleaning or storing.
• To unplug remove the plug from the wall socket (when the toasting cycle is finished).

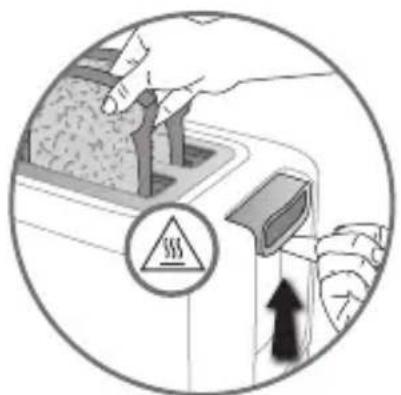

• If the bread jams in the slots after toasting and the elements do not switch off, unplug the plug immediately and wait for the appliance to cool before attempting to remove the bread.

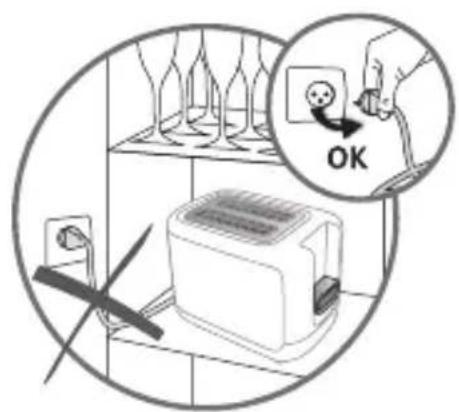

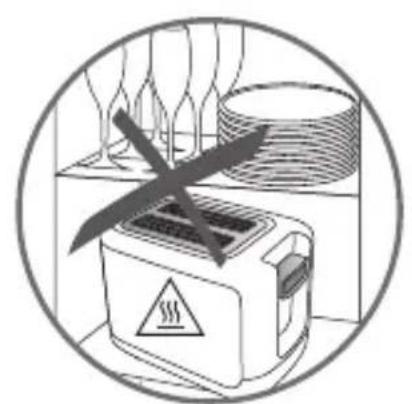

• Bread can burn, therefore do not use this appliance near any flammable materials such as curtains, under shelving or under wall cupboards.
• Use on a flat, stable heat-resistant work surface, away from any contact with water and never use underneath a built in kitchen alcove.

DO NOT:

• Do not let the toaster operate unattended, particularly when toasting for the first time or when settings have been changed.

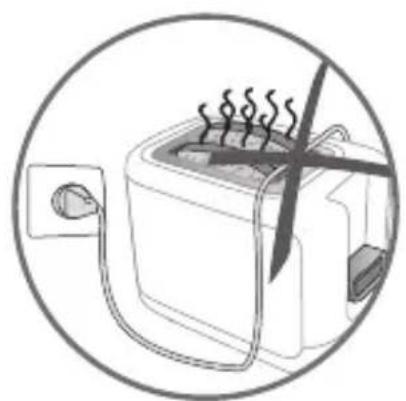

• Do not store the cord or the plug between the slots in the appliance.
• Do not unplug the appliance by pulling on the cord.
• Do not move or carry the appliance during use.
• Do not leave the appliance within the reach of children.
• Do not use outdoors. Avoid humid environments.
• Do not use the appliance for any other use other than that for which it was designed.

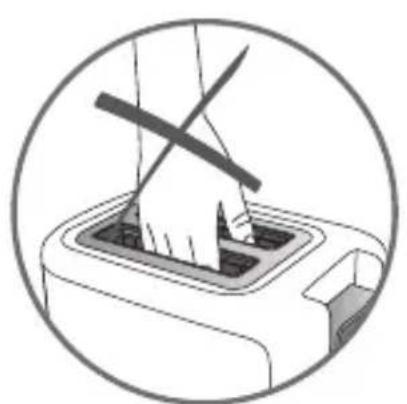

• Do not touch the metal parts or hot surfaces of the appliance when it is working.

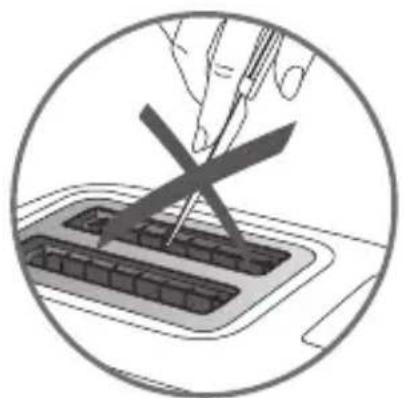

• Oversized foods, metal foil packages, or utensils (spoon, knife, etc.) must not be inserted into a toaster as they may cause an electric shock or fire.

• Do not use accessory attachments that are not recommended by the manufacturer as this may be dangerous.

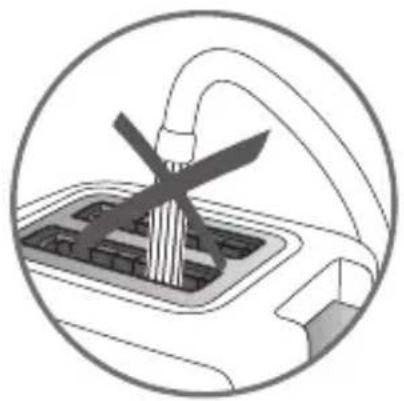

• To protect yourself against and electrical shock do not immerse the cord, plugs, or appliance in water or other liquids.

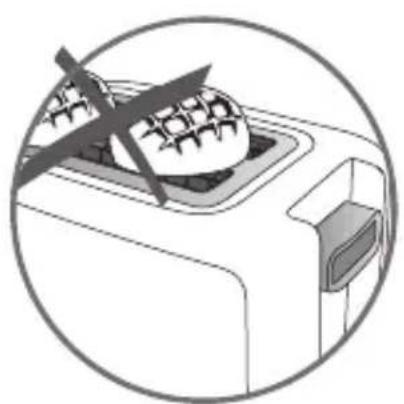

  Do not place any sugar coated type of bread in the toaster or anything that may melt or drop into the toaster, do not toast small pieces of bread or croutons as this may cause damage to the toaster or a risk a fire.
  Do not try to toast very thick slices of bread that could become stuck in the toasting slots.
• Do not use this appliance if:
• it has a damaged cord.
• the appliance has been dropped and has visible damage or does not operate properly.
  In any of these instances, the appliance must be sent to your local approved after-sales service centre to avoid any risk of danger. Refer to the guarantee enclosed.
• Do not let the cord hang over the edge of the worktop or come into contact with hot surfaces.
• Do not place on or near a gas burner, electric ring/hob, or near a heated oven.
• Do not cover this appliance while in use.
• Do not put paper towels, cardboard or plastic in, on or under the toaster.
  If flames were to arise from parts of the toaster, never attempt to extinguish them with water. Unplug the appliance and smother the flames with a damp cloth.
• Do not attempt to dislodge food once the toasting cycle is engaged.

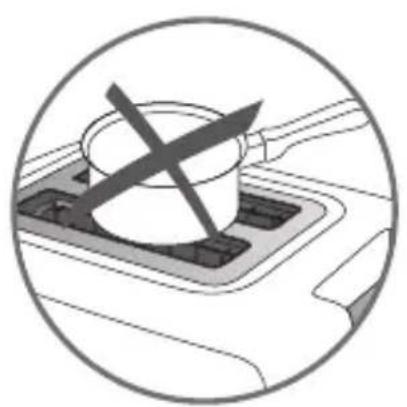

• Do not use this appliance as a source of heating or drying.
• Do not use the toaster for cooking, grilling or defrosting frozen food other than bread products.
• Do not use the appliance to toast bread and warm croissants (or similar products) at the same time (depending on model).
• The metal frame can become very hot. Do not touch it! Use an oven glove or tongs (depending on model).
• Do not use any abrasive cleaning agents (no soda-based scouring products, no scouring pads...), no metallic utensils, metal scouring pads etc.
• For appliances with a metallic finish: Do not use any cleaning products designed for metals: use a soft cloth with a window or glass cleaner.

SAVE THESE INSTRUCTIONS

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

NORME DI SICUREZZA PRECAUZIONI IMPORTANTI:

1. jij≤u|la u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|u|

1

iJb0jI 1

1

J 1

（）

04/12/2 04/12/2 CSC 04/12/2 04/12/2

1

dlaaegs jgsg

i 1

1111111111111111111111111111111111111111111111

"Up" 100000000000000000000000000000000000000000000000000000000000

（）

a 1

.

FOREBYGGELSE AF UHELD I HJEMMET:

HVAD MANIKKE SKAL GORE:
