USER MANUAL XCel Easy Steam IS5500 ROWENTA

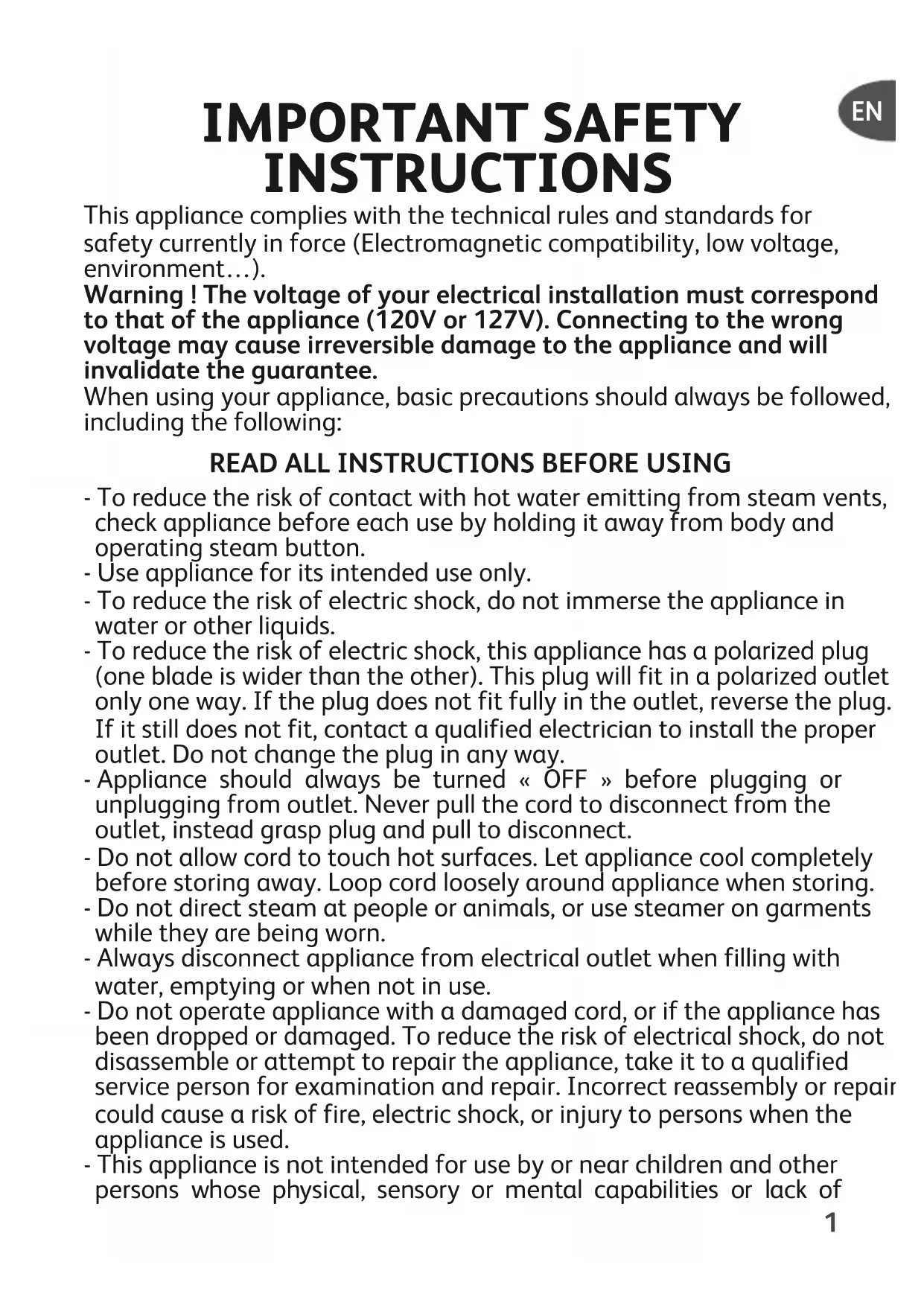

fig.15 fig.19 fig.20 fig.21 9100013091 IS5500 US _110x154 29/04/13 08:54 Page5IMPORTANT SAFETY INSTRUCTIONS This appliance complies with the technical rules and standards for safety currently in force (Electromagnetic compatibility, low voltage, environment…). Warning ! The voltage of your electrical installation must correspond to that of the appliance (120V or 127V). Connecting to the wrong voltage may cause irreversible damage to the appliance and will invalidate the guarantee. When using your appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

- To reduce the risk of contact with hot water emitting from steam vents, check appliance before each use by holding it away from body and operating steam button. - Use appliance for its intended use only. - To reduce the risk of electric shock, do not immerse the appliance in water or other liquids. - To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way. - Appliance should always be turned « OFF » before plugging or unplugging from outlet. Never pull the cord to disconnect from the outlet, instead grasp plug and pull to disconnect. - Do not allow cord to touch hot surfaces. Let appliance cool completely before storing away. Loop cord loosely around appliance when storing. - Do not direct steam at people or animals, or use steamer on garments while they are being worn. - Always disconnect appliance from electrical outlet when filling with water, emptying or when not in use. - Do not operate appliance with a damaged cord, or if the appliance has been dropped or damaged. To reduce the risk of electrical shock, do not disassemble or attempt to repair the appliance, take it to a qualified service person for examination and repair. Incorrect reassembly or repair could cause a risk of fire, electric shock, or injury to persons when the appliance is used. - This appliance is not intended for use by or near children and other persons whose physical, sensory or mental capabilities or lack of

9100013091 IS5500 US _110x154 29/04/13 08:54 Page1experience and knowledge prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the appliance safely. - Children should be supervised by the responsible person to ensure that they do not play with the appliance. - Burns could occur from touching hot metal parts, hot water or steam. Use care when you empty a steam appliance, there may be hot water in the tank or inside the appliance. - Pour water in the water tank only and remove the water tank only when it is empty. - Never drop or insert any object into any opening or hose. - Always keep the hose and nozzle elevated above the water tank. - Steam only in an up and down vertical motion. Never use steamer in a horizontal position or tilt into a backward position, this may result in hot water discharge. - Do not place the steam nozzle directly on any surface or the appliance power cord while it is hot or plugged in. Use the stand provided. - Use caution when changing attachments, as they may contain hot water from condensation. Ensure the attachments are cooled off to avoid contact with hot water. - The use of accessory attachments other than those provided by T-fal is not recommended and may result in fire, electric shock or personal injury. - This unit is for indoor use only. SPECIAL INSTRUCTIONS - To avoid a circuit overload, do not operate another high wattage appliance on the same circuit. If an extension cord is absolutely necessary, a 15-amp rated cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS

ENVIRONMENTAL PROTECTION FIRST ! i Your appliance contains valuable materials which can be recovered or recycled. ‹ When disposing of it, take it to a collection point or an approved service center. To remove the battery, remove the cover screws on the handle and take the battery out.

1. Insert the telescopic pole into the base and turn

the locking ring to secure it into place - fig.2

2. Extend the pole so it is fully extended. and tighten

3. Insert the steam head hook on the top of the

telescopic pole - fig.3

4. Connect the hose to the base by turning the

connector on the end of the hose clockwise - fig.2

5. Place the steam head on the hook - fig.4

Foldable and removable hanger assembly This garment steamer is equipped with a foldable and removable hanger in order to store the steamer easily.

1. Insert it into the hole on the steam head hook -

2. Press it vertically to tighten it on the hook - fig.6

3. Spread out the arms of the hanger - fig.7 and 8

4. Slide the ring to fix the hanger - fig.9

4. Handle with ‘steam

6. Removable water tank

7. Storage compartment

8. ON/OFF switch and steam settings

• Insert the fabric brush into the holes located on the steam head - fig.10.

• Before removing the fabric brush, be sure the appliance is unplugged and totally cool.

• Pull the brush out of the steam head to remove it. TIP: Before using this accessory, check the manufacturer recommendations. It is also recommended that you carry out a test on part of the fabric which cannot be seen. Filling the water tank

• Ensure that the steamer is unplugged - fig.11. Remove the water tank from the base of the appliance by pulling the handle upwards - fig.12. Unscrew the tank cap and fill the tank - fig.13. The tank holds 1,8 liters (60 ounces).

• The steamer must to be used with TAP WATER. If the water in your area is hard, T-fal recommends that you mix half tap water and half distilled water, which reduces the hardness. You can also use bottled spring water or distilled water only.

• After closing the cap, turn the tank down and hold it by the handle. Check out that no water is leaking through the cap.

• Place the water tank on the base - fig.14. If you have any difficulty to placing it, check that the water tank is not the wrong way round. Use

• The steamer works with 2 alkaline LR44 batteries (1,5V), they are included in the appliance. The batteries need to be replaced between 2 and 4 years depending on usage. To change the batteries, remove the cover screws on the handle of the steamer and place the batteries. Close the cover and apply screws to secure it - fig.21.

Be sure unit is unplugged and completely cool before attaching this accessory. IMPORTANT Never use water that contains additives (starch, perfume, aromatic substances, softener, etc) in the steamer. Additives such as these can affect the properties of the steam and lead to the formation of deposits. Never use water completely distilled or demineralized. NB: if the battery is not installed correctly, the steamer will not work. 9100013091 IS5500 US _110x154 29/04/13 08:54 Page4• Only operate the steamer on the floor clear of any materials which may obstruct the base of the steamer, ensure the floor is dry, flat, stable and heat-resistant. Do not obstruct the openings on the lower part of the appliance. This device should not be used on very thick carpets or rugs.

• Expand the pole to the maximum height by unlocking it, pulling it gently and locking it again - fig.15.

• Plug in the power cord and switch the power ‘ON’ on the side of the appliance. The power light indicator must illuminate.

• Select the proper steam flow level according to the type of fabrics (3 different settings to perfecly adapt the steam output to all fabric types, from delicate to thick ones) - fig.16.

• Press the button on the handle: ‘steam on demand system’, the steamer is in a ready mode. Press the button again, steam will start to come out - fig.17.

• The steamer produces steam in 60 seconds.

• Put the garment directly on another hanger that you can hang up on the hook. You can use the removable clips to fix a pant or skirt from the top or to stretch a garment from the bottom.

• Grasp the steam head with the steam vents pointing away from you. Start steaming by brushing material lightly with the grain of the fabric in an up/down vertical motion. The fabric brush opens the weave of the fabrics for better steam penetration.

• Start at the top the garment and gradually move downward. Always steam in a vertical position - fig.18.

• For more ease, we recommend to pull the garment downward with your free hand while steaming. Be careful not to touch the hot steam.

• During use, the hose may make a gurgling noise. This is a normal occurrence due to condensation. If you hear the gurgling noise, hold the hose up to direct the condensation back into the appliance.

• Hang the steam head in an upright position on the hook when not in use.

Warning: Do not allow

the steamer to run dry.

Warning: Do not bend

the steam hose during use or storage. 9100013091 IS5500 US _110x154 29/04/13 08:54 Page5After use

• After using the steamer, turn the switch to ‘OFF’ position. Once the power indicator light turns off, you can unplug the appliance.

• Hang the steam head in an upright position on the hook when not in use.

• Ensure that the appliance has cooled down completely. Fold the hanger and shorten the telescopic pole if you want to easily store the appliance away.

• Empty and rinse the water tank each time before storage in order to flush out any scale particles - fig.19.

• Do not carry the steamer by the water tank handle. This appliance includes luggage style wheels for added convenience when transporting.

• You can store your accessories in the storage compartment. Cleaning

• Clean the main unit with a damp cloth. To maintain maximum performance, your steamer must be descaled occasionally. The time between descaling operations depends on the quality of the water and the frequency with which you use the appliance. The appliance must be descaled at least once every 6 months, after 30 hours of use or after 30 sessions.

• To carry out a descaling operation, follow the following steps:

1. Ensure that the appliance has cooled down

2. Remove the hose and pole from the unit.

4. Allow standing for 60 minutes.

5. Drain the solution out by open the boiler rinsing

cap - fig.20 and allowing the liquid to drain into a sink.

the steam head until it has cooled down completely. CAUTION: Don’t fill the boiler by the steam head holes ! Never immerse the steam head in water ! The steam handle contains electronic components that could be damaged by direct water contact. 9100013091 IS5500 US _110x154 29/04/13 08:54 Page66. Pour 1 litre water into the hose connector to rinse the unit.

7. Close the boiler rinsing cap, reassemble the unit

and put the steam head on the hook.

8. Fill the tank with fresh water and let the steamer

produce steam until the tank is empty.

• In addition to the descaling procedure, we also recommend rinsing the appliance after 50 hours of use or 50 sessions. To carry out a rinsing operation, follow these steps:

1. Ensure the appliance has cooled down.

2. Fill the water tank to the maximum level and put

it back on the base.

3. Shake the appliance gently.

4. Open the drain valve - fig.20 to let the water go

5. Make sure the water tank is empty and there is

no more water into the appliance.

6. Close the boiler rinsing cap.

• We recommend checking the garment care label for manufacturer recommendations before steaming. We also recommend testing the garment on an unobstructed area such as an inner seam.

• Read the recommendations for the maintenance of the fabrics on the labels of the clothing to be steamed.

• Test the strength of the colour of the fabric on an area of the garment that is not visible (inside of a hem).

• Avoid contact between the steam head and silk or velvet.

• Some garments are more easily steamed on the reverse side.

• If you are using the steam head at a position close to the ground, raise the hose frequently in order to avoid the formation of condensation. You may hear a gurgling noise if the hose is obstructed in any way.

• Heavy fabrics may need to be steamed longer.

• Be careful at all times.
