| Product Type | Smoke machine liquid (smoke fluid) |
| Brand | Ibiza Sound |
| Model | SMOKE5LHD |
| Contents | 5 liter canister |
| Appearance | Colorless liquid (may be colored upon request) |
| Odor | None |
| pH | 7 - 8 |
| Density | 1018 kg/m³ at 20°C |
| Boiling point | 100 - 290°C |
| Flash point | Above 175°C |
| Auto-ignition temperature | 370°C |
| Solubility | Soluble in water |
| Main composition | Triethylene glycol (14-26%) and Monopropylene glycol (4-8%) |
| Uses | Shows, events, fire safety training, leak tests, smoke evacuation |
| Target audience | Professional and general public use |
| Handling precautions | Wear protective gloves and safety goggles; ensure good ventilation |
| Storage | In original container, protected from light, well ventilated, between 0 and 50°C |
| Flammability | Non-flammable (high flash point) |
| Hazard classification | Not classified as hazardous according to CLP |
| First aid for skin contact | Wash with plenty of water |
| First aid for eye contact | Rinse with water as a precaution |
| Disposal | Comply with local regulations; do not discharge into the environment |
| Emergency number | ORFILA (France): +33 1 45 42 59 59 |
Frequently Asked Questions - SMOKE5LHD IBIZA SOUND
User questions about SMOKE5LHD IBIZA SOUND
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Chemical product in PDF format for free! Find your manual SMOKE5LHD - IBIZA SOUND and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SMOKE5LHD by IBIZA SOUND.
USER MANUAL SMOKE5LHD IBIZA SOUND
Formede particule:Nonapplicable
RUBRIQUE 14: Informations relatives au transport
Conformément aux exigences de ADR / RID / IMDG / IATA / ADN
14.1.Numero ONU
N° ONU (IMDG): Non applicable
N° ONU (IATA): Non applicable
Groupe d'emballage (IMDG): Non applicable
Groupe d'emballage (IATA): Non applicable
Groupe d'emballage (ADN): Non applicable
Groupe d'emballage (RID): Non applicable

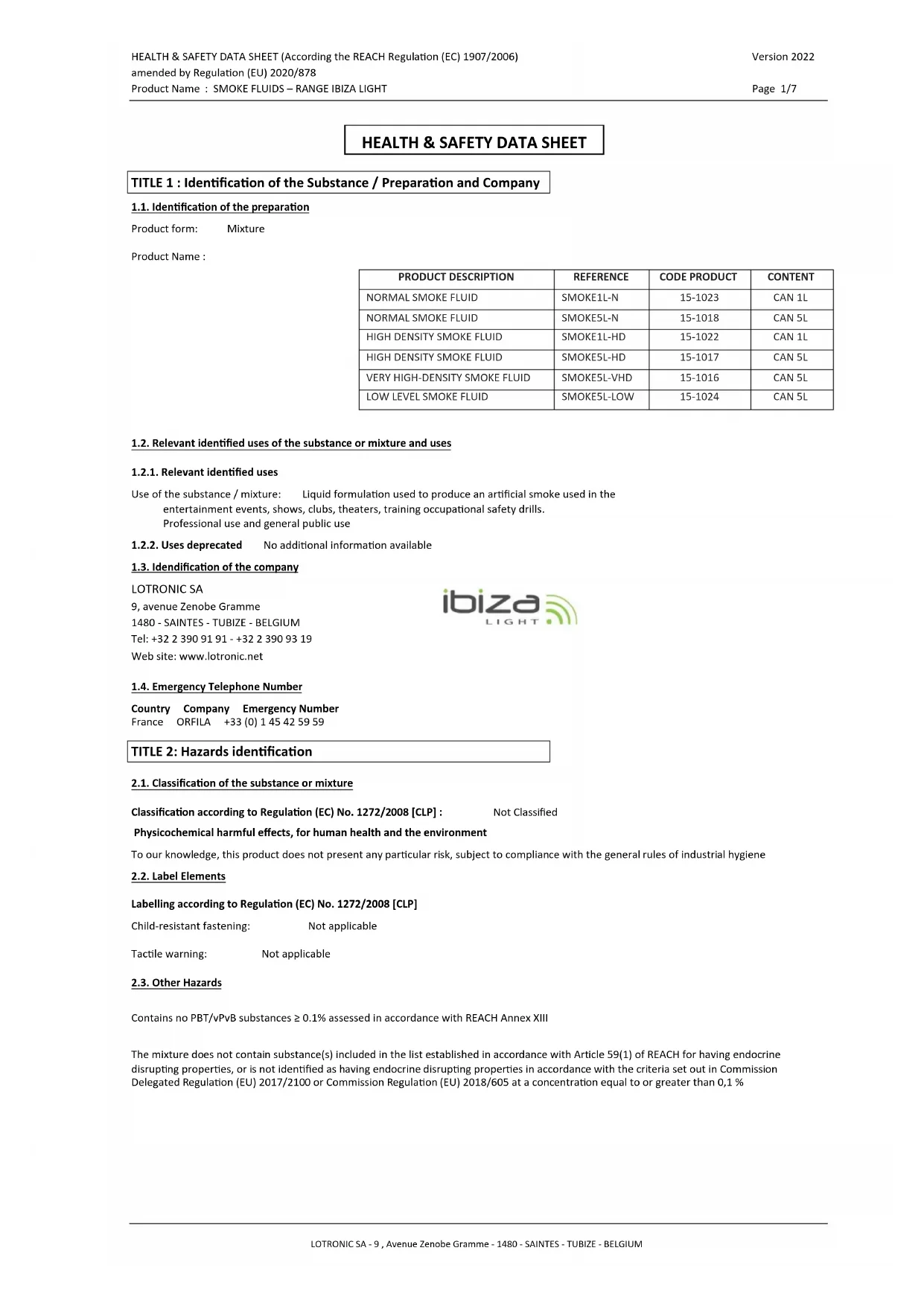

HEALTH & SAFETY DATA SHEET
TITLE 1 : Identification of the Substance / Preparation and Company
1.1. Identification of the preparation
Product form: Mixture
Product Name :
| PRODUCT DESCRIPTION | REFERENCE | CODE PRODUCT | CONTENT |
| NORMAL SMOKE FLUID | SMOKE1L-N | 15-1023 | CAN 1L |
| NORMAL SMOKE FLUID | SMOKE5L-N | 15-1018 | CAN 5L |
| HIGH DENSITY SMOKE FLUID | SMOKE1L-HD | 15-1022 | CAN 1L |
| HIGH DENSITY SMOKE FLUID | SMOKE5L-HD | 15-1017 | CAN 5L |
| VERY HIGH-DENSITY SMOKE FLUID | SMOKE5L-VHD | 15-1016 | CAN 5L |
| LOW LEVEL SMOKE FLUID | SMOKE5L-LOW | 15-1024 | CAN 5L |
1.2. Relevant identified uses of the substance or mixture and uses
1.2.1. Relevant identified uses
Use of the substance / mixture: Liquid formulation used to produce an artificial smoke used in the
entertainment events, shows, clubs, theaters, training occupational safety drills.
Professional use and general public use
1.2.2. Uses deprecated No additional information available
1.3. Identification of the company
LOTRONIC SA
9, avenue Zenobe Gramme
1480 - SAINTES - TUBIZE - BELGIUM
Tel: +32 2 390 91 91 - +32 2 390 93 19
Web site: www.lotronic.net
LIGHT
1.4. Emergency Telephone Number
Country Company Emergency Number
France ORFILA +33 (0) 145425959
TITLE 2: Hazards identification
2.1. Classification of the substance or mixture
Classification according to Regulation (EC) No. 1272/2008 [CLP]: Not Classified
Physicochemical harmful effects, for human health and the environment
To our knowledge, this product does not present any particular risk, subject to compliance with the general rules of industrial hygiene
2.2.Label Elements
Labelling according to Regulation (EC) No. 1272/2008 [CLP]
Child-resistant fastening: Not applicable
Tactile warning: Not applicable
2.3. Other Hazards
Contains no PBT/vPvB substances ≥ 0.1% assessed in accordance with REACH Annex XIII
The mixture does not contain substance(s) included in the list established in accordance with Article 59(1) of REACH for having endocrine disrupting properties, or is not identified as having endocrine disrupting properties in accordance with the criteria set out in Commission Delegated Regulation (EU) 2017/2100 or Commission Regulation (EU) 2018/605 at a concentration equal to or greater than 0.1%
TITLE 3 : Composition / information on ingredients
3.1. Substance Not applicable
3.2.Mixture
This mixture does not contain any substances to be mentioned according to the criteria of section 3.2 of REACH Annex II
| Product | Product Identifier | % | Classification according to Regulation EC No 1272/2008 (CLP) |
| TRIETHYLENE GLYCOL | (CAS Number) 112-27-6 (CE Number) 203-953-2 (N° REACH) 01-2119438366-35 | 14 - 26 | Unclassified |
| MONOPROPYLENE GLYCOL | (CAS Number) 57-55-6 (CE Number) 200-338-0 (N° REACH) 01-2119456809-23 | 4-8 | Unclassified |
Full text of H-phrases: see section 16
TITLE 4:First Aid
4.1. First aid indications
First aid after inhalation :
Remove the person to fresh air and keep her in a position comfortable for breathing.
First aid for skin contact:
Wash skin with plenty of water.
First aid after eye contact
Rinse eyes with water as a precaution.
First aid after ingestion:
Call a poison control center or physician if you feel unwell.
4.2. Main symptoms and effects, acute and delayed
No additional information available.
4.3. Indication of immediate medical attention and special treatment needed
Symptomatic treatment.
TITLE 5: Measures against fire
5.1. Extinguishing Media
Suitable extinguishing media:
Water spray. Dry powder. Foam. Carbon dioxide.
5.2. Special hazards arising from the substance or mixture
Hazardous decomposition products in case of fire :
Possible release of toxic fumes
5.3. Advice for firefighters
Protection during firefighting :
Self-contained breathing apparatus
Complete protective clothing
Do not attempt to take action without suitable protective equipment.
TITLE 6: Measures Accidental Release
6.1. Personal precautions, protective equipment and emergency procedures
6.1.1. For non emergency personnel
Emergency Procedures:
Ventilate spill area
6.1.2. For emergency responders
Protection Equipment:
Do not attempt to take action without suitable protective equipment..
For further information, refer to Section 8: "Control of individual exposure-protection".
6.2. Precautions for environmental protection
Avoid release into the environment.
6.3. Methods and materials for containment and cleaning
Methods for cleaning up:
Take up liquid spill into absorbent material.
Other information's:
Dispose of materials or solid residues at an authorized site
6.4. Reference to other sections
For more information, see Section 13.
TITLE 7: Handling and storage
7.1. Precautions for safe handling
Precautions for safe handling: Ensure good ventilation of the work station. Wear personal protective equipment.
Hygiene measures: Do not eat, drink or smoke when using this product. Always wash hands after handling the product.
7.2. Conditions for safe storage, including any incompatibilities
Storage conditions: Keep only in the original container. Keep in the dark
Store in a well ventilated area.
Store away from light.
Storage temperature: 0 - 50 °C
7.3. Particular end use
No additional information available
TITLE 8: Exposure controls / personal protection
8.1. Control Parameters
8.1.1 National occupational exposure and biological limit values: No additional information available
8.1.2. Recommended monitoring procedures: No additional information available
8.1.3. Air contaminants formed: No additional information available
8.1.4. DNEL and PNEC: No additional information available
8.1.5. Control banding: No additional information available
8.2. Exposure controls
8.2.1 Appropriate engineering controls:
8.2.2 Personal protective equipment symbol (s)
8.2.2.1. Eye and face protection Eye protection:
Appropriate engineering controls: Ensure good ventilation of the work station.
Safety glasses
8.2.2.2. Skin protection :
Skin and body protection: Wear suitable protective clothing
Hand protection: Protective gloves
8.2.2.3. Respiratory protection
Respiratory protection:
8.2.2.4. Thermal hazards
No additional information available
8.2.3. Environmental exposure controls
Environmental exposure controls: Avoid release to the environment.
TITLE 9 : Physical and chemical properties
9.1. Basic physical and chemical properties Information
Physical state: Liquid
Colour: Colorless, Yellow, Pink
Odour: no smell
Odour threshold: No data available
pH: 7-8
Relative evaporation rate (butylacetate = 1):
Fusion point: Not applicable
Freezing point: No data available
Boiling point : 100 - 290 °C
Flash point: >175°C
Auto ignition temperature : 370 °C
Decomposition Temperature : No data available
Flammability (solid, gas): Not applicable
Vapor Pressure: No data available
Relative vapor density at 20^ No data available
Relative density: No data available
Density : 1018 kg /m3 at 20^ .
Solubility: Log Pow: No data available
Kinematic viscosity: No data available
Dynamic viscosity: No data available
Explosive properties: No data available
Oxidising properties: No data available
Explosion limits: No data available
Soluble in water. Partially soluble in organic solvents by the presence of glycolic derivative
9.2. Other informations
9.2.1. Information with regard to physical hazard classes: No additional information available
9.2.2. Other safety characteristics: No additional information available
TITLE 10: Stability and reactivity
10.1. Reactivity
The product is not reactive under normal conditions of use, storage and transport.
10.2. Chemical stability
Stable under normal conditions
10.3. Possibility of hazardous reactions
Reacts violently with oxidation agents
10.4. Conditions to avoid
None under conditions of storage and handling recommendations (see section 7).
10.5. Incompatible materials
Strong acids. oxidizing agent.
10.6. Hazardous decomposition products
Thermal decomposition generates: Carbon monoxide. Carbon dioxide.
TITLE 11: Toxicological informations
11.1. Information on hazard classes as defined in Regulation ( EC ) n° 1272/2008
Acute toxicity (oral): Not classified
Acute toxicity (dermal) : Not classified
Acute toxicity (inhalation) : Not classified
Skin corrosion/irritation : Not classified
Serious eye damage/irritation : Not classified
Respiratory or skin sensitisation : Not classified
Germ cell mutagenicity Carcinogenicity: Not classified
Reproductive toxicity : Not classified
STOT-single exposure : Not classified
STOT-repeated exposure : Not classified
Aspiration hazard Not classified
11.2. Information on other hazards
No additional information available
TITLE 12 : Ecological informations
12.1. Toxicity
Ecology - general:
long-term adverse effects in the environment
Hazardous to the aquatic environment, short-term (acute):
The product is not considered harmful to aquatic organisms nor to cause
Not classified
Hazardous to the aquatic environment, long-term (chronic): Not classified
12.2. Persistence and degradability
No additional information available
12.3. Potential for bioaccumulation
No additional information available
12.4. Mobility in soil
No additional information available
12.5. Results of PBT and vPvB assessment
No additional information available
12.6. Endocrine disrupting properties
No additional information available
12.7. Other adverse effects
No additional information available
TITLE 13 : Considerations Disposal
13.1. Waste treatment methods
Waste treatment methods:
Dispos of contents/contaner in accordance with licensed collector's sorting instructions.
TITLE 14: Transport informations
In accordance with the requirements of ADR / RID / IMDG / IATA / ADN
14.1. ONU number
UN-N° (ADR) : Not applicable
UN-N" (IMDG) : Not applicable
UN - N° (IATA): Not applicable
UN-N°(ADN)： Not applicable
UN-Na (RID): Not applicable
14.2. Official shipping transport name ONU
Proper Shipping Name (ADR): Not applicable
Proper Shipping Name (IMDG): Not applicable
Proper Shipping Name (IATA): Not applicable
Proper Shipping Name (ADN): Not applicable
Proper Shipping Name (RID): Not applicable
14.3. Hazard class for transport
ADR-Hazard class for transport (ADR) Not applicable
IMDG - Hazard class for transport (IMDG): Not applicable
IATA - Hazard class for transport (IATA) : Not applicable
ADN - Hazard class for transport (ADN): Not applicable
RID-Hazard class for transport (RID): Not applicable
14.4. Packing Group
Packing Group (ADR): Not applicable
Packing Group (IMDG) : Not applicable
Packing Group (IATA) : Not applicable
Packing Group (ADN): Not applicable
Packing Group (RID): Not applicable
14.5. Environmental hazards
Dangerous for the environment: No
Marine pollutant: No
Other information's: No supplementary information available
14.6. Special precautions for user
-Overland transport No data available
- By sea transport No data available
-Air transport No data available
-Inland Waterway transport No data available
- Rail transport No data available
14.7. Transport in bulk according to Annex II of MARPOL 73/78 and the IBC Code
Not applicable
TITLE 15: Regulatory information
15.1. Regulations / legislation for the substance or mixture Safety, health and environment
15.1.1. EU regulations
Contains no REACH substances with Annex XVII restrictions
Contains no substance on the REACH candidate list
Contains no REACH Annex XIV substances
Contains no substance subject to Regulation (EU) No 649/2012 of the European Parliament and of the Council of 4 July 2012 concerning the export and import of hazardous chemicals.
Contains no substance subject to Regulation (EU) No 2019/1021 of the European Parliament and of the Council of 20 June 2019 on persistent organic pollutants
Contains no substance subject to Regulation (EU) 2019/1148 of the European Parliament and of the Council of 20 June 2019 on the marketing and use of explosives precursors.
15.1.2. National regulations
| France | |
| Occupational diseases | |
| Code | Description |
| RG 84 | Conditions caused by liquid organic solvents for professional use: saturated or unsaturated aliphatic or cyclic liquid hydrocarbons and mixtures thereof; liquid halogenated hydrocarbons; nitrated derivatives of aliphatic hydrocarbons; alcohols; glycols, glycol ethers; ketones; aldehydes; aliphatic and cyclic ethers, including tetrahydrofuran; esters; dimethylformamide and dimethylacetamine; acetonitrile and propionitrile; pyridine; dimethylsulfone and dimethylsulfoxide |
15.2. Chemical safety assessment No chemical safety assessment has been carried out
TITLE 16: Other informations
| Indication of changes | |||
| Section | Changed item | Change | Comments |
| SDS EU format | Modified | ||
| Abreviations and acronyms | |
| ADN | European Agreement concerning the International Carriage of Dangerous Goods by Inland Waterways |
| ADR | European Agreement concerning the International Carriage of Dangerous Goods by Road |
| ATE | Acute Toxicity Estimate |
| BCF | Bioconcentration factor |
| BLV | Biological limit value |
| BOD | Biochemical oxygen demand (BOD) |
| COD | Chemical oxygen demand (COD) |
| DMEL | Derived Minimal Effect level |
| DNEL | Derived-No Effect Level |
| EC - N° | European Community number |
| EC50 | Median effective concentration |
| EN | European Standard |
| IARC | International Agency for Research on Cancer |
| IATA | International Air Transport Association |
| IMDG | International Maritime Dangerous Goods |
| LC50 | Median lethal concentration |
| LD50 | Median lethal dose |
| LOAEL | Lowest Observed Adverse Effect Level |
| NOAEC | No-Observed Adverse Effect Concentration |
| NOAEL | No-Observed Adverse Effect Level |
| NOEC | No-Observed Effect Concentration |
| Abreviations and acronyms | |
| OECD | Organisation for Economic Co-operation and Development |
| OEL | Occupational Exposure Limit |
| PBT | Persistent Bioaccumulative Toxic |
| PNEC | Predicted No-Effect Concentration |
| RID | Regulations concerning the International Carriage of Dangerous Goods by Rail |
| SDS | Safety Data Sheet |
| STP | Sewage treatment plant |
| ThOD | Theoretical oxygen demand (ThOD) |
| TLM | Median Tolerance Limit |
| VOC | Volatile Organic Compounds |
| CAS n° | Chemical Abstract Service number |
| N.O.S | Not Otherwise Specified |
| vPvB | Very Persistent and Very Bioaccumulative |
| ED | Endocrine disrupting properties |
This information is based on our current knowledge and is intended to describe the product for the purposes of health, safety and environmental requirements only. It should not therefore be construed as guaranteeing any specific property of the product.
