USER MANUAL Nitro WG325.9 WORX

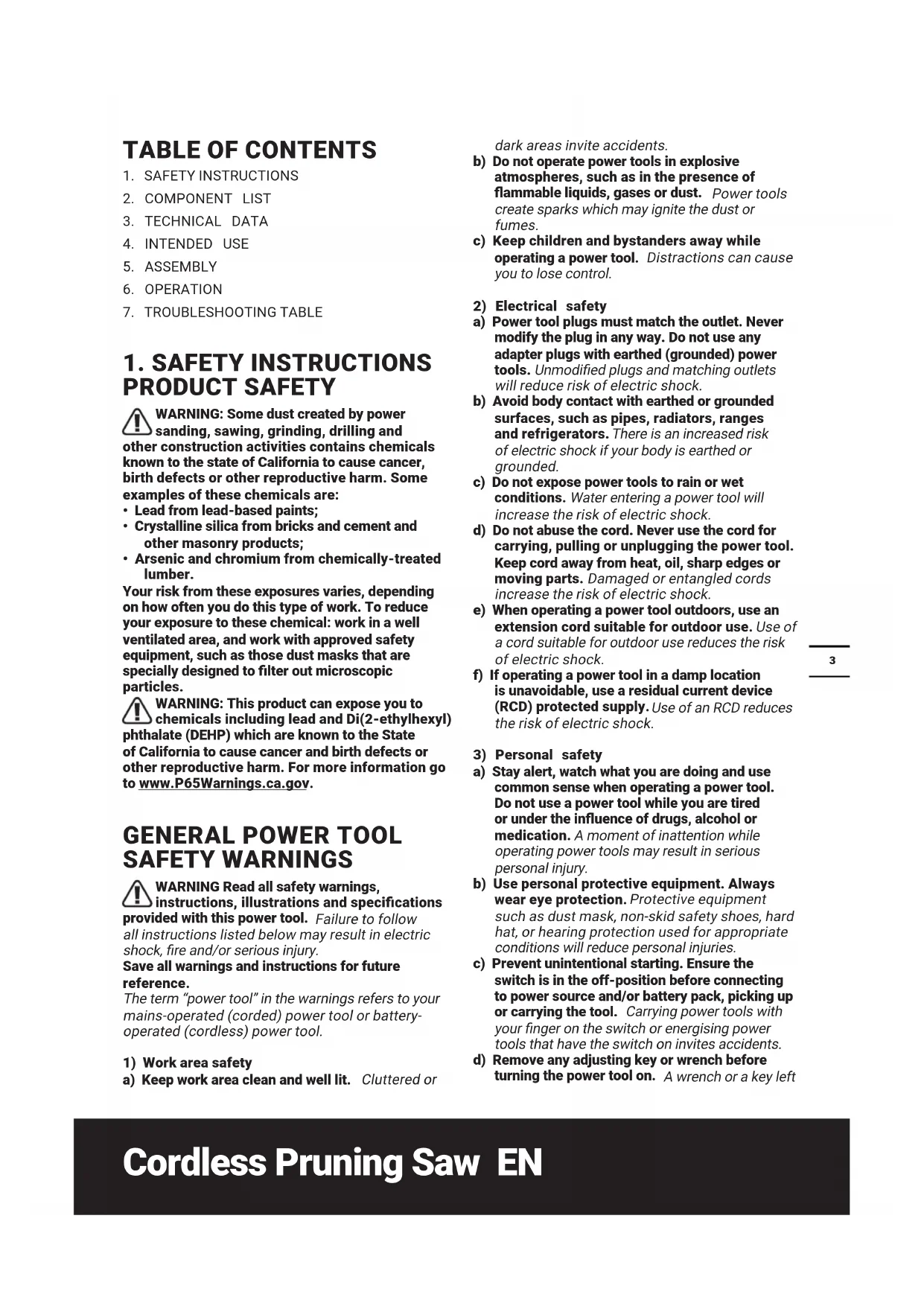

WARNING: Some dust created by power

sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints;

• Crystalline silica from bricks and cement and other masonry products;

• Arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemical: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are

WARNING: This product can expose you to

chemicals including lead and Di(2-ethylhexyl) phthalate (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SAFETY WARNINGS WARNING Read all safety warnings,

provided with this power tool. Failure to follow all instructions listed below may result in electric

Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of

Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.

will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired

medication. A moment of inattention while operating power tools may result in serious

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with

tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key leftCordless Pruning Saw EN

attached to a rotating part of the power tool may

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts.

long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct

rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

the manufacturer. A charger that is suitable for

when used with another battery pack.

designated battery packs. Use of any other

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If

liquid contacts eyes, additionally seek medical help.

irritation or burns. e) Do not use a battery pack or tool that is

batteries may exhibit unpredictable behaviour

or excessive temperature.

temperature above 265 °F (130 °C) may cause explosion. g) Follow all charging instructions and do not charge the battery pack or tool outside

instructions. Charging improperly or at

repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

1) General pruning saw safety warnings:

a) Keep all parts of the body away from the saw chain when the pruning saw is operating. Before you start the pruning saw, make sure the saw chain is not contacting anything.

moment of inattention while operating pruning saws may cause entanglement of your clothing or body with the saw chain. b) Hold the pruning saw by insulated gripping surfaces only, because the saw chain mayCordless Pruning Saw EN

contact hidden wiring. Saw chains contacting a ”live” wire may make exposed metal parts of the pruning saw ”live” and could give the operator an electric shock. c) Wear safety glasses protection. Further protective equipment for hearing, head, hands, legs and feet is recommended. Adequate

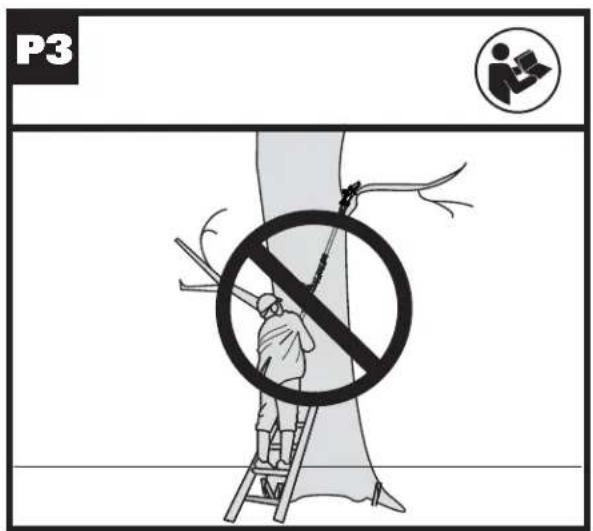

chain. d) Do not operate a pruning saw, on a ladder, from a rooftop, or any unstable support. Operation of a pruning saw in this manner could result in

e) Always keep proper footing and operate the

secure and level surface. Slippery or unstable surfaces may cause a loss of balance or control of the pruning saw. f) When cutting a limb that is under tension , be alert for spring back. When the tension in

pruning saw out of control. g) Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain and be whipped toward you or pull you off balance. h) Carry the pruning saw by the front handle with the pruning saw switched off and away from your body. When transporting or storing the

Proper handling of the pruning saw will reduce the likelihood of accidental contact with the moving saw chain.

i) Follow instructions for lubricating, chain

tensioning and changing the bar and chain. Improperly tensioned or lubricated chain may either break or increase the chance for kickback. j) Cut wood only. Do not use pruning saw for purposes not intended. For example: do not use pruning saw for cutting metal, plastic, masonry or non-wood building materials. Use of the pruning saw for operations different than intended could result in a hazardous situation. k) This pruning saw is not intended for tree felling. Use of the pruning saw for operations different than intended could result in serious

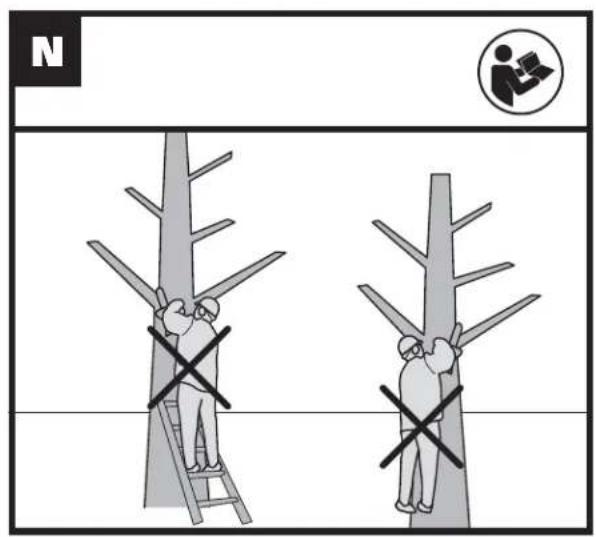

l) Do not operate a pruning saw in a tree unless

Operation of a pruning saw in a tree without proper training could increase the risk of serious personal injury. m) Follow all instructions when clearing jammed material, storing or servicing the pruning saw. Make sure the switch is off and the battery pack is removed. Unexpected actuation of the

should, as a minimum, practise cutting logs on a saw-horse or cradle.

0) Recommendation to have sharpening and

maintenance of the saw chain performed by authorised service centres.

2) Causes and operator prevention of kickback:

Kickback may occur when the nose or tip of the

closes in and pinches the saw chain in the cut. Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator. Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator. Either of these reactions may cause you to lose control of the saw which could result in serious

safety devices built into your saw. As a pruning saw user, you should take several steps to keep your

or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:

encircling the pruning saw handles, and position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the pruning saw. b) Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the pruning saw in unexpected situations. c) Only use replacement bars and chains

Incorrect replacement guide bars and saw chains may

d) Follow the manufacturer’s sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback.

WARNING: Read all safety warnings and

instructions. Failure to follow the warnings and instructions may result in &8<Cordless Pruning Saw EN

products in damp or wet locations.

2) Don’t Use In Rain.

3) Keep Children Away - All visitors should be kept

at a distance from work area.

4) Dress Properly - Do not wear loose clothing or

Use of rubber gloves and substantial footwear is recommended when working outdoors. Wear protective hair covering to contain long hair.

5) Use Safety Glasses - Always use face or dust

mask if operation is dusty.

rate for which it was designed.

8) Don’t Overreach - Keep proper footing and

balance at all times.

9) Stay Alert - Watch what you are doing. Use

common sense. Do not operate product when you are tired.

10) Store Idle Products Indoors - When not in

use, products should be stored indoors in dry, and high or locked-up place - out of reach of children.

11) Maintain Product With Care - Keep cutting edge

sharp and clean for best performance and to

lubricating and changing accessories. Keep handles dry, clean, and free from oil and grease.

12) Check Damaged Parts - Before further use

of the product, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated elsewhere in this manual.

1. Prevent unintentional starting. Ensure the

switch is in the off-position before connecting to battery pack, picking up or carrying the

on the switch or energizing product that have the switch on invites accidents.

2. Disconnect the battery pack from the product

accessories, or storing product. Such preventive safety measures reduce the risk of starting the product accidentally.

manufacturer .A charger that is suitable for one

when used with another battery pack.

battery packs. Use of any other battery packs

5. When battery pack is not in use, keep it away

that can make a connection from one terminal to another. Shorting the battery terminals

from the battery; avoid contact. If contact

contacts eyes, additionally seek medical help.

irritation or burns.

7. Do not use a battery pack or product that is

batteries may exhibit unpredictable behavior

9. Follow all charging instructions and do not

charge the battery pack or product outside

instructions. Charging improperly or at

may damage the battery and increase the risk

person using only identical replacement parts. This will ensure that the safety of the product is maintained.

11. Do not modify or attempt to repair the product

or the battery pack (as applicable) except as indicated in the instructions for use and care.

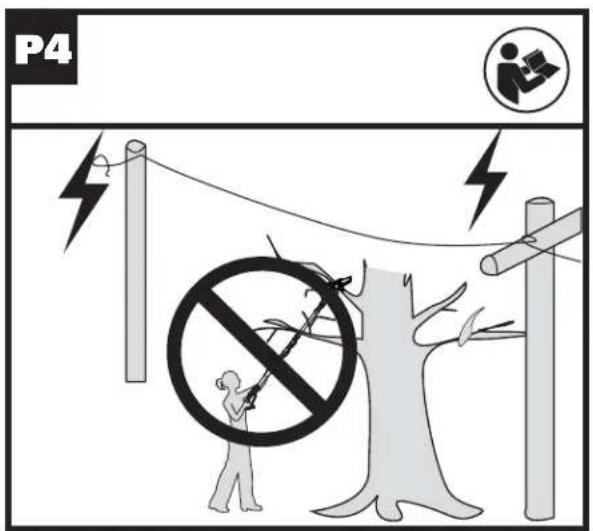

2. WARNING – Do not operate near electrical

power lines. The unit has not been designed to provide protection from electric shock in the event of contact with overhead electric lines, Consult local regulations for safe distances from overhead electric power lines and ensure that the operating position is safe and secure before operating the saw chain pole pruner. a) Keep all parts of the body away from the saw chain. Make sure the switch is off when clearing

after the switch is turned off. A moment of inattention while operating the pole pruner may

b) Carry the pole pruner by the handle with the saw chain stopped. When transporting or storing

cover. Proper handling of the pole pruner willCordless Pruning Saw EN

chain. c) Hold the pole pruner by insulated gripping surfaces only, because the saw chain may contact hidden wiring or its own cord. A saw chain contacting a “live” wire may make exposed metal parts of the pole pruner “live” and could give the operator an electric shock. d) Keep cable away from cutting area. During operation the cable may be hidden in shrubs and can be accidentally cut by the saw chain. e) Do not use the pole pruner in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning. f) To reduce the risk of electrocution, never use near any electrical power lines. Contact with or

or electric shock resulting in death. g) Always use two hands when operating the pole pruner. Hold the pole pruner with both hands to avoid loss of control. h) Always use head protection when operating the pole pruner overhead. Falling debris can result

BATTERY PACK a) Do not dismantle, open or shred cells or battery pack.

storage in direct sunlight. c) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other

a connection from one terminal to another. Shorting the battery terminals together may cause burns or a

d) Do not subject battery pack to mechanical shock. e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. f) Do not use any battery pack which is not designed for use with the equipment. g) Keep battery pack out of the reach of children. h) Always purchase the battery pack recommended by the device manufacturer for the equipment. l) Keep battery pack clean and dry. j) Wipe the battery pack terminals with a clean dry cloth if they become dirty. k) Battery pack needs to be charged before use. Always use the correct charger and refer to the manufacturer’s instructions or equipment manual for proper charging instructions. l) Do not leave battery pack on prolonged charge when not in use. m) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.

Worx. Do not use any charger other than that

o) Retain the original product literature for future reference. p) Use only the battery pack in the application for which it was intended. q) Remove the battery from the equipment when not in use. r) Dispose of properly. s) Do not mix cells of different manufacture, capacity, size or type within a device. t) Keep the battery away from microwaves and high pressure.

SAVE THESE INSTRUCTIONS

Instructions concerning the proper techniques for limbing and cross-cutting

Limbing is removing the branches from a fallen tree. When limbing leave larger lower limbs to support the log off the ground. Remove the small limbs in one cut as illustrated in Figure 1. Branches under tension should be cut from the bottom up to avoid binding the pruning saw. Figure 1

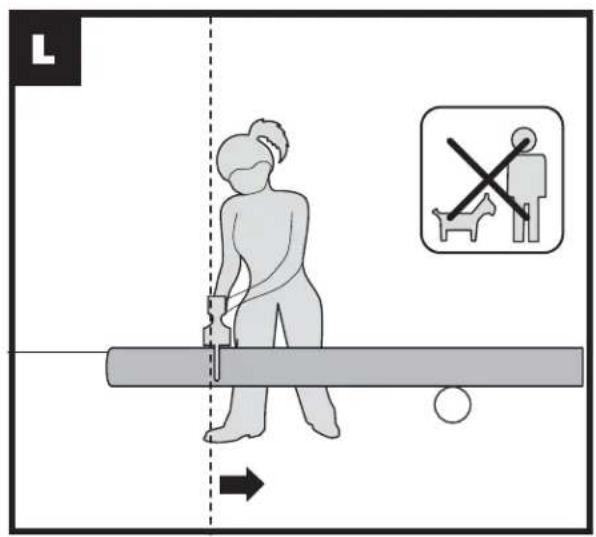

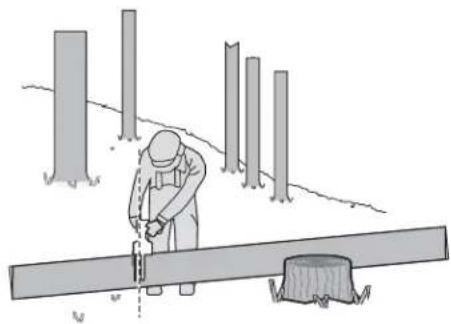

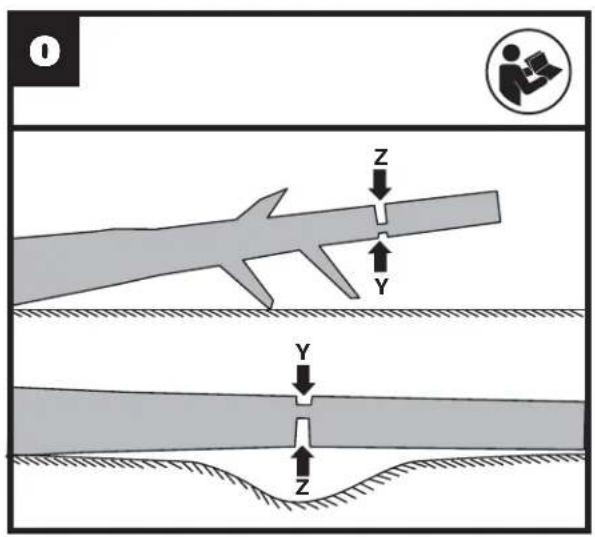

Bucking is cutting a log into lengths. It is important

evenly distributed on both feet. When possible, the log should be raised and supported by the use of limbs, logs or chocks. Follow the simple directions for easy cutting. When the log is supported along its entire length as illustrated in Figure 2, it is cut from the top (overbuck), avoid contacting ground as this will greatly reduce the chain sharpness.Cordless Pruning Saw EN

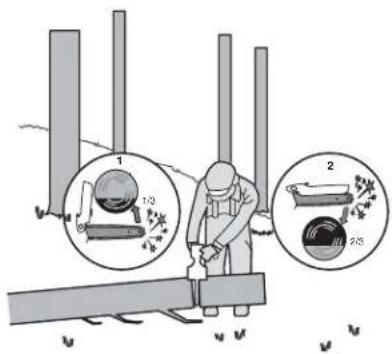

Figure 2 When the log is supported on one end, as illustrated 8@[@

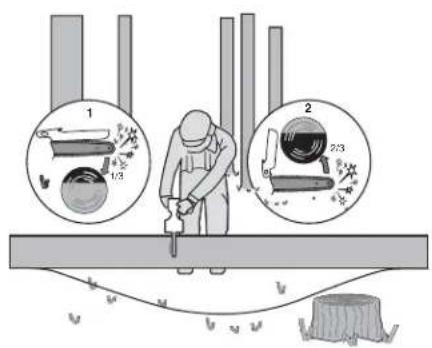

1/3 Figure 3 When the log is supported on both ends, as 8Q[@

2/3 1/3 Figure 4 When bucking on a slope always stand on the uphill side of the log, as illustrated in Figure 5. When “cutting through”, to maintain complete control release the cutting pressure near the end of the cut without relaxing your grip on the pruning saw handles. Don’t let the chain contact the ground. After completing the cut, wait for the saw chain to stop before you move the pruning saw. Always stop the motor before moving from tree to tree. Figure 5 SYMBOLS

must read instruction manual Wear ear protection Wear eye protection Wear dust mask Wear head protection Wear protective footwear Warning of danger from overhead electric-power linesCordless Pruning Saw EN

Do not expose to rain Do not burn Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. Li-Ion battery, battery must be recycled Beware of pruning saw kickback and avoid contact with bar tip Wear protective gloves Lock Unlock POSITEC Inc. has established a partnership with the RBRC Corporation to recycle any Positec batteries with the RBRC-call2recycle seal. For environmental protection, please do not discard batteries in the trash. After the batteries’ life cycle is ended, then please call 1-800- 822-8837 for a free service that will properly dispose of the battery.19

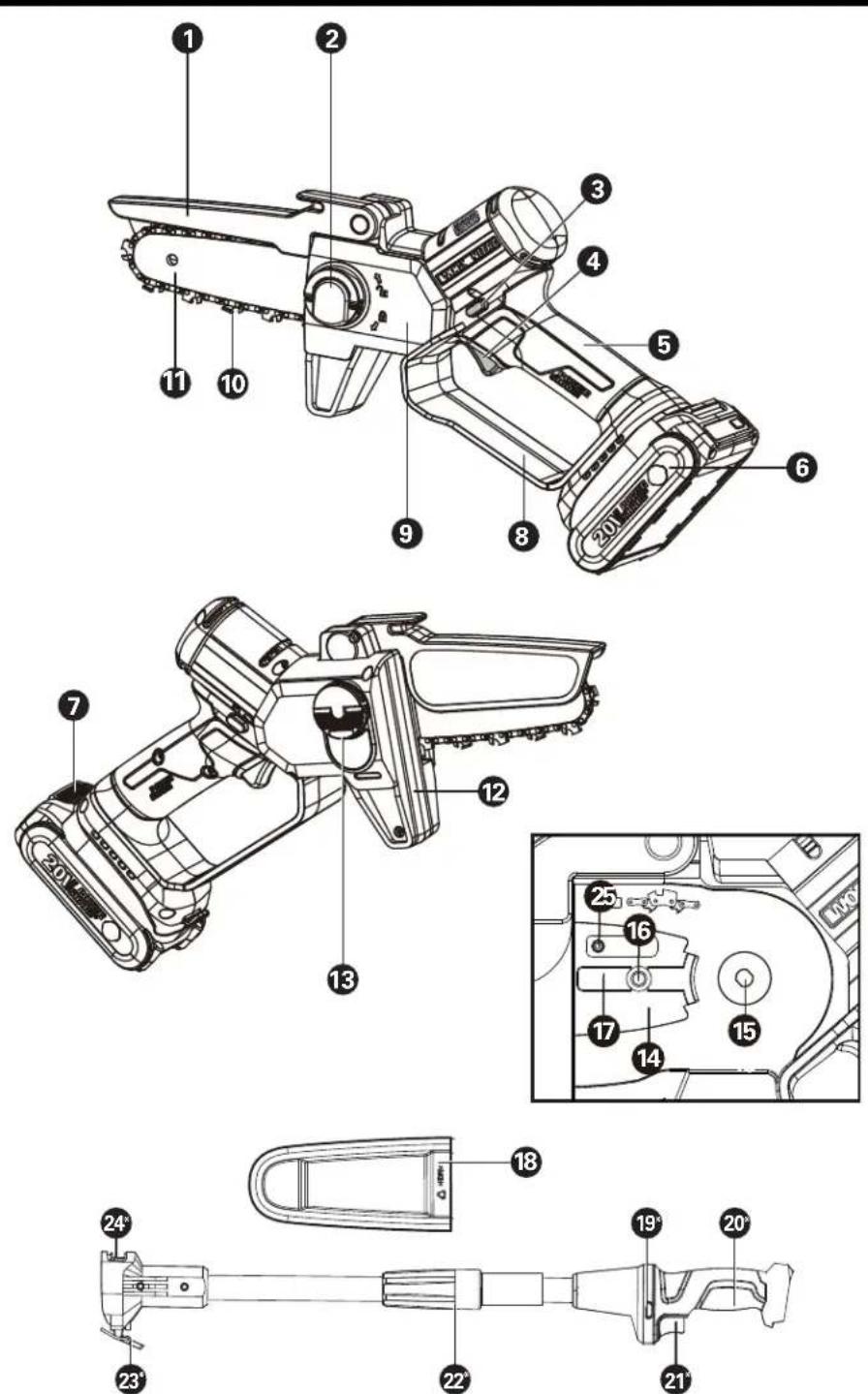

• Not all the accessories illustrated or described are included in standard delivery.

Type WG325 WG325.X (3 - designation of machinery, representative of battery-operated pruning saw) WG325 WG325.X ** Voltage 20 V Max.*** Bar length 5 inch (12 cm) Chain speed Chain pitch 0.3 inch (7.6 mm) Number of chain drive links

Extension pole weight 2.0 lbs (0.9 kg) Machine weight (chain & bar included) (bare tool) 2.4lbs(1.1kg)(bare tool weight) **The “X” noted at the end of the model number is a placeholder that represents a variation to the origi nal model (kit contents or packaging change). “X” may be replaced with any number from “1” to “999” or English letter “A” to “Z” or “M1” to” M9”.”. *** Voltage measured without workload. Initial bat- tery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

SUGGESTED BATTERIES AND

CHARGERS Category Type Capacity 20V Battery WA3669 2.0 Ah 20V Charger WA3881 2.0 A We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.1

• The pruning saw is intended for cutting only wood and branches up to a diameter corresponding to the length of the pruning saw guide bar.

• The pruning saw must be used at ground level or from a suitable platform that is completely stable and secure.

• The pruning saw is intended for outdoor use only.

• The pruning saw is not intended for any other use.

• Mounting of parts on the pruning saw is authorized only for original or manufacturer-approved spare parts (chain guides or saw chains for example)

combinations as indicated in the manual.

• The user is responsible for any accident resulting

WARNING! Do not install the battery pack before it has been completely assembled. Always use gloves when handling the chain.

MOUNTING THE SAW CHAIN

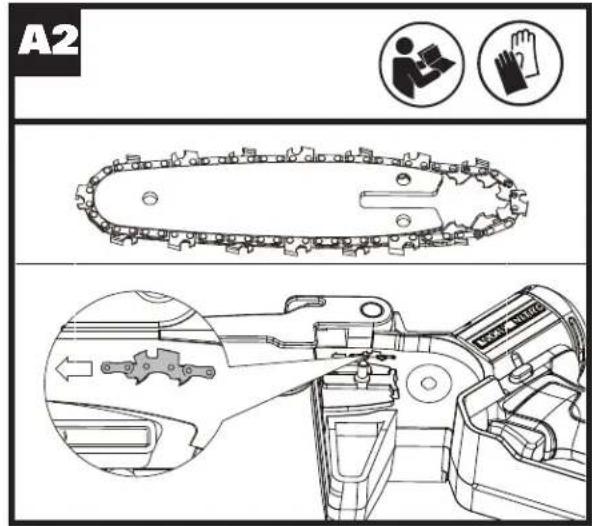

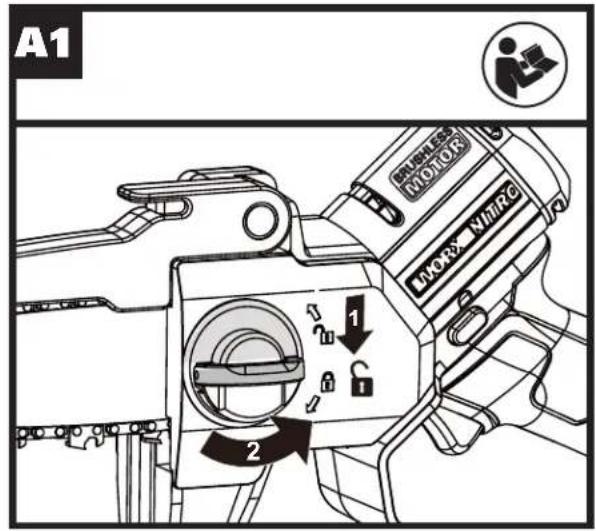

1. Unpack all parts carefully. Remove the Housing-

Cover by turning the Housing-Cover Knob in a counterclockwise direction. (See Fig. A1)

2. Place the pruning saw on a solid, level surface.

3. Use only genuine Worx Chains or those

recommended for Guide Bar.

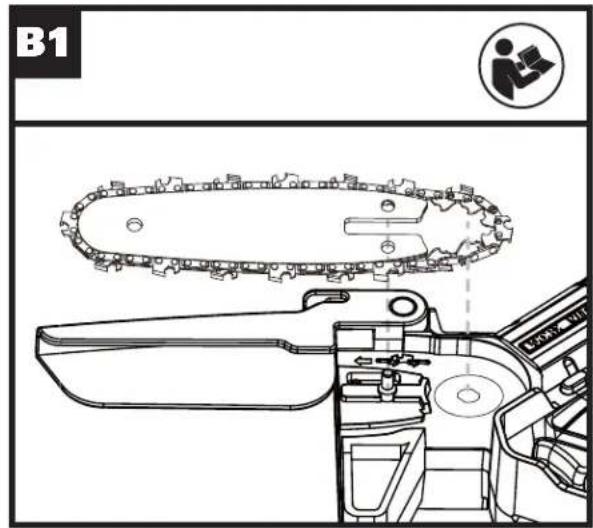

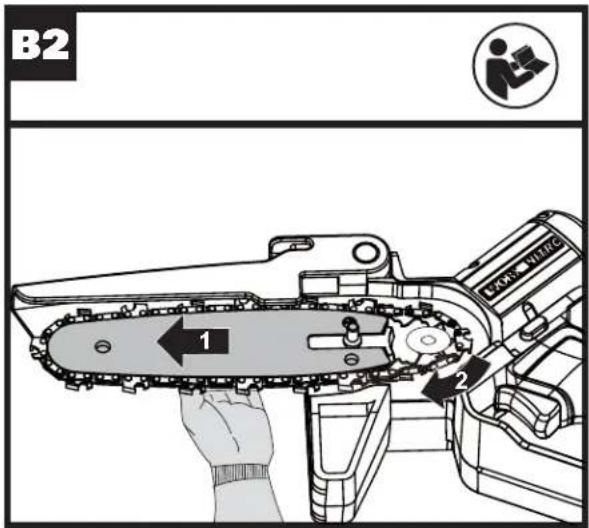

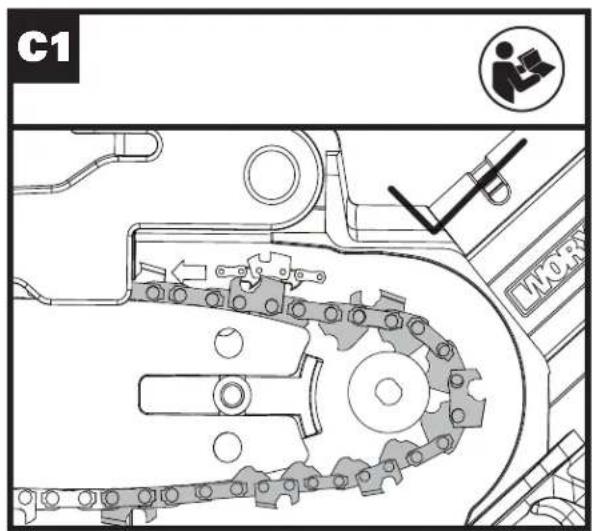

4. Slide the Chain in the slot around the Guide Bar.

Ensure the Chain is in correct running direction by comparing it to the chain icon on the Guide Bar, or referring to the chain direction symbol found on the saw body. (See Fig. A2)

5. Fit the Chain onto the Drive Sprocket, so that the

Fastening Bar Bolt and the Bar Locating Tab on

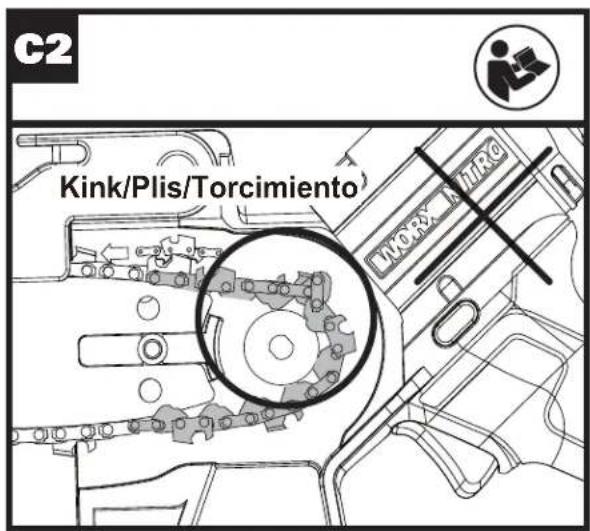

6. Assure all parts are seated properly. Make

sure the drive links are fully seated in the Drive Sprocket (See Fig. C1), avoiding a kink as shown in Fig. C2. If kink occurs, pick up the Chain at the

kink out. NOTE: Chain should rotate freely and be free of kinks.

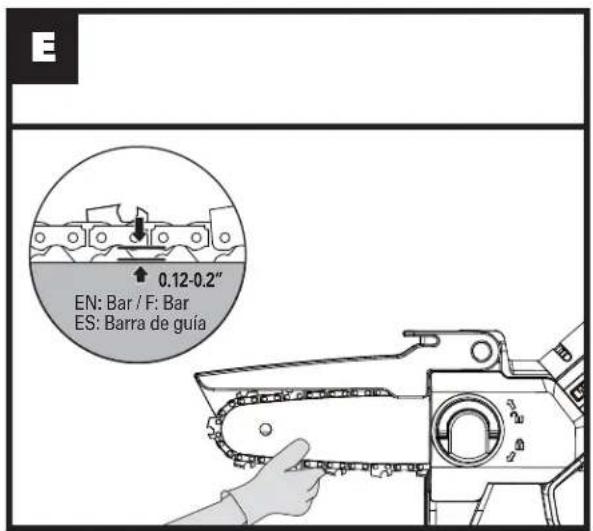

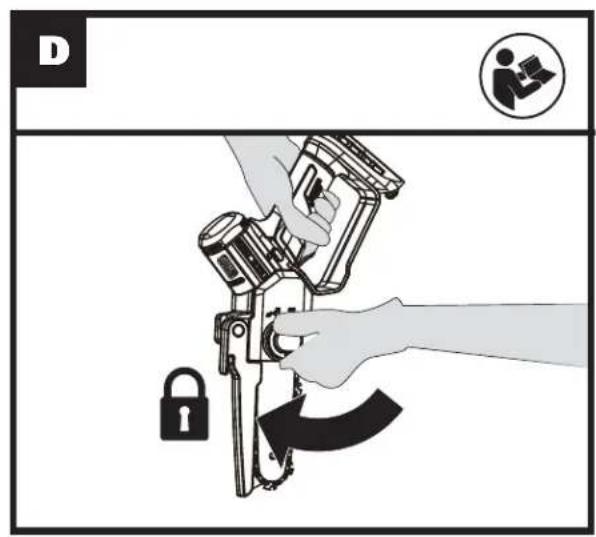

7. Fit the Housing Cover. Tilt the guide bar forward

where the guide bar tip is pushed in an vertically downward direction. This will remove slack from the chain. The correct chain tension is reached when the chain can be raised approx. Half the drivelink depth from the guide bar in the center. This should be done by using one hand to raise the chain against the weight of the machine. Then tighten the Housing Cover by turning the Housing-Cover Knob clockwise until it is tight. (See Fig. D) NOTE: The chain is properly tensioned when it can be lifted off of the Guide Bar and the drivelink is within the rail of the Guide Bar. (See Fig. E) NOTE: The chain will stretch while cutting and lose proper tension. When the chain becomes loose, completely unscrew the Housing-Cover Knob or turn the knob around three full turns in a counter-clockwise direction, then retighten the Housing-Cover Knob to properly reset the chain tension by repeating Steps 1-7 listed above. NOTE: New saw chains will stretch. Check the

tighten when the Chain becomes loose around the Guide Bar.

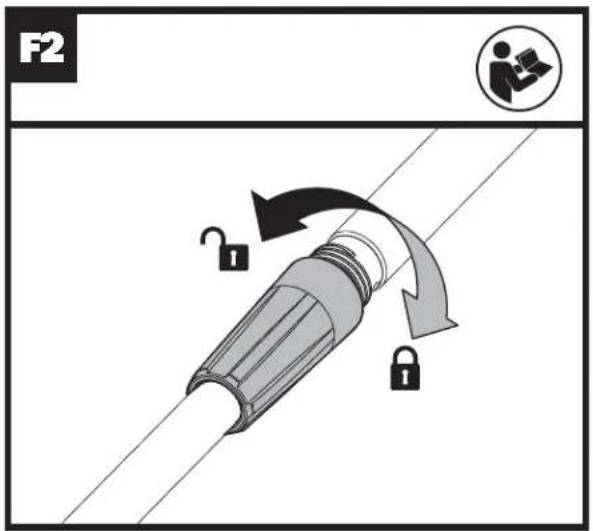

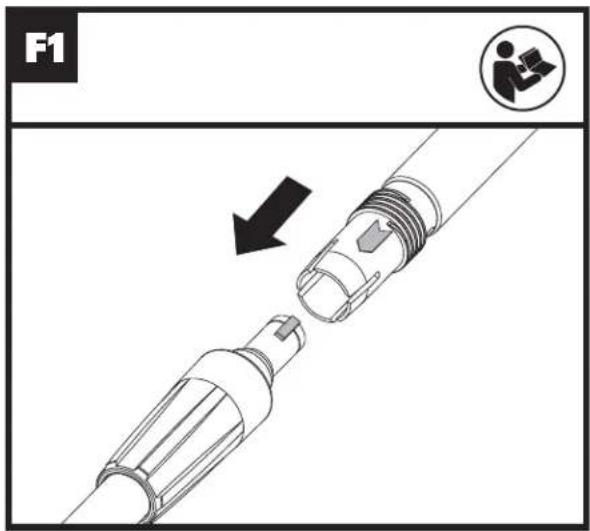

ASSEMBLING THE EXTENSION POLE

Align and insert the handle of extension pole into the shaft. Rotate the Locking Collar clockwise to lock. (See Fig. F1, F2) NOTE: place.

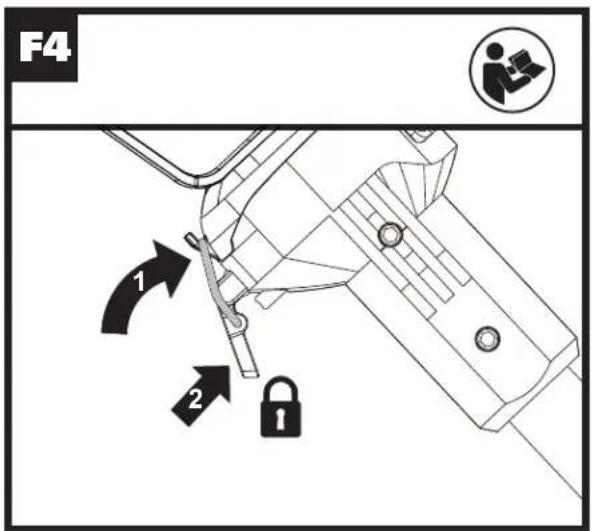

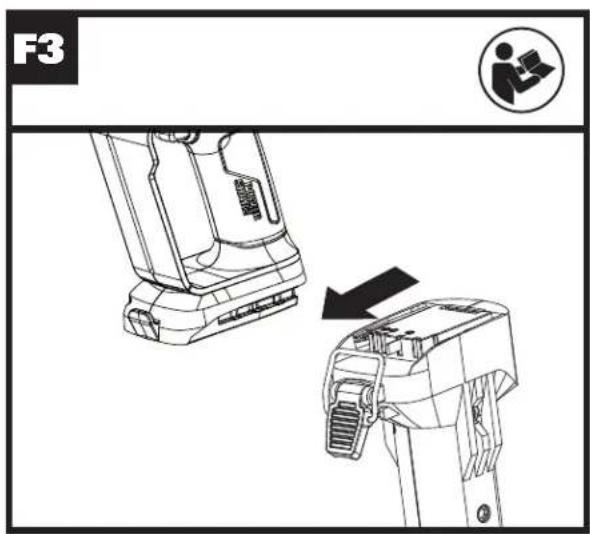

ASSEMBLING THE EXTENSION POLE TO THE

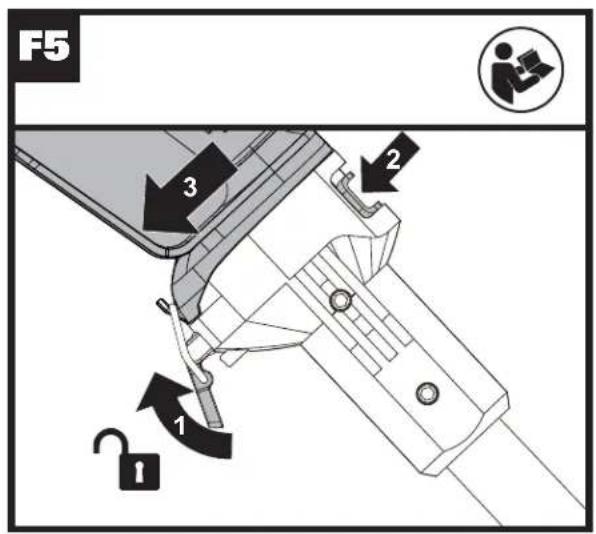

MACHINE (See Fig F3, F4) Step 1: Align and insert the extension pole into the saw. Step 2: Hang the buckle on the hook of the saw. Press the Clamping Lever to tighten the extension pole to the machine. NOTE: Make sure the extension pole is locked into position securely before operation. REMOVING THE EXTENSION POLE (See Fig. F5) Loosen the Clamping Lever to release the buckle. Press the Extension Pole Release Button to disconnect the extension pole with the saw. WARNING! When using this machine with the Extension Pole, make sure that the battery pack has been removed. LUBRICATION (See Fig.G1, G2)

operate the Pruning Saw without chain oil or at an empty oil tank level, as this will result in extensive damage to the product. NOTE: Chain life and cutting capacity depend on optimum lubrication. Therefore, the chain should be oiled before operation. Filling oil tank (See Fig.G1):

WARNING: Removing the battery pack before

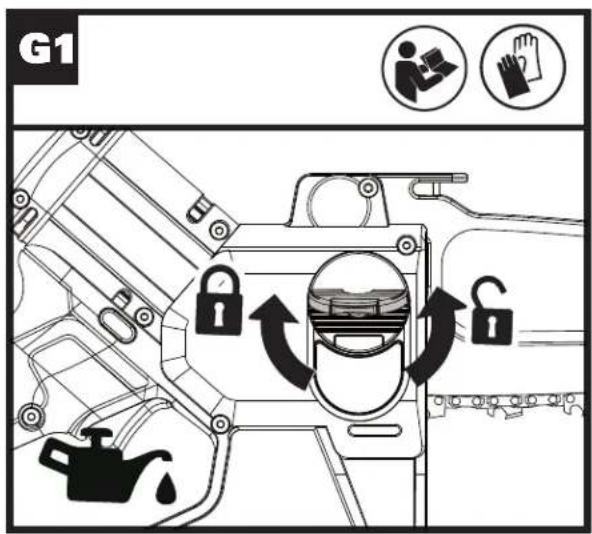

1. Set Pruning Saw on any suitable surface with oil

unscrew the cap by turning it counter-clockwise.

3. Add bar and chain oil until tank is full.

cap and tighten by turning clockwise until hand tight. IMPORTANT: To allow venting of the oil tank, small breather channels are provided

prevent leakage, and ensure machine is left in a horizontal position when not in use. It is important to use bar and chain lubricant (not provided) that is formulated to perform over a wide temperature range with no dilution required. This can be found at the location where you purchased this saw or your local hardware store. Do not use dirty, used or otherwise contaminated oils. Damage may occur to the bar or chain.Use of non approved oil will void the warranty. Do not swallow. If swallowed, call a physician immediately. Keep out of reach of children. Store

WARNING:Cutting edges on chain are sharp.

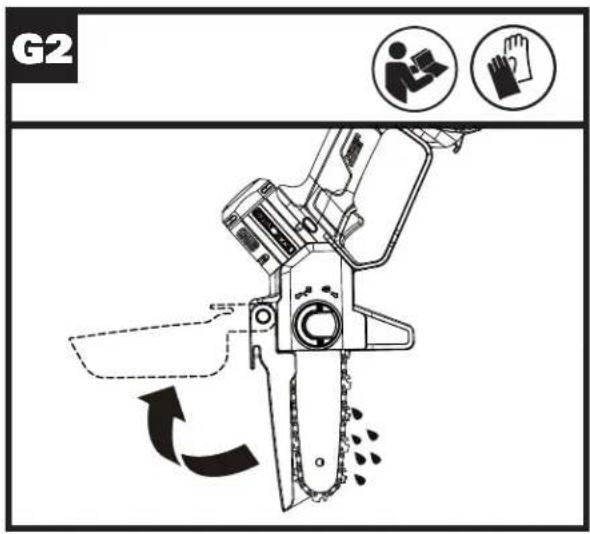

Use protective gloves. Lift the Retractable Guard to the maximum position

Fig.G2) Proper functioning of the automatic oiler can be checked by running the Pruning Saw and pointing the tip of the guide chain bar towards a piece of cardboard or paper on the ground. If an increasing oil pattern develops on the cardboard,

no oil pattern, despite a full oil reservoir, contact WorxNitro customer service agent or WorxNitro approved service agent. Caution: Do not touch the ground with the chain. Ensure safety clearance of 40cm.

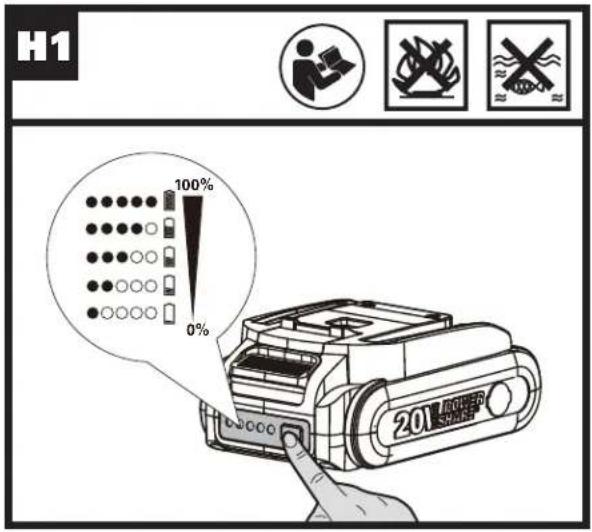

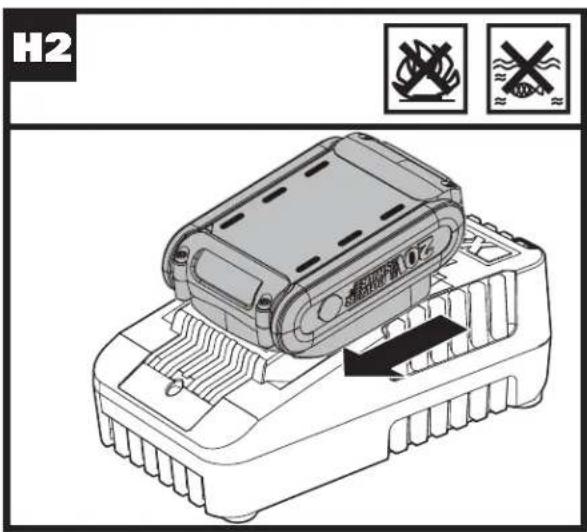

WARNING! The charger and battery pack are specially designed to work together so do not attempt to use any other devices. Never insert or

pack connections because of an electrical failure and hazard will occur. NOTE: Your battery pack is UNCHARGED and you must charge once before use. The battery charger supplied is matched to the Li-ion battery installed in the machine. Do not use another battery charger. (1) CHARGING YOUR BATTERY PACK (See Fig. H1, H2) The Li-ion battery is protected against deep discharging. When the battery is empty, the machine is switched off by means of a protective circuit. In a warm environment or after heavy use, the battery pack may become too hot to permit charging. Allow time for the battery to cool down before recharging. (2) TO REMOVE OR INSTALL BATTERY PACK (See Fig. I) Depress the Battery Pack Release Button to remove the Battery Pack from your tool. After recharging, insert the Battery Pack into the battery port. A

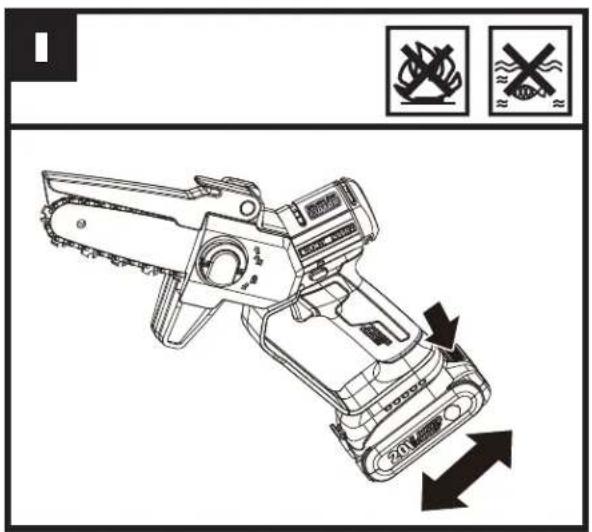

until a click is heard. Check to see if the battery is fully secured. NOTE: When removing the battery pack, hold it

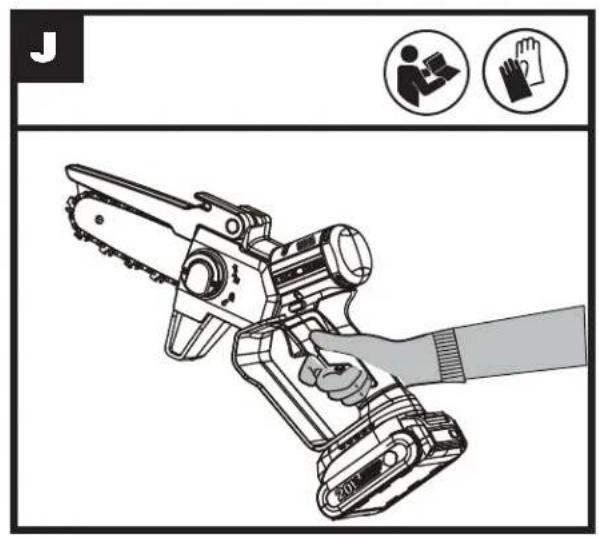

SAW (See Fig. J) Hold and control the pruning saw with one hand on the Grip Area – wrap your thumb around the Grip Area.

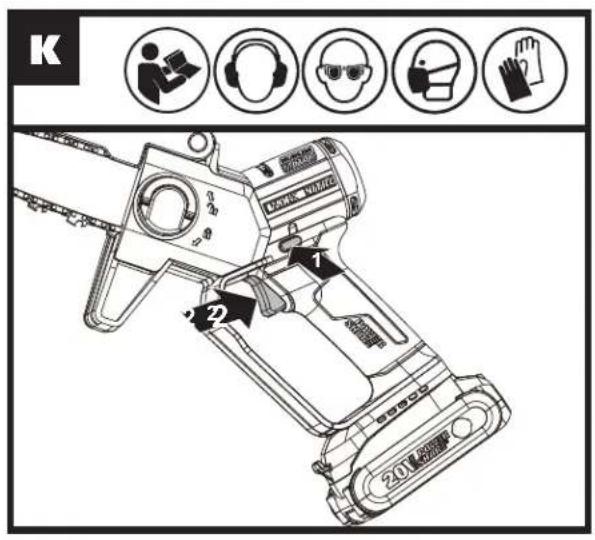

2. SWITCHING ON AND OFF (See Fig. K)

ATTENTION: Check the battery pack before using your cordless tool. Only use the battery pack listed in the accessories section. For switching on the tool, press the Lock-Out

in this position. The Lock-Out Button can now be released. For switching off'

IMPORTANT: Check recent replaced chain tension about every 10 minutes during operation. (1) Installing the battery pack into the machine. (2) Make sure section of log to be cut is not laying on the ground. This will keep the chain from touching the ground as it cuts through the log. Touching the ground while the Chain is moving is dangerous and will dull the Chain. (3) When ready to make a cut, push the Lock-Out Button completely in with the right thumb and squeeze the trigger. This will turn saw on. Releasing the trigger will turn the saw off. Make sure the saw is running at full speed before starting a cut. (4) When starting a cut, slowly place moving chain against the wood. The wood should be as close

in place to avoid possible bouncing or skating (sideways movement) of saw. (5) Guide the saw using light pressure and do notCordless Pruning Saw EN

put excessive force on the saw, letting the saw do its work. The motor will overload and can

rate for which it was intended. (6) Remove the saw from a cut with the saw running

off Trigger. Make sure the chain has stopped before setting the saw down. (7) Keep practicing on scrap logs in a secure working area until you are comfortable, using a

Kickback Safety Devices On This Saw This saw has a low-kickback chain and reduced kickback Guide Bar. Both items reduce the chance of kickback. However, kickback can still occur with this saw. The following steps will reduce the risk of kickback.

• Keep all safety items in place on saw. Make sure they work properly.

• Do not overreach or cut above shoulder height.

• Keep solid footing and balance at all times.

• Stand slightly to the left side of saw. This keeps your body from being in direct line with chain.

• Do not let Guide Bar nose touch anything when chain is moving.

• Never try cutting through two logs at same time. Only cut one log at a time.

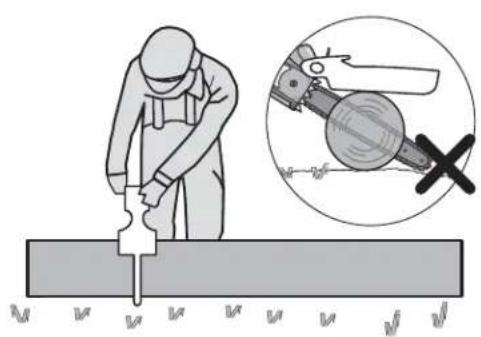

• Do not bury the Guide Bar nose or try plunge cut (boring into wood using Guide Bar nose).

• Watch for shifting of wood or other forces that may pinch chain.

• Use extreme caution when reentering a previous cut.

• Use only the low-kickback chain and Guide Bar that were supplied with this pruning saw or recommended.

• Never use a dull or loose chain. Keep chain sharp with proper tension. How to use Saw Safely

1. Use the pruning saw only with secure footing.

2. Hold the pruning saw at the right-hand side of

your body (See Fig. L).

3. The Chain must be running at full speed before it

makes contact with the wood.

4. Use the Base Plate to secure the saw onto the

wood before starting to cut.

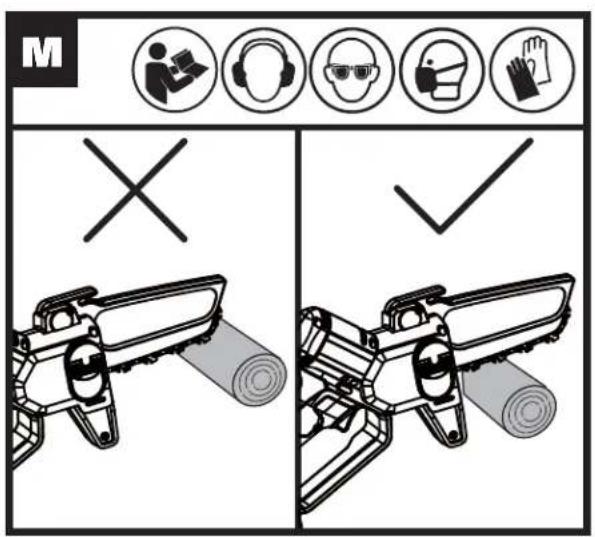

5. Use the Base Plate as a leverage point while

cutting. (See Fig. M)

6. Do not operate the saw with arms fully extended,

or stand on a ladder while sawing. (See Fig. N) Never use the pruning saw above shoulder height. Cutting wood under tension (See Fig. O)

WARNING: When cutting a limb that is under

tension, use extreme caution. Be alert for wood springing back. When wood tension is released, limb could spring back and strike operator causing severe injury or death. When sawing logs supported on both ends, start the

below, in order to avoid contact of the pruning saw with the ground. When sawing logs supported on

the cut from above (Z) in order to avoid log splitting

Cutting with extension pole

1. Install the battery pack into the machine.

2. Before cutting a high branch, consider all the

same points detailed in the previous section “Trimming Branches” but pay particular attention to the likely path of the falling branch.

WARNING: Do not stand directly below a branch

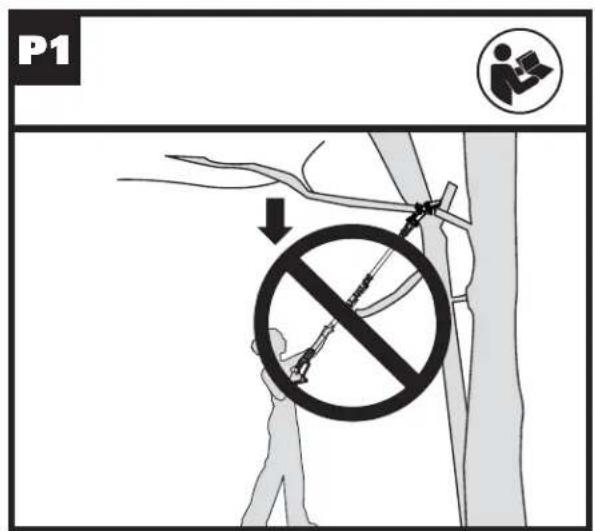

being cut. Keep bystanders far away. Do not stand on a ladder or other type of unstable support while using the tool. Do not use the tool near cable, electrical power or telephone lines. Keep 3m away from all power lines. (See Fig. P1-P4)

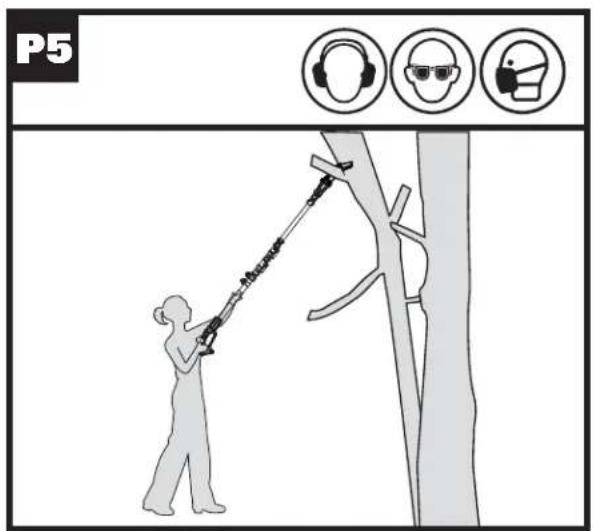

3. Use both hands to grip Pole Saw. Use only

designated grip areas when operating Pole Saw

must wrap around Pole Saw handle and pole.

Divide your weight evenly on both feet.

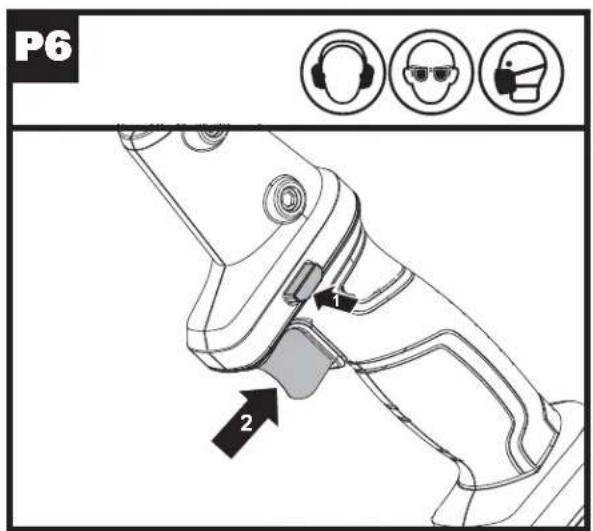

5. When ready to make a cut, press the Lock-out

saw is running at full speed before starting a cut.

6. When starting a cut, place moving chain

avoid possible bouncing or skating (sideways movement) of saw.

7. Guide Pole Saw using light pressure. Do not

force Pole Saw. The motor will overload and can

rate for which it was intended.

8. Remove Pole Saw from a cut with saw running

at full speed. Stop Pole Saw by releasing trigger. Make sure chain has stopped before setting Pole Saw down.

CLEAN RESIDUAL OIL AFTER OPERATION

Lift the Retractable Guard to the maximum position for 3 to 5 times. (See Fig.G2) NOTE: The Oil Outlet cannot be faced towards people. The Chain and Guide bar should be faced down.Cordless Pruning Saw EN

SAW MAINTENANCE Follow maintenance instructions in this manual. Proper cleaning of saw and chain and Guide Bar maintenance can reduce chances of kickback. Inspect and maintain saw after each use. This will increase the service life of your saw. NOTE: Even with proper sharpening, risk of kickback can increase with each sharpening.

MAINTENANCE AND STORAGE OF PRUNING SAW

1. Remove the battery pack

• Before moving from one place to another

• Before changing accessories or attachments, such as saw chain and guard

2. Inspect pruning saw before and after each

use. Check saw closely if guard or other part has been damaged. Check for any damage that may affect operator safety or operation of saw. Check for alignment or binding of moving parts. Check for broken or damaged parts. Do not use pruning saw if damage affects safety or operation. Have damage repaired by authorized service center. To locate an authorized service center, visit www.worx.com.

3. Maintain pruning saw with care.

• Never expose saw to rain or direct moisture.

• Keep chain sharp, clean, and lubricated for better and safer performance.

• Follow steps outlined in this manual to sharpen chain.

• Keep handles dry, clean, and free of oil and grease.

• Keep all screws and nuts tight.

4. When servicing, use only identical replacement

5. When not in use, always store pruning saw

• in a high or locked place, out of children’s reach

• with Bar and Housing Cover in place Bar Maintenance To maximize bar life, the following bar maintenance is recommended. The bar rails that carry the chain should be cleaned before storing the tool or if the bar or chain appear to be dirty. The rails should be cleaned every time the chain is removed. To clean the Bar rails.

1. Remove Housing-Cover, Bar and Chain. (see

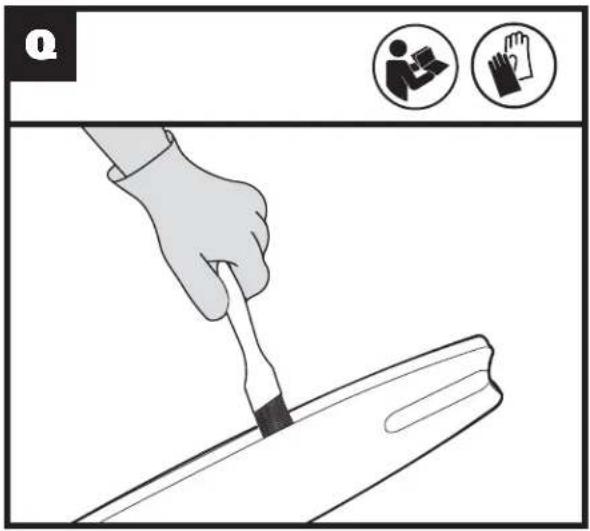

2. Using a wire brush, screwdriver or similar tool,

clear the residue from the inner groove of the bar. (See Fig. Q)

3. Make sure to clean oil passages thoroughly.

Conditions which require Chain and Guide Bar maintenance:

• Saw cuts to one side or at an angle.

• Saw has to be forced through the cut.

• Inadequate supply of oil to the bar and chain. Check the condition of the Guide Bar each time the chain is sharpened. A worn Guide Bar will damage

After each use, remove the battery pack, clean all sawdust from the Guide Bar and sprocket hole.

square edges and sides. File Rail Edges and Sides Square Worn Groove Correct Groove Replace the Guide Bar when the groove is worn, the Guide Bar is bent or cracked, or when excess heating or burring of the rails occurs. If replacement

your saw in the repair parts list or on the decal located on the pruning saw. Replacing Bar & Chain Replace chain when cutters are too worn to sharpen or when chain stops. Only use replacement chain noted in this manual. Inspect Guide Bar before sharpening chain. A worn or damaged Guide Bar is unsafe. A worn or damaged Guide Bar will damage chain. It will also make cutting harder.

Remove the battery pack before servicing. Severe injury or death could occur from electrical shock or body contact with moving chain. Cutting edges on chain are sharp. Use protective gloves when handling chain.

of 30° to the guide bar. Keep chain sharp. Your saw will cut faster and more safely. A dull chain will cause undue sprocket, Guide Bar, chain, and motor wear. If you must force chain into wood and cutting creates only sawdust with few large chips, chain is dull.

The ambient temperature range for the use and storage of tool and battery is 0

C (32 °F - 113 °F). The recommended ambient temperature range for the charging system during charging is 0

The following table gives checks and actions that you can perform if your machine does not operate

WARNING: Switch off and remove the battery pack before investigating fault.

Symptom Possible Cause Remedy Chainsaw fails to operate Battery charge is depleted. Charge the battery pack. Chainsaw operates intermittently Over heating Temporarily stop usage and let the tool cool down in a cool, ventilated location. Applying too much pressure while cutting. Apply relatively less pressure while cutting Loose connection. Contact service agent 1-866-354-Worx (9679). Internal wiring defective.

defective. Debris is clogged between chain and housing cover.

bar over- heats Chain is over tensioned

Chain is not properly oiling. Oil reservoir may be empty Add oil to oil reservoir. If it is still not oiling, remove battery and check to ensure the oil outlet is clear of debris. Chainsaw rips, vibrates, does not saw properly Chain tension too loose

Dull chain Sharpen chain or replace Chain worn out Replace chain Chain teeth are facing in the wrong direction Reassemble with chain in correct direction23

corps. (Voir Fig. L).
