ECPM5 - Griddle ESSENTIELB - Free user manual and instructions

Brand	ESSENTIELB
Model	ECPM5
Product type	Crepe maker
Power supply	220-240 V ~ 50/60 Hz
Power	1000 W
Number of crepes	6 mini crepes of 11.5 cm diameter
Plate material	Aluminum with non-stick coating
On/off button	Yes (I/0)
Operating indicator light	Yes
Included accessories	6 wooden spatulas and 1 measuring ladle
Power cord	Removable
Cleaning	Soft sponge and soapy water, do not immerse, not dishwasher safe
Safety	Hot surfaces, do not touch during use
Warranty	Standard warranty, validated by receipt

Frequently Asked Questions - ECPM5 ESSENTIELB

How to use the crepe maker for the first time?

Remove all packaging and wipe the plate with a damp soft sponge. Wash the spatulas and ladle. Heat the appliance empty for 10 minutes to eliminate new odors. Let cool before first use.

What if smoke comes out during first use?

This is normal. A slight odor and some smoke may be released. Ventilate the room and let it heat for 10 minutes without food. It will disappear quickly.

Can I use metal utensils on the plate?

No, only use wooden or heat-resistant plastic spatulas. Metal utensils may damage the non-stick coating.

How to clean the non-stick plate?

Wait for complete cooling. Wipe the plate with a soft sponge slightly dampened with warm soapy water. Dry with a soft cloth. Never immerse the appliance in water.

Are the accessories dishwasher safe?

No, do not place any part in the dishwasher. Wash the spatulas and ladle by hand with a soft sponge and dish soap, then dry thoroughly.

What is the power of the appliance?

The crepe maker has a power of 1000 W and operates on a 220-240 V ~ 50/60 Hz power supply.

How many crepes can I cook at once?

You can cook 6 mini crepes of 11.5 cm diameter simultaneously thanks to the circles drawn on the plate.

Can I cook other foods besides crepes?

Yes, the plate can also be used for fried eggs, pancakes, small pieces of meat, or any other grilled food.

What to do in case of a malfunction?

Refer to the manual for basic troubleshooting. If the problem persists, contact ESSENTIELB customer service at the address indicated in the manual. The warranty covers manufacturing defects.

How to store the appliance after use?

Make sure the appliance is unplugged and completely cooled. Wind the removable power cord. Store in a dry, dust-free place.

USER MANUAL ECPM5 ESSENTIELB

Exterior view of a modern kitchen grater with a black tray and control knob (no text or symbols visible)

Notice d'utilisation / User guide / Instrucciones de uso / Bedienungsanleitung / Gebruiksaanwijzing

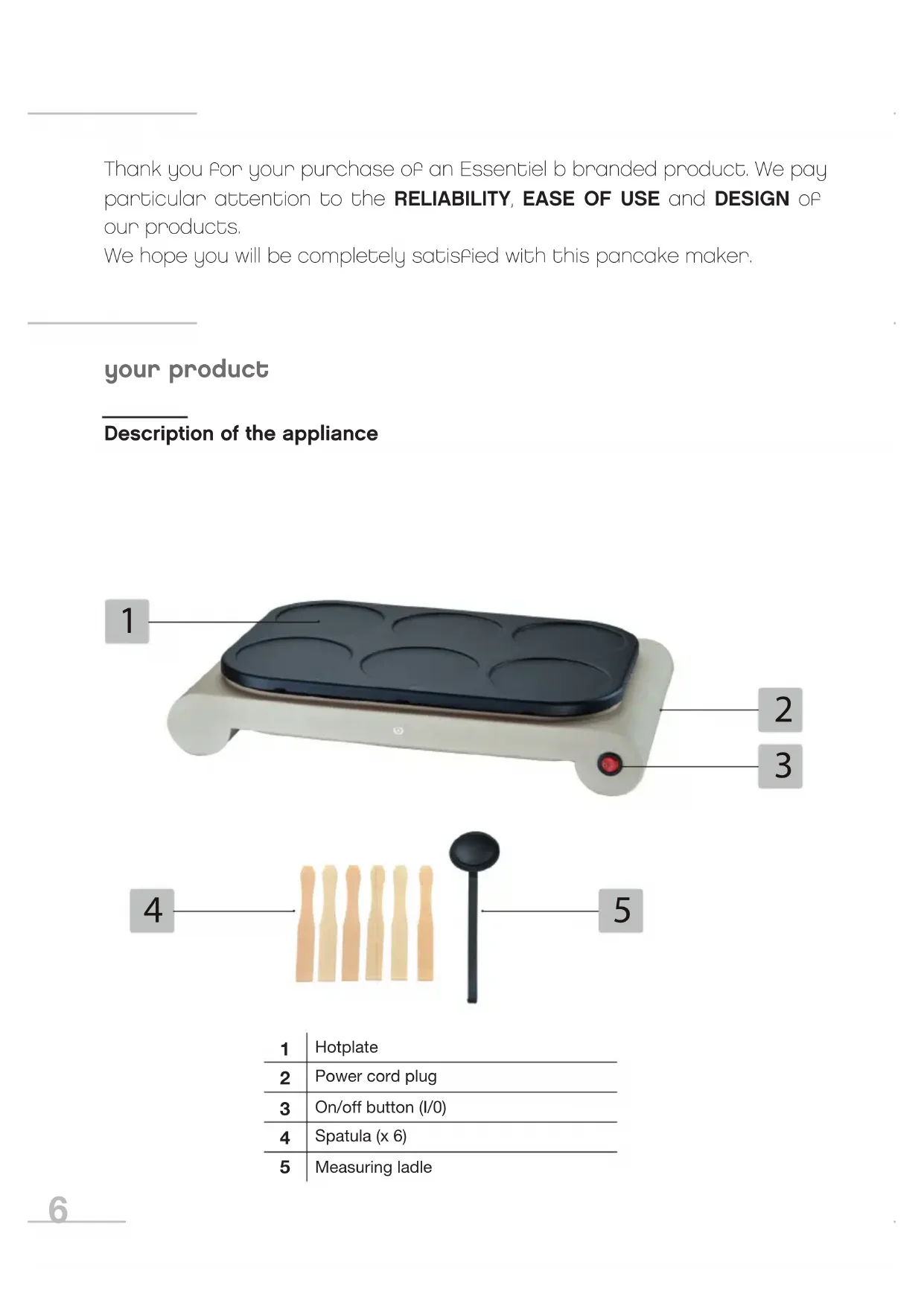

Thank you for your purchase of an Essentiel b branded product. We pay particular attention to the RELIABILITY, EASE OF USE and DESIGN of our products.

We hope you will be completely satisfied with this pancake maker.

your product

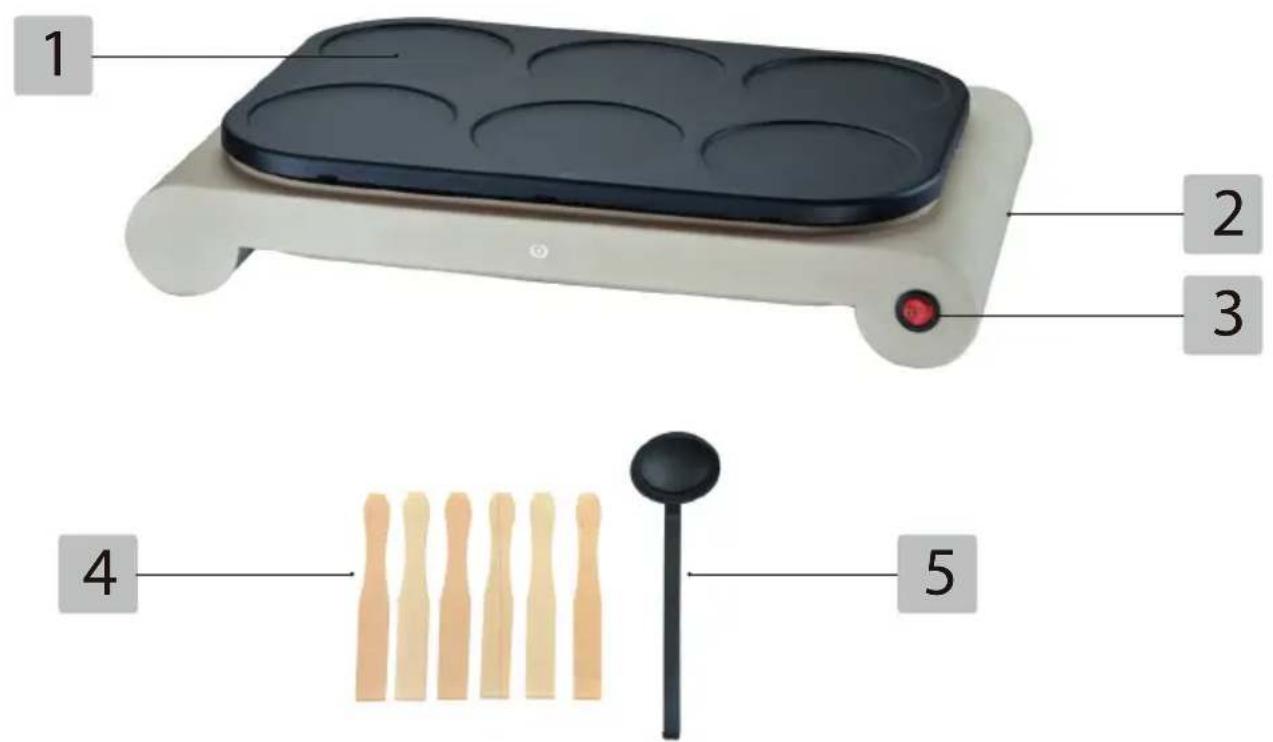

Description of the appliance

1 2 3 4 5

1	Hotplate
2	Power cord plug
3	On/off button (I/0)
4	Spatula (x 6)
5	Measuring ladle

Technical features

• Power supply: 220 - 240 V\~ 50/60 Hz
  • Power: 1000W
• 6 mini pancakes 11.5 cm in diameter
• On/off button (I/0)

• Aluminium hotplate

• Non-stick coating

• Mobile power cord
  • Power-on indicator light
• Accessories provided: 6 wooden spatulas and a dosing ladle

Before using for the first time

• Remove the appliance from the packaging, taking care to remove the packing materials.
• Wipe the hotplate with a soft sponge lightly moistened with hot soapy water. Dry with a soft, clean cloth. Be careful not to let water get inside the unit.
• Wash the spatula and ladle with a soft sponge and hot soapy water. Rinse with clean water and thoroughly dry using a soft cloth.
• A slight odour and a little smoke might be given off the first time the appliance is used. This is normal and will quickly go away.
• To limit this effect, heat your appliance for about ten minutes without food on it (air the room during this time), then let it cool completely.

Start-up/Preheating

IMPORTANT: The accessible surfaces may be hot to the touch when the appliance is on.

Never touch the hotplates during use as you could burn yourself.

1. Place the appliance on a flat, stable, heat-resistant surface.
2. Fully unwind the power cable. Plug one end into the appliance plug and the other end into an easily accessible power outlet.
3. Set the on/off switch to the I (on) position to turn on the appliance. The indicator light comes on.
4. Preheat the unit for about 10 minutes. Wait until the hotplate is warm before placing food on it. If necessary, pour a little oil onto the hotplate.
5. When you have finished using the appliance, turn the on/off button and the temperature control button to the 0 (off) position and unplug the appliance from the mains power.
6. Wait for the appliance to cool completely before cleaning it.

Using the hotplate.

• Use the ladle provided to spread the pancake dough into the 6 indented circles on the hotplate.
• Use a wooden spatula or other heat-resistant plastic utensil to turn the pancakes over. Do not use metallic utensils on this appliance. You may damage the appliance's non-stick coating.
• The hotplate can also be used to make fried eggs, pancakes, cook small pieces of meat or any other food to grill.
• Never cover the hotplates with aluminium foil and or place dishes, plates, etc., on the cooking surfaces.
• To preserve the non-stick coating on the hotplate, do not cut the food directly on the hot plate. Do not use metal utensils (forks, knives, etc.). with the appliance.

Cleaning and maintenance

• When you have finished using the appliance, turn the on/off button and the temperature control button to the 0 (off) position and unplug the appliance from the mains power. LEAVE THE APPLIANCE COOL DOWN COMPLETELY BEFORE CLEANING.
• Never clean the appliance with abrasive detergents or scouring sponges.
• Never immerse the appliance or power cord in water or any other liquid.
• You can wipe the hotplate with a soft sponge moistened with hot soapy water. Dry with a soft, clean cloth. Be careful not to let water get inside the unit.
• Wash the spatula and ladle with a soft sponge and hot soapy water. Rinse with clean water and dry thoroughly using a soft cloth. Do not leave the wooden utensils to soak.
• Do not put any of the parts in the dishwasher.

All information, designs, drawings and pictures in this document are the property of SOURCING & CREATION. SOURCING & CREATION reserves all rights to its brands, designs and information. Any copy and reproduction through any means shall be deemed and considered as counterfeiting.

Protection of the environment

This symbol attached to the product means that it is an appliance whose disposal is subject to the directive on waste from electrical and electronic equipment (WEEE). This appliance may not in any way be treated as household waste and must be subject to a specific type of removal for this type of waste. Recycling and recovery systems are available in your area (waste removal) and by distributors. By taking your appliance at its end of life to a recycling facility, you will contribute to environmental conservation and prevent any harm to your health.

\* Tested in our laboratories

Warranty valid from the date of purchase (receipt as proof of purchase). This warranty does not cover defects or damage caused by improper set up, incorrect use, or normal wear and tear of this product.
