Welcome 21

Quick Start Guide 22

Assembling the Monitor 22

Connection with a computer 23

Accessories 23

Interface / Connectivity 24

Description of the display button 25

On-Screen Menu (OSD) 26

About HDR 29

Dysfunction 30

Main specifications 31

Customer Support 32

Diagram showing a mechanical assembly process: before and after transformation, with no visible text or symbols.

Technical line drawing of a monitor panel with connector pinout (no text or symbols)

Alimentation HDMI 2
HDMI 1 DP
Type-C Audio

Line drawing of a computer monitor with stand and control buttons (no text or symbols)

Please make sure to read this instruction manual before use.

Please use it correctly for your safety.

Once you have read it, make sure to keep it.

Please read all included instruction manuals carefully before use.

• Place the monitor on a flat, stable surface. To avoid the risk of fire or electric shock, avoid high temperatures, low temperatures, high humidity and accumulation of dust.
  Do not use the monitor where it may become wet or exposed to water.
• Do not open and never cover the monitor case because it contains high voltage parts inside which could cause serious injury or fire if you come into contact with them.
• If the power supply is damaged, please contact our customer service or your dealer. Never attempt to inspect or repair the product yourself.
• Before use, please ensure that all cables are properly connected and the power cord is not damaged. If you discover any damage or blurred areas, please contact your dealer immediately.
• The slots and openings on the top or back of the monitor are required ventilation holes for this product. Do not cover these holes. Do not place this product near or above a heat source such as a radiator without adequate ventilation.
• Do not insert foreign objects or spill liquids into any openings in the monitor case. This could cause damage or malfunction.
  • Always operate the monitor using the type of power source indicated on the product label.
  If you are unsure of the type of power supply you have, please contact your local power company.
• Do not apply excessive current to sockets or extension cords. Use caution as excessive current can cause electric shock and is very dangerous.
• To protect your monitor from damage caused by power surges, turn off power to the device during long periods of inactivity or during lightning storms.
• To ensure satisfactory operation of the monitor, the computer must be equipped with a properly configured outlet marked in the AC100-240V range.

• If you experience technical problems or concerns with your monitor, please contact our customer service or authorized reseller.

• To work safely, make sure to establish the ground connection before connecting the power plug to the power source. Also, when disconnecting the ground connection, make sure to unplug the power plug first.

• This product is not intended for continuous use for 24 hours. Please unplug the power plug when you do not use the product for a long time.
• The included AC adapter and cord are intended for this product only. Do not use it for other equipment.
• Do not use cleaners or detergents containing alcohol or acetone to clean your monitor. Make sure to use a cleaner specifically designed for LCD monitors. Do not spray liquid cleaner directly on the screen. Please note that if the cleaning fluid drips and gets inside the monitor, it is very dangerous as it may cause electric shock or fire. LCD panels are easily damaged, so do not rub it with hard objects.
• Before lifting or moving the monitor, turn off the power switch and unplug all cables and power cords. When installing the monitor, lift it using the appropriate method. When lifting or carrying the monitor, make sure to grip it by the edges. Never lift the monitor by its stand or cord.

Precaution

• Using the monitor in a dark room, or using it continuously for long periods of time, may cause eye fatigue.
  • Take a break of 5 to 10 minutes every hour and use the monitor in a reasonably bright room.

Before cleaning the monitor, turn off the power and unplug all cables and cords.

How to maintain the monitor:

- LCD panel area: Do not use tissue paper, etc., instead use a clean, soft cloth specially designed for LCD panels. Please wipe the monitor gently. For difficult-to-remove stains, use a neutral cleaner specifically designed for LCD panels.

- Monitor frame: Wipe with a soft cloth dampened with a mild cleaner.

The symptoms listed below are normal conditions for the monitor

- When first used, the screen may flicker due to the nature of the backlight. If this symptom appears, please turn off the monitor and then turn it on again.

- Depending on your desktop setup, displayed colors, and brightness, brightness may appear uneven.

- Several pixels may or may not always be lit.

- If you display the same image for a long time, an afterimage from the previous image may persist even after switching to a different image.

In this case, the screen will recover slowly. Otherwise, turn off the power for a few hours and the problem will be fixed.

Instead of trying to repair the monitor yourself, contact customer service or the dealer.

Welcome

Thank you for purchasing the JAPANNEXT 40 inch LCD monitor .

The panel supports UWQHD (3440 x 1440) resolution.

We recommend using UWQHD resolution for maximum performance. If the resolution is

lower than UWQHD, the original performance cannot be achieved.

Assembling the Monitor

1. Assemble the stand using the screws provided.

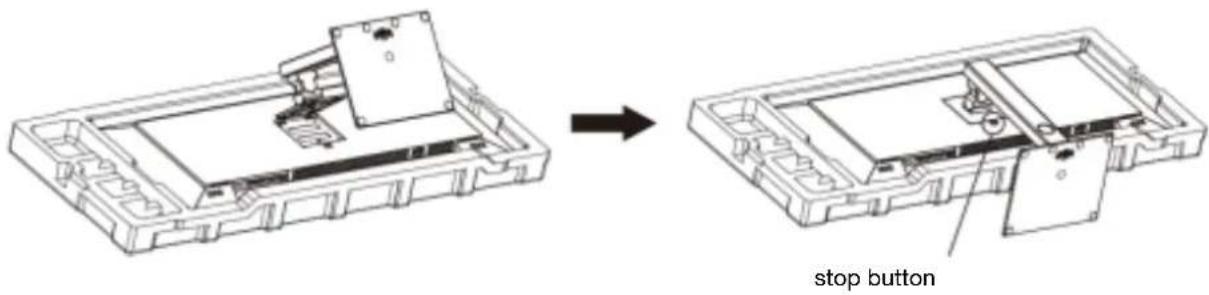

Diagram showing a mechanical assembly process: before and after transformation, with no visible text or symbols.

1. Attach the stand to the main unit.

stop button

1. Check that the stand is firmly attached to the main unit and raise the monitor slowly.

Connection with a computer

1. Make sure the monitor and computer are turned off before connecting the cable.
2. Connect the power cable and compatible cables (HDMI, DP, Type-C) to the monitor.
   Also connect the cable (HDMI, DP, Type-C) to the computer.
3. Turn on the monitor and computer.

Notice : Since problems may occur, do not connect HDMI, Type-C and DP cables at the same time.

Please connect only one to a computer.

Accessories

Manual

Power cable

DP cable

VESA spacer

*The included power cable is to use exclusively with this product. Do not use it for other equipment.

Power HDMI 2 HDMI 1 DP Type-C Audio

HDMI1	Used when connecting HDMI 2.0 exchange devices.
HDMI2	Used when connecting HDMI 2.0 exchange devices.
DP	Used to connect DisplayPort replacement devices.
USB Type-C	Used to connect USB Type-C replacement devices.It can be used to power (90W) external devices.
Audio	Used by connecting headphones or speakers.
Power source	Used when connecting the power cord. Make sure to establish a ground connection.

Description of the display button

Line drawing of a flat-screen monitor with a stand and control buttons at the bottom (no text or symbols on the screen)

Press one of the control buttons at the bottom of the monitor once to display the keyboard shortcuts menu. To open the OSD menu, press the M button (☐). Please see the table below to learn how to use the menu buttons.

Menu screen operation buttons (bottom of monitor)

M	Open the OSD menu screen
▼	Keyboard shortcut menu: Brightness (customizable)OSD menu: move selection down or decrease value
▲	Hotkey Menu: Contrast (customizable)OSD Menu: Move selection up or increase value
E	Hotkey Menu: Input Source (customizable)OSD Menu: Back Menu or Close Menu
◎	On Off

Menu	Function	Setting value	Comment
Game settings	Standard Mode	ON/OFF	Setting Mode
	RTS/RPG Mode	ON/OFF
	FPS Arena Mode	ON/OFF
	MOBA arena mode	ON/OFF
	Adaptive-Sync	ON/OFF	Enable/disable Adaptive-Sync
	Shadow balance	0-100	Adjusting Shadow Balance
	Response Time	OFF/low/medium/high	Select the response time
	Refresh Rate	ON/OFF	Display refresh rate
		Position: Upper Right/Upper Left/Lower Right/Lower Left	Set refresh rate display position
	Target	OFF	Target display settings
		target 1
		target 2
		target 3
	Timer	OFF	Set the timer display
		15h00
		30h00
		45h00
		60h00
		Position: Upper Right/Upper Left/Lower Right/Lower Left	Adjust the timer display position
	Dynamic brightness	OFF/low/medium/high	Dynamic Brightness Settings
	HDR	OFF	HDR Settings
		HDR Standard
		Movie HDR
		HDR RTS/RPG
		FPS HDR
	MPRT	ON/OFF	MPRT enabled/disabled
	Physical Superview	ON/OFF	Enable/disable Physical Superview
		ON/OFF	Top right/top left/bottom right/bottom left/center

*When DCR is enabled, items such as brightness cannot be changed.
*MPRT can be used at 100 Hz or higher.
*MPRT et Physical Superview cannot be used when using HDR/AdaptiveSync.

Menu	Function	Setting value	Comment
Image	Brightness	0-100	Adjust brightness from 0 to 100
	Contrast	0-100	Adjust contrast from 0 to 100
	RCD	ON/OFF	DCR enabled/disabled
	Image Mode	Disabled	Picture mode settings
		Movie
		Text
		Power saving mode
		Eye care mode
	Low blue light	0-100	Set the blue light reduction in the 0-100 range
	Sharpness	0-5	Adjust sharpness from 0 to 5
	Gamma	Curve 1.8/2.0/2.2/2.4/2.6/S*	Gamma Settings
	Display Ratio	Large Display	Set the aspect ratio
		4:3
		1:1
		Automatic
Color	Naturel	ON/OFF	Adjust the color temperature
	Cool	ON/OFF
	user 1	R:0-100/G:0-100/B:0-100	User color adjustment possible Resetting OSD returns to initial values
	user 2	R:0-100/V:0-100/B:0-100
	Tint	R/G/B/C/M/Y each 0-100	Tint adjustment
	Saturation	R/G/B/C/M/Y each 0-100	Adjust saturation
PIP/PBP	Mode PIP/PBP	OFF	Multi-window settings*PBP 2Win 2:1/ PBP 2Win 1:2 can be used when connected to a smartphone and a Type-C port.
		Mode PIP
		PBP 2Win 1:1
		PBP 2Win 2:1 *Pour smartphones
		PBP 2Win 1:2 *Pour smartphones
	SubWin input source	DP/HDMI1/HDMI2/Type-C	Panel settings when using multiple windows
	Audio Input	Auto/DP/HDMI1/HDMI2/Type-C	Audio source settings when using multiple windows
	PIP	Top right/top left/bottom right/bottom left	Setting the PIP Panel Position
	PIP size	Small medium large	Setting the PIP panel size
	Window swap		Swap main window/sub window

Screen Menu (OSD) 3

Menu	Function	Setting value	Comment
OSD	Language	English French	OSD language definition
	OSD Timeout	5-100	Set OSD display time from 5 to 100
	Position horizontale OSD	0-100	Adjust OSD horizontal position from 0 to 100
	Vertical Position OSD	0-100	Adjust OSD vertical position from 0 to 100
	Transparency OSD	0-5	Set OSD transparency from 0 to 5
	OSD Lock	ON/OFF	OSD lock on/offPress and maintain the home button for 10 seconds to unlock.
	Hotkey 1 Settings	Brightness/Contrast/Volume/Mute/ShadowBalance/Target/Refresh Rate/Timer/Picture Mode/PIP Mode/PBP/InputSignal/Dynamic Brightness/Super Physical View/HDR	Customize keyboard shortcut settings
	Hotkey 2 Settings
	Hotkey 3 Settings
Others	Input source	Auto/Type-C/DP/HDMI1/HDMI2	Setting the input source
	Volume	0-100	Adjust the volume from 0 to 100
	Mute	ON/OFF	Mute on/off
	Automatic power off	ON/OFF	When turned on, the power will turn off after 1 minute in sleep mode.
	Protective glasses	ON/OFF	After 4 hours when turned on A pop-up window will appear.
	Reset	NO/YES	Reset factory settings
	Information		Displays setting information, etc.

*Please note that product design, specifications and appearance are subject to change without notice due to product improvement.

*If the information listed differs from the actual item, priority will be given to the actual item.

About HDR

HDR stands for High Dynamic Range. This is a display technology that can express a wider range of brightness than the conventional SDR standard dynamic range.

Set HDR in the screen menu (OSD) to automatic.

The monitor can then automatically enable HDR functionality if the player and content are compatible.

Depending on Windows 10 settings, HDR may not display correctly.

Check if HDR settings in Windows 10 are enabled or disabled.

How to open the settings screen:

Settings > System > Display

Depending on your graphics card specifications, photos and text may not display correctly when the monitor's HDR function is enabled.

Note: If you enable HDR, some OSD menu functions will not be available.

Note: To enable HDR, the connected device and content must support HDR.

Description: Windows 10 Fall Creators Update (version 1709), if the graphics card does not support HDR, Windows HDR settings will not be displayed.

The HDR function is enabled only for HDR content.

If you enable HDR settings in Windows 10, your desktop screen may appear darker than if you set it to Standard Dynamic Range (SDR) mode. This is not a malfunction, but rather the result of the monitor interpreting HDR and SDR signals differently.

Symptoms	Checkpoint
Power LED does not light up	• Is the device turned on by pressing the power button?• Make sure the power cord is securely connected to the monitor and the outlet.
No image appears even though the power indicator is on	• Is the blank screensaver running? Please move your mouse or keyboard• Make sure the brightness and contrast are not set to minimum.• Please make sure the signal cable is properly connected to your monitor and computer.• Check if the signal cable pins are bent or the cable is damaged.• Is your computer turned on? If you have another monitor, try connecting it to see if the works properly.• Does the computer signal timing match the monitor specifications?
The image is distorted or ripp appear in the image.	• Please make sure the signal cable is well connected to your monitor and computer.• Keep electrical devices that may cause electrical interference away from the monitor.• Does the computer signal timing match the monitor specifications?
The image position is off-center. Image size is incorrect	• Is your computer resolution correct?• Does the computer signal timing match the monitor specifications?
The screen is too bright/too dark	• Screen (OSD): Adjust brightness and contrast settings from the menu.
The image is blurry or unclear	• Set the display resolution on your PC to the same as the recommended native screen re for the monitor.• Does the computer signal timing match the monitor specifications?• Check if the signal cable pins are bent or the cable is damaged.
The color of the image is incorrect	• Check if the signal cable pins are bent or the cable is damaged.• Screen (OSD): Please adjust the red/blue/green color settings in the menu (color temperature).• Screen (OSD): Please reset the settings from the menu.• Does the computer signal timing match the monitor specifications?
Unable to display UWQHD	• This product supports resolutions up to 3440 x 1440 (UWQHD), including HDMI, DP and Type-C. However, some graphics cards do not support 3440x1440. Please check with your distributor or manufacturer for the hardware limitations of your computer.
Abnormal image noise	• Are the cables correctly connected?

Main specifications

LCD screen	Panel type	IPS system
	Panel size	40"
	Brightness	400 cd/m2
	Contrast (typical)	1200:1
	Contrast (DCR)	YES
	Pixel size	0,272 mm
	Resolution	3440×1440
	Screen format	21:9
	Response time	1 ms (MPRT)
	Angle of vision	H178°, V178°
	Surface type	Non glossy
	Screen color	16.77 million colors
Function	FreeSync	YES
	Anti-flicker (flicker reduction)	Mitigation
	Blue light reduction mode	YES
	HDCP	YES 2.2
	HDR10	YES
	PIP/PBP	YES
Signal input	HDMI1	3440×1440 at 100 Hz
	HDMI2	3440×1440 at 100 Hz
	DP	3440×1440 at 144 Hz
	Type-C	3440×1440 at 60 Hz
Audio	Loud speaker	YES
	Headphone	YES
Power	Consumption (W)	Max ≤75W Typical ≤42 Energy Saving ≤30
	AC power range	AC100-240V 50/60HZ 3A
	Power indicator	On: Blue Standby: Red
Environmental conditions	Operating temperature (%)	0 °C ~ 50 °C
	Humidity (%)	10 °C ~ 80 °C
Appearance/weight/features	External dimensions (without support)	Height 419 mm x Width 944 mm x Depth 57 mm
	External dimensions (with support)	Height 572-457 mm x Width 944 mm x Depth 237 mm
	Packaging dimensions	Height 525 mm x Width 1195 mm x Depth 185 mm
	Product weight (kg)	About 12,5 kg
	Total packaging weight (kg)	About 16,2 kg
	Tilt function	-5+15°
	Pivot	-30+30°
	Kensington	NO
	Support VESA	100x100mm
Accessories	Power cable	YES
	DisplayPort cable	YES
	User's Guide	YES

Customer Support

X JAPANNEXT

TEL: [phone]

Hours 9:00 a.m. to 5:00 p.m. (Closed Saturdays, Sundays and public holidays)

Contact form

https://japannext.fr/pages/faq?hcUrl=%2Fen-US%2Fcontact

You can easily access the application form by scanning the QR code.

JAPANNEXT Co., Ltd. CS Department

506-5 Yukikawa, ville d'Isumi, Chiba 298-0134
