USER MANUAL phil&teds nav v2 Phil & Teds

KEEP FOR FUTURE REFERENCE

Congratulations on choosing the navigator!

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzoring

SafetyWarnings / Avertissements / Warnungen / Advertencias / Waarschuwing

Configurations / Konfigurationen / Configuraciones / Configurations

Features / Caracterisiques / Produktiegenschaften / Caracteristicas / Kenmerken

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

navigatorTM

Product Care / Consels d'entretien / Produktpflege / Cuidado del producto / Productverzoring

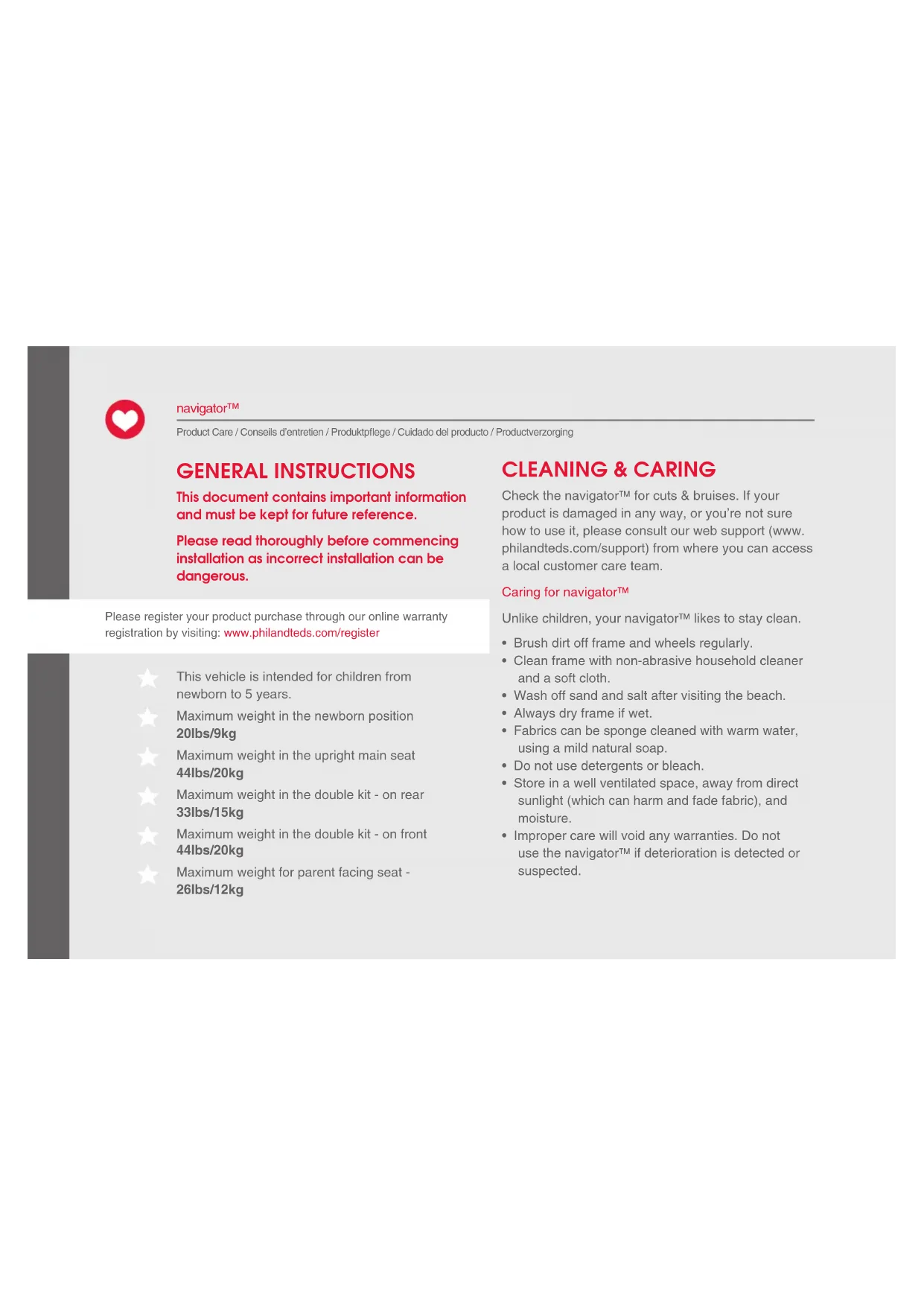

GENERAL INSTRUCTIONS

This document contains important information and must be kept for future reference.

Please read thoroughly before commencing installation as incorrect installation can be dangerous.

Please register your product purchase through our online warranty registration by visiting: www.philandreds.com/register

This vehicle is intended for children from newborn to 5 years.
Maximum weight in the newborn position 20lbs/9kg
Maximum weight in the upright main seat 44lbs/20kg
Maximum weight in the double kit - on rear 33lbs/15kg
Maximum weight in the double kit - on front 44lbs/20kg
Maximum weight for parent facing seat - 26lbs/12kg

CLEANING & CARING

Check the navigatorTM for cuts & bruises. If your product is damaged in any way, or you're not sure how to use it, please consult our web support (www.philandreds.com/support) from where you can access a local customer care team.

Caring for navigatorTM

Unlike children, your navigator™ likes to stay clean.

• Brush dirt off frame and wheels regularly.
• Clean frame with non-abrasive household cleaner and a soft cloth.
• Wash off sand and salt after visiting the beach.
  Always dry frame if wet.
• Fabrics can be sponge cleaned with warm water, using a mild natural soap.
• Do not use detergents or bleach.
• Store in a well ventilated space, away from direct sunlight (which can harm and fade fabric), and moisture.
• Improper care will void any warranties. Do not use the navigator™ if deterioration is detected or suspected.

IMPORTANT IMPORTANT

Always load/unload your children on level ground.
- Ensure the brake is engaged during the loading and unloading of children.
- Do not use stroller on stairs or escalators.
Always use the safety strap.
- Excessive wear can reduce effectiveness and safety. Parts may need lubrication. Inspect essential components for: Fraying - especially webbing straps and safety harness.

Wear - locks, snap fasteners, tyres, plastic and moving parts.

Safety - locks must not be loose.

Tyres & Tubes

• The valve is car-size. Manually inflate to 20 - 22psi max. Releasing air gives a softer ride but lower pressure reduces tread life.
• New inner tubes and tyres are generally available (2 1/4" x 12 1/2" tyre) from your dealer, cycle or specialist wheel shops. Standard tyre kits can repair punctures.
• A flat tyre can result from grit holding the valve open; to check: inflate tyre, deflate rapidly, and re-inflate.
• Tyres and tubes are not under warranty. Do not over inflate. Tyre pressure is affected by heat especially when inside parked cars.

For rights & remedies, refer www.philandeds.com/warranty

navigatorTM

Safety Warnings / Avertissements / Warnungen / Advertencias / Waurschuwing

The navigator™ complies with requirements applicable in market of sale, refer www.philandteds.com/certification

WARNING

European Safety Standard states:

Read the instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

• This vehicle is intended for children from newborn up to 5 years and up to a maximum weight of 20kg / 44lbs .
• The buggy shall only be used for a maximum of 2 children.
• Never leave your child unattended.
• Accessories or replacement parts that are not approved by the manufacturer or distributor should not be used.
• Any load attached to the handle and/or back

of the backrest and/or the sides of the stroller will affect stability of the stroller.

Always use the restraint system.
Always use the crotch strap in combination with the waist belt.
- Check that the pram body or seat unit attachment devices are correctly engaged before use.
- This product is not suitable for running or skating.
- Ensure that all locking devices are engaged before use.
- Use a harness as soon as your child can sit unaided.
- The parking device shall be engaged during the loading and unloading of children.
The carry handles must be left out of the reclined position when in use (if applicable).
- The reclined position is suitable for a child who cannot sit up by itself, roll over and cannot push itself up on its hands and knees. Maximum

weight of child in reclined position is 9kg.

• To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Do not let your child play with this product.
• It is recommended that the most reclined position be used for new born babies.
• Do not place more than 5kg / 11lbs in the parcel tray.
• Do not add a mattress thicker than 20mm.

WARNING

American Safety Standard states:

• Never leave your child unattended in the stroller.
  Always use the safety harness to avoid serious injury from falling or sliding out.

• Always secure all safety harness straps. Child may slip into leg openings and strangle. Never use in a reclined carriage position unless child securely restrained - see p48-50.

• This vehicle is intended for children from newborn to 5 years and up to a maximum weight of 20kg / 44lbs .

• To prevent the stroller from becoming unstable, do not place parcels or accessory items anywhere except in the storage basket and pockets provided. Do not hang items such as shopping bags from the frame.
• Do not place more than 5kg / 11lbs in the parcel tray.

WARNING

Australia / New Zealand Safety Standard states:

To avoid injury or death:

Always apply the brakes whenever the stroller is stationary.
- Do not leave children unattended.
- Secure the child in the harness at all times.
- Do not carry extra children or bags on this stroller.

navigatorTM

Safety Warnings / Avertissements / Warnungen / Advertencias / Waurschuwing

• Make sure children are clear of any moving parts if you adjust the stroller.
• Use the harness at all times.
• When not in use disconnect shoulder straps from the waist buckle or strap as harness can form loops that can lead to strangulation.
• Do not use this seat with any other models of stroller.
• It is unsafe to use accessories other than those approved by the vehicles manufacturer.
• Care should be taken if the stroller is used on stairs or escalators.
• The stroller should not be used near an open fire or exposed flame.
• This vehicle is intended for children up to a maximum weight of 20kg / 44lbs .

WARNING

Canadian Safety Standard states:

• Never leave your child unattended in the stroller.
  Always use the safety harness to avoid serious injury from falling or sliding out.
• Do not place more than 5kg / 11 lbs in the parcel tray.
• The stroller may become unstable if a parcel bag, other than one recommended by the manufacturer, is used.
• The stroller may become unstable if the recommended load is exceeded.
  Take care when folding or unfolding the stroller to prevent your fingers being entrapped.

navigatorTM

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

European Safety Standard:

© Phil and Teds Most Excellent Buggy Company Ltd 2012.

We (Phil and Teds Most Excellent Buggy Company Ltd) own the intellectual property rights in our brands, designs and inventions featured in this publication. These include, without limitation, the philgsteds, adapt&survivel, &, INLINE trade marks and INLINE DOUBLE BUGGY shape. We actively pursue people who infringe our intellectual property.

©Phil & Teds Most Excellent Buggy Company Ltd 2012.

© Phil and Teds Most Excellent Buggy Company Ltd 2012.

© Phil and Teds Most Excellent Buggy Company Ltd 2012.

© Phil and Teds Most Excellent Buggy Company Ltd 2012.

Designed in New Zealand Made in China
