USER MANUAL Navigator Phil & Teds

text_image INSTRUCTIONS - INSTRUCTIONS - INSTRUCCIONES - GERBRAUCHSANWEISUNG - INSTRUKSJONER - INSTRUKTIONER phil&teds FOR YOUR CHILD'S SAFETY READ THESE INSTRUCTIONS CAREFULLY BEFORE USE

phil&teds®

navigator 2.0 ^TM

KEEP FOR FUTURE REFERENCE

Phil & Teds Navigator - phil&teds® - 1

philandteds.com

Congratulations on choosing the phil&teds navigator™!

Phil & Teds Navigator - Congratulations on choosing the phil&teds navigator™! - 1

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

Phil & Teds Navigator - Congratulations on choosing the phil&teds navigator™! - 2

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

Phil & Teds Navigator - Congratulations on choosing the phil&teds navigator™! - 3

Configurations / Konfigurationen / Configuraciones / Configuratives

Phil & Teds Navigator - Congratulations on choosing the phil&teds navigator™! - 4

Features / Caractérisiques / Produkteigenschaften / Características / Kenmerken

Phil & Teds Navigator - Congratulations on choosing the phil&teds navigator™! - 5

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

Phil & Teds Navigator - Congratulations on choosing the phil&teds navigator™! - 6

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

GENERAL INSTRUCTIONS

This document contains important information and must be kept for future reference.

Please read thoroughly before commencing installation as incorrect installation can be dangerous.

Please register your product purchase through our online warranty registration by visiting: www.philandteds.com/register

Phil & Teds Navigator - GENERAL INSTRUCTIONS - 1

This vehicle is intended for children from newborn to 5 years.

Maximum weight in the newborn position 20lbs/9kg

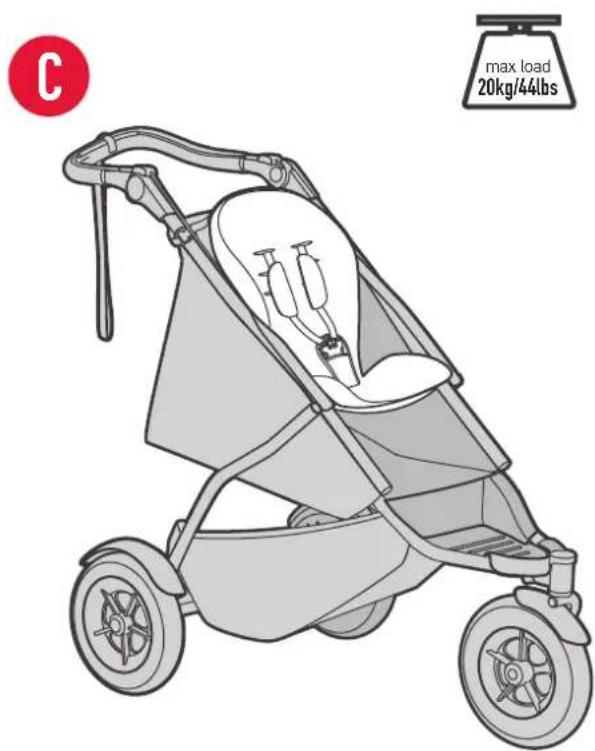

Maximum weight in the upright main seat 44lbs/20kg

Maximum weight in the double kit - on rear 33lbs/15kg

Maximum weight in the double kit - on front 44lbs/20kg

CLEANING & CARING

Check the navigator™ for cuts & bruises. If your product is damaged in any way, or you're not sure how to use it, please consult our web support (www.philandteds.com/support) from where you can access a local customer care team.

Caring for navigator™

Unlike children, your navigator™ likes to stay clean.

• Brush dirt off frame and wheels regularly.
- Clean with non-abrasive household cleaner and a soft cloth.
- Wash off sand and salt after visiting the beach.
• Always dry frame if wet.
- Fabrics can be sponge cleaned with warm water, using a mild natural soap.
• Do not use detergents or bleach.
- Store in a well ventilated space, away from direct sunlight (which can harm and fade fabric), and moisture.
- Improper care will void any warranties. Do not use the navigator™ if deterioration is detected or suspected.

IMPORTANT IMPORTANT

• Always load/unload your children on level ground.
- Ensure the brake is engaged during the loading and unloading of children.
- Care should be taken if the stroller is used on stairs or escalators.
• Always use the safety strap.
- Excessive wear can reduce effectiveness and safety. Parts may need lubrication. Inspect essential components for:
Fraying - especially webbing straps and safety harness.
Wear - locks, snap fasteners, tyres, plastic and moving parts.
Safety - locks must not be loose.

Tyres & Tubes

  • The valve is car-size. Manually inflate to 20 – 22psi max. Releasing air gives a softer ride but lower pressure reduces tread life.
  • New inner tubes and tyres are generally available (21/4" x 121/2" tyre) from your dealer, cycle or specialist wheel shops. Standard tyre kits can repair punctures.
  • A flat tyre can result from grit holding the valve open; to check: inflate tyre, deflate rapidly, and re-inflate.
  • Tyres and tubes are not under warranty. Do not over inflate. Tyre pressure is affected by heat especially when inside parked cars.

For rights & remedies, refer www.philandteds.com/warranty

Phil & Teds Navigator - Tyres & Tubes - 1

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

The navigator™ complies with requirements applicable in market of sale, refer www.philandteds.com/certification

WARNINGS

European Safety Standard states:

Read the instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

  • This vehicle is intended for children from newborn up to 5 years and up to a maximum weight of 20kg/44lbs.
  • The buggy shall only be used for a maximum of 2 children.
    • Never leave your child unattended.
  • Accessories or replacement parts that are not approved by the manufacturer or distributor should not be used.
    • Any load attached to the handle and/or back of

the backrest and/or the sides of the stroller will affect stability of the stroller.

• Always use the restraint system.
- Always use the crotch strap in combination with the waist belt.
- Check that the pram body or seat unit attachment devices are correctly engaged before use.
- This product is not suitable for running or skating.
- Ensure that all locking devices are engaged before use.
- Use a harness as soon as your child can sit unaided.
- The parking device shall be engaged during the loading and unloading of children.
- The carry handles must be left out of the reclined position when in use (if applicable).
- The reclined position is suitable for a child who cannot sit up by itself, roll over and cannot push itself up on its hands and knees. Maximum

weight of child in reclined position is 9kg.

• To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Do not let your child play with this product.
- It is recommended that the most reclined position be used for new born babies.
- Do not place more than 5kg/11lbs in the parcel tray.
• Do not add a mattress thicker than 20mm.

Phil & Teds Navigator - European Safety Standard states: - 1

WARNINGS

American Safety Standard states:

  • Never leave your child unattended in the stroller.
    • Always use the safety harness to avoid serious injury from falling or sliding out.

  • Always secure all safety harness straps. Child may slip into leg openings and strangle. Never use in a reclined carriage position unless child securely restrained - see p48-50.

  • This vehicle is intended for children from newborn to 5 years and up to a maximum weight of 20kg/44lbs.

  • To prevent the stroller from becoming unstable, do not place parcels or accessory items anywhere except in the storage basket and pockets provided. Do not hang items such as shopping bags from the frame.
  • Do not place more than 5kg/11lbs in the parcel tray.

WARNINGS

Australia / New Zealand Safety Standard states:

To avoid injury or death:

• Always apply the brakes whenever the stroller is stationary.
• Do not leave children unattended.
- Secure the child in the harness at all times.
- Do not carry extra children or bags on this stroller.

Phil & Teds Navigator - Australia / New Zealand Safety Standard states: - 1

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

  • Make sure children are clear of any moving parts if you adjust the stroller.
    • Use the harness at all times.
  • When not in use disconnect shoulder straps from the waist buckle or strap as harness can form loops that can lead to strangulation.
  • Do not use this seat with any other models of stroller.
  • It is unsafe to use accessories other than those approved by the vehicles manufacturer.
  • Care should be taken if the stroller is used on stairs or escalators.
  • The stroller should not be used near an open fire or exposed flame.
  • This vehicle is intended for children up to a maximum weight of 20kg/44lbs.

WARNINGS

Canadian Safety Standard states:

• Never leave your child unattended in the stroller.
- Always use the safety harness to avoid serious injury from falling or sliding out.
- Do not place more than 5kg/11lbs in the parcel tray.
- The stroller may become unstable if a parcel bag, other than one recommended by the manufacturer, is used.
- The stroller may become unstable if the recommended load is exceeded.
- Take care when folding or unfolding the stroller to prevent your fingers being entrapped.

Phil & Teds Navigator - Canadian Safety Standard states: - 1

bar | Category | Value | |---|---| | 1 | 9 | | 2 | 0 |

Phil & Teds Navigator - Canadian Safety Standard states: - 2

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 3

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 4

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 5

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 6

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 7

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 8

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 9

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 10

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 11

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 12

natural_image Blank white image with no visible content, text, or symbols.

Phil & Teds Navigator - Canadian Safety Standard states: - 13

natural_image Blank white image with no visible content, text, or symbols.
natural_image Blank white image with no visible content, text, or symbols.

Phil & Teds Navigator - Canadian Safety Standard states: - 14

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 15

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 16

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 17

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 18

natural_image Blank white image with no visible content, text, or symbols

Phil & Teds Navigator - Canadian Safety Standard states: - 19

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 20

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 21

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 22

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 23

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 24

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 25

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 26

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 27

Phil & Teds Navigator - Canadian Safety Standard states: - 28

Phil & Teds Navigator - Canadian Safety Standard states: - 29

Phil & Teds Navigator - Canadian Safety Standard states: - 30

Phil & Teds Navigator - Canadian Safety Standard states: - 31

Phil & Teds Navigator - Canadian Safety Standard states: - 32

natural_image Blank white image with no visible content, text, or symbols

Phil & Teds Navigator - Canadian Safety Standard states: - 33

Phil & Teds Navigator - Canadian Safety Standard states: - 34

Phil & Teds Navigator - Canadian Safety Standard states: - 35

Phil & Teds Navigator - Canadian Safety Standard states: - 36

Phil & Teds Navigator - Canadian Safety Standard states: - 37

Phil & Teds Navigator - Canadian Safety Standard states: - 38

Phil & Teds Navigator - Canadian Safety Standard states: - 39

Phil & Teds Navigator - Canadian Safety Standard states: - 40

Phil & Teds Navigator - Canadian Safety Standard states: - 41

Phil & Teds Navigator - Canadian Safety Standard states: - 42

Phil & Teds Navigator - Canadian Safety Standard states: - 43

Phil & Teds Navigator - Canadian Safety Standard states: - 44

Phil & Teds Navigator - Canadian Safety Standard states: - 45

Phil & Teds Navigator - Canadian Safety Standard states: - 46

[Non-Text]

Phil & Teds Navigator - Canadian Safety Standard states: - 47

Phil & Teds Navigator - Canadian Safety Standard states: - 48

[Non-Text]

Phil & Teds Navigator - Canadian Safety Standard states: - 49

Phil & Teds Navigator - Canadian Safety Standard states: - 50

[Non-Text]

Phil & Teds Navigator - Canadian Safety Standard states: - 51

Phil & Teds Navigator - Canadian Safety Standard states: - 52

[Non-Text]

[Non-Text]

Phil & Teds Navigator - Canadian Safety Standard states: - 53

Phil & Teds Navigator - Canadian Safety Standard states: - 54

Phil & Teds Navigator - Canadian Safety Standard states: - 55

Phil & Teds Navigator - Canadian Safety Standard states: - 56

Phil & Teds Navigator - Canadian Safety Standard states: - 57

Phil & Teds Navigator - Canadian Safety Standard states: - 58

Phil & Teds Navigator - Canadian Safety Standard states: - 59

Phil & Teds Navigator - Canadian Safety Standard states: - 60

Phil & Teds Navigator - Canadian Safety Standard states: - 61

Phil & Teds Navigator - Canadian Safety Standard states: - 62

Phil & Teds Navigator - Canadian Safety Standard states: - 63

[Non-Text]

Phil & Teds Navigator - Canadian Safety Standard states: - 64

Phil & Teds Navigator - Canadian Safety Standard states: - 65

Phil & Teds Navigator - Canadian Safety Standard states: - 66

Phil & Teds Navigator - Canadian Safety Standard states: - 67

Phil & Teds Navigator - Canadian Safety Standard states: - 68

Phil & Teds Navigator - Canadian Safety Standard states: - 69

Phil & Teds Navigator - Canadian Safety Standard states: - 70

[Non-Text]

Phil & Teds Navigator - Canadian Safety Standard states: - 71

Phil & Teds Navigator - Canadian Safety Standard states: - 72

[Non-Text]

Phil & Teds Navigator - Canadian Safety Standard states: - 73

Phil & Teds Navigator - Canadian Safety Standard states: - 74

Phil & Teds Navigator - Canadian Safety Standard states: - 75

[Non-Text]

Phil & Teds Navigator - Canadian Safety Standard states: - 76

Phil & Teds Navigator - Canadian Safety Standard states: - 77

Phil & Teds Navigator - Canadian Safety Standard states: - 78

Phil & Teds Navigator - Canadian Safety Standard states: - 79

Phil & Teds Navigator - Canadian Safety Standard states: - 80

Phil & Teds Navigator - Canadian Safety Standard states: - 81

Phil & Teds Navigator - Canadian Safety Standard states: - 82

Phil & Teds Navigator - Canadian Safety Standard states: - 83

Phil & Teds Navigator - Canadian Safety Standard states: - 84

Phil & Teds Navigator - Canadian Safety Standard states: - 85

Phil & Teds Navigator - Canadian Safety Standard states: - 86

Phil & Teds Navigator - Canadian Safety Standard states: - 87

Phil & Teds Navigator - Canadian Safety Standard states: - 88

Phil & Teds Navigator - Canadian Safety Standard states: - 89

Phil & Teds Navigator - Canadian Safety Standard states: - 90

Phil & Teds Navigator - Canadian Safety Standard states: - 91

Phil & Teds Navigator - Canadian Safety Standard states: - 92

Phil & Teds Navigator - Canadian Safety Standard states: - 93

Phil & Teds Navigator - Canadian Safety Standard states: - 94

Phil & Teds Navigator - Canadian Safety Standard states: - 95

Phil & Teds Navigator - Canadian Safety Standard states: - 96

Phil & Teds Navigator - Canadian Safety Standard states: - 97

Phil & Teds Navigator - Canadian Safety Standard states: - 98

Phil & Teds Navigator - Canadian Safety Standard states: - 99

Phil & Teds Navigator - Canadian Safety Standard states: - 100

Phil & Teds Navigator - Canadian Safety Standard states: - 101

Phil & Teds Navigator - Canadian Safety Standard states: - 102

Phil & Teds Navigator - Canadian Safety Standard states: - 103

Phil & Teds Navigator - Canadian Safety Standard states: - 104

Phil & Teds Navigator - Canadian Safety Standard states: - 105

Phil & Teds Navigator - Canadian Safety Standard states: - 106

Phil & Teds Navigator - Canadian Safety Standard states: - 107

Phil & Teds Navigator - Canadian Safety Standard states: - 108

Phil & Teds Navigator - Canadian Safety Standard states: - 109

Phil & Teds Navigator - Canadian Safety Standard states: - 110

Phil & Teds Navigator - Canadian Safety Standard states: - 111

Phil & Teds Navigator - Canadian Safety Standard states: - 112

Phil & Teds Navigator - Canadian Safety Standard states: - 113

Phil & Teds Navigator - Canadian Safety Standard states: - 114

Phil & Teds Navigator - Canadian Safety Standard states: - 115

Phil & Teds Navigator - Canadian Safety Standard states: - 116

Phil & Teds Navigator - Canadian Safety Standard states: - 117

Phil & Teds Navigator - Canadian Safety Standard states: - 118

Phil & Teds Navigator - Canadian Safety Standard states: - 119

Phil & Teds Navigator - Canadian Safety Standard states: - 120

Phil & Teds Navigator - Canadian Safety Standard states: - 121

natural_image Blank white image with no visible content, text, or symbols.

Phil & Teds Navigator - Canadian Safety Standard states: - 122

Phil & Teds Navigator - Canadian Safety Standard states: - 123

Phil & Teds Navigator - Canadian Safety Standard states: - 124

Phil & Teds Navigator - Canadian Safety Standard states: - 125

Phil & Teds Navigator - Canadian Safety Standard states: - 126

Phil & Teds Navigator - Canadian Safety Standard states: - 127

Phil & Teds Navigator - Canadian Safety Standard states: - 128

Phil & Teds Navigator - Canadian Safety Standard states: - 129

Phil & Teds Navigator - Canadian Safety Standard states: - 130

Phil & Teds Navigator - Canadian Safety Standard states: - 131

Phil & Teds Navigator - Canadian Safety Standard states: - 132

Phil & Teds Navigator - Canadian Safety Standard states: - 133

Phil & Teds Navigator - Canadian Safety Standard states: - 134

natural_image Completely blank white image with no visible content, text, or symbols.

Phil & Teds Navigator - Canadian Safety Standard states: - 135

Phil & Teds Navigator - Canadian Safety Standard states: - 136

Phil & Teds Navigator - Canadian Safety Standard states: - 137

Phil & Teds Navigator - Canadian Safety Standard states: - 138

natural_image Blank white image with no visible content, text, or symbols

Phil & Teds Navigator - Canadian Safety Standard states: - 139

natural_image Blank white image with no visible content, text, or symbols

Phil & Teds Navigator - Canadian Safety Standard states: - 140

natural_image Blank white image with no visible content, text, or symbols

Phil & Teds Navigator - Canadian Safety Standard states: - 141

natural_image Blank white image with no visible content, text, or symbols

Phil & Teds Navigator - Canadian Safety Standard states: - 142

natural_image Blank white image with no visible content, text, or symbols

Phil & Teds Navigator - Canadian Safety Standard states: - 143

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 144

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 145

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 146

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 147

natural_image Blank white image with no visible content, text, or symbols

Phil & Teds Navigator - Canadian Safety Standard states: - 148

natural_image Blank white image with no visible content, text, or symbols

Phil & Teds Navigator - Canadian Safety Standard states: - 149

natural_image Blank white image with no visible content, text, or symbols

Phil & Teds Navigator - Canadian Safety Standard states: - 150

natural_image Blank white image with no visible content, text, or symbols

Phil & Teds Navigator - Canadian Safety Standard states: - 151

natural_image Blank white image with no visible content, text, or symbols

Phil & Teds Navigator - Canadian Safety Standard states: - 152

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 153

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 154

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 155

natural_image Solid gray vertical bar with no text or symbols

Phil & Teds Navigator - Canadian Safety Standard states: - 156

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 157

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 158

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 159

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 160

natural_image Blank white image with no visible content, text, or symbols

Phil & Teds Navigator - Canadian Safety Standard states: - 161

natural_image Blank white image with no visible content, text, or symbols

Phil & Teds Navigator - Canadian Safety Standard states: - 162

natural_image Blank white image with no visible content, text, or symbols
natural_image Blank white image with no visible content, text, or symbols

Phil & Teds Navigator - Canadian Safety Standard states: - 163

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 164

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 165

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 166

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 167

natural_image Blank white image with no visible content, text, or symbols

Phil & Teds Navigator - Canadian Safety Standard states: - 168

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 169

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 170

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 171

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 172

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 173

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 174

natural_image Solid gray vertical bar with no text, symbols, or markings

Phil & Teds Navigator - Canadian Safety Standard states: - 175

natural_image Solid gray vertical bar with no text, symbols, or markings

European Safety Standard:

text_image Technical diagram of a stroller with numbered parts for identification and assembly reference.

01 Handle bar
02 Brake off clip
03 Handle bar adjustor
04 Sunhood
05 Double kit sunhood
06 Grab bar
07 Retaining strap
08 Double kit
09 Mud guards
10 Parcel tray
11 Auto brake lever
12 Recline strap
13 Harness
14 Single hand fold

01 Guidon

02 Système de

text_image Sold separately * sold separately

1
Phil & Teds Navigator - European Safety Standard: - 1

text_image Illustration showing a hand using a safety harness to adjust the seatbelt, with a magnified inset highlighting the joint detail.

2

Phil & Teds Navigator - European Safety Standard: - 2

natural_image Illustration of a person using a manual lever device to lift a seatbelt, with no text or symbols present.

3

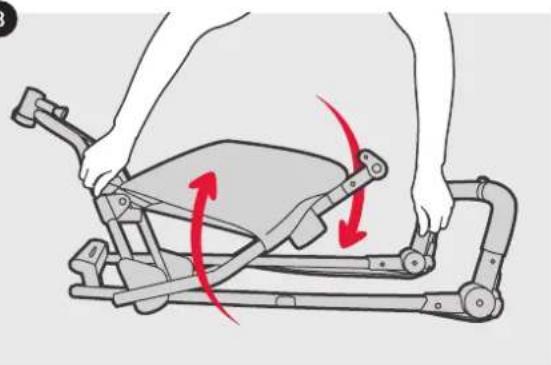

Phil & Teds Navigator - European Safety Standard: - 3

natural_image Illustration of a person using a mobility device with red arrows indicating motion direction (no text or symbols)

Phil & Teds Navigator - European Safety Standard: - 4

natural_image Technical line drawing of a mechanical assembly with no visible text or symbols

Phil & Teds Navigator - European Safety Standard: - 5

Instructions / gebrauchsanweisung / instrucciones / instructies

Phil & Teds Navigator - NAVIGATOR™ - 1

natural_image Illustration of a car seat assembly with orange seat and gray equipment (no text or symbols)

Phil & Teds Navigator - NAVIGATOR™ - 2

text_image Diagram illustrating mechanical assembly with highlighted components and directional arrows, showing assembly steps and component layout.

Phil & Teds Navigator - NAVIGATOR™ - 3

natural_image Illustration of a yellow and orange baby seat with mechanical arms and a red arrow indicating rotation (no text or symbols)

Phil & Teds Navigator - NAVIGATOR™ - 4

text_image Diagram illustrating the step-by-step instructions for adjusting a yellow car seatbelt, with magnified views showing key changes.

Phil & Teds Navigator - NAVIGATOR™ - 5

Instructions / gebrauchsanweisung / instrucciones / instructies

Phil & Teds Navigator - NAVIGATOR™ - 1

text_image Diagram of a wheelchair with numbered parts indicating components for cleaning or repair.

1a
Phil & Teds Navigator - NAVIGATOR™ - 2

natural_image Illustration of a hand using a tool to lift a bicycle tire, with red arrows indicating motion direction (no text or symbols)

1b
Phil & Teds Navigator - NAVIGATOR™ - 3

natural_image Illustration of a bicycle steering wheel with orange lever and red motion lines (no text or symbols)

2
Phil & Teds Navigator - NAVIGATOR™ - 4

natural_image Mechanical diagram showing a lever mechanism with orange and gray components and a red directional arrow (no text or symbols)

3
Phil & Teds Navigator - NAVIGATOR™ - 5

natural_image Illustration of a wheeled cart with four wheels and two metal fasteners (no text or symbols)

Phil & Teds Navigator - NAVIGATOR™ - 6

natural_image Illustration of a hand using a red tool to adjust or install a car tire (no text or symbols visible)

4
Phil & Teds Navigator - NAVIGATOR™ - 7

text_image Diagram illustrating a mechanical device with lock and warning symbol, alongside a magnified view of the device's internal components.

Phil & Teds Navigator - NAVIGATOR™ - 1

natural_image Diagram of a car tire with a valve and red motion arrow, no text or symbols present

Phil & Teds Navigator - NAVIGATOR™ - 2

natural_image Simple line drawing of a bell with red and yellow segments inside, enclosed in a red circle (no text or symbols)

Phil & Teds Navigator - NAVIGATOR™ - 3

Instructions / gebrauchsanweisung / instrucciones / instructies

Phil & Teds Navigator - NAVIGATOR™ - 1

Phil & Teds Navigator - NAVIGATOR™ - 2

text_image Illustration of a stroller with orange cable and orange grip, showing a hand using a tool to adjust the seat area.

Phil & Teds Navigator - NAVIGATOR™ - 3

Instructions / gebrauchsanweisung / instrucciones / instructies

Phil & Teds Navigator - NAVIGATOR™ - 1

natural_image Illustration of a hand using a yellow belt to lift a car, with a traffic light indicator nearby (no text or symbols)

Phil & Teds Navigator - NAVIGATOR™ - 2

text_image Diagram showing hand grip and belt assembly with directional arrows and a traffic light indicator

Phil & Teds Navigator - NAVIGATOR™ - 3

text_image Safety warning illustration showing a hand adjusting a yellow belt switch with a lock icon and a traffic light indicator.

Phil & Teds Navigator - NAVIGATOR™ - 4

text_image Diagram illustrating car safety instructions with a hand holding a screwdriver, highlighting traffic lights and warning symbols

Phil & Teds Navigator - NAVIGATOR™ - 5

text_image Illustration showing a stroller with four different seatbelt configurations, labeled 1 to 4.

Phil & Teds Navigator - NAVIGATOR™ - 6

text_image Illustration showing how to adjust seatbelt between a stroller and a car, with labeled parts and directional arrows.

Phil & Teds Navigator - NAVIGATOR™ - 7

Instructions / gebrauchsanweisung / instrucciones / instructies

Phil & Teds Navigator - NAVIGATOR™ - 1

natural_image Diagram of a vehicle's front suspension system with orange and red components (no text or labels)

Phil & Teds Navigator - NAVIGATOR™ - 2

text_image Diagram showing three labeled mechanical components with red arrows indicating motion or movement, likely illustrating a system or assembly.

Phil & Teds Navigator - NAVIGATOR™ - 3

natural_image Illustration of a child wearing a full-body safety harness (no text or symbols)

Phil & Teds Navigator - NAVIGATOR™ - 4

Phil & Teds Navigator - NAVIGATOR™ - 5

natural_image Illustration of a child wearing a yellow safety harness (no text or symbols)

Phil & Teds Navigator - NAVIGATOR™ - 6

Phil & Teds Navigator - NAVIGATOR™ - 7

Phil & Teds Navigator - NAVIGATOR™ - 8

Instructions / gebrauchsanweisung / instrucciones / instructies

Phil & Teds Navigator - NAVIGATOR™ - 1

natural_image Illustration of a person using a stroller with red directional arrows indicating motion (no text or symbols)

Phil & Teds Navigator - NAVIGATOR™ - 2

natural_image Illustration of a person using a stroller to lift a wheel, with a red arrow indicating motion (no text or symbols)

Phil & Teds Navigator - NAVIGATOR™ - 3

natural_image Illustration of a person using a portable lawn mower with red motion lines indicating movement (no text or symbols)

Phil & Teds Navigator - NAVIGATOR™ - 4

natural_image Line drawing of a car engine component with a green checkmark icon (no text or symbols)

Phil & Teds Navigator - NAVIGATOR™ - 5

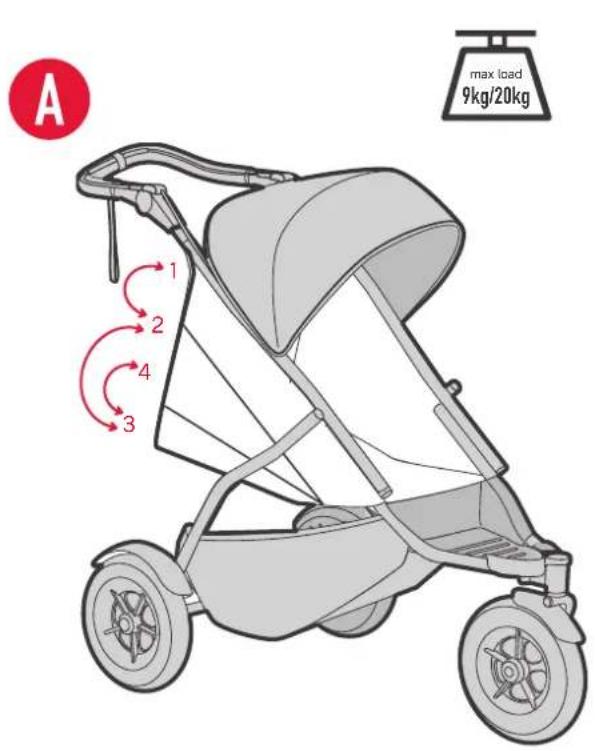

text_image A 1 2 3 4 max load 9kg/20kg

Phil & Teds Navigator - NAVIGATOR™ - 6

text_image 1 1a 1b 1-2

Phil & Teds Navigator - NAVIGATOR™ - 7

NAVIGATOR™

Instructions / gebrauchsanweisung / instrucciones / instructies

2
Phil & Teds Navigator - NAVIGATOR™ - 8

text_image 2 X2 2-3

3
Phil & Teds Navigator - NAVIGATOR™ - 9

text_image 3 3-4

Phil & Teds Navigator - NAVIGATOR™ - 10

natural_image Diagram showing a car seatbelt being adjusted with red ribbon, no text or symbols present

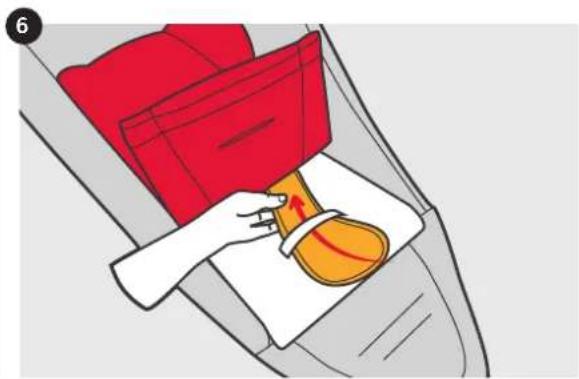

Phil & Teds Navigator - NAVIGATOR™ - 11

natural_image Illustration of a hand placing a red folder into a white sheet with an orange object, no text or symbols present

Phil & Teds Navigator - NAVIGATOR™ - 12

natural_image Illustration of a red and orange belt buckle securing a car seatbelt (no text or symbols)

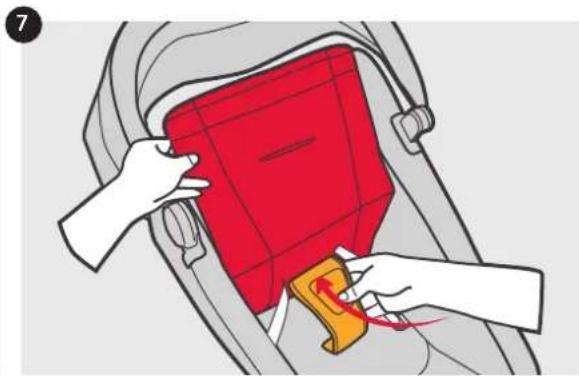

Phil & Teds Navigator - NAVIGATOR™ - 13

natural_image Illustration of a person's seatbelt being adjusted for a red box, with no text or symbols present.

Phil & Teds Navigator - NAVIGATOR™ - 14

Instructions / gebrauchsanweisung / instrucciones / instructies

Phil & Teds Navigator - NAVIGATOR™ - 1

Phil & Teds Navigator - NAVIGATOR™ - 2

Phil & Teds Navigator - NAVIGATOR™ - 3

text_image C max load 20kg/44lbs

Phil & Teds Navigator - NAVIGATOR™ - 4

natural_image Illustration showing a hand adjusting a car seatbelt with orange pins, and a close-up of the seatbelt component (no text or symbols)

Phil & Teds Navigator - NAVIGATOR™ - 5

Instructions / gebrauchsanweisung / instrucciones / instructies

Phil & Teds Navigator - NAVIGATOR™ - 1

text_image Diagram illustrating the use of a stroller to adjust the seatbelt, with magnified detail showing the mechanism.

Phil & Teds Navigator - NAVIGATOR™ - 2

natural_image Illustration of a medical or surgical device with attached tubing and a yellow tool (no text or symbols)

Phil & Teds Navigator - NAVIGATOR™ - 3

natural_image Illustration of a hand holding a device with a red laser beam and orange tip, no text or symbols present

Phil & Teds Navigator - NAVIGATOR™ - 4

natural_image Illustration of a two-wheeled stroller with orange canopy and gray body (no text or symbols)

Phil & Teds Navigator - NAVIGATOR™ - 5

Instructions / gebrauchsanweisung / instrucciones / instructies

Phil & Teds Navigator - NAVIGATOR™ - 1

text_image D max load 15kg/33lbs

Phil & Teds Navigator - NAVIGATOR™ - 2

natural_image Illustration of a two-story stroller with seatbelt and orange belt, no text or symbols present

Phil & Teds Navigator - NAVIGATOR™ - 3

text_image Diagram illustrating car seatbelt usage with magnified insets showing correct and incorrect states of using a device.

Phil & Teds Navigator - NAVIGATOR™ - 4

natural_image Line drawing of a two-wheeled stroller with orange seat and wheels (no text or symbols)

Phil & Teds Navigator - NAVIGATOR™ - 5

Instructions / gebrauchsanweisung / instrucciones / instructies

Phil & Teds Navigator - NAVIGATOR™ - 1

natural_image Illustration of a person using a scooter seatbelt device to adjust the seatbelt (no text or symbols present)

Phil & Teds Navigator - NAVIGATOR™ - 2

natural_image Illustration of a baby stroller with orange seat and red arrow indicating motion (no text or symbols)

Phil & Teds Navigator - NAVIGATOR™ - 3

natural_image Illustration of a stroller with a hand holding an orange cushion cover, showing a red arrow indicating motion (no text or symbols)

Phil & Teds Navigator - NAVIGATOR™ - 4

natural_image Mechanical diagram showing a person adjusting a seatbelt with red arrows indicating specific positions (no text or symbols present)

Phil & Teds Navigator - NAVIGATOR™ - 5

natural_image Illustration of a stroller with a yellow blanket and orange seat, showing a handle and arrow (no text or symbols)

Phil & Teds Navigator - NAVIGATOR™ - 6

text_image Diagram illustrating car seatbelt buckle locking mechanism with magnified view showing correct and incorrect states

Phil & Teds Navigator - NAVIGATOR™ - 7

Instructions / gebrauchsanweisung / instrucciones / instructies

Phil & Teds Navigator - NAVIGATOR™ - 1

text_image Diagram illustrating the use of a stroller with labeled parts and directional arrows indicating movement or positioning.

© Phil and Teds Most Excellent Buggy Company Ltd 2012.

We (Phil and Teds Most Excellent Buggy Company Ltd) own the intellectual property rights in our brands, designs and inventions featured in this publication. These Include, without limitation, the phil&teds, adapt&survivel, &, INLINE trade marks and INLINE DOUBLE BUGGY shape. We actively pursue people who infringe our intellectual property.

©Phil & Teds Most Excellent Buggy Company Ltd 2012.

© Phil and Teds Most Excellent Buggy Company Ltd 2012.

© Phil and Teds Most Excellent Buggy Company Ltd 2012.

© Phil and Teds Most Excellent Buggy Company Ltd 2012.

Designed in New Zealand. Made in China

natural_image Line drawing of a stroller with four wheels and a canopy cover (no text or symbols)
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Phil & Teds

Model : Navigator

Category : Stroller
