Product type	LED bicycle lamp set (front and rear lights)
Brand	Aplic
Model	303511
Front light power supply	Lithium battery 3.7 V, 2600 mAh
Rear light power supply	Lithium battery 3.7 V, 180 mAh
Front light weight	Approx. 103 g
Rear light weight	Approx. 50 g
Charging	USB port (cable included), 5 V DC source (e.g., smartphone charger)
Charge indicator	Front light: red indicator in the On/Off switch; Rear light: red indicator on the front face
Power on/off	On/Off button on each light
Front light mounting	On handlebar, clamp with quick release
Rear light mounting	On seat post, rubber bracket with rings
Rear light mounting height	Minimum 250 mm, maximum 1200 mm above ground
Material	Plastic housing, clamp
Waterproofness	Not waterproof, use in dry conditions
Cleaning	Dry cloth, no chemicals
Safety instructions	Do not open, avoid short circuit, keep out of reach of children, comply with local regulations
Warranty	Void if repaired by unauthorized third party
Disposal	Compliant with WEEE (Directive 2012/19/EU), do not dispose with household waste
Batteries	Mandatory recycling, crossed-out bin symbol
WEEE registration number	DE 67896761
Manufacturer / Declarant	WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, Germany

Frequently Asked Questions - 303511 Aplic

How to recharge the front and rear lights of the Aplic 303511 kit?

Open the protective flaps of the USB port on each light. Connect the provided USB cable to a 5 V DC source (smartphone charger, computer). The red indicator shows charging; when it goes out, charging is complete.

How to mount the front light on the handlebar?

Open the clamp of the bracket, place it on the handlebar and tighten. The light snaps onto the bracket using the quick-release mechanism. To remove, lower the lever (A).

How to mount the rear light on the seat post?

Attach the rubber bracket around the seat post using the rubber rings. Ensure the housing is parallel to the ground and the height is between 250 mm and 1200 mm above ground.

What to do if a light does not turn on?

Check the battery charge: the red indicator should light up during charging. If the indicator does not light up, the USB cable or power source may be faulty. If the battery is empty, recharge it fully. If the problem persists, contact the manufacturer.

How to know if the battery is low?

The battery indicator (red light) lights up when the battery is low. For the front light, the indicator is integrated into the On/Off switch. For the rear light, it is on the front face of the device.

What is the battery life?

Battery life depends on usage and capacity: the front light with 2600 mAh offers longer autonomy than the rear light (180 mAh). For accurate estimate, refer to the indications in the original manual.

Can I use the lights in the rain?

No, the device is not waterproof. Use only in dry weather. Protect from moisture, water, and snow.

How to clean the lights?

Clean the devices with a dry cloth. Never use chemical or abrasive cleaning products. Keep them away from heat sources.

Can I replace the battery myself?

No, never try to open the device. Any opening voids the warranty. At end of life, return the product to a WEEE collection point.

How to dispose of the kit at end of life?

Do not dispose of the device or batteries with household waste. In accordance with the WEEE Directive (2012/19/EU) and the ElektroG law, return them free of charge to the manufacturer, point of sale, or public collection point.

USER MANUAL 303511 Aplic

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

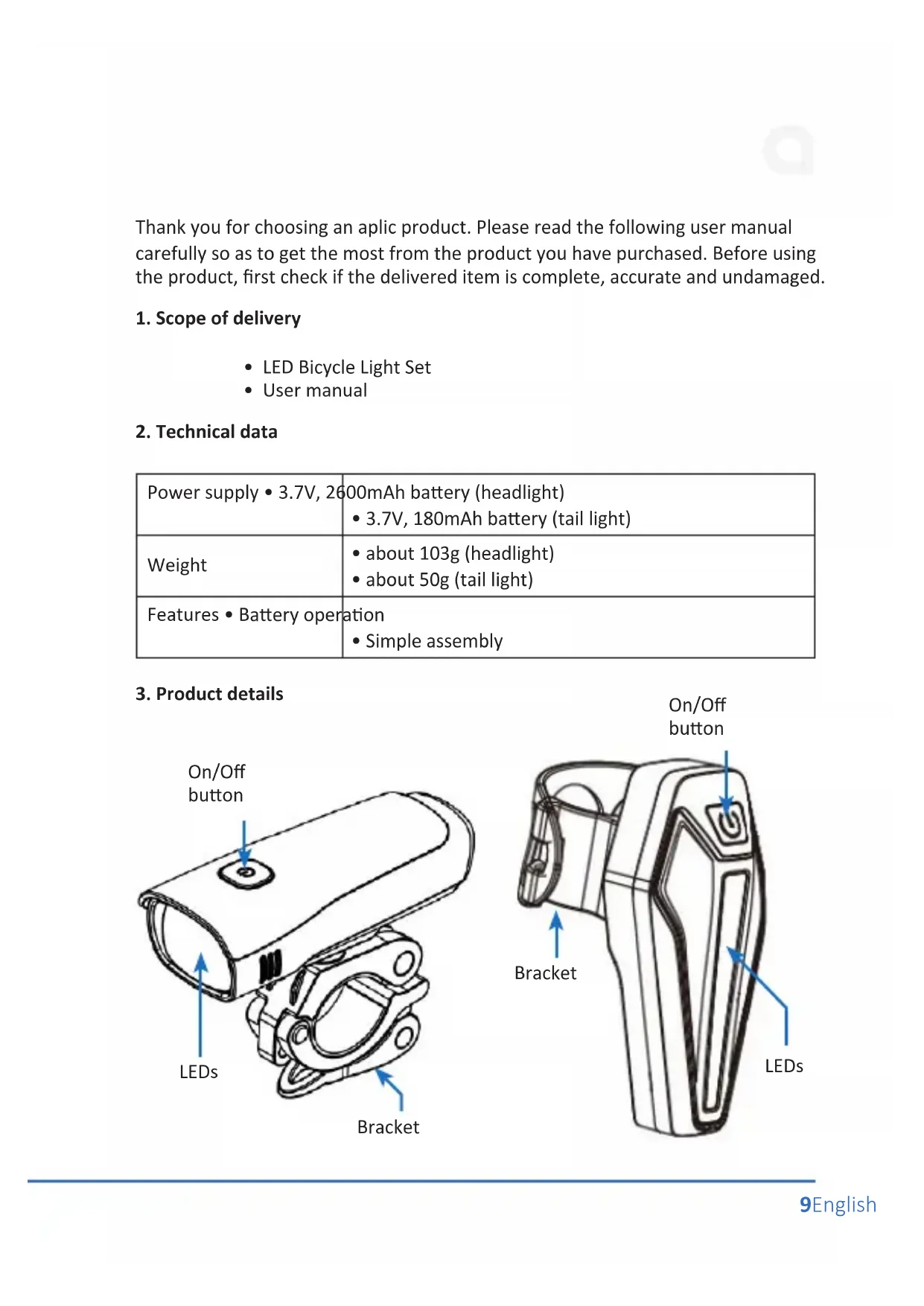

Thank you for choosing an aplic product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check if the delivered item is complete, accurate and undamaged.

1. Scope of delivery

LED Bicycle Light Set
- User manual

2. Technical data

Power supply • 3.7V, 2600mAh battery (headlight) • 3.7V, 180mAh battery (tail light)
Weight	• about 103g (headlight) • about 50g (tail light)
Features • Battery operation • Simple assembly

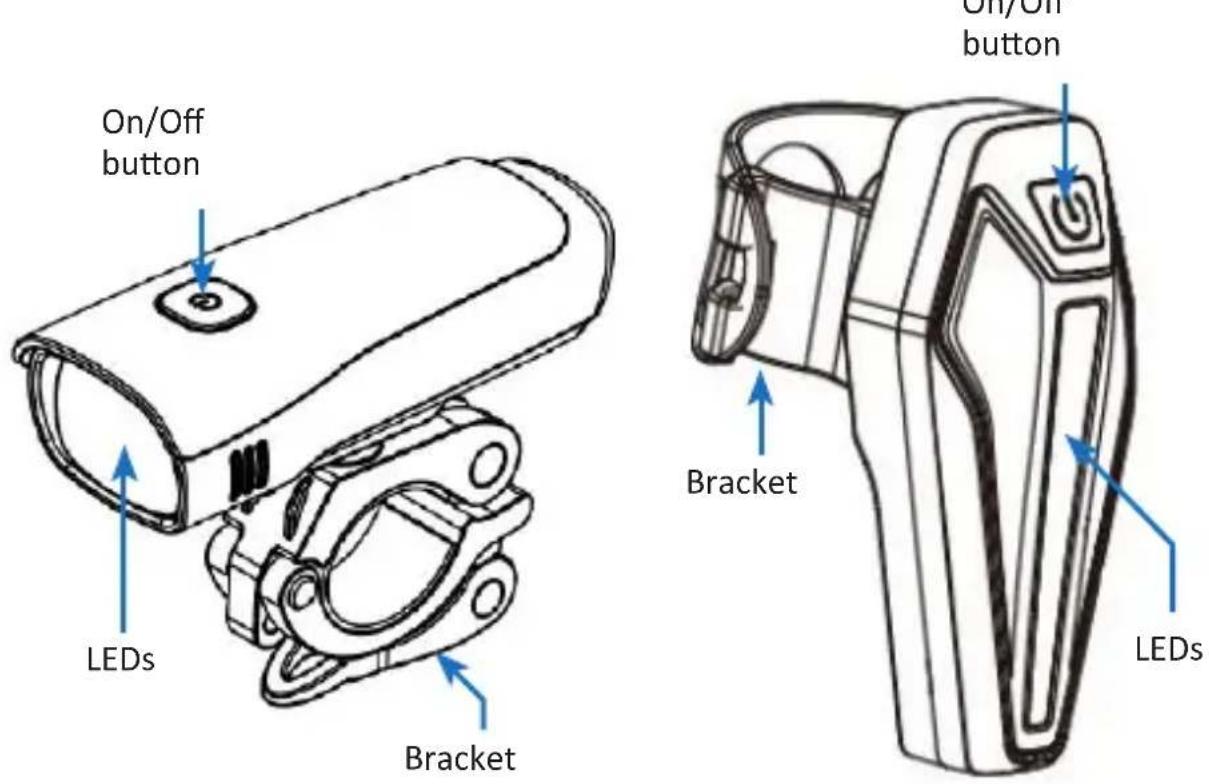

3. Product details

4. Assembly

According to the StVZO §67, lighting devices must be installed properly and firmly and be ready for use at any time. Lighting devices should not be covered.

Assemble the headlight as shown on the handlebar and the tail light on the rear part of the frame.

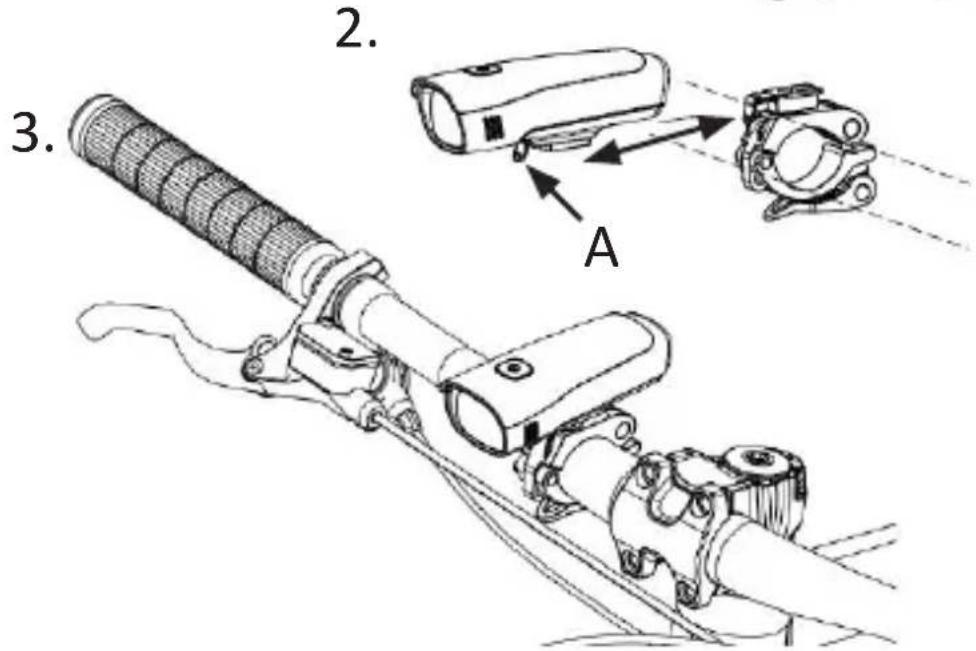

4.1 Headlight

Open the clamp for mounting the headlight and fix it accordingly. The headlight can be removed from the bracket and replaced easily after assembly thanks to the snap lock mechanism.

To do this, press the lever (A) down and remove the light as shown in the figure above.

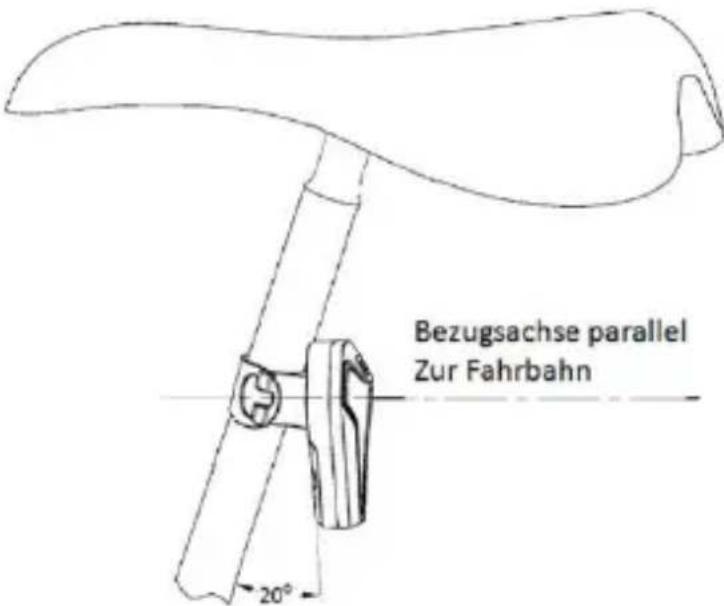

4.2 Tail light

For installing the tail light, e.g., on a seat support, proceed as follows:

• The upper housing surface should be parallel to the ground and to the longitudinal axis.
• The installation height of the tail light should be at least 250mm and a maximum of 1200mm above the ground.
• For assembling, fix the bracket of the tail light to the seat support using the rubber rings.
• For this purpose, place the rubber bracket around the seat support and attach it to the other side of the tail light bracket.

Make sure that the tail light is fixed firmly and mounted correctly before you start using the bicycle.

5. Commissioning

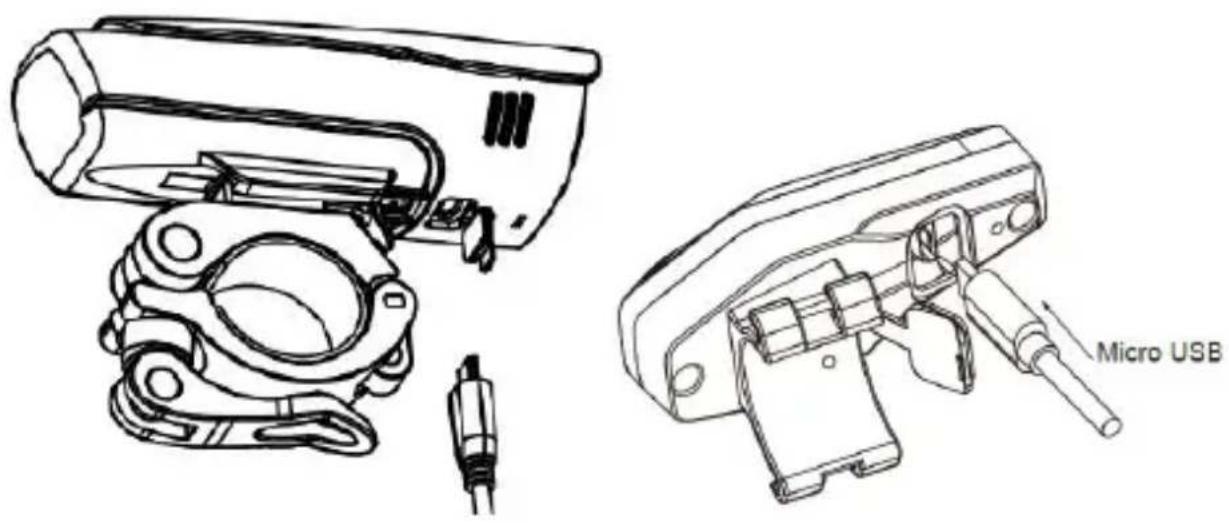

To start using the LED bicycle light set, first charge the batteries of the headlight and tail light. For this purpose, open the covers of the charging port and charge the device using a USB cable connected to a 5V DC power source such as the charger of a smartphone.

If the battery indicator of the device glows in red, they need to be charged. The battery indicator of the headlight is integrated into the On / Off switch. And the battery indicator of the tail lamp is located on the front of the device.

To turn the lights on and off, press the respective On / Off button.

6. Cleaning and Care

Clean the device with a dry cloth. Never use any aggressive or chemical cleaning agents for cleaning. Keep the device away from heat.

7. Safety instructions and disclaimer

Never try to open the device to repair or make modi四川省. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures.

Do not expose the device to sudden changes in temperature or strong vibra-ons, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regula-ons and restric-tons. Do not use the device for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modi ca ons to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should be used only by persons who have read and understood this user manual. The speci ca ons of the device may be changed without prior no ca on.

8. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domes c waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations.

With this manner of sor ng, recycling and disposal of used devices, you make an important contribu on towards protecting our environment.

9. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries mean the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery must not be disposed of in household waste.

WEEE Guideline: 2012/19/EU

WEEE Register no.: DE 67896761

WD Plus GmbH hereby certifies that the appliance 303511/20181213FS029 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
