Product Type	LED Bike Lights (Front and Rear)
Brand	Aplic
Model	302969
Power Supply (Front Light)	4x AAA 1.5V batteries
Power Supply (Rear Light)	4x AAA 1.5V batteries
Weight (Front Light)	Approx. 70 g
Weight (Rear Light)	Approx. 40 g
Light Modes	Multiple different light modes
Installation	Easy installation with quick-release lock for front light
Mounting Location	Front on handlebars, Rear on bicycle frame
Battery Access (Front)	Turn front cover counterclockwise
Battery Access (Rear)	Pull out rear of the light
Battery Type	Alkaline (do not use rechargeable)
Operating Conditions	Dry conditions only, avoid moisture and water
Safety	Do not open or repair; keep away from children
Disposal	WEEE directive; separate batteries and electronics
Certifications	CE, WEEE (WEEE Reg. No. DE 94495668)
Manufacturer	WD Plus GmbH
Included Accessories	User manual
Quantity	2 units (front and rear light)

Frequently Asked Questions - 302969 Aplic

How do I install the front light?

Open the clamp, place the mounting clamp around the handlebars at the desired position, and screw it tight. Use the quick-release lock to easily attach or remove the light.

How do I install the rear light?

Mount the rear light at the rear part of the bicycle frame using the provided holder. Secure it with the clamp.

How do I insert batteries?

For the front light, turn the front cover counterclockwise to open the battery compartment and insert 4x AAA 1.5V batteries with correct polarity. For the rear light, pull out the rear of the light to access the compartment and insert 4x AAA 1.5V batteries.

Can I use rechargeable batteries?

No, do not use rechargeable batteries as they have a voltage of only 1.2V, which can cause functional or brightness issues. Only use alkaline 1.5V batteries.

How do I change the light modes?

Press the on/off/mode button on each light to turn it on and cycle through the different light modes.

Is the bike light waterproof?

No, the light is not certified for outdoor use in rain or snow. Only use it in dry conditions to avoid damage from moisture.

What is the weight of each light?

The front light weighs approximately 70g, and the rear light weighs approximately 40g.

How do I remove the front light from its holder?

Press the lever on the quick-release lock down and lift the light out of the holder.

How should I dispose of the product?

Follow the WEEE directive: do not dispose of with household waste. Return used electrical and electronic devices to collection points. Dispose of batteries separately according to local regulations.

What safety precautions should I take?

Never try to open or repair the device. Avoid contact with moisture, high temperatures, and vibration. Keep away from children. Do not short-circuit batteries.

USER MANUAL 302969 Aplic

Blue abstract logo shape resembling a stylized letter 'Q' or partial circle (no text or symbols)

aplic

LED Bike Lights

4.2 Rücklicht

5 Inbetriebnahme

Diagram of a car air intake system with airflow direction arrows (no text or labels)

Simple line drawing of a rectangular object with a curved top and side panel, no text or symbols present.

Thank you for having chosen this aplic product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of delivery

• LED Bike lights
• User manual

2 Technical specifications

Power supply • 4x AAA	1,5V batteries (front light)• 4x AAA 1,5V batteries (rear light)
Weight	• approx. 70g (front light)• approx. 40g (rear light)
Features • different light modes• easy installation

3 Product details

4 Installation

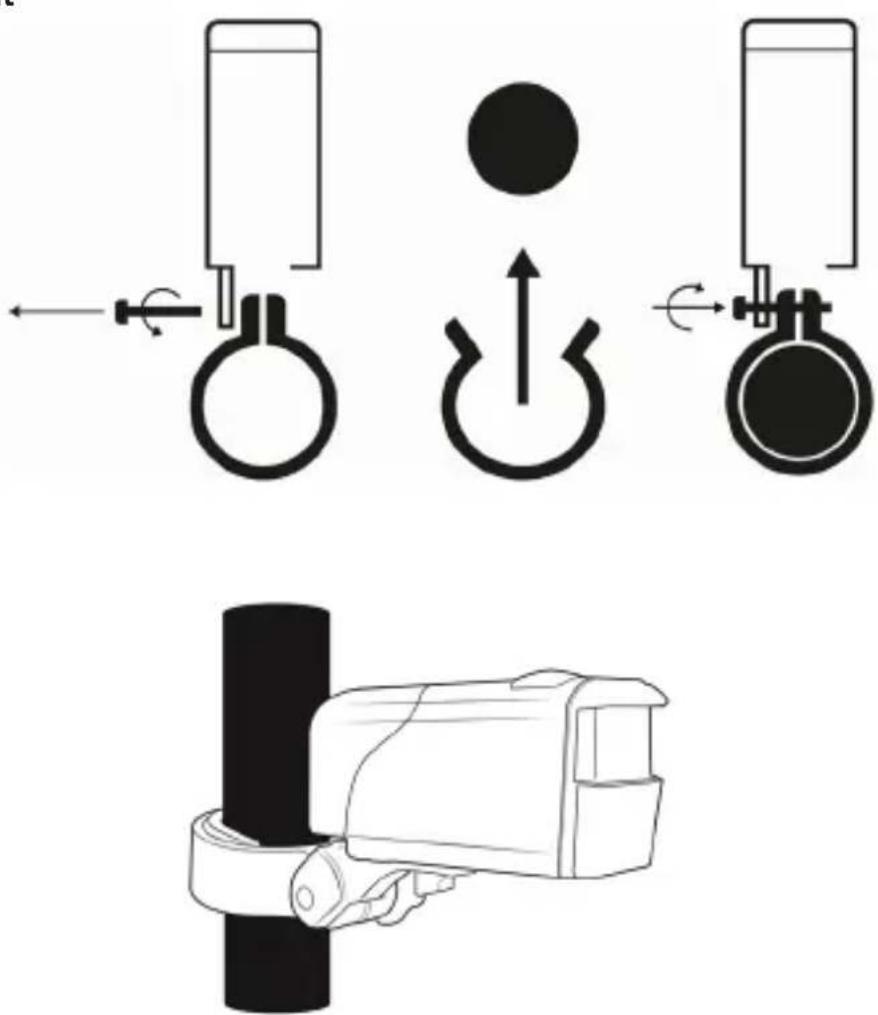

Mount the front light on the handlebars and the rear light at the rear part of the bicycle frame. For mounting on the front light, open the clamp and screw it. Place the mounting clamp to the desired position and around the rod and screw it.

4.1 Front light

Because of the quick-release lock the front light is very easy to remove and re-install from the holder.

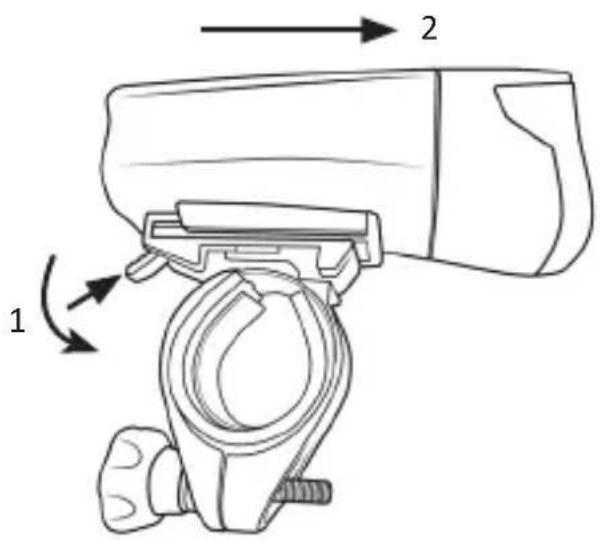

Press the lever (1) down and remove the light (2) as shown in the figure below.

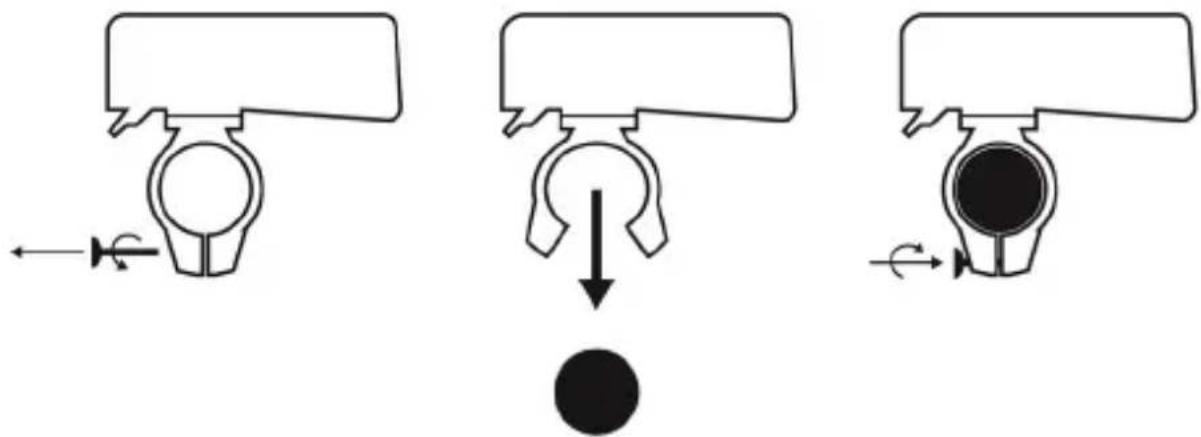

4.2 Rear light

5 Start-up

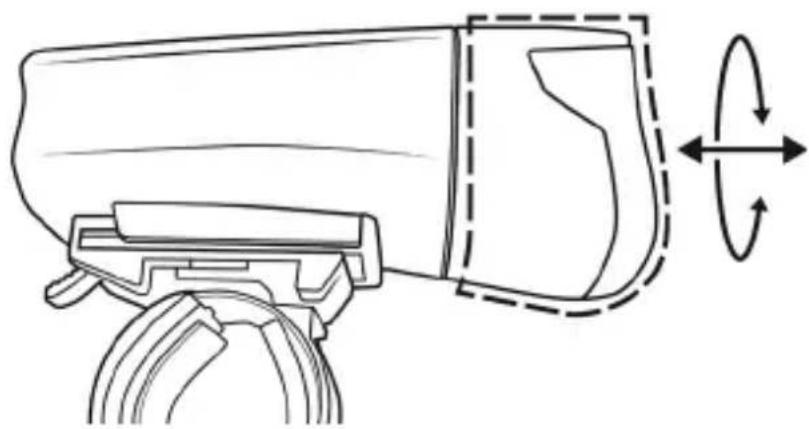

For a quick start-up, you have to insert the batteries. Open the battery compartment of the front light and insert 4x AAA 1.5V batteries. To open the battery compartment, it is necessary to turn up the front cover counterclockwise. Insert the batteries with the correct polarity!

Diagram of a car air intake system with airflow direction arrows (no text or labels)

To install the batteries of the rear light you have to open the battery compartment by pulling out the rear of the light and inserting 4x AAA 1.5V batteries. Insert the batteries with the correct polarity!

Simple line drawing of a rectangular object with a curved top and side profile, no text or symbols present.

Note: Do not use rechargeable batteries because these batteries only have a voltage of 1.2V. The use of rechargeable batteries can lead to functional or brightness problems.

To turn on the lights or to change the operating modes, you have to press the on or off button in each case.

6 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

7 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment

8 Instructions on the disposal of batteries

With regard to the sale of batteries or the supply of devices containing batteries, the supplier is obliged to draw the customer's attention to the following: As the end user, the customer has a statutory obligation to return used batteries. He can return old batteries stocked or previously stocked by the supplier in the form of new batteries to the supplier's despatch warehouse (despatch address) free of charge. The symbols shown on the batteries have the following meanings: Pb = battery contains more than 0.004 percent by mass of lead, Cd = battery contains more than 0.002 percent by mass of cadmium, Hg = battery contains more than 0.0005 percent by mass of quicksilver.

The symbol of the rubbish bin with a cross through it indicates that the battery may not be put in household waste.

WEEE guideline: 2012/19/EU WEEE register number: DE 94495668

WD Plus GmbH, herewith declares that this product 302969/20170519JS001 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
