USER MANUAL 303693 Aplic

Blue abstract logo shape resembling a stylized letter 'Q' or partial circle (no text or symbols)

aplic

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Thank you for choosing an aplic product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Bicycle lamp, tail light
- User manual

1. Technical data

Power supply 3.7V, 200	mAh battery
Weight approx. 30g
Features • Battery operation• Simple assembly

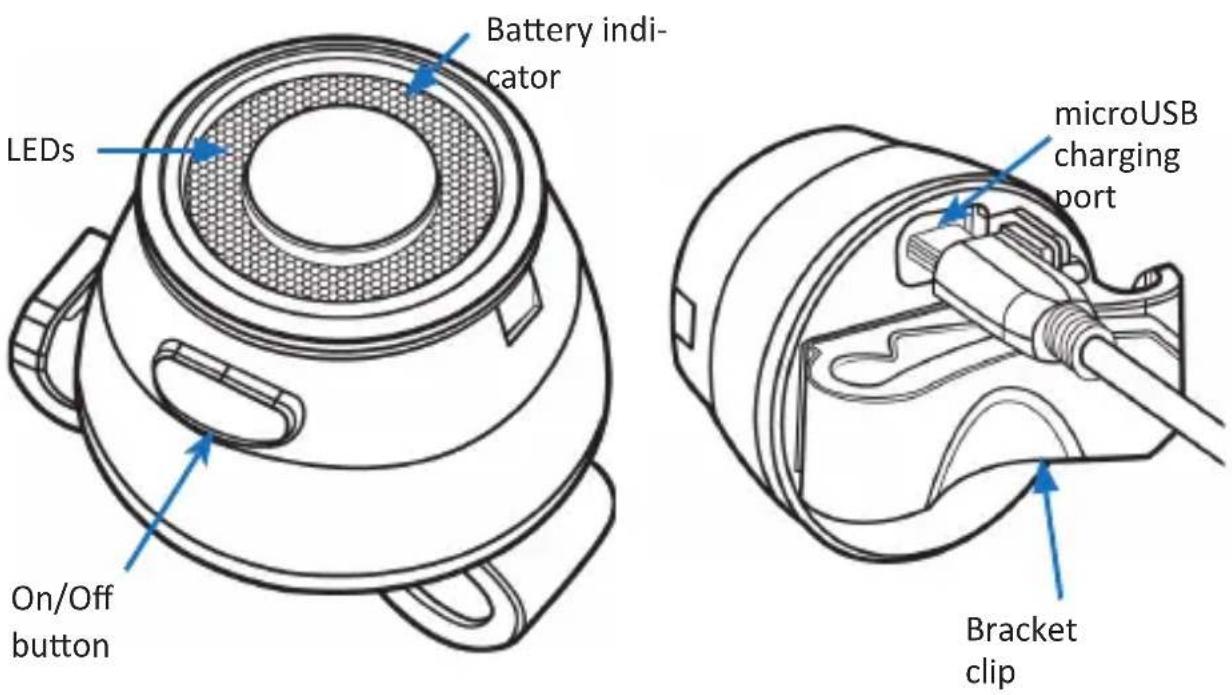

3. Product details

LEDs Battery indi- cator On/Off button microUSB charging port Bracket clip

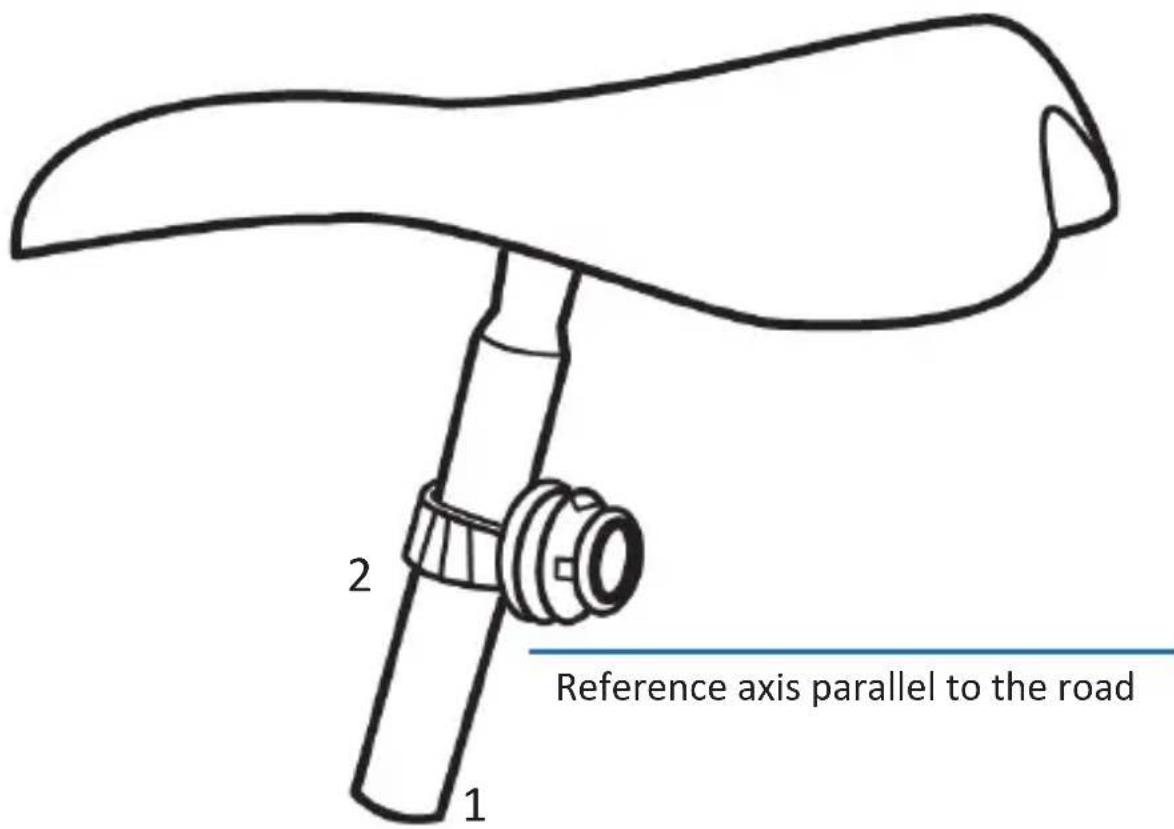

4. Assembly

According to the StVZO §67, lighting devices must be installed properly and firmly and be ready for use at any time. Lighting devices should not be covered.

1 2 Reference axis parallel to the road

To install the tail light on a seat support, for example, proceed as follows:

• The rubber strap is suitable for a seat tube diameter of 25mm to 42mm.
- The device must be facing perpendicular to the road, so that the reference axis is parallel to the road and in line with the bicycle axis.
- The installation height of the tail light should be at least 250 mm and a maximum of 1200 mm above the ground.
- The light is suitable for mounting on the seat support at an angle of 73^ .

1. For assembly, fix the tail light to the rubber (2) on the bracket of the tail light and with the seat post (1).

Make sure that the tail light is fixed firmly and mounted correctly before you start using the bicycle.

5. Initial use

To start using the tail light, first charge the battery of the tail light. For this purpose, open the cover of the charging port. Now charge the device using a microUSB charging cable connected to a 5V DC power source such as the charger of a smartphone.

If the blue battery indicator of the device starts glowing, then charge the device promptly. During the charging process, the battery indicator is continuously blue.

Once the charging is completed, the LED turns green. The battery indicator of the tail lamp is located on the front of the device. To turn the light on or off, press the On/Off button.

6. Cleaning and Care

Clean the device with a moist or dry cloth. Never use any aggressive or chemical cleaning agents for cleaning. Keep the device away from heat. Dirt on the light should be wiped off immediately.

7. Safety instructions and disclaimer

Never try to open the device to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the device, which are not carried out by the original supplier, will void any warranty and guarantee claims. The device should be used only by those who have read and understood this user manual. The specifications of the device may be changed without special prior notice.

8. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be separately sent for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the Electrical and Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations.

With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

9. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery may not be disposed of in household waste.

WEEE Guideline: 2012/19/EU WEEE Register no.: DE 67896761

WD Plus GmbH hereby certifies that the device 303693/20190315FS029 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
