Product Type	LED Bike Light Set (Front and Rear)
Brand	Aplic
Model	302968
Front Light Power Supply	4× AA 1.5V batteries
Rear Light Power Supply	4× AAA 1.5V batteries
Front Light Weight	Approx. 90 g
Rear Light Weight	Approx. 40 g
Battery Type Recommended	Non-rechargeable alkaline batteries only (1.5V)
Light Modes	Multiple modes (change by pressing on/off button)
Ambient Temperature Range	-5°C to +45°C
Mounting Type	Clamp mount on handlebars (front) and rear frame (rear)
Quick-Release Lock	Front light only: lever-operated quick-release for easy removal
Water Resistance	Not water-resistant; use only in dry conditions
Safety Precautions	Do not open, modify, or short-circuit. Keep away from children. Avoid high humidity, water, snow, and high temperatures.
WEEE Disposal	Do not dispose with household waste. Separate collection of electrical/electronic devices and batteries required.
Battery Disposal Symbols	Pb (lead >0.004%), Cd (cadmium >0.002%), Hg (mercury >0.0005%) may apply
WEEE Registration Number	DE 67896761
Declaration of Conformity	Available from WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
Warranty	Warranty void if device is altered or repaired by unauthorized parties

Frequently Asked Questions - 302968 Aplic

How do I install the bike lights?

Mount the front light on the handlebars and the rear light on the rear frame. For the front light, open the clamp, position it around the handlebar, and tighten the screw. The rear light clamps similarly. Ensure both are securely attached.

What type of batteries do I need?

The front light requires 4× AA 1.5V batteries, and the rear light requires 4× AAA 1.5V batteries. Use only non-rechargeable alkaline batteries. Do not use rechargeable batteries (1.2V) as they may cause brightness or functional issues.

How do I change the light modes?

Press the on/off button on each light to turn it on or change the operating mode. The lights have multiple modes (e.g., steady, flashing). Press repeatedly to cycle through them.

Can I use rechargeable batteries?

No, the manual specifically advises against using rechargeable batteries because they only provide 1.2V, which can lead to functional or brightness problems. Only standard 1.5V alkaline batteries are recommended.

How do I remove the front light quickly?

The front light has a quick-release lock. Press the lever (1) down and remove the light (2) from the holder. This makes it easy to take the light with you when parking.

Are the lights waterproof?

No, the lights are not certified for outdoor use in wet conditions. They should only be used in dry conditions and protected from high humidity, water, and snow. Avoid exposing them to rain or washing.

What should I do if the lights stop working?

First, check that the batteries are inserted correctly with the correct polarity and that they are not depleted. If the light still does not work, do not attempt to repair it yourself. Contact the manufacturer or place of purchase.

How should I dispose of the product and batteries?

Do not dispose of the product or batteries with household waste. Follow local regulations for electrical and electronic waste (WEEE) and battery recycling. The crossed-out bin symbol indicates separate collection. Return old batteries to collection points or to the supplier.

Is the product certified for outdoor use?

The manual states that the device is not certified for use in the open air; it should only be used in dry conditions. However, it is designed for mounting on a bicycle, so it is intended for use during dry weather. Avoid riding in heavy rain.

What is the warranty?

Warranty is void if the device is repaired or altered by anyone other than the original supplier. For specific warranty terms, refer to the purchase agreement or contact the manufacturer. The product must be used according to the instructions.

USER MANUAL 302968 Aplic

Blue abstract logo shape resembling a stylized letter 'Q' or droplet (no text or symbols)

aplic

LED Bike Lights

Mod.-Nr.: 302968

Table of contents

1. Deutsch .... 3
2. English 9

4.2 Rücklicht

5. Inbetriebnahme

Technical line drawing of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Simple line drawing of a rectangular object with a curved top and side profile, no text or symbols present.

Thank you for having chosen this aplic product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual. Before using the delivered product, check that it is complete, faultless and undamaged.

1. Scope of delivery

• LED Bike lights
• User manual

2. Technical specifications

Power supply • 4x AA 1	5V batteries (front light)• 4x AAA 1,5V batteries (rear light)
Weight	• approx. 90 g (front light)• approx. 40 g (rear light)
Features • different light modes• easy installation
Ambient temperature -5° bis + 45°C

3. Product details

4. Installation

Mount the front light on the handlebars and the rear light at the rear part of the bicycle frame. For mounting on the front light, open the clamp and screw it. Place the mounting clamp to the desired position and around the rod and screw it.

4.1 Front light

Because of the quick-release lock the front light is very easy to remove and re-install from the holder.

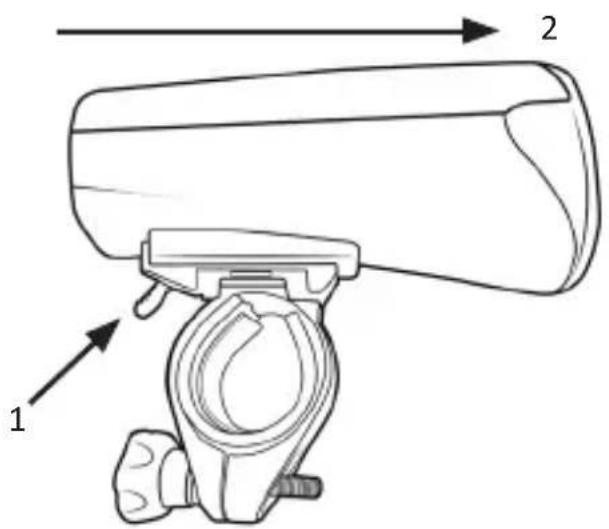

Press the lever (1) down and remove the light (2) as shown in the figure below.

4.2 Rear light

5. Start-up

For a quick start-up, you have to insert the batteries. Open the battery compartment of the front light and insert 4x AA 1.5V batteries. To open the battery compartment, it is necessary to pull the top cover back. Insert the batteries with the correct polarity!

Diagram of a car airfoil with directional arrows indicating airflow or movement (no text or symbols)

To install the batteries of the rear light you have to open the battery compartment by pulling out the rear of the light and inserting 4x AAA 1.5V batteries. Insert the batteries with the correct polarity!

Simple line drawing of a rectangular object with a curved top and side panel, no text or symbols present.

Note: Do not use rechargeable batteries because these batteries only have a voltage of 1.2V. The use of rechargeable batteries can lead to functional or brightness problems.

To turn on the lights or to change the operating modes, you have to press the on or off button in each case.

6. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

7. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

8. Instructions on the disposal of batteries

With regard to the sale of batteries or the supply of devices containing batteries, the supplier is obliged to draw the customer's attention to the following: As the end user, the customer has a statutory obligation to return used batteries. He can return old batteries stocked or previously stocked by the supplier in the form of new batteries to the supplier's despatch warehouse (despatch address) free of charge. The symbols shown on the batteries have the following meanings: Pb = battery contains more than 0.004 percent by mass of lead, Cd = battery contains more than 0.002 percent by mass of cadmium, Hg = battery contains more than 0.0005 percent by mass of quicksilver.

The symbol of the rubbish bin with a cross through it indicates that the battery may not be put in household waste.

WEEE guideline: 2012/19/EU
WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 302968 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
