Product Type	Amplified subwoofer (active subwoofer)
Brand	MTX Audio
Model	RTF10P
Dimensions (W x D x H)	48 x 34 x 13 cm
Speaker Diameter	25 cm (10 inches)
RMS Power	200 W
Peak Power	600 W
Amplifier Type	Class D
Power Supply	+12 V DC (vehicle battery)
Recommended Fuse	Install within 20 cm of the battery
Recommended Cable Gauge	10 mm² (100 % copper)
Audio Inputs	High level (adapters supplied) and low level (RCA)
Input Level	0.1 V to 4 V
Sensitivity Adjustment (Gain)	Yes, potentiometer from 0.1 V to 4 V
Remote Control	EBC (External Bass Control) included
Thermal Protection	Red protection LED
Power LED	Red (Power)
Maintenance and Cleaning	Wipe with a soft dry cloth. Do not use abrasive products.
Safety	Disconnect battery before installation. Use a fuse near the battery. Do not expose to water.
Spare Parts	EBC remote supplied. For any part, contact an authorised MTX installer.
Repairability	Consult a professional. Opening the unit voids the warranty.

Frequently Asked Questions - RTF10P MTX Audio

How to connect the power supply of the RTF10P?

Connect the +12V cable directly to the battery with a fuse within 20 cm. Connect ground (GND) to a bare metal point, with a 10 mm² cable. Finally, connect the Rem. terminal to the remote output of your car stereo.

What cable gauge should be used for power?

MTX recommends a 100% copper cable of 10 mm² for power (+12V) and ground (GND).

How to adjust the sensitivity level (Gain)?

Set Gain to minimum (turned fully counterclockwise). Turn up the source volume to 3/4 of max. Slowly increase Gain until you hear distortion, then reduce by one notch. This is not a volume control.

What do the LEDs on the amplifier mean?

The Power LED (red) lights up when the amplifier is on. The Protection LED (red) lights up in case of overheating or short circuit.

Can I use my car stereo's speaker outputs instead of RCA outputs?

Yes, the RTF10P accepts high level inputs. Use the supplied adapters to connect the speaker wires to the 'High Level Input' connector.

How to connect the EBC remote control?

Plug the EBC remote into the dedicated port (EBC Remote Control) on the amplifier. You can then adjust the subwoofer level from the front seats.

Where to install the fuse?

Place the fuse and its holder within 20 cm of the positive battery terminal. This protects the power cable in case of a short circuit.

The subwoofer does not turn on, what should I do?

Check the fuse near the battery, the remote wire connection (+12V), and the ground. Ensure the battery is delivering 12V.

What is the maximum power supported by the RTF10P?

The RMS power is 200 W, and the peak power is 600 W. Do not exceed these values to avoid damaging the speaker.

How to maintain the subwoofer?

Clean it with a soft dry cloth. Avoid chemical products. Do not drill or open the unit. Leave any repair to a professional.

USER MANUAL RTF10P MTX Audio

25cm (10") Class-D Flat Sealed Enclosure

200W RMS - 600W Peak

Designed by MTX in Phoenix, AZ - USA

Thank You!

Thank you for purchasing an MTX Audio High-End powered enclosure. Proper installation matched with MTX speakers and powered enclosures provide superior sound and performance for endless hours of waking the neighbors, slammin' your friends or flat out stomping wanna-be players. Congrats and enjoy the ultimate audio experience with MTX!

Owner's Manual - MTX RTF10P

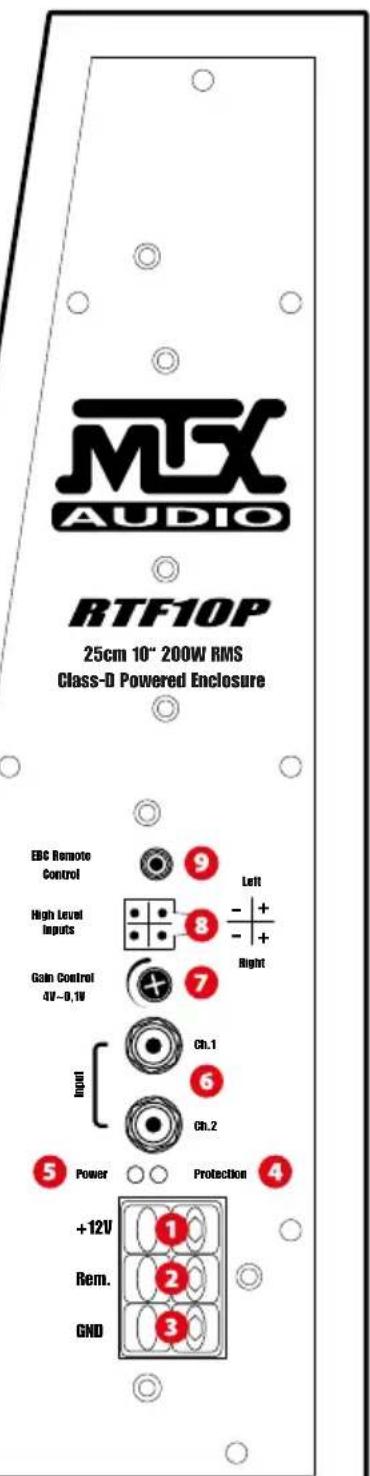

MTX AUDIO RTF10P 25cm 10" 200W RMS Class-D Powered Enclosure EBC Remote Control High Level Inputs Gain Control 4V~0.1V Input Power Rem. GND 9 Left 8 - + - + - Right 7 Ch.1 6 Ch.2 5 Power Protection 4 +12V 1 2 3

Specifications :

• Powered sealed shallow enclosure
• Subwoofer: 25cm (10")
  • Class-D mono block Amplifier
• Peak Power : 600W
  • RMS Power : 200W
  • EBC remote included
  • High and low level inputs
• Dimensions: 34x48x13cm

Control Panel on the Amplifier :

1 Power Terminal (+12V): This is the main power input for the amplifier and must be connected directly to the positive terminal of the vehicles battery for proper operation. Use caution when installing (+12V) power cable in the vehicle. Avoid running this cable parallel with RCA cables, antennas, or other sensitive equipment due to massive currents that can induce noise into the audio system. It is also very important to have a tight, secure connection for maximum performance. MTX recommends using a minimum of 10mm2 full copper power wire with the MTX RTF10P.
2 Remote Terminal (REM): The amplifier can be turned on by applying 12 volts to this terminal. Typically this voltage is supplied by a wire from the source unit marked "remote" or "power antenna".
3 Ground Terminal (GND): A proper ground is required for your amplifier to operate at peak performance. A short ground cable the same diameter as the power cable should be used to attach the ground terminal directly to the chassis of the vehicle. Always remove paint, dirt or debris to expose bare metal where the ground will be attached.
4 Protection LED (Prot.) : When the amp is in thermal protection, the LED turns to red.
5 PowerOn LED (PWR.) : The LED illuminates red when the amp is switched on.
6 RCA Inputs (Input) : These RCA inputs are used with source units that have RCA or Line level outputs. (Source units need a minimum level of 100mV output for proper operation of the amplifier). MTX recommends only high quality RCA cables to decrease the possibility of radiated noise entering the system.
7 Gain Control (Gain): The gain control matches the input sensitivity of the amplifier to the source unit being used.
The operating range varies from 100mv to 4V. Adjusting the gain:
1. Turn the gain control on the amplifier all the way down (counter clockwise).
2. Turn up the volume control on the source unit to approximately 3/4 of maximum.
3. Adjust the gain control on the amplifier until audible distortion occurs.
4. Adjust the gain control down until audible distortion disappears.
5. The amplifier is now calibrated to the output of the source unit.
8 Speaker level inputs (High Level Input): This input will allow the amplifier to operate from source units with speaker-level outputs. Output speaker leads from the source unit should be tied directly to the wire harness provided with the amplifier. Note: When speaker level inputs are used, a remote turn on wire must be used to switch the amplifier on and off.
9 B ass remote control port (EBC) : use this port to connect the optional MTX EBC. It allows you to control the output level siting at the front of the car.

Installation & Mounting :

MTX recommends your new MTX RTF10P to be installed by an Authorized MTX retailer. Any deviation from specified installation instructions can cause serious damage to the amplifier, speakers and/or vehicles electrical system. Damage caused from improper installation is NOT covered under warranty. Please verify all connections prior to turn on your system!

1. Disconnect the vehicle's negative battery cable.
2. Determine the mounting place for your MTX RTF10P. Keep in mind there should be sufficient air flow for proper cooling.

3. Install a positive (+) power cable from the vehicle's battery through the firewall using a grommet or firewall bushing to avoid cable damage from sharp edges of the firewall. Run the cable through the interior of the vehicle and connect it to the amplifier (+12V) terminal (1). Do Not connect to the battery at this time.
   Note : Use only proper gauge wire for both positive and negative connections.

4. Install a circuit breaker or fuse within 20cm of the battery. This effectively lowers the risk of severe damage to you or your vehicle in case of a short circuit or accident. Make sure the circuitbreaker is switched off or the fuse is taken out of the fuse holder until all connections are made. Now connect your positive power cable to the positive battery terminal of the battery.

5. Grounding - Locate a proper ground point on the vehicle's chassis and remove all paint, dirt or debris to reveal a bare metal surface. Attach the ground wire to that contact point. Connect the opposite end of the ground wire to the (GND) terminal on the amplifier (3).

6. Connect a remote turn-on wire from the source unit to amplifier remote terminal (2). If the source unit does not have a dedicated Remote Turn-on lead, you may connect to the source unit's Power Antenna lead.

7. Connecting signal cables to the amplifier: There are two ways to supply the signal to your MTX RTF10P.

- To get maximum performance, we suggest connecting a high quality RCA to the corresponding outputs at the source unit and inputs of the amplifier (6).

- If a source unit is being used without RCA outputs, use the included high-level amplifier's speaker terminals (8) using the right gauge speaker wire.

1. Double check all previous installation steps, in particular, wiring and component connections. Once verified, reconnect the vehicle's negative battery cable, turn the circuit breaker on or place the fuse in the fuse holder.

Note : Gain Levels on the amplifier should be turned all the way down (counter clockwise) before proceeding with adjustments.

How To Stay Tuned :

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Merci!

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Vielen Dank!

MTX AUDIO RTF10P 25cm 10" 200W RMS Class-D Powered Enclosure EBC Remote Control High Level Inputs Gain Control 4V-9,1V Left Right Ch.1 Ch.2 Power Protection +12V Rem. GND

Technische Daten :

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Obrigado!

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Спасибо!

MTX AUDIO RTF10P 25cm 10" 200W RMS Class-D Powered Enclosure EBC Remote Control High Level Inputs Gain Control 4V-0.1V Left Right Ch.1 Ch.2 Power Protection +12V Rem. GND

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Multumesc!

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

MTX AUDIO RTF10P 25cm 10" 200W RMS Class-D Powered Enclosure EBC Remote Control High Level Inputs Gain Control 4V-9,1V Left Right Ch.1 Ch.2 Power Protection +12V Rem. GND

Cechy :

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

MTX AUDIO RTF10P 25cm 10" 200W RMS Class-D Powered Enclosure EBC Remote Control High Level Inputs Gain Control 4V-9,1V Left Right Ch.1 Ch.2 Power Protection +12V Rem. GND

Ominaisuudet :

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

MX®

AUDIO

MTX is proud to be an

American Audio Company since 1971.

Black and white flag of the United States with stars in the center (no text or symbols)

MTX is a proud member of Mitek Corp high quality consumer audio product lines.

MiTek Corporation

Designed and Engineered by Mitek in Phoenix - AZ, USA

Assembled in PRC. © 2017 Mitek. All rights reserved.

MTX is a registered trademark of Mitek.

Due to continual product development, all specifications are subject to change without notice.

Mitek - MTX

4545 East Baseline Rd. Phoenix, AZ 85042, USA
