Product type	Touchscreen tablet
Brand	ARCHOS
Model	156 Oxygen
Screen size	15.6 inches
Screen resolution	1920 x 1080 pixels
Operating system	Android
Processor	Quad-core (estimated)
RAM memory	2 GB (estimated)
Internal storage	32 GB (estimated)
Expandable storage	Yes, via microSD card
WiFi connectivity	Yes, 802.11 b/g/n
Bluetooth connectivity	Yes
Ports	1 x USB 3.0, 1 x USB, 1 x mini-HDMI, 1 x 3.5mm headphone jack
Front camera	Yes, webcam
Speakers	Stereo
Battery	Rechargeable lithium-ion
Power supply	AC charger via DC-in connector
Dimensions	Approximately 370 x 240 x 10 mm
Weight	Approximately 1.0 kg
Maintenance	Clean with a soft, dry cloth
Safety	Do not expose to moisture, avoid shocks
Spare parts	Not available individually
Repairability	Not evaluated, contact support

Frequently Asked Questions - 156 Oxygen ARCHOS

How to charge the battery of the ARCHOS 156 Oxygen?

Plug the charger cable into the DC-in port and plug the charger into a power outlet. Let the battery charge completely.

How to turn the device on and off?

Press and hold the ON/OFF button to turn the device on or off.

What to do if the device is frozen?

Press the ON/OFF button for 10 seconds or use the Reset button with a paperclip.

How to insert a microSD card?

The microSD card slot is located on the side of the device. Insert the card with the contacts facing down.

How to connect the device to a WiFi network?

Go to Settings > WiFi, enable WiFi and select your network. Enter the password if necessary.

How to take a screenshot?

Press the Volume - button and the Power button simultaneously.

How to reset the device to factory settings?

Go to Settings > Backup and reset > Reset device. Confirm the operation.

How to transfer files via USB?

Connect the device to a computer via the USB port. On the device, select File transfer in the USB notifications.

How to clean the tablet screen?

Use a soft, dry cloth. Do not use chemical or abrasive products.

Does the device support SIM cards?

No, the ARCHOS 156 Oxygen is a WiFi-only tablet, without a SIM slot.

USER MANUAL 156 Oxygen ARCHOS

Congratulations for the purchase of an ARCHOS device! This quick start guide helps you to start using your device properly. If you have more questions concerning the use of your device, visit us at:

twitter.com/archos

www.facebook.com/archos

https://blog.archos.com/

http://faq.archos.com/

www.archos.com, click Support > After-sales support

www.archos.com, click Support > Downloads > Declaration of conformity

As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this quick start guide.

Unboxing

Blank rectangular frame with no text, numbers, or symbols inside the frame (no content)

ARCHOS 156 Oxygen

Quick start guide

Simple black line drawing of a plug connected to a coiled cable (no text or symbols)

Charger

Warranty, legal and safety notice

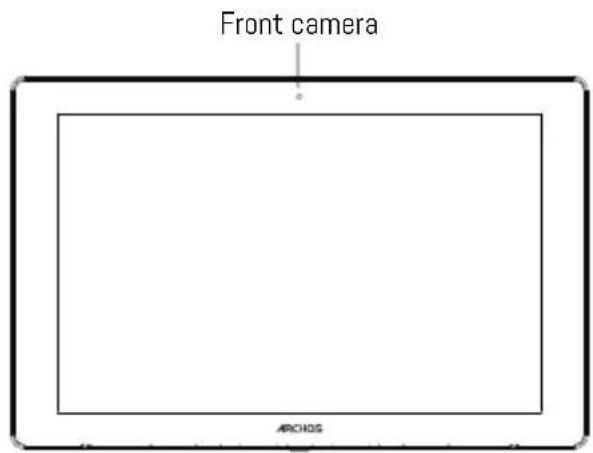

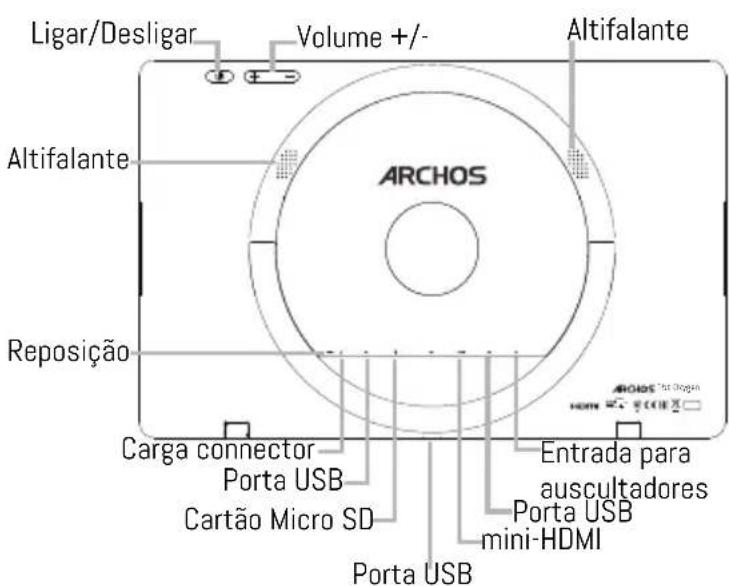

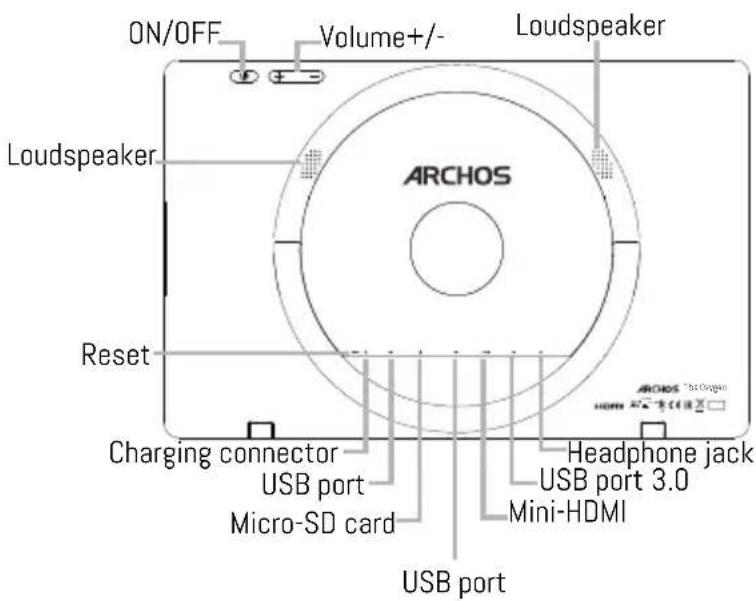

Describing your device

Starting up

Charging your battery completely

Plug the charging cable in the device and the adapter in a power outlet.

Leave the device until the battery is fully charged.

Turning ON

1. Press and hold the ON/OFF button to turn on the device.
2. Follow the instructions to set up your device: language, WiFi, copy your data, enter your name, set up email, protect your phone, notifications to be shown, Google services, third party apps.

NOTE: You can skip some steps and define them later from the Settings app.

Moving a home screen item: Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item: Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item: From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders: Drop one app icon over another on a home screen and the two icons will be combined.

Changing your wallpaper: Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Hints & tips

Widgets: Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Securing your device: Define a lock screen to protect your privacy. Select the Settings app, then Security. Choose a screen lock.

Android device manager: When your device is lost, you can use the android device manager page (https://www.google.com/android/devicemanager) to erase all your contents, to lock the device, to locate the device or to make it ring.

Scheduled power on&off: Schedule power on & off to set when the device turns off and turn on. For example, you can set it for sleep time.

Troubleshooting

- If your device is frozen: Press the ON/OFF button for 10 seconds or use the reset button.

- If your device doesn't turn on:

1. Charge your device.
2. Press the ON/OFF button for 10 seconds.
3. If your device functioning is too slow:
   Close all apps which are not currently used.
4. If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.

- If your device has dysfunctions:

Reinitialize your device. Go to Settings > Backup & reset > Factory data reset. If you can't have access to the settings for any reason, consult our FAQs about the reinitialization process.

For more answers about your technical difficulties, do not hesitate to visit: faq.archos.com

Contactez-nous

www.archos.com, click Support > After-sales support

Blank rectangular frame with no text, numbers, or symbols inside the frame (no content)

ARCHOS 156 Oxygen

Simple black line drawing of a plug connected to a coiled cable (no text or symbols)

Chargeur

Simple black line drawing of a plug connected to a coiled cable (no text or symbols)

Ladegerät

Benutzerhandbuch

Blank rectangular frame with no text, numbers, or symbols inside the frame (no content)

ARCHOS 156 Oxygen

Guía de usuario

Simple black line drawing of a plug connected to a coiled cable (no text or symbols)

Cargador

Blank rectangular frame with no text, numbers, or symbols inside the frame (no readable content)

ARCHOS 156 Oxygen

Guida dell'utente

Simple black line drawing of a plug connected to a coiled cable (no text or symbols)

Caricabatterie

Blank rectangular frame with no text, numbers, or symbols inside the frame (no content)

ARCHOS 156 Oxygen

Simple black line drawing of a plug connected to a coiled cable (no text or symbols)

Oplader

Simple black line drawing of a plug connected to a coiled cable (no text or symbols)

Transformador do carregador

Blank rectangular frame with no text, numbers, or symbols inside the frame (no readable content)

ARCHOS 156 Oxygen

Краткое руководство

Simple black line drawing of a plug connected to a coiled cable (no text or symbols)

Simple black line drawing of a plug connected to a coiled cable (no text or symbols)

Ładowarka

Blank rectangular frame with no text, numbers, or symbols inside the frame (no readable content)

ARCHOS 156 Oxygen

Simple black line drawing of a plug connected to a coiled cable (no text or symbols)

Töltöadapter

Blank rectangular frame with rounded corners and no text or symbols

ARCHOS 156 Oxygen

Simple black line drawing of a plug connected to a coiled cable (no text or symbols)

Nabíjačka

Simple black line drawing of a plug connected to a coiled cable (no text or symbols)

Nabíjačka

Blank rectangular frame with no text, numbers, or symbols inside the frame (no readable content)

ARCHOS 156 Oxygen

Simple black line drawing of a plug connected to a coiled cable (no text or symbols)

Зарядний пристрій

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 2014/53/

EU) without any limitation except for the countries mentioned below:

Country Restriction Reason/remark

Bulgaria None General authorization required for outdoor use and public service

France Outdoor use limited to 10 Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in

mW e.i.r.p. within the band recent years to allow current relaxed regulation. Full implementation planned

2454-2483.5 MHz 2012

Italy None If used outside of own premises, general authorization is required.

Luxembourg None General authorization required for network and service supply (not for

spectrum)

Norway Implemented This subsection does not apply for the geographical aera within a radius of 20

km from the centre of Ny-Alesund

Russian None Only for indoor applications

Federation

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Archos company (Contact address : ARCHOS SA 12 Rue Ampère 91430 Igny France) declares that this tablet ARCHOS 156

Oxygen is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU:

https://www.archos.com/products/conformity.html

https://www.archos.com/products/conformity.html

WLAN
Standard Frequency Avg. Power (dBm)
802.11b/g 2412 ~ 2472	MHz 11.2 ~12.8
802.11n – HT20 2412 ~	2472 MHz 14.6 ~14.8
802.11n – HT40 2422 ~	2462 MHz 13.5 ~13.7
Bluetooth
Bluetooth Version Frequency Range Avg. Power (dBm)
EDR 2402 ~ 2480 MHz 3	~5
BLE 2402 ~ 2480 MHz 4	~4.7

Sar - After the laboratory measurements, the SAR values for this device are: BODY SAR: 0.997 W/kg
