97c Platinum - Graphic tablet ARCHOS - Free user manual and instructions

Product type	Tablet
Brand	ARCHOS
Model	97c Platinum
Operating system	Android 6.0
Screen size	9.7 inches
Screen resolution	1024 x 768 pixels
Processor	Quad-core 1.2 GHz
RAM memory	1 GB
Storage capacity	Varies by version (expandable via micro-SD card)
Weight	550 g
Dimensions (L x W x H)	240 x 170 x 9 mm
Battery	Lithium-ion, 6000 mAh
Battery life	Approximately 8 hours
WiFi connectivity	Yes (802.11 b/g/n)
Ports	Micro-USB, Micro-HDMI, 3.5 mm jack, micro-SD card
Front camera	0.3 MP (VGA)
Rear camera	2 MP
Speakers	2 built-in speakers
Chassis material	Plastic
Power supply	Wall charger via micro-USB cable
Main functions	Web browsing, Android apps, multimedia playback, gaming, productivity
Care and cleaning	Clean with a soft dry cloth. Avoid moisture.
Security	Screen lock (password, pattern, fingerprint not available), Android Device Manager for remote location
Spare parts and repairability	Micro-USB cable available. Reset via Reset button or settings.

Frequently Asked Questions - 97c Platinum ARCHOS

How to charge the battery of the Archos 97c Platinum?

Connect the charging cable to the micro-USB port and plug it into the provided charger, then plug it into a power outlet. Allow the battery to fully charge before first use.

How to turn on the device?

Press and hold the ON/OFF button until the screen turns on. Then follow the on-screen instructions to set up language, WiFi, and accounts.

How to connect my tablet to WiFi?

Pull down the status bar, tap it again to access quick settings, then tap the WiFi icon. Select 'WiFi' at the bottom, choose your network, and enter the password if necessary.

What to do if my tablet is slow?

Close all unused apps by tapping the navigation button and swiping them out of the recent apps list. Restart the device if necessary.

How to unlock my tablet if it becomes unresponsive?

Press the ON/OFF button for 10 seconds or use the Reset button (found on the device) to force a restart.

How to uninstall an app?

From the 'All apps' screen, press and hold the app icon, then drag it up to the Uninstall icon that appears.

How to change the wallpaper?

Press and hold on an empty area of the home screen, then select Wallpapers. Choose from the available images.

How to reset my tablet to factory settings?

Go to Settings > Backup & reset > Reset device. Confirm the action. All your personal data will be erased.

How to protect my data in case of loss?

Use Android Device Manager at https://www.google.com/android/devicemanager to locate, lock, or erase your tablet's data remotely.

Where to find software updates?

Go to Settings > About tablet > Update to check for an available update. You can also visit www.archos.com/support.

USER MANUAL 97c Platinum ARCHOS

Congratulations for the purchase of an ARCHOS device! This quick start guide helps you to start using your device properly. If you have more questions concerning the use of your device, visit us at:

twitter.com/archos

www.facebook.com/archos

Blog

https://blog.archos.com/

http://faq.archos.com/

www.archos.com, click Support > After-sales support

www.archos.com, click Support > Downloads > Declaration of conformity

As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this quick start guide.

Unboxing

Blank tablet device with no visible text or symbols on the screen

ARCHOS 97c Platinum

Quick start guide

Warranty, legal and safety notice

Charger adapter

Simple line drawing of a USB cable with a connector (no text or symbols)

Charging cable

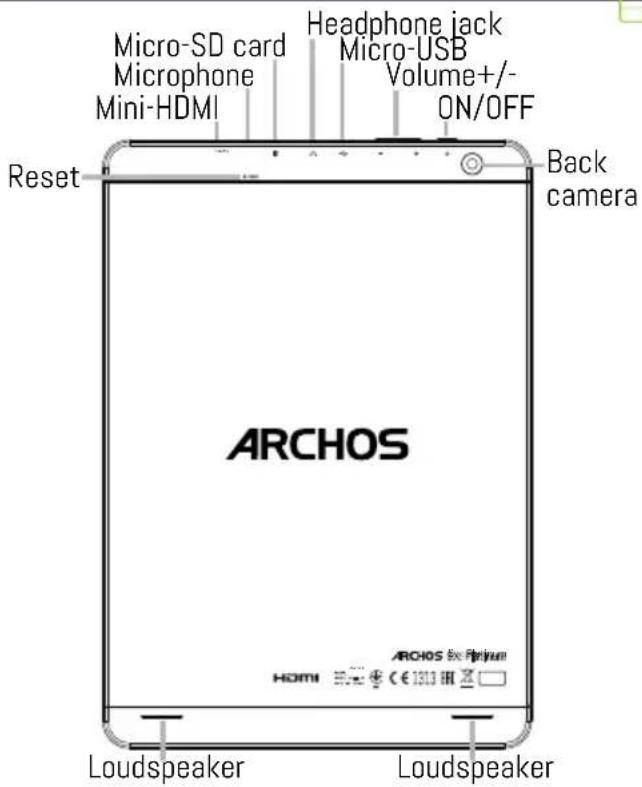

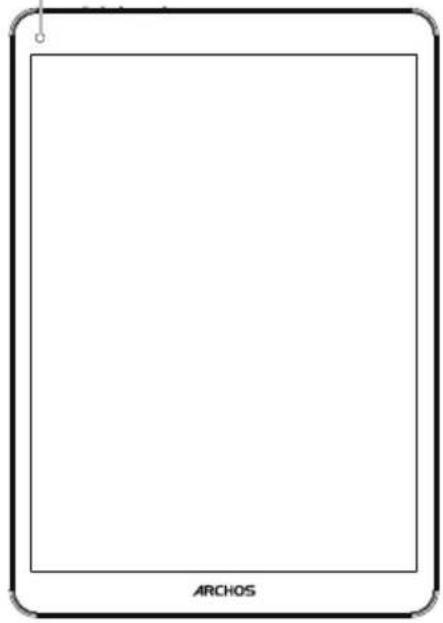

Describing your device

Front camera

Front view of a tablet device labeled 'ARCHOS' at the bottom (no other text or symbols visible)

Your device is running Android 6.0 operating system. Updates could be offered to improve the device's performance. To check if any update is available, go to: Settings > About tablet > Check for update.

Starting up

Charging your battery completely

Plug the charging cable in the Micro-USB port and the adapter in a power outlet.

Leave the device until the battery is fully charged.

Turning ON

1. Press and hold the ON/OFF button to turn on the device.
2. Follow the instructions to set up your device: language, WiFi, copy your data, enter your name, set up email, protect your phone, notifications to be shown, Google services, third party apps.

NOTE: You can skip some steps and define them later from the Settings app.

Activating WiFi connection

1. Touch and pull down the status bar to display it.
2. Touch again the bar to reveal the quick settings.
3. Select the WiFi icon to activate the WiFi connection
4. Select "WiFi" below the WiFi icon.
5. Touch the name of network you want to connect to.
   Private networks are shown with a lock icon and will require you to enter your password.

Hints & tips

Moving a home screen item: Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item: Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item: From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders: Drop one app icon over another on a home screen and the two icons will be combined.

Changing your wallpaper: Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Widgets: Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Securing your device: Define a lock screen to protect your privacy. Select the Settings app, then Security. Choose a screen lock.

Android device manager: When your device is lost, you can use the android device manager page (https://www.google.com/android/devicemanager) to erase all your contents, to lock the device, to locate the device or to make it ring.

Scheduled power on&off: Schedule power on & off to set when the device turns off and turn on. For example, you can set it for sleep time.

Troubleshooting

-If your device is frozen:

Press the ON/OFF button for 10 seconds or use the Reset button.

-If your device doesn't turn on:

1. Charge your device.

2. Press the ON/OFF button for 10 seconds.

-If your device functioning is too slow:

Close all apps which are not currently used.

-If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Update the firmware of the device: http://www.archos.com/support.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.

-If your device has dysfunctions:

Reinitialize your device. Go to Settings > Backup & reset > Factory data reset. If you can't have access to the settings for any reason, consult our FAQs about the reinitialization process.

For more answers about your technical difficulties, do not hesitate to visit: faq.archos.com

EN

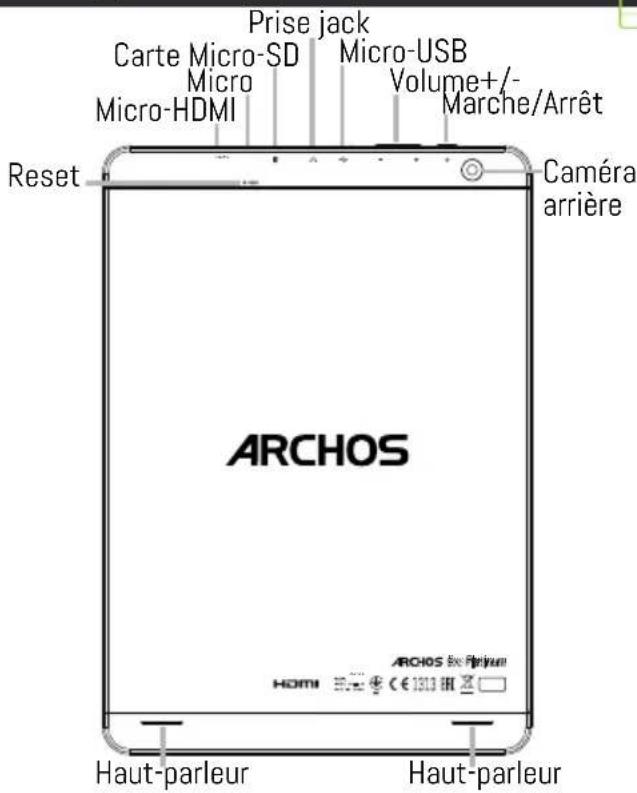

Contactez-nous

www.archos.com, click Support > After-sales support

Blank tablet device with no visible text or symbols on the screen or body

ARCHOS 97c Platinum

Adaptateur

Simple black line drawing of a cable with a connector (no text or symbols)

Câble de charge

Blank tablet device with 'ARCHOS' label at bottom (no other text or symbols)

Blank tablet device with no visible text or symbols on the screen or body

Simple line drawing of a USB cable with a connector (no text or symbols)

Ladekabel

Blank tablet device with no visible text or symbols on the screen

ARCHOS 97c Platinum

Adaptador/cargador

Guía de usuario

Coiled black cable with a USB port icon (no text or symbols)

Cable de carga

Blank tablet device with no visible text or symbols on the screen

ARCHOS 97c Platinum

Caricabatterie

Guida dell'utente

Simple black line drawing of a cable with a connector (no text or symbols)

Cavo di caricamento

Blank tablet device with no visible text or symbols on the screen

ARCHOS 97c Platinum

Oplader/adapter

Simple line drawing of a USB cable with a connector (no text or symbols)

Oplaadkabel

Blank tablet device with no visible text or symbols on the screen face

ARCHOS 97c Platinum

Guia do usuário

Coiled black cable with a USB port icon (no text or symbols)

Blank tablet device with no visible text or symbols on the screen or body

ARCHOS 97c Platinum

Краткое руководство

Coiled black cable with a USB port icon (no text or symbols)

Blank tablet device with no visible text or symbols on the screen

ARCHOS 97c Platinum

Coiled black cable with a USB port icon (no text or symbols)

Kabel do ładowania

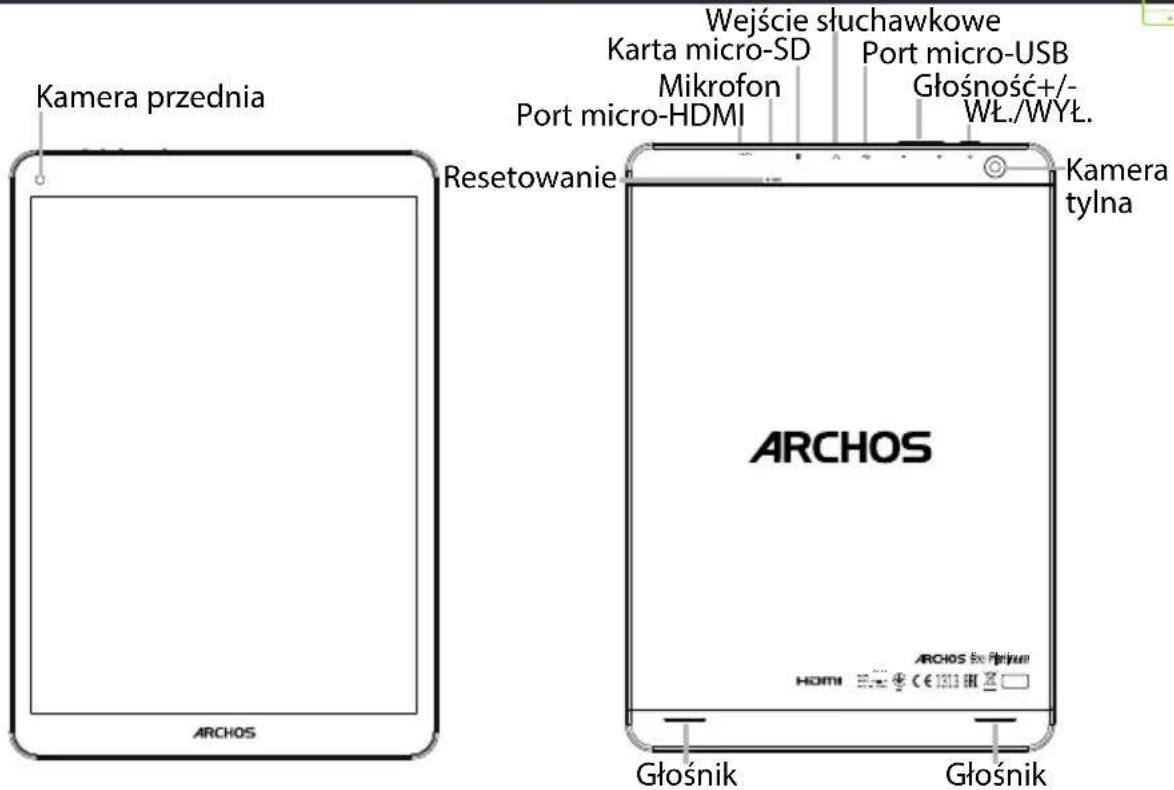

Opis urządzenia

Blank tablet device with no visible text or symbols on the screen

ARCHOS 97c Platinum

Coiled black cable with a USB port icon (no text or symbols)

Töltőkábel

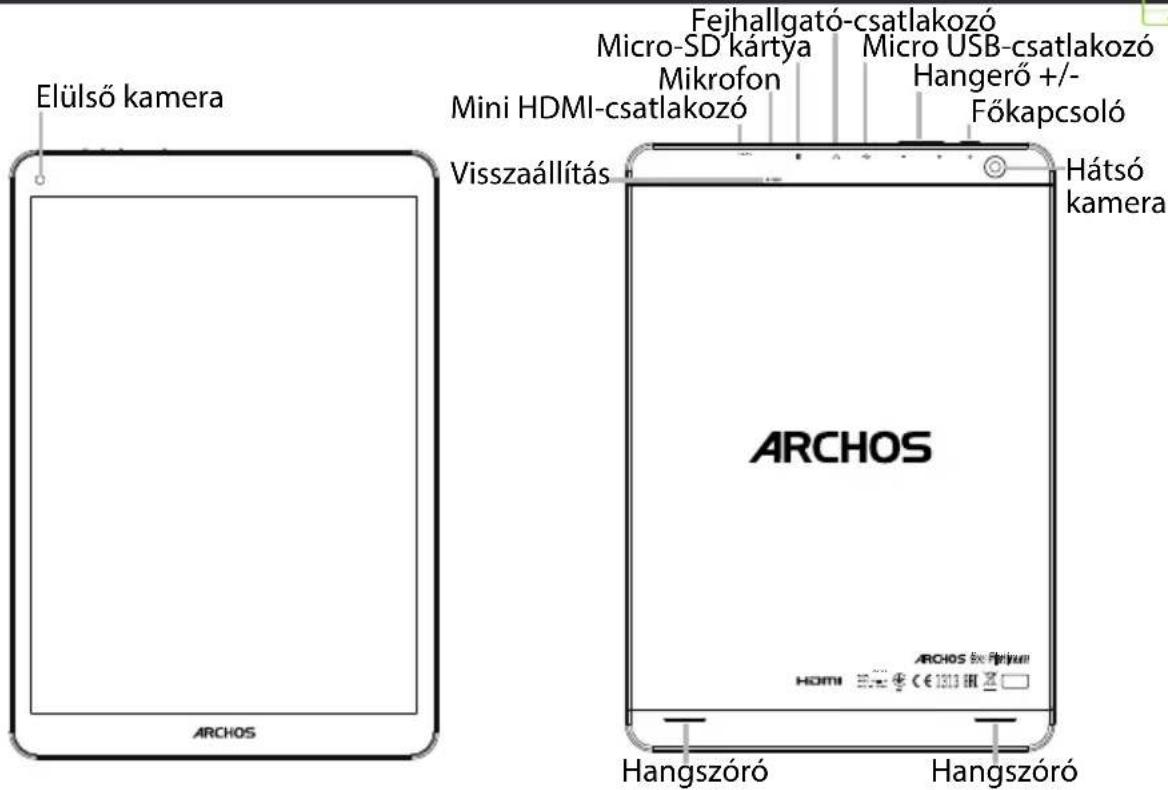

A készülék leírása

Blank tablet device with no visible text or symbols on the screen

ARCHOS 97c Platinum

Coiled black cable with a USB port icon (no text or symbols)

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country Restriction Reason/remark

Bulgaria None General authorization required for outdoor use and public service

France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012

Italy None If used outside of own premises, general authorization is required.

Luxembourg None General authorization required for network and service supply (not for spectrum)

Norway Implemented This subsection does not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund

Russian None Only for indoor applications

Federation

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Archos company (Contact address : ARCHOS SA 12 Rue Ampère 91430 Igny France) declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC: http://www.archos.com/support/download/conformity/CE_DOC_AC97cPL.pdf
