USER MANUAL 70c Xenon ARCHOS

Package contents....2

Getting started....3

Description of the device....4

Inserting SIM & Micro-SD cards....5

3G & WiFi connection....6

The Android ^TM interface....8

ARCHOS Fusion Storage....12

Getting familiar with Android™....14

Troubleshooting....16

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. Your deal may be no big deal. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide. Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

Package Contents

Front view of a smartphone with blank screen (no text or symbols visible)

ARCHOS 70c Xenon

QSG booklet

Warranty, legal & safety booklet

USB cable

Charger

2

Getting Started

Charging

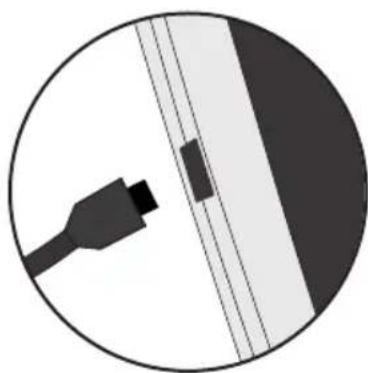

Circular diagram showing a black USB cable inserted into a device, with no visible text or symbols.

1. Charge your device by plugging your power cable into the micro-USB port. The ARCHOS device will start charging.
2. Press the Power button to turn on the device.

-You can use your ARCHOS whilst it charges.
-Let your device charge completely the first time you use it.
-Use only the supplied charger.

When your device is completely discharged, you need to charge it for at least 10 minutes before the charging battery icon can be displayed.

TIP:

To receive more complete service, please register your product. From a computer, go to www.archos.com/register.

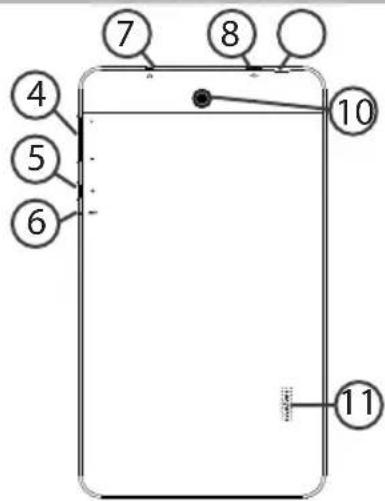

Description of the device

③

Notch

① Webcam
② Loudspeaker
③ Microphone
④ Volume buttons

⑤ ON/OFF button
⑥ Reset button
⑦ Headphone jack
⑧ Micro-USB port

Camera

Loudspeaker

Inserting SIM & Micro-SD cards

WARNING: Make sure to turn off your device before inserting the SIM & memory cards.

Opening

Use the notch to remove the back cover.

Do not bend or twist the back cover excessively. Doing so may damage the cover.

Inserting a SIM card

For your SIM card, slide it facing downwards in the slot.

Inserting a Memory card

Slide it facing downwards in the slot TIF

Closing

Replace the back cover clicking it back into position.

Simple line drawing of a circular object resting on a horizontal bar with a small circle inside (no text or symbols)

Simple circular diagram with a horizontal line, a black circle, and a downward arrow, no text or symbols present.

3G & WiFi connection

Mobile data connection

If your mobile phone subscription includes a mobile data option, you should be connected to the Internet without any further setup. The ARCHOS will only have signal if you are in an area covered by your provider's 4G or 3G network.

Activating/Deactivating the mobile data

1. Touch and pull down the status bar to display it.
2. Touch again the bar to reveal the quick settings.
3. Select the Settings icon.
4. In Wireless & networks, select Data usage, then the SIM card tab.
5. Slide the Mobile data switch to turn on/off.

WiFi connection

WARNING: Make sure that you are in a WiFi zone. You can access the WiFi settings quickly from the status bar.

1. Touch and pull down the status bar to display it.
2. Touch again the bar to reveal the quick settings.
3. Select the WiFi icon □to activate the WiFi connection [IMAGE]
4. Select “WiFi” below the WiFi icon.
5. Touch the name of network you want to connect to.Private networks are shown with a lock icon and will require you to enter your password.

The Android™ Interface

8

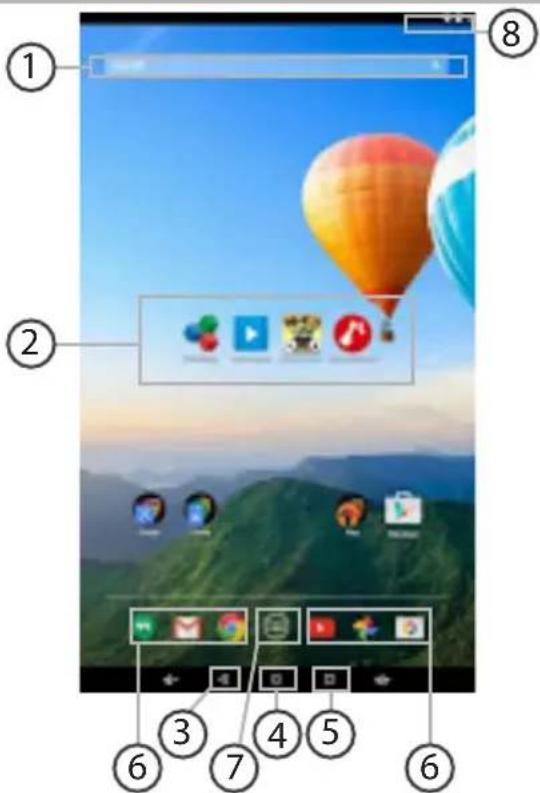

① Google™ Search

Touch "Google" for text search or touch the microphone icon for voice search.
② Android™ apps shortcuts Touch to start an application.
③ Back button
④ Home button
⑤ Recent apps buttons
⑥ Permanent Android™ apps shortcuts Touch to start an application
⑦ All Apps button Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here.
⑧ The status bar Displays notifications and quick settings

The Android™ Interface

*New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.

The Quick settings

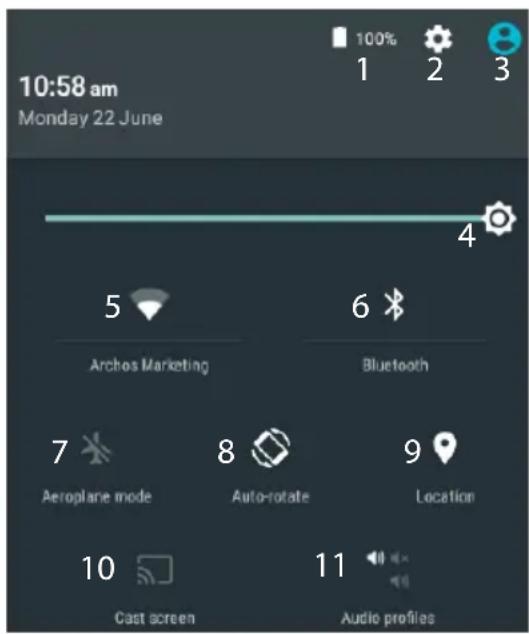

1 Percentage of battery remaining
2 To access all your settings.
3 Current user
4 To adjust the screen brightness.
5 To turn on/off your WiFi connection.
6 To turn on/off your Bluetooth connection.
7 To activate/deactivate all wireless connections, especially when flying.
8 To activate/deactivate automatic screen orientation as you turn your ARCHOS.
9 Location services

10 To mirror your Android device to the TV so you can enjoy your great content exactly as you see it on your mobile device.

11 To select a notification type

The Recent Apps

Opens a list of thumbnail images of apps you've worked with recently:

Archae Course-Self 2 Interlocking Version Original logo: 2001 version

Archives GamePart 2 (Unboxing)
Involve:
1 year ago - Date Range

Archives Game-PSD 2 Unlocking Created 1 year ago: 2005 History

Touch: to open an app.

Swipe left or right: to close an app.

Scroll up or down: to view other recent apps

ARCHOS Fusion Storage

Setting up fusion storage

1. Insert a micro-SD card in the device's micro-SD card slot. Make sure to insert the card in the right direction.

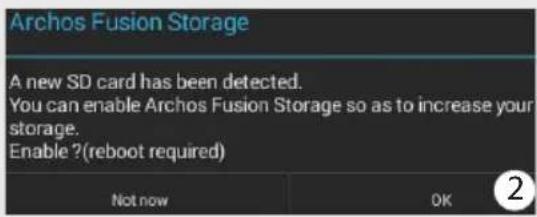

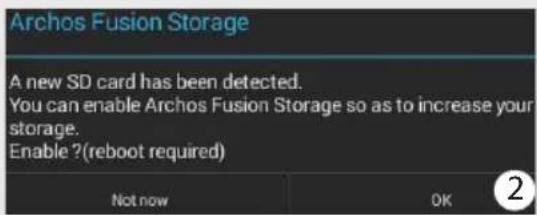

Your device will detect the micro-SD card automatically and offers you to merge the internal storage with the micro-SD card.

1. Select "OK".

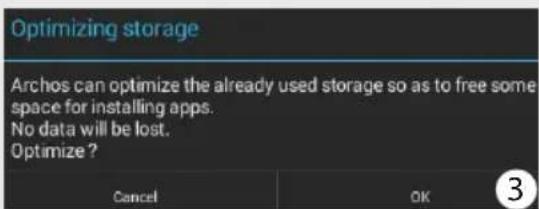

2. Select "OK" in the Optimizing storage window to confirm your choice.

Simple line drawing of an oval shape divided by a vertical line, with no text or symbols present.

The device will reboot.

• When the device restarts, you are informed that the ARCHOS Fusion storage is active.
  -In the status bar, a notification is displayed.
• Select the Settings app, then ARCHOS Fusion Storage. The merged storage is displayed.

Disabling fusion storage

1. Select the Settings app.
2. In the Settings app, select ARCHOS Fusion Storage.
3. When the ARCHOS Fusion Storage is active, select "Disable ARCHOS Fusion Storage" and confirm.
   Your device will reboot in order to apply the changes.

OPTIONS

Disable Archos Fusion Storage

Get back to the initial configuration

Tip:

We recommend you to turn off the device before inserting the micro-SD card.

Getting familiar with Android™

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item:

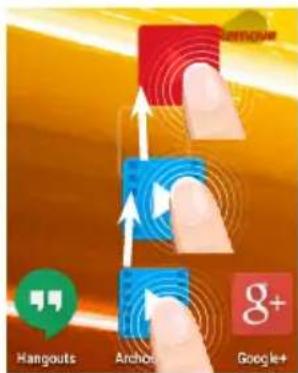

Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item:

From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Widgets:

Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Troubleshooting

If your device is frozen:

Press the ON/OFF button for 10 seconds or use the reset button. To use the reset button, press the "pinhole reset" button by using a sharp object such as a toothpick.

If your device doesn't turn on:

1. Charge your device.

2. Press the ON/OFF button for 10 seconds or use the reset button. To use the reset button, press the "pinhole reset" button by using a sharp object such as a toothpick.

My tablet cannot connect to a network or "No service" is displayed

Try connecting in another location. Verify the network coverage with your operator.

Unable to make outgoing calls

Make sure your phone is connected to a network, and the network is not overloaded or unavailable.

Unable to receive incoming calls

Make sure your phone is switched on and connected to a network (check for overloaded or unavailable network).

SIM card PIN locked

Contact your network operator to obtain the PUK code (Personal Unblocking Key).

If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Update the firmware of the device: http://www.archos.com/support.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.
