USER MANUAL HOLOclock 60.5009.04 TFA

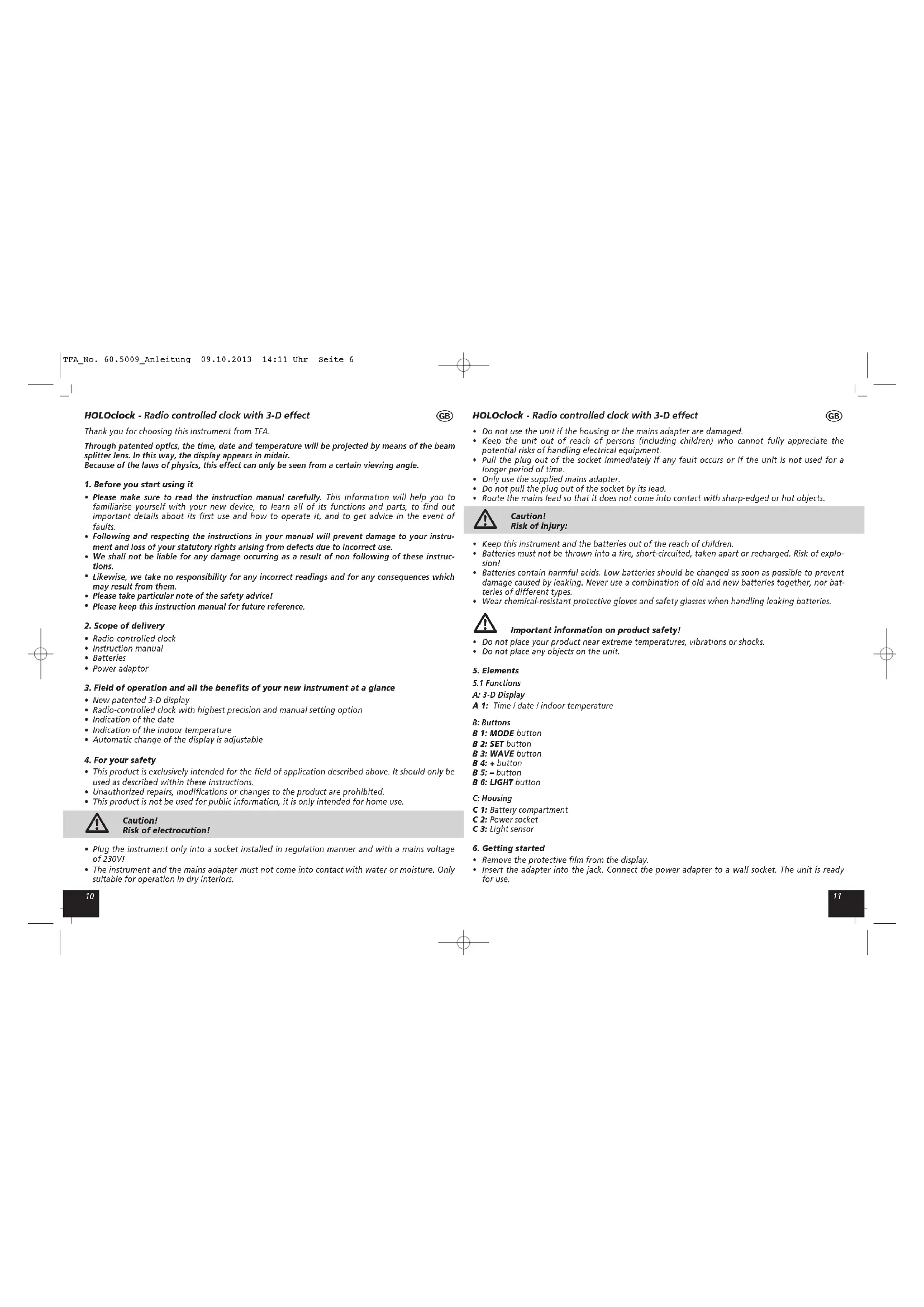

Thank you for choosing this instrument from TFA. Through patented optics, the time, date and temperature will be projected by means of the beam splitter lens. In this way, the display appears in midair. Because of the laws of physics, this effect can only be seen from a certain viewing angle.

Please make sure to read the instruction manual carefully. This information will help you to familiarise yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it, and to get advice in the event of faults.

Following and respecting the instructions in your manual will prevent damage to your instru- ment and loss of your statutory rights arising from defects due to incorrect use.

We shall not be liable for any damage occurring as a result of non following of these instruc- tions.

Likewise, we take no responsibility for any incorrect readings and for any consequences which may result from them.

Please take particular note of the safety advice!

Please keep this instruction manual for future reference.

2. Scope of delivery

Radio-controlled clock

3. Field of operation and all the benefits of your new instrument at a glance

Radio-controlled clock with highest precision and manual setting option

Indication of the date

Indication of the indoor temperature

Automatic change of the display is adjustable

This product is exclusively intended for the field of application described above. It should only be used as described within these instructions.

Unauthorized repairs, modifications or changes to the product are prohibited.

This product is not be used for public information, it is only intended for home use. Caution!

Risk of electrocution!

Plug the instrument only into a socket installed in regulation manner and with a mains voltage of 230V!

The instrument and the mains adapter must not come into contact with water or moisture. Only suitable for operation in dry interiors. HOLOclock - Radio controlled clock with 3-D effect

Do not use the unit if the housing or the mains adapter are damaged.

Keep the unit out of reach of persons (including children) who cannot fully appreciate the potential risks of handling electrical equipment.

Pull the plug out of the socket immediately if any fault occurs or if the unit is not used for a longer period of time.

Do not pull the plug out of the socket by its lead.

Route the mains lead so that it does not come into contact with sharp-edged or hot objects. Caution!

Keep this instrument and the batteries out of the reach of children.

Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explo- sion!

Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor bat- teries of different types.

Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

Do not place your product near extreme temperatures, vibrations or shocks.

Do not place any objects on the unit.

Remove the protective film from the display.

Important! Make sure that your household voltage is 230V! Otherwise your clock may be damaged.

Open the battery compartment and remove the battery insulation strip. Close the battery com- partment again.

The two batteries 1,5 V AAA are back-up batteries to maintain the clock operation in the event of blackout or other power failure.

The DCF reception symbol (dot) appears on the 3-D display.

The clock will now scan the DCF frequency signal.

When the time code is received successfully after a few minutes, the radio-controlled time appears.

The DCF reception symbol (dot) disappears.

The DCF reception always takes place at 3:15 o'clock in the morning. If the DCF signal is not successfully received at 3:15 clock, it shall be held further attempts until 5:15 clock.

If there is no reception possible (on the display appears 00:00), manual initialization of the DCF reception can be helpful.

On the 3-D display appears again the DCF reception symbol (dot).

If the clock cannot detect the DCF-signal (for example due to disturbances, transmitting distance, etc.), the time can be set manually. The clock will then work as a normal quartz clock. (see: Man- ual settings). Radio-controlled time reception The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt Braunschweig. It has a time deviation of less than one second in one mil- lion years. The time is coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Changeover from sum- mer time or winter time is automatic. The quality of the reception depends mainly on the geo- graphic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt. Please take note of the following:

The recommended distance to any interfering sources like computer monitors or TV sets is at least 1.5 - 2 metres.

Inside ferro-concrete rooms (basements, superstructures), the received signal is naturally weak- ened. In extreme cases, please place the unit close to a window to improve the reception.

During nighttime, the atmospheric interference is are usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 sec- ond.

button in the setting mode for fast running.

The instrument will automatically quit the setting mode if no button is pressed within 20 seconds. NOTE: If the DCF reception is enabled, no settings (time, date and temperature unit) can be made. By default, the DCF reception is activated and after successful reception of the DCF signal no manual adjustment is necessary. HOLOclock - Radio controlled clock with 3-D effect

To make manual settings, you have to disable the DCF reception. This is necessary, for example if you need to change the temperature unit or to set the time manually.

Press and hold SET button for three seconds. “On” (default) appears on the 3-D display. Set the display with the

button from “On” to “OFF”. The DCF reception is deactivated.

Press the SET button again and make the settings in the following sequence: Hours, minutes, month, day, year and temperature unit. Press the

button to adjust it.

If the temperature unit is Fahrenheit the date display automatically moves from the European format (at first the day then the month) to the American format (at first the month then the day).

Confirm the setting with the SET button. NOTE: If you enable the DCF reception again, the manually set time will be overwritten as soon as the reception of the DCF signal is successful (at night the reception is often better).

Press and hold SET button for three seconds.

If the DCF reception is deactivated, on the display appears “OFF”. Set the display with the + or - button from “OFF” to “On”. The DCF reception is activated.

Press the SET button again. The instrument starts to scan the DCF frequency signal (dot).

With the MODE button in normal mode you can select between time, date, year and tempera- ture unit as permanent display.

Press and hold the MODE button to set an automatic change of the display.

button to change between the following modes: M0: In this mode the last selected display is permanently active. M1: Time and indoor temperature in sequence M2: Time and date in sequence M3: Time, date and indoor temperature in sequence

Confirm the setting with the MODE button or press no button within 5 seconds.

With the LIGHT button, the 3-D display can be turned off or on.

button in normal mode and you can select between up to four levels of bright- ness.

8. Care and maintenance

Clean your instrument with a soft damp cloth. Do not use solvents or scouring agents.

Attention: Please remove the batteries if you pull the plug out of the socket for a longer time or if you want to disable the instrument permanently.

Keep the instrument in a dry place.

8.1 Battery replacement

Please change the back-up batteries every 3 years.

Open the battery compartment and insert two new batteries 1,5 V AAA. Ensure that the battery polarities are correct.

Attention: When replacing batteries, only use new batteries.

Close the battery compartment again.

Problems Solution No display ➜ Control the power adapter ➜ Press the LIGHT button No DCF reception ➜ Activate the DCF reception (see Manual settings) ➜ Press the WAVE button to activate the reception ➜ Choose another place for your product ➜ Wait for attempted reception during the night ➜ Check if there is any source of interference ➜ Restart the device according to the manual ➜ Manual clock setting If your device fails to work despite these measures contact the supplier from whom you purchased it.

This product has been manufactured using high-grade materials and components which can be re- cycled and reused. Never dispose of empty batteries and rechargeable batteries in household waste. As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to pro- tect the environment. The symbols for the heavy metals contained are: Cd=cadmium, Hg=mercury, Pb=lead This instrument is labeled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal. HOLOclock - Radio controlled clock with 3-D effect

Power consumption: Batteries 2 x 1,5 V AAA (included) and AC/DC power adaptor (included) Temperature range: -5°…+50°C / +23°…+122°F Indication LL / HH: Measurement is outside the measuring range Housing dimension: 165 x 84 x 35 mm Weight: 162 g (instrument only) 3-D effect protected by a patent of 3Daround GmbH TFA Dostmann GmbH & Co.KG, Zum Ottersberg 12, D-97877 Wertheim. No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.

DECLARATION OF CONFORMITY
