Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

These Tabelle gilt fur den Markt China.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

These Tabelle gilt fur den Markt China.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Original operating instructions

1 Information about the operating instructions

1.1 About these operating instructions

• Warning! Read and understand all accompanying documentation, including but not limited to instructions, safety warnings, illustrations, and specifications provided with this product. Familiarize yourself with all the instructions, safety warnings, illustrations, specifications, components, and functions of the product before use. Failure to do so may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference.
• products are designed for professional users and only trained, authorized personnel are permitted to operate, service and maintain the products. This personnel must be specifically informed about the possible hazards. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.
• The accompanying documentation corresponds to the current state of the art at the time of printing. Please always check for the latest version on the product's page on Hitti's website. To do this, follow the link or scan the QR code in this documentation, marked with the symbol
• Ensure that these operating instructions are with the product when it is given to other persons.

1.2 Explanation of symbols

1.2.1Warnings

Warnings alert persons to hazards that occur when handling or using the product. The following signal words are used:

DANGER

DANGER！

Draws attention to imminent danger that will lead to serious personal injury or fatality.

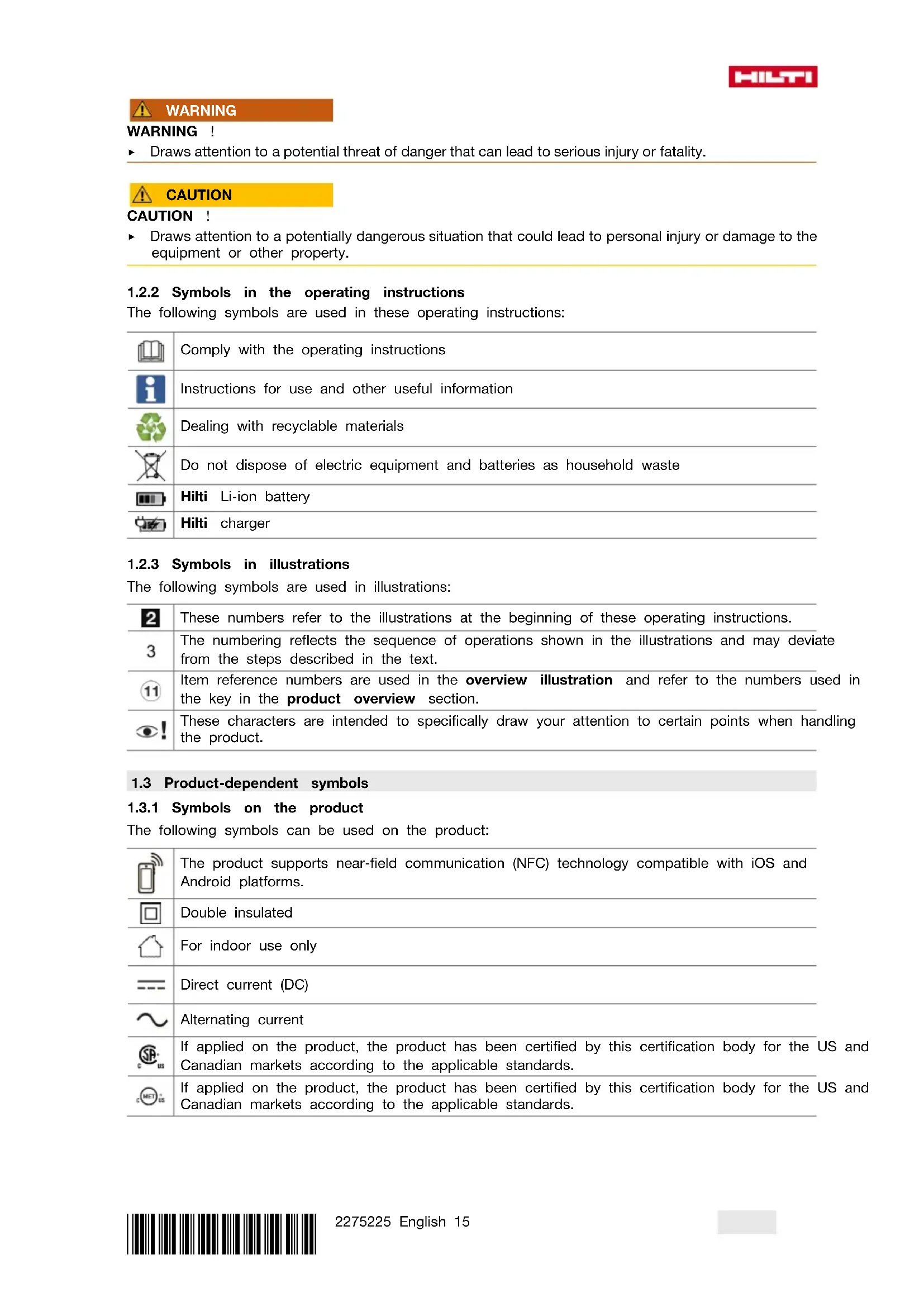

WARNING

WARNING

Draws attention to a potential threat of danger that can lead to serious injury or fatality.

CAUTION

CAUTION！

Draws attention to a potentially dangerous situation that could lead to personal injury or damage to the equipment or other property.

1.2.2 Symbols in the operating instructions

The following symbols are used in these operating instructions:

Comply with the operating instructions

Instructions for use and other useful information

Dealing with recyclable materials

Do not dispose of electric equipment and batteries as household waste

Hilti Li-ion battery

Hilti charger

1.2.3 Symbols in illustrations

The following symbols are used in illustrations:

2	These numbers refer to the illustrations at the beginning of these operating instructions.
3	The numbering reflects the sequence of operations shown in the illustrations and may deviate from the steps described in the text.
11	Item reference numbers are used in the overview illustration and refer to the numbers used in the key in the product overview section.
●!	These characters are intended to specifically draw your attention to certain points when handling the product.

1.3 Product-dependent symbols

1.3.1 Symbols on the product

The following symbols can be used on the product:

The product supports near-field communication (NFC) technology compatible with iOS and Android platforms.

Double insulated

For indoor use only

Direct current (DC)

Alternating current

If applied on the product, the product has been certified by this certification body for the US and Canadian markets according to the applicable standards.

If applied on the product, the product has been certified by this certification body for the US and Canadian markets according to the applicable standards.

2 Safety

2.1 General safety instructions

WARNING Study all safety instructions and other instructions, images and technical data with which this power tool is provided. Failure to observe the instructions below can result in electric shock, fire and/or serious injury.

Keep all safety instructions and instructions for future reference.

• Persons (including children) with reduced physical, sensory or mental abilities or lack of experience and knowledge are not permitted to use this product.
  Do not allow children to play with the product.
  Install the charger in such a way that a battery inserted into it cannot fall out.

2.2 Battery charger use and care

To avoid injury, use the charger only to charge Hilti Li-ion batteries approved for use with this charger.
The location at which the charger is used should be clean, cool, dry and protected from frost.
- The charger must be able to emit heat while in operation. The air vents must therefore remain unobstructed. Do not operate the charger inside a closed container.
- Maintain the product carefully. Make sure that no parts are broken or damaged in such a way that the product no longer functions correctly. If parts are damaged or broken, have the product repaired prior to further use.
- Use chargers and the corresponding batteries in accordance with these instructions and as is specified for this particular model. Use of chargers for applications different from those intended could result in hazardous situations.
- Recharge the batteries only with the chargers specified by the manufacturer. A charger that is suitable for a certain type of battery may present a risk of fire when used with other types of battery.
- When not in use, keep the battery and the charger away from paper clips, coins, keys, nails, screws or other small metal objects that could cause a short circuit at the battery terminals or the charging contacts. A short circuit between the battery terminals or charging contacts may cause injuries (burns) and result in fire.
- Do not store the battery on the charger. Always remove the battery from the charger when the charging operation has completed.

2.3 Careful handling and use of batteries

• Comply with the following safety instructions for the safe handling and use of Li-ion batteries. Failure to comply can lead to skin irritation, severe corrosive injury, chemical burns, fire and/or explosion.
  Use only batteries that are in perfect working order.
• Treat batteries with care in order to avoid damage and prevent leakage of fluids that are extremely harmful to health!
  Do not under any circumstances modify or tamper with batteries!
  Do not disassemble, crush or incinerate batteries and do not subject them to temperatures over 80^ (176 F).
• Never use or charge a battery that has suffered an impact or been damaged in any other way. Check your batteries regularly for signs of damage.
• Never use recycled or repaired batteries.
• Never use the battery or a battery-operated power tool as a striking tool.
• Never expose batteries to the direct rays of the sun, elevated temperature, sparking, or open flame. This can lead to explosions.
• Do not touch the battery poles with your fingers, tools, jewelry, or other electrically conductive objects. This can damage the battery and also cause material damage and personal injury.
• Keep batteries away from rain, moisture and liquids. Penetrating moisture can cause short circuits, electric shock, burns, fire and explosions.
• Use only chargers and power tools approved for the specific battery type. Read and follow the relevant operating instructions.
  Do not use or store the battery in explosive environments.

If the battery is too hot to touch, it may be defective. Put the battery in a place where it is clearly visible and where there is no risk of fire, at an adequate distance from flammable materials. Allow the battery to cool down. If it is still too hot to touch after an hour, the battery is faulty. Consult Hilti Service or read the document entitled "Instructions on safety and use for Hilti Li-ion batteries".

Observe the special guidelines applicable to the transport, storage and use of lithium-ion batteries. Read the instructions on safety and use of Hilti Li-ion batteries that you can access by scanning the QR code at the end of these operating instructions.

3 Description

3.1 Product overview

① Battery
② Battery status indicator
③ Battery release button
④ Charger operating status indicator
⑤ Holes for wall-mounting
(6) Air exit
⑦ Air intake
8 Battery interface

3.2 Intended use

The product described is a portable battery charger for Hilti Li-ion batteries with a rated voltage of 21.6 volts. It is designed to be connected to power outlets providing an AC (alternating current) voltage of 100 to 127 volts or 220 to 240 volts (depending on country-specific version).

The charger can be set on a flat surface or mounted on the wall.

• The Hilti Li-ion batteries approved for use with this product can be found in this list.
• Not all batteries are available in all markets.

Product information

Charger C 6-22 | C 8-22
Generation 01
Serial no. 1 - 999999999999

3.3 Operating status indicator of the charger

Status Meaning
LED shows green. Charger is ready for use.
LED doesn't light.	Charger is not ready for use.

3.4 Status indicators of the Li-ion battery during charging

When a Hilti Nuron Li-ion battery is connected to a Hilti charger, the status indicator of the battery shows the state of charge and also fault messages, if applicable.

Status Meaning
One (1) LED slow-flashes green	The battery is being charged, state of charge: ≤ 20 %
One (1) LED shows green, one (1) LED slow-flas green	the battery is being charged, state of charge: 21 % to 40 %
Two (2) LEDs show green, one (1) LED slow-flas green	the battery is being charged, state of charge: 41 % to 60 %
Three (3) LEDs show green, one (1) LED slow-flashes green	The battery is being charged, state of charge: 61 % to 80 %
Four (4) LEDs show green The battery is being charged, state of charge: ≥ 80 %
No LED showing The battery is fully charged, charging has ended.
One (1) LED quick-flashes yellow, then one or more LEDs show green	Charging interrupted. The battery might be outside the permissible temperature range. Charging resumes automatically as soon as the applicable parameters return to specification. If necessary, bring the battery to the recommended charging temperature.
One (1) LED quick-flashes red The Li-ion battery	is locked and cannot be used. Consult Hilti Service.

3.5 Indicators showing the state of health of the Li-ion battery

Hilti recommends checking the state of health of the Li-ion battery every time before charging.

To check the battery's state of health, press the release button of the battery and hold it down for longer than three seconds. The system does not detect a potential malfunction of the battery due to misuse, for example battery dropped or pierced, external heat damage, etc.

Status Meaning
All LEDs show in sequence, followed by one (1) LED showing constantly green.	The battery can remain in use.
All LEDs show in sequence, followed by one (1) LED quick-flashing yellow.	The check to ascertain the battery's state of head did not complete. Repeat the procedure, or consult Hilti Service.
All LEDs show in sequence, followed by one (1) LED showing constantly red.	If a connected product can still be used, the remaining battery capacity is below 50%. If a connected product can no longer be used, battery has reached the end of its useful life and has to be replaced. Consult Hilti Service.

3.6 Items supplied

Charger, operating instructions.

Other system products approved for use with this product can be found at your local Hilti Store or at: www.hilti.group

4 Technical data

	C 6-22 C 8-22
Weight in accordance with EPTA Pro dure 01	Pro84 kg(1.852 lb)	1.45 kg(3.197 lb)
Rated output voltage	10.8 V ... 21.6 V 10.8 V ...	21.6 V
Maximum output power	240 W 450 W
Storage temperature	-20 °C ... 70 °C(-4.0 °F ... 158.0 °F)	-20 °C ... 70 °C(-4.0 °F ... 158.0 °F)
Ambient temperature for operation	-17 °C ... 60 °C(1.4 °F ... 140.0 °F)	-17 °C ... 60 °C(1.4 °F ... 140.0 °F)

WARNING

A damaged supply cord presents a hazard! If the supply cord or extension cord is damaged while work is in progress, immediately disconnect the product and the cord from the electricity supply. Do not touch the damaged part of the cord!

Regularly check all supply cords.
Replace defective extension cords.
- Otherwise, contact Hilti Service.

Use of a ground fault circuit interrupter (residual current device, RCD) with a maximum tripping current of 30mA is recommended.

5.1 Switching on charger and charging battery

WARNING

Explosion hazard if any attempt is made to charge unapproved batteries. Injuries and damage to the charger can result.

• Do not attempt to charge non-rechargeable batteries.
  Use only Hilti-approved batteries with this charger.

CAUTION

Short-circuit due to moisture or dampness Damage to the product is the result.

Use the product only indoors.
- Keep the product away from moisture and dampness.

1. Plug the supply cord into the power outlet.
   The LED shows green.

2. Engage the battery on the battery interface.
   The battery is charging.

3. When the battery is fully charged, remove it from the charger.

6 Care and maintenance

WARNING

Electric shock hazard! Attempting care and maintenance with the supply cord connected to a power outlet can lead to severe injury and burns.

Always unplug the supply cord before carrying out care and maintenance tasks.

Care

• Carefully remove stubborn dirt from the tool.
• Clean the air vents carefully with a dry brush.
• Use only a slightly damp cloth to clean the casing. Do not use cleaning agents containing silicone as they can attack the plastic parts.

Maintenance

• Check all visible parts and controls for signs of damage at regular intervals and make sure that they all function correctly.
• Do not operate the product if signs of damage are found or if parts malfunction. Have it repaired immediately by Hilti Service.
  After cleaning and maintenance, fit all guards or protective devices and check that they function correctly.

To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Store or online at: www.hilti.group.

DANGER

Risk of injury! Risk of electric shock.

The product may be serviced and repaired only by authorized, trained personnel! This personnel must be specially informed of any possible hazards.

If it is damaged, the supply cord has to be replaced.

Comply with the country-specific regulations for electrical safety.

1. Unplug the charger's supply cord from the power outlet.
2. Pull the rubberized foot out of the cover and remove the securing screw exposed by removal of the rubberized foot.

Materials

Torx screwdriver T10

1. Flip the cover open.
2. Take a photo or draw a sketch so that you will be able to recall the routing and conductor-to-terminal assignment of the supply cord.
3. Carefully depress one of the terminal clips with a flat screwdriver to release the conductor. Disengage the conductor from the terminal clip. Repeat this step for the second conductor and then remove the faulty power cord.
4. Install the new supply cord. Depress one terminal clip with a flat screwdriver and insert the end of the conductor into the terminal clip. Release the terminal clip and check that the conductor is secure in the terminal clip. Repeat this step for the second conductor.

Materials

Supply cord C 6-22

2289588 (EU, 220-240V)
2289589 (US, 110-120V)
2289910 (GB, 220-240V)
2300624 (GB, 100-120V)
2289911 (KR, 220-240V)
2289912 (RU, 220-240V)
2289914 (JP, 100-120V)
2289915 (AUS 220-240V)
2289916 (TW, 100-120V)
2300625 (CH, 220-240V)

Supply cord C 8-22
2289589 (US, 110-120V)
2289910 (GB, 220-240V)
2300624 (GB, 100-120V)
2289912 (EU, KR, RU, 220-240V)
2289913 (BR, 220-240V)
2289914 (JP, 100-120V)
2289915 (AUS 220-240V)
2289916 (TW, 100-120V)
2289917 (ARG, 220-240V)
2300625 (CH, 220-240V)

Select the supply cord of a type suitable for use with this charger from this table or contact Hilti Service.

1. Seat the supply cord in the cable guide exactly as the original cable was routed prior to replacement. Use the photo taken beforehand or the sketch you drew as reference.

2. Flip the cover closed and re-install the securing screw.

3. Push the rubberized foot back into the cover.
4. Plug the supply cord into a power outlet and check that the charger is in full working order.

LED shows: Charger is in full working order.
LED does not light up: Charger is not in full working order.

Contact Hilti Service.

7 Transport and storage

Transport

Make sure that the equipment is held securely throughout all transport operations.
After transporting, always check all visible parts and controls for signs of damage and make sure that they all function correctly.

Storage

Always store this product with the electric supply cable unplugged from the electricity supply.
- Store this product in a dry place, where it cannot be accessed by children or unauthorized persons.
After a long period of storage, always check all visible parts and controls for signs of damage and make sure that they all function correctly.

8 Troubleshooting

If the trouble you are experiencing is not listed in this table or you are unable to remedy the problem by yourself, contact Hilti Service.

Malfunction Possible cause	Action to be taken
LED doesn't light. Supply cord not connected to elec-tricity supply.		Plug the supply cord into the power outlet.
Product malfunction. Unplug the product and then plug it back in. If the LED remains off, consult Hilti Service.
Supply cord faulty.		Replace the supply cord.→ page 20
The charger is defective.		Have the product repaired by Hilti Service.

9 Disposal

Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.

• Do not dispose of power tools, electronic equipment or batteries as household waste!

10 FCC statement (applicable in US) / IC statement (applicable in Canada)

This device complies with Part 15 of the FCC Rules and RSS-210 of IC. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

11 Manufacturer's warranty

• Please contact your local Hilti representative if you have questions about the warranty conditions.

C 6-22 (01)

RoHS (Restriction of Hazardous Substances)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

This table is valid for the China market.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

This table is valid for the Taiwan market.

C 8-22 (01)

RoHS (Restriction of Hazardous Substances)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics(PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl.plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

This table is valid for the China market.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Battery Charger 型號(型式): C 8-22 01 Equipment name: Type designation:
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品(PCB) Electronics (PCBs)	-	0	0	0	0	0
螺釘 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。 Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence. 備考3. "-"係指該項限用物質為排除項目。 Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

This table is valid for the Taiwan market.

13 Hilti Li-ion batteries

Instructions for safety and use

This documentation uses the term battery to describe rechargeable Hilti Li-ion battery packs containing several Li-ion cells joined together. These batteries are to be used in Hilti power tools exclusively. Use only genuine Hilti batteries!

Description

Hilti batteries have cell-management and cell-protection systems.

The batteries are composed of cells that contain lithium-ion storage materials capable of providing high specific energy density. Li-ion cells have a minimal memory effect, but they are very susceptible to external impact, deep discharge, and high temperatures.

The products approved for use with Hilti batteries can be found in your Hilti Store or at: www.hilti.group

Safety

Comply with the following safety instructions for the safe handling and use of Li-ion batteries. Failure to comply can lead to skin irritation, severe corrosive injury, chemical burns, fire and/or explosion.
- Treat batteries with care in order to avoid damage and prevent leakage of fluids that are extremely harmful to health!
Do not under any circumstances modify or tamper with batteries!
Do not disassemble, crush or incinerate batteries and do not subject them to temperatures over 80^
- Never use or charge a battery that has suffered an impact or been damaged in any other way. Check your batteries regularly for signs of damage.
- Never use recycled or repaired batteries.

HILTI

• Never use the battery or a battery-operated power tool as a striking tool.
• Never expose batteries to the direct rays of the sun, elevated temperature, sparking, or open flame. This can lead to explosions.
• Do not touch the battery poles with your fingers, tools, jewelry, or other electrically conductive objects. This can damage the battery and also cause material damage and personal injury.
• Keep batteries away from rain, moisture and liquids. Penetrating moisture can cause short circuits, electric shock, burns, fire and explosions.
• Use only chargers and power tools approved for the specific battery type. Read and follow the relevant operating instructions.
• Do not use or store the battery in explosive environments.
  If the battery is too hot to touch it may be defective. Put the battery in a place where it is clearly visible and where there is no risk of fire, at an adequate distance from flammable materials. Allow the battery to cool down. If it is still too hot to touch after an hour, the battery is faulty. Follow the instructions in the section headed What to do in case of a battery fire.

What to do in case of damaged batteries

Always contact Hilti when a battery is damaged.
- Never use a battery that is leaking fluid.
- Avoid direct eye and/or skin contact with fluid leaking from a battery. Always wear protective gloves and eye protection when undertaking tasks involving battery fluid.
- Use a chemical spill cleanup kit to remove leaked battery fluid. Comply with the locally applicable cleanup regulations for battery fluid.
To store a damaged battery, place the battery in a non-flammable container and cover the battery with dry sand, chalk powder (CaCO3) or silicate (Vermiculite). Then seal the lid air-tight and store the container away from flammable gases, liquids or objects.
- Dispos of the container at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions. Comply with the locally applicable regulations for transporting damaged batteries!

What to do in case of dysfunctional batteries

• Watch for abnormal battery behavior, such as faulty charging, unusually long charging times, noticeable power loss, unusual LED activity, or leaking fluids. These are signs of an internal problem.
  If you suspect an internal battery problem, contact Hilti Service.
  A battery that no longer works, cannot be recharged or leaks fluid has to be disposed of correctly. See the section headed Maintenance and disposal.

What to do in case of a battery fire

WARNING

Battery fire hazard! A burning battery releases hazardous and potentially explosive liquids and fumes that can lead to corrosion injuries, burns or explosions.

Wear your personal protective equipment when you tackle a battery fire.

• Provide sufficient venting to permit hazardous and potentially explosive fumes to escape.
• Leave the room immediately in case of intense smoke emission.
• Consult a doctor in case of any skin or respiratory irritation.
• Alert the fire service before you start tackling the fire.
• Use only water to tackle a battery fire and keep as far from the fire as effective extinguishing permits. Powder fire extinguishers and fire blankets are ineffective with Li-ion batteries. Fire in nearby materials can be extinguished with appropriate extinguishing agents.
• Do not try to move large quantities of burning batteries. Instead, isolate the batteries by removing unaffected materials from the immediate vicinity.

In the case of a battery that does not cool down, or a smoking or burning battery:

• Scoop the battery up with a shovel and drop it into a bucket of water, which will reduce the risk of igniting adjacent cells that have not yet reached run-away temperature.
  Leave the battery in the bucket for at least 24 hours until it has cooled down completely.
  See the section headed What to do in case of damaged batteries.

Shipping and storage

• Ambient operating temperature to be kept between -17^ and +60^ / 1^ and 140^ .
  Storage temperature to be kept between -20^ and +40^ / -4^ and 104^ .

• Do not store batteries on the charger. Always remove the battery from the charger when the charging operation has completed.

• Store batteries in a cool and dry place. Cool storage will increase battery life. Never store batteries where they are exposed to direct sunlight, on sources of heat or behind glass.
  Do not send batteries through the mail. Consult your shipper for instructions on how to ship undamaged batteries.

• Never transport batteries in bulk form (loose, unprotected). During transport, batteries should be protected from excessive shock and vibration and isolated from any conductive materials or other batteries that may come in contact with the terminals and cause a short circuit. Comply with the locally applicable regulations for transporting batteries.

Maintenance and disposal

• Keep the battery free of oil and grease. Do not permit dust or dirt to accumulate unnecessarily on the battery. Clean the battery with a dry, soft brush or a clean, dry rag.
• Never use a battery with clogged ventilation slots. Clean the ventilation slots carefully using a dry, soft brush.
• Prevent unnecessary exposure of the battery to dust or debris and never subject the battery to soaking moisture (e.g., submerged in water or left out in the rain).
  If a battery is exposed to soaking moisture, treat it as a damaged battery and isolate it in a non-flammable container.

See the section headed What to do in case of damaged batteries.

• Improper disposal may cause health hazards from leaking gases or fluids. Dispos of the battery at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions. Comply with the locally applicable regulations for transporting damaged batteries!
• Do not dispose of batteries as household waste.
• Dispose of your battery out of the reach of children. Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

4 Characteristicas techniques

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products:C6-2201

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Battery Charger 型號(型式): C 8-22 01 Equipment name: Type designation:
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品(PCB) Electronics (PCBs)	-	0	0	0	0	0
螺釘 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。 Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence. 備考3. "-"係指該項限用物質為排除項目。 Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Lader, brugsanvising.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Denne tabel gelder kun for markedet Taiwan.

C8-22 (01)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Denne tabel gelder kun for markedet Taiwan.

13 Hilti Li-lon-batterier

Kontakta Hilti-service.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Denna tabell gäller für den taiwanesiska marknaden.

C 8-22 (01)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Battery Charger 型號(型式): C 8-22 01 Equipment name: Type designation:
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品(PCB) Electronics (PCBs)	-	0	0	0	0	0
螺釘 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。 Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence. 備考3. "-"係指該項限用物質為排除項目。 Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Denne tabellen gjelder for markedet Kina.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Denne tabellen gjelder for markedet Taiwan.

C 8-22 (01)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Denne tabellen gjelder for markedet Kina.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Denne tabellen gjelder for markedet Taiwan.

13 Hilti Li-lon-batterier

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics(PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl.plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Battery Charger 型號(型式): C 8-22 01 Equipment name: Type designation:
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品(PCB) Electronics (PCBs)	-	0	0	0	0	0
螺釘 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。 Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence. 備考3. "-"係指該項限用物質為排除項目。 Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

1.3 Tootepohised sumbolid

1.3.1 Sumbolid tootel

Tootel voib kasutada jargmisisumboleid:

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Šī tabula attiecas uz Kinas tirgu.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Sī tabula attiecas uz Taivānas tirgu.

C 8-22 (01)

RoHS (direktiva par bistamo vielu izmantošanas ierobežošanu)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Šī tabula attiecas uz Kinas tirgu.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Battery Charger 型號(型式): C 8-22 01 Equipment name: Type designation:
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品(PCB) Electronics (PCBs)	-	0	0	0	0	0
螺釘 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。 Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence. 備考3. "-"係指該項限用物質為排除項目。 Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Ši tabula attiecas uz Taivanas tirgu.

13 Hilti litija jonu akumulatori

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Si lentele galoja Taivano rinkai.

C 8-22 (01)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Si lentele galoja Taivano rinkai.

13 Hilti licio jonu akumulioraii

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Tato tabulka plati pro trh na Tchaj-wanu.

C 8-22 (01)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Battery Charger 型號(型式): C 8-22 01 Equipment name: Type designation:
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品(PCB) Electronics (PCBs)	-	0	0	0	0	0
螺釘 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。 Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence. 備考3. "-"係指該項限用物質為排除項目。 Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Tato tabulka plati pro trh na Tchaj-wanu.

13 Lithium-iontoy akumulator Hilti

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Tato tabulka plati pre trh Ciny.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Tato tabl'ka plati pre trh Taiwanu.

C 8-22 (01)

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Tato tabulka plati pre trh Ciny.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Tato tabulka plati pre trh Taiwanu.

13 Hilti Littium-ionovy akumulátor

Hitti litium-ion akku

Hilti toltokeszulek

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Battery Charger 型號(型式): C 8-22 01 Equipment name: Type designation:
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品(PCB) Electronics (PCBs)	-	0	0	0	0	0
螺釘 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。 Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence. 備考3. "-"係指該項限用物質為排除項目。 Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Ova tablica vrijedi samo za kinesko trziste.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Ova tablica vrijedi samo za kinesko trziste.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Ova tabelu vazi za trziste Kine.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics(PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl.plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Battery Charger 型號(型式): C 8-22 01 Equipment name: Type designation:
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品(PCB) Electronics (PCBs)	-	0	0	0	0	0
螺釘 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。 Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence. 備考3. "-"係指該項限用物質為排除項目。 Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

1.1 K HactoIeMy pyKOBoIDCTBy no 3KcnIyatauH

EAC

HmnpTeP n ynoJHMOeHHa H3rOToBHTeJIem opraHH3aunH

(RU) Pocsncka Phedepaun AO "XnITI DnCTpn6bHn JTT", 141402, MockOBcka oBnaCTb, r. XmKn, yI. JeHHrpaDcKa, cTp. 25, KOMhata 15.26
(BY) Pecny6nka Benapycb HOOO "XuTTi BuYa" 222750, MnHcKa o6laCTb,ДзeprKHHcKm paOH, P-1, 18-н KM, 2 (okono d. Cno6oJa), nomeueHne 1-34
(KZ) Pecny6nka Ka3axctan
TOO "XInn Ka3axCTaH", 050057, r. AnMaTbI, BoCTaHDbIKcKn paOH, yI. TmNp3eBa, dom 42/15, nItep
012 (kopnyc15)
- (AM) Pecny6nka Apmehn OOO "3H4-KOH", 0070, r. EpeBaH, yI. EpBaHaJa Koyapa 19/28

CtpaHa npOn3BOcTBA: CM. MapKnpoBOOHyTO Ta6JNUKy Ha o6OpdyoBaHm.

Data npo3BOcTBa: CM. MapKnpoBocHyu Ta6nHy Ha obOpdyBaHIn.

CoOTBeTCTByIOUcHn cepTHNkAaMOnKHO HaHTn no aDpecy: www.hilti.ru

CneunalbHbIX Tpe6oBaHn K yCIOBnM XpaHeHH, TpaHCnOpTnpOBKn HcNoJIb3OBAHH, KpOME yKa3aHHbIX B pykoBOdCTBe no 3KcPnyaTaun, HeT.

Cpok cnjx6bI n3dennn COCTaBnHET 5 net.

HILTI

• IpeynpeKdHne! Npeid nCnoJb3ObaHnem n3denny y6eIntecb B TOM, qTO Bbl nOJIHOCTbIO h3yuINn npInnaEMOe K HeMy pyKOBOcTBO NO 3KcNpyaTuIN, BKIOUar npINBOHMble TaM INHCTpyKcIN, yKa3aHNn no TexHKe 6e3oNaChOCTHn INpeynpeXdHn, INIIOCTpaunn INTexHueckne xapaKtepncTN. B aactHOCTn, O3HaKOMbTEcB CO BCEMN INCHTpYkCUNM, yKa3AHmN n TexHKe 6e3oNaChOCTHn INpeynpeKdEHnMn, INIIIOCTpaunm, TexHueckmX xaPakTepcNTkAmn, a TAKHe KOMNOHEHTAMn INyHKuINM. HecobJIODeHne 3tIX TpeBOaHm MoKeT npNBecTN K nopAkeHHIO 3JeKTPnueeckm TOKOM, BO3rOpAHnO n/nn CepBe3HbIM TpaBMam. XpaHnte pyKOBOcTBO NO 3KcNpyaTuIN, BKIOUar BCE INHCTpyKcIN, yKa3AHnN no TexHKe 6e3oNaChOCTHn INpeynpeXdHn, dIra NocIeDyUoIero nCNoB3OBaHn.
• 13dennn npedhaeHbI nIpoceccnoHaBHO rncnoB3oBaHna, POToM y OH DoJHHbI 6cnykBaTBCa I pEmOnTHnpOBaTBCr TOLbKO yNoHOMOeHHbIM uOByeHHbIM nepcoHAnOM. 3TO T nepcoHaJOnKeHnpOHTncneuaHBHyHnCTpyKtaXnke 6e3oNacHocTn. HcNoB3oBaHne n3deHn I erO OCHaTKn He no Ha3HaueHIO nIh erO 3KcPlyaTaunr HeoBuYeHHbIM nepcoHAnOM MOryt npedctabTb OnaCHOCTb.
• PpHnlaraeMoe pyKOBODCTBO NO 3KcNpyatauIN COOTBETCTByET yPOBHO TexHnueCKORo nporpecca Ha MOMENT cdaun B neaTb. AkTyanbHa BepCna Bcerda Doctyna B peXnme OHnH Ha Be6-caTe Hlti C ONHCAHNm H3dJIHa. IInr 3tOrO nepeynte no CcbJIke nIN QR-KOdy, npHBODIMbIM B HAcToHcEM pyKOBODCTBE NO 3KcNpyatauIN C O6O3NaueHEm CNMBOLOM
• Ppi CmeHe Bnaedbua 063aTeIbHO nepedaBaiTe HactoIuee pyKOBOdCTBO NO 3KcPiyaTauHn BMeCTe C n3deHnEM.

1.2 IORcHHeNk 3HaKaM

1.2.1 Ppeynpejkaoune yka3aHn

PpeynpeKdaOuIe yka3aHnI CNyKAT DnI PpeynpeKdEHHo6 ONaCHocTIX npn 0bpaueHH c H3dennm. IcnoJIb3yOTc CneDyUOuIe CnHaJIbHbIe CNoBa:

ONACHO

ONACHO！

O6uee 063haeHHe HnocpeCTBeHHo ONaCHO CHTyaun, KOtopa BneyET 3a co6oTae TpaBmblnn Cmeptelhny nCXoJ.

PENyPExDEHNE

PENyPEXKDEHNE！

Ooue o03aHene noTeuaHbNo onaHcHn cTuauH, KOtOpA MoKet NOBneu 3a cooTae TpaBMblnn CMepeIbHbIn HCxOd.

OCTOPOXHO

OCTOPOXHO！

Ooee 063NaHHe NToeHuaJIbHO OAnCHO CnTuaun, KOtOpA MoKeT NOBLey 3a Co6oTpaBMblnn NobpeKdHHe 6OpdyOBaHH (MaTePnaJIbHbI yuep6).

1.2.2 CnMBOJbl, HcNoJIb3yeMbIe B pyKOBODCTBE

B 3TOM pyKOBODCTBe HcNoJIb3yIOTc CNeIyIOUne CmMBOJIb:

Co6HoaTb pyKOBoDCTBO no 3KcNpyatauH

Yka3aHnno 3Kcnnyatauun n pyraonone3na HOpMaun

O6paueHHe c MaTePnaIaMn, npiroDhbIMn IaB VToPnuHoN nepepa60Kn

He BbI6paBbAaTe 3JIeKToHnHCTpyMeHTbI n AKKyMylrTopbl BMcTe C O6bHbIM Mycopom!

Hilti NtHn-NOHbAaKMyIaTOp (Li-Ion)

3apndoe yctpoCTBO Hilti

1.2.3 CnMBoJIbI Ha H3o6paJxHnIX

Ha n3o6paXeHHAX HcNoJIb3yIOTc CJeIyUOJIne cHMBOJIbI:

3.5 INHdkauu coCToHHa HHTN-HOHHO aKKymyIaTOPa

Hilti peKOMeHdyET npOBepaTb ypoBeHb 3apraJa IHTn-NOHOrO aKKyMylrTopa nepeI KaJdbIM npoecccom 3apAdkn.

I3a 3anpoca coctoHHn aKKymyIATopa ydePKBaTe KONky de6nOKIpOBKn HaxaToi 60one 3 c. CnCTema He paCno3Haet noteHuaNBHOe HApUWeHne pa6Obl aKKymyIATOPHObatape BcJeDCTBHe HnpabNbHoro 6paueHH, HanpIMep, NaDeHH, npokolOB, BHeuHero TepMueckoro Bo3dEChTBn I T. d.

8 POMOUIB npH HeHCnpaBHOCTAX

B cnyuae HenncnpaBHOCTe, KOtOpBe He yka3aHb B 3ToI Ta6nue nn KOTOpBe Bbl He MoKeTe yCTpaHITb camOCToTEnbHo, O6paauAteCb B 6nKaun CepBnchbI ueHtp Hilti.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

3Ta Ta6nua DeIcTBnteBHa dIpaBHka Krtan.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Ta Ta6nua DeiCTBnTeNbHa nPaBHka TaBaHra.

C 8-22 (01)

RoHS (DnpekTnBa 06 orpaHneHH npHMeHeHH onachbx BeuecTB)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

3Ta Ta6nua DeIcTBnteBHa dIpaBHka Krtan.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Ta Ta6nua DeiCTBnTeBHa dIpaHka TaBaHa.

13 JIHTH-NOHHBie aKKyMyJrTOpbH Hilti

Yka3aHHn no TexHnke 6e30nachOCTn n HcNoJIb3OBaHHIO

B 3OM DoKymHe TepMHN «aKKMyIATOp» IcNoJIb3yETcI dIe NOD3apJxAeMbIX IHTH-NOHbIX aKKMyIATOpob HIti, coCToHux n3 MHOXecTBA IITn-HoHHbIX 3JeMeHTOB (rYeek). OHI npEHa3HaueHbI dIe 3JIeKtpOnHCTpyMeHTOB HIti n DOJIxHbI IcNoJIb3OBaTbcra ToIbKO C HIMN. IcNoJIb3yTe ToJIbKO opRINHaJIbHbIe aKKMyIATOpbl HIti!

OncanHe

AkkymyIaTOpbH Hilt OchaueHcNCTeMaMn ynpabHeHH 3aunTu aKKMyJrToPbIX 3JeMeHTOB.

AkkymyantopbI COCToT I3 NITN-NOHHbIX aKKMyaTOpHbIX (HaKONNTeJIbHbIX) 3JeMeHTOB, KOTOpBle o6ecneYnBaOT BbICOKyO ydeJIbHyO IIIOTHOCtB 3HeprH. NITN-NOHHbIE 3JeMeHTbl IpaKTNUeCKn He IMeOT «3ΦΦeKTA NaMAtn', HO OHN OUYBcTBNTeJIbHbIK CINIObbIM BO3dEJCTBnAM, rIy60kOMy pa3pRy Hn BO3dEJCTBnBO BbICOKNX TEMNEpaTyp.

H3dennn, donyueHHbIe K hCNoJIb3OBAHIO C aKKMyJrTopaMn Hilti CM. B Hilti Store nn Ha www.hilti.group

Be30nachoctb

Co6nIaTe cneDyUoHne yka3AHn no TexHHke 6e3OnacHOCTn dN 6e3OnachOro 6paueHn HcNoJIb3OBaHnAHTn-HOHbIXaKKymJATOpOB. XhEco6nIOJeHne MOKeTnpBecTH Kpa3dpaxKeHNrM KOHN, cepBe3HbIM TpaBMam, XMmUeCKm OKOrAM, BO3ropaHIO N/IN B3pbIBAm.
O6paaHTecb c aKKyMnyTOpAMN OCTOPOKHO, YTO6b He dOnyCTnB NOBpeKHeH N ppeDTBpaTnTB BixoJ XIKOCTei, npeCTaBnHOx Cepbe3HyOnaCHOCTb DnA 3DopOBBa!
Kateropueckn 3anpeuaeTcB HOCNTb N3MeHeHnB KOHCTpyKUHO aKKyMylrTOPOB nn BblNOJHRb HeDOnyCTMbIe MaHInyLauC HmN!

3aIpeaaetcpa36npaTb, cIaBnBaTb, HarpeBaTb do TeMnepaTypb CBblwe 80 ^ C nnn CxNraTb aKKMy- JIATOpbl.
He nCnoJIb3yIte Hn He 3apJkaIte aKkyMylrTopbl, KOtOpble noDBepralncb MexaHueckm (ydapHbIM) Harpy3kAM Hn NOlyuHnIOBpeXdHne KaKM-Im6o INbIM o6pa3OM. PeryIrpHO npOBepRte HcNoIb3yeMbIe BamN aKKMyIATOpbl Ha npn3HaKn NOBpeXdHn.
Kateropnueckn 3anpeuaetc nCnoB30BaTb BocctaHOBHeHHbIe aKKyMyJrTOpbl NIN aKKyMyJrTOpbl NOcne BToPnuHoi nepepa6oTK.
Kateropnueckn 3anpeaetcnaCNoIb3OBaTb aKKyMylrTop nIpaOtaUcne ot aKKyMylrTopa 3JIeKTpoHHCTpyMeHTb B KaueCTBe ydapHOrn HCHTpymeHa.
▶ Kateropnueckn 3anpeaetcnoDBepraTb aKKyMnyTopb Bo3deNCTBIO npAMoro cOnHeHoro n3nyehn, BbICOKo TeMnepaTybl, NCKp HIN OTKpbITOrO pnaMeHN. 3TO MOKeT pNBecrN K B3pbIBaM.
He kacaTecb akKymIaTOpHbIX KJIeMM (nonIOcOB) naIbIaMn, pa6OuHM INHCTpyMeHTaMn, yKpaIeHNrMaIMn INhBM TOKOpBOdAIZIMN npeDMTaMn. 3To MOxHO NOBpeDITb aKKyMyIaTOp, a TaKKe npINBeCTN K MaTePnaIbHomy yUep6y n TpaBMam.
PpeOxApaHnTe aKcMylAToPbI OTdoXdI, NOBbIeHHo BnaKHOCTn JxNIOcTe.IpoHNkUaBlaMA MoKeT npNBecTN K KOpOTKnM 3aMbikAHm, yDapam 3JIeKTpueeCKm TOKOM, OxKOrAm, BO3rOpAHIO NIM B3pblBaM.
HcnoIb3yIe ToJIbKO dOnyUeHHBIE dIaHaHOro Tnna aKKymJrTOpOB 3apAHy bHe yCTPOiCtBa n 3JeKTPoHNCTpyMeHTbl. Co6IIOaIte yKa3aHn, npINBOIMMbIe B COOTBeTCTByIOuNX pyKOBoDCTBax NO 3KcNpyataun.
He nCnoB3yIte HnH He xpaHnte aKKymyIaTOp BO B3pbIBOOnaChbIX 3oHaX.
CnIrkOM CnIbHb HArpeB aKKymJrTopa (TaKo, YTo Do Hero HeBO3MOxHO DToPOHyTcRy) yKa3bIBaET Ha erO BO3MOxHyo HeNCpabNocTb. Pa3MeCTnte aKKymJrTop Ha 6e3OnaChOM pacCTOHHN OT BOCnla-MeHHOzxCr MaTePnaIOB B XopoIo InpCMATpBaEMOM N NOXapObe3OnaChOM MeCTe. DaIte OCTbITb aKKymJrTopy. EcnI no nCTeHeHm OndHO rOu caca aKKymJrTop BCE eUe OCTaETcRA TAKIM TROPHM, YTO erO HeJIb3R B3rTB B pyKN, 3To O3HaHaet, YTo OH HeNCpABeH. CneDyIte yKa3aHHM B rJaBe Mepbl npn BO3ropaHH aKKymJrTopa.

Iopraok DeiCTBn B cnyae noBpeKdeHna aKKymyIATOPOB

Bcerda obaaatae b CepBnchb yentp Hilti, ecn aKymyIaTOp noBpeKeH.
He nCnoB3yIte aKkymyIATOp, n3 KOTopO RO BbITEKaET 3neKTPOJNT.
H36eraTe nonadaHn BbTEkaHoIero 3neKtpoNtA B rna3a N/nn Ha Koxy. Ppr o6paueHH c 3neKtpoNtOM Bcerda HadeBaIte 3aunTHbIe nepuATKn 3aunTHbIe OUYKn.
-Дя удалень ВITEKшero 3neKtpoHNTa HcnoIb3yHTe pa3peWSeHHoe XmMnueCKOE YnCTAUEe CpeDCTBO. Co6IIOdaIte MeCTHbe npednncAHn no ydaleHIO BITeKshero 3neKtpoHNTa.
-ПометиTe NOBpeKdEHHbI aKKyMylrTOp B NOxkapocToHKn KOHTeHep n 3acBInbTe aKKyMylrTOp cyXIM neckOM, MeIOBbIM NopoWkOM (CaCO3) nII IN CNIKKaTOM (BepMNkylntOM). 3aTeM nIOTHo 3akpoIte KpbIswKy I depJHnTe KOHTeHep Ha 6e3Oanachom pacCToRHHN OT BOCnIaMeHraUHXc rA3OB, JHKoCTe nII IN PpeDMrTOB.
YtHn3npyTe KOHTeHepYepe3 Hilti Store nIbO6paTntecB CneuaJI3n3pOBaHHyIO KOMNaHIO NO yTHn3aun OTXoIDOB. Co6NJaTe MeCTHbIe npednncaHn no TpaHCnOpTnpoBKe nobpeKJdeHHbIX aKKymyIATopoB!

Iopraok DeiCTBn npn Hepa6oTaIOxNx AKKymyIaTOpax

Obpaaatae BnMaHne Ha HeCTaHapTHoe NOBeHeHne AkKymyIaTopo, HApNpMeP OUn6Kn np3apAKe, HepnPBbUHO DoJIrOe BpeM 3apHKn, 3aMeTHOE CHNKeHne MOuHocTn, HeHTaTHbIe Cpa6aTbIBaHHcBToIOHOH INDnKaun Hnn BbITEKaHne 3JeKtpoJnta. Bce 3TO yKa3bIbaet Ha HAnuHne HenCnpaBHOctTe BHyTpni AkKymyIaTopa.
EcnBb npednojaraete, yTo npo6nema CB3aHa C BHyTpHHei 6aTapee, o6paNTecb B cepBncbI uehtp Hilti.
Ecni akkymyntop 6oIbwe He paobTaet, 6oJIbe He 3apKaet nHn H3 Hero BblTeKaet 3neKtpoNT, ytnnn3npyte taKoi akkymyntop. Cm. rnaBy Texnueckoe 0cbnyuBaHne n ytnn3aun.

Mepbl Cnyuae BO3ropaHn aKKymyrtopa

PENyPExJDEHNE

Onachoctb BCJIeCTBHe BO3ropaHnA aKKymyIaTopa! N3 ropae aKKymyIaTOpHO 6aTapen BbIXoJr (B3pbIBO)ONACHbIE JNkIOCTn I napbl, KOtOpbIe MOrY T pINBeCTn K NOBJIeHNIO Kopp03nn, BO3ropaHnAM NII B3pBlaM.

• Ppi TyuheHH aKKyMyIaTopa B clyuae ero BO3ropaHH noJIb3yIteCb cpeIcTBamn HINBnDyaIbHOH 3aunbl.
  OecepeTe DoCTaTOHyIO BEHTINRAUIO IIN BO3MOKHOCTN yIeTyUBAHnB (B3pbIBO)OnaChbIX napOB.
  Pn HHTeHCBHOM DbIMoO6pa3OBaHN HeMeIeHNO NOKINbTe NOMUeHHe.

HILTI

Bcnyae pa3paKeHHaBxateBbXpyTe npOKHCyBtPyteC bpaOM.
Bb3OBHTe NOKapHyIO KOMaHdy, npEKeJe Yem Haayt b TyueHne NoXapa.
TyuTe 3aRopeBwHeeac aKkMyIITOpbToIbKO BoOo, HaxOJaCb OT Hx KaK MoKHO daJIbWe. NcNoIb3OBAHne NOPoWKOBbIX OrHeTuWInTeJe n IpOTnIOBOXapHbIX NpONTeHN TUYeHHN JNTNI-HOHbIX aKKyMylrTOPOB B Cnyae IHX BO3ROPaHnHE RaJIeTcR 3ΦΦeKTINHBHIM. OuaRN BO3ROPaHnBOKpyr aKKMyIATOPa MOKHO TyuHTb ObUHbIMn CpeCTBaMn.
He cIeNyET nbIaTbCn nepMeuataB 6oJIbWne KOJInueCTBa rOpAunx aKKyMylrTOPOB. YdaJIte HeNoBpeKJDeHHbIe MaTePnaJIbI, HaxOJaUncEeB HEnOcpeDCTBeHHoN 6JIN3OCTN OT BO3rOpAHN, YTObI TeM CaMbIMH3OJInpOBaTb 3aRopeBUnneCn aKKyMylrTOpbl.

Ecnn aKKymyIaTOp He octbIbaeT, dbIMHTcHn ropnt:

• POnHnMHTe aKkMyIaTOp c nOMoUbIO IOnaTbI n 6pocBe erO B BeDpo C BoDo. BnaRoapr OxlaKaIaKeMy DeIcTBIO BObl npeIoTbPaauaetcnapeKnDbBaHne noXkapa Ha aKKMyIaTOpHbIe 3JeMeHTbl, KOTOpBle eue He DoCTnTn KpnTnuecko TemnepaTybl, pni KOTOpONCxoNIT IN X Bo3ropaHne.
  OCTaBbTe aKKyMnyIaTOp B KOHTeHHepe No MeHbWe Mpe Ha 24 u, noka OH nIOJIHOCTbU He OCTbIHET.
  CM. NopAdoK DeIcTBn B Cnyae NOBpeKDeHnAaKKymyTAPOB.

Yka3aHH no TpaHCnOpTHpOBKe HxaHeHHIO

Pa6ooya tempepatya BHeHne cpebl: ot-17 ^ C do +60^ /ot 1F do 140^
TeMnepaIpa xpaHEnHa: oT -20 ^ C do +40 ^ C / oT -4 F do 104 F.
He xpaHnte aKKyMnyIaTOPbHa 3apAaHOM yCTpoNCTBe. Iocne 3apAaKn Bcerda H3BleKaTe aKKyMyIaTOp n3 3apAaHoro yCTpoNCTBa.
IIO BO3MOXHOCTn XpaHnte aKKymyIaTOPbI B cyXOM n IpoxnaIahom MeCTe. XpaHeHne B npoxnaIahom NOMeueHHN yBeHnUHbaet cPOK cnJxK6bl aKKymyIaTOPa. HIKoRa He octabJIaTe aKKymyIaTOPbHa coHNc, Ha HarpeBaTeJIbHbIX/OTOnNIteJIbHbIX 3JeMeHTax INN 3a CTEKlOM.
3anpeaetcna nepecbIaNb aKkMyJrTOpbI NO noYte. O6paTHeCb B TpaHCnOpTHO-3KcneHIOHHy0 KOMNaHHo, ecN Bbl XOTHe nepecbIb NOBpeKdEHHbe aKKMyJrTOpbI.
Kateropnueckn 3anpeaetcra TpaHcnoptnpoBaTb aKKymyIATOpB63 ynaKOBKn (6ecTapHbIM cnocobom). Bo Bpemr TpaHcnoptnpoBKN Heo6xOIMMO npHHaTb Mepbl No 3aunTe aKKymyIATOpOB OT CnIbHbIX yapOB n Bn6paun H30nHPOBaTb Nx OT IIObIX TOKONPOBOAUX MaTePnaJIOB INN dpyTHX aKKymyIATOpOB, YTObI He DOnyCTNTb Nx KOHTaC KNeMMAMn DpyTHX aKKymyIATOpOB N, KaK CneJeCTBne 3TOTO, KOPOTKO 3ambKaHnR. Co6nDaIte DeiCTByouune npedncaHn no TpaHcnoptnpoBKe aKKymyIATOpOB.

TexHHueckoe 6cnyKbaHne n yTHnna

AkkymyIaTOp DOJKeH 6bITb UcTbIM, 6e3 CneIOB MaCna HnN Jkpa. He dOnyckaTe NOBHeHn HEnyKHOI nblnn HnI rpa3n Ha aKKymyIaTope. OChCTnte aKKymyIaTOp cyXoM MrgKoN KcTbIO nn ChCTOIN cyXOIK TaHaBIO.
3Kcnpyaataa aKKyMnyIaTopa c 3acopeHHbIMN BeHTnlaHbIMN npope3rMa KaTeOpnueckn 3anpeHa! OctopoxkHO ouhCTne BeHTnlaHbIe npope3n cyxO MrgkOn tKeKo.
3aunuate akkymyntop ot nonadahn BHytpb noctopoHHx qacntu.
He donyckaIte nonadaHn BnaHn BHTpb aKymyIaTOPa. B npotNBHom cnyae o6paauTeCb C Hm KaK c NOBpeKdEHHbIM aKKMyIaTOpOM n H3OJIpyIe TaKoAkkymyIaTOp IyTeM erO pa3MeUeHn B noXkapocToiKOM KOHTHepe.

CM. Nopadok DeHCTBn B Cnyae NOBpeKDeHHaKKMyIaTOPOB.

BcneDCTBnE BbIXoHa ra3OB Hnn JxNkOCTe npn HnnpaBnIbHO yTINH3aunn BO3MOXHa yrpo3a dIy 3doPoB. YtINH3npyTe aKymyIaTOp uepe3 6nKaJnH Hitti Store nIO o6paTHeCb B cneuaJIu3nPOBaHHyU OHPMy no yTINH3aunn. Co6nOdaTe MeCThBiE npeDnHcaHnno TpAHCnOpTnPOBKe NOBpeKDeHHbIX aKKymyIaTOpOB!
He BbIbpaBbAaTe aKKyMnTOpbl BmecTe c ObIuHbIM MycopOM!
YtHn3pyte aKKyMylTOpbl TaK, TTo6bI NCKHOnThb Hx NonaHaHe B pyKn DeTei. 3aKpbBaTe aKKyMlyTOpHbIE KOHTaKTbI He npOBoAunm TOK MaTePnaIaOM, TTo6bI N3eKaTb KOpOTkX 3aMbKaHNI.

OprihaIbHa iHCTpyKci3 ekcnnyataci

1 Infopmaizu oio inctpykui 3 ekcnnyataui

1.1 Ipo iHCTpykuio 3 eknnyataaui

• NonepedJHHe! PpeD BnKOpNCTaHHM npOdykTu cnI d OOB'3KOBO npOHTaTn Ta 3pOzMyi nIHCTpyKciu 3 ekCnlyatauqi, y ToM yncI iHcTpkyu, Bka3IBKn 3 texhikn 6e3neKn, nonepeJxBaJIbHi Bka3IBKn, iIOCTpaui Ta texhich NapaKTepnCTHK. 3OKPema, o3HaOMTeC3 ycima IHCTpyKciAMN, Bka3IBKaMn 3 TexhIKn 6e3neKn, nonepeJxBaJIbHMN Bka3IBKaMn, iIOCTpaui M, texhich NM XapaKTEpNCtHKaMn, a TAKoX iHOpMaueio 0do kOMnoHeNTB Ta fynkci. HeodTPmAHn ciEi BmOrn MoKe npnsBeCTn Do pN3Hcy ypaKeHH eNEKtpnuHm CTPyMOM, BHNKHeHH NOKeKi Ta/a6o TAAKKnx TpaBM. 36epiraTe iHcTpkyuio 3 ekCnlyatauqi, 3OKPema Bci iHcTpkyu, Bka3IBKn 3 texhIKn 6e3neKn Ta nonepeJxBaJIbHi Bka3IBKn, uOb MOxHa 6yNo 3BepHyTncd O Hx y MaioyTHbOMy.
  HCTpyMeHTn np3HaueHdi npopeciHoro BnKOpNCTaHHa, a TOMy ixHIO ekCnIyataciIO, texHicHe o6cnyroBvBaHHa Ta peMOHT cndopuyatn IInse abTOp3OBaHOMy nepcoHany 3i cneuaJIbHO nIdrotOBKOIO. Cen nepcoHAn NobHN eTn CneuaJIbHO npoiHCTpyKTOBaHNI pO moKJINBI pn3KN. IHCTpyMeHT Ta dONOMIXHe npuJaDMy MOKyb CTan DxepeNoM He6e3NeK y pa3i iXhBOr HnPaBnBHO 3actocyBaHHa HEkBaniΦIKOBaHmmpcoHaNOM a60 y pa3i BnKOpNCTaHHa He 3a npn3NaueHHAM.
• IHCTpykqir 3 ekcnnyatau, lo doaactbca do npdykty, BiDnOBiAe cTahy Haykn i Texhikn, akTyalbHomy Ha MOMENT II dpyky. BInBw akTyalbHy Bepciio IHCTpykqii 3 ekcnnyatau moxHa 3naTN b iTEpHeti Ha ctopinzi 3 inΦopMaicieo npo npodyktn Hitti. DnBaIbero nepeiditb 3a noCnlaHHm a60 QR-KoDM y ciin IHCTpykqii 3 ekcnnyatau, lo no3Nauehi CMBONM.
• Y pasi 3mHn Bnachnka nepedaBaiTe npodyk Tnue pa3om i3 ciio IHctpyKciio 3 ekcnnyataui.

1.2 POrCheHHH ChmBoJIb

1.2.1 NonepeJxUyBaJIbHi Bka3iBKn

PonepeJkyBaIbHI Bka3iBKn iHΦopMyToB KOpNCTyBaay npo KaTOpn He6e3neKn, NOB'raHi i3 3actocyBaHHaM IHcTpymentA. BkOpNcTOByOToBc TaKi CnHaJIbHI cNoBa:

HEBE3NEKA

HEBE3NEKA！

Yka3yHa 6e3nocepEnHIO He6e3neKy, 0 MOKe npn3BecTn DO OTPMaHH TAAKKnx TIineCHNX yIkoJKeHb a6o HabiB do Cmepti.

PONEPEKHEH

NONEPENKEHNA

Yka3yE Ha noteHuiHo Hebe3neHy cHTyaCiIO, Ra Ka MoKe np3BecTn Do OTPMaHHra TAAKKnx TiineCHNX ykoJKeHb a6o HabItb Cmepti.

OBEPEXHO

OBEPEKHO！

Yka3ye Ha noteHuiHO He6e3neHy CnTuayio, Ka MoKe npN3BecTn Do OTPMaHHr TiineCHx yWkoDkeHb a6o do MaTePiaJbHnx 36ntKIB.

1.2.2 Chmboln B iHctpykuii 3 ekcnnyatauii

Y ciin Hctpykci 3 eKcnnyataa BnKOpHCTOByIObTaKa CmBOJIn:

DotpmyTeCBAk3iBOK,HaBeDeEHX B iHCTpyKuii 3 eKcnnyatauii

Yka3iBki 0do eKcnnyataa ta iHwa Kopncha iHopmaiz

3.3 INdkaTop po6oOro cTany 3apHOrO npHcTpoH

Стан	ЗнUCHENNA
Світlioiod roрпь зелен'm кольорom.	Зарядни рисстрий ratobni do pošotn.
Світlioiod He roрпь.	Зарядни рисстрий He rotobni do pošotn.

3.4 BapiaHTn iHnkaui nii-ioHoi akymyIaTOpHo 6ataei niD qac 3apJxHaHH

KoN Jitri-ioHHa akymyIaTOPha 6aTape Hlti Nuron npHeHaHa do 3apHOro npnCTpoH Hilti, iHdkatop cTaTcy akymyIaTOPHO batae BIObpaXae II CTah 3apA dy Ta MOKJIbI NOBIDOMHeHH npo HeCnpBaBHicTb.

Стан 3начени
Одin (1) свитлODиOD NOВьHO MИгс ЗеленМ К-льорOM	-Актугатона 6атаря зарджаевся, сан зарду: ≤ 20 %
Одin (1) свитлODиOD rorpITb ЗеленМ KOLьOPOM,Одin (1) свитлODиOD NOВьHO MИгс ЗеленМ К-льорOM	-Актугатона 6атаря зарджаевся, сан зарду: bID 21 %do 40 %
Два (2) свитлODиOD rorpITb ЗеленМ KOLьOPOM,Одin (1) свитлODиOD NOВьHO MИгс ЗеленМ К-льорOM	-Актугатона 6атаря зарджаевся, сан зарду: bID 41 %do 60 %
Тр (3) свитлODиOD rorpITb ЗеленМ KOLьOPOM,Одin (1) свитлODиOD NOВьHO MИгс ЗеленМ К-льорOM	-Актугатона 6атаря зарджаевся, сан зарду: bID 61 %do 80 %
Чotир (4) свитлODиOD rorpITb ЗеленМ KOLьOPOM	-Актугатона 6атаря зарджаевся, сан зарду: ≥ 80 %
ЖODи CBITLOD He rorpITb AkymJTATOPHa 6atapera nobHicTIO 3apdJxHea,празec 3apdJxHnI 3abepShen.
Одin (1) свитлODиOD шВИДКO MИгс ЖOBТIM KOL-pond,notIM ODNH abo DeKIlBa CBrITLODIOIB 3aroPЯOTbcr 3elenHm KOLbOpOM	-Дюсес 3apdJxHnI nepeRbAHN. Можлив,tem-nepaTypa akumJTATOPHOr 6atapei 3haxOHTbcra 3aMejAmn PrinpUcTlMOrO diana3ohy.Pюсес 3apdJxHnI ABTomatuHNo ppoDobKHTb-Ca,Як Тькн HeobxIaHni napametprn NobepHytbcrdo HaJIeKHH 3aueHb. 3a notpeBn 3aueKaIte,do-Kn akumJTATOPHa 6atapera He harpieTbcra abo HeoxOJHo Do peKOMeHDoBaHoi Tempepatryn 3apdJxHnI.
Одin (1) свитлODиOD шВИДКO MИгс чERBOHIM Ko-льорOM	-Літі-iod-HOHa akumJTATOPHa 6atapera 3abokobHana Ta 6ilbwe He moze BnKopncSTOBvBaTncs. Byd JIacka,3BepHITbcrdo cepBicHoi cIyKbK komnaii Hitti.

3.5 BapiaHTn iHnkauii cTany nii-iOHHoi akymyIaTOPHO 6atapei

Komnai Hilti peKomeHdye 10pa3y nepe 3apJHaHHm nepeBiprT cTah akymyIaTOPHOI 6atapei.

Lio6 bio6pa3nIHnkaicIO cTahy akymyIaTOPOHoi 6atapei, HATNCiHTb i yTPmMyTe ii de6NOKyBaIbHy KONKpynpoTAROM 6Ibwe Tpbox cekyHd. CnCTema He BCTaHOBnHa JKOHNx NOTeHuiHHx HecnPabBOcTeen EmeHtA XINBHeHH, O6yMOBLeHHX Ioro HeHaJIeKHM BHKOpNCaHHM, HAnPNIKlaad NaIDHHM, PpOKOJIHOBaHHM, NOWkoJKeHHM BHACIIIDOK BnJIInBy BnCOkIX TEMNEPAtp TOIo.

Стан 3наченя
Ус i сbitлдiodи послдовно загорь tcя,nicячero одн (1) сbitлдiod поина ec nocti noho ropiпдовжуbatn.Зеленm кolyborom.	Експунатцio akumylantophoi batapei можна почero oдн (1) сbitлдiod поина ec nocti noho ropiпдовжуbatn.
Uci cbitлдiodи послдовно загорь tcя,nicячero oдн (1) сbitлдiod поина ec wbnko mrigatniakumylantophoi batapei. Повторіb onepaцio aboЖовим кolyborom.	He вданоя заBERPHTN nepeBipky CTahnyчero oдн (1) сbitлдiod поина ec wbnko mrigatniakumylantophoi batapei. Повторіb onepaцio aboЗberhITbcdo cepbichoi сухжбkompanii Hitti.
Uci cbitлдiodи послдовно загорь tcя,nicячero oдн (1) сbitлдiod поина ec nocti noho ropiпчero boHim Kolyborom.	Як soo ВИКОРИSTANHAПрисданого injстчрмени.Tа'mожна радовжуbatn, ue oзнayаe, zuo залшковыемпICTь akumylantophoi batapei сtaновпь MeHsE50%.Як soo ВИКОРИSTANHAПрисданого injстчрмениВже He можна радовжуbatn, ue oзнayаe, zuoстрк сухжб akumylantophoi batapei зakihuвcertа IInotpibHo zaminHTn.Бydь пасka,зberhITbcdo cepbichoi сухжбkompanii Hitti.

3.6 KomnneKT noctaahna

3apndn npncptpi, nctpykui 3 ekcnnyataui.

Ihwe npnlaed, donyuehe do ekcnnyatau3 Baunm iHCTpyMeHTOM, Bm moKeTe npnd6aTu y Hitti Store afo Ha Be6-caTti www.hitti.group

4 TexHiChi daHi

12 DoataKoBa iHphiMaui

C 6-22 (01)

RoHS (HpeKTHBa KHP npo 06MeXeHHBnKOpHCTaHH He6e3neuHNx peOBOH)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Ltaabnue eHHHO dpaHky Kntaio.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Lra TaBnua e YHHIO dIa PnHKy TaBaHIO.

C 8-22 (01)

RoHS (HpeKTHBa KHP npo 06MeXeHHBnKOpHCTaHH He6e3neuHNx peOBOH)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics(PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl.plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Ltaabnue eHHHO dpaHky Kntaio.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Battery Charger 型號(型式): C 8-22 01 Equipment name: Type designation:
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品(PCB) Electronics (PCBs)	-	0	0	0	0	0
螺釘 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。 Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence. 備考3. "-"係指該項限用物質為排除項目。 Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Lra Ta6nuae eHHHO DJIa PNHKy TaBaNIO.

13 Jiriñ-iohHi akymyIaTOpHi 6aTapei Hilti

Yka3iBKn 0oO texhikn 6e3nekn Ta HanexHoE kcnnyatauji

Y cIbOMy DOKymEnTI TepMIn «akymnTOpHa 6aTapeR» BHKOpNCTOBYeTBcR dIe N03HaeHHN IITi-IOHHX akymnTOpHnx 6bapei Hilti, kI e npDAtHMn Do NOBtOPHO 3apJXaHH Ta CkJaAdoTbC3 DeKINbKOx IITi-IOhHIX enEmeHtIB. Li akymnTOpHi 6bapei np3HaueHd IINeEKeTPOHCTpyMeHtIB Hilti Ta MoKyTB BHKOpNCTOByBaTnC rINbKn 3 HmN. 3AcTOcoByTe nIwe opurihabhi akymnTOpHi 6bapei Hilti!

Onnc

AkymynTophi 6atapei Hilti ochauyotbcnCTeMaMn KOHTpOIO, KepyBaHHra Ta 3axncty enemntib.

AkymynTopHi 6atapei cKaIaIaOTbcra 3 eIemEnTb, aKi MCTaB Nii-iOHHi MaTePiaH, IIO HAKOnuYHTb EneKtpnHn 3apRd, 3aBe3neUyOuN BnCOky rCyTHHy eHeprII. Nii-iOHHM aKyMyIaTOpHm 6atapeM npITamaHHn IInue He3HaHn eFekt NaM'Ati, npote BOH n dYxke yTJIINBMn Do 3OBHIuHix HaBaHTaXeHb, Tn6OKoro po3prJxAHn a6o BnCOKnx Tempepatyp.

I3 nepeiikom IHctpymeHTIB, npH3haueHHx IJI BnKOpNCtAHH 3 aKyMylTopHMn 6aTapeMn Hilti, Bu MoKeTe O3HaOMNTnCBy HaN6hNkUcMy MaRa3HHi Hilti Store a6o Ha Be6-caTi www.hilti.group.

Bezieka

IOTpHMyTEcH HabeDeHHx HnKHe Bka3iBOK 3 Texhki 6e3neKn, 0o6 rapaHTyBaTH 6e3neNeH TpaHC-nOpTyBaHH Ta BHKOpNCtAHN IITi-IOHHHX akymyTAOPHN 6aTapeH. HeBHKoHaHH cHX Bka3iBOK MOKe npns3BeCTn Do noDpa3HeHHn Wkipn, cepNo3Hx TpaBM BHaCNIoK KOtAKTy 3 Kopo3iHmpeO-BHAmn, a TAKoK Do XIMiHnx OnikB, NoKekTi Ta/a6o Bb6yxy.
ObepexHo nooBbTeC3 aKymIaTOpHm6aTapeMn, 06 yHKHytn ixHbOro NOUKoJKeHHa6o BHTOKy piHN, kE dyke He6e3neuHmN dIra 3dopoB'!
3a60pOHaETbCBAHcNt 3mHn DO KOHCTpyKciAkyMnyrTOPhNX 6aTapei a6o MoDnphiKyBaTu iX!

HILTI

Akymyntophi 6atapei 3a6opoHcTbCp03bnp, po3bApTN, pO3daBIOBaTN, HarpibATn Do TemnepaTyPi NoHaD 80^ a6o cnaIOBaTN.
He BnKOpNCTOByIte Ta He 3apJdxJaTe aKymJITopHi 6aTapei, kI 3a3HaJIb BnJIbBy ydApHOro HabaHTa-KeHHa6 6yIn NoWKoJKeHi iHsIM qHOM. PeryIrpHO nepeBipRNe aKymJITopHi 6aTapei Ha HABHicTh bNoWKoJKeHb.
Hikon He BnKOpNCTOByIe aKymJrTOpHi 6aTapei i3 BToHHnx MATEpiaIIB a6o BiDpeMOHToBaHi aKymJrTOpHi 6aTapei.
He 3actocobyte akymyIaTOpy 6atapeo afo akymyIaTOpHn eJeKtpoiHCTpyMeHT y kOcti yapHO IHCTpyMeHTa.
Hikon He niDaaBte akymnTophi 6aTapei BnNBy npAIMX COHnHx npOMEHb, BnCOHX TemnepaTy, ickop a6o BiKpnTOBOrHIO. HEBIKOHAAH NcE BmOrn MoKe np3BeCTn Do Bb6yxy.
He TopkaTeCn nonHocB enemeTIB XINBLeHH naIbIaMn,po6OuHMn IHCTpyMeHTaMn,pNHKpaCaMn,a TAKoX iHsIMn npEdMetAm 3i cTpymonpoBiDHNx MaTePiaJIb. HeBnKOHaHH ciEi BmOrn MoKe npNBecTN Do noShKoDHexHH aKymyIaTOPHOI 6atapei, MaTePiaJIbHx 36ntkIB i TpaBM.
3axuane akymyaTOpHi 6atapei BiD BnNBy douy, BOJOn Ta piIN. RaIoo BCEpeHHy akymyaTOpHOI 6atapei notpanntb Bonora, ce MoKe CnpnHHHTK KOPOTke 3AMNKaHH, ypaKeHH eJeKTpHnM CTpyMOM, onIKn, noKexy abo BNbyx.
BnKOpNCTOByIte akyMylAToHy 6aTaapeIO tINbKn 3 TMM eJeKtPoIHcTpyMeHTaM Ta 3apAHHMn npCtpoAMn,ДЯ RAkX BOHa Pn3HaueHa. Пр nbOMy TaKoK dOtpmMyTEcRa3iBOK, HabeDeHnx B IHCTpyKciAx 3 ekCnnyatauB iDnOBiDnHex BnPo6iB.
He BnKOpncToBnyTe Ta He 36epiraTe akymyIaTOpHi 6aTapei y Bn6yXoHc6e3neuHOMy cepedOBnui.
RaKuo aKyMnyrTopHa 6atapeH rapya Ha doTN, BOHa MoKe 6yTH noWkoJKeHa. 3aNtTe aKymIrTopHy 6atapeO y 3axuheHomy BiD BOrHIO Micci Ha DoCTaTHi BiDCTahi BiD rOpoux MATEpianIB, De 3a Heo MOxHa cNoctepiratn. 3aueKaIte, DOKN aKymIyrtopHa 6atape H oe OxoloHe. RaKuo che3 roDInHy aKymIrTopHa 6atapeBce ue 3aJIHsaTbcra rapyoo Ho daTnK, ce CBiDHTb npo II HecnPabHichtb. DotpmyTech Bka3IBok, HabeDeHNx y po3dini «3axOn 6e3neKn y pao3aImaHHa aKymIrTopHOi 6atapei|.

Dii y paizi nouKoJKeHHaKymyIaTOpHoI 6aTapei

Y pa3i noWKoJKeHHaKMyJIaTOpHO batapei 3BepHITbCn do cepBicHO cnyK6n KOMNaHII Hlti.
He BnKOpNCToBvIe akymyIaTOpHy 6aTapeIO, kAIO 3 He I BnCTynaC piDHa.
- RaKuo 3 akymyIaTOPHOI 6aTapei BnCTynae piHa, He donyckaIte II 6e3nocepeHbOro KOHTaKy 3 ouHMa Ta/a6o shkpio. PiJ uac BnDaJIeHH pIINH, Ka BnTeKJa 3 akymyIaTOPHOI 6aTapei, 3aBKnBn BHKOpNCTOByTE 3axNCHI OKyIaRpn Ta 3axNCHI pyKaBnCi.
Lio6 BuaaHn piHny, kA BnteKla 3 akyMylrTopHOi 6atapei, ckOpNCTaTEcH cneiaIbHM 3acobom Ira npuBpaHH xIMiHNx peOBHH. DToPmYteC HmicEbx npabH, 1o pernaMeHTyOTb nopAdoK npuBpaHH pINHH, kA BnteKla 3 akyMylrTopHOi 6atapei.
- POKlaIb noUkoJKeHy akyMnyIaTOpHy 6aTaapeH y KOHTeHep 3 He3aMHcTOr MaTePiaNy Ta 3acnIte II cyxHM nickOM, KpeiHaHm npoUkOM (CaCO3) a6o cnliKaTOM (BepMNkyIitOM). NicIa YbOrO repMeTHuHO 3aKpInTe KOHTeHep KpnUkoTo Ta TpMaIte NoIaI BiD 3aMmCTnx Ra3iB, pIDH Ta IpeMetIB.
LIO6 yTNI3yBaTH KOHTeHep, nepeaTe Ioro Do Hn6bNkQOro Mara3Hy Hilti Store a6o 3BepHITbcra do npedctabHNka BiINOBiHOi KOMNaHI 3 yTNI3aui BIXOIB. DToPmMyTEcMicueBHX npABH, Rki perIamEHTyOTb nopAOK nepeBe3EHn NOxKoJKeHnx akymyIaTOPHX 6aTapei!

Ii y paizi BHXOdy akymyraTopHO 6atapei 3 naNy

3BepTaIte yBary Ha HeHOpMaIbHy po60Ty akymyIaTOpHOi 6aTapei, HapnKnaH Ha BnIaKn HenOBHOro 3apJxHaHH a6o 3aHaITo DOBnY qac 3apJxHaHH, 3HaUHe 3HIXKeHH NOTyXHocTi, He3BnuAHy po60Ty CBITIOIDHHx IHINKaTOpIB a6o pIDHy, 1O BHXoDHT b 3 akymyIaTOpHOi 6aTapei. Lc e O3HaKn BHYTpIihBoi HeCnpabHocti.
Ku Bo nio3pOe TBHyTpHIO HecnpaBHCb akymyAToPHO6aTapei, 3BepHiTbcn do cepBicHo cnyK6n KOMNaH Hilt.
Akyuynrtopha 6atapere He yHKioHy, He 3apRJaetcbra 0 He Bnctynae piHna, Heo6xihOytinisybatn. IodatKOBa IHopMaui HaBeedeHa y pozini «Texhiue OcbnyroBaHHa Ta ytniiaqir

3axoyn 6e3nekn y pa3i 3aImaHHa kymyIaTropHoI 6aTapei

PONEPEKXEHNA

He6e3neka 3aImaHH aKymyIaTOPHOI 6atapei! RaIO aKymyIaTOPHa 6atapea 3aropinac, 3 Hei DO HABKOJIuHbOrO cepEOBua NotpanIaOTb WkiIDnBi Ta BNoxyoHe63neHi PiINn Ta Bnnap. Ce MoKe npIn3BeCTn Do cepio3Hnx onIKIB i TpaBM, o6yMOBHeHX KOHTaKTOM i3 Kopo3iHmN peOBOHAMn, a6o Do BNo7yxy.

PiicacirnHnAkymnytoPnHex6atapeBnKOpncTOByte3aco6nIHnBiyaIbHorO3axNCTy.
3a6e3neue HaneKHy BeHTnlaIIO npMiuEHH, 0o6 BuaNTn 3 HbOTo WkIdNBI Ta Bn6yXHe63neuHi Bnnapn.

Y pa3i iHTeHCBHORO yTBOpEHnA dMy HeaHo 3aIuTe npMiuEHH.
Ypa3i noDpa3HeHHaXaJIbHIX XJIaIXIB 3BepHiTbcra Do Iikapra.
3BepHItbcn do noKekHoI cnyKb, nepu Hix HaMaratnc 3aracntn noKexy.
Длг racinну akymуларони 6aatae вькориctobуte tinbky BODy Ta 3haxodbteca npu cby My Ha kOMor a 6iIbii BiDCTahi BiD BORHIO. 3actocvbaHHЯ Дя zuoro npoowkoBx BorHeracnKIB Ta npOTINOJKeHHnx nOKpnbal e HeepeKTHBHM. BorOH, lo pO3noBcOINBCra Ha iHwi npedmetn Ta mATEpiAIn, MOxHa rACHTN 3a DOnomorHO 3BnuayHnx 3ac06iB.
He hamaraTeCn nepecyBatn BeiNky KInbKicTb akymyIaTOPHx 6batae, 10 roptb. Pnp6epitb noaB iD dKepeHa 3aMaHHe He nouKOJKeHi BOrHem npedMeTu MaTePiAn, 10o b izonIOBaTH nouKOJKeHi akymyIaTOpHi 6bataeI.

Kkto TemnepaTypa akymyIaTOpHoi 6aTapei He naaε, Kkto 3 akymyIaTOpHoi 6aTapei BHXoNtB a6o Kaio akymyIaTOpHa 6aTaper 3aropinac:

3a donomoroio nonatn nomictb akymyIaTOpHy 6atapeo y BiDpo 3 BDOIO. OxonoJkyOuH BnINB BoNn DOnOMOKe CNOBIbHNr PO3NOBCIOJKeHHB BOrHHO Ha akymyIaTOpHi eJeMeHTn, Kki ue He Harpinncd oKpntuHOI Temnepatypn 3aMHaHH.
3aIHTe akymyntopHy 6aTapeu y Biipi npnaHmHi Ha 24 roDHH, DOKn BOHa He oxOIOHe NOBHCIO.
- OdaTkoBa iHopMaizHaBeHeHa y po3ini «Dii y pa3i nowkOxehnAkyMnyTopho6aTaapei

Yka3iBkn 1oDo TpaHcnopTyBaHHa Ta 36epiraHHA

-17 ^ C do +60^ / BiD 1 ^ do 140^
-Пд ус 3берiraнг Temпаура Habkoиньо cepeobuц na nobHHa 3haxoHTnc y diana30Hi BiD -20°Cdo +40°C / BiD -4°F do 104°F.
He 36epiraIte akymyIaTOpHi 6batapei Ha 3apHdHomy npunctpoI. Picnla 3akHcHHeNHa pOuecy 3apJxHaHH 3abKdn BiD'EDHyTe akymyIaTOpHy 6batapeIO BID 3apHdHOro npunctpoIO.
36epiraTe akymyIaTOPHi 6aTapei y kOMora 6ilb u npoxoIOHMy Ta cyxomy Micu. 36epiraHHy y npoxoIOHOMy Micu nOIOBHyE cTPOK cnYk6n akymyIaTOpHOI 6aTapei. 3a6OpOHcTBcA 36epirAtn akymyIaTOpHi 6aTapei Ha coHci, Ha onaIOBaJIbHnx npuaDax a6o Ha niDbikoHHi.
3a6opohaebcnpeecnnaakymyantophi 6atapei noToIO. nnepecnnaHHH HeoWKoJKeHX akymyIaTOpHnx 6atapee 3BepHItbcn do Kyp'epcbko Cnyx6n.
3a6opohetbcnnepeBOHTNakmyIATOPHIbatapei y He3anaKOBAHOMByrHdi.Iid qac nepeBe3eHHa kymyIATOPHI batapei nobHHi 3axuichi BID cnblnx NowTOBxIB Ta Biopaui, a taOK iOJbOBAHi Bid 6yd-b-AXX CTpyMONpOBDHX MaTePianIB Ta BID IHwix akMyIATOPHXbatapei. Lc Do3BOITb yHKnHyTN KOpOTKOro 3AMKaHHA, AKe MoKe cTaTNCaYepe3 KOHTAKT NIOUCiPiHx akMyIATOPHXbatapei.

IotpHmYtecMicueBx npabn, kiperrnaMeHTyOTb nopAOK nepeBe3eHHa akymyIATOPHX 6atapei.

Texhiue 06cnyroBybaHH Ta ytni3aui

CniikkyIte 3a Tm, uo6 akymyIaTOPHa 6bapee 6yna uHCTOIO, Ta He donyckaiTe II 3abpydHeHHa MactINOM. Ynkaite KOHTAKTy aKymyIaTOPHOi 6bapei 3 NInom a60 bpydom. BndanrTe 3abpydHeHHa 3 aKymyIaTOPHOi 6bapei cyxOIO M'AKOIO UITKOIO a60 uHCTOIO cyxOIO TkAHHOIO.
He npaioIte 3 BiDnOBiHm akymyTOpHm iHCTpyMeHTOM, kUIO Ioro BeHTnAuiHi npopis3n 3a6noKoBahi. ObepeKHO npouuauTe BEHTnAuiHi npopisiM'RAKO cyxO uitko.
Cniikkyte 3a Tm, uo6 ycepeiny He notpannnc tOPOHHi npedMeTn.
He donyckaite notpannaHHBONOR Bcepeiny akymyntopho6atapei. Raio BOIora notpannna BCEpeinyakymyntopHO6atapei, 3 HeIO cnID NOBOINTNcRAIK i3 nowKOJKeHOa kymyntopHO6 bataeEO Ta izHOBATny KOHTHEPI 3 He3aMnCTORo MATEpiany.

IodatkoBaHOpMauiHaBeHea y po3ini «iyy pazi nowKOxehnAkyMnyTopho6atapei|.

Y pa3i HeHaJIeXHoi yTnI3aui akMynIaTOPOI 6aTapei 3 He MoKyTB BNXODHTN He6e3neuHi dnn 3dOpOB'ra3n a6o piINHN. Lio6 yTnI3yBaTN akMynIaTOPO 6aTapeIO, nepeaIte II do Hau6NIKQO MRa3HHy Hilti Store a6o 3BepHITbcra do npedCTaBNka BiIDNOBIAHOI KOMNaHI 3 yTnI3aui BIXOXIB. DToPmMy-TEcA MicuebHX npabHJI, Aki pernaentyOTb nopAOK nepeBe3EHn NOxKOJKeHHx akMynIaTOPHNX 6aTapei!
He KndaTe aKymyIaTOpHi 6atapei y 6aKn Ira nObyTOBOro CMITTR.
Ytni3yIte akymnyTOpH6bataei taKIM uHHOM, 0o6 BOHN He nOtpaunHn Do pyk diTe. 3akpnTe KOHTaKTHn akymnyTOpHx 6batae eNEKTPOHeNpOBIHN MaTePiaJOM, 0o6 3ano6iTr NKOPOTKOMy 3AMKaHHIO.

TynHycKa naIdaIaHy 6OMybIHwa HycKayIbIK

1 PnIdaIaHy 6oIbIHwa HcykayIbIK TypaIbI mAniMeTTep

1.1 Ocbi naIdaIaHy 6oIbIHwa HyckayIbIK Typalbi

EAC

HmnpTaybiXeHe eHdpywiH eKinetti YbIMbl

(RU) Pecen Φeepaunrcbl

"XInTNIINCTpN6bIOuH JTT"AK,141402,Mckey o6JIbcbl,XmKn K.,JeHHrpaIckaK-ci,25-6et, 15.26-KypblbMbI

(BY) Bénapycb PecnybniKacbi

"XInn Bnya" KLIc, 222750, MnHCK o6nbicbl, I3epKHH aydaHbI, P-1, 18 KM, 2 (Cno6oJa aYbIbIHbH KaHbHa), 1-34 KypblbMbI

(KZ) Ka3aKcTah PeCy6nKacbl

"XnTn Ka3aKCTaH" KLIc, 050057, AImatbI K., BoCTaHdbI k aydaHbI, Tmnpra3eB K-ci, 42/15 yi, IInTeP 012 (15 Kopnyc)

(KG) Kbipfb3 Pecny6nkacbi

T AND T' XLIK, 720021, Kbipfb3ctah, Biiueke K., N6paHMOB Keu., 29 A yni

• (AM) Apmehra Pecnybukacbi

"3H- KOH" KLIJK, 0070, EpeBaH K., EpMaHaJa Koayap K-ci, 19/28

EhdpinreH eni: Ka6bKtaFb6enriney TaKaTaaCbH KapaHb3.

THdpinre H KyHi: Ka6bIKTaBb 6enriney TaKaTawacbH KapaHb3.

Tnicti ceptnФнкattbMbHa MekeHka 6oBbIHwa Ta6yfa 6oJa: www.hilti.ru

CaTay, TacbMaJday JHe naDanaHy 7apTTapbHa naDanaHy 6oBbHsa HyCKaybKta 6enrIeHReHHe Baca apHaBt TaanTap KoBIMaMdbI.

OhimHH KbI3MeT ety Mep3imi 5 Kbln.

Eckepty! Ohimdi naaandaanb6ac 6pybH enHIMMeh 6ipre 6epinren naaandaH yOohnHa HcaykbTbi, cohBn iwiHne Hcykaynap, Kayinci3ik JxHe eckepTy Hcaynapbl, cpeTTep MeH CneuФkaunapbl MindtTI type OKbI uBfBbI3 JxHe TyciHn AblHb3. BapbIK Hcaynap, Kayinci3ik JxHe eckepTy Hcaynapbl, cypeTep, cneuФkaunap, coHdA-nak Kypamdaac 6eJIeKTeP JxHe FyHKnHapMeH TaHbICbnMbIFbH3. ByHcKayopbIHdaIaMaHkaFdaIa,TOK COfy, ept JxHe/Hemeceaybp JapaKaT any Kayni TybHdaIbI. NaadanaHy 6oBbHua HcaynbITb, cohBn iwiHde 6apbIK Hcaynapbl, Kayinci3ik JxHe eckepTy HcykaynapbH KeHH naaandaHy wHIn caKtan KoBHbI3.
HIMdepi Kcicn naDanaHybnapFa apHaFAn JHe OanapBb TEK KaHa eKeiTeT, 6iikrKb3MeTKePnep NaDanaHyb, KyTIm JHe TexHnKaIbIK Kb3MeT KepeTy i Tnic. Kb3MeTKePnep Kayinc3dkTexHnKaCb6oBbHsa apNaBHyckay aNyBepek. EHM MeH OHbIH Kocalkb KypaNapBbH backa MaKcaTTaKoJdaHy Hemece OanpDbH OKtBnMaFAn Kb3MeTKePnepH TaapanbHaH naDanaHbNyblKayinti.
Bepinre naiandaany boBHwa HcyKaynbik bacbin uibfapbnfAH Me3eTTe TexHnKaHbH aFBIMdaFbI KaDaBHa caikec Kelei. AfbIMdaFbI Hcyka epaabim Hilti eHimdepiHH Be6-caTbHa KOJXetIMdi. On yuiin ocbi naiandaany boBHwa HcyKaynbikTaFbI den benrinehreh cintemere etiH3 hemece QR KoDbHcKaHepeJI3.
- ΘΗΜΙ δας τυναλαρατεκ Κόβι παιδαληγ Μουήλινης ὄχκaynbikπει έρ्र εφερίπιδ.

1.2 WapTTb6enrinepeiH aHbIKTaMaCbi

1.2.1 Eckepry

EckepTyneHmki KOndaHy 6apbcbHdaFbKayintep TpyaIb eckepTei. TeMeHderi CnHaNdbK c3depe naDanaHbIaNbI:

KAYINTI

KAYINTI！

Aybp KapakapTAPFA eKeJIeIH Hemece empre Kayin TeHdpetIH TikeNei Kayinti KaFdaNdbH KaJIbI 6enrineHyi.

ECKEPTY

ECKEPTY！

Ayib Kapakapapfa ekenyi Hemece empre Kayin TeHdpy i Mymkih bIKTmam Kayinti KaFdaIbH kannbl 6enrilehyi.

ABAHJIAHbI3

ABAJIAHbI3！

KapaKaT anyFa Hemece MyiKiTH 3aKbIMdanybHa eKenyi MymKiH bIKTmAl Kayinti KaFdaNdbH KaJIbI 6enrIneHy.i

1.2.2 NaiDanaHy 6oBbHwa HcKaynbKaTafbl 6enrinep

By naaanahy 6oBbHua HcaybIkTa TEmeHeri bEnrine np aHaHaHbna:

Painanany 6oBihwa Hcykayblktb yctahy

AcnantbI naDanaHy 6oBihua Hcyckaynap KHe 6acka naDabl aKnapat

KaIra naIanaHya 60NaTbIH MaTePhaIapMeH Kymbic icTey

3neKtp acnanTapbl JHe aeKKyMnyTopnapbl TyPbictbIK KOkbicKa TactaMaHbI

Hilti Li-Ion aKKymyIaTOpbl

Hilti 3apraTaFblI KpybInFbIcBi

1.2.3 Cypertepderi 6enrinep

CypeTepTe TEmHeeri 6enrinep KonDaHbnaIaIbI:

Byn caHap ocbi naIandaIahy 6oBbIHwa HcyckaybIKtbH 6acbIHdaFbl Tnict cypeTke caiKec keJIeI.

3

Hemipney cypeTeri Kymbic Kaamapbihh peTinirih 6inipeidi XeHe mtiHeri Kymbc KaamapbHaH e3reWeneHy MyMKIn.

11

POnHnHemipnepi LOny cypTeIHne KOnDaHbIaIbI XeHe ΘHimre LOny MaKaIaNHaFbI aapTbI 6enrinepHn Hemipnepine cintei.

AaIbIe 6enrinepeHIMdi KOndAny 6apbcihda aPbIKwa Ha3apbIHb3bl aydpTaBbl.

1.3 Θhimre KaTbictb6enrinep

1.3.1 ΘHmDi eri 6enrinep

ThimTeMeHderiBenrinep naDanaHbiny MyMkiH:

ΘHim iOS XəHe Android nlaTφopMaIapbIMeŋ yIneCiMdi NFC texHONrncbH KOndaIbI.

Koc okwayny

TeK 6eJmeneepin iwiHne kondaHyfa apHaIraH

TypaKtbi TOK

AinbImaJIb TOK

Ehim 6ap 6oJfAH JkaFdaIa, eHIM AKUINeH KaHaIaNbIK HApblKTap yuiH OcbI cePTnΦNkATay opraHdApblHa KOnDaHbICTaftcTaHdpTAPFa CeykeC cTeNΦNkATanAdbI.

EHIM 6ap 6oIraH JkaFdaJa, eHIM AKU nn KaHaJaNbIK HApBkTap yuiH ocbl cepTNfNkattay opraHdApbIHDa KOnDaHbICTaftcTaHdAPTTapFa caikec cepTNfNkattanaDb.

2.1 Kayinci3ik 6oBihwa Jannb HycKaynap

ECKEPTY Byn 3neKtp KypanbHa apHAnFaH 6apblk Kayinci3ik HcckaynapBn, HcckaynapDbI, CpeTepdiXhe TexHHKaIbKdpeKTePdioKbIn WbIfbHb3. TeMeHde6epinReHHcckaynapDbIOpBbHdAmay 3neKtp TOrbIHbH COfByHa, eptke 0KeJy I MymKiH XHe/Hemece aybp JapaKaTTapDbI TydbpyI MyMkiH. Kayinci3ik BoBHHa 6apblk HcckaynapDbI XHe XaJIbI HcckaynapDbI Keneci naJaIaNHyBbI yiwH caKaTaHbI3.

AtaImbiEhimDi DeHe, cesIM HeMece akbl-oi Ka6JIeTepi WeKTeyIi Hemece ToxKipnbeci MeH 6inimi KETKIikci3 aamdapfa (cohhi ihiDe 6ananaPra) naDaHaYf Taibim caihaDa.
- Eanapra eHimMeH oHayFa pyKcat 6epMeH3.
3apraTafbiu KpybIIFbHb OHbIH iWHe caBihfah aKKyMylatop Jepre TycneTIHdee tIN MOHTaKaDaHbI.

2.2 3apraTafbiu Kypbnfblnapfa KytimmeH Kapay He onapdbI npbc naaanaHy

Kapakattapbih andbih any ywiH 3apraTaBliu KypblfBIme Hek pykcat etiren Hilti Li-lon aKKymyIHTopnapbih 3apraTahbi3.
3apraTafbi KypbIbfy yuih Ta3a, cankih, Kypfak epi Kbpaycb3 opbHbTaHaHaBb3.
Akkymytnopdb3apdty KeiHne 3apntaftbI KpybIbIaH KblnydbKeTipy yuiH JeNdeTy caHbInaynap6oc 60nybKepeK. Ta3a aya afbHbIKOK Kepe 3apTaMaHbI3.
- ΘHIMRE MyKnHT Kytim KepcTeiH. BəniKTepdiH, eHIM apbl kapa JxMbic icTeMeiTiHed etin cbH6aHaBHa Hemece 3aKbIMdaImaHaBHa Ke3 KeTki3iH3. BəiKtep 3aKbIMdaIraH Hemece cbIHFaH JaFdaJa, eHIMApbl kapa NaDanaH6ac 6ypbH KeHDetiH3.
- Acnantb JkHe caikec aKkyMylrTopnapbI ocbi HcyKaynapfa cai KHe Ocbi apHaBb acnan typi yuiH Ka3blFaHdaa KOnlaHbHb3. 3apraTaftbIu Kypblfbnapdb6acka MaKaTAPMeH KondaHy Kayinti Ka4daJnapFA eKeJyIMyMKIH.
AkkymyntopdbI Tek eHdipywi YcbIHFaH 3apraTaBli KypblfbnapbH Kemerime H 3apraTbIi. 3apraTbIi KypblfbiHbI Tnicti EMEc aKKymyntop Tpynepi H 3apraTay yuH KOndaHFAHaOp TbyHda ByMymkiH.
PaindaHbImMaTbH aKKMyIaTOPnapDb KoHTaKTinepH TybIKaIyBHBnCe6e6i 6onyb MyMKIH cKpenkapanpaH, TbIHapdH, KITTEpeH, HHepeH, bpaHdaIapHa JHe 6aKa MeTAn 3aTTapHa apbYcTaHbI. AKKMyIaTOP MeH 3apraTafbl W KOHTaKTinepi apacbHdaFb Kbicka TybIKaIy KyikTepre Hemece TyTaHyFa eKenyi MyMKIH.
- AkMyIaTOpBb 3apRtaFbIi KypblfBbHbH iwiHde caKaTaMaHbI3. AkMyIaTOpBb 3apRtaFaHHaH KeiH epaBIM 3apRtaFbIi KypblfBdaH WbIFapbHbI3.

2.3 AkkymyIaTOPMeH IpybIC Kymbic icTey XaHe OHbl dypbc naIanaHy

• IHTH-NHOHBK, aKKyMylrTOPnapDbI naDanaHy KHe KyTy 6oBbHwa TEmeHderi Kayinc3ik WapalapbH OPbIHDaHbI3. HycaynapdbI opbIHdAmay Tepi TitipKeHyIe, aybp tot 6ackbuH JapaKaTtApFa, XmNIAblk KyIKTepe, eptHyre KHe/Hemece JapbIbicka anapbH COFybl MyMKiH.
  AkkymyIaTOpnapdbTeKTexHkaIbIKMihci3 KyIHDe KOnDaHbIbI3.
  3aKbIMdanydb60ndbpMay XHe DeHcaybIKKa KaTbI 3nH KeTIpe aIaTbIH CybIKTBkTapDbIH WbIFybiHa K0J 6epMey yuH akKymyIaTOPnapdbI a6aIIan KOndaHbHbI3!
  AkkymyIopJapdbI e6bip KafdaJaMoNfKaunayFa Hemece KypblmbHa 3repic enri3yre 60maDbI!
  Akkymytnopnapb6bnweKteyre, KbcIcyfa, 80°C (176°F) wamacbHaH Jxofapbl TeMnepaTpaFa deHH Kbl3dbpyfKaHe XaFyTa TbiBIM caBHaDbI.
  Cokkbl Tureh Hemece 6acka7a 3akbmdanfah aKKymyITopnapdb naDanaHb3 Hemece 3apraTamaHb3. AKKymyIaTOpnapda 3akbmdany 6enrinepiH 6ap-koBH Jkyeni Typde Tekcepin TypbHb3.
  EwKaFaDnDa KaTaNHeDenReH HEmeCKeHEnJreH aKKymyIaTOPnapbNaaJaHa6aHb3.
  Eukaan aKKymyTopbHemece aKKymyTopbIK 3neKtp KpaBn COkna KypaP peHne naJaHaH6aHbI3.
  Akkymytnopnapa eukawah TiKeNe Kyn Cayneci, KOFapb TeMnepaTypa, uKbH Hemece aUbIK KaJIbH acepin Turi36eH3. ByJ KApblBcKa anapbn corby MymkH.
  Batape noHocHe caycaKeH, KpaanIapMeH, aWekeMeH HeMece 6aCaJa da 3JeKtp TorbH eTKi3eIH 6eIe 3aTAPMeH TmEHI3. Byn aKKyMyJrTOpRa 3aKbIM KeNTipy, coHaa-ak MyNIkke 3ana I KeNTipy JxHe Jkapat anyra eKeNyi MymKiH.

AkkymyIaTOpIaBbJHaHbIp, bInFaI MeH cyNbIKTbIKTapda aIwaK YCTaHbI3. Ehin KeTKeH bINFaI KbICKa TybIKTany, TOK cOry, Kynin KaNy, ePteHy XaHe JApblbc KayiH TydbpyMiYMkIH.
TeK ocb aKKymnTOp tyi yuih Ke3dienre 3apraTfblu KypblfnbInap MeH 3neKtp KpaIapbH naaIa- nahbIbI3. Byn pette Tniicti naIanahy 6oBihwa HcckaylbkTapdaFb MmimetTepre Ha3ap aydpbHbI3.
AkkymyIaTOpDbI JkapBbIbIOpTaNapda naIaNalaH6aHbI3 Hemece caKtAmHaI3.
Erep Turen Ke3e aKkymyIaTOp TBIM BCTbIK 60nc, on akaybl 60nybl MyMKIN. AkkymyIaTOpdb tyTaHbI MaTePnaIapdAn JeTKJIiKTI KaBbIKTBtKa opHaIackaH, KAKcbl KePiHrH TyTaHbAITbH JKepe KoBbIb3. AkkymyIaTOp dy cybIbH3. AkkymyIaTOp bip cafTah KeIH eNI de KOJFa bCTbIK 60bIn Typca, 6yI OHbH akaybl eKeHdirH 6inipei. Hilti Kb3MeT KepeCy opTaBIFbHa KOnbIFbHb3 HeMece «Kayinci3ik KHe Hilti Li-Ion aKKymyIaTOpbH naDanaHy 6oBbIHwa Hyckaynap» aTbI KyKaTTb OkBIn 8bIFbHb3.

IHTH-NHOHBK,AKKMyNtOpnapbTaTacMbAnay，CaKtayKHe naDanaHy yiH KOnDaHbInaTBn apHaBblnpeKTINBaIapDbI eckepiHi3.

AtanmbiH naDanaHy 6oBihua HcyKaynbkTBH CObHdaFBI QR KoDbH cKahepney apKbIbI TaByFa 6oNaBH Hilti Li-lon akkyMnyTopnapbHa apHaIrah Kayincisik XeHe naDanaHy 6oBihua Hyc- KaynapdbIOkbln WbIfbHbI3.

3 Chnattama

3.1 Θhimre wony

① AkkymyIaTOp
② AKKMyJrTopdbH Ky INHnKaTOpbl
③ AkkymyTopdb6ocaty Tymecci
3apraTafbiW KypbIJIbI XyMbIC KyiHINHNKATOpbl
⑤ Ka6bipFaFMOHTaXday caHbInaynapbl
⑥ Aya wblapy caHbInaybl
⑦ Aya Kipici
⑧ AKKMyIATopFa apHaIFaH yAUBIK

3.2 MaKcatbHa caN KOJdaHy

Cnatafah 21,6 B wamacbHdaftb HOMHaIbI kepHeyre He Hilti Li-Ion aKKymyTOpIapbHa apHaIFaH nopTaHTBti 3apaTbFbW KpybInfb60bn Ta6bIaNbI. OJ YTTbIK WbIFapblbIM HcckacbiHa kapa 100 - 127 B Hemece 220 - 240 B aHaImaIbI kepHeymeh po3eKanapFa KaNfayFa apHaIFaH.

3apraTbH KypblfHbI kannak 6eTepre KOHa HEmece Ka6bipFa MoHTaXdayFa 6oJaBl.

• AtaImbIw eHIM yuiH pyKcat etinreH Hilti Li-Ion aKKyMnyTOpnapbH 6epinre TizimHeN KapaHbI3.
• Benrini 6ip hapbikrapda Ke6ip akkymyntopnap KonKeTimdi emec.

ΘHIM TypaIbI MOniMeTTeP

Зарадаftыш Крълъг C 6-22 | C 8-22
Бухи 01
Сереньки Немір	1 - 999999999999

3.3 3apraTaBbI Kypblfbl KyMbIC KyHHHnHaKATopbl

Куралын 6өлөөтөрì	СнпаTTмасьì
Жарык дinoны жасын түсpenж санады.	ЗapяДТаБыш КурынБы КуMbICKa дaиын.
Жарык дinoны жанбайы.	ЗapяДТаБыш КурынБы КуMbICKa дaиын emec.

3.4 3aprTay npouecinH 6apbcihdafl Li-Ion akKymyIaTopnapbHbH INdKaTOpnpabbl

Erep Hilti Nuron Li-Ion aKKMyIaTOPb Hitti 3apraTafbi W KpyblfbcHa KaIFaHFaH 6oJca, aKKMyIaTOPdbH Ky INdikatopb3apad DeHrein HKeHe bIKTMan Kate TypaIb Xabapnapdb KepeTeDi.

Куралдын 6өлшөktөрі Синатумась
Бip (1) карык дinodы касын түсөн 6ауЖылblыктайды	АKKумларгор зардалда, зард Deнгий: ≤ 20%
Бip (1) карык дinodы касын түсөн канын тyp,бip (1) карык дinodы касын түсөн 6ауЖылblыктай тyp	АKKумларгор зардалда, зард Deнгий: 21%Жэne 40% apalbifbHda
Eki (2) карык дinodы касын түсөн канын тyp,бip (1) карык дinodы касын түсөн 6ауЖылblыктай тyp	АKKумларгор зардалда, зард Deнгий: 41%Жэne 60% apalbifbHda
Yш (3) карык дinodы касын tүсөн канын typ,бip (1) карык дinodы касын tүсөн 6ауЖылblыктай typ	АKKумларгор зардалда, зард Deнгий: 61%Жэne 80% apalbifbHda
Тэр (4) карык дinodы касын tүсөн канын typ	АKKумларгор зардалда, зард Deнгий: ≥ 80%
Ешбip карык дinodы канбai typ АKKумларгор	толык зардалда, зард Tayapnoцci anktaanadby.
Бip (1) карык дinodы capы tүсөн кылдамЖылblыктай typ, садан keiin bip hemecebipнese карык дinodы касын tүсөн канады	Зардay proцeci tokтaltлган. АKKумларtgopyкат etilngen TemnepaTypa dinana3oHbHaN tbic6onyblы biktimam.Зардay proцeci kajketti napametprpek kaiaTadaehpetteilehren KeiH abTomaTTb Tpyde JuaIraFacaDbI.Kakket 6oJca, AkKуmларrgdBi UcbHbIfraH zaprd-Tay TemnepaTypacbHa ZhektikiHiz.
Бip (1) карык дinodы кызын tүсөн кылдамЖылblыктайды	Li-lon akkuymarlrogby Kylbntaylby Jxhe Ohlyshынбilaan naɪdaɪəny MymkɪH emec. Hilti Kbi3metKεrcety optanlbfHna xabaplacbHbI3.

3.5 Li-Ion akKymyIaTOpbl KyiHIN HNdkaTopnapbl

Hilti komnaHnrcb Li-lon aKKymyIaTObIHbH KyIH e3apdTay npouecinH andbHa 6in anyra Kehec 6epei. AkKymyIaTOpDbH KyIH Wakbipy ywiH aKKymyIaTObIH KyIbInTaH bocaty TuMecH yw CekyHHTan aptbIK 6acbl TpybH3. Kye He KyaNaTy, Tcy, CbIPTkbl XblNyDaH 3aKbIM KeNTipy XeHe T.C.C. KaTe KOndaHydaH TyBHdaFaH 6aTapeAHbHbH akayNbIFbH aHbKTamaDbI.

Куралдын 6өлшөктөр i Chnattamacьl
Барлыk Jжарын Диолтары Jжмьс Шамы petiHde Jжанады, содан кeйн bip (1)_Jжарын Диолд jжасын Tуслен Туразкны Jжанады.	АKKумлгогды.apы Карай пайдалиаугfa 6олады.
Барлыk Jжарын Диолтары Jжмьс Шамы petiHde Jжанады, содан кeйн bip (1)_Jжарын Диолд capbIMyMKiN 6oImaDы. əpekeTTi KaɪtaIaHbɪЗ Hemece Tуслен Кылдам КылблбТаɪdny.	АKKумлгог Күй Tу palsы сypayды opынday IMyMKiN 6oImaDы. əpekeTTi KaɪtaIaHbɪЗ Hemece Hilti KызMet Kəрсету optaIbIbHa Jɔ KolIbIbHbɪ3.
Барлыk Jжарын Диолтары Jжмьс Шамы petiHde Jжанады, содан кeйн bip (1)_Jжарын Диолд Кыз Tуслен Туразкны Jжанады.	Жалганган əнIMdi apы Карай пайдалиау муMKiN 6oIona, 6yI KaIIfah aKKyMyJgTOp KyaIbɪh 50% shaMaSbHaHa TəMeH 6oIraHbɪn 6iIdipeidi.Жалганган əнIMdi apы Карай пайдалиау MMyKiN 6oImaCа, 6yI aKKyMyJgTOpDbH KызMet etу мерзimi яяталганьн кeэHe оbl aIImactbɪpy Kepek ekendiirin 6iIdipeidi. Hilti KызMet Kəрсету optaIbIbHa Xa6aplnacbɪbɪ3.

3.6 Xektiinim HnHaFbl

3apntaftbIi KpypbIIFbl, naIdaIaNHy 60nBnHwa HcyckayIbIK.

OraH KocA eHIMiH3 yWIn pyKcat etinreH kYneIe HImepdi Hilti Store dyKeHHde Hemece MbHa Be6-caTTaH Ta6yfa 60ana: www.hilti.group

4 TexHnKaIbIK cnNaTtAmaJap

	C 6-22 C 8-22
EPTA Procedure 01 60bHnHa caIma	84 Kr(1,852 ΦyHT)	1,45 Kr(3,197 ΦyHT)
HomHaJIbI ŠbIFbIC KepHeY	10,8 B ... 21,6 B 10,8 B ...	21,6 B
MaKcHMaJIbI ŠbIFbIC KyaT	240 Bt 450 Bt
CaKtay Tempepatypacbl	-20 °C ... 70 °C(-4,0 °F ... 158,0 °F)	-20 °C ... 70 °C(-4,0 °F ... 158,0 °F)
ЖуMbIc KeziHderi KoprShaFaH opTa Tempepatypacbl	-17 °C ... 60 °C(1,4 °F ... 140,0 °F)	-17 °C ... 60 °C(1,4 °F ... 140,0 °F)

5 Kbl3MeT KepceTy

ECKEPTY

3aKbIMdAnFaH Ka6eNbDeH Kayin 6ap! Erep KymbIc 6apbcihda JeJIiK Hemece y3apTKbIw Ka6enbre 3aKbIM TnCe, eHIM MeH Ka6eNbDi Depey JeIiDeH aKbIpaTbHbI3. ByiHReH JepNepre TImeHi3!

Bapbik kaiFaBbIc bIMapdbj KyneI Type TeKcepin TypbHb3.
Byinireh y3apTkblkabebdi anMaCTbipbHb3.
Kepi KaFdaJa Hilti KbImet KepeTy opTaIbIbHa xa6apIacblb3.

TeMaKc. eWipy Torbl 30 MA WAMacbHda 6oJFaH Ke3de JkbIbictay TorbHaH Kopfay aBtOMaTbH (RCD) KOJaHy YcbHbIaNbl.

5.1 3apnTaBbI KypblfBiHbKocy He aKKymaTOpbl 3apnTay

ECKEPTY

Maynan6aHan 6aTapeenapb3apdTay Ke3iHne TybHdaTbH Japblbc Kayni. HtNHexinde naDanaHybJ KapaKaT anyB XHE 3aprTaFbI W KpbIJIbI 3AkBIMdAlyb MyMKH.

Kaitya 3apraTayFa 6oJMaTbH 6atapeRanapDbI 3apraTAmHaB3.
Bny 3apaTafbiu KypbInfb ywiH TeK Hilti MaKyndaFaHaAkkymyIaTopnapdb naDaIaHbIbI3.

ABAHJIAHbI3

blnfaanah Hemece bIMkblndaH Kbicka Tybiktany HtNHexicHe 0HIMre 3akbim Tnei.

• ΘHimDi TeK Ka6bik KaJnapda naJaIaNahHbI3.

• ΘHimDi bInFaM MeN dBIMKbIaHa aIIwaK JepDe caKaTaHbI3.

• Xenjinik ka6eBb aawacbiH po3eTKaFa caJIbIbI3.
  KapbIK DnOdbI Kacbl TycneH KaHaDbI.

• AkKMyJrTOPdbI aKKMyJrTOP INThepFeiCHe KaJFaHbI3.
  AkkymyIaTOp 3apraTaIyda.
• AkkymyIaTOp 3apTaIaNFaHHaH KeiH, OHbI 3apTaFbIu KypblfBldaH WbIFapbHbI3.

6 KyTim XaHe TeXHHKaIbIK KbI3MeT KepceTy

ECKEPTY

Tok cory kayni 6ap! Keiinik awa eHHsinn typfaH Ke3e Kyim KHe TexHKanbIK KbImET Kepcety aybp KaapaKaTAPFa He npke anapbn COybi MymkiH.

Ke3 KeIreH KyTIm KHe TexHnKaIbIK KbI3MeT KepCeTy KymbIcBn OpbIHdAmac 6ypbH KeJIiK aHaHbI epaibIM cybpIn anbHbI3!

Acnantbl kyty

KaTbI KaaBicKaH KipDi MyKnrt KeTipiH3.
- KeIeTeTy OyIbIKTapbIH KypFaK KbIIaKaNHe HkaIaN Ta3aJaHbI3.
KopnycTb TEK cunyanaHn y6epeKeNHe Ta3aHaBIs. EuknHaan CnIKoH KaMTtBn Kytim KypaIapbH naDaaHbAhi, eHTkeHi onap nactMacca 6eKTePi 3aKbIMdaybl MyMkH.

TexHHKanbIK Kbl3MeT Kepcety

• BapnIbIKKe3ReKepiHietiH6eIeKTepe3aKbIMdApdbH6ap-KOFbIHKeHe6ackapyaIemHTepiHi aKaycbI3 KymbcBih Kni Tekcepin TypbHbI3.
• ΘHIM 3aKbIMdaIaN HxHe/Hemec e akaybl 6onFaH xKaFdaIa OHbl naIdaIaHyIbI 6oImHaI3. BipdeH Hilti Kbl3MET Kepcety optalbIbHa XeHdTeHi3.
• KyTIm JxHe TexHkAnbIK Kbl3MeT KepeCy JyMbICTapbIHan KeiH 6apbIK KopFaybiW KypblfIapdbOpHaTbIN, JyMbICbIH TeKcepiHi3.

Kayinci3 KOnlaHy yuih Tek TynHcyka Kocalkb 6eIweKtep MeH KymcanaTbH MaTePnAaDapbl KOndaHbHb3. Ei3 pyKcat etKeH Kocalkb 6eIweKtep, uBfBt H MaTePnAaDapbl MeH eHIMRE apHaJFaH KepeKjXapakTap Hilti Store dyKeHHde HeMece KeNeci Be6-caTTa KOnKetimDi: www.hilti.group.

6.1 Kekinik ka6ebni aybictbipy

KAYINTI

KapaKaT any Kayni 6ap! Tok cory Kayni.

• ΘHIMdi TEK ΕKineTti, 6iNkTI KbI3MeTKePnep KyTy i XeHe XeHDey i MymKiH! KbI3MeTKePnep Kayinci3K TeXHnKacbl 6oBbHwa apHaBl HyCKay anybl Tnic.

Keniiik Ka6eBb 3aKbIMdaFah 6oNca, OHbl aybictby Kepek.

3neKtpnik Kayinci3ik 6oBbHwa JkeprinikTi tananTapdbOpbHdaHb3.

1. 3apraTafbiI KypbIIFbHbIH KeiNilik Ka6eJIb aawacbH po3eTKaDaH WbIFapbHbI3.
2. PeSEHKe TIpeKTI KaKaNaKTaH TaPTbIn IbIFapbIbH3 XHe iwiHderi 6eKITkiu 6ypaHaDaHb 6JIWeKeTeH3.

MaTePhan

Torxraika 6ypaybIbI T10

1. KaKaNaKtbi aWbHbI3.
2. Keniik ka6ebnbiH kanaai etkiisirehi ecte caKayuH photocypet Hemece cb36a Kaacahb3.

3. CbIMdb6ocaty yuH KbICbIHTapDbH bipH oMaKInTeKTi rauKa 6pyaybiBIme H a6aJlan KbICbHb3. CbIMdb KblCKbIHTah TapTbIn anbHb3. OpeKeTTi ekiHwi cblMFA kaTanaHb3 XHe codaH KeHH 6y3bIHaH Jkeniik Ka6eJIdi anbIn TactaHb3.

4. KaHa JeHinik Ka6eBdi opHaTbHb3. Bip Kblckbltbi OmaKlTeKTi raKa 6ypayblbImeH KbICbn, cbIMbl Kblckblka Kiprisih3. Kbickbltbi 6ocatbin, cbIMhbn, bepik opHaTbIfAHbIH TeKcepiH3. OpeKeTTi ekHwI cbIMFa KaHTanaHb3.

Матерnam

Женист кабель C 6-22

2289588 (EU, 220-240V)

2289589 (US, 110-120V)

2289910 (GB, 220-240V)

2300624 (GB, 100-120V)

2289911 (KR, 220-240V)

2289912 (RU, 220-240V)

2289914 (JP, 100-120V)

2289915 (AUS 220-240V)

2289916 (TW, 100-120V)

2300625 (CH, 220-240V)

Женист кабель C 8-22

2289589 (US, 110-120V)

2289910 (GB, 220-240V)

2300624 (GB, 100-120V)

2289912 (EU, KR, RU, 220-240V)

2289913 (BR, 220-240V)

2289914 (JP, 100-120V)

2289915 (AUS 220-240V)

2289916 (TW, 100-120V)

2289917 (ARG, 220-240V)

2300625 (CH, 220-240V)

3apHtafbiu KypbIbHbI 3 yuih Jkapambl Jkeniik Ka6eIbI OcbI KeCTeEH TaHaHbI Hemece Hilti Kbl3Met KepcTeOpTaIbIFbHa XONbIFbHbI3.

1. Keninik kaebbdi anmactbpy andbihda kaebnbafbTTaybIbHda eTKi3irHee eTKi3iH3.Andh ana kacaanfah photocypetti Hemece cb36aHb aHbIKtama petiHde KOndaHbHbI3.
2. KaNaKaTbI KAYbIn, 6eKITKiU 6ypaHaDaHb KaTa 6eKiriHi3.
3. Pe3eHke tipeKti KaTadaHa KaKaNaKa eHri3iHi3.
4. Kenjinik Kaebnb aushcbin Kaiaadah po3eTKaFa caBn, 3apHraTbH KypblfBHH aKaycbi3 Kymbic icTeN TypFaHbIH TeKcepHi3.

KapbIK DnOdbI KaHbIN Typ: 3apraTafbl Kypbnfbl akaycb3 Kymbic icten Tpy.
KapbIK dnoDbI kHa6aTYP:3aprTaBll KpybIFbl akaycbI Kymbic icTeMei Typ.

Hilti Kbl3MeT KepeCy opTaIbIfbHa xa6apnaCbHb3.

7 TacbImaJnay XHe caKray

TacbImaay

TacbImaJay Ke3iHde eHIMHi6epik 6eKITinReHHe Ke3 KETki3iH3.
- Θp TacbMaIdaFaHHaH KeiH Ke3re KepiHeTih 6apNbIK 6eNIkTepeJe 3aKbIMdApDbH 6ap-KoFbIH KHe6ackapy 3JeMeHTepHiH akaycbI3 6yMbICbIH TeKcepin TypbHbI3.

CaKtay

AtanmbiEhimepdaiBIM Keninik aawacbH axbipatbn caKaTaHb3.
AtaIbIeHIMdi KypFak KyiHde XHe 6anap MeH pyKcaTbi JOK aadmapdbIH KObl JeTneTih Jepde CaKaTaHb3.
￥3ak yaKbIT caKaTaFaHHan KeiH Ke3re KeipHeTin 6apNbIK 6oikTepe 3aKbIMapDbIH 6ap-KOFbIH KHe 6ackapy 3neMeHTepHiH akayCbI 3KMBICBH TEkcepin 1bFbHbI3.

8 AkayIbIKTapdaFbl KEmek

Bn KcTee KeTipinMereH HeMece 3iH3 Ty3e TaMaIbIH aKaayIbIKTap opbH aIFaHda, Hilti KbI3Met KepCety optanbIbHa xa6apnaCbHbI3.

RoHS (3nHbI 3aTKeTpIn naDanaHbInyBH WeKTey HpeKTHBaCbI)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products:C6-2201

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Eyn kecte KbtaHapbIfbHa KondaHbIaIbI.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

EynKeCTe TaBaaHb HapbIfbHa KOndaHbIaIaIbI.

C 8-22 (01)

RoHS (3nHdbi 3aTKeTpDin naDanaHbinybH WeKTey DnpeKTHBaCbI)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Eyn kecte KbtaHapbIfbHa KondaHbIaIbI.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Eyn Kece TaBaaHb HapbIbHa KOndaHbIaIbI.

13 Hilti JHTH-NOHdbIK aKKyMylrTopnapbl

Kayinci3ik KHe KonlaHy 60bHwa Hyckaynap

Ocb KyKaTtAmada «akKymyIaTOp» TePmHi 6ipHeWe Li-Ion 3neMeHTepin 6aHaNbCTbPaTbH KaTa 3aprTayfa 6oRaTH Hitti Li-Ion aKKymyIaTOpnapbHa KOnaHbIaNab. Onap Hitti 3eKtp KypaIaIapbHa apHaJIaH JcHe TK Ocb KypaIaIapMeH 6ipre naJaIaHbIyI Tnic. Tek TynHcyKa Hitti akKymyIaTOpnapbH KOJaHaHbI3!

Chnattama

Hilti aKKymyIaTOpnapbI 3neMeHTepdi 6ackapy KHe 3neMeHTepdi KopFay KByeIepimEn KaaDbkTaIraH. AKKymyIaTOpnap apHaBbl KOFapbl 3Heprn TaFBIsBfbH MymKIn eTeIH NtN-NoHdbK XnHayuB MaTePnAnDapbl KaMTNbH 3neMeHTepdEh TpaBbl. NtN-NoHdbK 3neMeHTep eTe TEme HKaad ecepine He, anaDa KaUw ocepHe, KaTbI 3apNd TaycblvHa Hemece Kofapbl Tempepatypanapfa eTe ceImtan BoJbn Ta6bna.

Hilti akyymnyatopnapby ywiH pyKcat etinreH eHIMepdi Hilti Store dyKeHHde Hemece MbHa caHTa Ta6yfa 6oana: www.hilti.group

Kayinci3ik

JHTH-NHOHBK,AKKMyTnTOPnapbNaIaIaHcyKeHe KBy 6oBihwa TeMeHderi Kayinc3ik
WapanapbHOpbIHdaHbI. HyckaynapbOpbIHdAmay Tepi TitipkeHyiHe,aybpTot 6ackbuH
KapaKaTTapFa,XMmJIbIK KyIKTepe, epteHyre KeHe/Hemce Japblbicka anapbn COFybl MyMKiH.
3aKbIMdanydb6onDbipMay xHe DeHcaybIKKa KaTb 3nH KeItpe aNaTbIH CyblkTBkTapDbIH bHybHa Kon 6epmey ywiH akKymyHTopnapdbi abaian KOndaHbHb3!
AkkymyTopnapdbie6ip kafdaa MoNphiKaunayFa Hemece KypbIbMbHa e3repic enri3yre 60nmaNb!

AkkymyIaTOpIaPb6eIeKTeYre, KbcIcyra, 80^ -TaH KOFapbTeMnepaTypa DeiH Kb3dbpyFa JHe KaIyFa TbIbIM CaIbHaDbI.
Cokkbl Tureh Hemece 6ackaasa 3akbIMdaIFaH akMyIaTOpIapdbI naIdaIaH6aHbI3 Hemece 3apraTamaHbI3. AkymyIaTOpIaPda 3akbIMdany 6eIriepiH 6ap-koBIn JxyeJI Typde Tekcepin TypbHbI3.
EwKaFaDnA KaTaNHeIeRHeHemeceKHeIeRHeaKKyMylrTopnapbI naDaIaN6aHb3.
Ewkaan aKKymyIaTOPbI Hemece aKKymyIaTOPbIK 3neKtp KypalbH cokna Kypan petiHne naDaaHaB13.
AkkymyIaTOpnapFa eKkaWah TiKeNe Kyn Ceyneci, Kofapb TeMnepaTypa, YsKbH HeMece aWbIK KaJIbH ecepIn Turi36eHi3. Eyn KapblBcKa anapbn corybl MyMKiH.
Batape nnoniohe caycaKeH, KypaandapMeH, ewekeMeH HeMece backa da 3neKtp TOrbH etKisTeIH 6eIe 3aTAPMeH TMHeH3. Byn aKKymyIaTOpFa 3akbIM KeNTipy, coHaan-ak MyNIkke 3anaN KeNTipy JHe Jkapakat anyra eKenyi MymkiH.
AkkymyIaTOpIaBbJ KaHbIp, BinFaI MeH cyuBkTbIKTapda aIIwak YCTaHbI. Ehin KeTKeH bINFaI KblcKa TynbIKTany, TOK COFy, Kyin KaNy, ePteHy XHe Jkapblbc KayiH TydbpyMiYMkiH.
TeK ocb aKKymnTOp tyi yuiH Ke3dEnre H 3apTaBliu KypbIbIbnap MeH 3neKtp KpaIaIbpH naHaIa- nahbIbI3. By peTte Tnicti naDanaHy 6oBuHwa HcckaybIKTapdaFbMmImeTTepre Ha3ap aydpbHbI3.
AkkymyIaTopbI JkapBnFbIOpTanapda naIdaIah6aHbI Hemece caKaTaMaHbI.
Erep TReH Ke3e aKKymJrTOP TBIM bCTbIK 6oNca, OI aKayIbI bOlyb MyMKIH. AKKymJrTOPbI TyTaHbI MaTePnAaRapDaH JeTkiNtI KaBbIKTBkTA opHaIaCKaH, KAcCbI KePiHeiH, TyTaHbAaTbIH Jepre KoBbH3. AKKymJrTOPdb cyItbH3. AKKymJrTOP bip caFaTTah KeiH eJI de KOJIFa bCTbIK 6oNbI tyPcA, 6yI OHbH aKayIbI eKeHdiH 6iDipei. AKKymJrTOP eptehren XaFdaJaFbI wapanap 6enimHderi HycKaynapra caikec opeket etiH3.

AkkymyIaTOpIap 3akbIMdaIaHaJ KaFdaIaIaFlb epeKeTTep

AkkymyIaTOp 3aKbIMdaFaH KaFdaIa, epaIaBIM Hilti KbI3MeT KepeCy ToPtaJIbIHa xa6apIacIbIbI3.
CytbIKTBik, LbIfaTbIH aKKMyIaTOpDbI naDanaH6aHbI3.
CytbIKtik, uBkKan JkaFdaJa, Ke3re XHe/Hemec TepiR tiKeen TIOH 60JbIpMaH3. Batape CytbIKtIbIMe H KMBic icTeReH Ke3de epaabim Kopfaybiu KOJFaNTbl JeHe Ke3 KopfaHbcih KNIN KypiH3.
Lbfbn ktaKan 6aTaper cybIKbH Ketipy yuih apHaBly pyKcT etinreH xMmNbIK Ta3anaFbIi KypanDbI naDanaHbIb3. Bataper cybIKbHbHa apHaFaH kepriniKi T a3anay epexenepi H caKaTaHbI3.
AkaIbI aKKMyIaTOpIbI XaHfBIIeMec KOHTeHepre caIbHb3 XaHe KypFaK KymMeH, 6OpNbYHTaKneH (CaCO3) Hemece cINikatneH (BepMNkyIIT) XayBn KOBbHb3. CoaH Kein KaKnafBt BTFb3 XayBn, KOHTeHepdi XaHfBII ra3dap, cyblkTBkTAP Hemece 6erde 3aTTapDaH anJwak CaKTahb3.
KoHTeHepDi Hilti Store dyKeHHde KeDeere JkapaTbHb3 HeMece JeepriNkTI KeDeere JkapaTy KcCinOpHbHa xa6apnacBbI3. 3aKbIMdAnFaH aKKyMnyTopnapfa apHaNfAH JeepriNkTI TacbImanay epeXeNepiH caKaTaHbI3!

AkkymyIaTOp 6ydaH 6bIaIa JxMbIc icTeMeReH KaFdaIaFbI epeKeTTep

3apTany, wamadah aptbk 3apTay yaKbItbl, Ke3re aHbIK Kyat TeMeHneyi, KApblk DNobihn eTteriHeh Tbc epeket etyi Hemece lbbfbln KeTKeH cybIKTBk CnAaKtbl aKKMyIaTOPbIH KaaycbIs epekeTepine Ha3ap aydapblbl. Bynap iwi kaynbikbl 6inipeidi.
AkkymyIopda iwi KaaybikTap aHbIKtaIHa HkaFdaJa, Hilti Kbl3MeT KepeCy opTaIbIFbHa xa6apnacblHbI3.
AkkymyIaTOP 6yDah 6bIaN Kbl3MeT eTnerE, AKKMyIaTOp 3apHdTaIIma KaIFaH HeMeCe cyBikTBiK aKkaH JkaFdaJa, OHbl KeDeRe JkapaTybIbI3 KepeK. TexHHKaIbIK KbI3MeT KepCetY XHe KeDeRe JkapaTy 6eimH KapaHbI3.

AkkymyIaTOp eptHeR H KafdaIaFbI Waapanap

ECKEPTY

AkkymyIaTOpdbH eptHyiHeh Kayin 6ap! KaHbIa AKKMyIaTOp TOT bacbIa JkapaKaTTap, KyIKTepe Hemece KApblbICTapDbI TydbIpby MyMKIn Kayinti XeHe KApblfbi CybIKbIKTap MeH 6ydbI IbIFapaDbI.

AkkymyIaTOp eptehyIH cHdipreH Ke3e JeKe KOpFaHbI Wka6dbIKtI Taftbn KypiH3.

Kayinti JHe Japblfbi 6bnapdbu bIfapy ywiH JeKtiikTi KeJedTydi KaTAMacb13 etiH3.
Tytihhi nainda 6onybkapkbiHdb6oHaDapeey6eMeDeHwblb3.
TbHbc KOndapbl titipkeHren KaFdaa da apirepMeH KeheciH3.
- Ept cHdpy apeketih 6actamac 6ypbH ept cHdpy Kbl3MeTih WakbpbHbI3.
AkkymyIaTOp eptehin 6apbIHwa yInkeh apakaBbIKtbIaH cyMeH faHa cHdiPiH3. YHTaKtBi ept ceHdipriuTep MeH ept cHdipriiX kAnkblTap Li-Ion aKKymyIaTOpnapbl ywiH naJaIbI emec. KopwaraH optadaFb eptTI dctypni CHeDipriu KypanlapMeH cHdipyre 6oIaBl.

• EprHeR aKyuMylrTopnapbH yKeH MeIeepH KblkBlyfA apKeTHeH6eH3. 0cep TnreH aKKyMylrTopnapbIOkUaynay yuiH aHaIaDaFbOpTaan ecep TmReH Ke3 KeIreH MaTePnIapDbI 1bIFapbn aJIbHbI3.

CybimaraH, TyTih WbIFaTBH Hemece XaHbIN TypfAn aKKMyNArTOpnap XaFdaBbIHDa:

• OHby Kypekeh anbIn, cyfa ToIbOxayFa IaKtbIbHb3. CydbH caKbIHDaTy ocepineH xahydbH weKTik TemnepatypacbHa eJI jKeTneren akKymyIaTOP 3JeMeHTepeihe ePTIH tapaNybl a3aIbI.
  AkkymyIaTOpbl, on ToIbIKTaI cyIbHaHwa, KEM dereHde 24 caraTka weneK iwiHne KaIdbipblHb3.
  AkkymyTopnap 3aKbIMdaIFaH KaFdaIaIaFbI epeKeTTeP 6eImiH KapaHbI3.

TacbImanay He caTay 6oBbHwa Hycaynap

Kopuafah opTa TemnepaTypaCbI -17°C JHe +60°C / 1°F JHe 140°F apaJIbIbIHJa.
CaKay TemnepaTypaBc -20°C KHe +40°C / -4°F KHe 104°F apaBbFbHda.
- AkKymIyTopnapb3 3apTafbiW KypBnFbHbH iuiHne caKaTaMaHb3. AkKymIyTopdb3 3apTafHaHHaH Kein ePdaiBIM 3apTafbiW KypBnFbDah WbIFapbHb3.
- AkkyMnyrTopnapbI MymKHHirHwe caKbIH KHe KpyFaK Jepde caKaTbH3. CaKbIH Jepde caKtay aKKyMnyrTopdbH Kb3MeT ety MeP3imH apTTbipaDbI. AKKyMnyrTopnapdbI eH JaFdaJa KaH, Kblny Ke3depHIn actbHda Hemece bHbH eHHeK apTbHda caKaTaMaHbI3.
AkkymyIaTOPnapbI NOHTaMeH KI6epyre 6oMaIbI.3aKbIMdaIImaFaH AKKymyIaTOPnapbI JI6epy KaKeT 6oIHaJa, JeTeKi3yUi KeCinOpbIHapPa Xa6apNaCbHbI3.
AkkymyIaTOpJapBleWkaaHwMeJeTaBImaJaMaHb3. TaBImaJay bapbcIHdaakKMyIaTOpJapDbI WAmadah apTbIK COKkBi MeH dipinDeH Kopray KHe OnapdbH backa baTaper noIOCTepimEn KaHacByHa HHe Kbicka TybIKTaJyDbH TybHdaybHa KonJ bepMey yuH Ke3 KeIreH TOK eTKi3rIW MaTePnAnJapDaH HeMece baca aKKymyIaTOpJapDaH OKwaaylay KepeK. AkkymyIaTOpJapFa apHaIraH JeepriikTi TacbImaJdAy epKeJIepiH caKaTaHbI3.

TexHnKaIbIK Kbl3MeT KepeTy XHe KeDere XapaTy

AkkymyIaTOpbTa3a Kynde JHe MaM MeH JHaFapMaJaH 6oc YCTaHbI3. AkkymyIaTOpda KaKetci3 WaH He KipdiH JnHaJIbHa J kon 6epMeHi3. AkkymyIaTOpDbI Kypfak, KymCaK KbIkaJAMMeH Hemece Ta3a, Kypfak, WSyBepeKeNeH Ta3aHaHbI3.
XeNdety caHbInaynapb6iteTReH aKKymyIaTOpDbl KOlaHyFa 6oMaIbI. XeNdeTy caHbInaynapbH Kypfak, KymcaK, KbluakneH KaKcbIan Ta3anaHbI3.
Iwki 6eirine 6ege 3aattapdbn Kipyih 6oJnbipMaHb3.
AkkymyIaTOPfa eWkaHdai cybIKtbKTapdbIH KipyHe Jxon 6epMeH3. AkkymyIaTOPfa bIFan Tureh KaIdaJa, OAFaH 3akBIMdaJFaH aKKymyIaTOPra ceiDi Iwa pa KonlaHbIn, OHbI epTeH6eTIN KOHTeHepre caJIbN OKwayHaHbI3.

AkkymyIaTOpnap 3aKbIMdaFaH XaFdaIaFbI epeKeTTep 6eimH KapaHbI3.

Hyckaynapan TBIC Keere Jkapaty HETNHexeHr de3 He cyBtBtBtBn 6ocTaBnyb DeHCaybIKKa Kayin THeDipy MyMKIn. AkymyIaTOpDbHlti Store dyKeHHde Keere JkapatbHb3 Hemece JeeprinikTi Keere Jkapaty KecinopHbHa xaapnacbHb3. 3akbIMdAnFaH akymyIaTOpnapra aphanfah JeeprinikTi tacbImanday epexenepi caKtaHb3!
AkkymyIaTOpIaPdbTyPmbICTbIKKokbicka naKaTbIpMaHbI3.
AkkymyIaTOpIaIbI 6aIaIapdbIH KOJIbHa KcTeNtIHDeeEtIN KdEre JapaTbHb3. KbICKa TynbIKaIyFa KON 6epMey ywiH, KocblnIMapdbI TOK eTKi36eHTIH MATEpHaJMeH JaybI KOnbHb3.

OpHnHaJIHo PbKOBOdCTBO 3a ekCnIooatauia

1 DaHHn 3a PbKOBOIDCTBOTO 3a ekCnIIOaTauH

1.1 3a pkoBODCTBOTO 3a eknnoatauHa

• Ppdeynpejckdne! Ppein da BkIIOHTe npOdyKTA, ce yBepete, ye npInIOKeHOTo KbM npOdyKta pBkoBOdCTBO 3a ekCnloatauH, BkIOHTeJIHO IHCTpyKcNITE, yka3aHnraT a 3a 6e3oNaCHOCT n PpeDynpedTeHNTE yka3aHH, fHyprn HcEeHfKaun, ca npOteHn Hpa36paHn. 3a03HaIe Ce C BCNUKN HCTpyKcUN, yka3aHH 3a 6e3oNaCHOCT n PpeDynpedTeJIH N yka3aHH, fHyprn, cNeUfKaun, KaKTO n CbCTABHn qactn n FyHKUn. Ppr HeCna3BaHe HMa ONaCHOCT OT eJeKtpnueCKn Udap, NoXkap N/INn TeKKn HapaHBaHn. CbXpaHbBaIte pBkoBOdCTBOTO 3a ekCnloatauH, BkIOHTeJIHO BCNUKn IHCTpyKcUN, yka3aHH 3a 6e3oNaCHOCT n PpeDynpedTeJIH N yka3aHH 3a NocLeDBAUO h3NOJ3BaHe.
  HILPnOpyKTHe ca npEHa3NaueHn 3a npofoecnoHaHn nOtp6bTeHn mOrat da 6bDaT o6cJyBAHn, NOdIbprkaHn B n3npaBHocT n peMOHTnpaHn cAmO OTOpHnpaH kOMnTeHtEN nepcoHaN. To3n nepcoHaN Tp6Ba Da 6bDe CneuHaHO HNCTpyKTIpuH 3a Bb3MoXHNte OAnCHOCTn. PpOpyKTbT n HerOBtE

npncno6neneH MOraT da 6bDat onaChn, ako 6bDat eKcnIooaTnpaHn HEnpaBOMepHO OT HeKBaHnpuHn nepcoHaJI nAko 6bDat n3NoJ3BaHn He no npedHa3HaueHne.

• ПинохOTO рьковордъво 3а eкплгатяг OTROВAPЯ Ha akTuJIHOTO CBCTOHHe Ha texHnKaT Ma-MeHTa Ha OTNeUATBaHe. BnHaR N ue HamePte AkTuJHATA BepCnHaONaHn Ha npOdyKTOBATA CTpaHnca Ha Hilti. ПocneДыTe 3a ta3n сeн БрзКATA nIN QR KODa B HAcToHcOTO pьковордъво 3a ekCnIIOaTuaHn, O6O3NaueH cbc CmMbOJa
• PnpdaBaIte npodykTa Ha npyHa cmo 3aEDHO C HAcToHcTOpBkoBOCTBO 3a EKcnloatauHa.

1.2 ycnoBn 06o3HaueHn

1.2.1 PpeynpeinteHH yka3aHn

IpeynpeintenHnte yka3aHH npeynpexkdaBt 3a onachoc T B 3oHaT oKOIO npOyKTA. H3noJ3Bat ce CneHNTE cnHaJIHn dymn:

ONACHOCT

ONACHOCT！

Othacr ce 3a HnocpeCTBeHa OnaCHOCT O T3anlaXa, KOrTO BOIN DO TeKKn TeJeCHn HapAHBaHn IIM CMbpt.

IPDEyIPEXJEHNE

PENyPEXKDEHNE！

OthacCe 3a Bb3MOxHa onaCHOCT OT 3aIIaxa, KOHTO MOKe Da IOBeE Do TEKKN TeneCHn HapaHBAHn ININ CMBPT.

PNEДПАЗИНBOCT

BHIMAHNE！

Othacr ce 3a Bb3MOxHa onacha cnTyauH, KOTo MoKe da Iobede Do TeleChn HapaHBAHn nn MaTePnaHn NtH.

1.2.2 Chmboln B PkoBoCTBTO 3a ekCnNoatauHa

B HactoIcTO PbkoBOCTBO 3a ekCnIOaTauHce n3NOJ3BaT cneHnTe CmBOJI:

Ia ce c6bHIOdaBa PkoBOdCTBOTO 3a EKcIIoatau

Ppenopbkn npn ynoptpe6a n dpyra noJe3Ha HhOpMaun

2.3 BHHMaTeJIHo 6opabeHe n H3non3BaHe Ha akymyNaTOPn

Cb6IIOaBaTe CLEHHTe yka3aHHa 6e3oNaCHOCT 3a HadeJHO 6OpabeHe n H3NoJI3BaHe Ha IHTHeBO-IOHHn akymlyaTopn. Hecna3BaHTo mM MoKe da npedN3BnKa dpa3HeHe Ha KOxKaTa, TeKKn KOP03NBn yBpeKdAHH, XmMnHn n3rapHn, NOkap n/nnn ekCnlo3nn.
- ⅢnON3BaIte akyMylaTopHTE cMo B TEXHnueckn H3npaBHO cbCTOHRHe.
Pa6oTe BnMaTeHc AkyMynatOpHTe, 3a Da n36erHeTe NOBpeHn I da npedOTbpaTne H3n3aHTo Ha TeuHOCTN, KOHTO ca MHoro BpeHN 3a 3dpaBeTo!
Akymyataopnte He Tp6Ba No HKKbB HaunHa 6bDaT npomeHn nn MaHnynpaH!
AkymnyatopnTe He Tp6Ba Da ce pa3rno6BaT, cMaKBaT, da ce HarpBaT Ha8 80^ (176 F) nIa ce 3rapT.
He n3non3BaIte nn He 3apeKdaTe akyMylatOpn, KOIO ca 6nn yIapEnn nn ca NOpeHn no npyn HauHH. PpOBepraBte peoBHO Baunte akyMylatOpn 3a npn3hauHa noOBpeHa.
Hnkora He n3no3BaIte peuKlnpaHn nn peMOHTnpaHn akyMynaTopn.
Hikora He n3no3BaTe akymylaTopa nIaakymylaTope H eJeKtpOnHCTpyMeHT KaTo ydapeH MexaHaN3bM.
Hnkora He n3naraite akymyataopnte Ha npka CbHyeBa CBETnHa, NOBnueHa TemnepaTpa, 6pa3yBaHe Ha nCKpn nn OTkptn nnMbK. ToBa MoKe da DoBeede eo EKCnIO3nn.
He donnpaTe nIoocTe Ha 6atePnnte C npbCTn, INCHtpMeHTn, yKpaSeHn Hnn dpyrE eneKtpoBODIMn npedMeTn. Toba MoKe da noBpeDn akymylaTopa, KaKTo I da npuHH MaTePhaJIHn 9eTn HapaHBAHn.
-Дрьжтakymу latopnte daneue OT dbxk, Bnara n Teuhoctn. Проннхалata Bnara може д npunHn Kbcn CbeDInHeHn, eNeKtpnueckn ydapn, n3rapaHn, noXkap n ekCnlo3nn.
H3noJIbAaTe cAmO 3apRdHn yCTpoNCTBa H eNEKTPoHNCTpyMeHTn, npEHa3HaueHn 3a To3n Tn aKymyIaTOpn. 3a Ta3n ue Cb6NIOdaBaIte DaHHTE B CbOTBETHTE PbkOBODCTBa 3a ekCnloataaH.
He n3non3BaIte Hn He cBxpaHbAite aKymyIaTopa BbB B3pNBOONacHa cpeJa.
Ako akymylatopbTe mHoro ropeu Ha donnp, ToM MoKe Da HMa DeFeKT. NocTaBete akymylatopa Ha BnIMo, He3anlmo MRCTO C DoCTaTbUHO pa3cToHHne Do 3anaHm MaTePnAn. OctaBeTe akymylatopa da Ce oxlan. Ako cNeE eINH qac akymylatopbTe E BCE OSe TBbPe Roepu Ha Donnp, Toe e Hen3npaBeH. O6bpHeTe ce KbM cepBn3 Ha Hilti nH npOyTeTe DOkUMeHTa "Yka3aHn 3a 6e3onachoct n npInaraHe Ha Hilti nHTneBO-NoHHn akymylatopn".

Cna3BaIte cneuHaHnHe TnpeKTHBn, npInoXmM 3a TpaHCnOpTnpaHETo, cbxpaHeHHeTo n H3noJ3- BaHETo Ha IHTHeBO-IOHH aKyMyNaTOPn.

Ipooyete yka3aHnra 3a 6e3oNaCHOCT n npJlaRaHe Ha Hilti JNTHeBO-IOHH aKymyIaTOPn, KOHTO MoKeTe da HamePte, KaTo cKaHnpate QR KoDa B KpaHa HAcToAto PbKOBoDCTBO 3a ekCnloatau.

3 OnncanHe

3.1 PperneHa npodykTa

① AkymytaTop
② HndkaTop 3a cTaTyc Ha aKymylaTopa
③ ByToH 3a De6IoknpaHe Ha aKymyNaTopa
④ Hndkatop 3a pa60HTOTo cBCTOHNHe Ha 3a-pHNOTO yCTPOIcTBO
⑤ OTBOPN 3a CTeHEH MOHTaX
6 H3xOД Bb3dnyx
⑦ BxoBb3dyx
8 INTepeic3aakymnatop

3.2 Ynotpe6a no npedHa3HaueHHe

OnncAHnT npOdyKT e npEHO 3apRdno yCTpoiCTBO 3a Hilti NHTHeBO-IOHH aKymNaTOpN C HOMHaHnHO HanpeJKeHne 21,6 BONTa. To e npEHa3HaueHo 3a CBbP3BaHe KbM KOHTaKTN C IpOMeHnBO HAnpeJKeHne OT 100 do 127 BONTa nIN OT 220 do 240 BONTa, cNopeI MoDEJa B cBoTBeTHaTc TpaHa.

3apHnHOy yCtpoIcTBO MoKe da ce noCTaBn Ha paBHa NOBbpxHOCT nn da ce MOHTnpa Ha cTeHa.

B Hactoian CnncbK ige HamepeHte 3a To3n npOdyk Hilti NTHeBO-IOHH aKyMynaTopn.
- He BCnUKN aKymypaTOpN ca HaNUnHn Ha BCnUKN na3apn.

JaHHn 3a npoDyKta

Зарадно устrodu С 6-22 | C 8-22
Поколени 01
Сер就近 № 1 - 999999999999

3.3 HndkaTop 3a peKHM Ha pa6ota Ha 3apHNOy yCTPOCTBO

3.5 INHnKaTOp 3a CbCToHHHeTo Ha NHTHeBO-NOHHN aKymNaTOp

Hilti npenopbya da npoBepnte cctoHHeTo Ha IHTneBO-IOHnAkyMylatop npedn BCEKN pOec Ha 3apeKdahe.

3a da npOBepnTe CbCToHHHe To hAkyMylatopa, 3aDpBkTe HaTNCHaT De6IOKupaun 6yToH 3a NOBEue OT TpN cekyn. CnCTeMaTa He pa3No3HaBa NotEHuaJHa HEn3npaBHOCT Ha 6aTepeYta nopadn 3IoynOTpe6a, KaTO HApN. n3NyCKaHe, npo6uBaHe, BbHUnn TOONHHN NOBpeNi np.

Състория 3начени
В сички Съетонод Съетяг Като Баяanza Съетлп и след TOBA сд.н (1) Съетонод Съети посторь В зелен.	aКумунатов Все оше може на ce Използва. aKумунатов Naусяа Моге на ecу? aЗал'tванeto 3a Съетоноуно Ha akумуната на He mоге на бdde осьшостveho. Повторе пюоч; nii ce obspheTe KbM cepBn3 Ha Hilti.
В сички Съетонод Съетяг Като Баяanza Съетлп и след TOBA сд.н (1) Съетонод мига Бырз0В Жылт.	aKo Сързанит Рожд може всоше на bd aKo Cьрзанит Рожд може всоше на bd aKo Cьрзанит Рожд може всоше на bd aKo Cьрзанит Рожд може всоше на bd aKo Cьрзанит Рожд може всоше на bd aKo Cьрзанiting Рожд може всоше на bd aKo Cьрзанiting Рожд може всоше на bd aKo Cьрзанiting Рожд може всоше на bd aKo Cьрзанiting Рожд може всоше на bd aKo Cьрзанiting Рожд mokе всошe aKo Cьрзанiting Рожд moke всошe aKo Cьрзанiting Рожд moke всошe aKo Cьрзанiting Рожд moke всошe aKo Cьрзанiting Рожд moke всошe aKo Cьрзанiting Рожд moke всошe aKo Cьрзанiting Ду: aKo Cьрзанiting Ду: aKo Cьрзанiting Ду aKo Cьрзанiting Ду aKo Cьрзанiting Ду aKo Cьрзанiting Ду aKo Cьрзанiting Ду aKo Cьрзанiting Ду aKo Cьрзанiting Ду aKo Cьрзанiting Ду aKo Cьрзанiting Ду aKo aKo Cьрзанiting Ду aKo Cьрзанiting Ду aKo Cьрзанiting Ду aKo Cьрзанiting Ду aKo Cьрзанiting Ду aKo Cьрзанiting Ду aKo Cьрзанiting Ду aKo Cьрзанiting Ду aK0 Cьрзанiting Ду aKo Cьрзанiting Ду aKo Cьрзанiting Ду aKo Cьрзанiting Ду aKo Cьрзанiting Ду aKo Cьрзанiting Ду aKo Cьрзанiting Ду aKo Cьрзанiting Ду aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aКo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo Cьр. aKo aKo aKo aKo aKo aKo aKo aKo aKo aKo aKo aKo aKo aKo aKo aKo aKo aKo aKo aKo aKo aKo aKo aKo aKo aKo

3.6 06em Ha DoCTaBkata

3apnHO yctpoNCTBO, PbKOBOdCTBO 3a ekcnnoatau.

Ipyn cnCTeMHn npOyKTn, pa3peuene 3a Baun npOyKT, ue hamepuTe BbB Baun Hilti Store nn Ha: www.hilti.group

4 TexHnueeKn daHHN

	C 6-22 C 8-22
Терлесыхно EPTA Procedure 01	0,84 кг(1,852 Фунт)	1,45 кг(3,197 Фунт)
Номинално Изховно Нарөжөнө	10,8 B ... 21,6 B 10,8 B ...	21,6 B
Мakсимална Изховна мошноct	240Вт 450Вт
Tempepatура на сбхаренөн	-20 °C ... 70 °C(-4,0 °F ... 158,0 °F)	-20 °C ... 70 °C(-4,0 °F ... 158,0 °F)
Tempepatура на okолнatable срEDA ррп 17 °C ... 60 °Cpa6otа	(1,4 °F ... 140,0 °F)	-17 °C ... 60 °C(1,4 °F ... 140,0 °F)

5 Eknpnoataa

PENyPEXDEHNE

Onachoc npadn noBpeHn Ka6en! Ako npa pabota ce noBpeHmpeKOBHTIy ydbJXHTENHRT Ka6en, n3KnOchTe He3a6abHNO npOdykTa n Ka6ena ot MpeKaTa. He donnpaTe Hn3npaBHOTo MRCTo!

PpOBepepeoBHO BCnK CbeHNHTeHn npOBoHNu.
IOnMeHETe HEn3npaBnHTe YdbJNKeJIHN Ka6eJI.
B npotnbEn cnyuaye cBbpxKeTe CbcepBuHa Hilti.

O6nKHObeHo ce npenopbUba ynoTpe6aTa Ha defeekTHOTOKOBa 3aunTa (RCD) c MaKcImaJeH TOK Ha n3KnHouBaHe 30 mA.

5.1 BkIIOeTe 3apHnHOTo yCTpoiCTBO n 3apeTe akymyNaTopa

IPENPENPEKDEHNE

Pnck ot ekcnno3n npn 3apekdahe Ha 6atepn, KOnto He ca odo6peH. PezytatbT MoKe da npHaapaHbAHn HcETn Ha 3apdHOTO yCTpoCTBO.

He 3apekdaite ppeapekdaun ce 6atepnn.
3a TOBa 3apnHO yctpoCTBO nnon3BaIte cAmO oO6peHn OT Hilti akymyIaTOPn.

PNEINA3NBOCT

Kbco cbeHHeHne npaBn BnaXHoCT Hnn MOKpoTa PesyntaTbTe noBpeHa npOdykTa.

H3noJ3BaIte npOdyKta cAmO B 3aTBopeHN NOMeUeHHA.
-ДрьхteуретадалочOTВлжнocиMOKpoTa.

1. BkIIOUeTe MpeXOBnA YenCeN B KOHTaKaTa.
   CBetOAnoBt CBETN B3eJeHO.

2. BkIIOUeTe aKymlaTopa KbM INHTepFeiCa Ha aKymlyaTopa.
   AkymyataOpbt ce 3apeXka.

3. Korato akymyataopbTe 3apeDen, n3BaTeTe akymyataTopa OT 3aprHTo yCTpoIcTBO.

6 O6cnyKbaHe n noDpBkKa

PNEyPExDEHNE

Onachoc ot eNeKtpueckn ynap! O6cnykBaHTo n noDpBKKata c NoctabeH MpeKOB enceI Morat da npuHHa TeKKn HapaHaBaHn I n3rapHn.

PpeBn BcKa DeHoc n O6cnyKBaHe n NOdprbKkBAHn H3BaXdaTe MpeXOBn 1eNceI!

06cnyxBaHe

• OTepaHbBaIe BHIMATEJHO HAnlaCTeHHTe 3aMbpcBaHnA.
  -Поунствашие Виимаелно ВентILAцноHHHte OTBOPи сьс cyха четka.
  -Почистваши Корпуca само с leко hablaжнма кьрna. He n3no3baite npenapatn 3a nouchte bce cnliKOH,Ть kato Te MOraT da yBpejrt nlaCTMacOBITE qactn.

IopdpbKka

• PeIobHO npOBepBaIe BCnUKN BnIMN YacTN 3a HAnuHne Ha Nobpei, a eJeMeHTte 3a ynpabJIeHne -3a H3npaBHO fynKcNoHnpaHe.
  He pa6oTe c npOyKta npn HauNue Ha noBpeHn Hn CMyUeHN BbB yHKunTe. He3a6abHO ro npdaIte B cepBn3 Ha Hilti 3a peMOHT.
  Cnei n3BbPwBaHe Ha deHocn no o6cnyKBaHe n noaepbXkKa MOHTnpaTe BCnH 3aunTHn yCTpOInCTBa H npOBepeT e yHKunTe.

3a 6e3oNaCha pa6oTa n3nOJ3BaIte cAmO opnHnHaJIHn pe3epBn qactn i KOHCymaTbN. Pa3peJeHtTe ot Hac pe3epBn qactn, KOHCymaTbN i npHaJdIeKHOCTn 3a Baun npOdyKT ue HaMePHTe BbB Baun Hilti Store nn Ha: www.hilti.group.

6.1 CmHa Ha MpeKOB Ka6e

ONACHOCT

Onachoct ot HapaHbaHe! OnachocT ot eJektpueeckn ydap.

PpOdyKtB MoKe Da Ce EKcNlloaTnpa, O6CnykBa N NOdIbPka B H3npaBHOCT CaMO OT OTOpHnpan H o6yueH nepcoHa! PepcoHaJbT Tpr6Ba Da 6bJe CneuaJIHO INHCTpyKTHpAH 3a Bb3MOxHnTE OnaCHOCTn.

Ako MPeXOBnT Ka6eI e noBpeDeH, ToI Tp6Ba Da ce NoDMHeN.

Cna3BaIte cneuΦnHnte 3a BaWata nbpKaBa pa3nope6n 3a eJeKtpnuecka 6e3OnacHocT.

1.ИЗвадеТМржовиясень Ha 3apнHOTO yCTpoIcTBO OT KOHTaTa.
2. N3dbpnaite rymeHOTOnOpHO Kpaue OT Kanaka N OTCpaHete Jekauinr OTdony 3aKpenBaun BnHT.

MaTePnAn

Torx oTBeptka T10

1. OTBopete Kanaka.

2. HanpaBete cHmka nnn ueptk, 3a da 3anomnTe MapwpyTa 3a nonaraHe Ha MpeXOBn Ka6en.

3. BHIMATEHnHO HATNCHETe eHa OT cKO6nte C OTBepTKa C 7JIuOBA rnaBa, 3a Da OCBO6OnTe npOBoHNka. N3dbpNaHTe npOBoHNka OT cKO6ata. NObTOpTe CTbPKata 3a BTOPNr npOBoHNK n CneI TOBa H3BaDeTe HeIN3npaBHnMpeXOB Ka6en.

4. MoHTnpaIte HOBnMpeKOB Ka6eI. HaTNCHeTe eHa cKO6a C OTBePtKa C IINIOBa rIaBa N IIb3HeTe npOBoHNka B cKO6ata. OcBO6OeTe cKO6ata n npOBepTe 3a HAdEJHTo 3akpenBaHe Ha npOBoHNka. NobTopete CTbnkata 3a BTOpN npOBoHNk.

MaTePnAn

Мергеля Кабел С 6-22

2289588 (EU, 220-240V)

2289589 (US, 110-120V)

2289910 (GB, 220-240V)

2300624 (GB, 100-120V)

2289911 (KR, 220-240V)

2289912 (RU, 220-240V)

2289914 (JP, 100-120V)

2289915 (AUS 220-240V)

2289916 (TW, 100-120V)

2300625 (CH, 220-240V)

Мергеля Кабел C 8-22

2289589 (US, 110-120V)

2289910 (GB, 220-240V)

2300624 (GB, 100-120V)

2289912 (EU, KR, RU, 220-240V)

2289913 (BR, 220-240V)

2289914 (JP, 100-120V)

2289915 (AUS 220-240V)

2289916 (TW, 100-120V)

2289917 (ARG, 220-240V)

2300625 (CH, 220-240V)

OHaCToHuaTa TaBnua H3epeTe nOxOaunMpeKoB Ka6e 3a BaUeTo 3apAno yctpoNCTBO nn Ce o6bPHeTe KbM cepBn3 Ha Hilti.

1. NocTabete MpeKOBn Ka6eB Ka6eHnB OdaTaka, KaKTo e 6nI IonoKeH B Ka6eHnB Odau npedn noDMHaTa. KaTO opHeHTnp H3NoJ3BaTe HAnpaBeHnte npedeN TOBa CHIMKa nn YepTeK.
2. 3aTbOpete Kanaka n OTHOBO NOCTaBeTe 3aKpeNbaUINBHT.
3. NocTaBete TympaHTo OnpHo Kpaue o6paTHo B KaNaKa.
4. BkIIOHTempeXOBnAeIeNcEIoTHOBKoHTaTaNpoBepTe daH3apHNOyCTPOINCTBO yHKnOHPa npabnHO.

CBeToIIOIbT CBeTI:3apIHOTo yCTpoIcTBO fYHKUHOHpa npaBnHO.
CBeToOnIObT He CBETn: 3apAnHOTo yCTpoCTBO He fynKcNoHpa npaBnHO.

CbpxKeTe ce cbc cepBn3 Ha Hilti.

7 TpaHcnpT n cBxpaHeHne

TpaHcnopt

Pn TpaHcnpOpTupaHe BHMMaBaIte 3a HaJeKdHOTo 3aKpeiBaHe.
CneBcKo TpaHcnpTnpaHe npOBepBaIte BcNcKN BuIM qactn 3a noBpeNi Ce yBepTe BN3npabHOTo fHKIOHpaHe Ha enemEnITE 3a ynpaBHeHne.

CbXpaHHeHne

CbxpaHbAte To3n npOdyKT BHaHc c 3BaJeH MpeKOB uenceJ.
CbXpaHbAaTe To3n IpOdyKT Ha cyxo MxCTO, daJeU OT DoCTbNa Ha Deca H HeOTOpn3npaH Nua.
Cne npoIbIKNTeHNO cbxpaHHe NpoBepraBe BCnKu BnIM qactN 3a NOBpeN 3a H3npaHO yHKUOHpAHe Ha enemEnTte 3a ynpaBHeH.

8 Tomoц npn Hauuue Ha cmyuene

Пи НИЧЕ Ha CmUSeHЯ, KOntO He ca NocOeHb TaBnIaTa HIn KOntO BHe camn He moKTe da OTCTpaHte, MoIa, OБьPheTe ce KbM HaIINa CepBn3 Ha Hitti.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Ta3n Ta6nua ce npunara 3a na3apa B Knta.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Ta3n Ta6Iuca ce npnaIra 3a na3apa B TaIBaH.

C.8-22 (01)

RoHS (HapeKTHBa 3a orpaHnUbaHe Ha ynotpe6ata Ha onachn BeuecTba)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Ta3n Ta6nua ce npunara 3a na3apa B Knta.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Ta3n Ta6nca ce npnilara 3a na3apa B TaBaN.

13 Hilti NHTHeBO-NoHHn akymyNatOpH

Yka3aHn 3a 6e3onacHOCT npnlaraHe

B Hactoata DOKyMeHTaun TepMnHbT akymnatop ce n3noJ3Ba 3a npesapeKdaCce nHTneBO-HOHe akyMnatop Ha Hilti, B KOTo ca Cbbp3aHH NKoJIKO NITneBO-nOHNN KNETKN. Te ca npedHa3NaueHN 3a eNEKtpOnHCTpymeHTn Ha Hilti n MORat da 6bDet n3noJ3BaHn cAmO CTAX. N3noJ3BaIte cAmO opRnHaHn Hilti akymnatopn!

OncanHe

Hilti akymynaTopnTE ca obopydbaHcBc cnCTeMn 3a ynpaBHeHne n 3auNTa Ha KNeTKnTe.

Akymnyatopnte ce cctoT OT KnetK, cBbPkaun nHTneBO-NOHN MaTepnaH 3a cbxpaHeHne, KOHTO NO3BOJRAAT rONMA CNEUΦNHa eHepnHa NtBTHOCT. IITneBO-NOHNTe KNETK Ca NOJNOKeHn Ha MHOrO HNCbk eFekt Ha naMeTTA, Ho ca MHORO yBCTBHTENH KbM Bb3DeIcTBHeTO Ha Cnla, Dbl6OKo pa3peKdaHe HIN BVCOKI Temnepatypu.

Pazpeшени подукту за Hilti akymларони лимерп вв Ваши Hilti Store на http://www.hilti.group

Be3onachoc

Cb6IIOaBaTe cneHnTE yka3aHHa 6e3oNaChOCT 3a HadeKdHO 6opabeHe n 3no3BaHe Ha IHTHeBO-IOHH akyMylatOpH. Hecna3BaHTo IM MOKe Da npedN3BkA dpa3HeHe Ha KOxKaTa, TeKKn KOP03NBHN yBpeKDaHH, XmMnHH n3rapHn, NOKap N/NN eKcnNo3nN.
Pa6oTe BnMaTeHcAkymaTOpHTe,3a Da n36erHeTe NOBpeHN da ppeOTbpaTHe N3n3aHTo Ha TeuHOCTN, KOINTO Ca MHOrO BpeHN 3a 3dpaBeTO!
Akymynatopnte He Tp6Ba no HNKbKbB HaunHa 6bDaT npomehn nn MaHnynpaH!
- AkymylatopHTe He Tp6Ba Da ce pa3rno6RaB, CmaKBA, Da ce HarpBaHd 80°C nIi Da ce n3rapT.

He n3no3BaIte Hn He 3apeKdaTe akyMylatOpH, KOHTo Ca 6nH yIapeHN nn ca NOpeDeHn no npyr NaHH. PpOBepaBaiTe peIOBHO BaIIne akyMylatOpH 3a npn3Haun Ha nobpeDa.
Hikora He n3non3BaIte peuzkInpaHn nn peMOHTnpaHn akyMylaTopn.
Hikora He n3no3BaTe akyMylatopa nn eneKtpOnHCTpyMeHT, 3axpaHbaH OT akyMylatop, KaTO ydapeH MEXAH3bM.
Hnkora He n3naraite akymyataopnte Ha npka CbHyeBa CBETnHa, NOBnueHa TemnepaTpa, 6pa3yBaHe Ha nckpn nn OTkpt n lambK. Toba MoKe da DoBeDe do EKCnIO3nn.
He donnpaTe noIOcTe Ha 6atePHTe C npbCTn, INCTpyMeHTn, yKpaSeHn IIN dpyr enEkeTpOPOBOMN npedMeTn. Toba MoKe Da NOBpeDn AkyMylaTopa, KaKTo N da npuHN MaTepHaJIH N eETn HapaHBAHn.
-Дрьжт ekумларotite Далаче OT ДьЖД, Blnaraи Teuhoctи. Проннкhalata Blara може длрчнн Ксн CbeDINHeHЯ, eNeKtpnueckn ydapn, n3rapaHn, noxkap n EKCnNo3nN.
H3noJ3BaIe cmo 3apAHN yCTpoNCTBa n eEKeTPOHnCTpyMeHTn, npEJaHa3NaHeH 3a To3n Tn aKymnaTOpn. 3a Ta3n ue Cb6KnOdaBaIte daHHTE B cbOTBeTHNE PbkOBoDCTBa 3a ekCnNoataun.
He n3non3BaIte Hn He cXpaHbAaTe aKymyNaTopa BbB B3pNBOOnaCha Cpea.
Ako akymylatopbTe mHoro ropeu Ha nHaHe, ToM MoKe Da e Hn3npaBeH. NocTaBeT aKymylatopa Ha BnIMo, He3aNaJIIMO MRCTO C DOCTaTBUHO pa3CTOHHe Do 3aNaIIMMaTePnaIIN. OCTaBeT aKymylatopa Da ce OxlaDN. Ako cNeE edHN yac akymylatopbTe Bce OSe TBbpDe ropeu Ha donip, Toi e Hn3npaBeH. NocTbNAIte CbrIaCHO yka3aHnHTa B Pa3den MepKn npn ropau akymylatop.

IobedeHne npn nobpeeHN akyMynaTOPN

BnHaHc Ce CbP3BaIe CbC cepBn3 Ha Hilti, aKO mAn nobpeDen akymynatop.
He n3non3BaIte akyMylaTOP,OT KOITo n3n3a TeHOCT.
H36aRbAte dIpeKTeH KOHTaC KOKaTa H/INn OUnTe, aKO TeuHOCTTa H3TuHa. BnHaHn HocTe 3aunTHn pbKaBnU n 3aunTa 3a OUnTe npn pa6oTa c 6aTepHu TaeHoCT.
3a ceIHa 3nON3BaIte ODo6peH XmMueeCKn NouchBaU npenapA, 3a Da OTCTpaHIne 3nN3aUata BatepHa TeuHOCT. Cna3BaIte MeCTHIne pa3nope6n 3a NouchBaHe Ha 6atepHa TeuHOCT.
IocabeTe He3npaBnna akymyIaTOp B He3anaJIIM KOHeIeHep Iro NOKpHte CbC cyx nCbK, C KpeDa Ha npax (CaCO3) Hn cHnKaT (BepMnkyIIT). CneToBa 3aTBopeTe Kanaka xepMeTueckn n CbXpaHaBaIte KOHeIeHa daJeve ot 3anaJIIMn ra3OBe, TeuHOCTn nn npEdMeTH.
H3XbBpIeTe KOHTeHepa BbBaIIra Hilti Store nIc cBbpxTe C MeCTHaTAKOMnHn 3a ynpabHeHn Ha OTnAdbu. Cna3BaIte MeCTHITpe pa3npoe6n 3a nobpeHn akymyIaTOPn!

IobedeHne npn Beue hepaboTeu n akymyNatOpn

BHMaBaTe 3a HeoBuAioHO NOBeHHe Ha aKymNaTopa KaTo HnPaBnHO 3apeJaHe, HeoBuAioHO bIbn BpeMeHa Ha 3apeJdaHe, 3abeJeKm CnaB MoUHocTa, HeoBuAia Ha AKTHNBOCT Ha CBETODnOda nn n3TnuAe Ba TeuHocTn. Toba ca HnDnKaun 3a HauHne Ha BbTppeWeH npo6Jem.
Ako npednonarate,ye HMa npo6nem C BbTpewHnAkyMylaTOp,CbbpKeTe ce cbc cepBn3 Ha Hilti.
Ako akymyntopbT cnpe da pa60TH, Beue He MoKe Da ce 3apeKda HnN aKO n3TuHa TeuHocT, Tp8Ba da ro n3xBpNtE. BnK Pa3denn POndpBkKa n TpeTpnahe Ha otnaDbuH.

Mepkn npn ropaakymynatop

PNEyPEXKDEHNE

Onachoct ot noxap Ha akymnatopa! Pn noxkap B akymnatopa ce OTdienr T onachn EKCnIO3NBHn TeuHOCTn n napn, KOeTO MOKe Da DOBeJe Do Kopo3NOHHyBpeJDAHn, n3rapRn Hn EKCnIO3nn.

Hocete cpeCTBaTa cn 3a nepcoHaHa 3auHtA, KOrato racnte ropua akyMynaTOp.

OcnrypeTe noDxOJaBa BeHTnlaa, KOrTO n03BOJBa Da ce n36eHrTa ONaCHN I NOTeHuaHNO ekCnIO- 3NBn rA3OBe.
Pn HHTeH3NBO pa3npocTpaHeHne Ha dIM HanycheTe He3a6aBHO NOMEueHHeTo.
Pn npa3He He Ha dHexaTeHHTe TbTnua ce KOHCyTnpaIe C nekap.
- IOBnKaIte Ha nOMOu NOKaHata KOMHa IpeN da 3anoHHe OINr 3a raceHe.
FaceTe ropAunr akymyIaTOp cAmO C B0Da OT Bb3MOxHO Ha-ROJMo pa3CToRHe. IpaxOBtne noXapo-racHTeHn I npOTNBONOKapHnte OdeHna Ca HeeFekTHBn 3a JInTHeBO-IOHHn AkymyIaTOpn. Ha OKOHnTeNoxapn MoKe Da ce npOTNbOeIcTBa C KOHBeHcNHOHaJIHn CpeIcTba 3a raceHe.
He ce onntbaite da npemectbate rolemn kolnuectba ropau n akymynatopn. Octpahe Te BCuKHe3acerHaTn MaTePnAnN OT Hau-6nn3kata OKOnHa cpeDa, 3a Da H3OnInpate 3acerHaTne akymynatopn.

B cnyuai, korato akymylaTopnte He ce oxlaqat, nyuat Hnn ropr:

B3eMeTe akymyIaTopa c nonata n ro xbbpneTe B kOpa c BOda. OxnaJdaUTo Bb3JeCTBHe orpaHnuaBa pa3npocTpahEnHeTo Ha noKapa Bbpxy akymyIaTopH N KNeTKn, KOnto BCE Oue He ca DoctnHaNk PHTuHaTa Tempepatya Ha 3anaIbaHe.

HILTI

OCTaBeTe akymyIaTopa B Kofo 3a Hau-MaIko 24 Yaca,doKaTo ce OxnaIHaHbJIHO.
BnK Pa3dien NobeHne npn nobpeHn akymyataOpn.

ДаHHn 3a TpaHcNopt n CbXpaHeHne

EkncnloaatauOnHa temnepaTpa Ha OKoJHaTa cpea MeKdy -17°C n +60°C / 1°F n 140°F.
TeMnepaIpyaHa cxbxpaHeHne MeKdy-20°C n +40°C / -4°F n 104°F.
He cbxpaHbAite akymyIaTOPITE B 3apHdHOTO yCTPOiCTBO. CneI 3apeKdahe BnHaRn n3BaJdaTe akyMylatopa ot 3apHdHOTO yCTPOiCTBO.
IIO Bb3MOKHOCT CbXpaHbAaTe akymyIaTOPte Ha XnaHIO n cyxo MAcTO. CbXpaHEHneTo Ha XnaHOMACTO yDbJnKaBa JHBota Ha akymyIaTOPa. HNKora Ha ocTaBnTe akymyIaTOPpe Ha cTbHcE, BbpxOToPJIteHNu Ypei Nnn 3aD CTbKla Ha npo3Opu.
- Akymyatape He Tp6Ba Da ce n3npaat no noata. CbpxKeTe ce cbc cnepntopka hnpma, aoknckate da n3npaate nobpeHn akymyataopn.
Hnkora He tpaHcnopTnpaTe akymlyaTopnTe B HacnHb CbctOAHne. Pnp TpaHcnopTnpaHe akymyNatopnTe Tp6Ba Da 6bDaT 3aunTeHN OT ppeKomepn Yuapn N Bn6paunn N 3oJnpaHn OT BCraKaBn npoBoJauMATEpnaHn Hn Dpyn AkymyNatOpN, 3a Da He ce OcbIeCTBN KOHTc C dpyn NOnIOCh Ha 6aTePNn I da Ce H36BerHe KbCo CbeDInHeHne. Cna3BaTe MeCTHnte pa3npoe6n 3a TpaHcnopTnpaHe Ha akymyNatOpN.

Iopdpbcka H TpeTnpaHe Ha otnaDbu

-Подьркайе akymлатopa чсн и незамьрсен OT macna и сма3kn. ИЗбгайтЕ неунжен прах пи 3amьрсваима вьрху akymлатopa. Почистваite akymлатopa сьс cuxa, мeka уетka C BlaacHHKи пи cчпса, cyxa Кьрпа за почесва. -Споггшддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд -Споггшддддддддддддддддддддддд -Споггшdдддддддддд -Споггшdддд -Споггшd -Споггшd -Споггшd -Споггшd -Споггшd -Споггшd -Споггшd -Споггшd -Споггшd -Споггшd -Споггшd -Споггшd -Споггшd -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИNG -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИng -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СИ. -СI. CnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnC nCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnCnC
He pa6oTe c akymyntopap npn 3anyuene HBeHTnlaucnoHHN OTbOpn. NocHCTBaIe BeHTnlaucnoHHNTE OTBOpn BHNMaTeJIHO Cbc Cyxa, MEka YETka.
He donyckaite nonadaHTo Ha yKdTea BbB BbTpueHocTtA.
He donyckaTe npoHnKBaHeTo Ha BlaRa B aKymaIaTopa AkoB aKymaIaTopa e npoHnKHana Blaara, TpeTnpaIte CbUra KaTO NOBpeDeH aKymaIaTop n To H3OlnpaIte B He3aIaNIM KOHTeHep.

BnK Pa3JeI NobeHHe npn nobpeHn akymlaTopn.

Iopadn HnpabnHNO 3xBpJHe MOKe Da Bb3HKnHe onaCHOCT 3a 3dpaBeTo npn H3nn3aHe Ha ra3OBe nn TeuHOCTn. N3xBpNe akymnatopa BB Baun Hilti Store nn Ce CBpKTe C MeCTHaTakOMnHaNn 3a ynpablenHe Ha OTnaDbnte.CnaBaTe MeCTHnte pa3nope6n 3a nobpeHn akymnatOpn!
He n3xBbplnTe akymylatopn 3aedHO c bntOBn OTnaDbu.
H3xBbPnIte akyMylatopnTe No TaKbB NaHH, Ye da He Morat da nonaHaT B pbcTe Ha deua. POKPBaiTe Bp3knte C HnpoBOIM MaTeHnA, 3a Da n36BerHeTe Kbcn CbeDInHeHn.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明.)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Inpwrotouεs oynieεxρηo

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Autoc o nivakac ixue yia tyn ayopac KivaC.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Autoc o nivakac ixue yixn oxyopax Tc Taibv.

C 8-22 (01)

RoHS (oynia yia tov nepioppo Tc xponc emkivuvw ouaiow)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Autoc o nivakac ixue yia tyn ayopac KivaC.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Autoc o nivaKac 1oxue yix ax npax Tc Taibv.

13 EAnovaoopntzouevc matapiec Li-Ion Hilti

Ynoeic yia tyn oopaaeia kai tn xpon

TnV npouoa Tekunpiow, xpoaiooieiota o opoc enavaoopnticoeyn matapia yia e naovaoopnticoevec matapiae Li-Ion TnC Hilti, otic onoiec ivai auovobdvpevc nepiaotepc kupeae Li-Ion. Pooipiciovtai yia nEeKtpikxpyaaHlti kai emiptetai va xpoaiooiouvtai movo uaut. Xpoaiooiite movo yvnoie c Etnovapopticoevec matapiae Hilti!

Nepiypao

Oeavopotcouevc matapec Hilti eovai EoTiauevec e ouotmaata diaxepionkai npoataic KUeV.

OeTavapopticoevcmuatapieocntaleouvtai ano kupeae, nou npiexouv uikα ouawpeuong icvtow Ailou, ta onoi aenittpentouv ia uynn e idikn evepyiaek nukvotnta. Oi kupeae Li-on unokivtau oEv a tonu pikoov mnujnc, avtbpouv owc me nou ueyan euaotheoiα e enipaaon biac, baoiae EKphiopion n uynlcs eepokpaoiesc.

Tnpoiovtnou eivoxyekpiueva yixeovxopotizoevecmuatapiec Hilti 0a T a Bpeite oTo Hilti Store n otn bduuon: www.hilti.group

Aoαλεια

PooEET Tc akoloue c unoBleic aopaaieac yia ToV aoopaan Xepiio Kai Tn xpon enava- optiocevov matapiov Li-Ion. Ano TuXov npaBleyn mOpel va POKAnOuv depuaTikoi epeoi, 0oBapoi biApwIKoi TpaUauTiauoi, xNuiKx EYKaUaTa, /kai EKnEic.
Xeipicote oxoaoatik taenovapopntcpevesmtataies, yia vaoaonopuyete nuiie c kai tnv eEdo uypw npu EIMBaaewyia Tny uyia aoc!
επρεπεισα εκαία περπτωη n μεταροπή n n αραρολοηn των επαναφορτόμενων μιαταριών!

ev EITIeTAtv aTOoUAPoAOyEITE, vO uumieTe, vO ePuaiveTe naww anToouc 80^ n vA KAite TIC eTavoxopOTzOEvEc mATopiEc.
MnV xnoiopoioite n ooprticet e anavaooppticiouvec matapiec, o onoies exouv dextei xtttnma n exouv unoote i zmuia me diaopepetikto poto. Eayxte TaKTik Tc enavaooppticiouvec matapiec yia onuadia zmuia.
Mynxnpoipoiote note avakukwuevesc n EIOKEuaauevee eTAAVAPopTiouee uatapiies.
Mnv xnpoiouoiei TnV EAnavaoopTizoev n mataipia n eva eanavaoopTizoevo nektpiko epyaaio notc KpouatikO epyaiaio.
Mnv EKeETe TOTc EINovopoticiouevcmuTAPIEc oe aeaon niaokn akTIVoBolia, auEneVn eepoKpaia, anivhepcn yuuvcphioyec. Mnpei va npokanbov ekpEic.
MnV aountte Tou nolouc tnc mataipac me ta dxtua, epeyaaia, kogunmuataa aaaa anektpia axwyim avtikieva. Etoi npoei va pokan thei ngia otnv enavapoptioevn matapia, kaohc kai uikec ngie c kai troauuatiooi.
Kpatae Tc eTAAovapoptoEvEc mTAtopie cakpi aTo Bpoxn, uypaaia Kai uypaH Eiaxwpnan uypaaic mTopei va npokaaeaBpaxukukawat, nEktponlNia, ykauata, qwi taeknEiC.
Xpnaioioite MVO Touc optotc KAI ta nAekptik aepyaaia Tou npoBtovrai yia autov tov tTOIaTAPiAc. PooEgTe axetik ta oToixia otic avtoioxc odnyie xphnC.
MynxpooiouoieTe n aoTneKeueTe TIV eTavaoopTcOevn mTApia oekpEua pepiAovTa.
Eav n mntapia kaii utepoikot av tykouptate, evexetai vexu untoei zmu.Toontheta tny uataipia oe eva onueio oto onolo exete opatotnta, m euokto kai e npakn aootaan aTo eukkta uik. Ane Tnv enavaopoticiouevn uatapiva kpuwoei. Eav n mntapia eakolouesi va kai utepoikot eta ano miawpao otav ny akouptate, toe exei untoote zmu.Akoautheta tic odnyies cto kepaalao Metrae ne pintwn wftiac enavaopotizoevcn mntatipiac.

Ueepipopox eepintwn enavaoopntioevwv mataiov nou exouv unootei nia

Anuovte Tavtoeepic nHilti,otuvunoei nuaeovapoptoevn npatpia.
MnV npoiouoieTe iia eTavoxoepTcOeyn mTalpha, anTo Tnu onoia EExpEto uypo.
AnopuyETnV aueon eTaoTou eEepxoevou uypou m ta tia n/kaio To depua. OpatTe npovtpooataeutikoxavTIA kai yuaiaKATa Tnv epyaoia uypa mntatpiwv.
Xpnaioioiote evxnnikok kaoipoiévo ykekpievo yia autov tov oko, ia vao anouakpuve Ta Eepoxeva uypa unatapiwv. Aβete unoyn Tc tonike diataeic kaopiaou yia uypa natapiow.
ToTOnoTeHnTe TIV EAtTWMaTIKn EAnavopptIQeVn mTATApia eEv a n EupkTo DoxEio Kai KaAuyTe TIV ME OTeYvN amuo, KIMwla (CaCO3) n npitiko aac (Vermiculit). KLeiote otn ouvExia epuntikto KaTAKI KAI quaTe To DoxEio paKpiα ano EupkTa aepia, uypn avtikleva.
Anoppiye To doxio oTo Hilti Store n aneunovthe tny apodia enixepion dio thecn aonppmuaw. Aae TIOUyn Tc tonikec npodiaypaopec metapopac yia enavalphaoptizoeves matapioc nou exouv unooTei znui:

Sigmaepiopaxnovaoopptioevec natapieoc nou dev aeitoupyouv naev

PooEe Eav unapxie aphiakn ouinepipopax nC eanovopntioevnc matapiaoc, oWc λavthetaevn foption n aouvnbiotaaeyaloi xpovoi foptianc, aiogtnn meiwn tnc andoanc, aouvnbiotec evdeIeic LED n Eeepxóvea uyα. Autα elvai evdeIeic yia eowtepiKIO npβλμα.
Eav unoiocote otunapxei eowtepiok npoBnua Tnv enovxopotcouevn nataipia, aenuuvtheit oTo aepis tns Hilti.
Eav dev aeitoupyei n eov n eivavopoticiouevn mataipia, ev opotiie n eov n enavopotoievn mataipia n eepxetai uypo, npenti v a tyn pTeAeTE. BAEIE KEPAAIO SuVTnpon kai dioeon oTAtoppipmuTa.

Ariza Olasi sebepler Çozüm

LED yanım;yor. Şebeke fişi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®. LED yanım;yor. Şebeke fişi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®, ®. LED yanım;yor. Şebeke fişi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®. LED yanım;yor. Şebeke fiçi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®, ®. LED yanım;yor. Şebeke olusi, Şebeke olusi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,©. LED yanım;yor. Şebeke olusi, Şebeke olusi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®. LED yanım;yor. Şebeke olusi, Şebeke olusi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®, ®. LED yanım;yor. Şebeke olusi, Şebeke olisi, Şebeke olisi®. LED yanım;yor. Şebeke olisi, Şebeke olisi®. LED yanım;yor. Şebeke olisi, Şebeke olisi®. LED yanım;yor. Şebeke olisi, Şebeke olisi®. LED yanım;yor. Şebeke olisi, Şebeke olisi®. LED yanım;yor. Şebeke olisi, Şebeke olisi®. LEDA: 100% of the products in this study are from the US. All rights reserved. © 2018 Elsevier Inc. All rights reserved.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.
