CK 1719 - Alarm clock radio ADE - Free user manual and instructions

Product type	Analog radio alarm clock
Brand	ADE
Model	CK 1719
Power supply	2 R6 (AA) 1.5 V batteries
Battery type	Alkaline
Display	Analog dial (hour, minute, second, alarm hands)
Alarm function	Alarm with progressive ring, automatic shut-off after 45 minutes
Snooze function	Repeat every 5 minutes, resettable
Dial illumination	By button, duration 10 seconds
Automatic night light	Light sensor, automatic activation in darkness, cannot be deactivated
Time setting	Wheel (clockwise)
Alarm setting	Separate wheel
Alarm on/off	On/Off switch
Operating temperature	-10°C to 60°C
Warranty	2 years
Standards	EMC Directive 2014/30/EU, RoHS 2011/65/EU
Manufacturer	Waagen-Schmitt GmbH, Hamburg
Cleaning	Soft dry cloth (do not immerse in water)
Package contents	Alarm clock, 2 R6 batteries, instruction manual
Manual languages	FR, DE, EN, ES, IT, PL
Safety instructions	Keep out of reach of children, respect polarity, do not throw into fire

Frequently Asked Questions - CK 1719 ADE

How to set the time on the CK 1719 alarm clock?

Use the time setting wheel on the back. Turn it only in the direction of the arrow (clockwise) to advance the time.

How to set the alarm?

Turn the alarm time setting wheel in the direction of the arrow. Then slide the On/Off switch to the back to activate the alarm function.

How to use the Snooze function?

When the alarm sounds, press the Snooze/Light button (top). The ringing stops and restarts after 5 minutes. You can repeat this process several times.

Why isn't my alarm clock ringing?

Check that the On/Off switch is in the back position (activated). Also ensure the batteries are correctly inserted and sufficiently charged.

How to turn on the dial light?

Press the Snooze/Light button. The dial illuminates for about 10 seconds.

How does the automatic night light work?

The alarm clock is equipped with a light sensor. In darkness, the dial light automatically turns on. This function cannot be deactivated and the brightness is preset.

What type of batteries to use and how to replace them?

Use two R6 (AA) 1.5 V batteries. Open the compartment at the back, respect the polarity (+/-) indicated, and close the cover by pressing until it clicks. Replace batteries when the hands stop.

What to do if the device does not work?

First, check the battery status: are they discharged or inserted backwards? If the problem persists, contact customer service.

How to clean the alarm clock?

Never immerse the alarm clock in water. Use a soft dry cloth or slightly dampened for dusting. Avoid abrasive products.

What is the warranty period?

The warranty is 2 years from the date of purchase, covering material or manufacturing defects. Keep the proof of purchase for any claims.

USER MANUAL CK 1719 ADE

Close-up of a white analog alarm clock with visible time and hour markings (no text or symbols beyond 'ADE' branding)

Bedienungsanleitung

Simple icon of a person using a laptop inside a circle (no text or symbols)

CK 1719

Operating Manual | Manual de instrucciones | Mode d'emploi | Istruzioni per l'uso | Instrukcja obsługi

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning sign with exclamation mark inside a triangle

Warning symbol with exclamation mark inside a triangle (no text or numbers)

22089 Hamburg, Germany

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

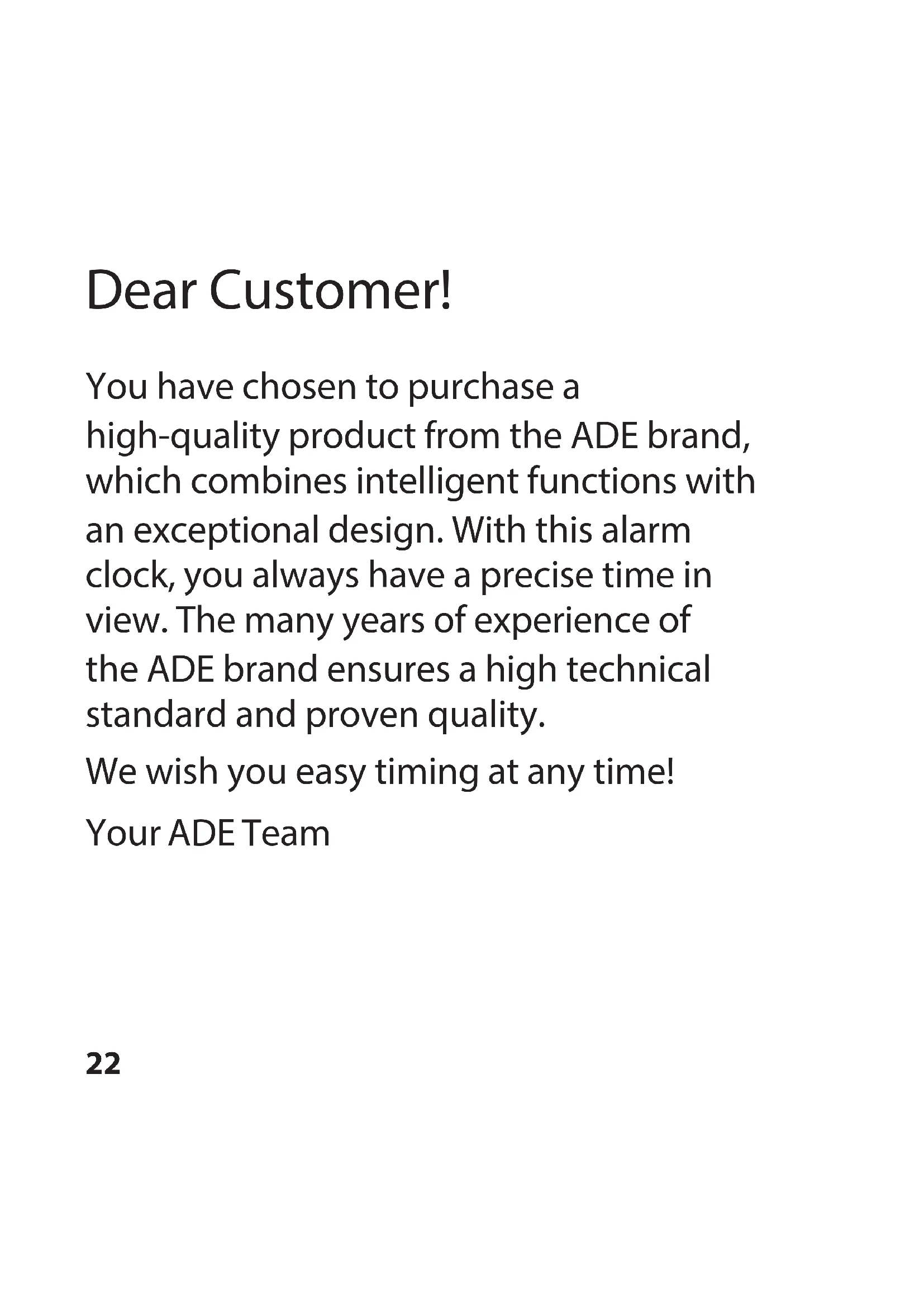

You have chosen to purchase a high-quality product from the ADE brand, which combines intelligent functions with an exceptional design. With this alarm clock, you always have a precise time in view. The many years of experience of the ADE brand ensures a high technical standard and proven quality.

We wish you easy timing at any time!

Your ADE Team

General information

About this manual

Simple icon of a person using a laptop inside a circle (no text or symbols)

This operating manual describes how to safely use and care for your products.

Keep this operating manual in a safe place in case you would like to refer to it later. If you pass this item on to someone else, pass on this manual as well. Failure to observe the recommendations in this operating manual can lead to injuries or damage to your product.

Pull the protective film off the display.

Explanation of symbols

Warning symbol with exclamation mark inside a triangle (no text or numbers)

This symbol, combined with the word DANGER, warns against serious injury.

Warning symbol with exclamation mark inside a triangle (no text or numbers)

This symbol, combined with the word WARNING, warns against moderate and mild injuries.

Warning symbol with exclamation mark inside a triangle (no text or numbers)

This symbol, combined with the word NOTE, warns against material damage.

Simple black icon of an information symbol inside a circle (no text or numbers)

This symbol signifies additional information and general advice.

Table of Contents

General information ......23

Intended Use 26

Safety....26

At a glance (scope of delivery)......30

Scope of delivery....32

Start-up 32

Setting the time....33

Alarm 33

Light 35

Cleaning....36

Fault and remedy 36

Technical Data....37

Declaration of Conformity......38

Warranty....39

Disposal 39

Intended Use

This alarm clock is designed for private use in dry indoor environments.

Safety

- This item can be used by children 8 years of age and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge, if they are supervised or have been instructed in the safe use of the item and understand the dangers that may arise.

- Children must not play with the item.

- Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.

- Batteries, when swallowed, can be life-threatening. Keep the item and

batteries out of reach of small children. If batteries have been swallowed, seek medical help immediately.

DANGER for Children

- Keep children away from packaging material. Risk of choking if swallowed.

RISK of fire/burning and/or explosion

• Risk of explosion if batteries are improperly replaced. Replace batteries only with the same or equivalent battery type. Observe the “Technical Data”.
• Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise there is an increased risk of explosion and leakage; furthermore, gases may escape!

- Avoid contact of the battery fluid with skin, eyes, and mucosa. In case of contact, rinse the affected areas right away with plenty of clean water and consult a doctor immediately.

BEWARE of material damage

- Protect the alarm clock from strong shocks, vibrations and moisture.

- Remove the battery from the unit when it is exhausted or when the alarm clock will not be used for a longer period of time. This prevents damage that may be caused by leakage.

- When inserting and changing batteries, pay attention to the correct polarity (+/-).

- Do not expose batteries to extreme conditions, for example, by storing them on radiators or under direct sunlight. Increased risk of leakage!

• Clean the battery and device contacts, as needed, before inserting the battery.
• Use only batteries of the same type.
• Do not make any changes to the item. Only allow repairs to be carried out at a specialist workshop. Repairs carried out incorrectly can considerably endanger the user.
• Some varnishes or furniture care products may possibly attack and soften the material of the slip-resistant foot. To avoid unwanted traces, place a non-slip pad under the product, if necessary.

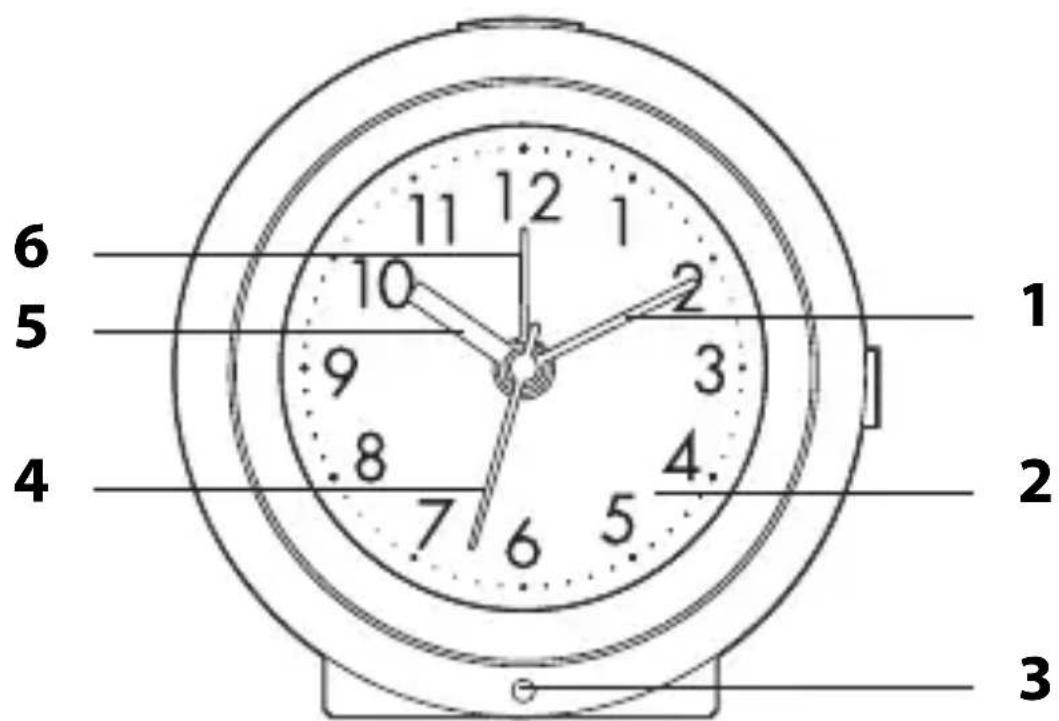

At a glance (scope of delivery)

6 5 4 1 2 12 11 10 9 8 7 6 5 4. 3 1 2 3

1 Minute hand
2 Dial
3 Sensor for night light function
4 Second hand
5 Hour hand
6 Alarm hand

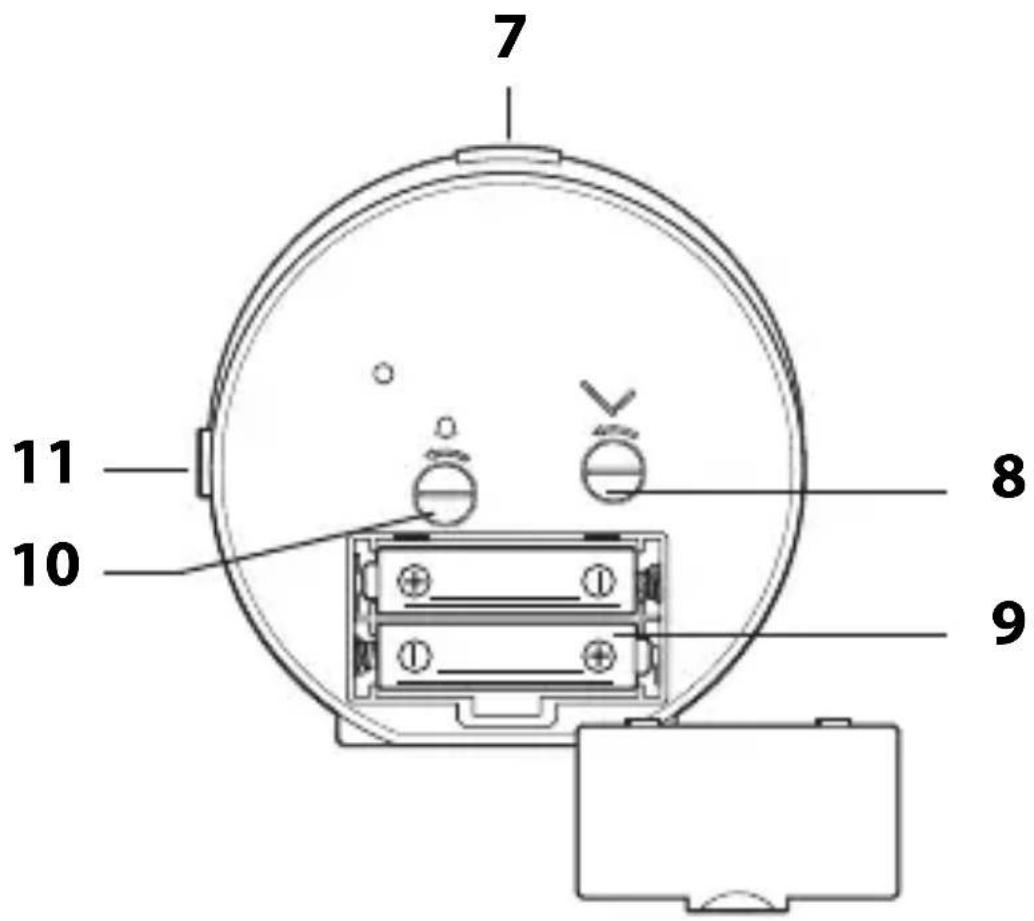

7 11 10 8 9

7 Snooze and light button

8 Time knob

9 Battery compartment, 2x R6 (AA), 1.5 V

10 Alarm knob

11 On/off switch for alarm function

Scope of delivery

• Analogue alarm clock with a night light sensor
• Battery type R6 (AA), 1.5 ¥——(2x)
• Operating Manual

Start-up

1. Remove the battery compartment cover upwards.
2. Insert the batteries as shown on the bottom of the battery compartment. Pay attention to the correct polarity (+/-).
3. Replace the battery compartment cover and press it down. The battery compartment lid must engage audibly.

Notes on changing the battery:

- When the hands stop, batteries must be replaced.

- Only use the battery type specified in the "Technical Data".

- Dispose of old batteries in an environmentally friendly manner, see “Disposal”.

Setting the time

-Use the time knob to set the time. Turn the knob only in the direction of the arrow ⇌.

Alarm

Setting and enabling the alarm time

1. Use the alarm knob to set the time. Turn the knob only in the direction of the arrow.
2. Slide the on/off switch on the side backwards to switch on the alarm function.

Being awakened

At the set time, you will be woken by an alarm signal, which will become more intense as the waking time increases.

Auto-stop function

If you do not press a button, the alarm switches off automatically after 45 minutes.

Repeat alarm (snooze function)

-Press the button 1x when the alarm sounds. After 5 minutes, the device switches on again and wakes you up again. This procedure can be repeated multiple times.

Turning the alarm off

-Slide the on/off switch on the side forward.

Light

Dial lighting

-Press the button to light up the dial for about 10 seconds.

Night light function

This alarm clock has a night light sensor. The sensor ensures that the dial light switches on automatically in the dark and lights up easily.

• The night light function cannot be disabled.
• The default brightness cannot be changed.

Cleaning

Do not immerse the alarm clock in water or other liquids. Do not use rough, scratching or abrasive cleaning agents.

- If necessary, use a soft, dry cloth, or a slightly moistened one to wipe the alarm clock.

Fault and remedy

No function.

- Are the batteries empty or have they been inserted incorrectly?

Alarm clock does not wake.

- To enable the alarm function, be sure to slide back the on/off switch.

Technical Data

Model: Analogue alarm clock CK 1719

Batteries:

2x R6 (AA), 1.5 V

Rated current: < 0,3 A

Measuring range: approx. -10 °C - 60 °C

Distributor (no service address):

Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Our products are constantly being developed and improved. For this reason, design and technical modifications are possible at any time.

Declaration of Conformity

This item has been manufactured in accordance with the harmonised European standards. It conforms to the provisions of the EU directives cited below:

■ EMC Directive 2014/30/EU
- RoHS Directive 2011/65/EU

in the currently valid versions.

This declaration loses its validity if any modification is made to the item that has not been agreed with us in advance.

Hamburg, December 2017 Waagen-Schmitt GmbH Hammer Steindamm 27-29 22089 Hamburg, Germany

Warranty

The company Waagen-Schmitt GmbH guarantees for 2 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange. In the event of a warranty claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer.

Disposal

Disposing of the packaging

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Dispose of the packaging with similar materials. Put cardboard with waste paper, films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste.

At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Hand in the old device at a collection point for electronic waste or at a recycling depot.

For more information, contact your local waste disposal firm or your local administrative body.

Recyclable and disposable batteries do not belong in household waste

All batteries must be handed in at a collection point in your community, suburb, or at the retailer. Such batteries can thus be disposed of in an environmentally friendly way.
