Product type	Radio-controlled alarm clock
Brand	ADE
Model	CK 2022
Power supply	1 LR03 (AAA) battery 1.5 V
Time signal reception	DCF77 (77.5 kHz)
Time display	Analog (hands)
Temperature display	Digital LCD screen (-10°C to 60°C)
Date display	Digital LCD screen (day/month)
Alarm function	Yes, with progressive alarm
Snooze function	Yes, 5 minutes
Dial illumination	Yes, via SNOOZE/LIGHT button (5 seconds)
Manual time setting	Yes, via M.SET button
Reset	Yes, via RESET button
Batteries included	1 LR03 (AAA) battery included
Materials	Plastic
Dimensions (approximate)	Approximately 12 x 10 x 6 cm
Weight (with battery, approximate)	Approximately 200 g
Temperature measurement range	-10°C to 60°C
Nominal current	< 180 μA
Cleaning	Soft dry cloth
Safety	Keep out of reach of children, do not immerse in water
Warranty	2 years (parts and labor)
Manufacturer	GRENDS GmbH, Stahltwiete 23, 22761 Hamburg, Germany
Compliance	Directives 2014/53/EU and 2011/65/EU

Frequently Asked Questions - CK 2022 ADE

How to set the time manually if the alarm clock does not receive the DCF77 signal?

Press and hold the M.SET button until the hands turn. Release just before the correct time, then press the same button briefly several times to advance minute by minute. If no button is pressed for 30 seconds, the set time is saved.

What to do if the temperature display is incorrect?

Check that the alarm clock is not exposed to direct sunlight or a heat source. The displayed temperature may be influenced by the immediate environment.

How to use the snooze function?

When the alarm sounds, press the SNOOZE/LIGHT button once. The alarm stops and sounds again after 5 minutes. You can repeat this process several times.

Why do the hands not move after inserting the battery?

Make sure the battery is inserted with the correct polarity (+/-) and that it is new. If the problem persists, press the RESET button with a pointed object to reset the device.

How to clean the alarm clock?

Use a soft dry cloth to dust. For stains, wipe with a slightly damp cloth, then dry. Never immerse the device in water and do not use abrasive products.

Which battery to use for the alarm clock?

Use a LR03 (AAA) 1.5 V battery. Strictly observe the polarity indicated in the compartment. Do not mix used and new batteries.

How to switch from summer time to winter time?

The change from summer time to winter time and vice versa occurs automatically if the alarm clock correctly receives the DCF77 signal. No manual intervention is necessary.

What to do if the alarm does not ring?

Check that the on/off switch is in the ON position and that the alarm time is set correctly with the wheel. Also make sure the battery is functional.

How to reset the alarm clock?

Use a pointed object (e.g., unfolded paperclip) to press the RESET button. A beep sounds, the hands move to 12:00, then the alarm clock goes back to time signal reception mode.

Where to place the alarm clock for better DCF77 signal reception?

Place the alarm clock near a window, away from televisions, computers, and cordless phone base stations. Reception is often better at night. Avoid stormy weather conditions.

USER MANUAL CK 2022 ADE

22761 Hamburg, Germany

You have chosen to purchase a high-quality product from the brand ADE, which combines intelligent functions with an exceptional design. With this radio-controlled alarm clock, you always have the exact time in view. The many years of experience of the brand ADE ensures a high technical standard and proven quality.

We wish you easy timing at any time!

Your ADE Team

General information

About this manual

This operating manual describes how to safely use and care for your products.

Keep this operating manual in a safe place in case you would like to refer to it later. If you pass this item on to someone else, pass on this manual as well. Failure to observe the recommendations in this operating manual can lead to injuries or damage to your product.

Pull the protective film off the display.

Explanation of symbols

This symbol, combined with the word DANGER, warns against serious injury.

This symbol, combined with the word WARNING, warns against moderate and mild injuries.

This symbol, combined with the word NOTE, warns against material damage.

This symbol signifies additional information and general advice.

Table of Contents

General information 31
Safety 34
Intended Use 37
Overview 38
Scope of delivery 40
Start-up 40
Receiving the time signal 41
Use 43
About the time signal transmitter
DCF77 46
Alarm. 47
Other functions 49
Cleaning. 50
Fault and remedy 50
Technical Data 51
Declaration of Conformity 52
Guarantee 53
Disposal. 53

Safety

• This item can be used by children 8 years of age and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge, if they are supervised or have been instructed in the safe use of the item and understand the dangers that may arise.
  Children must not play with the item.
• Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.
• Batteries, when swallowed, can be life-threatening. Keep the item and batteries out of reach of small children. If batteries have been swallowed, seek medical help immediately.

DANGER for Children

• Keep children away from packaging material. Risk of choking if swallowed.

RISK of fire/burning and/or explosion

• There is a risk of explosion if batteries are replaced incorrectly. Replace batteries only with the same or equivalent battery type. Observe the "Technical Data".
• Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise there is an increased risk of explosion and leakage; furthermore, gases may escape!
• Avoid contact of the battery fluid with skin, eyes, and mucosa. In case of contact, rinse the affected areas right away with plenty of clean water and consult a doctor immediately.

BEWARE of material damage

• Protect the alarm clock from strong shocks, vibrations and moisture.
• Remove the battery from the unit when it is exhausted or when the alarm clock will not be used for a longer period of time. This prevents damage that may be caused by leakage.
• When inserting and changing batteries, pay attention to the correct polarity (+/-) .
• Do not expose batteries to extreme conditions, for example, by storing them on radiators or under direct sunlight. Increased risk of leakage!
• Clean the battery and device contacts, as needed, before inserting the battery.

• Use only batteries of the same type.

• Do not make any changes to the item. Only allow repairs to be carried out at a specialist workshop. Repairs carried out incorrectly can considerably endanger the user.

Intended Use

This radio-controlled alarm clock receives its time signal from the German time signal transmitter DCF77. The alarm clock is designed exclusively for private use in dry indoor areas.

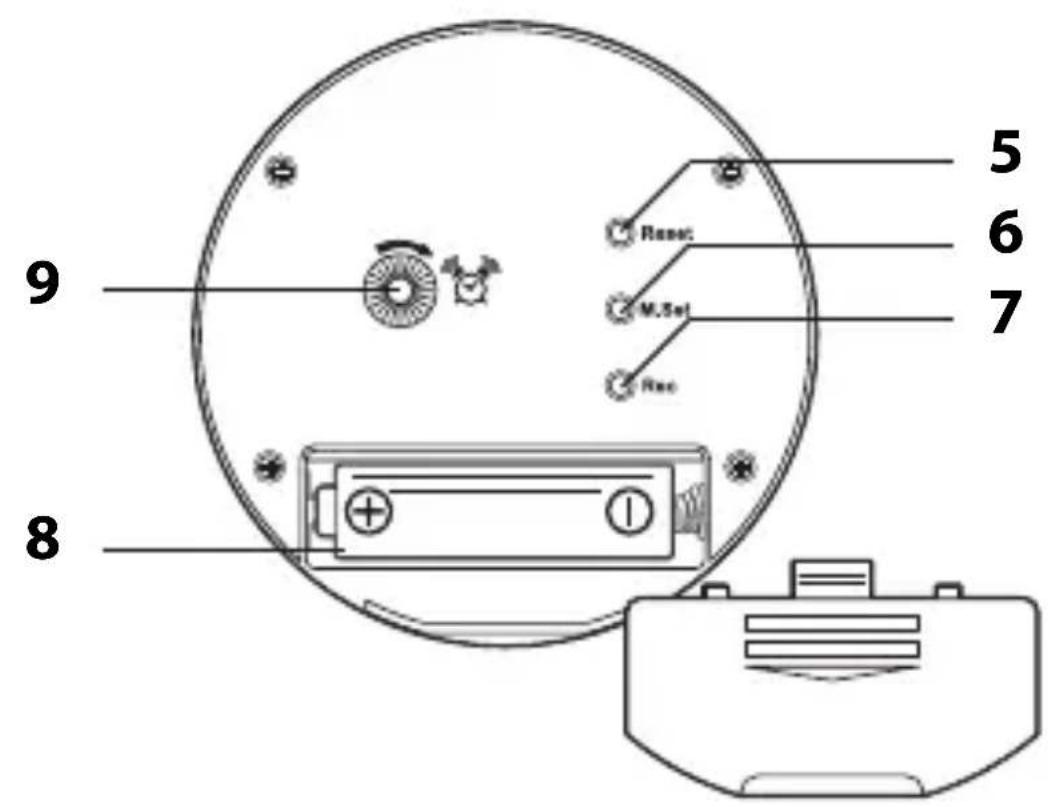

Overview

1 SNOOZE/LIGHT button
2 Alarm switch ON/OFF
3 Date and temperature display
4 Dial lighting

5 Reset button
6 M.Set button
7 Rec button
8 Battery compartment for 1x LR03 (AAA), 1.5 V
9 Alarm setting knob

Scope of delivery

• Radio-controlled alarm clock
• Battery type LR03 (AAA), 1.5 V—(1x)
• Operating Manual

Start-up

To use the device, you will need a LR03 (AAA),

1.5 V battery.

1. Slide the battery compartment cover downwards.
2. Insert the batteries as shown on the bottom of the battery compartment. Pay attention to the correct polarity (+ / -) .
3. Replace the battery compartment cover and slide it upwards. Battery compartment lid must engage audibly.

Once the battery has been inserted, the alarm clock switches to receiving mode; see next chapter.

Notes on changing the battery:

• The battery must be changed when the hands stop moving.

• Only use the battery type specified in the "Technical Data".

• Dispose of old batteries in an environmentally friendly manner, see "Disposal".

Receiving the time signal

After inserting the battery:

• Beep sounds

• Clock hands start to turn and show "12 o'clock" shortly thereafter.

• Display shows temperature.

• Alarm clock switches to time signal reception.

As soon as the time signal has been received with sufficient strength, the hands begin to turn again and then indicate the current time. This process can last a few minutes.

From now on the radio-controlled alarm clock automatically switches to receiving mode several times a day and compares its own time with that received by the time signal transmitter. If there is a difference, the time displayed on the alarm clock will be automatically corrected.

If no sufficiently strong signal has been received, the radio-controlled alarm clock will cancel the reception process. In this case:

• Check whether the location of the radio-controlled alarm clock is suitable; see "Tips for good reception".

• To restart the reception process, remove the battery and reinsert it.

• Set the time manually, if necessary; see "Set the time manually".

Use

Dial lighting

• Press the SNOOZE/LIGHT button to turn the dial lighting on for approx. 5 seconds.

Temperature and date display

The room temperature in ^ C and the date in the Day/Month format are displayed alternately for approx. 20 seconds on the small display.

Restart radio transmission

1. Press and hold the REC button for a few seconds.
2. Release the button as soon as the clock hands start to turn.

The radio wall clock then indicates "12 o'clock". The alarm clock now tries to receive a radio signal within the next minutes.

• If the alarm clock receives a sufficiently strong radio signal, the hands will be adjusted to the correct time.
• If the alarm clock fails to receive a sufficiently strong radio signal, it will revert to the previously displayed time.

Set the time manually

If no radio reception is possible, you can set the time manually.

1. Press and hold the M.SET button. The hands begin to turn.
2. Release the button just before the correct time is displayed.
3. Press the M. SET button again to set the alarm clock to the correct time. Each tap adjusts the radio-controlled alarm clock one minute ahead.

When M.SET is not pressed for 30 seconds, the currently set time is stored and you have to repeat the process.

Tips for good reception

• Set up the radio-controlled alarm clock as close to a window as possible.
• Maintain a distance from TV sets, computers and monitors. In addition, the alarm clock should not be in the immediate vicinity of base stations of cordless telephones.
• The reception is generally better at night. If the alarm did not receive a signal during the day, it may well be that the signal is received at night, immediately and at full strength.

• The weather, e.g. a heavy storm, can cause interference with the reception.

• Temporary shutoffs of the transmitter can sometimes happen, e.g. because of maintenance work.

About the time signal transmitter DCF77

This radio-controlled alarm clock receives its radio signals from the time signal transmitter DCF77. This broadcasts the precise and official time of the Federal Republic of Germany on the long-wave frequency of 77.5 kHz. The transmitter is located in Mainflingen near Frankfurt am Main and, with its range of up to 2000 km, supplies the majority of radio-controlled clocks in western Europe with the necessary radio signals. Once the radio-controlled alarm clock is powered by the battery, it switches to receiving mode and searches for

the signal from the DCF77 transmitter. If the time signal has been received with sufficient strength, the hands set themselves to the correct time. The radio-controlled alarm clock switches on several times a day and synchronises the time with the radio signal from the transmitter DCF77. In the event the signal is not received, e.g. during a strong storm, the device continues to run precisely and then switches to receiving mode again at the next scheduled time.

Alarm

Setting the alarm time

1. Use the knob to set the small hand to the desired alarm time. Turn only in the indicated direction of rotation!
2. Set the alarm switch to the ON position.

Being awakened

At the set time you will be woken by an alarm signal, which will become more intense as the waking time increases.

Auto-stop function

If you do not press a button, the alarm switches off automatically after 2 minutes. After 12 hours, the alarm will be triggered again.

Repeat alarm (snoopze function)

• Press the SNOOZE/LIGHT button 1x when the alarm sounds.

After 5 minutes, the device switches on again and wakes you up again. This procedure can be repeated multiple times.

Turn the alarm off

-Set the alarm switch to the OFF position.

Other functions

Switching between summer and winter time

The switchover from summer to winter time or vice versa takes place automatically in case of good time signal reception.

Reset the radio-controlled alarm clock to the default settings

If the time is repeatedly displayed incorrectly, you can reset the alarm clock to the default settings (reset function). A reset is required only in exceptional cases.

-Using a thin object (e.g. an unwound

paperclip) press down on the RESET button. A beep will sound and the clock hands will turn to 12:00, with the alarm clock eventually switching to receiving mode.

Cleaning

Do not immerse the alarm clock in water or other liquids. Do not use rough, scratching or abrasive cleaning agents.

-If necessary, use a soft, dry cloth, or a slightly moistened one to wipe the alarm clock.

Fault and remedy

No function.

• Battery empty or inserted the wrong way around?

Temperature indication appears too high.

• Check whether the radio-controlled alarm clock is exposed to direct sunlight.

Technical Data

Model: DCF Radio-controlled

alarm clock CK 2022 CK

2311,CK2312

Battery: 1x LR03 (AAA), 1.5 V

Rated current: < 180 A

Measuring range: approx. -10 °C - 60 °C

Distributor (no service address):

GRENDS GmbH

Stahltwiete 23

22761 Hamburg, Germany

Our products are constantly being developed

and improved. For this reason, design and

technical modifications are possible at any time.

Declaration of Conformity

GRENDS GmbH hereby declares that the radio-controlled alarm clock CK 2022/CK 2311/CK 2312 is in compliance with EU directives 2014/53/EU and 2011/65/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.ade-germany.de/doc

This declaration loses its validity if any modification is made to the alarm clock that has not been agreed with us in advance.

Hamburg, june 2023
GRENDS GmbH

Guarantee

The company GRENDS GmbH guarantees for 2 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange. In the event of a guarantee claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer.

Disposal

Disposing of the packaging

Dispose of the packaging with similar materials. Put cardboard with waste paper, films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste.

At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Hand in the old device at a collection point for electronic waste or at a recycling depot.

For more information, contact your local waste disposal firm or your local administrative body.

Recyclable and disposable batteries do not belong in household waste

All batteries must be handed in at a collection point in your community, suburb, or at the retailer. Such batteries can thus be disposed of in an environmentally friendly way.
