WS 1914 - Weather Station ADE - Free user manual and instructions

Product Type	Wireless Weather Station
Brand	ADE
Model	WS 1914
Base Station Power Supply	2 LR6 (AA) 1.5 V batteries and 5 V / 600 mA mains adapter (included)
Outdoor Sensor Power Supply	2 LR6 (AA) 1.5 V batteries
Display	Large color LED display
Indoor Measurements	Temperature (0 °C to 50 °C), humidity (20% to 95%)
Outdoor Measurements	Temperature (-20 °C to 60 °C), humidity (20% to 95%)
Atmospheric Pressure	600 to 1100 hPa/mbar
Weather Forecast	Animated symbols (sunny, cloudy, rainy, etc.) with trend
Moon Phase	Automatic phase display
Alarm	Adjustable alarm with snooze function
Time Signal	Automatic and manual DCF77 reception
Outdoor Sensor	Wireless, max range 60 m (open area)
Removable Frames	2 interchangeable frames supplied
Safety	Do not immerse, use only supplied adapter, keep out of reach of children
Cleaning	Slightly damp cloth, disconnect adapter before
Warranty	2 years, return to retailer with proof of purchase
Dimensions	Not specified in the manual
Weight	Not specified in the manual

Frequently Asked Questions - WS 1914 ADE

How to set the time manually if the DCF77 signal is not received?

Press and hold the MODE button until the 12/24 h format flashes. Use + and - to set. Press MODE to confirm each step: temperature unit, pressure unit, time zone, hours, minutes, date format, year, month, day, language.

How to activate or deactivate the frost alert?

Press the ALERT button twice. The frost symbol appears in the OUTDOOR TEMPERATURE section. To deactivate, press until the symbol disappears.

How to set the alarm time?

Press ALARM once to display the alarm symbol. Press and hold ALARM until the hours flash, set with +/-, press ALARM for minutes, then confirm.

Why is the outdoor temperature display flashing?

The temperature alert has been triggered. Press ALERT several times until the flashing stops. You can check and modify the alert thresholds.

What to do if the base station does not receive any signal from the outdoor sensor?

Check the sensor batteries, bring the two devices closer, move away from interference sources (TV, computer). Perform a reset with a thin object in the RESET hole on the back.

How to change the frames of the base station?

Pull the attached frame forward (it is held by magnets) and replace it with the other supplied frame. A recessed handle is on the bottom.

What is the maximum range between the base station and the outdoor sensor?

Approximately 60 meters in open terrain (direct line of sight). Reinforced concrete walls and electrical devices may reduce the range.

How to reset the weather station to factory settings?

Insert an unfolded paperclip into the RESET hole on the back of the base station. After a beep, the screen flashes and data is reset. To speed up reconnection, hold down +.

Can I use rechargeable batteries?

No, only use LR6 (AA) 1.5 V alkaline batteries. Rechargeable batteries have too low a voltage (1.2 V) which can affect measurement accuracy.

How to interpret the displayed weather forecasts?

The forecasts are based on atmospheric pressure and trends. The symbols (sun, cloud, rain) cover a radius of 30 to 50 km for the next 12 to 24 hours with an accuracy of about 75%. The trend (arrows) indicates the evolution.

USER MANUAL WS 1914 ADE

Icon of a person using a laptop inside a circle (no text or symbols)

WIRELESS SENSOR 5 23.4°C 56% 4

1 2 3 AAUM-3/1.5V AAUM-3/1.5V

1 Aufhänge-Öse

Simple illustration of a sun, clouds, and grass on a dark background (no text or symbols)

sonnig

Stylized illustration of a dark sky with clouds, grass, and small white flowers (no text or symbols)

leicht bewölkt

Simple illustration of a sky with clouds and grass at the base (no text or symbols)

bewölkt

Illustration of raindrops falling over grass under cloudy skies (no text or symbols)

regnerisch

Illustration of raindrops falling over clouds and grass, with a small tree nearby (no text or symbols)

Illustration of a snowy landscape with clouds, raindrops, and grass (no text or symbols)

Illustration of a cloudy sky with scattered clouds and small trees on grass (no text or symbols)

starker Schneefall

Close-up of a hand using a smartphone to press or install a device (no visible text or symbols)

22089 Hamburg, Germany

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Symbol of a trash bin crossed with no text or labels

You have chosen to purchase a high-quality product from the brand ADE, which combines intelligent functions with an exceptional design. With this weather station, you will always have a variety of weather and temperature data available at a glance. The many years of experience of the brand ADE ensures a high technical standard and proven quality.

We wish you much enjoyment and success while monitoring and examining your weather data.

Your ADE Team

Scope of Delivery

• Weather stations consist of:
  -Base station
  -Wireless outdoor sensor
• Batteries:
  -2 x LR6 (AA) / 1,5 V for base station
  -2 x LR6 (AA) /1.5 V for wireless outdoor sensor
• Mains adaptor for base station
• 2x interchangeable frames
• Operating Manual

Table of Contents

Scope of Delivery 40

Table of Contents 41

General Information....43

Intended Use....44

Safety 44

Your wireless weather station provides 49

Base station 50

Front view 50

Rear view....51

Wireless outdoor sensor ....52

Start-up 53

Outdoor sensor....53

Base station 54

About the Time Signal 55

General....55

Starting signal reception....56

Setting the time and date manually ....57

Starting signal reception manually ....58

Choosing a location 59

General....59

Display indicators of the base station....62

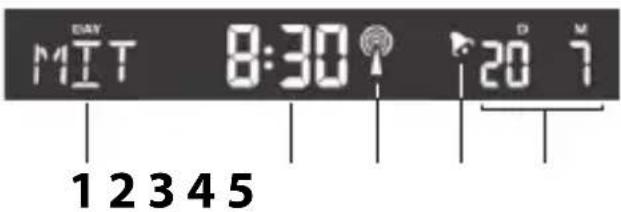

Date and week indicator 62

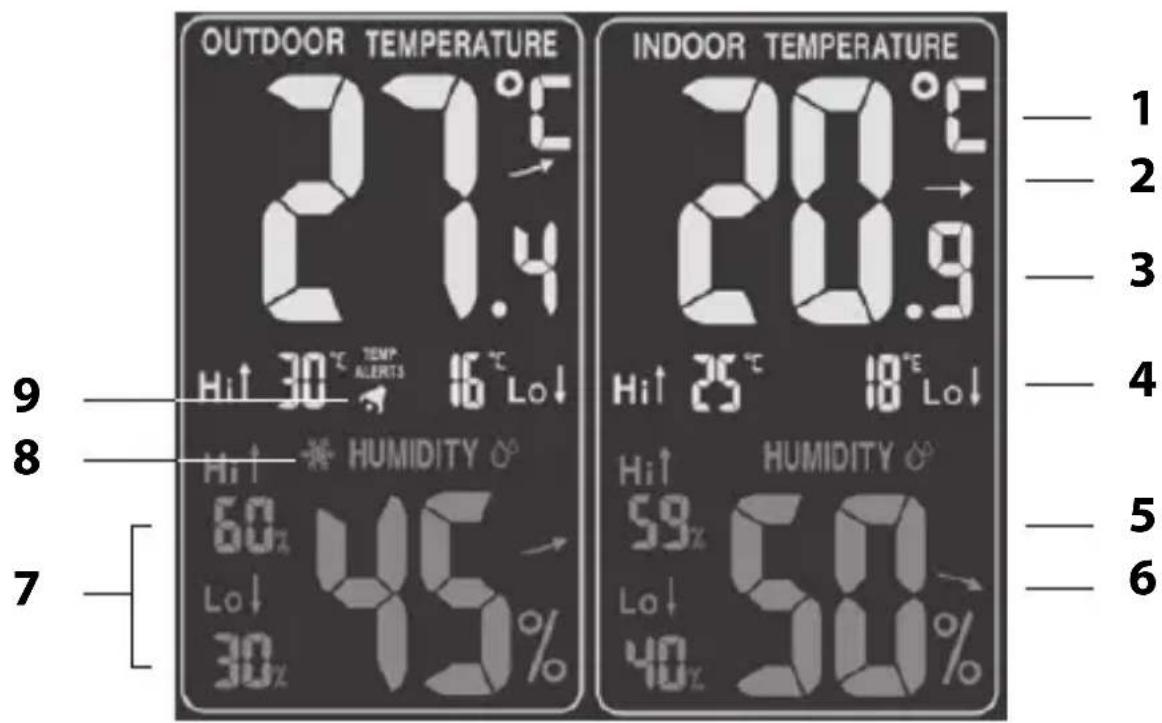

Weather data 63

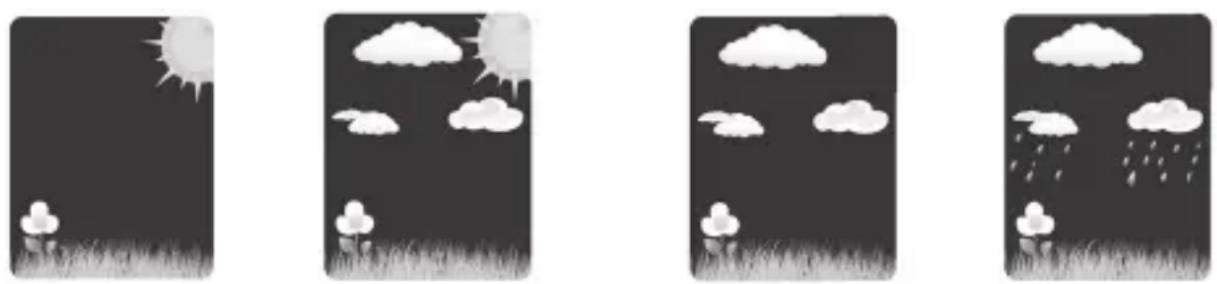

Weather forecast and weather trend 64

Temperature and humidity trend......65

Air pressure indicator....66

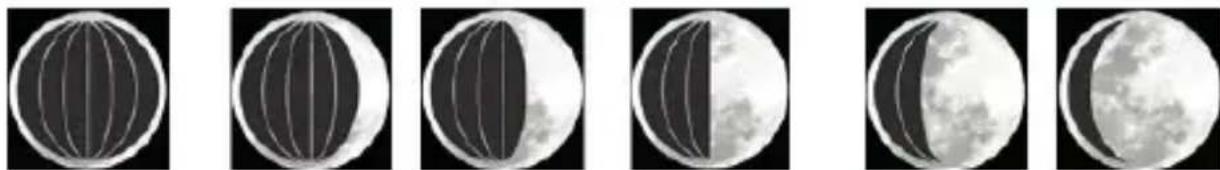

Lunar phase indicator....66

Frost and temperature alert....66

Alarm....68

Setting the alarm time 68

Switching the alarm function on/off....69

Stopping the alarm....69

Other functions....70

Display light 70

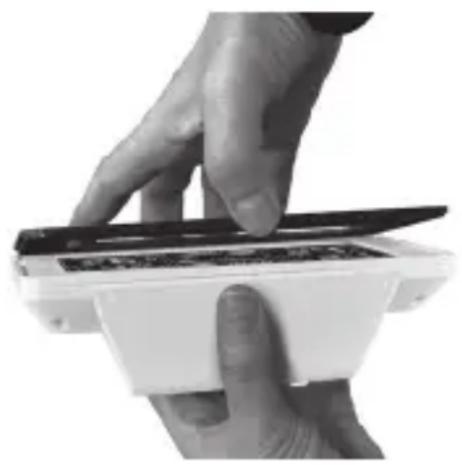

Change frame....70

Reset 71

Cleaning....71

Fault/Remedy....72

Technical Data 74

Declaration of Conformity ....75

Guarantee 76

Disposal....76

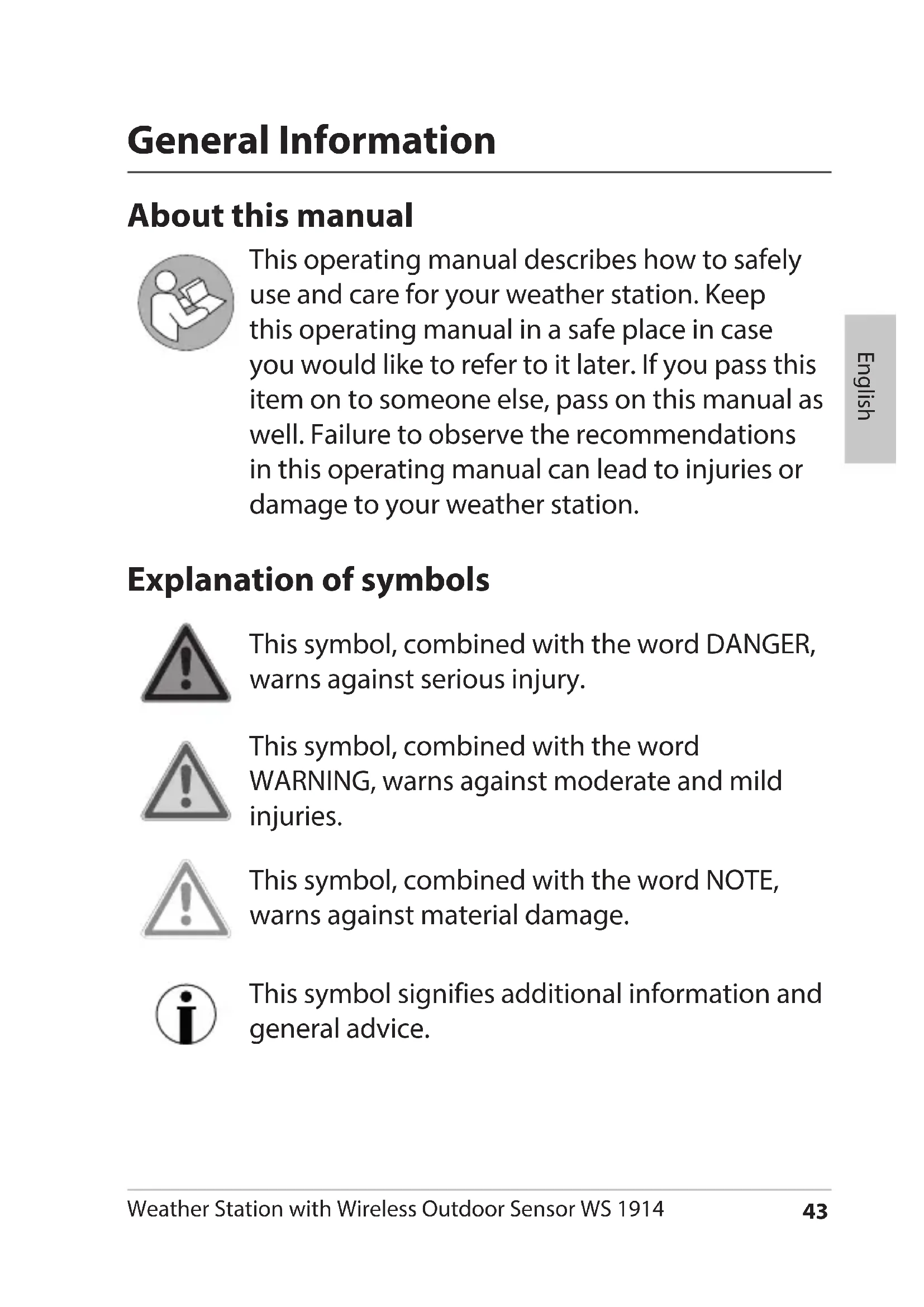

About this manual

This operating manual describes how to safely use and care for your weather station. Keep this operating manual in a safe place in case you would like to refer to it later. If you pass this item on to someone else, pass on this manual as well. Failure to observe the recommendations in this operating manual can lead to injuries or damage to your weather station.

Explanation of symbols

This symbol, combined with the word DANGER, warns against serious injury.

This symbol, combined with the word WARNING, warns against moderate and mild injuries.

This symbol, combined with the word NOTE, warns against material damage.

This symbol signifies additional information and general advice.

Intended Use

• The weather station – consisting of a base station and wireless outdoor sensor – displays various weather data (air pressure, temperature, etc.) pertaining to the near environment. The weather station makes a weather forecast on the basis of the measured weather data.
• Furthermore, the weather station displays the date, time, and lunar phases and is also equipped with an alarm.
• The weather station is unsuited to commercial use in weather forecasting or in taking meteorological measurements.

Safety

This device can be used by children 8 years of age and older, as well as by persons with reduced physical, sensory, or mental capabilities or lacking experience and/or knowledge, if they are being supervised or have been instructed in the safe use of the device and understand the dangers that may arise.

- The device and the mains adaptor must be kept away from children younger than 8 years.

• Cleaning and maintenance by the user must not be carried out by children unless they are 8 years of age or older and are being supervised.
• Children must be supervised to ensure that they do not play with the device.
• The wireless weather station and mains adaptor must not be submerged in water or other liquids. Risk of electric shock! You should therefore not use the base station of the wireless weather station in the vicinity of sources of moisture, such as wash basins.
• Only use the supplied mains adaptor and replace it only with one of the same type. The mains adaptor may only be used in dry indoor spaces and must be protected from moisture.

Danger for children

- Batteries, when swallowed, can be life-threatening. You should therefore keep the weather station, wireless sensor, and batteries out of reach of small children. If a battery is swallowed, medical assistance must be sought immediately.

- Keep children away from packaging material and other small parts included in the scope of delivery. Risk of choking if swallowed.

Danger from electricity (when using the mains adaptor)

- Connect the device to a correctly installed socket that has a voltage corresponding to that described under "Technical Data".

- Ensure that the socket is easily accessible, so that the mains adaptor can be pulled out quickly if necessary.

- Do not use the wireless weather station if the mains adaptor or mains adaptor cable are damaged.

- Do not cover the mains adaptor with curtains, newspapers, etc., and ensure sufficient ventilation. The mains adaptor can become hot.

- Completely uncoil the mains adaptor cable before connecting it. In doing so, take care to keep the cable from being damaged by sharp corners or hot objects.

- Pull the mains adaptor out of the socket:

-before cleaning the wireless weather station,

-if, during operation, there appears to be interference, during a storm.

- When doing so, always pull on the plug, not on the cable.

- Do not make any modifications to the item or to the connection cable. Only allow repairs to be carried out at a specialist workshop, since inexpertly repaired devices can present hazards to the user.

- Do not replace the mains adaptor cable. When the cable or mains adaptor is damaged, it must be scrapped and replaced with a mains adaptor of the same type.

Risk of injuries

- Attention: Risk of explosion if batteries are improperly used. Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited.

- Avoid contact of the battery fluid with skin, eyes, and mucosa. If you do come into contact with the fluid, you must immediately flush the affected areas thoroughly with clean water and promptly see a doctor.

Note on material damage

- Protect the base station and outdoor sensor from dust, impacts, extreme temperatures and direct sunlight.

- Protect the base station from moisture. Position the base station exclusively in a dry, closed room.

- The wireless sensor is protected against moisture, but must be protected from direct exposure to moisture, e.g. rain.

- Remove the batteries from the base station and outdoor sensor once they have been consumed or when you are no longer using the weather station. You will thus avoid damage that may result from the leakage of battery acid.

- Do not expose the batteries to any extreme conditions, e.g. by storing them on heaters or under direct sunlight. Increased risk of leakage!

- Clean the battery and device contacts, as needed, before inserting the battery.

- Always exchange all of the batteries in the base station or in the outdoor sensor at the same time.

- Only insert batteries of the same type; do not use different types or used and new batteries with each other.

- Do not make any modifications to the device. Only allow repairs to be carried out at a specialist workshop and pay attention to the guarantee conditions.

- Do not under any circumstances use hard, scratching, or abrasive cleaning agents or the like in order to clean the weather station. Doing so may scratch the surfaces.

Your wireless weather station provides

Weather station

• Large, clear, LED colour display
• Precise time through the reception of the DCF77 time signal (manual time adjustment possible)
• 12- or 24-hour display
• Perpetual calendar with date and time indicator
• Indoor and outdoor temperature indicator in °C/°F
• Indoor and outdoor humidity indicator in percentage
• Alert at too-high and/or too-low outdoor temperature, for which upper and lower limits can be individually defined
• Weather trend and temperature trend indicator
• Air pressure indicator
• Memory function for max and min values relating to temperature and humidity
• Animated symbols for weather forecast
• Lunar phase indicator
• Battery and mains operation possible
• Alarm

Wireless outdoor sensor

• Temperature indicator in °C/°F
• Range of up to 60 metres (on open ground)

Base station

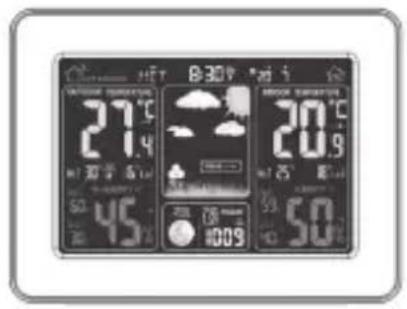

Front view

27°C 21.4 45 100.9 20°C 20.9 50 8:30

OUT SENSOR DAY MIT 8:30 20 °C IN 1 OUTDOOR TEMPERATURE 27.0°C 21.4 Hi 30 °C TIME KJUSTI 16 °C Lo↓ TREND INDOOR TEMPERATURE 20.0°C 20.9 Hi 25 °C 18°Lo↓ HUMIDITY 60% Lo↓ 46% 30% MOON PHASE 0 PRESSURE 1009 Hi↑ 59% Lo↓ 40% 5 4 3 2 5 4 3

1 see "Date and week indicator"
2 see "Weather data"
3 see "Weather forecast and weather trend"
4 see "Air pressure indicator"
5 see "Lunar phase indicator"

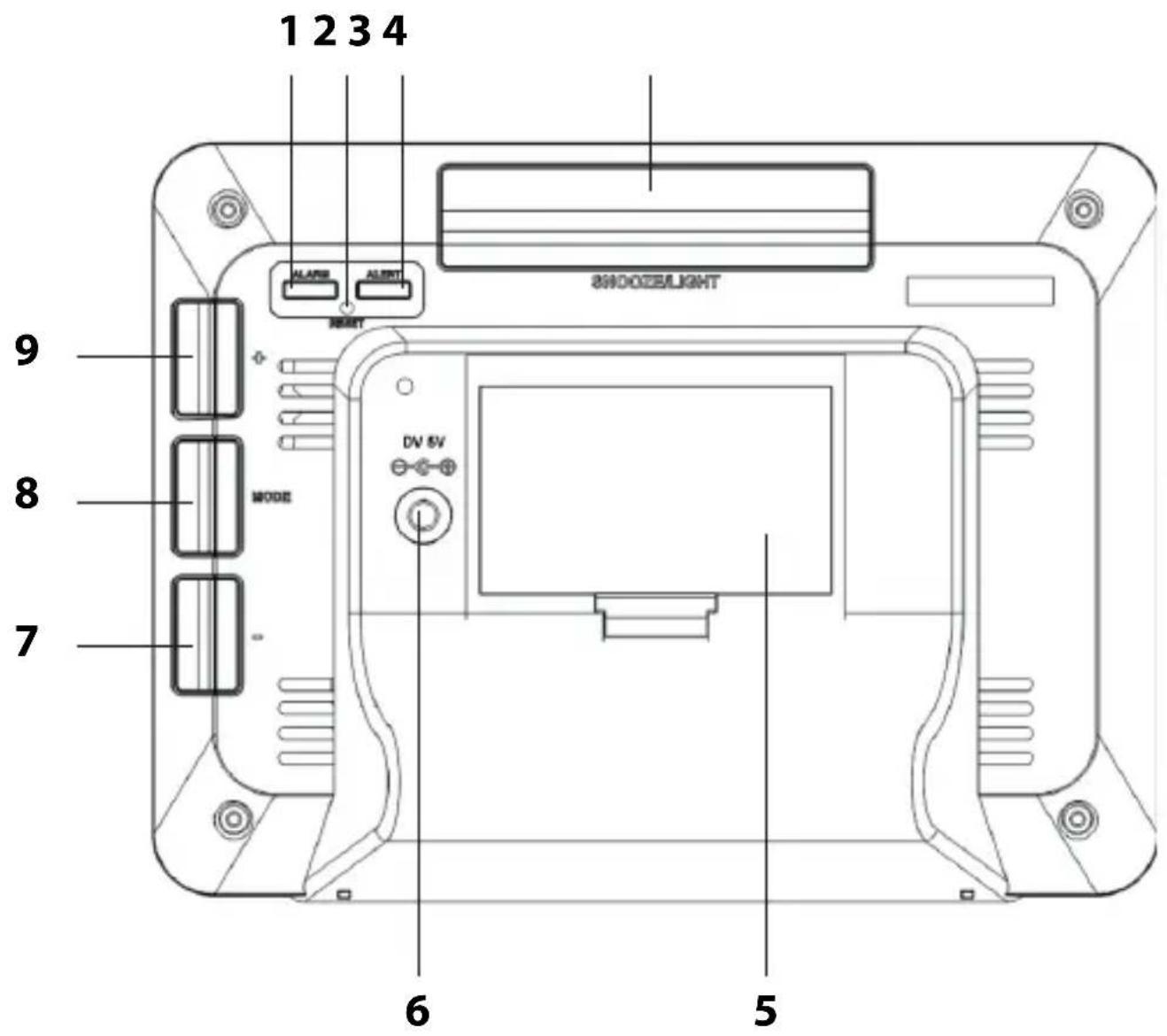

Rear view

1 2 3 4 MODELIGHT AVR ALR RIGHT 9 MODE DV 5V 8 7 6 5

English

1 Activate alarm
2 Reset device to delivery state
3 Set temperature alerts
4 · Switch display light on/off
- Activate snooze function
5 Battery compartment
6 Connection socket for mains adaptor

7 · Adjust values (decrease)

- Manually start/suspend signal reception

8 • Activate settings mode

- Activate modified setting

9 · Adjust values (increase)

- Display saved air pressures

- Transmit values from the wireless sensor

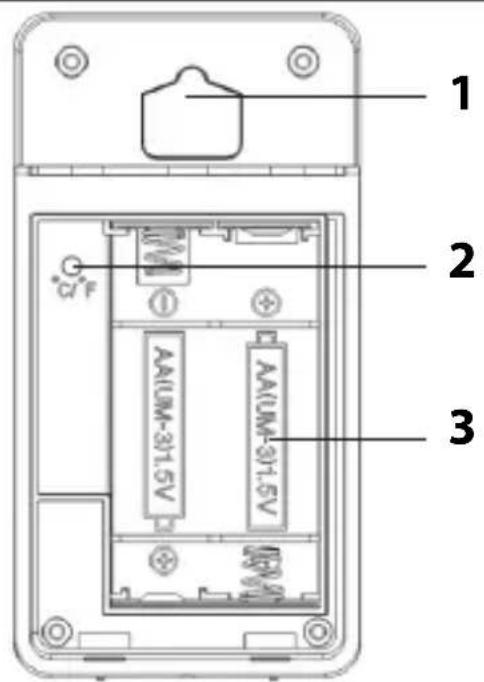

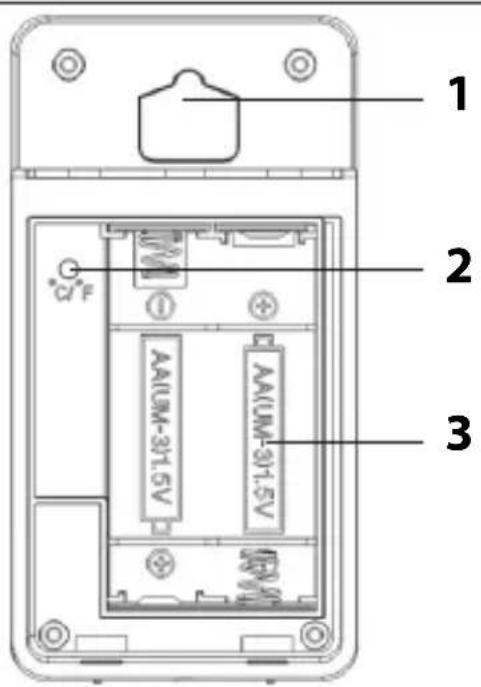

Wireless outdoor sensor

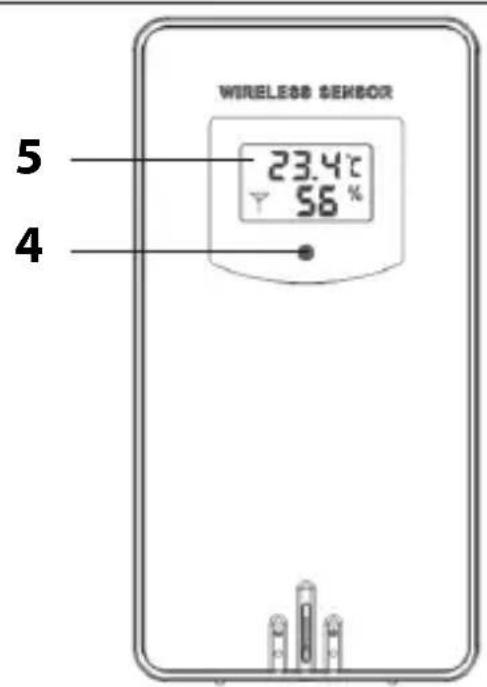

WIRELESS SENSOR 5 23.4°C 56% 4

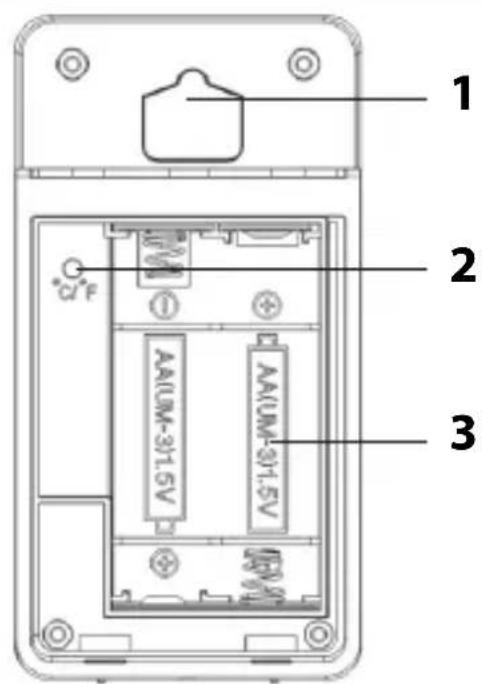

1 2 3 AA(UM-3)1.5V AA(UM-3)1.5V

1 Hanging eyelet
2 Change temperature unit
3 Battery compartment
4 LED indicator (lights up only during data transmission)
5 Display with: Temperature indicator, humidity and symbol for wireless connection between outdoor sensor and base station

• Proceed in the order specified below and first insert the batteries into the outdoor sensor. Only then can the weather station function without flaws.
• Do not use rechargeable batteries, since their voltage is too low (only 1.2 V instead of 1.5 V). This affects, among other things, the precision of the measurements.
• Where possible, use alkaline rather than zinc-carbon batteries. Alkaline batteries last longer, especially at low outdoor temperatures.

Outdoor sensor

1. Remove the battery compartment cover on the rear side of the outdoor sensor by pressing with a little force on the imprinted arrow. Slide the battery compartment cover in the direction of the arrow, away from the outdoor sensor.
2. Insert 2 batteries of type LR6 (AA) /1.5 V as depicted on the bottom of the battery compartment. Pay attention to the correct polarity of the batteries (+/-).
3. Slide the battery compartment cover back into place on the outdoor sensor.

Base station

You can operate the wireless weather station with the mains adaptor or with batteries.

If the wireless weather station is connected to a mains socket, then it operates via mains power, even when the batteries are inserted in the device. Remove discharged batteries from the battery compartment, since they can leak.

NOTE on material damage

- For operation via mains power, use only the mains adaptor delivered with the weather station.

Current mode

1. Insert the plug of the supplied mains adaptor into the connection socket of the base station.
2. Plug the mains adaptor into a socket that has a voltage corresponding to that described under "Technical Data".
3. Wait approx. 30 minutes. The base station requires this time to collect all weather data and to receive radio signals from the time signal transmitter.

Battery operation

1. Press the closing tab upwards a little and remove the battery compartment cover.
2. Insert 2 batteries of the type LR6 (AA)/1.5 V as depicted on the bottom of the battery compartment. Pay attention to the correct polarity (+/-).

3. Replace the battery compartment cover and snap it shut.

4. Wait approx. 30 minutes. The base station requires this time to collect all weather data and to receive radio signals from the time signal transmitter.

About the Time Signal

General

The radio-controlled clock integrated into the weather station receives its radio signal from the DCF77 time signal transmitter. This broadcasts the precise and official time of the Federal Republic of Germany on the long-wave frequency of 77.5 kHz.

The transmitter is located in Mainflingen near Frankfurt am Main and, with its range of up to 2000 km, supplies the majority of radio-controlled clocks in western Europe with the necessary radio signals.

As soon as the base station is supplied with current (batteries or mains power), it switches to receiving mode and searches for the signal from the DCF77 transmitter. If the time signal has been received by the ferrite rod antenna built into the radio-controlled alarm clock with sufficient strength, the date and time are shown on the display.

The base station switches on multiple times daily and synchronises the time with the radio signal from the DCF77 transmitter. In the event the signal is not received, e.g. during a strong storm, the device continues to run precisely and then switches to receiving mode again at the next scheduled time.

Starting signal reception

If the batteries in the base station have been inserted, for a brief moment all of the indicators on the display fade in. Furthermore, the display is briefly lit up and a beep sounds.

The device then switches to receiving-mode, during which the number of radio waves indicates the quality of the reception: The more radio waves shown on the display, the better is the reception.

While receiving, only the - button functions; all other buttons are deactivated during this time.

As soon as the signal has been received with sufficient strength, the corresponding data and the radio-tower symbol will be shown on the display. This process can last a few minutes.

From now on, the weather station automatically switches to receiving-mode multiple times each night. During this process, the displayed time is compared with that received from the time signal transmitter and, if necessary, corrected.

If no sufficiently strong signal has been received,

the base station aborts the receiving process after a few minutes and the radio-tower symbol goes out. The receiving process is started again at a later point in time.

• In this case, the time proceeds as usual (beginning with the start time of "00:00").

• First check whether the location of the base station is suitable, see “Choosing a location”.

• You can start the receiving process again manually, see “Starting signal reception manually”, or

• Wait until the base station automatically switches to receiving mode again at a later point in time. The reception is usually better at night.
• If reception is not possible at your location, you can set the time and date manually, see next chapter.

Setting the time and date manually

If there is more than approx. 20 seconds between two pushes of a button, the setting process automatically ends and you will have to repeat it.

1. Press and hold the MODE button until the indicator for the 12- and 24-hour time format blinks on the display.
2. Using the + and - buttons, set the desired time format ("12 hr" or "24 hr").
3. Press MODE to save the setting. The temperature unit blinks on the display.
4. Proceed as previously described.
5. Press MODE each time to save the settings.
6. Press the + or - button to set the desired value.
7. Carry out the following settings:

-Temperature unit
-Air pressure unit
-Time zone in which you are located (for Germany, choose 00)

-Hours
-Minutes
-Date format
-Year
-Month
-Day
-Language (relates exclusively to the weekday indicator)

1. Finally, press MODE to conclude the procedure.

Starting signal reception manually

If the radio signal symbol to the left is no longer displayed, the radio signals from the time signal transmitter are no longer being received. The time indicator nevertheless continues precisely.

Press and hold the - button until the radio signal symbol is displayed again. The signal reception is thus started manually. Pay attention to the following:

• If the reception was not successful, the reception symbol fades out after a few minutes and the time on the display continues normally.
• Upon successful signal reception, the radio-controlled alarm clock adjusts itself to the time of the time signal transmitter. If you have already carried out manual time and date settings, these will be automatically adjusted.

Choosing a location

NOTE on material damage

• Protect the base station and wireless sensor from dust, impacts, extreme temperatures and direct sunlight.
• Protect the base station from moisture. Position the base station exclusively in a dry, closed room. The wireless sensor is protected against moisture, but must be protected from direct exposure to moisture, e.g. rain.

General

The base station and outdoor sensor exchange data over a radio frequency. Location is therefore a determining factor for the range of the wireless connection.

Pay attention to the following:

• The maximum distance between the base station and the outdoor sensor is 60 metres. This range is, however, only possible with “direct line of sight”.
• Protective construction materials such as reinforced concrete reduce or inhibit signal reception between the base station and outdoor sensor.
• Devices such as TVs, cordless phones, computers, and fluorescent tubes can likewise disrupt signal reception.

• Do not place the base station and the outdoor sensor directly on the ground. This limits the range.

• At low temperatures in winter, the performance of the outdoor sensor batteries can markedly decrease. This reduces the transmission range.

• Depending on your location, it can infrequently happen that the base station receives signals from another time signal transmitter or even alternately from two time signal transmitters. This is not a fault in the device. In this case you should change the location of the base station.

As regards the signal reception between the time signal transmitter and the base station, pay attention to the following points:

• Set up the base station as close to a window as possible.
• Maintain distance from TV sets, computers, and monitors. Also, base stations from cordless phones should not be located in immediate proximity to the weather station.
• The reception is generally better at night. If the alarm did not receive a signal during the day, it may well be that the signal is received at night, immediately and at full strength.
• The weather, e.g. a heavy storm, can cause interference with the reception.
• Temporary shutoffs of the transmitter can sometimes happen, e.g. because of maintenance work.

Base station

-Set up the base station as close to a window as possible. Here, the reception will generally be best.

Outdoor sensor

DANGER of severe injuries

-During wall installation, there must be no electrical cables, gas or water pipes installed in the walls at the mounting site. Otherwise, when drilling holes, there is a risk of electric shock!

The wireless outdoor sensor is equipped with a hanging eyelet on the rear side.

- Place or hang the outdoor sensor at a position where it is protected from the direct influence of the weather (rain, sun, wind, etc.). Suitable locations are, for example, under an awning or in a carport.

Display indicators of the base station

Date and week indicator

DAY MIT 8:30 20 7 1 2 3 4 5

1 Current day of the week 2 Current time in 12- or 24-hour format When the time is indicated in 12-hour format, morning and afternoon hours are indicated with “AM” or “PM”, respectively.
3 Symbol for signal reception from time signal transmitter
4 Alarm is activated, see "Alarm"
5 Day and month

By repeatedly pressing the MODE button, instead of day and month the following values can also be displayed:

• Seconds
• Set alarm time

Weather data

OUTDOOR TEMPERATURE 27.4°C Hi↑ 30 °C TEMP ALERTS 16 °C Lo↓ INDOOR TEMPERATURE 20.9°C Hi↑ 25 °C 18 °C Lo↓ Hi↑ HUMIDITY 60% 45% Hi↑ 59% 50% Lo↓ 40% 50% 7 9 8 5 6 1 2 3 4 5 6

The information displayed for the OUTDOOR and INDOOR sections is largely identical.

1 Temperature unit (°C or °F)
2 Temperature trend, see "Temperature and humidity trend"
3 Temperature in degrees Celsius or Fahrenheit
4 Highest (Hi) and lowest (Lo) saved temperature of the day (automatic deletion of these values occurs each night at midnight).
5 Humidity in percentage
6 Trend for humidity, see "Temperature and humidity trend"

7 Highest ("Hi") and lowest ("Lo") saved humidity value of the day (automatic deletion of these values occurs each night at midnight).
8 Frost alert is activated (only possible for OUTDOOR section), see "Frost and temperature alert"
9 Temperature alert is activated (only possible for OUTDOOR section), see "Frost and temperature alert"

Weather forecast and weather trend

After start-up, the information can still not be used for weather forecasting for approximately 12 hours, since the weather station needs this time to collect and analyse the weather data.

The weather forecast is based on the collected data and the measured air pressure changes.

The forecast pertains to the region around the weather station with a radius of approx 30 to 50 km, for a period of 12 to 24 hours.

The accuracy of the weather forecast lies around 75 %.

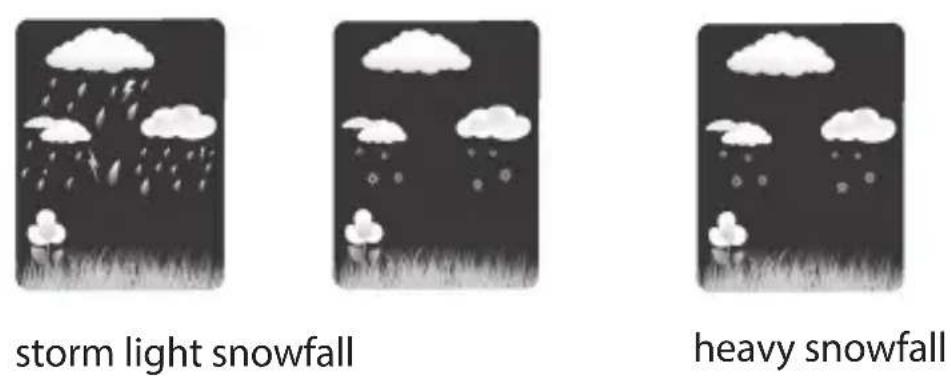

sunny light cloud cloudy rainy

In conjunction with the air pressure trend, further weather interpretations are possible.

rising air pressure

constant air pressure

falling air pressure

Two examples:

• Weather forecast shows rain, the air pressure is falling off quickly and steeply >> strong rain is probable.
• Weather forecast shows rain, the air pressure has risen in the last 12 hours but in the last 3 hours as fallen off somewhat >> light rain is probable.

Temperature and humidity trend

For the temperature and humidity values measured by the base station and wireless sensor, the trend is displayed in the form of an arrow:

rising

constant

falling

Air pressure indicator

HISTORY 0 HR PRESSURE mb hPa 1009

The currently prevailing air pressure is displayed in the chosen unit (usually: hPa = hectopascals).

By repeatedly pressing the + button, the hourly measured air pressure for the last 12 hours will be displayed.

Lunar phase indicator

The displayed lunar phases are automatically updated with the date.

Six-panel sequence showing the Moon's axial tilt and vertical division, illustrating celestial positions (no text or symbols)

new moon waxing crescent half-moon waxing gibbous

Six-panel sequence showing the Moon's axial tilt and vertical division of the Moon, illustrating celestial equinoxes (no text or symbols)

full moon waning gibbous half-moon waning crescent

Frost and temperature alert

The functions of the frost and temperature alerts are closely interconnected and both are activated and deactivated via the ALERT button. Frost and temperature alerts can be used separately or simultaneously.

Frost alert

-Briefly press the ALERT button twice.

The symbol to the left is shown in the OUTDOOR TEMPERATURE section of the display, the frost alert is activated.

When the temperature range is reached, beeps sound and the temperature indicator blinks. Press any button to switch off the beeping.

Pay attention to the following:

- The temperature range for the frost alert lies between -1°C and +3°C (+30°F to +37°F).

- Even if the temperature alert does not sound, at temperatures around freezing there is always an essential risk of frost or black ice. The outdoor sensor can only measure the local temperature at the location where it is set up.

- To switch the function off again, press ALERT as often as needed until the frost symbol goes out.

Temperature alert

-Press the ALERT button once.

The symbol to the left is shown on the display in the OUTDOOR TEMPERATURE section; the temperature alert is activated.

When the temperature range is reached, warning tones sound and the temperature indicator blinks. Press any button to switch off the warning tones.

The temperature range can be selected by the user. In order to adjust the upper and lower temperature limits:

1. Hold down ALERT for a few seconds until the digit next to "Hi" blinks.

Hi↑ 30°C TEMP ALERTS 16°C Lo↓

1. Using the + and - buttons, adjust the upper temperature limit.
2. Press ALERT in order to save the entry.
3. Using the + and - buttons, adjust the lower temperature limit.
4. Finally, press ALERT.

To switch the function off again, press ALERT as often as needed until the symbol for the temperature range goes out.

Alarm

Setting the alarm time

1. Press ALARM once.

The alarm symbol is shown on the display.

1. Hold down ALARM for a few seconds until the alarm hour indicator blinks.
2. Using the + and - buttons, set the desired alarm hour.
3. Press ALARM.
   The minute indicator for the alarm time blinks on the display.
4. Using the + and - buttons, set the desired alarm minute.
5. Finally, press ALARM to save the settings.

Switching the alarm function on/off

- Using the ALARM button, turn the alarm function on and off. As soon as the alarm symbol is displayed, the alarm function is activated.

Stopping the alarm

At the set time you will be woken by an alarm signal, which will become more intense as the waking time increases.

Switching the alarm off completely

-Press any button on the base station (except SNOOZE/LIGHT) to stop the alarm.

Auto-stop function

If you do not press a button, the alarm switches off automatically after 2 minutes. After 24 hours, the alarm will be triggered again.

Snooze function

-Press the SNOOZE/LIGHT button once when the alarm signal sounds.

The alarm signal falls silent for approx. 5 minutes. Then the device switches back on and the alarm sounds again. This procedure can be repeated multiple times.

Display light

Battery operation

-Press the SNOOZE/LIGHT button to switch on the display light of the base station for approx. 15 seconds.

Mains operation

If you operate the base station using the mains adaptor over the mains supply, the display is permanently lit.

-Repeatedly press the SNOOZE/LIGHT button in order to choose the different brightness levels: Full light > low light > off.

Change frame

Two interchangeable frames are included. The attached frame is held in place by magnets on the base station.

Close-up of hands using a handheld device to press or install a flat panel (no visible text or symbols)

-To change the frame, pull the attached frame forward and replace it with the other frame. Use a small recessed grip on the underside.

Reset

If obviously false values are being shown on the display of the base station, you should reset the base station to the delivery state.

1. Insert a thin object, e.g. an unfolded paperclip, into the RESET opening on the rear side of the base station.
2. Press with a little force against the resistance. After a short time, all indicators on the display will fade in for a brief moment. Furthermore, the display is briefly lit up and a beep sounds.

After a few seconds, the indicators start to blink and the data from the outdoor sensor is retrieved.

Pay attention to the values shown on the display.

To speed up the data exchange with the base station, hold down the + button on the base station until the OUTDOOR TEMPERATURE data is deleted. Shortly thereafter, the newly loaded data is displayed.

Cleaning

1. During operation via the mains: Pull the mains adaptor plug out of the base station.
2. As necessary, wipe the base station and the outdoor sensor clean with a lightly-dampened cloth.
3. Dry the device completely before you reconnect it with the mains adaptor.

Fault/Remedy

Fault Possible Cause
The DCF77 signal for the time cannot be received.	· Check the chosen location.· Start the signal reception manually, if necessary.· Adjust the time manually.
The temperature information of the sensor seems too high.	· Check whether the sensor has been exposed to direct sunlight.
Instead of showing the measured values for temperature or humidity, the display shows H.HH or LL.L.	· The values lie above or below the measurement range.
The temperature indicator is blinking on the display.	· The temperature alert has triggered. Press on ALERT as often as needed until the blinking stops.
The indicator is illegible, the function is unclear, or the values are obviously false.	· Reset the weather station to the original delivery state.
The base station is not receiving signals from the wireless sensor.	· Ensure that no electrica sources of interference are located in the vicinity of the wireless sensor or of the base station.· Check the batteries in the sensor.· Move the base station closer to the sensor, or vice versa.
The time differs by exactly one, two, three, etc. hours.	· You have probably set an incorrect time zone. For Germany, choose “00”.

Base station

Model: Weather Station WS 1914

Input: 5 V

Batteries: 2x LR6 (AA)/1.5 V

Measuring range

• Temperature: 0 °C - 50 °C (32 °F - 122 °F)
• Air pressure: 600 hPa/mb-1100 hPa/mb
  or 17.72 inHg-32.50 inHg
  or 450.0 mmHg-825.0 mmHg

- Humidity: 20% - 95%

Transmission frequency: 433.92 MHz

Max. Transmission power: + 10 dBm

Wireless outdoor sensor

Batteries: 2x LR6 (AA) /1.5 V

Measuring range:

• Temperature: -20 °C - 60 °C (-4 °F - 140 °F)
• Air pressure: like base station
• Humidity: like base station

Range: approx. 60 metres (open terrain)

Mains adaptor

Input: 230 V \~ 50Hz

Output: 5 V

Protection class:

Distributor: Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Our products are constantly being developed and improved. For this reason, design and technical modifications are possible at any time.

Declaration of Conformity

Waagen-Schmitt GmbH hereby declares that the weather station WS 1914 complies with the directives 2014/53/EU and 2011/65/EU.

The full text of the EU Declaration of Conformity is available at the following Internet address:

www.ade-germany.de/doc

This declaration loses its validity if modifications are made to the weather station without our approval.

Hamburg, June 2020

Waagen-Schmitt GmbH

Guarantee

Dear Valued Customer, the company Waagen-Schmitt GmbH guarantees for 2 years from the purchase date the cost-free removal of defects due to material or fabrication errors by repair or exchange.

In the event of a guarantee claim, please return the weather station with the proof of purchase (stipulating the reason for claim) to your dealer.

Disposal

Disposing of the packaging

Dispose of the packaging with similar materials. Put cardboard with waste paper, foil with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Symbol of a trash bin crossed with no visible text or labels

Devices must not be disposed of in normal household waste.

At the end of its life, the weather station must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Hand in the old device at a collection point for electronic waste or at a recycling depot.

For more information, contact your local waste disposal firm or your local administrative body.

Simple line drawing of a trash bin with crossed x-bracing (no text or symbols)

Recyclable and disposable batteries do not belong in household waste.

All batteries must be handed in at a collection point in your community, suburb, or at the retailer. Such batteries can thus be disposed of in an environmentally friendly way.

¡Estimado cliente!

Simple illustration of a sun and a white flower on grass (no text or symbols)

Simple black-and-white illustration of a sun, clouds, and grass on a dark background (no text or symbols)

Simple illustration of a sky with clouds and grass at the base (no text or symbols)

nublado lluvia

Illustration of raindrops falling over grass under cloudy skies (no text or symbols)

Illustration of raindrops over a grassy field with small trees (no text or symbols)

Illustration of a cloudy sky with raindrops and scattered clouds over grass (no text or symbols)

Illustration of a storm scene with clouds, raindrops, and grass under a dark sky (no text or symbols)

fuerte aguanieve

Close-up of a hand using a smartphone to press or install a device (no visible text or symbols)

Weather Station WS 1914

Entrada: 5 V

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Simple line drawing of a trash bin with crossed diagonal lines indicating no text or symbols

Station de base....126

Vue de face....126

WIRELESS SENSOR 5 23.4°C 56% 4

1 2 3 AA(UM-3)/5V AA(UM-3)/5V

Simple illustration of a sun, a flower, and grass on a dark background (no text or symbols)

Simple illustration of a dark sky with clouds, a sun, and a small flower on grass (no text or symbols)

Simple black-and-white illustration of a sky with clouds and a small cloud on grass (no text or symbols)

nuageux pluvieux

Simple black-and-white illustration of raindrops over grass and clouds (no text or symbols)

Two grayscale images showing the full moon and its vertical solar eclipse, illustrating the Moon's axial tilt and day-night cycle (no text or symbols)

Close-up of hands using a smartphone to press or install a device (no visible text or symbols)

22089 Hambourg, Germany

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Symbol of a trash bin crossed with no text or labels

WIRELESS SENSOR 5 23.4°C 56% 4

1 2 3 AA(UM-31.5V) AA(UM-31.5V)

Simple illustration of a sun and a small white flower on grass (no text or symbols)

Stylized black-and-white illustration of a night sky with clouds, sun, and grass (no text or symbols)

Simple grayscale illustration of a sky with clouds and grass at the base (no text or symbols)

Illustration of raindrops falling over grass under cloudy sky (no text or symbols)

Sereno Poco nuvoloso Nuvoloso Pioggia

Illustration of raindrops falling over clouds and grass under a dark sky (no text or symbols)

Illustration of a rainy landscape with clouds, raindrops, and small flowers on grass (no text or symbols)

Illustration of a stormy night scene with clouds, raindrops falling, and grass at the base (no text or symbols)

Six-panel sequence showing the Moon's axial tilt and vertical division, illustrating celestial body composition (no text or symbols)

Sequence of six grayscale images showing the Moon's axial tilt and vertical solar system, illustrating celestial equinoxes (no text or symbols)

luna piena luna gibbosa calante Mezzaluna luna calante

Close-up of a hand using a smartphone to press or install a device (no visible text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

1 2 3 4 ALARM ALARM MODE AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR AVR

WIRELESS SENSOR 23.4°C 56% 4

1 2 3 AA(UM-31.5V) AA(UM-31.5V)

Close-up of a hand using a laptop to press or install a device (no visible text or symbols)

22089 Hamburg, Germany

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Symbol of a trash bin crossed with no text or labels
