Product Type	Pest-Away Watering Timer
Brand	Aqua Joe
Model	AJYP100
Height	58 cm
Weight	0.6 kg
Power Supply	Solar panel + 4 AAA Ni-MH batteries
Sensor Field of View	120°
Max Detection Range	12 m
Animal Detection Modes	Large (3-5 m), Large/Medium (8-10 m), All (10-12 m)
Timer Watering Modes	10, 20, or 30 minutes
Activation Modes	Off, Always On, Day, Night
Max Spray Coverage	530 m²
Max Spray Range	13 m
Max Pressure	7 bar (100 psi)
Max Flow Rate	200 l/min
Max Rotation	360°
Adjustable Rotation Angle	0° to 300° (with lever and friction collars)
Spray Patterns	Concentrated to mist (adjustable by diffuser screw)
Connection	3/4" quick-connect hose
Mounting	Ground stake for soft soil; alternative: weighted flower pot
Use	Outdoor, garden pest protection
Storage Temperature	Above 0°C (drain water before freezing)
Warranty	2 years (residential use)
Technical Support	1-866-SNOWJOE (1-866-766-9563)

Frequently Asked Questions - AJYP100 Aqua Joe

How to replace the batteries?

Turn the detection mode dial to OPEN to access the battery compartment under the sensor housing. Insert the 4 included AAA Ni-MH batteries. Use only Ni-MH rechargeable batteries to ensure recharging by the solar panel.

What is the maximum detection range and how to adjust it?

The maximum detection range is 12 meters. Use the detection/watering mode selector dial to choose from the options: Large (3-5 m), Large/Medium (8-10 m), or All (10-12 m). Do a dry test without water to hear the click.

Can I use the sprinkler without the sensor, like a regular sprinkler?

Yes, set the automatic watering timer to 10, 20, or 30 minutes. The sprinkler will stop automatically after the selected duration. You can also disable the sensor in Always On mode.

How to adjust the rotation angle and spray range?

For the angle, position the angle adjustment lever and tighten the friction collars to set an angle between 0° and 300°. For full 360° rotation, raise the lever completely. For the range, raise the deflector screen and turn the range control knob clockwise to increase distance, counterclockwise to decrease.

What to do in case of freezing?

Before winter or when the temperature drops below 0°C, completely drain the water from the sprinkler and hose to prevent damage from freezing water expansion. Store the unit frost-free.

How to connect multiple sprinklers in series?

Remove the retaining cap on the sprinkler connector. Connect the sprinklers together with a standard garden hose. This allows you to cover a larger area.

Why is my sprinkler not detecting movement?

Check that the batteries are properly installed and charged. Make sure the detection mode is set to a position other than OFF. Avoid pointing the sensor at moving objects (trees, curtains) or windy areas. The sensor may reduce sensitivity after 5 minutes to save battery; wave your hand in front within 10 m to test.

What water pressure is recommended?

The maximum pressure is 100 psi (7 bar). If the pressure is higher, install a pressure regulator on the faucet. Partially opening the faucet does not reduce pressure. To avoid damage, use a good quality hose and ensure adequate drainage.

How to clean the sprinkler?

Clean the housing and sensor regularly with a soft, damp cloth. Do not use solvents or abrasive products. Before cleaning, turn off the device and remove the batteries if necessary.

Where to find replacement parts?

Contact Snow Joe® + Sun Joe® customer service at 1-866-SNOWJOE (1-866-766-9563) or visit snowjoe.com. Use only identical replacement parts to maintain safety and warranty.

USER MANUAL AJYP100 Aqua Joe

WATERING MODE + ANIMAL REPELLING MODE

Model AJYP100

If you have any questions or comments, please call the

Snow Joe ^ 念 Sun Joe ^ 念 customer service department at:

1-866-SNOWJOE (1-866-766-9563)

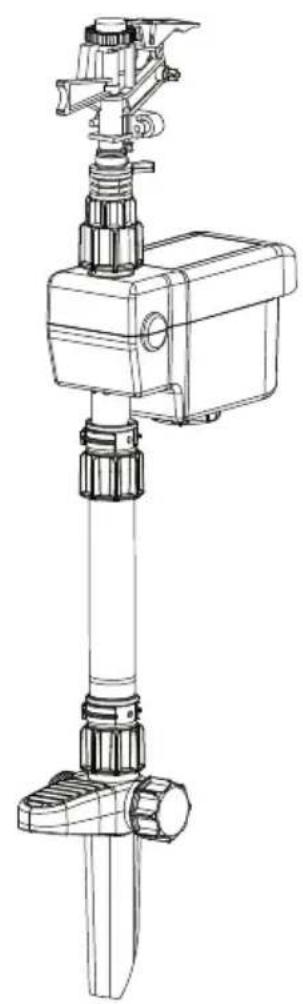

Know Your Pest Deterrent Sprinkler

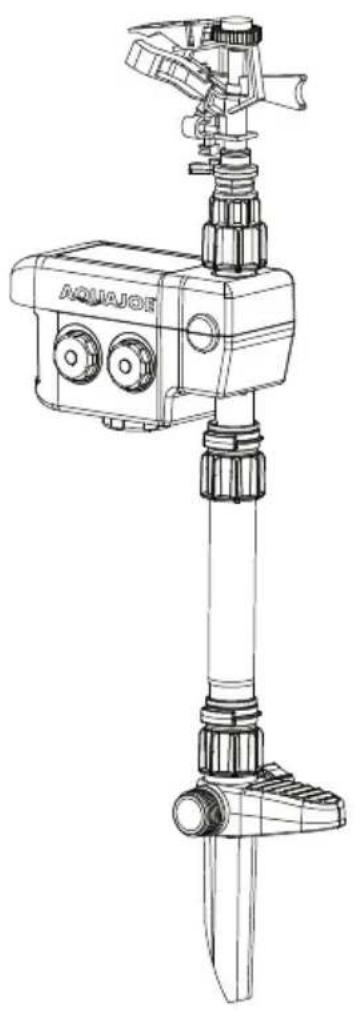

Read the owner's manual and safety rules carefully before using your Pest Deterrent Sprinkler. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

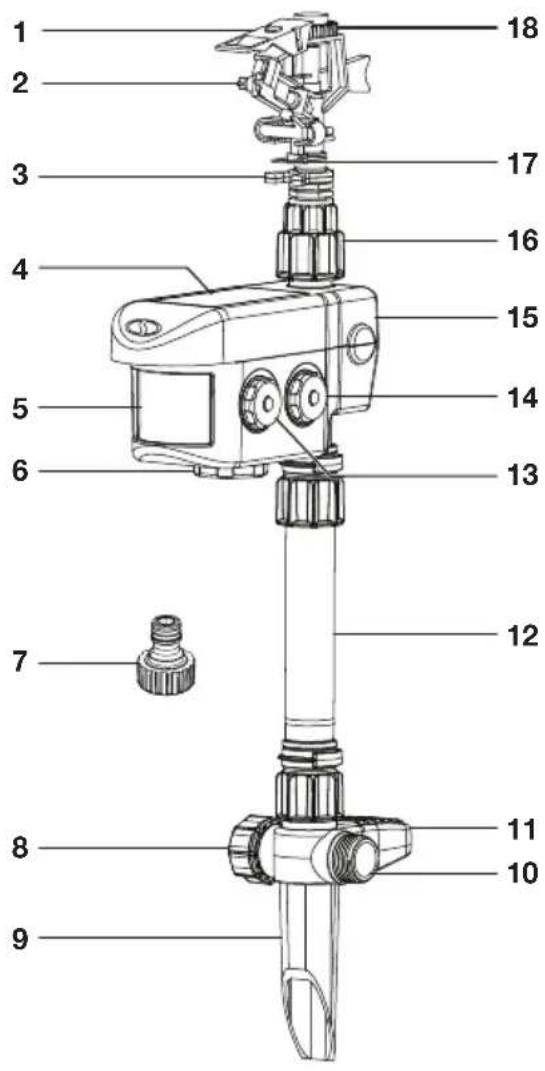

1. Deflector shield
2. Diffuser screw
3. Friction collars
4. Solar cell
5. Motion sensor lens
6. Battery compartment
7. Hose quick-connector
8. Flow-through cap
9. Step spike
10. Hose-end connector
11. Foot pedal
12. Post
13. Detection + sprinkler mode dial
14. Activation mode dial
15. Sensor housing
16. Sprinkler connector
17. Trip lever
18. Distance control knob

Technical Data

Power Source Solar ^+ Battery

Detection Field of View 120°

Max. Motion Detection Range 40 ft. (12 m)

Batteries AAA Ni-MH (x4)

Spray Patterns . Jet-Mist

Animal Detection Modes

10-16 ft. (3-5 m) Large

26-33 ft. (8-10 m) Large/Medium

33-39 ft. (10-12 m) All

Max. Coverage* .up to 5700 sq ft. (530 m²)

Max. Spray Distance* up to 42 ft. (13 m)

Max. Pressure 100 PSI (7 Bar)

Max. Flow* 52 GPM

Max. Rotation 360°

Height 23 in. (58 cm)

Base . Step Spike

Net Weight 1.3 lbs (0.6 kg)

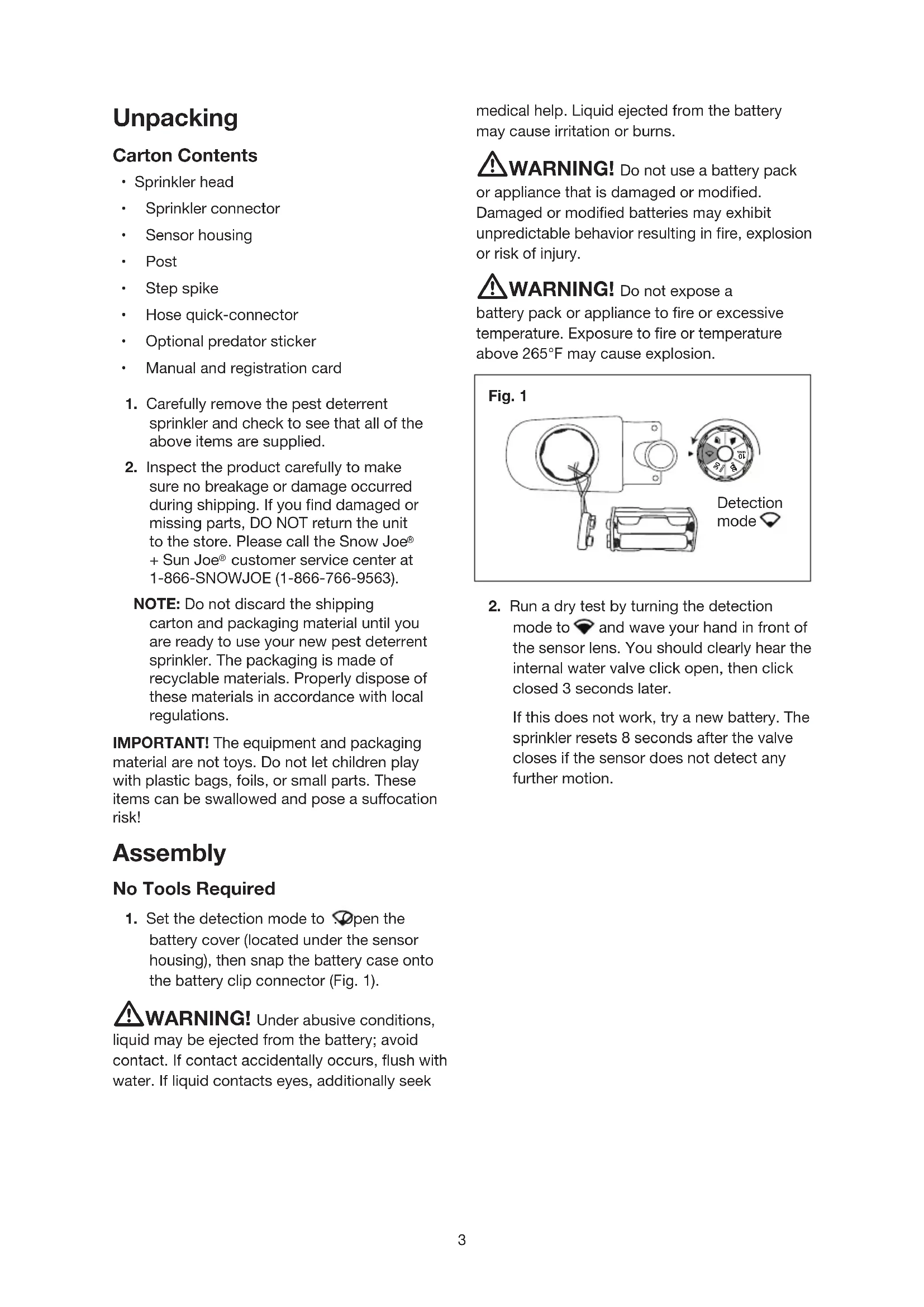

Unpacking

Carton Contents

• Sprinkler head
• Sprinkler connector
• Sensor housing
  Post
• Step spike
• Hose quick-connector
• Optional predator sticker

• Manual and registration card

• Carefully remove the pest deterrent sprinkler and check to see that all of the above items are supplied.

• Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new pest deterrent sprinkler. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations.

IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suffocation risk!

Assembly

No Tools Required

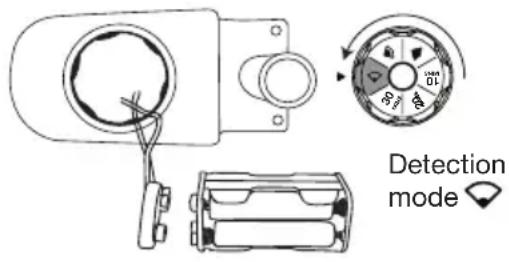

1. Set the detection mode to Open the battery cover (located under the sensor housing), then snap the battery case onto the battery clip connector (Fig. 1).

WARNING! Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek

medical help. Liquid ejected from the battery may cause irritation or burns.

WARNING! Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

WARNING! Do not expose a

battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265^ may cause explosion.

Fig. 1

1. Run a dry test by turning the detection

mode to and wave your hand in front of the sensor lens. You should clearly hear the internal water valve click open, then click closed 3 seconds later.

If this does not work, try a new battery. The sprinkler resets 8 seconds after the valve closes if the sensor does not detect any further motion.

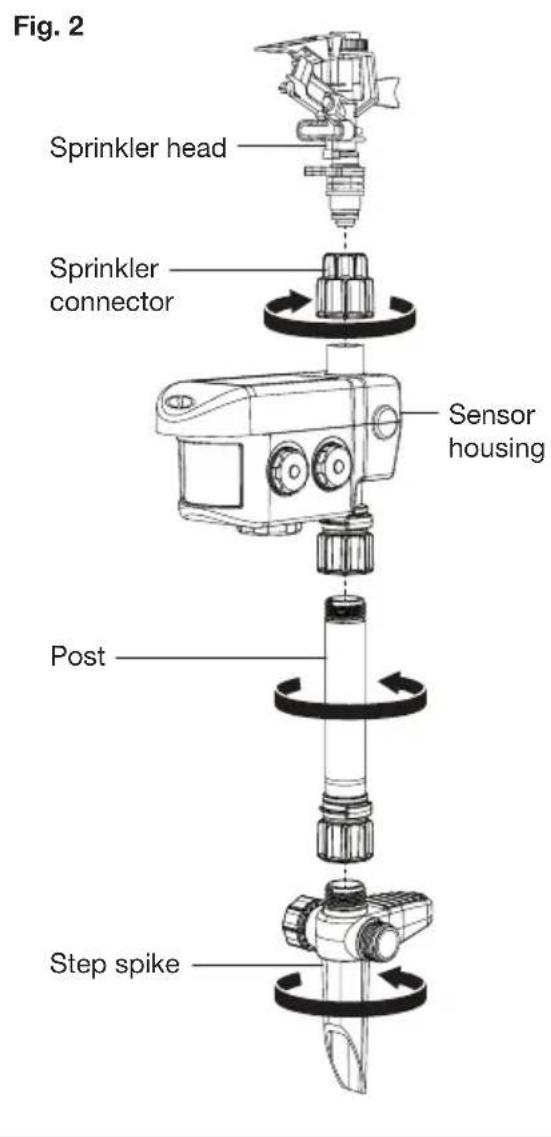

1. Follow (Fig. 2) to assemble your pest deterrent sprinkler. These fittings should only be hand tightened. No tools are required.

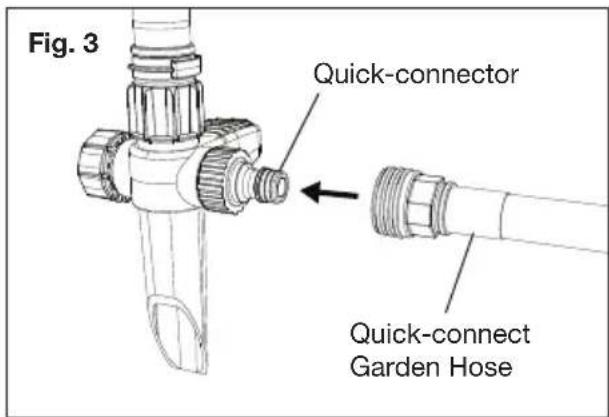

1. Connect your standard garden hose to the hose-end connector, or use a quickconnect hose with the provided quick connector instead (Fig. 3). Then aim the sensor lens towards the area you wish to protect.

1. Drive the step spike into soft terrain such as soil, gravel or sand by putting your body weight onto the foot pedal.

FRAGILE! Do not push down on the sensor housing or sprinkler head. If the ground is too hard or unsuitable for the ABS plastic step spike, try placing the sprinkler in a flower pot filled with a weighted material like sand or gravel.

Daisy-Chaining

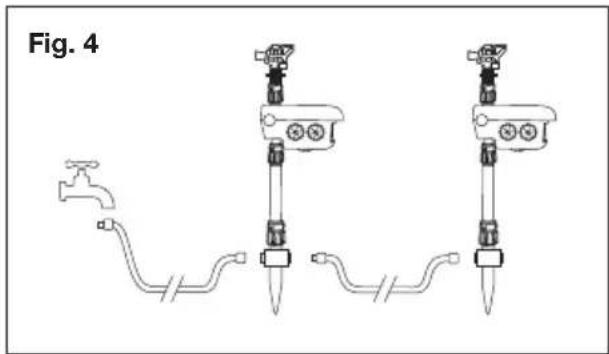

If you have more than one pest deterrent sprinkler you can daisy-chain them up in series by removing the flow-through cap and connecting them together with a hose (Fig. 4).

Sticker Sheet (optional)

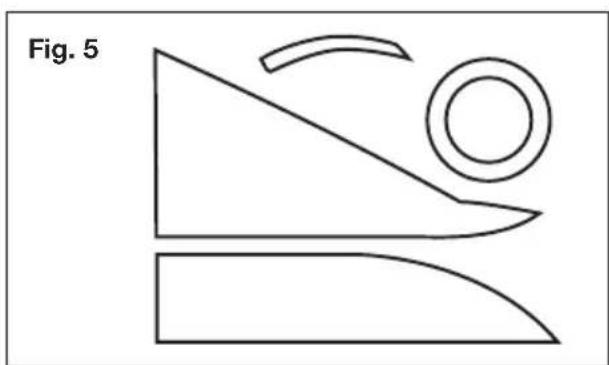

As an extra deterrent, apply the optional predator stickers onto the sensor housing (Fig. 5).

Operation

Detection Modes

To avoid getting wet, you can calibrate your desired detection mode without turning on the water as long as you can hear the activation click from 33 ft. (10 m) away.

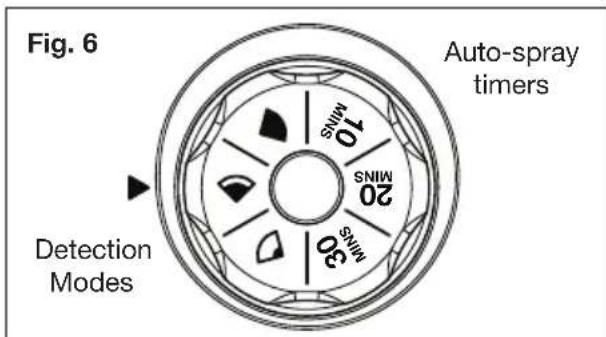

1. Set the desired detection mode using the Detection + sprinkler mode dial (Fig. 6) based on the chart below.

Mode Distance Animals

10 - 16 ft. (3 - 5 m) Large

26 - 33 ft. (8 - 10 m) Large/Medium

33 - 39 ft. (10 - 12 m) All

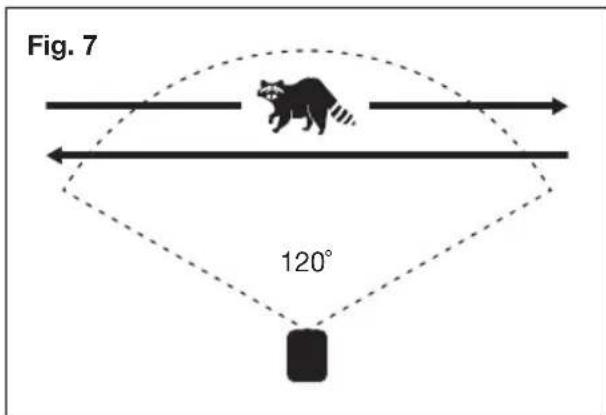

1. The pest deterrent sprinkler has a field of view of 120^ . Position the motion sensor lens based on your desired coverage area (Fig. 7).

Sprinkler Modes

To use your pest deterrent sprinkler as a regular sprinkler you can set 10/20/30 minute auto-spray timers, after which it will stop (Fig. 6).

Activation Modes

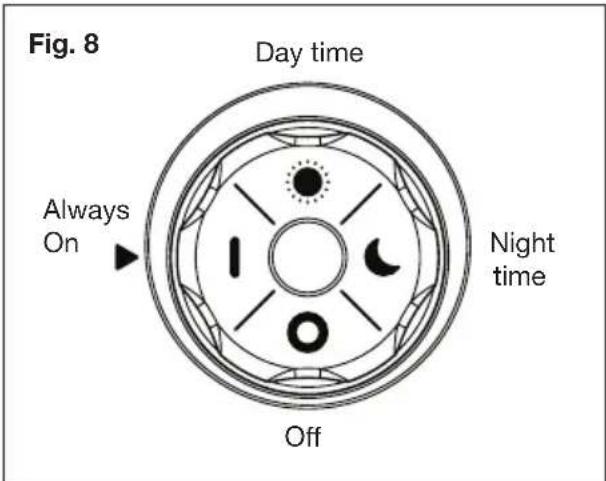

The pest deterrent sprinkler has 4 activation modes: - Off, - Always on, Day time and - Night time (Fig. 8).

NOTE: The pest deterrent sprinkler automatically reduces it's sensitivity after 5 minutes in order to preserve battery life. To minimize false triggers, avoid pointing it towards moving objects, windy areas or very large areas.

Water Coverage

NOTE: Turn the water on and test from behind unless you want to get wet!

After setting up and positioning your pest deterrent sprinkler you may wish to adjust the rotation, distance and arc of the sprinkler.

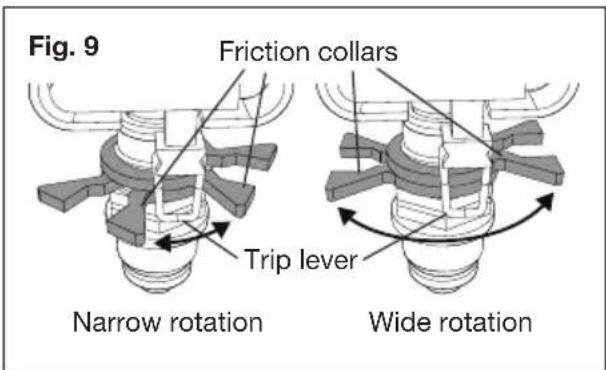

1. Position the trip lever towards the area you wish to protect. Turn the friction collars on either side of the trip lever to control the sprinkler's angle of rotation, between 0^ - 300^ (Fig. 9).

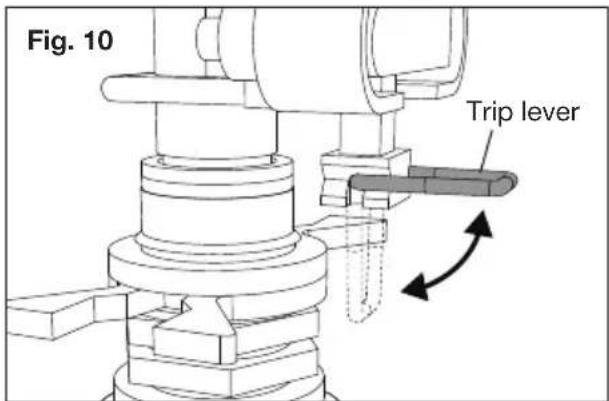

1. Flip the trip lever up out of the way of the friction collars to achieve full 360^ rotation (Fig. 10).

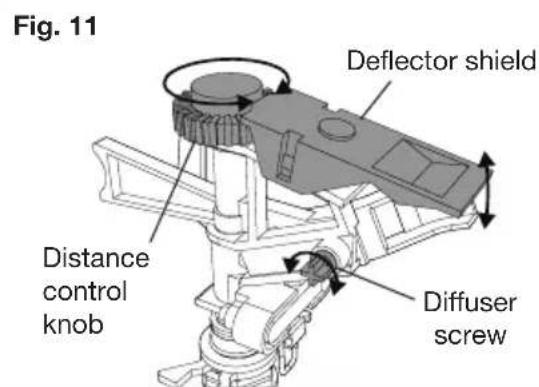

1. To increase the sprinkler's spray distance, raise the deflector shield and turn the distance control knob clockwise simultaneously. To decrease spray distance, lower the deflector shield and turn the distance control knob counter-clockwise simultaneously (Fig. 11).
2. To vary the spray pattern, turn the diffuser screw clockwise to adjust the spray from narrow jet to wide mist and vise versa (Fig. 11).

NOTE: The spray distance will depend heavily on your water pressure. Do not exceed this product's maximum rated pressure of 100 PSI.

Watering Tips

Water only when necessary, preferably in the morning to minimize water loss through evaporation.

CAUTION! Poor placement or malfunctioning sprinklers carry a risk of causing water damage to your property. Mitigate risks by limiting the amount of water available to the product (open valve 3/4), use good quality hoses and ensuring there is adequate drainage in the area. Install a pressure reducing valve on your tap if your water pressure exceeds 100 PSI. Partially opening your tap does NOT change the water pressure.

Maintenance

Since water expands when it freezes, completely drain water from your sprinkler and hose to avoid damage if temperature falls below 32^ F (0^ C).

CAUTION! Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

CAUTION! Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.

Service + Support

If your Aqua Joe® AJYP100 YardGuard Pest Deterrent Sprinkler requires service or maintenance, please call Snow Joe® + Sun Joe® customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the registration card. Copy these numbers into the space provided below.

SNOW JOE ^ 念 + SUN JOE ^ 念 CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe, LLC ("Snow Joe") is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe, Sun Joe, or Aqua Joe product ("Product") does not work or breaks under normal operating conditions. We think it's important that you know what you can expect from us. That's why we have a Limited Warranty ("Warranty") for our Products.

OUR WARRANTY:

Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).
