M201BT - Speaker EDIFIER - Free user manual and instructions

Brand	EDIFIER
Model	M201BT
Product Type	2.1 Stereo Speaker (subwoofer + satellites)
Power Supply	Mains via power cord
Audio Inputs	AUX (3.5 mm line input)
Wireless Connectivity	Bluetooth
Bluetooth Frequency	2.402 GHz ~ 2.480 GHz
Bluetooth RF Power	≤20 dBm (EIRP)
Bass Control	Rotary bass control
Source Indicator	Blue light (Bluetooth), green light (AUX)
Package Contents	Audio cable, user manual, power cord
Usage	Indoor only
Protection Class	Class II (double insulation)
Operating Temperature	0°C - 35°C
Cleaning	With a dry cloth; do not use solvents
Safety	Do not expose to rain or moisture; do not open the casing
Repairability	No user-serviceable parts; refer to authorized service

Frequently Asked Questions - M201BT EDIFIER

How to connect my phone via Bluetooth?

Turn on the speaker, press the Volume/Input button to switch to Bluetooth mode (blue LED flashes). On your phone, search for 'EDIFIER M201BT' and connect. Once connected, the blue LED stays on.

How to switch between Bluetooth and AUX modes?

Press the Volume/Input button to change modes. In AUX mode, the LED is green; in Bluetooth mode, it is blue.

Why is my speaker not producing any sound?

Check that the speaker is turned on and the volume is sufficient. Ensure audio cables are properly connected and the audio source is emitting a signal. If using Bluetooth, verify that the device is connected.

How to clean the speaker?

Unplug the speaker and wipe it with a dry cloth. Do not use chemicals, alcohol, or gasoline.

What is the Bluetooth range?

The effective range is approximately 10 meters without obstacles.

Can I use the speaker outdoors?

No, the speaker is designed for indoor use only. Do not expose it to rain or moisture.

What to do if Bluetooth does not connect?

Ensure the speaker is in Bluetooth mode (blue LED flashing). Disconnect any existing Bluetooth device by pressing and holding the Volume/Input button for a few seconds. Try again with another device if necessary.

How to adjust the bass?

Use the bass control located on the rear panel of the subwoofer to adjust the bass level.

Is the speaker compatible with all Bluetooth devices?

The speaker is compatible with most Bluetooth devices (smartphones, tablets, computers). Ensure your device supports the A2DP profile.

What to do in case of technical issues?

The speaker contains no user-serviceable parts. Do not open the casing. Contact EDIFIER after-sales service via www.edifier.com or the email address corresponding to your region.

USER MANUAL M201BT EDIFIER

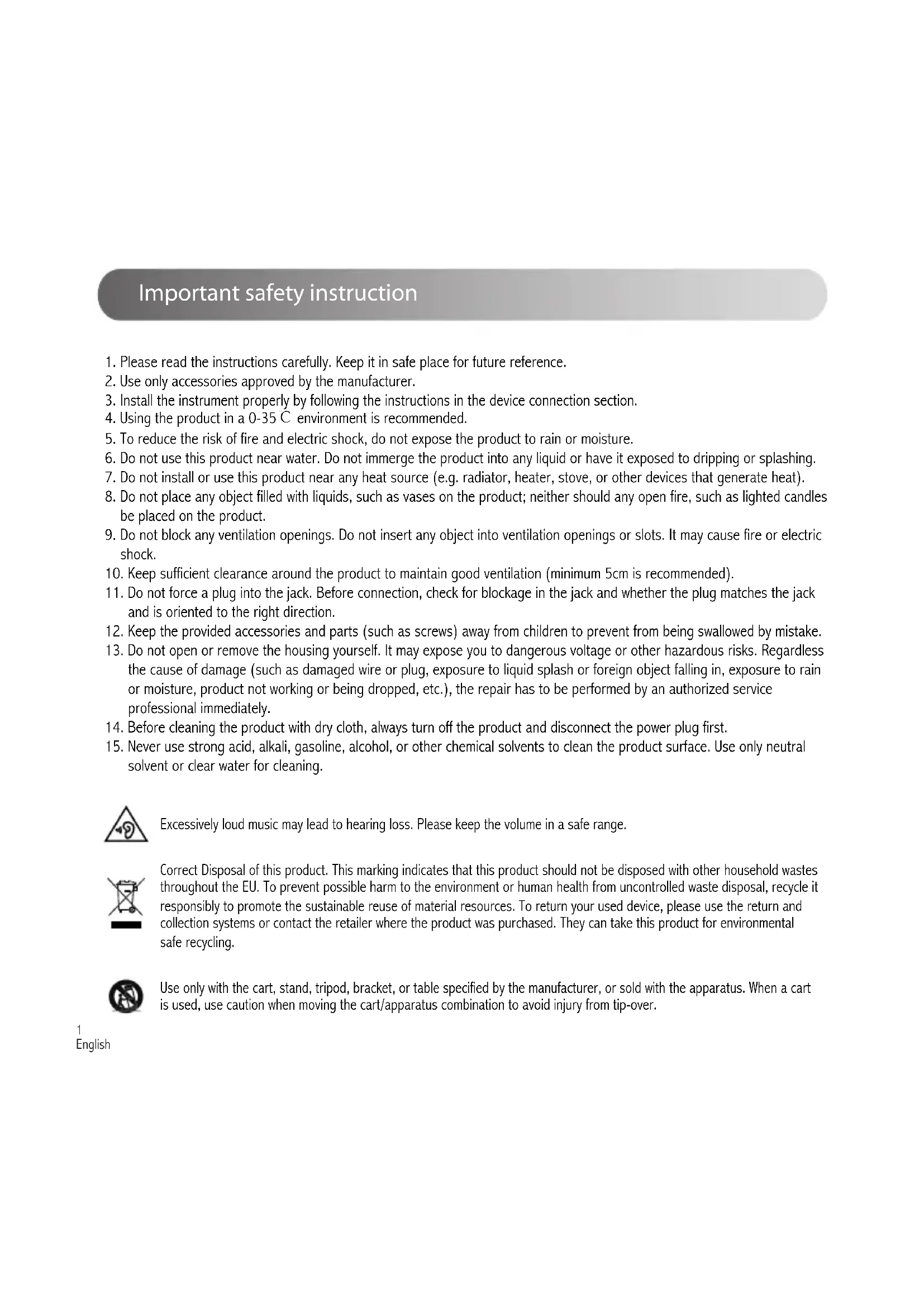

Important safety instruction

1. Please read the instructions carefully. Keep it in safe place for future reference.
2. Use only accessories approved by the manufacturer.
3. Install the instrument properly by following the instructions in the device connection section.
4. Using the product in a 0 - 35^ environment is recommended.
5. To reduce the risk of fire and electric shock, do not expose the product to rain or moisture.
6. Do not use this product near water. Do not immerge the product into any liquid or have it exposed to dripping or splashing.
7. Do not install or use this product near any heat source (e.g. radiator, heater, stove, or other devices that generate heat).
8. Do not place any object filled with liquids, such as vases on the product; neither should any open fire, such as lighted candles be placed on the product.
9. Do not block any ventilation openings. Do not insert any object into ventilation openings or slots. It may cause fire or electric shock.
10. Keep sufficient clearance around the product to maintain good ventilation (minimum 5cm is recommended).
11. Do not force a plug into the jack. Before connection, check for blockage in the jack and whether the plug matches the jack and is oriented to the right direction.
12. Keep the provided accessories and parts (such as screws) away from children to prevent from being swallowed by mistake.
13. Do not open or remove the housing yourself. It may expose you to dangerous voltage or other hazardous risks. Regardless the cause of damage (such as damaged wire or plug, exposure to liquid splash or foreign object falling in, exposure to rain or moisture, product not working or being dropped, etc.), the repair has to be performed by an authorized service professional immediately.
14. Before cleaning the product with dry cloth, always turn off the product and disconnect the power plug first.
15. Never use strong acid, alkali, gasoline, alcohol, or other chemical solvents to clean the product surface. Use only neutral solvent or clear water for cleaning.

Excessively loud music may lead to hearing loss. Please keep the volume in a safe range.

Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Important safety instruction

Power warning:

1. Place the product near the power outlet for easy use.
2. Before use, make sure that the operating voltage is the same as your local power supply. Correct operating voltage can be found on the product plate.
3. For safety purpose, unplug the product during lightning storms or when unused for extended periods of time.
4. Under normal conditions, the power supply may get hot. Please keep good ventilation in the area and exercise caution.
5. Safety warning labels on the housing or bottom of the product or power adaptor.

This symbol is to alert the user to the presence of un-insulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is to warn the user not to disassemble the enclosure of the product and there is no user-replaceable part inside. Take the product to an authorized service center for repair.

This symbol indicates that the product is for indoor use only.

This symbol indicates that the product is a CLASS II or double insulated electrical device with no earth requirement.

The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.

For wireless product:

1. Wireless product may generate shortwave radio frequencies and interfere with the normal use of other electronic devices on medical equipment.
2. Turn off the product when it's disallowed. Do not use the product in medical facilities, on airplane, at gas stations, near automatic gates, automatic fire alarm system or other automated devices.
3. Do not use the product in the vicinity of a pacemaker within a 20cm range. The radio waves may affect the normal operation of the pacemaker or other medical devices.

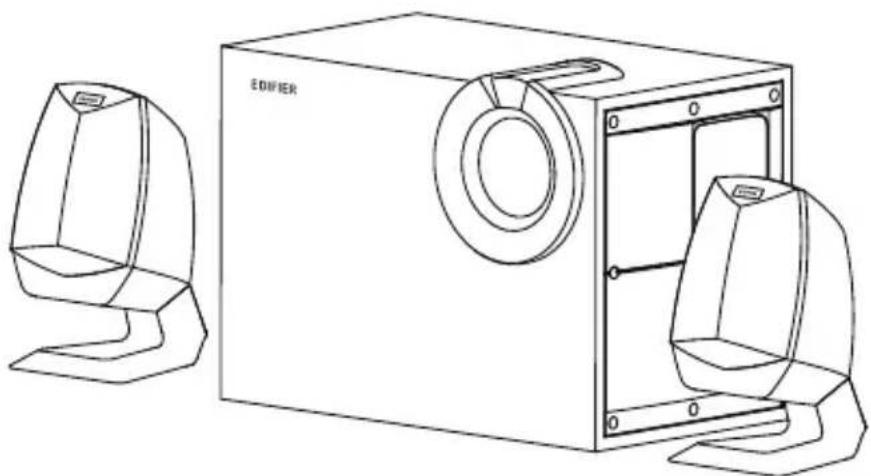

Box Contents

Audio cable

User manual

Note: Images are for illustrative purposes only and may differ from the actual product.

1. Volume control: volume up/down

Press: input mode selector (Bluetooth/AUX mode)

Press and hold: disconnect Bluetooth (Bluetooth mode)

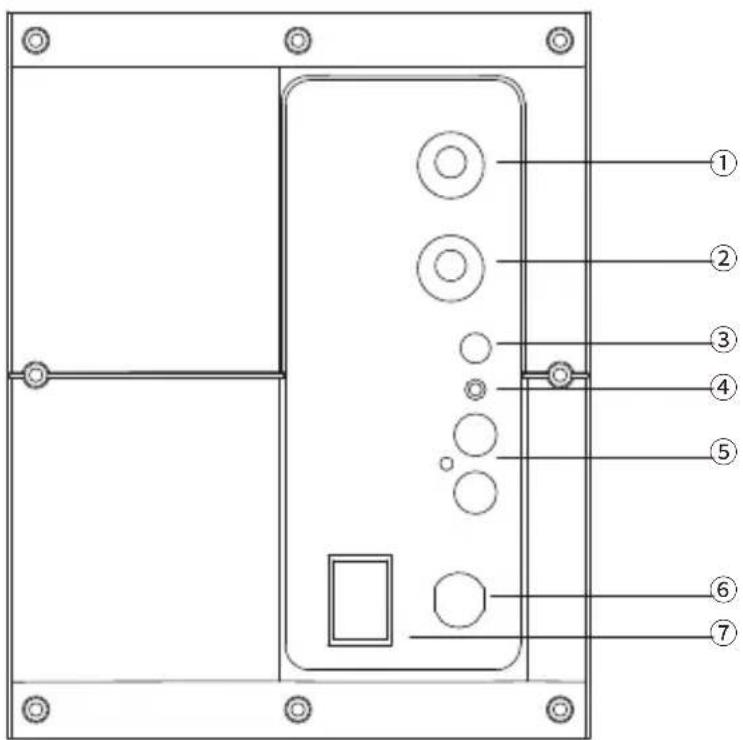

1. Left and right satellite speakers output

2. Power cable

3. Power switch

4. Bass adjustment

5. AUX input
6. Input indicator

AUX mode: green light is lit

Bluetooth mode (unconnected): blue light flashes

Bluetooth mode (connected): blue light is steady lit

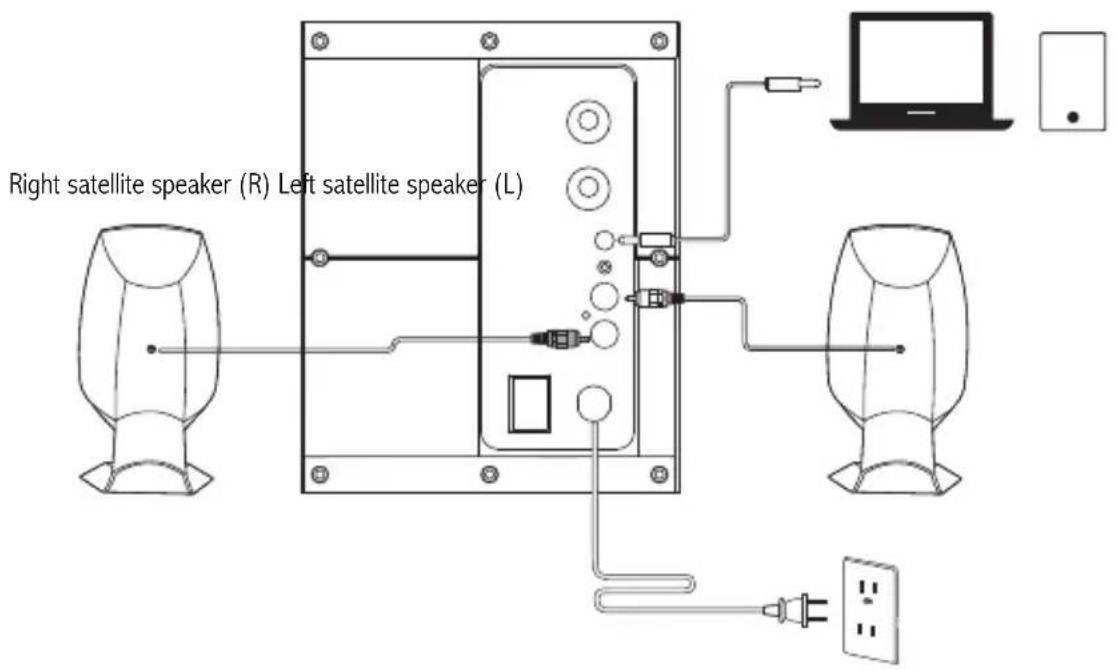

Connection

Bluetooth

• After powered on, press the "Volume/Input" button to switch to Bluetooth mode, the blue light will flash;
• Set your mobile phone to search and connect to "EDIFIER M201BT".

Volume/ Input

Press to switch to Bluetooth mode

Specifications

Total watts (peak): 68W

Total watts (RMS): 34W (R/L: 8W+8SW: 18W)

Frequency response: R/L: 210Hz-20KHz SW: 63Hz-206Hz

Audio inputs: AUX, Bluetooth

Declaration for EU

Frequency Band: 2.402GHz~2.480GHz

RF Power output: 20 dBm (EIRP)

There is no restriction of use.

Troubleshooting

No sound

• Check if the speaker is ON.
• Try to turn up the volume using the volume control.
• Ensure the audio cables are firmly connected and the input is set correctly on the speakers.
• Check if there is a signal output from the audio source.

Cannot connect via Bluetooth

• Make sure the speaker is switched to Bluetooth input. If it is in other audio input modes, Bluetooth will not connect. Disconnect from any Bluetooth device by pressing and holding the "Volume/Input" button, then try again.
• Effective Bluetooth transmission range is 10 meters; please ensure that operation is within that range.
• Try another Bluetooth device for connection.

The M201BT does not turn on

• Check if main power is connected and that the power outlet is working.

Noise coming from speakers

• EDIFIER speakers generate little noise, while the background noise of some audio devices are too high. Please unplug audio cables and turn the volume up, if no sound can be heard at 1 meter away from the speaker, then there is no problem with the speakers.

To learn more about EDIFIER, please visit www.edifier.com

For EDIFIER warranty queries, please visit the relevant country page on www.edifier.com and review the section titled Warranty Terms.

USA and Canada: [e-mail]

South America: Please visit www.edifier.com (English) or www.ediferla.com (Spanish/Portuguese) for local contact information.

Watts totaux (pic): 68W

Watts totaux (RMS): 34W (R/L: 8W+8SW: 18W)

Réponse en fréquence: R/L: 210Hz-20KHz SW: 63Hz-206Hz

Source audio: AUX, Bluetooth

Watt totali (RMS): 34W (R/L: 8W+8SW:18W)

Total de watts (pico): 68W

Total de watts (RMS): 34W (R/L: 8W+8SW: 18W)

© 2020 Edifier International Limited. All rights reserved.

Printed in China

NOTICE

For the need of technical improvement and system upgrade, information contained herein may be subject to change from time to time without prior notice.

Products of EDIFIER will be customized for different applications. Pictures and illustrations shown on this manual may be slightly different from actual product. If any difference is found, the actual product prevails.
