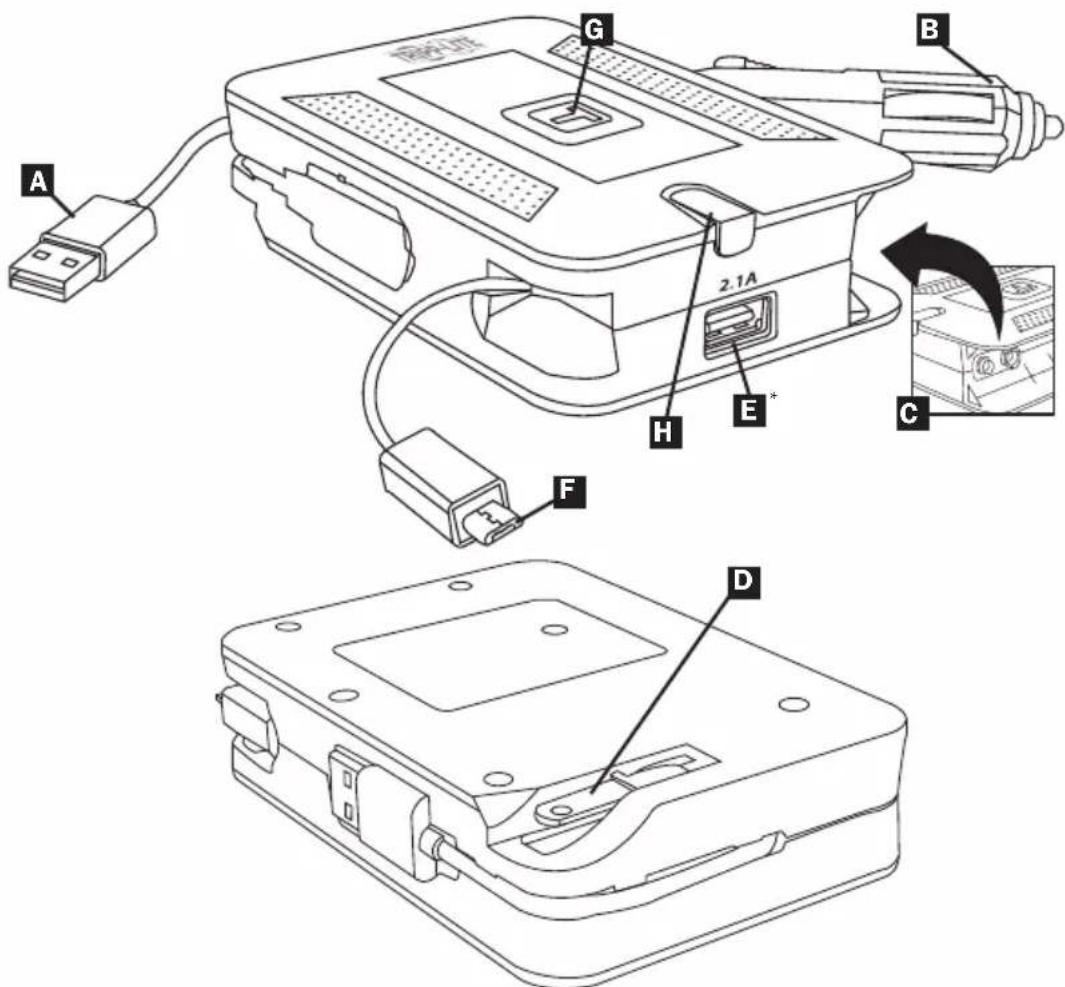

Features

A G B 2.1A H E+ C F D

DC Input Connectors

A V USB Type-A (Male)
B2V CLA "Cigarette Lighter" Plug
CV Battery Terminals

AC Input Connector

DL-15P Fold-Down Plug

USB Output Connectors

E SB Type-A (Female)

* Apple ^® devices with a Lightning ^™ connector (such as an iPhone 5th Generation and later) require a user-supplied compatible cable or adapter (not included).

F micro-B USB (Male) with 24" Retractable Cord

Indicators and Controls

Gower LED

Hetractor Button (for Micro USB cord)

Not Shown: Travel Pouch

Included USB Adapters\*

Nokia® 2 mm Sony

® PSP®

USB Mini-B Apple

® 30-Pin

* Apple Lightning™ connector not included. Devices that use a Lightning connector require a user-supplied adapter (not included).

Operation

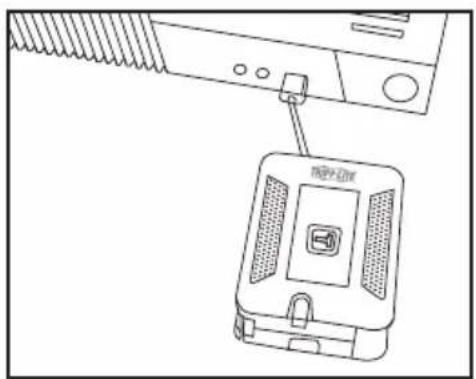

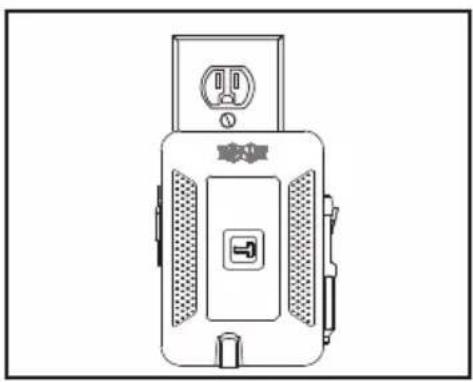

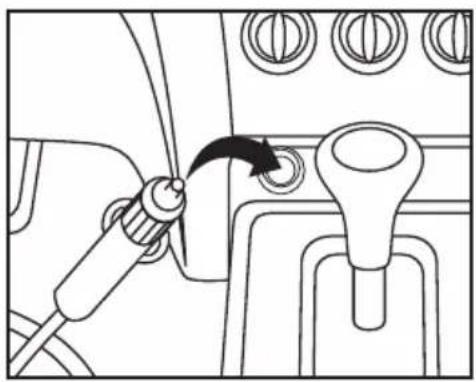

1. Choose the appropriate DC or AC input power source.

Line drawing of a mechanical lever mechanism with a knob and handle (no text or symbols)

Line drawing of a vintage portable device with ventilation grilles and a door (no text or symbols)

Line drawing of a device with a connector inserted into a rack (no text or symbols)

Line drawing of a device with a handle and a rectangular block, showing no text or symbols

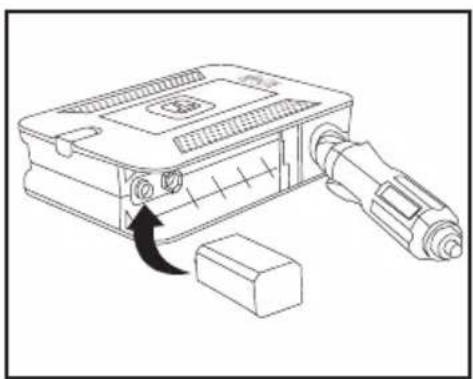

Note: The 9-volt battery option is intended for quick reserve power in situations where the connected device's internal battery has been depleted, no continuous power source is available and the device is to be used only for a brief time (e.g. an emergency). This connection is not intended to provide the device a full and lasting charge.

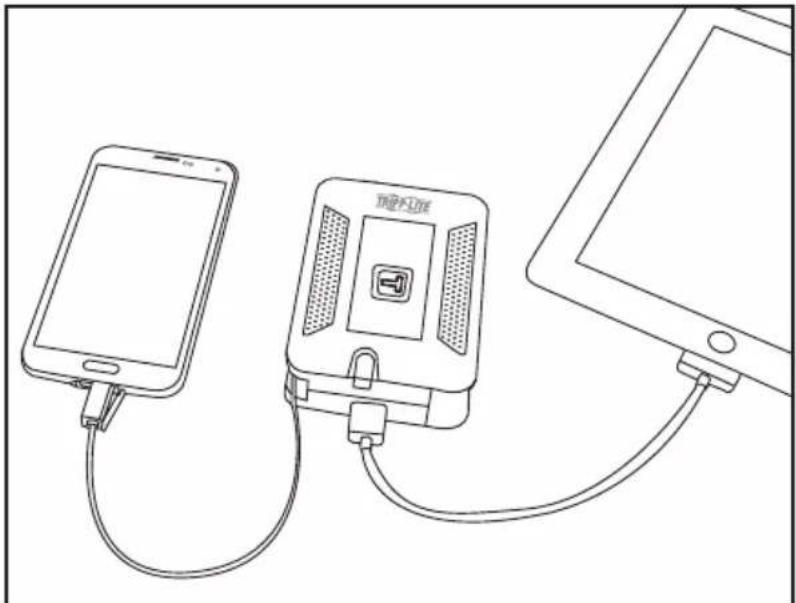

1. Connect your device using the appropriate USB adapter or cable.

Line drawing of a smartphone connected to a device via cable, with a tablet partially visible (no text or symbols)

Note: For illustration purposes only. Power supplied to more than one device is limited. Multiple device connections may not be supported.
