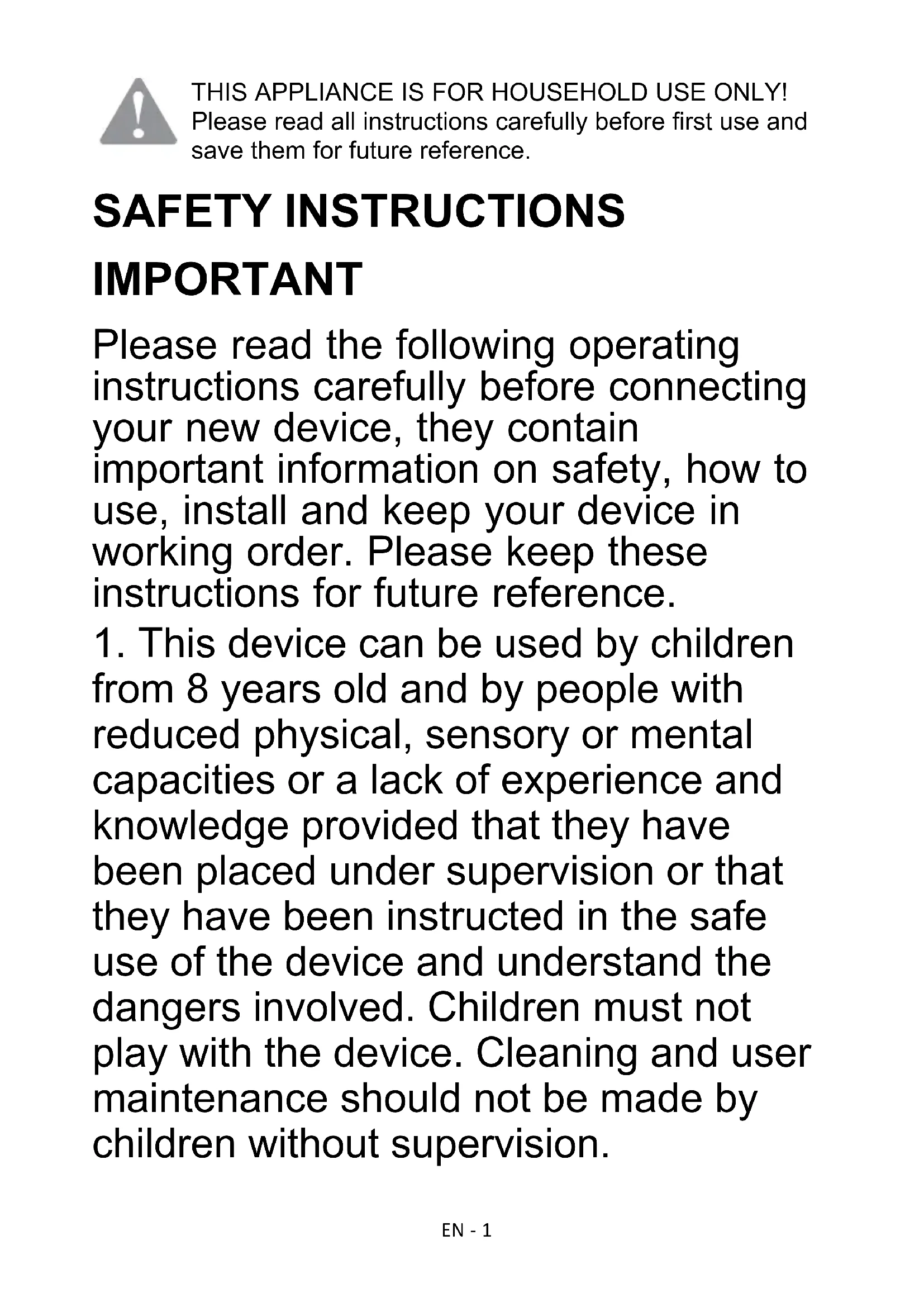

USER MANUAL Oldtimer OT 11010 SIBIR

1. This device can be used by children

from 8 years old and by people with reduced physical, sensory or mental capacities or a lack of experience and knowledge provided that they have been placed under supervision or that they have been instructed in the safe use of the device and understand the dangers involved. Children must not play with the device. Cleaning and user maintenance should not be made by children without supervision.2. Before plugging in the appliance, make sure that the voltage of the mains socket in your home matches that shown on the rating plate.

3. Do not damage the cooling system.

This warning is only valid for devices whose cooling circuit is accessible by the user.

4. Make sure the unit is unplugged

5. To clean this unit, use a damp cloth

or glass cleaner. Never use detergent or solvent.

6. When defrosting has been carried

out, or when the refrigerator ceases to be used, clean the appliance to prevent the spread of odor. Too much gel can affect refrigeration.

7. It is recommended to use this

appliance without an extension cord. EN - 28. To ensure good ventilation of the appliance, which is essential for its proper functioning, it is recommended to have a minimum clearance (or space) of 10mm on the sides and at the rear and 20mm on the top.

9. Do not place any hot food or drink

10. In order to save electricity

consumption, keep air circulation around the appliance and discard food wrappers before putting them in the refrigerator as soon as possible.

11. Do not store toxic materials such

as ether, methanol, gasoline, etc., which are volatile and can burn or explode. EN - 312. Do not place flammable materials in the refrigerator unless they have been authorized by the manufacturer.

13. Close the door after use to avoid

14. This product should not be used

outdoors and should not be exposed to rain.

15. The appliance must be placed on

a flat and stable surface.

16. The appliance must be positioned

so that the socket is easily accessible.

17. Do not place heavy objects on the

refrigerator and do not wet it.

18. To avoid the risk of electric shock,

never use this appliance with wet hands or bare feet on a wet surface.

19. Do not use the appliance

outdoors or in a humid place.

20. Do not move the unit when it is

full to avoid tipping. EN - 421. The power cable must be plugged into a grounded outlet. Never pull on the cable to disconnect the appliance, grasp the plug and pull it out from the socket.

22. Never lift the device by the power

23. Keep the power cable away from

24. Do not attempt to repair, adjust,

or replace any part of this appliance yourself. In the event of a malfunction, contact the after-sales service.

25. Children should be supervised to

ensure that they do not play with the appliance.

26. If the power cable is damaged, it

must be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid any danger. EN - 527. It is recommended to regularly examine the power cable for any signs of damage, and the device should not be used if the cable is damaged.

28. The appliance is fitted with an

earthed plug to protect you from any electrical risks and must be connected to a socket outlet with an earth contact.

29. The appliances are not intended

to be operated by means of an external timer or by a separate remote control system.

30. CAUTION: Keep the ventilation

openings in the enclosure of the appliance, in its exterior part or in its built-in structure clear.

31. CAUTION: Do not damage the

refrigeration circuit. EN - 632. CAUTION: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

33. CAUTION: Do not use electrical

appliances inside the food storage compartment, unless they are not of the type recommended by the manufacturer.

34. This appliance is intended for use

in household applications.

35. WARNING: When positioning the

unit, make sure that the power cord is not pinched or damaged.

36. WARNING: Do not place multiple

outlet mobile bases or portable power supplies on the back of the appliance.

37. Children aged 3 to 8 are allowed

to load and unload refrigeration devices.

38. To avoid contamination of food,

please observe the following instructions: EN - 7- Prolonged opening of the door can lead to a significant increase in the temperature in the compartments of the appliance. - Regularly clean surfaces that may come into contact with food and accessible drainage systems. - Store raw meat and fish in suitable containers in the refrigerator, so that they do not come into contact with and drip on other foods. - The two-star compartments for frozen products are suitable for storing frozen food, for storing or making ice cream and for making ice cubes. - The one, two and three star compartments are not suitable for freezing fresh food. - If the refrigeration appliance is left empty for long periods of time, turn it off, defrost, clean, dry and leave the door open to prevent mold growth in the appliance. EN - 839. Place the device against a wall with a clear distance of no more than 75 mm and more than 50 mm.

40. This refrigeration appliance is not

intended for use as a built-in appliance.

41. Recommended storage time for

frozen foods in the freezer. These times vary depending on the type of food. Foods that you freeze can be stored for 1 to 12 months (minimum at -18 ° C). EN - 942. When freezing fresh food with an “best before / best before / best date” you should freeze it before that date has expired.

43. Check that the food has not

already been frozen. This is because frozen foods that have thawed completely should not be refrozen. Once thawed, food should be eaten quickly.

• To avoid spoilage of food due to transfer of germs: Store unpackaged animal and plant products separately in drawers. This also applies to different kinds of meat.

• If food must be kept together due to lack of space: wrap it.

• Never store fruits and vegetables on a balcony with meat or fish. EN - 10Suitable for food Refrigerant Danger ; risk of fire / flammable materials The refrigerant gas contained in the circuit of this device is isobutane (R 600à), a low-polluting but flammable gas. When transporting and installing the appliance, take care not to damage any part of the refrigeration circuit. EN - 11WARNING: When positioning the device, make sure that the power cord is not trapped or damaged.

WARNING: Do not place multiple

outlet mobile bases or portable power supplies on the back of the device. LED LED Replaceable light source (LED only) by a professional. This product contains two light sources of energy efficiency class G.

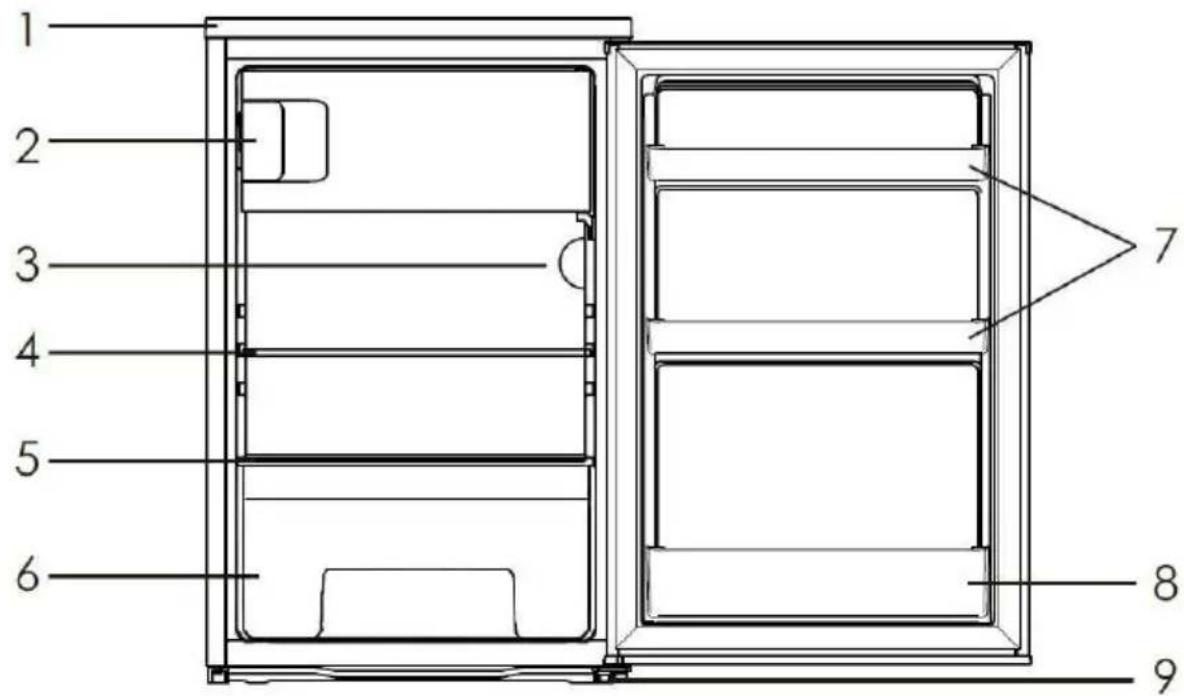

2. Freezer compartment

5. Vegetable tray cover

TRANSPORT AND START-UP

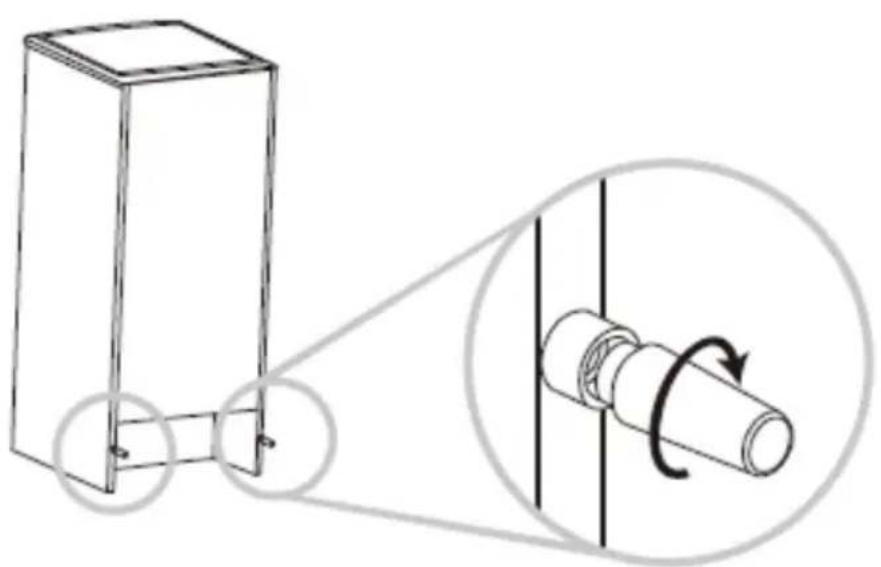

When transporting, take the device by the base and gently tilt it up to a maximum of 45 °. Never lift the appliance by the door handle. Do not put the device upside down or horizontally. Push the refrigerator on the roller legs to move it. INSTALLATION Install the refrigerator on a flat and stable surface to avoid possible noise and vibrations from the appliance. The refrigerator should be placed so that the outlet is easily accessible. Choose a dry, well-ventilated place. Leave a space of at least 10mm all around the refrigerator and 20mm on the top. Do not install the refrigerator in a corrosive atmosphere. Wait 12 to 24 hours before plugging in the appliance. EN - 13WARNING ! When you install your refrigeration appliance, it is important to take into account the climatic class of the product. To find out which climate class your refrigerator belongs to, please check the data plate as shown below: The refrigeration appliance is operating correctly within the ambient temperature range shown in the table, depending on the climate class. Class Symbol Average ambient temperature ° C temperate enlarged

from + 10 to + 32 temperate

from + 16 to + 32 subtropical

from + 16 to + 38 Tropical

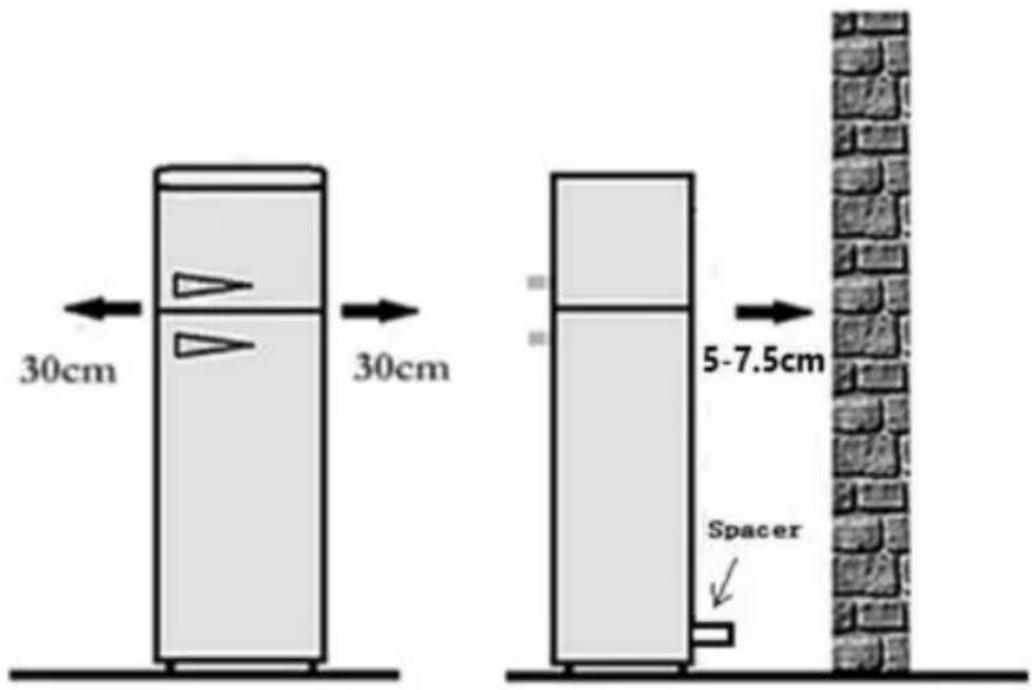

from + 16 to + 43 PLACE The device must be installed away from heat sources such as radiators, boilers, direct sunlight, etc. Make sure that air can circulate freely behind the cabinet. To ensure optimum performance, if the appliance is placed under an overhanging wall unit, the minimum distance between the top of the booth and the wall unit must be at least 100 mm. Ideally, the device should not be placed under a surface mounted wall unit. Precise leveling is ensured by one or more adjustable feet at the base of the cabinet. For refrigeration devices with a climatic class: - extended temperate (SN): this refrigeration appliance is intended for use at ambient temperatures between 10 ° C and 32 ° C; - temperate (N): this refrigeration appliance is intended for use at ambient temperatures between 16 ° C and 32 ° C; - subtropical (ST): this refrigeration appliance is intended for use at ambient temperatures between 16 ° C and 38 ° C; - tropical (T): this refrigeration appliance is intended for use at ambient temperatures between 16 ° C and 43 ° C. EN - 14Meaning of the labeling * of freezers:

• 1- (*), 2- (**), and 3-star (***) freezers are not suitable for freezing fresh food.

• The 2 star (**) and 3 star (***) freezers are suitable for storing frozen food (pre-frozen) and ice cream or for making ice cream and ice cubes. Warning ! The appliance must be able to be disconnected from the electrical network; the plug must therefore be easily accessible after installation.

Before first use, clean all parts of the refrigerator with a soft cloth dampened in lukewarm water and a mild detergent. Rinse them thoroughly with clean water and dry them with a dry cloth. Note: The electrical parts of the refrigerator can only be cleaned with a dry cloth. Place the thermostat knob in position "3", then turn on the appliance. The compressor is running and the interior light of the refrigerator comes on. Close the door. After 30 minutes, if the temperature in the refrigerator drops significantly, it shows that the refrigeration system is working properly. When the refrigerator has been running for a while, the temperature will adjust to the setting made, provided you do not leave the door open for too long. If the above steps have been completed successfully, the setup operations are complete. The refrigerator is operating normally. The device is supplied with two plastic tips (in the plastic bag in the user manual). After installing these end caps, the unit can no longer be pushed against the wall to ensure adequate ventilation. Insert the end caps into the corresponding openings on the back of the device, then screw them on. Place the device against a wall with a free distance not exceeding 50-75mm.

EN - 16TEMPERATURE CONTROL

The temperatures in the refrigerator compartment and the freezer compartment are controlled by the thermostat located at the top of the refrigerator compartment. Turn the thermostat knob to adjust the temperature inside the refrigerator. There are 7 temperature settings on the thermostat: from "0" to "7". The first setting "0" means "OFF" while the 7

setting "7" indicates the lowest temperature in the refrigerator. Turn the thermostat knob from position "1 " to "7", the temperature gradually decreases. Set the thermostat knob to position "3" or "4" during normal use.

• How to use the freezer compartment? Place fresh foods such as fish, meat in the freezer compartment to preserve their taste and nutrients. Wrap foods that need to be frozen in aluminum foil or in airtight plastic boxes. Do not put fresh food in direct contact with other already frozen food. If you buy frozen food, please keep it in the freezer compartment as soon as possible. Never refreeze a thawed product.

• How to use the refrigerator compartment? Eggs and bottles must be placed in the spaces reserved for this purpose. Vegetables and fruits should be put in the vegetable drawer. The jars should be placed in the shelves on the refrigerator door. Other foods which are perishable or which may give off a bad odor in the refrigerator should be packaged separately.

• Food placement Be careful not to over-place food in the refrigerator. Food should be wrapped separately in aluminum foil or in airtight plastic boxes. In order to save energy consumption, do not place hot food in the refrigerator. Wait until they are well cooled before storing them. Never put vegetables or fruit in the freezer compartment.

When the appliance has been in operation for a long time, the underside of the freezer compartment may become covered with a film of frost. This leads to increased power consumption and decreases the efficiency of your device. Your freezer compartment should be defrosted once a month. When defrosting, unplug the appliance, open the door and remove all food. Then store the food in a cool place. Use a plastic scraper to remove the frost. Then wipe the freezer compartment with a soft, dry cloth. Note: Never use a metal utensil to defrost the freezer compartment to avoid damaging it.

WARNING: Do not use any mechanical device or other means

to accelerate defrosting other than those recommended by the manufacturer. EN - 19 Lamp replacement If the light no longer works, check if the bulb is properly screwed in. If the light still does not work, it is necessary to change the bulb.

1. Use a new bulb of Max 10W E14 (220-240V ~). Unplug the device;

2. Open the lamp cover (1);

3. Unscrew the defective bulb counterclockwise; Screw the new bulb

clockwise; Replace the lamp cover;

4. Reconnect the device.MAINTENANCE AND CLEANING

• The device should be cleaned at least once a month.

• Before cleaning, be sure to switch off and unplug the appliance.

• Remove all accessories. Wash them in lukewarm water with a mild detergent (dish soap for example), rinse with bleach and dry thoroughly.

• Wipe the inside and outside of the refrigerator with a damp, soft cloth.

• If the device is too dirty, clean it with a soft cloth dampened with a little mild detergent, rinse the device thoroughly and dry it with a soft cloth. If you need to go on vacation or not use the device for a long time, please do the following:

• Switch off the appliance and unplug it from the socket.

• Clean and dry the inside of the appliance by following the above instructions.

• Leave the appliance door open to avoid any bad odors. Cleaning Before cleaning, be sure to switch off and unplug the appliance. Use a soft cloth soaked in water or non-abrasive detergent to clean the device. Then wipe off the moisture with a soft, dry cloth. Remember to clean the water collection tray located at the back, above the glass cover.

REVERSE DOOR OPENING DIRECTION

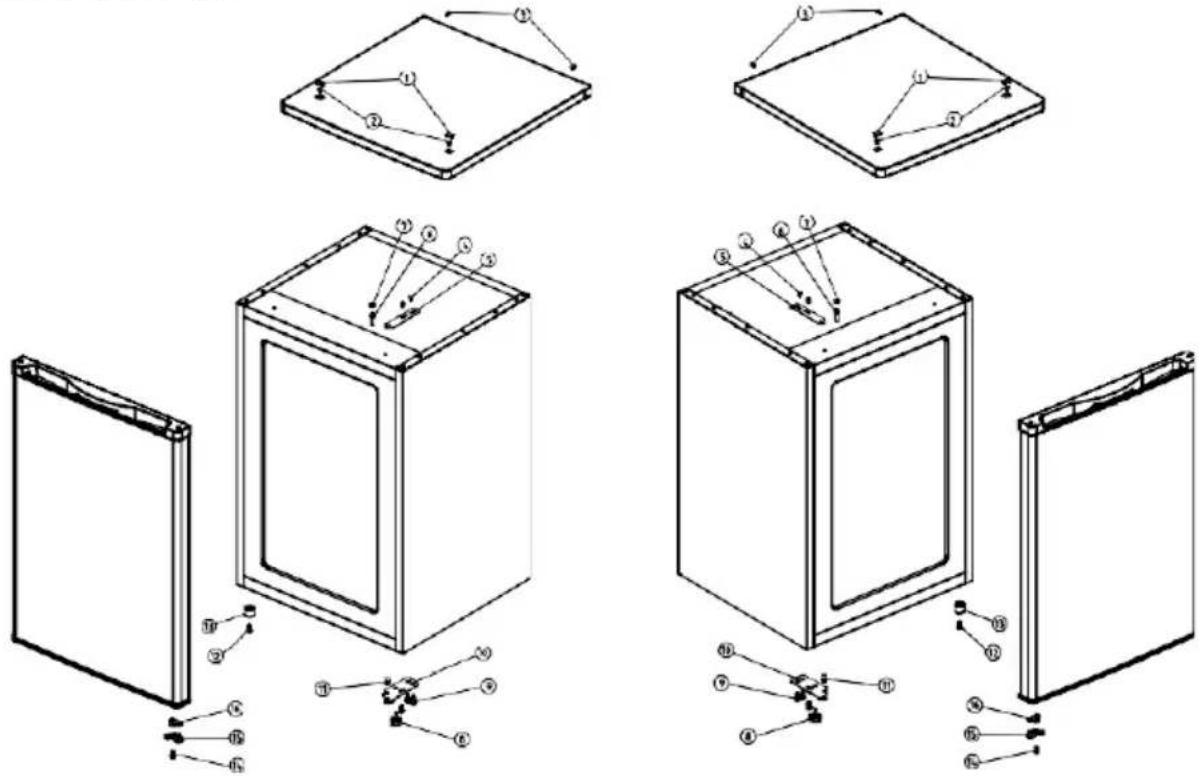

The refrigerator was built with the door hinges on the right. If you want to change the opening direction of the door, be sure to follow the following instructions:

1. Remove the cover (1). Remove the four screws (2) (3) and remove the

2. Remove the two screws (4) that hold the top hinge (5) and remove this

(5) and secure the pin (6) and nut (7).

4. Lift the door up and place it on a padded surface to avoid scratching it.

5. Remove the foot (8). Remove the three screws (9) that hold the bottom

hinge (10) and be sure to remove this bottom hinge (10).

6. Loosen the screw (12) and remove the foot (13), then move it to the right

7. Remove the pin (11) and reverse the direction of the bottom hinge (10).

Install the bottom hinge (10) in the left side with three screws (9). EN - 208. Insert the pin (11) on the bottom hinge (10).

9. Remove the hinge pin (14) (15) (16) located at the bottom of the door. On

the other side of the door, insert the replacement hinge pin that comes with this unit.

10. Put the door in place and make sure the door is securely fastened to the

11. Secure the top hinge (5) with two screws (4).

12. Secure the top cover with four screws (2) (3) then place the covers (1) on

the screws (2). figure 1 figure 2 Figure 1: the position of the components before the door inversion Figure 2: the position of the components after the door inversion If you also want to change the opening direction of the internal freezer compartment door, be sure to follow the instructions below:

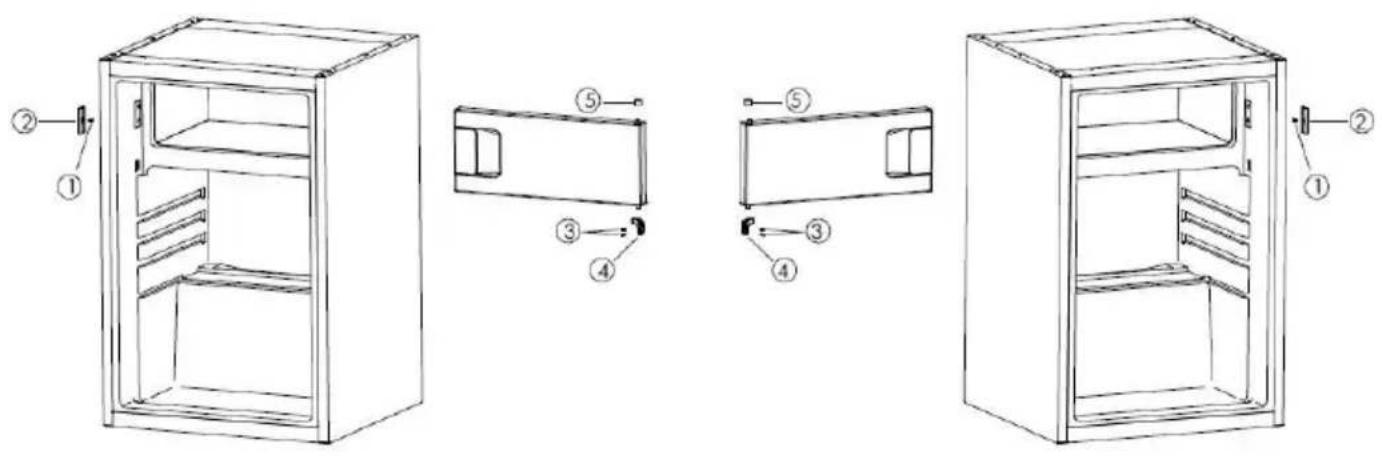

1. Remove the screw (1) and remove the lock button (2).

2. Remove the two screws (3) that hold the bottom axle cover (4) and

3. Remove the door and place it on a padded surface to avoid scratching it.

4. Remove the top axle cover (5) and move it to the opposite position.

5. Rotate the door 180 ° and place it on the top axle cover.

6. Secure the lower axle cover (4) with the two screws (3).

7. Secure the locking button (2) with a screw (1).

EN - 21figure 1 figure 2 Figure 1: the position of the components before the door inversion Figure 2: the position of the components after the door inversion

ADVICE - ENERGY SAVING

- Install the appliance in a cool, dry and suitably ventilated room. - Take care not to expose the device to direct sunlight and never place it near a direct source of heat (near a radiator, for example). - Never block the appliance's ventilation openings or grids. - Let the food cool before placing it in the appliance. - Place frozen products in the refrigerator to defrost them. - The low temperature of frozen products will help to cool the food in the refrigerator. - Do not leave the appliance doors open for too long when storing or removing food from the appliance. - When you freeze food or want to store it in the freezer, place it directly in the upper freezer compartment.

Symptom Reason Solution The device does not work No power supply Make sure the device is plugged in properly and the wall outlet is working normally The fuse has blown. Replace the fuse The device makes a lot of noise The device is not parallel to the ground. The appliance is too close to the wall or the interior accessories of the refrigerator are placed incorrectly. Stabilize the base of the refrigerator by adjusting the position of the feet. Move the device away from the wall. Correctly place the interior accessories of the refrigerator. The appliance does not reach the desired temperature. The door is opened too often or has been left open for a long time. Close the door and do not open it too frequently. The refrigerator is too close to the wall. Move the unit away from the wall to ensure proper. The refrigerator is too full. Remove food from the appliance. The temperature is incorrectly regulated. Turn the thermostat knob to position “3” or higher. The device emits bad odors. Food has expired inside the refrigerator. Throw away expired foods and wrap other foods. The interior of the appliance needs to be cleaned. Clean the inside of the appliance. If your device shows other symptoms than those described above, please call the authorized service center of the store or the dealer. The following symptoms are not failures:

1. The sound of coolant flowing through the pipes can be heard, this is normal.

2. Moisture on the exterior surface of the unit during wet seasons is not a

problem, just wipe the surfaces with a soft, dry cloth.

3. The compressor and condenser may heat up more during periods of high

4. The door frame is a little warm, it means the condenser is working to remove
