Brand	SIBIR
Model	Ideal eco Swiss
Product Type	Refrigerator
Dimensions (H x W x D)	85 x 55 x 55 cm
Weight	25 kg
Power Supply	220-240 V ~ 50 Hz
Energy Consumption	Class A+
Net Capacity	120 L
Cooling Type	Static
Defrost	Manual
Thermostat	Mechanical adjustment
Reversible Door	Yes
Interior Lighting	LED
Shelves	3 glass shelves
Door Bins	2 door bins
Vegetable Drawer	1 transparent bin
Noise Level	40 dB
Climate Class	N-ST
Recommended Ambient Temperature	16°C to 38°C
Cleaning and Maintenance	Clean with a soft cloth and warm soapy water. Defrost regularly.
Safety Instructions	Do not obstruct ventilation, do not use electrical appliances inside, observe spacing.
Repairability	Spare parts available on request

Frequently Asked Questions - Ideal eco Swiss SIBIR

What is the ideal temperature for my SIBIR Ideal eco Swiss refrigerator?

The ideal temperature is +4°C for food preservation. Use the built-in thermostat to set the temperature between +2°C and +8°C.

How do I defrost my refrigerator?

Unplug the appliance, remove food, and leave the door open. Wipe away melting water with a cloth. Do not use sharp objects to scrape frost.

Why is my refrigerator making noise?

A slight humming is normal due to the compressor. If the noise is loud, check that the appliance is level and not touching a wall.

How do I reverse the door opening direction?

The door is reversible. Refer to the manual to disassemble the hinges and reassemble the door on the other side. You will need a screwdriver.

Can I install the refrigerator in an unheated garage?

Yes, if the ambient temperature stays between 16°C and 38°C (climate class N-ST). Below that, the compressor may not work properly.

How do I clean the inside of the refrigerator?

Use a soft cloth moistened with warm water and mild soap. Rinse and dry. Avoid abrasive or ammonia-based cleaners.

What should I do if the refrigerator stops cooling?

Check that the appliance is plugged in and the thermostat is not set to '0'. Make sure the door closes properly and that the condenser at the back is dust-free.

Where can I find spare parts?

Contact SIBIR after-sales service or visit notice-facile.com to get the spare part references.

What is the capacity of the refrigerator?

The net capacity is approximately 120 liters, ideal for 1 to 2 people.

Can I freeze food in this refrigerator?

No, this model is a simple refrigerator without a freezer compartment. It is designed only for positive cold storage.

USER MANUAL Ideal eco Swiss SIBIR

Built-In refrigerator

IDEAL

Bedienungsanleitung

Mode d'emploi

Operating instructions

Inhaltsverzeichnis

Operating instructions

28 Introduction

28 Safety information and warnings

29 Operating and Control Panel

30 Freezing

30 Variable inner doors

30 Defrosting

31 Refrigerator

32 Cleaning

32 Tips

33 Replacing LED

33 Malfunctions

33 Guarantee

34 Operating noises

35 Installation / dimensions

2

Abtauen

3

Kühlraum

4a

4b

Reinigung

5

6

Störungen

①Touche principale En/Hors:

2

Dégivrage

3

4a

4b

Nettoyage

5

6

Pannes

2

Scongelamento

3

Vano frigorifero

4a

4b

Pulizia

5

6

Guasti

You are the owner of a modern and thus energy-saving refrigerator. Congratulations on your new appliance!

This refrigerator has been designed and manufactured to the latest European directives and in accordance with the latest national and international standards. By affixing the CE mark subsequent to inspection of the product by authorised testing agencies, the manufacturer confirms compliance with the relevant directives and standards for household refrigerator appliances and household refrigerator/freezer appliances.

Disposal of the old appliance

Old appliance should be rendered unserviceable immediately (e.g. cut off the power cable). Please ensure that the piping of your appliance is not damaged before it is transported to the proper environmentally-friendly disposal facility. For disposal of your old appliance, please contact the appropriate facilities of your local authorities. (Unfasten the hinges and remove the doors so that children playing cannot lock themselves in and be in mortal danger).

Disposal of the packing material

All packing materials used are environmentally compatible and recyclable.

Safety information and warnings

Before putting the appliance into service, please read carefully the information given in the operating instructions and keep them carefully for use by a later owner.

■Electrical safety must be ensured (contact safety) by the installation.
■This appliance is only for household use as described in the operating instructions.
■This appliance is not to be used by persons with reduced physical, sensory or mental capacity, or limited experience and understanding, other than when

they are supervised or instructed in how to use this appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

■If you have been supplied with a damaged appliance please contact your supplier immediately.
■Do not use an extension cable.
■Repairs and other service work must only be carried out by a service technician.
■When cleaning switch off the power supply; pull out the power supply plug or deactivate the fuse. Never pull the plug out of the socket by pulling on the cable or with wet hands. Always grip the plug itself and pull it straight out of the power supply socket.
■High proof alcohol must only be stored well sealed and upright; further, do not store explosive materials in the appliance. Explosion danger!
■This appliance is CFC and FC-free and contains small quantities of isobutane (R600a), an environmentally-friendly coolant.
■When operating the appliance, care must be taken that the cooling circuit does not get damaged. Should the cooling circuit get damaged then keep it clear of open fires and any type of ignition source. The room in which the appliance is located should be ventilated for a few minutes.
■Appliance with a damaged cooling circuit must not be put into operation.
■When the appliance is in operation care must be taken that the ventilation vents are not covered over or closed.
■No mechanical devices or synthetic materials other than those recommended must be used to accelerate defrosting.
■No liability will be accepted for any possible damage if the appliance is used for

any other purpose, incorrectly operated, or not repaired by a professional technician. In such cases the guarantee and other liabilities are rendered null and void.

■If the connection cable of the appliance is damaged it must be replaced by the manufacturer or by his customer service or by a similarly qualified person to avoid any liability.
■Warning: do not operate any electrically-driven devices inside the foodstuff compartment.

Operating and Control Panel

①Main switch on / off:

Entire appliance: on / off.

Child safety: the switch must be pressed for at least 3 seconds.

②Temperature indicator:

A value of the average temperature over the last 2 hours is shown.

③Temperature setting:

Two buttons: + button warmer, - button colder. Press the switch for at least 3 seconds.

④Rapid cooling button:

Press the switch for 3 seconds. The appliance cools down first to 2 °C for 36 hours in the cold room, and then back to the set temperature. Normal position: 5 °C.

⑤Open door warning for cold room

After 2 minutes the LED flashes at 15 second intervals; reset by pressing any button.

After 3 minutes the LED flashes at 5 second intervals; reset by pressing any button.

After 4 minutes the LED flashes rhythmically at a one second frequency; reset by pressing any button.

After 10 minutes an alarm sounds; reset by pressing the alarm acknowledgement. Duration 3 minutes, repeats after 30 minutes.

Freezing

■Only fresh produce is suitable for freezing. ■Only small quantities should be frozen at one time and the rapid cooling button should be activated (see operating and control panel) so that the temperature in the freezer does not increase too much. The maximum quantity (2 kg) should be frozen on the bottom of the compartment. For freezing the maximum quantity please activate the rapid cooling button 12 hours before put in produce to be frozen. Leave the temperature in the normal operating position, about 5°C. it is the best to prepack small portions only.

■The electronics sense that products need to be frozen and the process control is carried out automatically. Leave the temperature control in the normal operating position, about 5 °C.

■Products for freezing should not be brought into contact with products which are already frozen. Products which have been thawed out must not be re-frozen because foodstuffs can spoil.

Variable inner doors

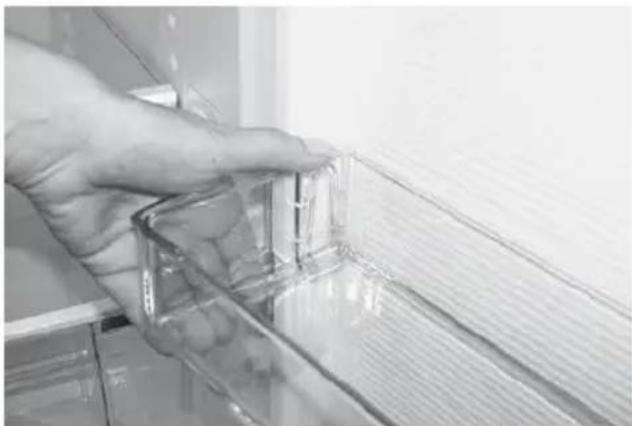

The cover inserts (Figure 2) in the inner doors can be adjusted somewhat and offer the option of a customized setting. To change the location of the inserts and bottle holder: first lift upwards and lift out, then set the required height and replace in the reverse sequence. Please note that the location of the cover of the uppermost cover cannot be adjusted.

2

Defrosting

The cold room defrosts automatically. Ice which has formed on the back wall is melted (about once per day, see also the tips). The water flows out of the drainage channel (Figure ③) and evaporates from the collection dish outside the appliance.

Be sure to keep the collection channel and the drainage channel clean, so that the melted water can flow out easily. Clean out the drainage channel with the green cleaner provided using an up-and-down and turning motion.

Defrost the freezer compartment if the ice formation becomes excessive. A thick coating of ice reduces the effectiveness of the cold transfer to the frozen products.

Keep the frozen products as cold as possible and well insulated during the defrosting time, e.g. pack them in newspaper.

- Turn off the appliance by using the main switch (3 sec.)

- Leave the doors open.

Defrosting can be accelerated significantly if you place a bowl of hot water in the freezer compartment. Attention: do not use sharp implements to remove ice or anything hard frozen. Do not use an electrical heater or an open flame for defrosting.

• After defrosting clean the interior and dry it thoroughly.
• Turn on the appliance by using the main switch (3 sec.)

3

Cold room

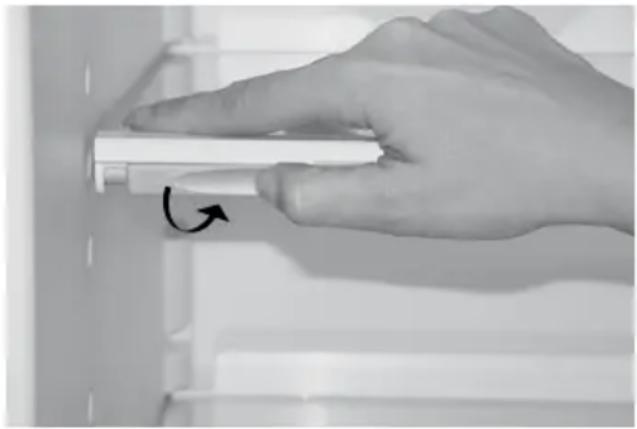

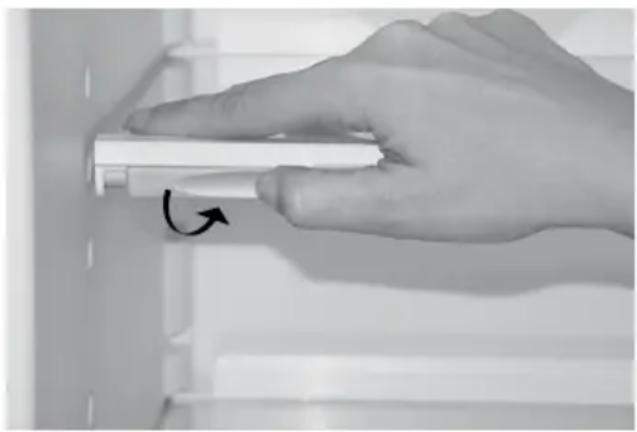

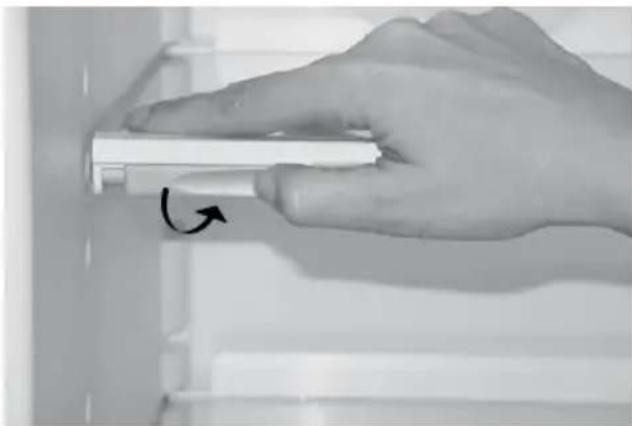

The height of the glass shelves can be adjusted individually. Pulling both holders sideways inwardly (Figure 4a) and for fixation turn them down and backwards (Figure 4b). Pull the glass shelf out of the guidance and replace it in reversed order at the desired position.

4a

4b

Cleaning

The appliance is to be kept clean for the hygienic storage of foodstuffs. It should be washed out from time to time with a mild soapy solution and then dried. An occasional wiping with a vinegar solution suppresses odours and is recommended. Keeping the door seals clean stops them from sticking and thus avoids them being damaged.

No scouring cleaners or scratching cloths are to be used. Clean the door seals with a soft brush. If the appliance has not been used for some time, turn off by using the main switch (3 sec.). Empty the appliance, defrost it, clean, and then leave the cold room as well as the freezer compartment open.

• For cleaning the control element please use only a humid flannel.
• Be careful that as little cleaning water as possible goes though the drainage channel into the collection dish.
• Before being put back in use, the appliance and the seals of the cold room and the freezer must all be completely dry.

Tips

The following points should be noted when using the new appliance:

■The appliance should not be installed near heaters, radiators, or smoke ventilators, and should be protected from direct sunshine.
■A appliance which has just been put into use needs approx. 15 hours (with products) until it has reached its normal operating temperatures.
- Keep the appliance doors open for as short a time as possible. If the doors are open for longer than 2 minutes then the

lamp starts to flash. Make sure after closing that the doors are fully sealed. The self-closing hinges assist this.

■The cooling time for beverages and other products can take up to 6 hours from room temperature down to the cold room temperature. The warmer they are when put in, the longer this time will be.
■Re-setting the temperature control has no effect on the cooling rate, only on the temperature reached.
■Allow warm or really hot products cool down outside the appliance.
■Condensation can form on the glass shelves if products are stored which emit water vapour.
■The electronic control defrosts the cold room only about once per day. A cat ice may be visible oftentimes at the back board of the cold room – this is though normal.
■Be careful that products do not come into contact with the rear wall of the cold room so that they do not freeze to it and that, during defrosting, water does not get diverted into the cold room.

■When filling be careful that:

• Oil and fats do not come into contact with the polymer parts and the door seals.
• The coldest locations in the cold room for any setting of the temperature controller are at the back wall and above the lowest shelf. Sensitive products should therefore be put on the lowest shelf.

■Example of how to use:

• Freeze and store foodstuffs and make ice in the freezer compartment.
• On the shelves from top to bottom:

baked products, ready-made meals, dairy products, meat and sausages.

- In the suspended trays from top to bottom: butter and cheese, tubes, small cans and eggs, large bottles.

– In the vegetable compartment: vegetables, fruit and salad.

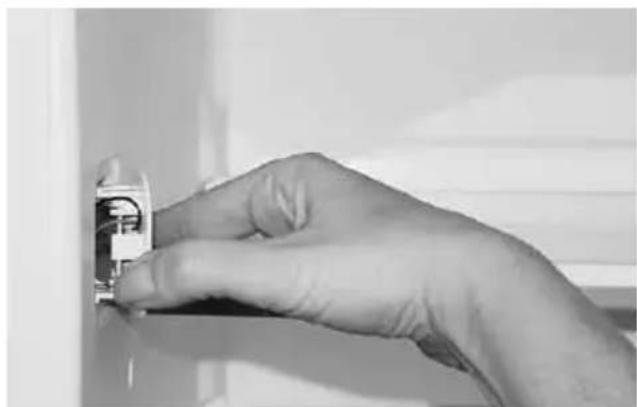

Changing the LED lighting Switch off the power supply: pull out the power supply plug or deactivate the fuse.

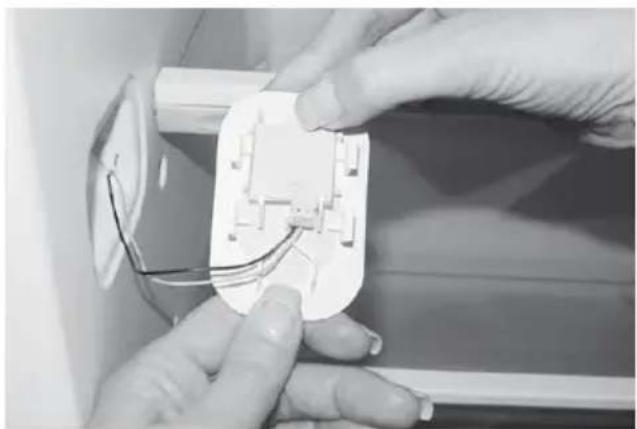

Click off the LED lighting (Figure 5). Disconnect the plug to the LED lighting (Figure 6). Please insert the new LED lighting in the reverse sequence.

N.B.: Please only use original LED lighting from the manufacturer.

5

6

Malfunctions

The appliance is checked for trouble-free operation before being supplied. Should you have any problems please contact your nearest service facility, advising them of the model number and the details of the problem. A malfunction can occur if the electrical fuse is tripped. This problem can be solved easily if the fuse mechanism is re-activated.

Display following power failure

After interruption on the power supply the temperature display flashes and shows the temperature value that measured after restart. You can stop the temperature display flashing by pressing any button. The current average temperature value is then displayed.

Sensor error functions:

- Sensor error F1 on the left-hand side of temperature display = temperature sensor in the cold room is defective

- Sensor error F7 on the right-hand side of temperature display = surrounding room temperature sensor defective

Guarantee

We warrant the guarantee as of the delivery date of the appliance to the end user.

Any malfunctions which might occur during this time despite correct operation and which are caused by material or construction errors will be corrected under this guarantee by our customer service.

Not covered by the guarantee:

- LED defects

- Breakage of the glass shelves or polymer parts

– Defects resulting from not following the operating instructions or incorrect usage

– Damage claims beyond the guarantee

– Appliance which have been repaired by third parties.

Operating Noises

Noises which are entirely normal

The chill cabinet is cooled by a compressor (refrigeration aggregate). The compressor pumps coolant through the cooling system, producing operating noises. Even when the compressor cuts out, noises caused by changes in temperature and pressure are unavoidable.

This appliance is fitted with a quiet compressor and a low-noise cooling circuit designed in line with the latest technical developments.

However, a certain level of noise, dependent on the size of the appliance, is inevitable. Operating noise will be most audible immediately after the compressor cuts in. It becomes quieter as the operating period continues.

Noises which are not normal

Unusual noise is normally the result of improper installation. The appliance must be installed or built-in so that it is level and stable. Under no circumstances must tubing come into contact with a wall, other furniture or with another tubing.

Where the appliances are installed in open-plan kitchens or in partition walls, the level of operating noise will be heard more acutely. However, this is due to the surrounding architecture and not to a fault with the appliance.

Description Cause Notes

Droning Cooling aggregate		Normal operating noise of the cooling aggregate. The level is dependent on the size of appliance.
Humming	Fan	Normal operating noise of the fan.
Gurgling BabblingMurmuring	Cooling circuit	Normal operating noise as coolant flows through the circuit.
Hissing	Cooling circuit	Normal operating noise as coolant is injected into the condenser.
Rattle	Shelves, contents	Arrange the shelves and contents so that they are fixed and not touching one another.
Cracking	Housing	Normal as materials expand and contract caused by temperature variations (e.g. plastics, insulation).

Electrical safety (shock-hazard protection) must be effected as part of the installation procedure.

If the power point is no longer accessible once the appliance is in place, a current breaker must be provided on installation. Current breakers are switches with a contact opening of at least 3 mm, including LS switches and fuses as well as contactors.

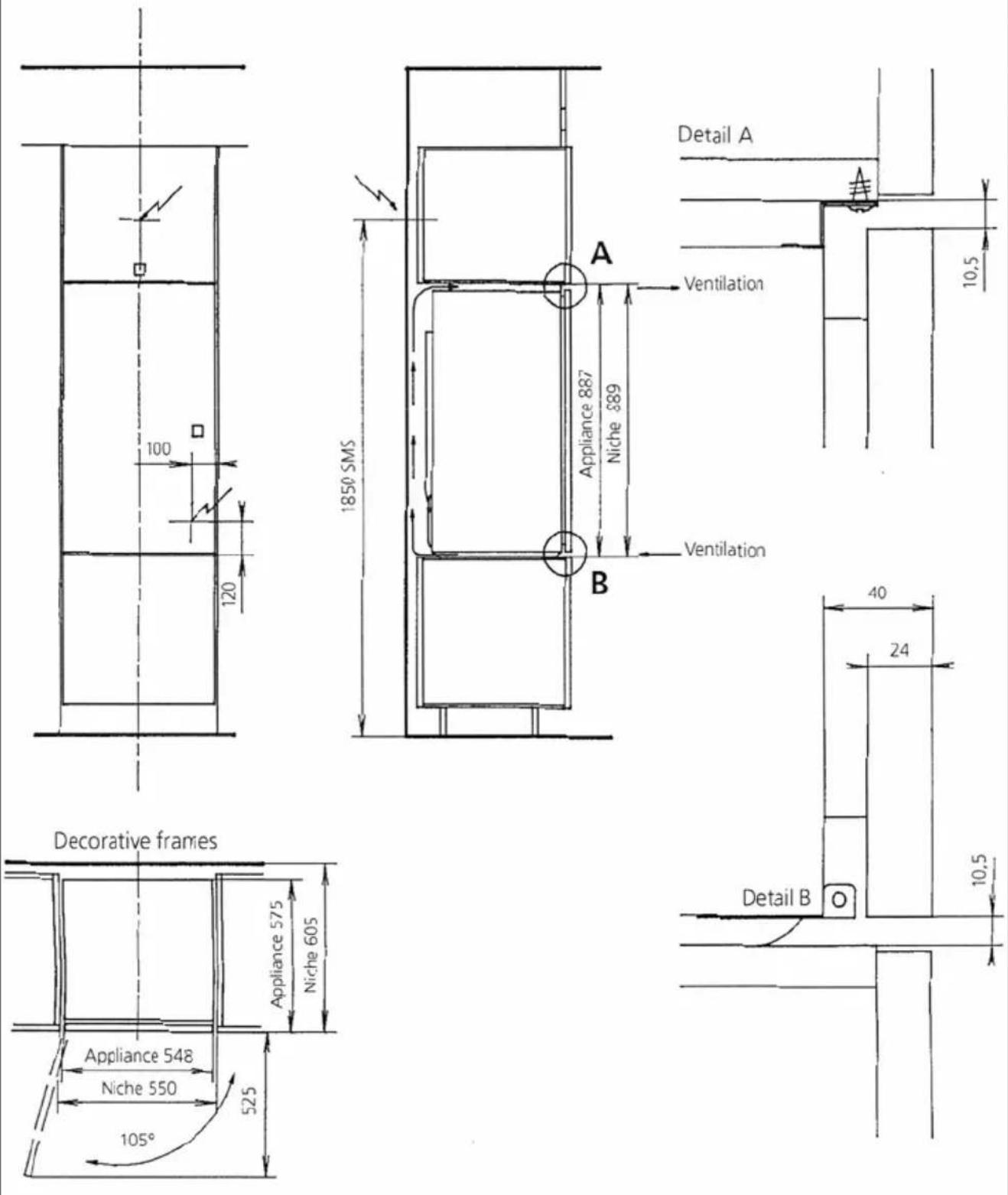

Built-in Refrigerator Niche SMS 7/6 (889 mm) with front ventilation
