USER MANUAL CMCCSL621 Craftsman

English (original instructions) 1

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

D. IGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

W: NING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAITON: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

(Used without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Fig. A

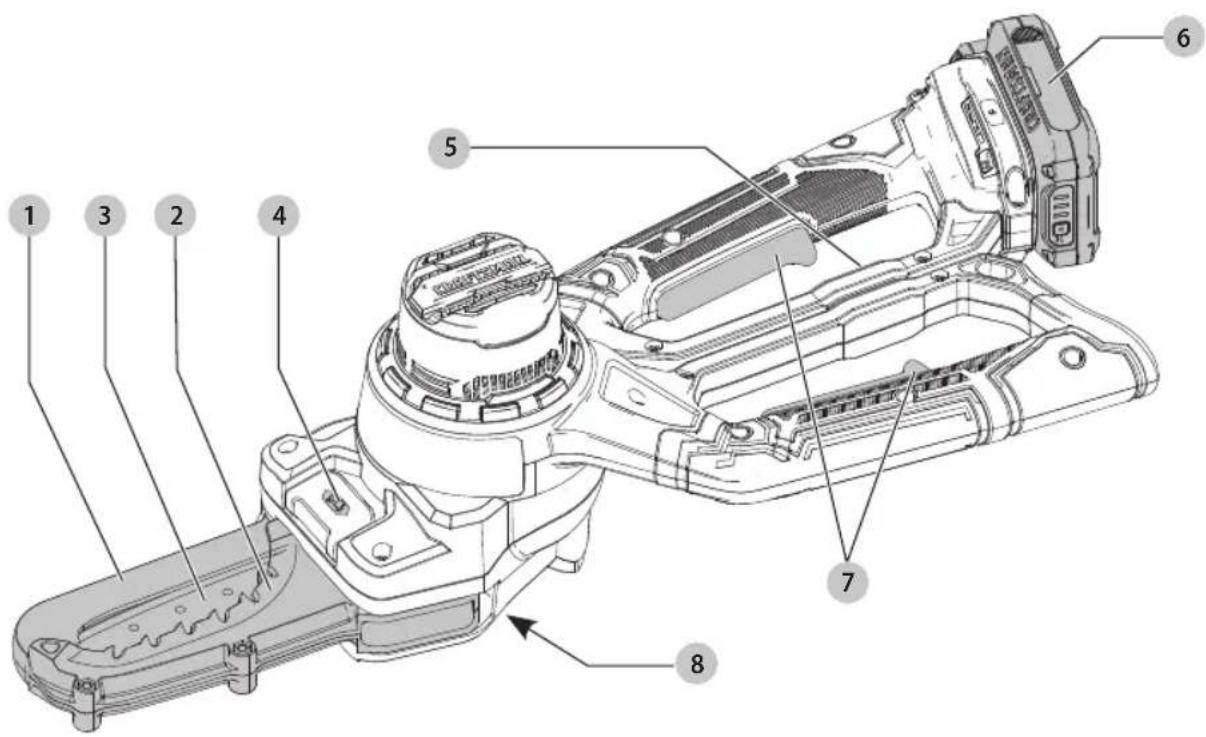

COMPONENTS

1 Top chain cover jaw
2 Lower guard jaw
3 Chain guide bar
4 Oiling cover
5 Latch
6 Battery pack
7 On/Off switch actuators
8 Chipping ejection point

WARNING: Read all safety warnings and all

Instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: Never modify the product or any part of it. Damage or personal injury could result.

WARNING: To reduce the risk of injury, read the instruction manual.

If you have any questions or comments about this or any product, call CRAFTSMAN toll free at: 1-888-331-4569.

20V Max* Chainsaw Lopper CMCCSL621

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce risk of injury:

• Before any use, be sure everyone using this unit reads and understands all safety instructions and other information contained in this manual.
• Save these instructions and review frequently.

WARNING: When using electric gardening appliances, basic safety precautions should always be followed to reduce risk of fire, electric shock, and personal injury, including the following.

READ ALL INSTRUCTIONS

1. Avoid Dangerous Environments - DO NOT use appliances in damp or wet locations. DO NOT operate portable electric appliances in gaseous or explosive atmospheres. Motors in these appliances normally spark, and the sparks might ignite fumes.

2. Don't Use In Rain.

3. Keep All Bystanders Away - at a safe distance from work area, especially children.
4. Dress Properly - Do not wear loose clothing or jewelry. They can be caught in moving parts. Gloves and substantial rubber soled footwear are recommended when working outdoors. Wear protective hair covering to contain long hair.
5. Always Wear Eye Protection - Wear ANSI Z87.1 approved eye protection at all times when battery is installed. Also use face or dust mask. Safety glasses are available at extra cost at your local Service Center or authorized service facility.
6. Use Right Appliance - Do not use appliance for any job except that for which it is intended.
7. Avoid Accidentally Starting - Don't carry with finger on trigger when battery is installed.
8. Don't Force Appliance - It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.
9. Don't Overreach - Keep proper footing and balance at all times.
10. Stay Alert - Watch what you are doing. Use common sense. DO NOT operate while under the influence of alcohol or drugs, or when you are tired or ill.
11. Disconnect Appliance - Remove the battery when not in use, before servicing, when changing accessories such as blades, and the like.
12. Store Idle Appliances Indoors - When not in use, appliances should be stored indoors in dry, and high or locked-up place - out of reach of children.
13. Maintain Appliance With Care - Keep cutting edge sharp and clean for best performance and to reduce

the risk of injury. Follow instructions for lubricating and changing accessories. Inspect appliance cord periodically, and if damaged, have it repaired by an authorized service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean, and free from oil and grease.

1. Check Damaged Parts - Before further use of the appliance, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated elsewhere in this manual.
2. Damage to Unit - If you strike or become entangled with a foreign object, stop appliance immediately, remove battery, check for damage and have any damage repaired before further operation is attempted.
3. Guard - Do not use this appliance without guard attached. Keep guards in place and in working order.
4. DO NOT immerse appliance in water or squirt it with a hose. DO NOT allow any liquid to get inside it. If appliance does get wet, allow to dry for a minimum of 48 hours.
5. DO NOT store the appliance on or adjacent to fertilizers or chemicals.
6. DO NOT clean with a pressure washer.
7. DO NOT charge appliance in rain, or in wet locations.
8. DO NOT use battery-operated appliance in rain.
9. Remove or disconnect battery before servicing, cleaning or removing material from the gardening appliance.

Additional Safety Instructions for the Lopper

a) Keep all parts of the body away from the saw chain when the lopper is operating.
b) Before you start the lopper, make sure the saw chain is not contacting anything. A moment of inattention while operating loppers may cause entanglement of your clothing or body with the saw chain.
c) Hold the power tool by insulated gripping surfaces only, because the saw chain may contact hidden wiring. Saw chains contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
d) Wear safety glasses and hearing protection. Further protective equipment for head, hands, legs and feet is recommended. Adequate protective

clothing will reduce personal injury by flying debris or accidental contact with the saw chain.

e) Do not operate a lopper in a tree. Operation of a lopper while up in a tree may result in personal injury.
f) Always keep proper footing and operate the lopper only when standing on fixed, secure and level surface. Slippery or unstable surfaces such as ladders may cause a loss of balance or control of the lopper.
g) When cutting a limb that is under tension be alert for spring back. When the tension in the wood fibres is released the spring loaded limb may strike the operator and/or throw the lopper out of control.
h) Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain and be whipped toward you or pull you off balance.
i) Carry the lopper by the handle with the lopper switched off and away from your body. When transporting or storing the lopper always fit the guide bar cover.
j) Proper handling of the lopper will reduce the likelihood of accidental contact with the moving lopper.
k) Follow instructions for lubricating, chain tensioning and changing accessories.
1) Improperly tensioned or lubricated chain may either break or increase the chance for kickback.
m) Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery causing loss of control.
n) Cut wood only. Do not use lopper for purposes not intended. For example: do not use lopper for cutting plastic, masonry or non-wood building materials. Use of the lopper for operations different than intended could result in a hazardous situation.

Causes and Operator Prevention of Kickback

a) Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.
b) Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator.
c) Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator.
d) Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw. As a lopper user, you should take several steps to keep your cutting jobs free from accident or injury.

e) Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:
f) Maintain a firm grip, with thumbs and fingers encircling the lopper handles, with both hands on the saw and position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the lopper.
g) Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the lopper in unexpected situations.
h) Only use replacement bars and chains specified by the manufacturer. Incorrect replacement bars and chains may cause chain breakage and/or kickback.
i) Follow the manufacturer's sharpening and maintenance instructions for the saw chain.
j) Decreasing the depth gauge height can lead to increased kickback.

Specific Safety Instructions for the Lopper

WARNING: Never use the tool above shoulder height.
Aligns position yourself out of the path of falling branches and debris.

ING: Do not use this tool to fell trees.

• Pre-plan a safe exit from falling branches and debris. Ensure the exit route is clear of obstacles that would prevent or hinder movement. Remember wet grass and freshly cut bark is slippery.
• Be aware of the direction that a branch may fall. Consider all conditions that may affect the direction of fall, including:

The intended direction of fall.
- The natural lean of the branch.
- Any unusual heavy limb structure or decay.
- Surrounding trees and obstacles including overhead lines.
The wind speed and direction.

• The safe distance between a branch and debris to be felled and bystanders, buildings and other objects is at least 2 1/2 times the length of the branch. Any bystander, building or object within this distance is at risk from being struck by the falling branch.
• When cutting a limb that is under tension be aware of spring back. When the tension in the wood fibres are released the spring loaded limb may strike the operator and/or throw the tool out of control.
• Always wear suitable safety equipment such as non-skid heavy-duty shoes, goggles, ear protection and gloves when operating the tool.
• Ensure someone is nearby (at a safe distance) in case of an accident.

ENGLISH

• Do not attempt to operate the tool when in a tree, on a ladder or standing on any other unstable support.
• Keep proper footing and balance at all times.
• Hold the tool firmly with both hands when the motor is running.
• Keep handles dry, clean and free from oil and grease. Greasy oily handles are slippery causing loss of control.
• Do not let the moving chain contact any object at the tip of the guide bar.
• Keep your saw chain properly tensioned. Check tension at regular intervals with the motor stopped and battery disconnected.
• Begin and continue cutting only with the chain moving at full speed.
• Watch for shifting branches or other forces that could close a cut and pinch or fall into the chain.
• Use extreme caution when re-entering a previous cut. Engage spikes on lower jaw into wood and allow the chain to reach full speed before proceeding with cut.
• Use of this tool for operation different to those intended could result in hazardous situations. Cut wood only. Don't use this tool for purposes not intended for example. Don't use tool for cutting plastic, masonry or non-wood building materials.
• If any debris gets caught with the guard or tool discontinue use, remove the battery and clear debris.
• Worn chains and chain guide bars should be replaced.
• Only use replacement bars and chains specified by the manufacturer.
• This saw is intended for infrequent use by homeowners, cottagers, and campers, and for such general applications as clearing, pruning, cutting firewood, etc. It is not intended for prolonged use.

Prolonged periods of operation can cause circulatory problems in the user's hands due to vibration. For such use, it may be appropriate to use a saw having an antivibration feature.

Kickback Safety Features

Guard against kickback. Kickback is the upward motion of the guide bar that occurs when the saw chain, at the nose of the guide bar, contacts an object. Kickback can lead to dangerous loss of control of the chainsaw.

WARNING: The following features are included on your opener to help reduce the hazard of kickback; however such features will not totally eliminate this dangerous reaction. As a chainsaw user do not rely only on safety devices. You must follow all safety precautions, instructions, and maintenance in this manual to help avoid kickback and other forces which can result in serious injury.

Top Jaw

This has been designed specifically to cover the tip of the chain bar where the danger zone for kickback occurs. In the event of any kickback the guard also helps reduce the risk of the chain coming into contact with the operator.

Electrical Safety

This tool and charger is double insulated; therefore no grounding wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

Additional Safety Information

WARNING: ALWAYS use safety glasses. Everyday glasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

ANSI Z87.1 eye protection (CAN/CSA Z94.3)
ANSI S12.6 (S3.19) hearing protection,
- NIOSH/OSHA/MSHA respiratory protection.

WARNING: Some dust created by power sanding, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,
  crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals.

WARNING: Use of this tool can generate and/ or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.

WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19)

during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

CAUTION: When not in use, place tool on its surface in a stable surface where it will not cause a tripping or falling hazard. Some tools will stand upright but may be easily knocked over.

Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V .volts .wearrespiratory

Hz.....hertz protection

min.........minutes

=or DC....direct current

Class Construction wearhearing (grounded) protection

..min..per minute

BPM... .beats per minute

IPM............impacts per minute

RPM... revolutionsperr minute

sfpm.....surface feet per minute

SPM......... strokes per minute

OPM. oscillations per minute

A. amperes

W... .watts

or AC....alternating current

or AC/DC....alternatingordirect current

Classll Construction (double insulated)

no .no load speed n..rated speed

...earthing terminal

A. ... safety alert symbol

A.........visible radiation

avoid staring at light

Chainsaw Names and Terms

Bucking: The process of cross cutting a felled tree or log into lengths.

Chain brake: A device used to stop the chainsaw.

Chainsaw powerhead: A chainsaw without the saw chain and guide bar.

Clutch: A mechanism for connecting and disconnecting a driven member to and from a rotating source of power.

Drive sprocket or sprocket: The toothed part that drives the saw chain.

Felling: The process of cutting down a tree.

Felling back cut: The final cut in a tree felling operation made on the opposite side of the tree from the notching cut.

Guide bar: A solid railed structure that supports and guides the saw chain.

Kickback: The backward or upward motion, or both of the guide bar occurring when the saw chain near the nose of the top area of the guide bar contacts any object such as a

log or branch, or when the wood closes in and pinches the saw chain in the cut.

Kickback, pinch: The rapid pushback of the saw which can occur when the wood closes in and pinches the moving saw chain in the cut along the top of the guide bar.

Kickback, rotational: The rapid upward and backward motion of the saw which can occur when the moving saw chain near the upper portion of the tip of the guide bar contacts an object, such as a log or branch.

Low-kickback chain: A chain that complies with the kickback performance requirements of ISO 9518: 1998 (when tested on a representative sample of chainsaws.)

Normal cutting position: Those positions assumed in performing the bucking and felling cuts.

Reduced kickback guide bar: A guide bar which has been demonstrated to reduce kickback significantly.

Replacement saw chain: A chain that complies with kickback performance requirements of ISO 9518: 1998 when tested with specific chainsaws. It may not meet the ANSI performance requirements when used with other saws.

Saw chain: A loop of chain having cutting teeth, that cut the wood and that is driven by the motor and is supported by the guide bar.

Switch: A device that when operated will complete or interrupt an electrical power circuit to the motor of the chainsaw.

Switch linkage: The mechanism that transmits motion from a trigger to the switch.

BATTERIES AND CHARGERS

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging procedures outlined. When ordering replacement battery packs, be sure to include the catalog number and voltage.

READ ALL INSTRUCTIONS

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings, instructions, and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust or fumes.

• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into

English

a non-compatible charger as battery pack may rupture causing serious personal injury.

• Charge the battery packs only in CRAFTSMAN chargers.
  DO NOT splash or immerse in water or other liquids.
• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104^ (40^) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, dry location.

NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ON position.

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs are burned.
• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.
• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.

WARNING: Burn hazard. Battery liquid may be flammable if exposed to spark or flame.

WARNING: Fire hazard. Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center for recycling.

Storage Recommendations

1. The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold.
2. For long storage, it is recommended to store a fully charged battery pack in a cool dry place out of the charger for optimal results.

NOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use.

Battery Pack Cleaning Instructions

1. Dirt and grease may be removed from the exterior of the battery using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

The RBRC Seal

The RBRC^® (Rechargeable Battery Recycling Corporation) Seal on the nickel cadmium, nickel metal hydride or lithium-ion batteries (or battery packs) indicates that the costs to

recycle these batteries (or battery packs) at the end of their useful life have already been paid by CRAFTSMAN. In some areas, it is illegal to place spent nickel cadmium, nickel metal hydride or lithium-ion batteries in the trash or municipal solid waste stream and the Call 2 Recycle® program provides an environmentally conscious alternative.

Call 2 Recycle, Inc., in cooperation with CRAFTSMAN and other battery users, has established the program in the United States and Canada to facilitate the collection of spent nickel cadmium, nickel metal hydride or lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC is a registered trademark of Call 2 Recycle, Inc..

Transportation

WARNING: Fire hazard. Do not store or carry the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc. Transporting batteries can possibly cause fires if the battery terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the like. The US Department of Transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes in carry-on baggage UNLESS they are properly protected from short circuits. So when transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: LI-ION batteries should not be put in checked baggage.

Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings, instructions, cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

DO NOT attempt to charge the battery pack with any chargers other than a CRAFTSMAN charger. CRAFTSMAN charger and battery pack are specifically designed to work together.
- These chargers are not intended for any uses other than charging CRAFTSMAN rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution.
- Do not expose the charger to rain or snow.
- Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug and cord.

• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock or electrocution.
• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet(meters)
120 V 25 (7.6)		50 (15.2)	100 (30.5)	150 (45.7)
240 V 50 (15.2)		100 (30.5)	200 (61.0)	300 (91.4)
Ampere Rating		American Wire Gauge
More Than	Not More Than
0 6 18	16 16 14
6 10 18	16 14 12
10 12 16	16 14 12
12 16 14	12 Not Recommended

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.
• Do not operate the charger with a damaged cord or plug—have them replaced immediately.
• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized service center.
• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.
  NEVER attempt to connect 2 chargers together.
  The charger is designed to operate on standard 120V household electrical power. Do not attempt to

use it on any other voltage. This does not apply to the vehicular charger.

WARNING: Shock hazard. Do not allow any liquid to get inside the charger. Electric shock may result.
WARNING: Burn hazard. Do not submerge the battery pack in any liquid or allow any liquid to enter the battery pack. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling.
CAUTION: Burn hazard. To reduce the risk of injury, charge only CRAFTSMAN rechargeable battery packs. Other types of batteries may overheat and burst resulting in personal injury and property damage.
CAUTION: Under certain conditions, with the charger plugged into the power supply, the charger can be shorted by foreign material. Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting to clean.

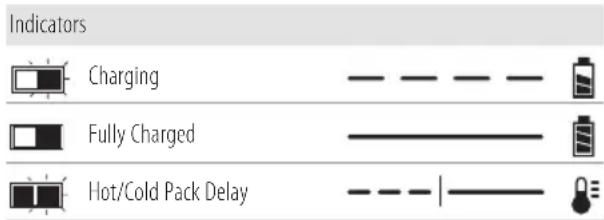

Charging a Battery

NOTE: To ensure maximum performance and life of lithium-ion battery packs, charge the battery pack fully before first use.

1. Plug the charger into an appropriate outlet before inserting battery pack.
2. Connect the charger and battery pack, making sure the battery is fully seated. The (charging) light will blink continuously indicating that the charging process has started.
3. The completion of charge will be indicated by the light remaining ON continuously. The battery pack is fully charged and may be removed and used at this time or left in the charger.

NOTE: To remove the battery pack, some chargers require the battery pack release button to be pressed.

A charger will not charge a faulty battery pack. The charger refusing to light could indicate a problem with the charger.

NOTE: If the charger refuses to light, take the charger and battery pack to be tested at an authorized service center.

Hot/Cold Pack Delay

When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically

English

switches to the pack charging mode. This feature ensures maximum battery pack life.

A cold battery pack may charge at a slower rate than a warm battery pack.

Important Charging Notes

1. Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 65^ - 75^ (18^ - 24^) . DO NOT charge when the battery pack is below +40^ (+4.5^) , or above +104^ (+40^) . This is important and will prevent serious damage to the battery pack.
2. The charger and battery pack may become warm to the touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulated trailer.
3. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance;
b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights;
c. Move the charger and battery pack to a location where the surrounding air temperature is approximately 65^ - 75^(18^ - 24^)
d. If charging problems persist, take the tool, battery pack and charger to your local service center.

1. The battery pack should be recharged when it fails to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse effect on the battery pack.
2. Foreign materials of a conductive nature such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting to clean.
3. Do not freeze or immerse the charger in water or any other liquid.

Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

Wall Mounting

These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount

the charger securely using drywall screws (purchased separately) at least 1^ 25.4 mm long, with a screw head diameter of 0.28-0.35"7-9mm), screwed into wood to an optimal depth leaving approximately 7 / 32" 5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in the slots.

VersatrackTM

CRAFTSMAN chargers can be mounted to the wall using CRAFTSMAN VersatrackTM Trackwall. Hooks and accessories are sold separately. Please refer to the VersatrackTM Trackwall accessory sheet for further information.

SAVE THESE INSTRUCTIONS FOR FUTURE USE

COMPONENTS (FIG. A)

Intended Use

Your CRAFTSMAN chainsaw lopper has been designed for pruning trees and cutting small logs up to 4^ (100 mm) in diameter. This tool is intended for consumer use only.

DO not use under wet conditions or in presence of flammable liquids or gases.

DO not let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can cause injury.

WARNING: Read and understand all instructions. To me to follow all instructions listed below may result in electric shock, fire and/or serious personal injury

WARNING: Sharp moving blade. To prevent accidental operation, ensure that battery is removed from the tool before performing the following operations. Failure to do this could result in serious personal injury.

WARNING: Sharp moving blade. Always wear protective gloves when installing or removing the chain. The chain is sharp and can cut you when it is not running.

Chain Tension Adjustment

WARNING: Before chain or other adjustments, ensure that battery is removed from the tool.

If the chain cannot be correctly tensioned, it may need to be replaced. Contact your nearest service center.

The product comes already assembled. However we recommend that you check the tension of the chain, and chain retention bolts before use and, if required, adjust.

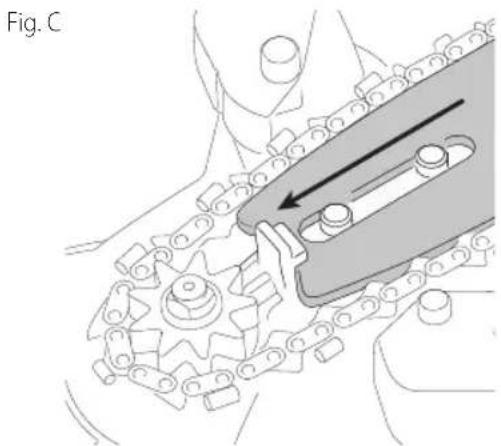

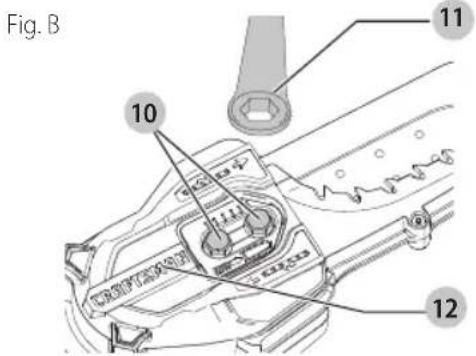

Checking and Adjusting the Chain Tension (Fig. B, C)

To tension the chain loosen the two chain cover retention bolts 10 on the chain saw chain access cover 12 with the wrench 11 and the automatic chain tensioning device will push the chain bar out, setting the correct tension. Retighten the two retention bolts securely.

Check that the correct tension has been set by lightly pulling on the chain. The tension is correct when the chain snaps back after being pulled 1/8 (3 mm) away from the guide bar. There should be no "sag" between the guide bar and chain on the underside.

NOTE: Do not over tension the chain as this will lead to excessive wear and reduce the life of the bar and chain. It will also lead to reduced product performance.

NOTE: With first use and when the chain is new, check tension frequently as a new chain stretches slightly.

Replacing the Chain and Chain Bar

After prolonged use the chain and/or chain bar may need replacing.

Low-Kickback saw chain is a chain which has met the kickback performance requirements of ISO 9518: 1998 when tested on the representative sample of chain saw.

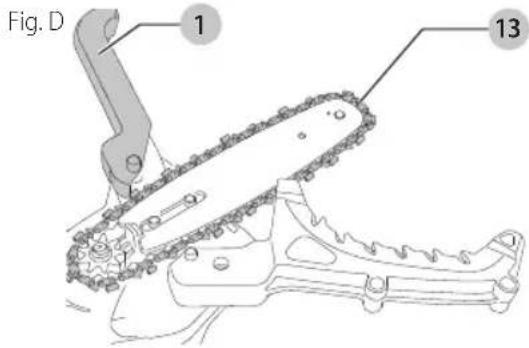

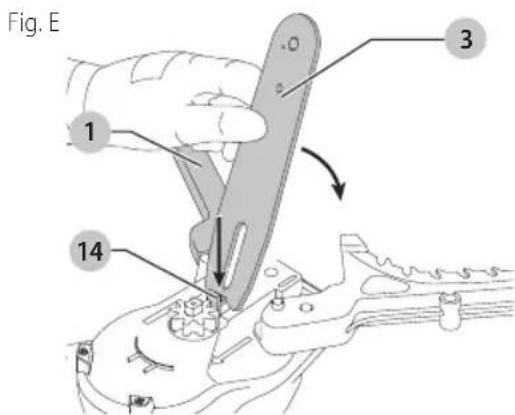

Removing the Saw Chain and Chain Bar (Fig. B, D, E)

WARNING: Before chain or other adjustments, ensure the battery is removed from the tool.

WARNING: Laceration hazard. Always wear protective gloves when installing or removing the

chain. The chain is sharp and can cut you when it is not running.

WARNING: Burn hazard. The chain guide bar and chain may become hot during use. Allow to cool before adjustment or removal.

1. Place the tool on a firm surface.
2. Rotate the two retention bolts 10 counter clockwise with wrench 11 provided and remove completely.
3. Remove the chain access cover 12.
4. Open the handles and pull back the top chain cover jaw 1.
5. Pull back chain guide bar 3 and then lift the saw chain 13 out of the groove 14 in the guide bar. The chain can then be removed from the unit.
6. The chain bar can then be angled up.

Assembling the Chain Bar and Saw Chain (Fig. B, D-F)

WARNING: Before chain or other adjustments, ensure battery is removed from the tool.

WARNING: Always wear protective gloves when installing or removing the chain. The chain is sharp and can cut you when it is not running.

1. Ensure the operation is carried out on a firm surface.
2. Rotate the two retention bolts 10 counterclockwise with wrench 11 provided and remove completely.
3. Remove the chain access cover 12
4. Open the handles and pull back the top chain cover jaw 1.
5. Insert the chain guide bar 3 into the groove 14 by pulling the groove back.

English

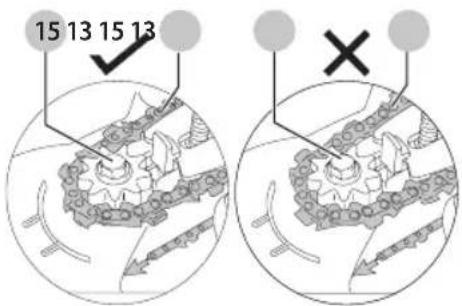

1. Place the saw chain 13 around the front of the chain bar and engage in the nose sprocket of the chain bar. Make sure chain is installed properly, with the cutting teeth facing forward.
2. Pull the chain bar and chain back, engaging it in the groove in the chain bar and then over the sprocket 15 positioning teeth in the correct position on the sprocket.
3. Replace the chain access cover 12 and retention bolts 10 tightening securely.

Fig. F

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can cause injury.

WARNING: Never operate a chain saw that is damaged or improperly adjusted or that is not completely and securely assembled. Be sure that the saw chain stops moving when the power control system triggers are released. Never adjust the guide bar or saw chain when the engine is operating.
WARNING: Let the tool work at its own pace. Do not overload.

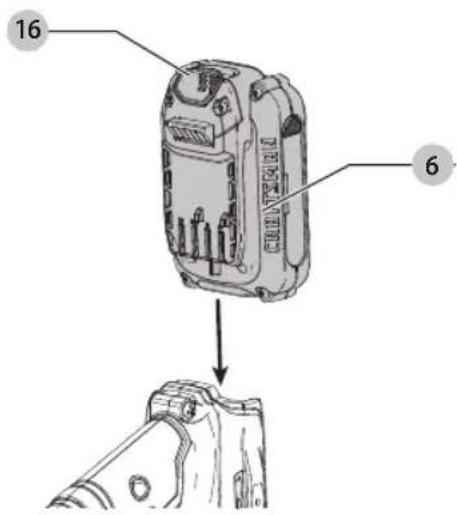

Installing and Removing the Battery Pack (Fig. G)

NOTE: For best results, make sure your battery pack is fully charged.

To install the battery pack 6 into the tool handle, align the battery pack with the rails inside the tool's handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does not disengage.

To remove the battery pack from the tool, press the release button 16 and firmly pull the battery pack out of the tool handle. Insert it into the charger as described in the charger section of this manual.

Fig. G

Usage (Fig. A, B)

1. Carry out regular cleaning of the unit as described in the Maintenance section and in particular cleaning inside the chain access cover.
2. The lower guard jaw 2 and top chain cover jaw 1 are designed to close when one of the handles is released or when the piece of branch being cut has been cut. If this does not occur, discontinue use of the tool and remove the battery pack. Check if any debris is blocking movement. To help in this process it may be necessary to remove chain access cover 12. If on assembly the problem is still present take the unit to a service center.

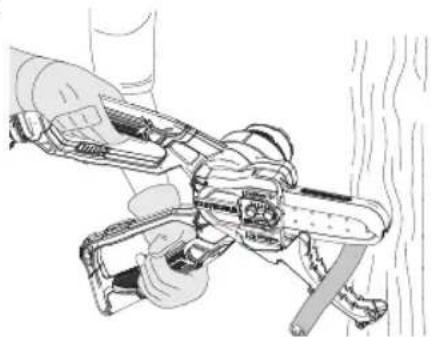

Proper Hand Position (Fig. H)

WARNING: To reduce the risk of serious personal injury, AYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, YS hold securely in anticipation of a sudden reaction.

A chain saw is intended for two-handed use. Serious injury to the operator, helpers, and/or bystanders can result from one-handed operation.

Fig. H

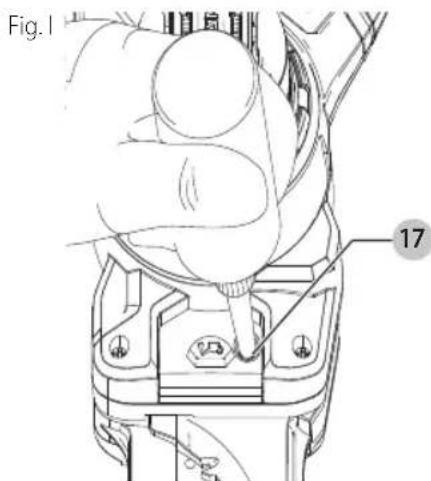

Oiling (Fig. 1)

WARNING: A high quality bar and chain oil or SAE30 motor oil should be used for chain and bar lubrication. The use of a vegetable based bar and chain oil is recommended when pruning trees. Never use waste oil or very thick oil. These may damage your chain saw.

1. Before first use and every ten minutes of use you must oil the product with the recommended chain oil. Open the oiling cover 4 and insert the bottle into the oil filling hole 17 apply pressure to the bottle once to dispense oil.
2. This should be adequate for about 10 minutes of cutting depending upon cutting speed and type of wood.
3. The hole feeds the oil through to the chain onto the chain bar and an excessive amount of oil applied to the unit could mean the oil drips from the unit around the jaw area. This is normal and is nothing to be concerned about.

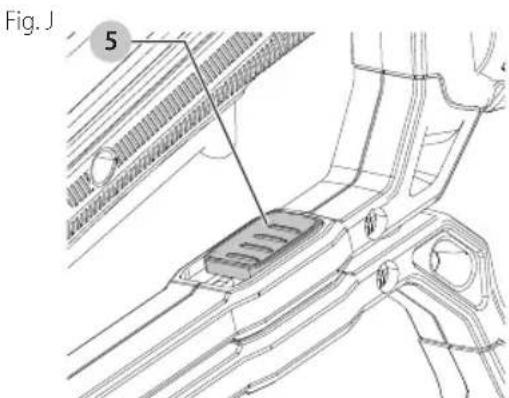

Switching On and Off (Fig. A, J)

To open the handles, slide the latch 5 backwards and pull the handles apart. Ensure a firm grip on the handles and then squeeze both on/off switch actuators 7 to switch the unit on.

For your safety, this tool is equipped with a double switching system. This system prevents starting the tool inadvertently.

NOTE: Both switches must be activated for the product to be used.

Do not force the tool - allow it to do the work. It will do a better and safer job at the speed for which it is designed. Excessive force will stretch the chain.

Clearing a Jammed Saw Chain or Bar (Fig. A)

1. Switch the tool off.
2. Remove the battery from the tool.
3. Open the cut with wedges to relieve the strain on the guide bar. Do not try to wrench the saw free. Start a fresh cut. After use, close the handles and slide the latch 5 forward to the lock position. The handles should be locked during transportation and storage.

Trimming Branches

1. Make sure the tool is running at full speed before making a cut.
2. Hold the tool firmly in place to avoid possible bouncing or sideways movement of the tool.
3. Guide the tool using light pressure.
4. Always cut down from the top. This way you will avoid pinching the saw chain.
5. Remove branches. Starting from branch tip reduce the branch in logical steps cutting off small sections. When cutting a limb that is under tension be aware of spring back.
6. When the tension in the wood fibres are released the spring loaded limb may strike the operator and/or throw the tool out of control.
7. Remove the tool from the cut while it is running at full speed.

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can cause injury.

Cleaning

WARNING: Blow dirt and dust out of all air vents with dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

• Regularly remove the chain access cover and remove any debris that has become trapped.
• Regularly clean the ventilation slots with a clean, dry paint brush.
  To clean the tool, use only mild soap and a damp cloth. Never let any liquid get inside the tool and never immerse any part of the tool into liquid.

English

Oiling (Fig. 1)

Regularly oil the oiling points 17 as indicated in Figure I.

Transporting

Always transport the tool with the jaws closed and the latch in the locked position.

Saw Chain Sharpening (L, M, N)

WARNING: Sharp moving chain. To prevent accidental operation, ensure that battery is removed from the tool before performing the following operations. Failure to do this could result in serious personal injury.

WARNING: Sharp chain. Always wear protective when installing or removing the chain. The chain is sharp and can cut you when it is not running.

To get the best possible performance from your chainsaw it is important to keep the teeth of the chain sharp. Follow these helpful tips for proper saw chain sharpening:

1. Remove the saw chain and use a chain visse when doing any sharpening. See Removing the Saw Chain and Chain Bar.
2. For best results use a 4.5mm file and a file holder or filing guide to sharpen your chain. This will ensure you always get the correct sharpening angles.
3. Place the file holder flat on the top plate and depth gauge of the cutter.
4. Keep the correct top plate filing angle line of 30^ on your file guide parallel with your chain (file at 60^ from chain viewed from above).
5. Sharpen cutters on one side of the chain first. File from the inside of each cutter to the outside. Then turn your saw chain around and repeat the processes (2, 3, 4) for cutters on the other side of the chain. Use a flat file to file the tops of the rakers (portion of chain link in front of the cutter) so that they are about .025" (6.3 micrometers). below the tips of the cutters.
6. Keep all cutter lengths equal.
7. If damage is present on the chrome surface of the top plates or side plates, file back until such damage is removed.

CAUTION: After filing, the cutter will be sharp, use caution during this process.

NOTE: Each time the chain is sharpened, it loses some of the low kickback qualities and extra caution should be used. It is recommended that a chain be sharpened no more than four times.

Fig. L

Fig. N

Storage

When the tool will not be used for several months, wipe any metal components with oil.

Store the tool in a secure and dry location. The storage temperature must always remain in the range of 41^ (+5^) to 104^ (+40^) . Place the product on a level safe location.

Accessories

WARNING: Since accessories, other than those used by CRAFTSMAN, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with this product.

Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569.

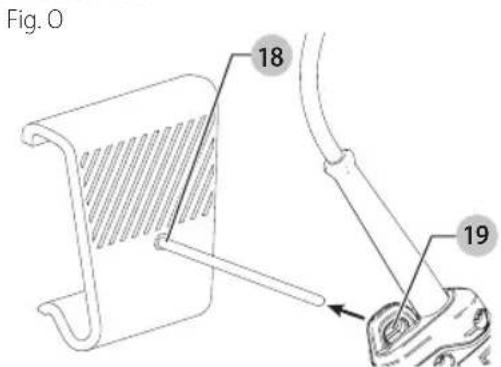

VersatrackTM (Fig. O)

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can cause injury.
WARNING: To reduce the risk of serious personal injury, do not use a damaged VersatrackTM peg hook or VersatrackTM Trackwall. A damaged VersatrackTM peg hook or VersatrackTM Trackwall will not support the weight of the tool.
WARNING: To reduce the risk of serious personal injury, DO NOT suspend tool overhead or suspend objects from the peg hook. ONLY suspend tool on the VersatrackTM Trackwall using the peg hook.
WARNING: Ensure that the tool weight does not exceed the maximum rated weight for the selected VersatrackTM hook.
WARNING: When hanging objects on a Versatrack™ trackwall rail, adequately space the tools in order to not exceed 75 lb (35 kg) per linear foot.

IMPORTAnT: Versatrack™ accessories mount compatible tools securely to the Versatrack™ Trackwall system.

1. Turn tool off, remove the battery pack and remove accessories.

CAUTION: Any product with exposed cutting teeth must have them covered securely if it is to be on the VersatrackTM Trackwall.

1. Mount the peg hook 18 to the Versatrack™ Trackwall.
2. Slide the tool loop 19 onto the peg hook 18 on the tool.
3. NOTE: Versatrack™ accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569.

Repairs

The charger and battery pack are not serviceable. There are no serviceable parts inside the charger or battery pack.

WARNING: To assure product SAFETY and REACHABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.

Register online at www.craftsman.com/registration

Three Year Limited Warranty

CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase (two years for batteries). This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call 1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED

WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDING ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

2 YEARS FREE SERVICE ON CRAFTSMAN BATTERY PACKS

CMCB201, CMCB2011

3 YEARS FREE SERVICE ON CRAFTSMAN BATTERY PACKS CMCB202, CMCB204

NOTE: Battery warranty voided if the battery pack is tampered with in any way. CRAFTSMAN is not responsible for any injury caused by tampering and may prosecute warranty fraud to the fullest extent permitted by law.

90 DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund - no questions asked.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a free replacement.

Lubrification (Fig. 1)

Lubrification (Fig.1)

REEMPLACEMENT Gratisuit DES ETIQUETTES

"C" Indicates that the battery pack is compatible with that specific charger. Read the instruction manual for more specific information.
