USER MANUAL IAN 355095 Livarno Lux

LED LAMPA / LED LAMPA

Assembly, operating and safety instructionsA 14150905L B C

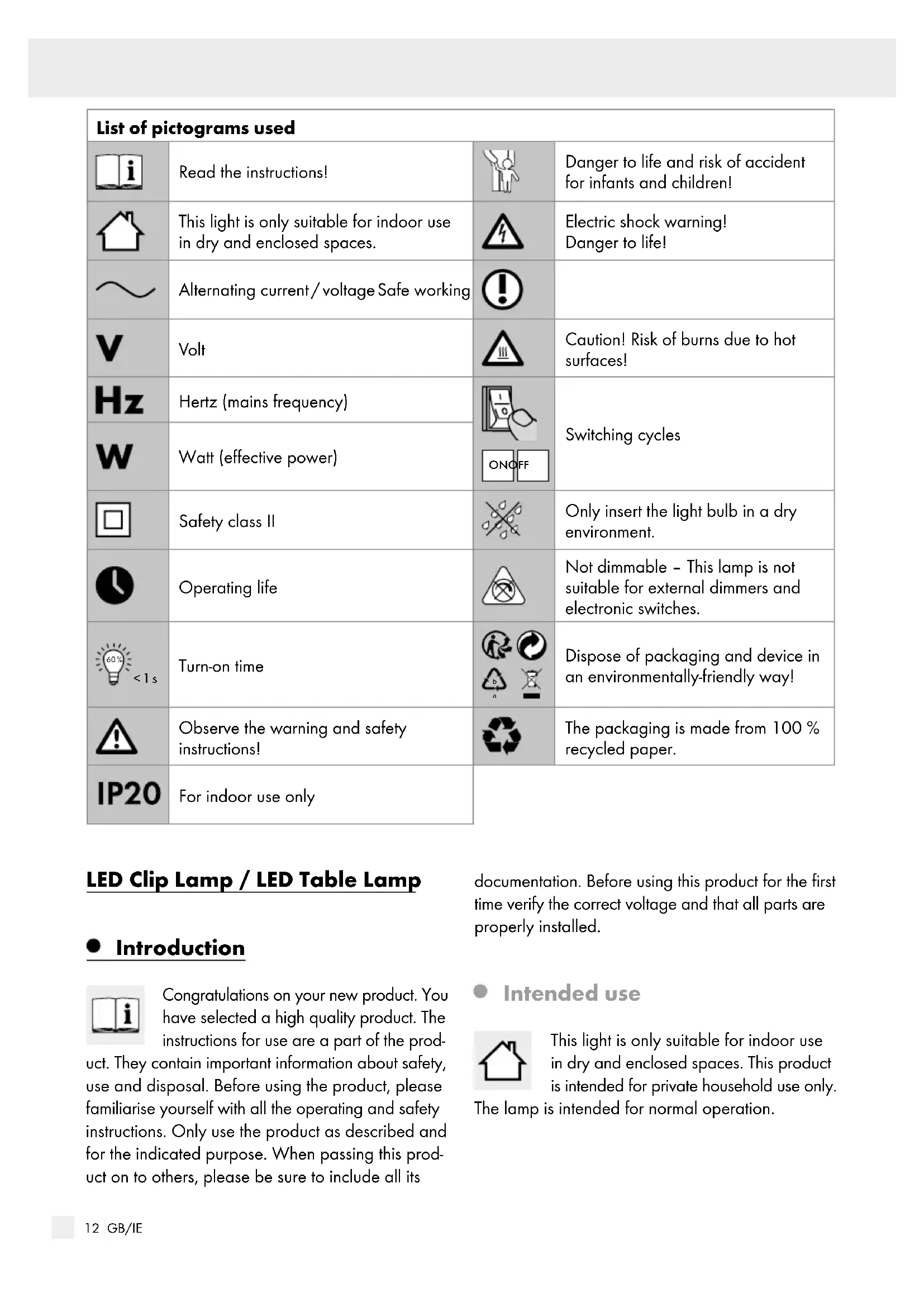

Dispose of packaging and device in an environmentally-friendly way! Observe the warning and safety instructions! The packaging is made from 100 % recycled paper. For indoor use only LED Clip Lamp / LED Table Lamp Introduction Congratulations on your new product. You have selected a high quality product. The instructions for use are a part of the prod- uct. They contain important information about safety, use and disposal. Before using the product, please familiarise yourself with all the operating and safety instructions. Only use the product as described and for the indicated purpose. When passing this prod- uct on to others, please be sure to include all its documentation. Before using this product for the first time verify the correct voltage and that all parts are properly installed.

Intended use This light is only suitable for indoor use in dry and enclosed spaces. This product is intended for private household use only. The lamp is intended for normal operation.13 GB/IE Introduction / SafetyIntroduction Scope of delivery Check immediately after unpacking that the parts are complete and that the product is in proper condition. 1 clamp- / table lamp, model 14150905L / 14151005L / 14151105L 1 LED COG light bulb 1 furniture protecting foot pad (14151005L / 14151105L) 1 weight (14151005L / 14151105L) 1 base plate (14151005L /14151105L) 1 washer (14151005L / 14151105L) 1 wing bolt (14151005L / 114151105L) 1 set of installation instructions and instructions for use Parts description

Washer (14151005L / 14151105L) Technical data Item no.: 14150905L / 14151005L / 14151105L Operating voltage: 230–240 V∼, 50 Hz Lamp socket: E27 Protection class: II / Rated power: E27 LED 1 x max. 4 W Protection type: IP20 Safety Safety notices Damage due to failure to comply with these operat- ing instructions will invalidate the warranty! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!

CHILDREN! Never leave children unattended with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. This device may be used by children aged 8 years and up, as well as by persons with re- duced physical, sensory or mental capacities, or lacking experience and/or knowledge, when supervised or instructed in the safe use of the device and they understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision. RISK OF INJURY! Do not leave the lamp or packaging material lying unattended. Plastic film or bags, Styrofoam etc. can become dangerous toys for children. Avoid the risk of fatal injury from electric shock Luminaire with strong conducted disturbances c

cause nuisance triggering, it can be self-recovered. Always check the mains plug for damage before connecting the light to the mains. Never use the light if it shows any signs of damage. In the event of damage, repairs or other prob- lems with the light, please contact the service centre or an electrician. Ensure that the light does not come into contact with water or other liquids under any circum- stances.14 GB/IE ... / Maintenance and cleaning / Disposal / Warranty and service Never open or insert anything into electrical fittings or equipment (e.g. switches, fitting socket). This will pose a risk of fatal injury from electric shock. Only touch the insulated area of the mains plug when connecting to or disconnecting from the mains! To prevent hazards, a damaged flexible outer lead of this light may only be exchanged by the manufacturer, his service representative or by an equally qualified specialist. Before every use, verify the available mains voltage matches the required operating voltage of the light (see “Technical data“). Always unplug the mains plug, respectively, from the mains prior to assembly, disassembly, cleaning, or when the light will not be used for extended periods. Do not install the lamp on a wet or conductive surface. Only insert the light bulb in a dry environment. This lamp is not suitable for external dimmers and electronic switches. Safe working Position the lamp so it is protected from moisture and dirt. Always be attentive! Always pay attention to what you are doing and use common sense. Do not cover the lamp with objects. Excessive heat can result in fire. Do not look into the illuminant from a close distance during operation. Do not use optical instruments to look at the illuminant. In order to disconnect the light completely from the power supply, the mains plug must be removed from the socket. Only use the light bulbs specified in the chapter “Technical data“. Initial use Mounting the lamp Note: Remove all packaging materials from the product. Only 14150905L (see Fig. A): Position the lamp with the screw clamp

the desired location. Then tighten the screw

. Ensure the screw clamp

is securely fastened. Only 14151005L / 14151105L (see Fig. B / C): Insert the lamp into the recess provided in the base plate

Important: Position the weight so that the „TOP“ marking points to the light. Then screw the weight

tight using the washer

Remove the protective film from the bottom of the furniture protecting foot pad

Now stick the foot pad

underneath the lamp. All models: Use a clean, lint-free, dry cloth to insert the bulb

Screw the light bulb

clockwise into the lamp socket

into a properly installed socket. Your light is now ready to use. Switching the light on / off Switch the lamp on or off by pressing the in-line switch

from the socket. Safety / Initial use / Changing the light bulb15 GB/IE ... / Maintenance and cleaning / Disposal / Warranty and service

CAUTION! RISK OF BURNS DUE TO

HOT SURFACES! Allow the lamp to cool down completely. Use a clean, lint-free, dry cloth when replacing the illuminant

Unscrew the defective illuminant

from the lamp socket

, turning counter-clockwise. Only use the light bulbs specified in the chap- ter “Technical data”. Screw a new illuminant, clockwise into the lamp socket

into a properly installed socket. Your light is now ready to use. Maintenance and cleaning Switch the lamp off. RISK OF ELECTRIC SHOCK! First remove the mains plug

HOT SURFACES! Allow the lamp to cool down completely. RISK OF ELECTRIC SHOCK! For electrical safety, never clean the light with water or other liquids, or immerse it in water. Do not use solvents, benzene or similar sub- stances. They could damage the light. Only use a dry, lint-free cloth for cleaning. Plug the mains plug

into a properly in- stalled socket. Disposal The packaging is made entirely of recy- clable materials, which you may dispose of at local recycling facilities.
