USER MANUAL Ensemble Nuna

IMG-0057DDesigned around your lifeEN

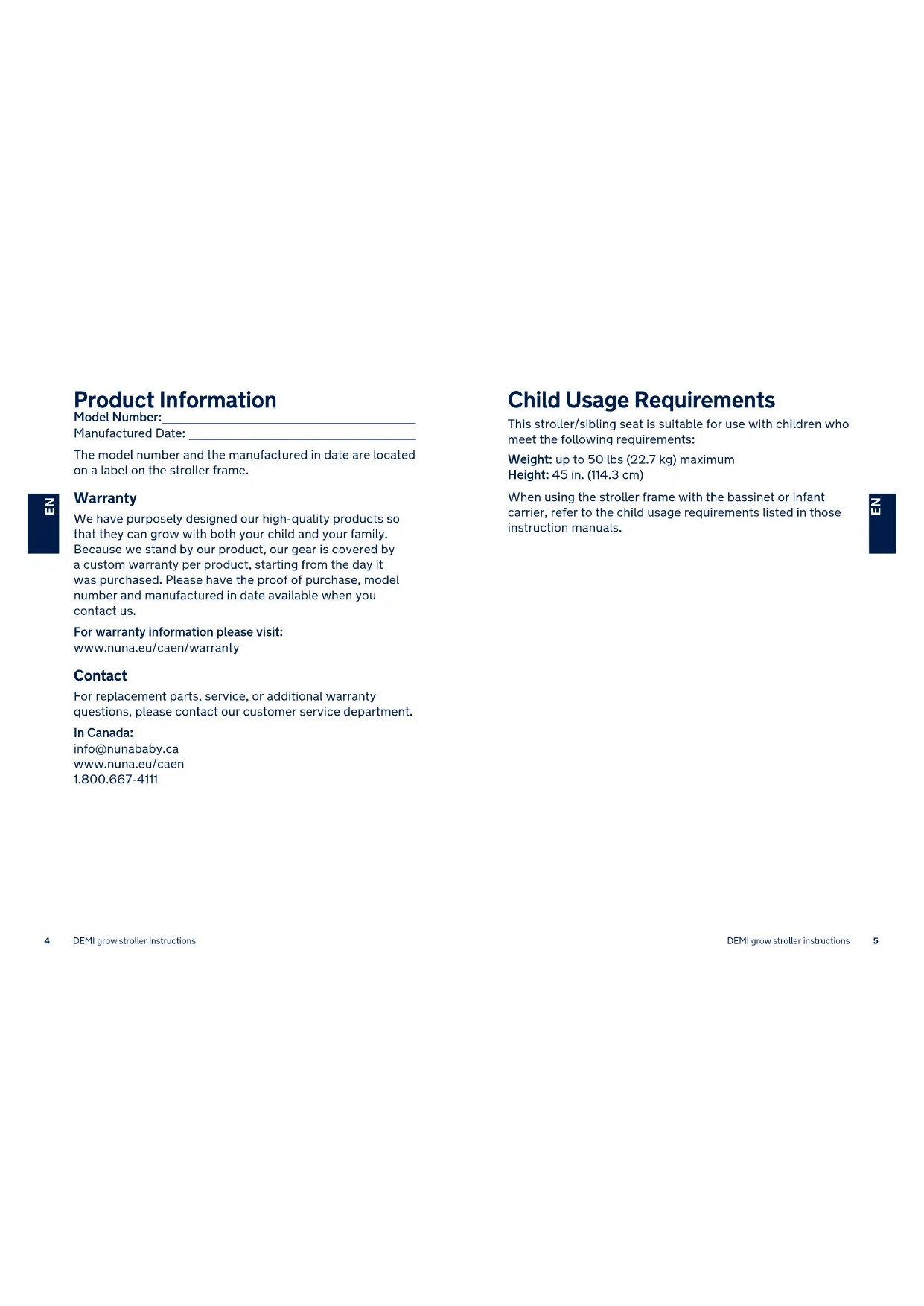

Child Usage Requirements This stroller/sibling seat is suitable for use with children who meet the following requirements: Weight: up to 50 lbs (22.7 kg) maximum Height: 45 in. (114.3 cm) When using the stroller frame with the bassinet or infant carrier, refer to the child usage requirements listed in those instruction manuals. 4 DEMI grow stroller instructions 5DEMI grow stroller instructions Product Information Model Number:__________________________________________________________________ Manufactured Date: ___________________________________________________________ The model number and the manufactured in date are located on a label on the stroller frame. Warranty We have purposely designed our high-quality products so that they can grow with both your child and your family. Because we stand by our product, our gear is covered by a custom warranty per product, starting from the day it was purchased. Please have the proof of purchase, model number and manufactured in date available when you contact us. For warranty information please visit: www.nuna.eu/caen/warranty Contact For replacement parts, service, or additional warranty questions, please contact our customer service department. In Canada: [e-mail] www.nuna.eu/caen

6 DEMI grow stroller instructions 7DEMI grow stroller instructions A child’s safety is your responsibility. NEVER leave your child unattended. To avoid any danger of suffocation, remove all plastic covers before using this product and destroy or keep away from babies and children! Keep small parts away from children as they pose a choking hazard. Discontinue using these products should they become damaged or broken. Use original NUNA parts and accessories only. Each stroller/sibling seat is intended for children up to 50 lbs (22.7 kg) maximum or a height of 45 in. (114.3 cm). To prevent a hazardous, unstable condition, do not place more than 10 lbs (4.5 kg) in the storage basket before use. Use of the stroller with more than 110 lbs (49.9 kg) will cause excessive wear and stress on the stroller. 110 lbs (49.9 kg) = 50 lbs (22.7 kg) stroller/sibling seat maximum + 50 lbs (22.7 kg) stroller/sibling seat maximum + 10 lbs (4.5 kg) storage basket maximum. Negotiate curbs and rough ground carefully. Repeated impact could cause damage to this product. This stroller is to be used only at walking speed. Stroller is not intended for use while jogging, skating, etc. WARNING Failure to follow these warnings and instructions could result in serious injury or death. The parking brake MUST be engaged when the stroller is stopped and when placing and removing child. Overloading, incorrect folding, and using accessories other than those approved by NUNA, e.g. child seats, bag hooks, rain covers, buggy boards, etc., may damage or make this stroller unsafe. Adding accessories such as purses, shopping bags, or parcels to the handle or canopy can cause the stroller to be unstable. This stroller does not replace a crib or a bed. Should your child need to sleep, they should be placed in a crib or approved sleeping area based on your child’s requirements. Avoid serious injury from falling or sliding out. Always use seat belt. After fastening buckles, adjust belts to get a snug fit around your child. AVOID FINGER ENTRAPMENT Use care when folding and unfolding the stroller. Be certain the stroller is fully erected and latched before allowing your child near the stroller. STRANGULATION HAZARD Do not place items with a string around your child’s neck, suspend strings from this product, or attach strings to toys. ALWAYS keep your child in view while in this product. ALWAYS allow the fabric to dry naturally away from direct heat. ALWAYS check that the attachments are correctly engaged. DO NOT let your child play with this product.EN

8 DEMI grow stroller instructions 9DEMI grow stroller instructions DO NOT place any item on the canopy of this product. DO NOT leave this product exposed in the vicinity of a strong source of heat i.e. a radiator or open fire or store this product in a damp place. DO NOT make any changes or modifications to this product, that are not specified in this manual. DO NOT use storage basket as a child carrier. NEVER carry more than one child in a seating position at a time in this stroller. NEVER use the stroller on stairs or escalators. You may suddenly lose control of the stroller or your child may fall out. NEVER allow children to stand on the footrest.EN

10 DEMI grow stroller instructions 11DEMI grow stroller instructions Parts List Make sure all parts are available before assembly. If any part is missing, please contact NUNA (see page 4 for information). No tools are required for assembly. CHOKING HAZARD: Remove and immediately discard protective end caps from each wheel and wheel hub axle. 1 Front Wheel (x2) 2 Rear Wheel (x2) 3 Rear Fender 4 Car Seat Post Adapter (x2) 5 Seat & Bassinet Post Adaptors 6 Rain Cover 7 Dream Drape

8 Stroller/Sibling Seat 9 Stroller Frame 10 Canopy 11 Seat Pad 12 Head Support 13 Arm Bar 14 Shoulder Harness Pads 15 Calf Support 16 Front Wheel 17 Stroller Handle 18 Arm Bar Adjustment Button 19 Seat Release Button 20 Buckle and Crotch Cover 21 Upper Seat Mount 22 Storage Basket 23 Recline Adjustment Button 24 Handle Adjustment Button 25 Folding Button 26 Lower Seat Mount 27 Rear Fender 28 Custom Dual Suspension

Adjustment Lever (x2) 29 Brake Lever 30 Rear Wheel x2 x2

1 - Rotate the stroller handle up.

2 - A “click” sound means the stroller frame is open

completely. Check the stroller frame is completely latched open before continuing. Rear Wheels

3 - Insert the rear wheel into the rear leg. A “click” sound

means the rear wheel is assembled completely. Check the wheel is securely attached by pulling out. Repeat on opposite side.

4 - To remove the rear wheel, press the release button (1)

and detach the rear wheel from the rear leg (2).

14 DEMI grow stroller instructions 15DEMI grow stroller instructions

14 DEMI grow stroller instructions 15DEMI grow stroller instructions

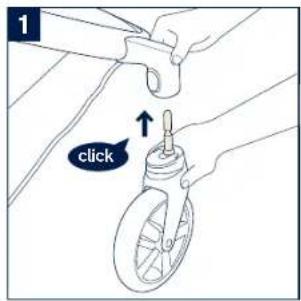

- Insert the front wheel into the front leg. A “click” sound means the wheel is assembled completely. Check the wheel is securely attached by pulling out. Repeat on opposite side.

2 - To remove the front wheel, press the release button (1)

and detach the front wheel from the front leg (2). Canopy

3 - Clip the canopy mount onto the stroller/sibling seat on

4 - Zip the canopy to the stroller/sibling seat.

5 - To remove the canopy, unzip the zippers, then remove

the canopy mounts. clickEN

1 - Align the arm bar ends with the arm bar mounts, and

insert until it clicks into place. A “click” sound means the arm bar is assembled completely.

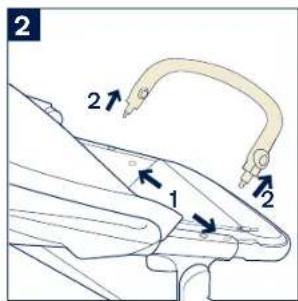

2 - To remove the arm bar, press the arm bar release buttons

(1) located under seat pad, and remove the arm bar. (2)

3 - For a more compact fold, press the armbar adjustment

buttons (1) and rotate the armbar down (2) until it clicks into place. Only use the down/stored position for folding. NEVER use this position with child in stroller. Stroller/Sibling Seat The stroller/sibling seat can be attached rear or forward facing.

4 - Align the sides of the stroller/sibling seat with the seat

mounts. Place the stroller/sibling seat directly down until it clicks into place. A “click” sound means the stroller/ sibling seat is assembled completely.

5 - To remove the stroller/sibling seat, squeeze the seat

release buttons (1) and lift the stroller/sibling seat up (2). Rear Fenders Attach the rear fenders for twin and double modes. For easier assembly, remove the rear wheels.

6 - Insert the rear fender into the rear leg. A “click” sound

means the fender is assembled completely. Check the fender is securely attached by pulling up. Repeat on opposite side and reattach rear wheels. Check Set Up Stroller frame is latched open Rear and front wheels securely attached Canopy mount attached to stroller frame and canopy zipped to seat pad Stroller/sibling seat securely attached Rear fenders securely attached for twin/double mode

16 DEMI grow stroller instructions 17DEMI grow stroller instructions

Product Use The parking brake MUST be engaged when the stroller is stopped and when placing and removing child. Securing Your Child

- Push the center button on the buckle to release the buckle latch, remove the clips and place your child in the stroller.

2 - Connect the shoulder buckle and hip buckle.

3 - Secure the shoulder buckle and hip buckle to the buckle

latch and repeat on the opposite side.

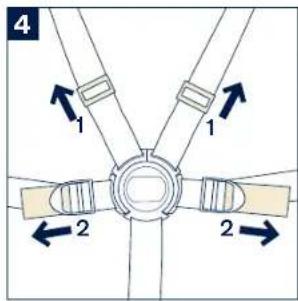

4 - Fit the harness snugly to your child by sliding the lower

adjustment buckles (located under the harness covers) up (1). Then pull the waist adjustment straps out (2). Shoulder Harness Position

- The upper shoulder harness buckles can be moved up and down for added adjustment. To avoid serious injury from falling or sliding out, always secure your child with the harness. Make sure the harness is adjusted properly and your child is snugly secured. The space between the child and the shoulder harness should be about the thickness of one finger. DO NOT cross the shoulder belts. This will cause pressure on your child’s neck. Shoulder Harness Pad Removal To remove the shoulder harness pads, release the buckle.

6 - Slide the shoulder harness pad down off the shoulder

buckle harness strap. To reattach the shoulder harness pad, undo the snaps and insert the shoulder harness buckle through the inside loop. 18 DEMI grow stroller instructions 19DEMI grow stroller instructions

- To open the canopy, pull the canopy toward the front of the seat, and to close the canopy, push it back.

2 - Open the zipper (1) on the canopy to use the dream

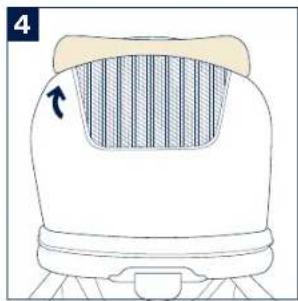

4 - For added ventilation, flip the canopy window cover up.

Handle The handle has 3 positions.

5 - To adjust the height of the handle, press the handle

adjustment button (1) and pull the handle up or down (2). Calf Support The calf support has 2 use positions.

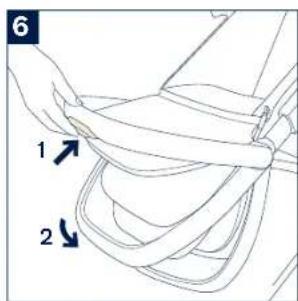

6 - To raise the calf support, lift up. To lower the calf

support, press the adjustment button in the middle of the calf support (1), and push down (2). 1EN

1 - There are 3 recline positions for the backrest.

2 - To raise or lower the backrest, squeeze the recline

adjustment button, and pull the seat up or down. Seat Pad Use the winter seat pad in cold weather to provide a comfortable seating area. The winter seat pad can be removed to provide a mesh seating area for better ventilation during hot weather.

3 - To remove the seat pad, unbuckle the harness, open

the zipper around the seat pad and route the harness through the seat pad slots. DO NOT remove the backrest tube. Brake

- To lock the rear wheels, step down on the brake lever.

5 - To unlock the rear wheels, lift up on the brake lever.

Always apply the brake when the stroller is stopped. Push the stroller slightly to ensure the brake is engaged. Custom Dual Suspension

The stroller has two suspension modes. Make sure there is no weight placed on the stroller when you are adjusting the suspension and that both adjustment levers are in the same position.

6 - Flip the adjustment levers up (1) when on rough

terrain for a softer suspension and flip the adjustment levers down (2) when on smooth surfaces for a stiffer suspension. When using as a double or twin, it is recommended to flip the adjustment levers down.

24 DEMI grow stroller instructions 25DEMI grow stroller instructions Front Swivel Locks It is recommended to use the front swivel locks on uneven surfaces.

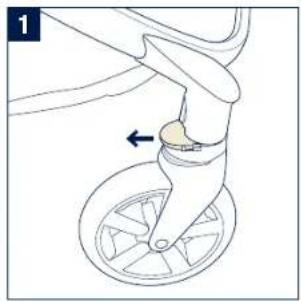

1 - Pull the front swivel lock out to lock front wheel

2 - Push the front swivel lock in to unlock.

Fold Before folding the stroller, adjust the handle to the 2nd or 3rd highest position and make sure the front swivel locks are unlocked. The stroller can be folded with the stroller/sibling seat facing forward or without the stroller/sibling seat. If folding with the seat, place the seat in the most reclined position for a more compact fold.

3 - Fold the armbar (1) and canopy (2).

4 - Lift both folding buttons.

5 - Rotate the handle down.

6 - Fold the calf support down for a more compact fold.

26 DEMI grow stroller instructions 27DEMI grow stroller instructions Seating Options The DEMI grow stroller frame can be used with the infant carrier (using included adapters), bassinet and stroller/sibling seat in the following combinations. Single (1), twin (2), double (3)

28 DEMI grow stroller instructions 29DEMI grow stroller instructions28 DEMI grow stroller instructions 29DEMI grow stroller instructions

Seating Option Use When using the stroller frame with the stroller/sibling seat, bassinet or infant carrier, close the canopy when the stroller/ sibling seat, bassinet or infant carrier is assembled on the lower mount. Not all accessories are included on some models and not all modes are allowed.

1 - DO NOT use the stroller/sibling seat (1), bassinet (2) or

infant carrier (3) rear facing on the lower mount.

2 - DO NOT adjust the backrest of the stroller/sibling seat

up, when it is assembled on the lower mount and the bassinet is assembled on the upper mount.

3 - DO NOT assemble the infant carrier on the lower mount

when the bassinet is rear facing on the upper mount without the use of the Seat & Carry Cot Post Adaptors. The bassinet can be assembled on the upper mount with seat & bassinet post adaptors when the infant carrier is assembled on the lower mount

4 - DO NOT adjust the infant carrier handle to the vertical

position when the infant carrier is assembled on the lower mount. Please use Seat & Bassinet Post Adaptors (Part List#5) on upper mount when using sibling seat on the upper mount and lower mount simultaneously and both with front facing mode.

Accessories Not all accessories are included on some models. DEMI grow Stroller/Sibling Seat When installing the stroller/sibling seat in the lower mount, close the canopy, adjust the calf support to its highest position, and fold the stroller basket rear panel forward.

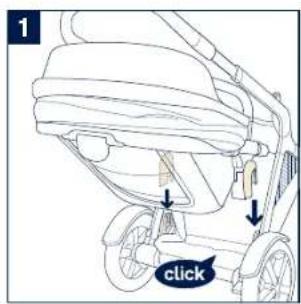

1 - To attach stroller/sibling seat, align the sides of the

stroller/sibling seat with the seat mounts. Place the stroller/sibling seat directly down until it clicks into place. A “click” sound means the stroller/sibling seat is attached. Remove the stroller/sibling seat from the lower mount before folding the stroller. Please use seat & bassinet post adapters on upper mount when using the upper mount and lower mount simultaneously and both with front facing mode. DEMI grow Stroller/Sibling Seat Rain Cover Only use the stroller/sibling seat rain cover in the upper mount.

2 - To assemble the rain cover, place it over the stroller/

sibling seat. ALWAYS check ventilation, when the rain cover is on the product. ALWAYS check that the rain cover has been cleaned and dried before folding. DO NOT fold the stroller assembled with the rain cover. DO NOT place your child into the stroller assembled with rain cover during hot weather.1

32 DEMI grow stroller instructions 33DEMI grow stroller instructions DEMI grow Bassinet For bassinet assembly and usage, please refer to the bassinet instruction manual. When installing the bassinet in the lower mount, close the canopy.

1 - To attach the bassinet, align the sides of the bassinet

with the seat mounts. Place the bassinet directly down until it clicks into place. A “click” sound means the bassinet is attached.

2 - The bassinet can be installed rear or forward facing in

buttons (1) and lift up (2). Remove the bassinet before folding the stroller.EN

34 DEMI grow stroller instructions 35DEMI grow stroller instructions

34 DEMI grow stroller instructions 35DEMI grow stroller instructions DEMI grow Car Seat Post Adapters For infant carrier assembly and usage, please refer to the infant carrier instruction manual. Adapters are suitable for all NUNA infant carrier. When installing the infant carrier in the lower mount, close the canopy.

1 - To attach the car seat post adapters, place the car seat

post adapters on the seat mounts. A “click” sound means the car seat post adapters are attached.

2 - To attach the infant carrier, place the infant carrier on the

car seat post adapters. A “click” sound means the infant carrier is attached.

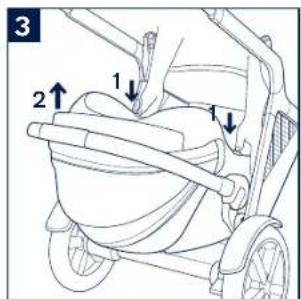

3 - To remove the infant carrier, push the stroller release

buttons on the infant carrier (1) and lift up (2).

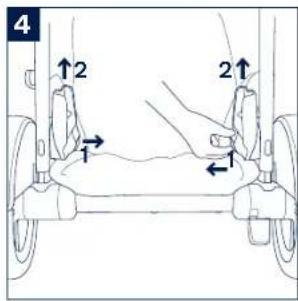

4 - To remove the car seat post adapters, pull the adapter

release buttons (1) and lift up (2).

5 - The car seat post adapters and infant carrier can be

attached rear facing (1) or forward facing (2) in the upper mount. Remove the infant carrier before folding.EN

36 DEMI grow stroller instructions 37DEMI grow stroller instructions36 DEMI grow stroller instructions 37DEMI grow stroller instructions DEMI grow Seat & Bassinet Post Adapters Only be able to assemble the seat & bassinet post adaptors on the upper mount. Please use seat & bassinet post adaptors on upper mount when using the upper mount and lower mount simultaneously and both with front facing mode.

1 - To attach seat & bassinet post adaptors, place them

onto mounts as shown (1). A “click” sound means the seat & bassinet post adaptors are locked. (2) The correctly use of seat & bassinet post adaptors are shown as (3).

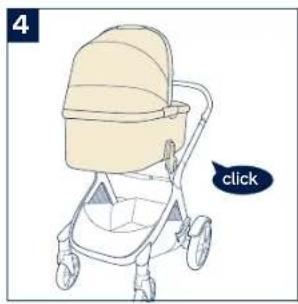

2 - To attach bassinet to the seat & bassinet post adaptors,

place bassinet onto seat & bassinet post adaptors, A “click” sound means the bassinet is locked. (4) Please do not use bassinet on the upper seat when the seat back of lower seat is in vertical position.

3 - To attach seat to the seat & bassinet post adaptors,

place seat onto seat & bassinet post adaptors, A “click” sound means the seat is locked. (5) click

38 DEMI grow stroller instructions 39DEMI grow stroller instructions

5 - To remove the seat, squeeze the seat release buttons

(7)-1 and lift the seat up (7)-2.

6 - To remove seat & bassinet post adaptors, lift the seat &

bassinet post adaptors upwards (8)-2 while pulling the release buttons. (8)-1 Remove the seat & bassinet before folding.

40 DEMI grow stroller instructions 41DEMI grow stroller instructions Cleaning and Maintenance Clean the frame, plastic parts, and fabric with a damp cloth, but do not use abrasives or bleach. Do not use silicon lubricants as they will attract dirt and grime. Do not store your stroller in a damp place. Clean the stroller wheels regularly with water and remove any dirt. To ensure long-lasting use, wipe off this product with a soft, absorbent cloth after using it in rainy weather. Refer to the care label attached to the fabric for washing and drying instructions. It is normal for fabric to color from sunlight and to show wear and tear after a long period of use, even when used normally. For reasons of safety, only use original NUNA parts. Check regularly if everything functions properly. If any parts are torn, broken, or missing, stop using this product. ©2018 Nuna Baby Essentials, Inc. Nuna and all associated logos are trademarks.Conçu pour votre style de vieFR
