Product type	Canister vacuum cleaner
Brand	Amica
Model	Yugo VM 1046
Rated power	850 W
Maximum power	900 W
Power supply	AC 220-240 V ~ 50 Hz
Net weight	5 kg
Filter type	EPA12 (exhaust filter) + washable intake filter
Dust bag	Paper bag (replaceable)
Included accessories	Telescopic tube, 2-in-1 universal brush nozzle, 2-in-1 crevice and brush nozzle, upholstery nozzle
Automatic cord rewinder	Yes, with rewinding button
Power adjustment	Yes (on the unit body)
Full bag indicator	Yes (red light)
Cable length	Approximately 6 m (estimated from yellow and red markings)
Noise level	Not specified (standard household use)
Usage	Household
Filter maintenance	Monthly cleaning recommended, replacement every 6 months
Safety	Do not use without bag/filter, do not vacuum flammable substances, do not expose to water
Repairability	Repairs by qualified technician only
Country of origin	Not specified (Polish brand)

Frequently Asked Questions - Yugo VM 1046 AMICA

How to change the dust bag of the Yugo VM 1046 vacuum cleaner?

Unplug the appliance. Open the front cover by lifting it. Unlock the used bag and remove it from the rails. Insert a new bag by sliding it onto the rails. Close the lid by lowering it completely. Always use the vacuum cleaner with a bag installed.

How to clean the intake filter?

Unplug the appliance. Remove the dust bag. Pull the filter upward to remove it from the rails. Wash it with hot water without detergent. Dry it completely before reinstalling.

How often should the EPA12 filter be replaced?

It is recommended to clean the exhaust filter once a month and replace it every 6 months, depending on the intensity of use. Preferably use original filters.

What to do if the vacuum cleaner does not work?

First check the power supply (fuse, socket). If the appliance is plugged in but does not start, contact technical service. Do not attempt to repair it yourself.

The suction power has decreased, what to do?

Check the dust bag: if it is full, replace it. Also check the nozzle, hose, and telescopic tube: remove any obstruction (dust, hair). If the problem persists, contact a technician.

Can I use the vacuum cleaner without a bag or filter?

No, never use the vacuum cleaner without the dust bag and/or filters. The motor could be damaged and the warranty voided.

How to rewind the cable correctly?

Hold the plug with one hand and press the cable rewinding button. Guide the cable to prevent tangling and ensure the plug does not hit the appliance.

Can the vacuum cleaner be used outdoors or on wet floors?

No, never use the vacuum cleaner outdoors or on wet surfaces. Do not expose it to rain or moisture. Do not immerse it in water.

What should not be vacuumed with this vacuum cleaner?

Do not vacuum flammable substances (gasoline, solvents), burning objects (cigarettes, hot ashes), fine dust (flour, plaster, toner), or sharp objects that could puncture the bag.

Is the vacuum cleaner suitable for people with reduced mobility?

The appliance can be used by persons aged 8 and over or with reduced capabilities if supervised and instructed. Children must not play with the appliance.

USER MANUAL Yugo VM 1046 AMICA

Top-down view of a black YUGO vacuum cleaner with red LED lights and control buttons (no visible text or symbols on body)

PL INSTRUKCJA OBSŁUGI 2

EN USER MANUAL 6

CS NÁVOD K OBSLUZE 10

SK NÁVOD NA OBSLUHU 14

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Złożenie urządzenia

Black and red compact vacuum cleaner with handle and wheels (no visible text or symbols)

Black and red compact vacuum cleaner with handle and side arm (no visible text or symbols)

Cross-sectional diagram of a vehicle head and dashboard showing internal components (no text or labels)

Cross-sectional diagram of a vehicle head and dashboard showing internal components (no text or labels)

Line drawing of a robotic vacuum cleaner with visible wheels and sensor components (no text or symbols)

Line drawing of a robotic vacuum cleaner with attached mechanical components (no text or symbols)

Illustration of a faucet spraying water onto a flat surface, with another drop falling into the liquid below (no text or symbols)

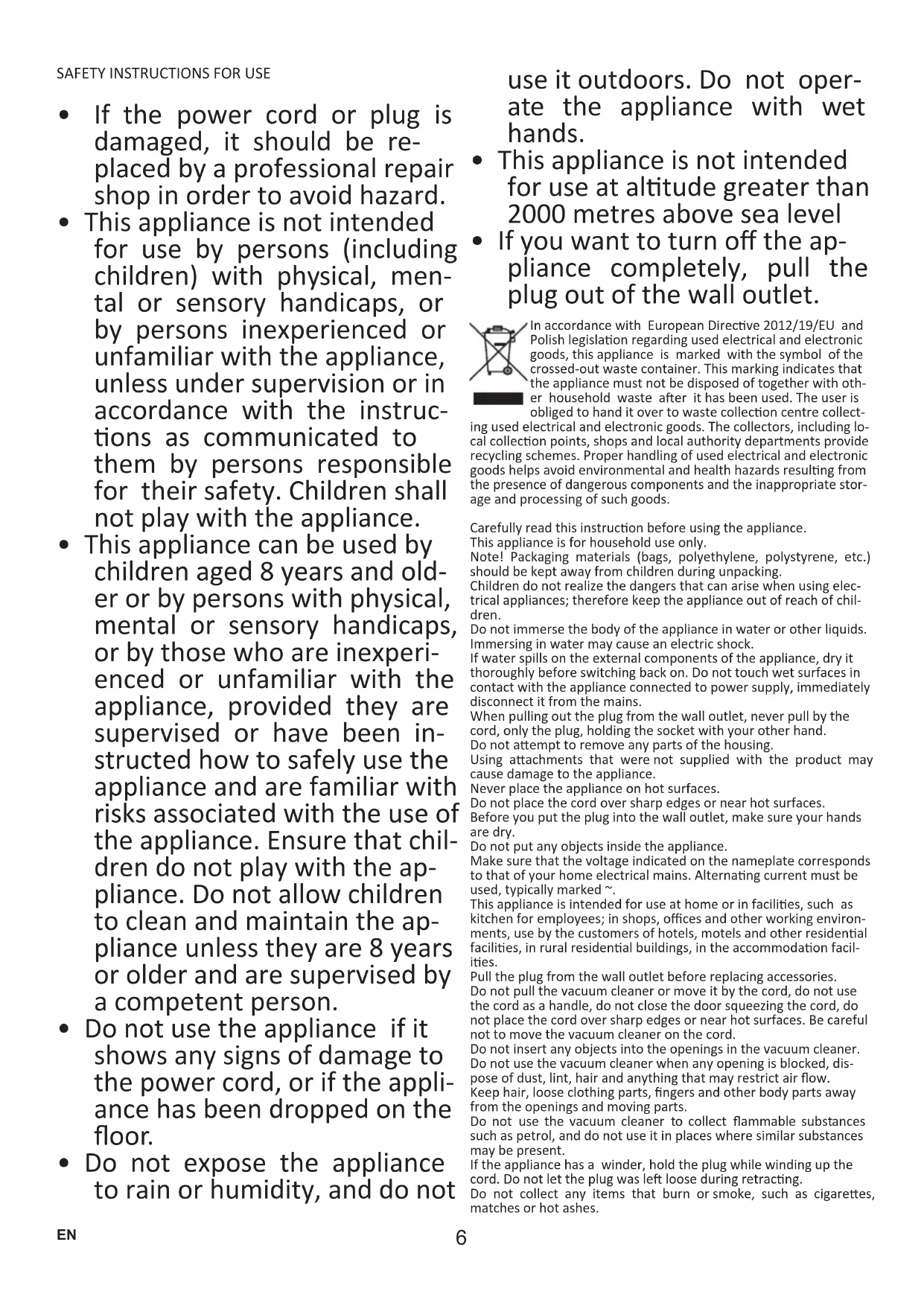

• If the power cord or plug is damaged, it should be replaced by a professional repair shop in order to avoid hazard.
• This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety. Children shall not play with the appliance.
• This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Do not allow children to clean and maintain the appliance unless they are 8 years or older and are supervised by a competent person.
• Do not use the appliance if it shows any signs of damage to the power cord, or if the appliance has been dropped on the floor.
• Do not expose the appliance to rain or humidity, and do not

use it outdoors. Do not operate the appliance with wet hands.

• This appliance is not intended for use at altitude greater than 2000 metres above sea level
• If you want to turn off the appliance completely, pull the plug out of the wall outlet.

In accordance with European Directive 2012/19/EU and Polish legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used. The user is obliged to hand it over to waste collection centre collect-

ing used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes. Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

Carefully read this instruction before using the appliance.

This appliance is for household use only.

Note! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

Children do not realize the dangers that can arise when using electrical appliances; therefore keep the appliance out of reach of children.

Do not immerse the body of the appliance in water or other liquids. Immersing in water may cause an electric shock.

If water spills on the external components of the appliance, dry it thoroughly before switching back on. Do not touch wet surfaces in contact with the appliance connected to power supply, immediately disconnect it from the mains.

When pulling out the plug from the wall outlet, never pull by the cord, only the plug, holding the socket with your other hand.

Do not attempt to remove any parts of the housing.

Using attachments that were not supplied with the product may cause damage to the appliance.

Never place the appliance on hot surfaces.

Do not place the cord over sharp edges or near hot surfaces.

Before you put the plug into the wall outlet, make sure your hands are dry.

Do not put any objects inside the appliance.

Make sure that the voltage indicated on the nameplate corresponds to that of your home electrical mains. Alternating current must be used, typically marked \~.

This appliance is intended for use at home or in facilities, such as kitchen for employees; in shops, offices and other working environments, use by the customers of hotels, motels and other residential facilities, in rural residential buildings, in the accommodation facilities.

Pull the plug from the wall outlet before replacing accessories.

Do not pull the vacuum cleaner or move it by the cord, do not use the cord as a handle, do not close the door squeezing the cord, do not place the cord over sharp edges or near hot surfaces. Be careful not to move the vacuum cleaner on the cord.

Do not insert any objects into the openings in the vacuum cleaner. Do not use the vacuum cleaner when any opening is blocked, dispose of dust, lint, hair and anything that may restrict air flow. Keep hair, loose clothing parts, fingers and other body parts away from the openings and moving parts.

Do not use the vacuum cleaner to collect flammable substances such as petrol, and do not use it in places where similar substances may be present.

If the appliance has a winder, hold the plug while winding up the cord. Do not let the plug was left loose during retracting.

Do not collect any items that burn or smoke, such as cigarettes, matches or hot ashes.

Do not use the vacuum cleaner without a dust bag and/or filters. If the opening, which sucks air, hose or telescopic tube are clogged, you should immediately turn off the vacuum cleaner Before restarting the vacuum cleaner, first remove the blocking item. Do not use the vacuum cleaner too close to heaters, radiators, cigarette butts, etc. Before using the vacuum cleaner, remove sharp objects from the floor to avoid damaging the dust bag. Do not collect fine particles such as: flour, gypsum, printer toners, etc., as this may clog filters and damage the vacuum cleaner. Make sure that extension tube is fully withdrawn before you put away your vacuum cleaner either in vertical or horizontal position.

SPECIFICATION:

Power specification: AC 220-240V / 50Hz
Nominal power: 850W
Maximum power: 900W
Net weight: 5 kg

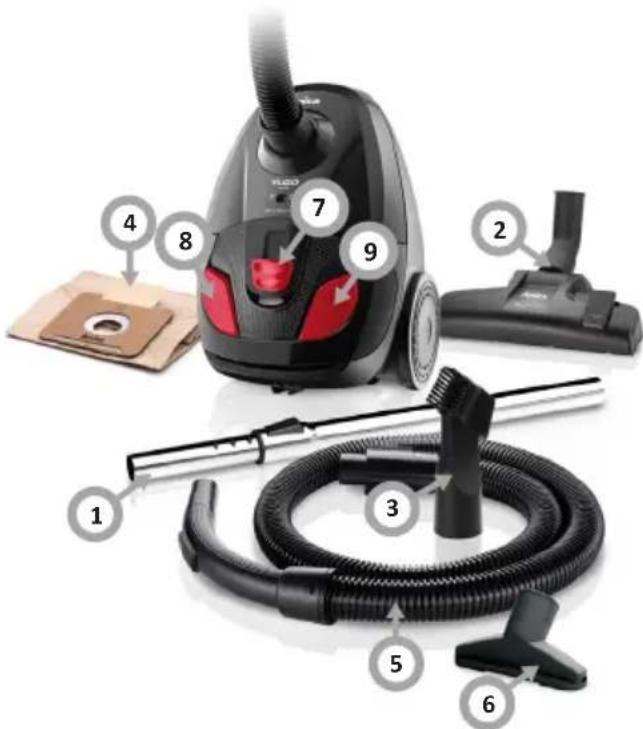

YOUR APPLIANCE:

1. Telescopic tube
2. 2-in-1 all-purpose suction brush
3. 2-in-1 crevice and book attachment
4. Paper dust bag
5. Hose
6. Upholstery nozzle
7. Adjust power*
8. On / off button
9. Power cord retract button

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Assemble the appliance

Always unplug the appliance before attaching or removing attachments!

- Insert the end of the hose into the inlet opening. Push until the end falls into place with an audible click.

Note! Figures are for illustrative purposes only Individual models may vary.

* Available on selected models

Black and red compact vacuum cleaner with handle and wheels (no visible text or symbols)

- Remove the hose - press buttons on the hose end, unlatch and remove the hose from the inlet port.

Black and red compact vacuum cleaner with handle and wheels (no visible text or symbols)

• Connect the telescopic tube with the hose and the brush.
• Extend the telescopic tube to the desired length.
• Before you start vacuuming, extend power cord cable to sufficient length and insert the plug into the wall socket. The yellow mark on the power cord indicates it is extended almost all the way. When you see the red mark do not pull the power cord any further.
• Use the on/off button to turn on the appliance. When you have finished using the appliance, press the on/off button to turn off the vacuum cleaner.
• Unplug the cord from the wall outlet.

• Wind up the connecting cord by pressing the power cord retract button. To do this hold the cord to prevent it from tangling or bumping the plug on the vacuum cleaner housing.

• Disconnect the suction attachment — cleaning head from the tube and disconnect the telescopic tube from the hose.

• Close the telescopic tube.

The vacuum cleaner may be stored in a vertical or horizontal position. The hose can remain attached to the vacuum cleaner, but please be careful not to bend it too much during storage.

CLEANING AND CARE

Replace the dust bag

Before replacing the dust bag, remove the power cord plug from the wall outlet. Always use the vacuum cleaner with a fitted dust bag. If you forget to insert a dust bag or it is fitted incorrectly, the cover cannot be closed completely - align the position of a dust bag and close the cover

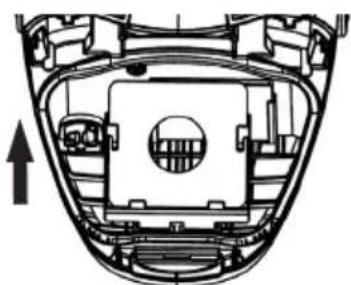

- After disconnecting flexible hose, open the front cover by lifting it upwards.

Cross-sectional diagram of a vehicle head and dashboard showing internal components (no text or labels)

• Release the dust bag lock and remove the bag from the guides, if filled with dust.
• Insert an empty or new dust bag by sliding it into the guides.
• Close the cover by pressing it down until it clicks.

Clean and replace the inlet filter

• Before cleaning the filter, remove the power cord plug from the wall outlet.
• The filter shall be cleaned when there are visible stains on it, wash the filter in warm water with no detergent. Use it only when completely dry.
  • Always use the vacuum cleaner with a filter in place.

• Failure to install the filter may result in motor damage.

• Remove the dust bag.

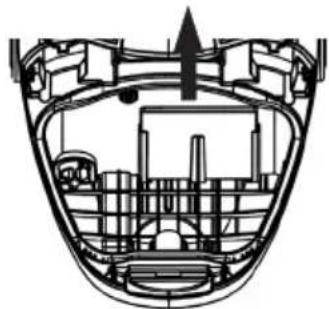

• Remove the filter by sliding it out of the guides upwards.

Cross-sectional diagram of a mechanical or architectural component (no text or symbols visible)

1. Clean the filter or replace with a new one.
2. Reinstall the filter by placing it back into the guides. Ensure the filter is completely dry before inserting it.

If the dust bag full indicator comes on, check whether the suction brush, hose or tube is blocked with large items stopping the air flow. After removing the items, if present, restart the vacuum cleaner - if the dust bag full indicator is still red, replace the dust bag with a new one.

Note! Figures are for illustrative purposes only Individual models may vary.

Clean and replace the HEPA12 exhaust filter

• Before cleaning the filter, remove the power cord plug from the wall outlet.
• Clean the filter when it is clearly soiled. Shake dirt off the filter and then brush it with a soft bristle brush. Then rinse the filter in lukewarm water and do not use any detergent. Do not direct strong jet of water onto the filter. Use it only when completely dry. If the filter is too dirty or damaged replace the filter with a new one.
• Depending on the intensity of use, it is recommended that you clean the filter once a month and replace it with a new one every six months.
  • Always use the vacuum cleaner with a filter in place.

• It is recommended that you only use original Amica filters for your vacuum cleaner.

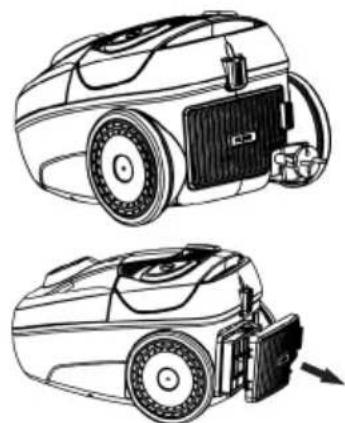

• Open the air exhaust cover.

Line drawings of a robotic car with visible battery and sensor components (no text or symbols)

1. Remove the filter, clean it or replace it with a new one.
2. Close the air exhaust cover.

Cleaning filters

Rinse the filter with warm water and let dry completely.

Illustration of a faucet spraying water onto a surface with raindrops, no text or symbols present

In the event of any fault:

• Turn off the appliance:
• Unplug the appliance from power
• By following the instructions given in the table below, you can correct some minor issues. Please check all points in the table before you refer the repair to customer service.

Problem Reason Remedy

1. The appliance does not work	No power Check the circuit breaker, reset if tripped, replace a blown fuse
2. Reduced suction power of the vacuum cleaner	Dust bag full indicator	You need to replace the dust bag
	Vacuum cleaner hose clogged	Remove dust, hair, and other obstructions that may reduce airflow.

If the problem is not solved, unplug the appliance from power and report the fault to the nearest service centre. Note! All repairs must be performed by qualified service technicians.

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Sestavení zařízení

Black and red compact vacuum cleaner with handle and wheels (no visible text or symbols)

Black and red compact vacuum cleaner with handle and wheels (no visible text or symbols)

Cross-sectional diagram of a vehicle head and dashboard showing internal components (no text or labels)

Cross-sectional diagram of a vehicle head and dashboard showing internal compartments and structural elements (no text or labels)

Line drawings of a two-wheeled robotic car with visible wheels and battery compartment (no text or symbols)

Illustration of a faucet spraying water onto a flat surface, with another panel partially submerged in liquid (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Zloženie zariadenia

Black and red compact vacuum cleaner with handle and wheels (no visible text or symbols)

Black and red compact vacuum cleaner with handle and control knob (no visible text or symbols)

Cross-sectional diagram of a vehicle head and dashboard showing internal components (no text or labels)

Cross-sectional diagram of a vehicle head and dashboard showing internal compartments and structural elements (no text or labels)

Line drawings of a two-wheeled robotic car with visible wheels and battery compartment (no text or symbols)

Illustration of a faucet spraying water onto a flat surface, with another panel hanging below showing liquid droplets (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Black and red compact vacuum cleaner with handle and wheels (no visible text or symbols)

Black and red compact vacuum cleaner with handle and circular wheels (no visible text or symbols)

Cross-sectional diagram of a vehicle head and dashboard showing internal components (no text or labels)

Cross-sectional diagram of a mechanical or architectural component (no text or symbols visible)

Line drawing of a robotic vacuum cleaner with visible battery and wheels (no text or symbols)

Line drawing of a robotic vacuum cleaner with a mounted device (no text or symbols)

Illustration of a faucet spraying water onto a flat surface, with another panel hanging below showing liquid droplets (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Black and red compact vacuum cleaner with handle and wheels (no visible text or symbols)

Black and red compact vacuum cleaner with handle and side arm (no visible text or symbols)

Cross-sectional diagram of a vehicle head and dashboard showing internal components (no text or labels)

Cross-sectional diagram of a mechanical or architectural component (no text or symbols visible)

Line drawing of a robotic vacuum cleaner with a mounted device (no text or symbols)

Line drawing of a robotic vacuum cleaner with attached mechanical components (no text or symbols)

Illustration of a faucet spraying water onto a flat surface, with another panel partially submerged in liquid (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Black and red compact vacuum cleaner with handle and wheels (no visible text or symbols)

Black and red compact vacuum cleaner with handle and control knob (no visible text or symbols)

Cross-sectional diagram of a vehicle head and dashboard showing internal components (no text or labels)

Cross-sectional diagram of a mechanical or architectural component (no text or symbols visible)

Line drawing of a robotic vacuum cleaner with attached battery pack (no text or symbols)

Line drawing of a robotic vacuum cleaner with a mounted device (no text or symbols)

Illustration of a faucet spraying water onto a flat surface, with another hand holding a hanging sheet of water (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Black and red compact vacuum cleaner with handle and control knob (no visible text or symbols)

Black and red compact vacuum cleaner with handle and side arm (no visible text or symbols)

Cross-sectional diagram of a vehicle head and dashboard showing internal components and structural elements (no text or labels)

Cross-sectional diagram of a mechanical or architectural structure with internal components (no text or labels)

Line drawings of a robotic car with visible wheels and battery (no text or symbols)

Illustration of a faucet spraying water onto a surface, with another panel partially submerged in liquid (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Black and red compact vacuum cleaner with handle and wheels (no visible text or symbols)

Black and red compact vacuum cleaner with handle and wheels (no visible text or symbols)

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols present)

Cross-sectional diagram of a mechanical or architectural component (no text or symbols visible)

Line drawing of a robotic vacuum cleaner with visible wheels and sensor components (no text or symbols)

Line drawing of a robotic vacuum cleaner with attached mechanical components (no text or symbols)

Illustration of a faucet spraying water onto a surface, with another panel partially submerged in liquid (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Збірка пристрою

Black and red compact vacuum cleaner with handle and wheels (no visible text or symbols)

Black and red compact vacuum cleaner with handle and control knob (no visible text or symbols)

Technical diagram of a mechanical component with internal structure and an upward arrow indicator (no text or symbols)

Cross-sectional diagram of a mechanical or electrical component (no text or symbols visible)

Line drawings of a robotic vacuum cleaner with attached battery pack and wheels (no text or symbols)

Illustration of a faucet spraying water onto a flat surface, with another panel hanging below showing liquid droplets (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Black and red compact vacuum cleaner with handle and wheels (no visible text or symbols)

Black and red compact vacuum cleaner with handle and control knob (no visible text or symbols)

Cross-sectional diagram of a vehicle head and dashboard showing internal components (no text or labels)

Cross-sectional diagram of a mechanical or electrical component (no text or symbols visible)

Line drawings of two different robotic car components, one with a battery and the other with a switch (no text or symbols)

Illustration showing a person cleaning a tiled surface and another hanging a sheet of water droplets (no text or symbols)
