USER MANUAL Solano VM 5011 AMICA

Black vacuum cleaner with coiled hose and green handle (no visible text or symbols)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 1

Product catalog image displaying various hair vacuum cleaner designs with numbered labels

* dotyczy modelu VM 5021 (Solano Turbo) / applies to the model VM 5021 (Solano Turbo)

Close-up of a hand holding a circular mechanical component with arrows indicating rotation (no text or symbols visible)

Close-up of a hand holding a cylindrical mechanical component, no visible text or symbols

Close-up of a hand holding a metallic cup with a black lid, no visible text or symbols

Close-up of a black mechanical component with threaded spring and adjustment knob, next to a close-up of a textured surface (no visible text or symbols)

Close-up of a mechanical component with a black handle and metallic body, no visible text or symbols

Close-up of a shoe and a camera on a surface, showing no visible text or symbols

Close-up of a person's foot stepping on a floor with a pipe and vent, no visible text or symbols

Close-up of a hand adjusting a hexagonal pipe fitting (no visible text or symbols)

Close-up of a mechanical component with a circular opening and flange (no visible text or symbols)

Close-up of hands holding a black electronic device with a strap, no visible text or symbols

Black-and-white photo of a vintage-style helmet with a circular inset showing a camera lens (no visible text or symbols)

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Close-up of hands assembling a compact electronic device with a circular component and arrow indicator (no text or symbols visible)

Close-up of a hand using a computer with a grid-patterned keyboard (no visible text or symbols)

Close-up of hands holding a small electronic device with grid patterns (no visible text or symbols)

Close-up of hands typing on a keyboard with a magnifying glass nearby (no visible text or symbols)

Close-up of a hand adjusting a hexagonal grid device (no visible text or symbols)

4

Simple line drawing of a person standing on a textured surface with droplets and tools, no text or symbols present.

Simple line drawing of a rectangular container with liquid and droplets falling, suspended by a horizontal rod (no text or symbols)

5

SZANOWNI PAŃSTWO!

THANK YOU FOR PURCHASING AN AMICA APPLIANCE

DEAR CUSTOMER,

Your Amica appliance is exceptionally easy to use and extremely efficient. Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions

Symbols appearing in these instructions have the following meaning:

Important information concerning proper operation of the appliance and your personal safety.

Risks resulting from improper operation of the appliance. Activities that must be performed by a qualified technician.

Tips on how to use the appliance.

Information on how to protect the environment.

This indicates actions that must not be performed by the user.

CONTENTS

SAFETY INSTRUCTIONS FOR USE 15 DISPOSING/SCRAPPING OF USED EQUIPMENT 18 DESCRIPTION OF THE APPLIANCE 19 OPERATION 19 CLEANING AND MAINTENANCE 20 WARRANTY AND AFTER SALES SERVICE 21 PRODUCT SHEET 23

The appliance is designed for household use only.

The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance.

The pictures in this operating instructions are for illustration only. Full list of the appliance accessories may be found in an appropriate section of this operating instructions.

Important! To minimize the risk of fire, electric shock or injury:

Carefully read this instruction before using the appli- ance.

Children do not realize the dangers that can arise when using electrical appliances; therefore keep the appliance out of reach of children.

Do not immerse the body of the appliance in water or other liquids. Immersing in water may cause an electric shock.

If water spills on the external components of the appliance, dry it thoroughly before switching back on. Do not touch wet surfaces in contact with the appliance connected to power supply, immediately disconnect it from the mains.

Do not use the appliance if it shows any signs of damage to the power cord, or if the appliance has been dropped on the floor.

After use, always pull out the plug from the socket, and also in case of any malfunction, before cleaning or before changing accessories.

When pulling out the plug from the wall outlet, never pull by the cord, only the plug, holding the socket with your other hand.

The appliance is Class II fire protection electrical equipment.

Do not attempt to remove any parts of the housing.

To prevent damage to the power cord, do not place it over sharp edges or close to hot surfaces.

Do not expose the appliance to rain or humidity, and do not use it outdoors. Do not operate the appliance with wet hands.

If the power cord or plug is damaged, it should be replaced by a professional repair shop in order to avoid hazard.

Using attachments that were not supplied with the product may cause damage to the appliance.

Never place the appliance on hot surfaces.

Never leave the appliance connected to the mains without supervision.

This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety. Children shall not play with the appliance.

Pull the plug from the wall outlet before replacing accessories.

This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are supervised by a competent person.

The surface on which the appliance is used shall be levelled, clean and dry.

To switch the appliance on, press the power switch (Fig. 1, item 10). To stop the appliance's motor, release the button (Fig. 2, item 10). The complete appliance shutdown is possible by disconnecting the appliance from the power supply.

Do not pull the vacuum cleaner or move it by the cord, do not use the cord as a handle, do not close the door squeezing the cord, and do not drag the cord over sharp edges. Be careful not to move the vacuum cleaner on the cord.

Do not insert any objects into the openings in the vacuum cleaner. Do not use the vacuum cleaner when any opening is blocked, dispose of dust, lint, hair and anything that may restrict air flow.

Keep hair, loose clothing parts, fingers and other body parts away from the openings and moving parts.

Do not use the vacuum cleaner to collect flammable substances such as petrol, and do not use it in places where similar substances may be present.

Hold the plug when retracting the cord. Do not let the plug was left loose during retracting.

Do not collect any items that burn or smoke, such as cigarettes, matches or hot ashes.

Do not use the vacuum cleaner without a dust bag and/or filters.

If the opening, which sucks air, hose or telescopic tube are clogged, you should immediately switch the vacuum cleaner off. Before restarting the vacuum cleaner, first remove the blocking item.

Do not use the vacuum cleaner too close to heaters, radiators, cigarette butts, etc.

Before you put the plug into the wall outlet, make sure your hands are dry.

Before using the vacuum cleaner, remove sharp objects from the floor to avoid damaging the dust bag (depending on the model).

Do not collect fine particles such as: flour, gypsum, printer toners, etc., as this may clog filters and damage the vacuum cleaner.

This vacuum cleaner is equipped with a power cord re-tractor.

Electrical requirements

Make sure that the voltage indicated on the nameplate corresponds to the electric power parameters at home, power must be marked as \~ (alternating current)

DISPOSING/SCRAPPING OF USED EQUIPMENT

UNPACKING

During transportation, protective packaging was used to protect the appliance against any damage.

After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! During unpacking, keep the packaging material (polyethylene bags, polystyrene pieces, etc.) out of reach of children.

DISPOSAL OF THE APPLIANCE

At the end of its useful life, this product must not be disposed of with normal municipal waste. Instead, it should be taken to an electronic waste collection and recycling point. It is indicated by the symbol on the product itself, or on the Operating Instructions or packaging.

The materials used in making of this appliance can be reused, as indicated. By reusing or recycling the materials or parts, you will be playing an important part in protecting our environment.

Information about the relevant disposal points for worn-out electrical goods is available from your local authorities.

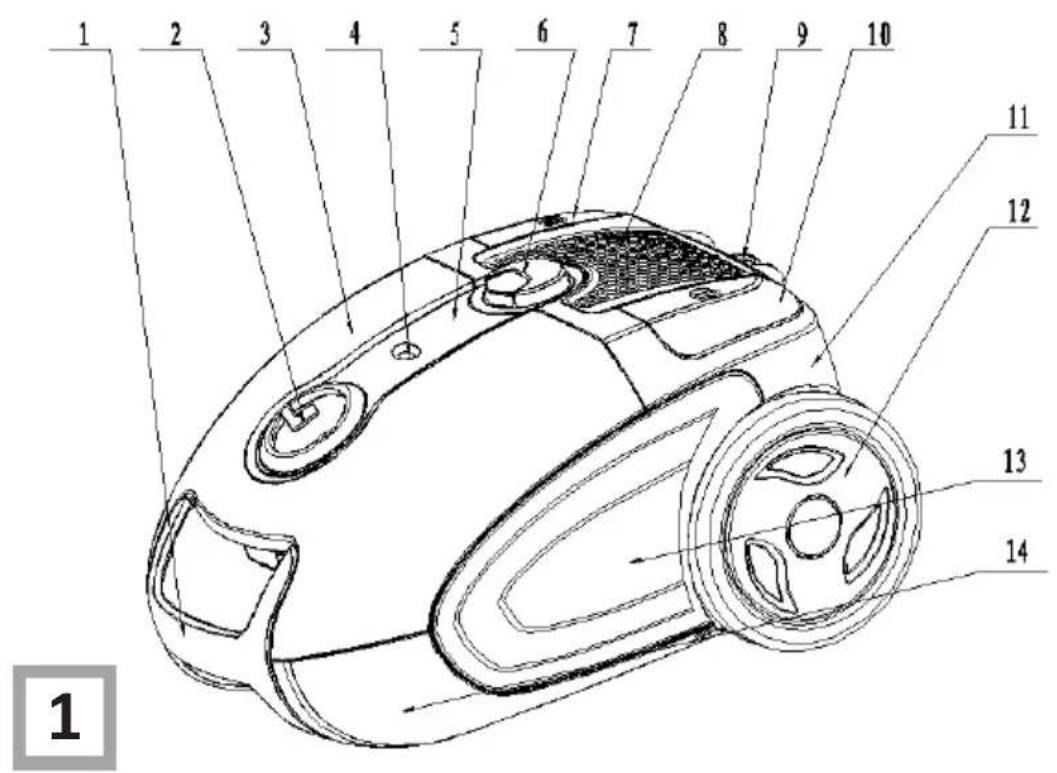

DESCRIPTION OF THE APPLIANCE

Appliance components (Fig. 1, item ...)

1. Handle
2. Hose socket
3. Hinged Cover
4. Dust bag full indicator
5. Appliance model / power
6. Power smooth control knob
7. Cord retractor button
8. Air exhaust
9. Brush unit handle
10. Power button
11. Appliance body
12. Wheels
13. Sideguards
14. Bottom cover

Attachments (Fig. 2. item...)

(1) All-purpose suction brush 1
(2) Suction head for upholstery 1

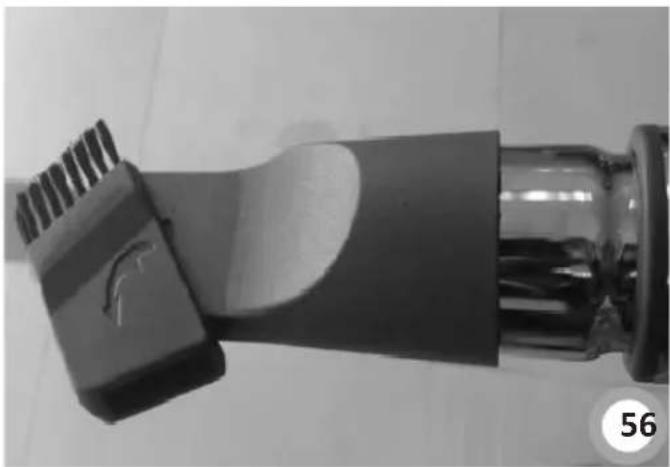

(3) Suction head for narrow spaces (2 in 1)	1
(3) Book-dusting brush (2 in 1) 1
(4) Parquet suction brush 1
(5) Turbo-brush 1
(6) Hose 1
(7) Telescopic tube 1
(8) Dust bag included 1
(9) Turbobrush * 1

* applies to the model VM 5021 (Solano Turbo)

OPERATION (Fig. 3)

Always unplug the appliance before attaching or removing attachments!

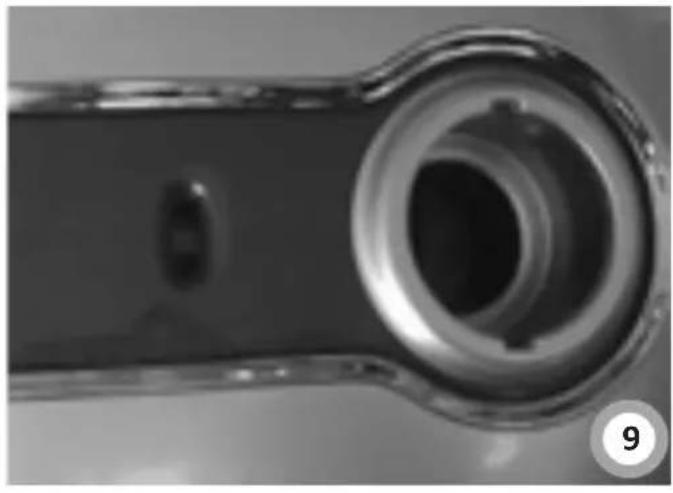

• Attaching flexible hose: insert the hose end into the inlet port. Push until the end falls into place with an audible click (Fig. 3, item 1).
• Removing the hose: press buttons on the hose end, unlatch and remove the hose from the inlet port (Fig. 3, item 2)
• Connect the telescopic tube with the hose (Fig. 3, item 3) and the proper attachment (Fig. 3, item 4/5/6), slide open the telescopic tube to a suitable length.
  ● Grab the plug and pull the power cord while holding the appliance body, plug into a power outlet.
• Switch on the appliance with the on / off button (Fig. 3, item 7).
• Set the desired appliance power with the power control knob.
  ● After finishing using the appliance, press the on/off button to turn off the vacuum cleaner (Fig. 3, item 7).
  ● Unplug the cord from the wall outlet.

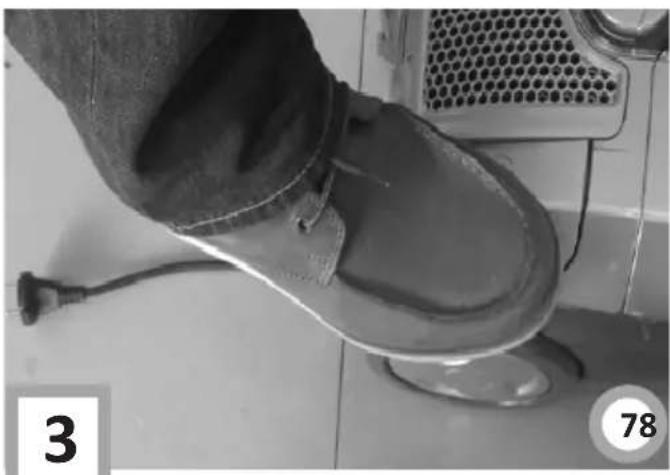

• Retract the power cord by pressing cord retractor button (Fig. 3, item 8). For this operation hold the cord to prevent it from tangling or bumping the plug on the vacuum cleaner housing (Fig. 3, item 9).
• Disconnect the suction - cleaning head from the tube and disconnect the telescopic tube from the hose.
• Close the telescopic tube

The vacuum cleaner may be stored in a vertical or horizontal position. The hose can remain attached to the vacuum cleaner, but please be careful not to bend it too much during storage. Brushes are stored on the handle in the rear of the vacuum cleaner (Fig. 3, item 9).

CLEANING AND MAINTENANCE (Fig. 3)

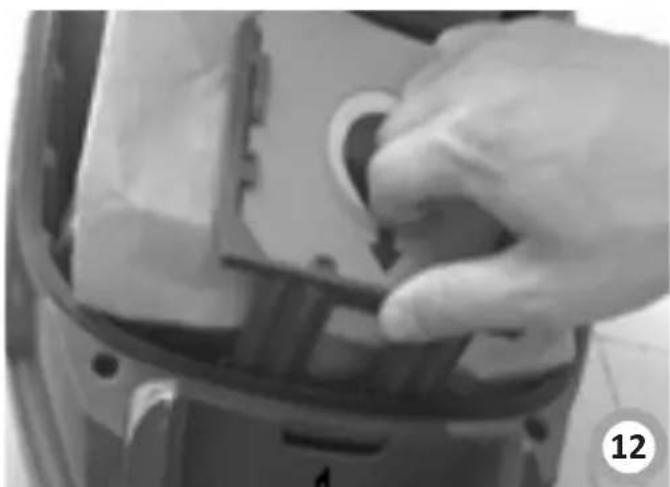

Replacing the dust bag

Before replacing the dust bag, remove the power cord plug from the wall outlet. Always use the vacuum cleaner with a fitted dust bag. If you forget to insert a dust bag or it is fitted incorrectly, the cover cannot be closed completely - fix the position of a dust bag and close the cover

1. After disconnecting flexible hose, open the front cover by lifting it upwards.
2. Release the dust bag lock and remove the paper bag from the guides, if filled with dust.
3. Insert a new dust bag by sliding it into the guides.
4. Close the cover by pressing it down until it clicks.

If the dust bag full indicator goes on, check whether the suction brush or the cleaning head, hose or tube is not blocked with large items stopping the air flow. After removing the items, if present, restart the vacuum cleaner - if the dust bag full indicator is still red, replace the dust bag with a new one.

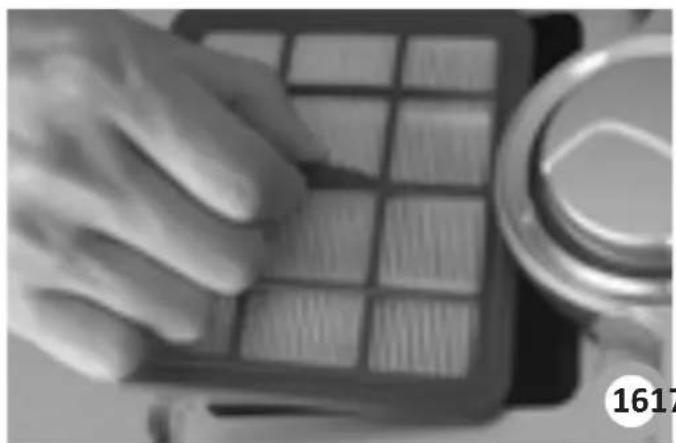

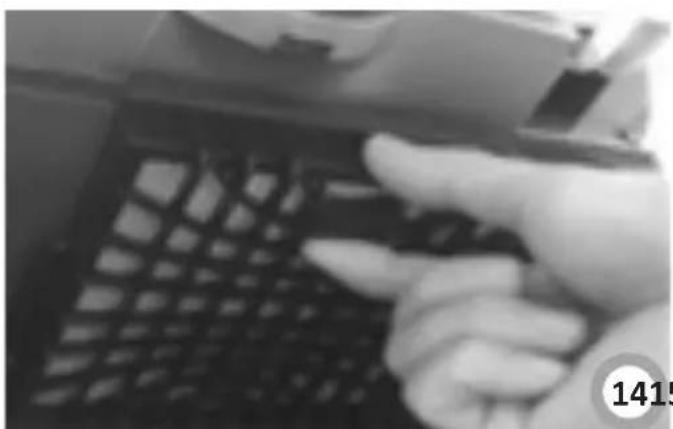

Replacing the inlet filter

Before cleaning the filter, remove the power cord plug from the wall outlet. The filter shall be cleaned when there are visible stains on it, wash the filter in warm water with no detergent. Use it only when completely dry. Always use the vacuum cleaner with a filter in place. Failure to install the filter may result in motor damage.

1. Open the air exhaust cover.
2. Remove the filter and replace it with a clean one.
3. Close the air exhaust cover.

Filters cleaning.

Rinse the filter with warm water and let dry completely. (Fig. 5).

Warranty

Warranty service as stated on the warranty card.

The manufacturer shall not be held liable for any damage caused by improper use of the product.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

● Low Voltage Directive 2014/35/EC,
● Electromagnetic Compatibility (EMC) Directive 2014/30/EC,
- Eco-design Directive 2009/125/EC,
● Directive RoHS, 2011/65/UE,

and has been marked with the symbol and issued with a declaration of compliance made available to market regulators.

KARTA PRODUKTU

Supplier name Amica S.A. Amica S.A.
Supplier's model ID (Model)	VM 5011 (Solano) VM 5021 (Solano Turbo)
	1190114 1190204
Energy efficiency class A A
Annual energy consumption (AE) [kWh/year]1	27,5 27,5
Performance class for carpet vacuuming2	C	D
Performance class for hard floor vacuuming3	A	A
Dust re-emission class (dre) A A
Noise level [dB(A) re 1 pW] 72 72
Rated input power [W] 700 700

1) Estimated annual energy consumption (kWh per year) assuming that the vacuum cleaner is used 50 times in a year. Actual annual energy consumption depends on how the appliance is used.

2) Applies to all-purpose vacuum cleaners and carpet vacuum cleaners. Vacuum cleaners for hard floors are not suitable for vacuuming carpets with the supplied suction head

3) Applies to all-purpose vacuum cleaners and vacuum cleaners for hard floors. Vacuum cleaners for carpets are not suitable for vacuuming hard floors with the supplied suction head

To determine these results and in accordance with the requirements for energy labelling of vacuum cleaners (Directive of the European Parliament and of the Council 2010/30/EU) and in terms of the requirements for vacuum cleaners ecodesign (Directive of the European Parliament and of the Council 2009/125/EC), the following measuring and calculation methods have been applied:

- EN 60335-1 - Household and similar electrical appliance -- Safety -- Part 1: General requirements,

- EN 60335-2-2 - Household and similar electrical appliance -- Safety -- Part 2-2: Particular requirements for vacuum cleaners and water-suction cleaning appliances,

- EN 60312 - Vacuum cleaners for household use -- Methods for measuring the performance,

- EN 60704-2-1 — Household and similar electrical appliances -- Test code for the determination of airborne acoustical noise -- Part 2-1: Particular requirements for vacuum cleaners.

The vacuum cleaner shall be tested as a "all-purpose vacuum cleaner".

Amica S.A.

ul.Mickiewicza 52

64-510 Wronki

tel. [phone]

fax [phone]

www.amica.pl
