Yugo VM 1047 - Vacuum Cleaner AMICA - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	Amica
Model	Yugo VM 1047
Power Consumption	800 W
Dust Capacity	1.5 L
Filtration System	HEPA filter
Noise Level	75 dB
Cord Length	5 m
Weight	4.5 kg
Dimensions (H x W x D)	30 x 25 x 25 cm
Power Supply	220-240 V, 50/60 Hz
Accessories Included	Crevice tool, upholstery brush, floor nozzle
Maintenance	Empty dust cup after each use; wash filter monthly
Safety Features	Overheat protection, auto shut-off
Color	White/Blue

Frequently Asked Questions - Yugo VM 1047 AMICA

How often should I empty the dust cup?

Empty the dust cup after each use or when it reaches the max fill line to maintain optimal suction power.

Can I wash the HEPA filter?

Yes, rinse the HEPA filter under running water and let it dry completely for 24 hours before reinstalling. Do not use detergents.

Why is the vacuum not picking up dirt?

Check if the dust cup is full, the filter is clogged, or the hose is blocked. Also ensure the floor nozzle is set to the correct height.

How do I clean the hose?

Detach the hose and check for blockages by shining a flashlight. Use a long brush or a flexible tool to remove any debris.

What should I do if the vacuum overheats and shuts off?

Turn off and unplug the vacuum. Check for blockages and empty the dust cup. Let it cool for at least 30 minutes before restarting.

Can I vacuum liquids with this model?

No, the Amica Yugo VM 1047 is designed for dry vacuuming only. Using it on liquids can damage the motor and void the warranty.

How often should I replace the HEPA filter?

Replace the HEPA filter every 6-12 months, or sooner if it appears damaged or discolored after washing.

The cord does not retract fully. What should I do?

Ensure the cord is not tangled or twisted. Gently pull out the cord and press the rewind button fully. If the issue persists, contact customer service.

Can I use the vacuum on hardwood floors?

Yes, the vacuum includes a floor nozzle suitable for hard floors. For delicate surfaces, use the hardwood floor setting if available.

What spare parts are available for this model?

Spare parts include filters, dust cup, hose, and nozzles. Check the Amica website or authorized dealers for compatible parts.

USER MANUAL Yugo VM 1047 AMICA

Top-down view of a black YUGO vacuum cleaner with blue vent slots (no visible text or symbols)

PL INSTRUKCJA OBSŁUGI....6

EN OPERATING INSTRUCTIONS....12

1

2

Line drawing of a vacuum cleaner with attached hose and valve, showing mechanical components and directional arrows (no text or symbols)

Illustration of a hand holding a tool with a hose and lever, no text or symbols present

Close-up of a black vacuum cleaner with a circular inset showing a ring (no text or symbols visible)

Line drawing of a robotic vacuum cleaner with a black arrow pointing to the component (no text or symbols present)

Line drawing of a robotic vacuum cleaner with a black arrow pointing to the component (no text or symbols present)

3

Line drawing of a vacuum cleaner with a curved arrow indicating motion (no text or symbols)

Cross-sectional diagram of a mechanical component with internal structure and an upward arrow indicating motion (no text or symbols)

Cross-sectional diagram of a car intake manifold showing internal compartments and structural elements (no text or labels)

Line drawing of a vacuum cleaner with visible internal components and mounting base (no text or symbols)

Line drawing of a vacuum cleaner with attached fan and door, showing mechanical components (no text or symbols)

SPIS TREŚCI

WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA UŻYTKOWANIA....6

USUWANIE / ZŁOMOWANIE ZUŻYTEGO SPRZĘTU....9

OPIS WYROBU....10

OBSŁUGA....10

CZYSZCZENIE I KONSERWACJA....11

GWARANCJA, OBSŁUGA POSPRZEDAŻOWA....11

CONTENTS

SAFETY INSTRUCTIONS FOR USE....12

DISPOSING/SCRAPPING OF USED EQUIPMENT....14

DESCRIPTION OF THE APPLIANCE....15

OPERATION....15

CLEANING AND MAINTANCE....16

WARRANTY AND AFTER SALES SERVICE....16

GRATULUJEMY WYBORU SPRZĘTU MARKI AMICA

THANK YOU FOR PURCHASING AN AMICA APPLIANCE

Your Amica appliance is exceptionally easy to use and extremely efficient. Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
  • Electromagnetic Compatibility (EMC) Directive 2014/30/EC
  • ErP Directive 2009/125/EC
  • Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA UŻYTKOWANIA

Illustration of a pipe drain and a hanging sheet with water droplets (no text or symbols)

GWARANCJA I OBSŁUGA POSPRZEDAŻOWA

Gwarancja

Important! To minimize the risk of fire, electric shock or injury:

• Carefully read this instruction before using the appliance.
• Children do not realize the dangers that can arise when using electrical appliances; therefore keep the appliance out of reach of children.
• Do not immerse the body of the appliance in water or other liquids. Immersing in water may cause an electric shock.
• If water spills on the external components of the appliance, dry it thoroughly before switching back on. Do not touch wet surfaces in contact with the appliance connected to power supply, immediately disconnect it from the mains.
• Do not use the appliance if it shows any signs of damage to the power cord, or if the appliance has been dropped on the floor.
• After use, always pull out the plug from the socket, and also in case of any malfunction, before cleaning or before changing accessories.
• When pulling out the plug from the wall outlet, never pull by the cord, only the plug, holding the socket with your other hand.
• The appliance is Class II fire protection electrical equipment.
• Do not attempt to remove any parts of the housing.
• To prevent damage to the power cord, do not place it over sharp edges or close to hot surfaces.
• Do not expose the appliance to rain or humidity, and do not use it outdoors. Do not operate the appliance with wet hands.
• If the power cord or plug is damaged, it should be replaced by a professional repair shop in order to avoid hazard.
• Never place the appliance on hot surfaces.
• Using attachments that were not supplied with the product may cause damage to the appliance.
• Never leave the appliance connected to the mains without supervision.
• The surface on which the appliance is used shall be levelled, clean and dry.

SAFETY INSTRUCTIONS FOR USE

• This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety. Children shall not play with the appliance.
• Pull the plug from the wall outlet before replacing accessories.
• This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are supervised by a competent person.
  • To switch the appliance on, press the power switch (Fig. 1, item 2). The complete appliance shutdown is possible by disconnecting the appliance from the power supply.
• Do not pull the vacuum cleaner or move it by the cord, do not use the cord as a handle, do not close the door squeezing the cord, and do not drag the cord over sharp edges. Be careful not to move the vacuum cleaner on the cord.
• Do not insert any objects into the openings in the vacuum cleaner. Do not use the vacuum cleaner when any opening is blocked, dispose of dust, lint, hair and anything that may restrict air flow.
• Keep hair, loose clothing parts, fingers and other body parts away from the openings and moving parts.
• Do not use the vacuum cleaner to collect flammable substances such as petrol, and do not use it in places where similar substances may be present.
• Hold the plug when retracting the cord. Do not let the plug was left loose during retracting.
• Do not use the vacuum cleaner without a dust bag and/or filters.

SAFETY INSTRUCTIONS FOR USE

• Do not collect any items that burn or smoke, such as cigarettes, matches or hot ashes.
• If the opening, which sucks air, hose or telescopic tube are clogged, you should immediately switch the vacuum cleaner off. Before restarting the vacuum cleaner, first remove the blocking item.
• Do not use the vacuum cleaner too close to heaters, radiators, cigarette butts, etc.
• Before you put the plug into the wall outlet, make sure your hands are dry.
• Before using the vacuum cleaner, remove sharp objects from the floor to avoid damaging the dust bag (depending on the model).
• Do not collect fine particles such as: flour, gypsum, printer toners, etc., as this may clog filters and damage the vacuum cleaner.
• This vacuum cleaner is equipped with a power cord retractor.

DISPOSING/SCRAPPING OF USED EQUIPMENT

UNPACKING

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment. All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! During unpacking, keep the packaging material (polyethylene bags, polystyrene pieces, etc.) out of reach of children.

DISPOSAL OF THE APPLIANCE

At the end of its useful life, this product must not be disposed of with normal municipal waste. Instead, it should be taken to an electronic waste collection and recycling point. It is indicated by the symbol on the product itself, or on the Operating Instructions or packaging.

The materials used in making of this appliance can be reused, as indicated. By reusing or recycling the materials or parts, you will be playing an important part in protecting our environment. Information about the relevant disposal points for worn-out electrical goods is available from your local authorities.

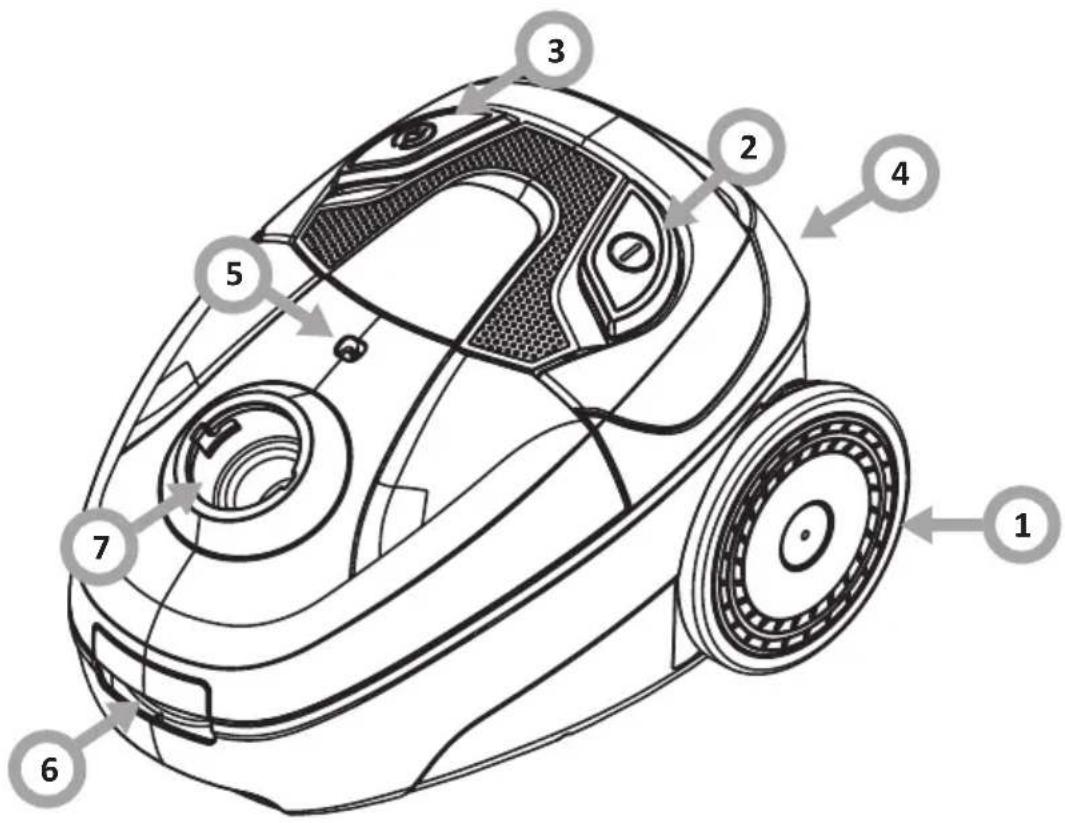

Appliance components (Fig. 1, item ...)

1. Wheels

2. Power button

3. Cord retractor button

4. Air exhaust

5. Dust bag full indicator

6. Cover lock

7. Hose socket

Attachments (Fig. 2. item...)

(1) Telescopic tube 1
(2) All-purpose suction brush 1
(3) Book-dusting brush (2 in 1) 1
(3) Suction head for narrow spaces (2 in 1)	1
(4) Dust paper bag 1
(5) Hose 1
(6) Suction head for upholstery 1

OPERATION (Fig. 3)

Preparing for vacuuming

Always unplug the appliance before attaching or removing attachments!

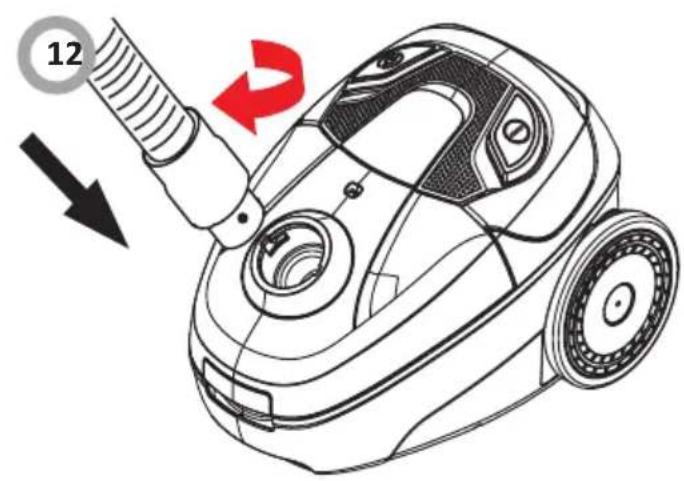

• Attaching flexible hose: insert the hose end into the inlet port and turn it clockwise until feels the resistance and it stops (Fig. 3, item 1).
• Removing the hose: holding the hose end, turn it to the left until it releases and pull the hose out of the inlet hole (Fig. 3, item 2).
• Connect the telescopic tube with the hose (Fig. 3, item 3) and the proper attachment (Fig. 3, item 5), slide open the telescopic tube to a suitable length (Fig. 3, item 4).
• Grab the plug and pull the power cord while holding the appliance body, plug into a power outlet.

- Before you start vacuuming, extend power cord cable to sufficient length and insert the plug into the wall socket. The yellow mark on the power cord indicates it is extended almost all the way. When you see the red mark do not pull the power cord any further.

• Switch on the appliance with the on / off button. (Fig. 3, item. 6).
• After finishing using the appliance, press the on/off button to turn off the vacuum cleaner (Fig. 3, item 6).
  ● Unplug the cord from the wall outlet.
• Retract the power cord by pressing cord retractor button (Fig. 3, item 7). For this operation hold the cord to prevent it from tangling or bumping the plug on the vacuum cleaner housing.
• Disconnect the suction - cleaning head from the tube and disconnect the telescopic tube from the hose. (Fig. 3, item. 3, 5).
• Close the telescopic tube (Fig. 3, item. 4).

The vacuum cleaner may be stored in a vertical or horizontal position. The hose can remain attached to the vacuum cleaner, but please be careful not to bend it too much during storage.

Replacing the dust bag

Before replacing the dust bag, remove the power cord plug from the wall outlet. Always use the vacuum cleaner with a fitted dust bag. If you forget to insert a dust bag or it is fitted incorrectly, the cover cannot be closed completely - fix the position of a dust bag and close the cover

If the dust bag full indicator (Fig. 1, ittem 6) goes on, check whether the suction brush or the cleaning head, hose or tube is not blocked with large items stopping the air flow. After removing the items, if present, restart the vacuum cleaner - if the dust bag full indicator is still replace the dust bag with a new one.

1. After disconnecting flexible hose, open the front cover by lifting it upwards (Fig. 3, item 8, 9).
2. Release the dust bag lock and remove the bag from the guides, if filled with dust.
3. Insert a new or empty dust bag by sliding it into the guides.
4. Close the cover by pressing it down until it clicks.

Cleaning and replacing the inlet filter

● Before cleaning the filter, remove the power cord plug from the wall outlet.
- The filter shall be cleaned when there are visible stains on it, wash the filter in warm water with no detergent. Use it only when completely dry.
● Always use the vacuum cleaner with a filter in place.
● Failure to install the filter may result in motor damage.

1. Remove the dust bag.

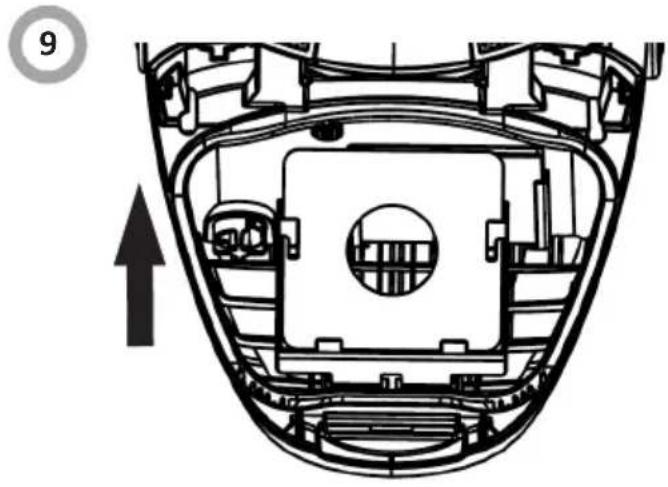

2. Remove the filter by sliding it up from the guides (Fig. 3, item 10).
3. Clean the filter or replace.
4. Replace the filter again placing it in the guides. Make sure that the filter before the foundation was completely dry.

Cleaning and replacing the outlet filter EPA12

● Before cleaning the filter, remove the power cord plug from the wall outlet.
- Clean the filter when it is clearly soiled. Shake dirt off the filter and then brush it with a soft bristle brush. Then rinse in lukewarm water, without any detergent. Do not direct strong jet of water onto the filter. Use it only when completely dry. In case of heavy soiling or lasting damage, replace the filter with a new one.
- Depending on the intensity of use, it is recommended that you clean the filter once a month and replace it with a new one every six months.
- It is recommended that you only use original Amica filters for your vacuum cleaner.

1. Open the air exhaust cover (Fig. 3, ittem 11, 12).
2. Remove the filter, clean or replace it with a clean one.
3. Close the air exhaust cover.

Filters cleaning.

Rinse the filter with lukewarm water and let dry completely

Illustration of a faucet and a hanging plate with water droplets (no text or symbols)

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card.

The manufacturer shall not be held liable for any damage caused by improper use of the product.

Amica S.A.

ul.Mickiewicza 52

64-510 Wronki

tel. [phone]

fax [phone]

www.amica.pl
