USER MANUAL MT00522 MAGNAVOX

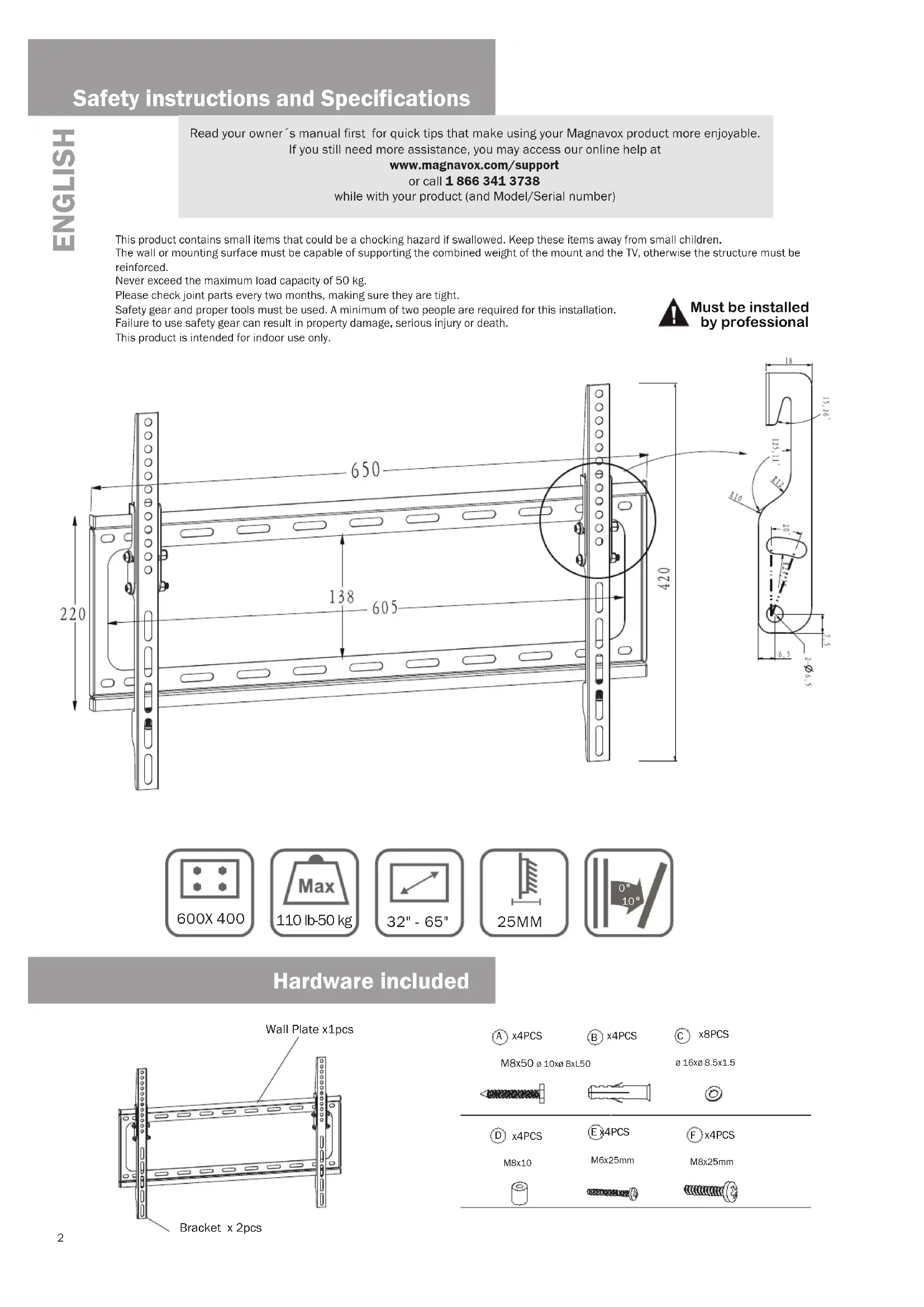

Safety instructions and Specifications

Read your owner's manual first for quick tips that make using your Magnavox product more enjoyable. If you still need more assistance, you may access our online help at

www.magnavox.com/support

or call 1 866 341 3738

while with your product (and Model/Serial number)

This product contains small items that could be a chocking hazard if swallowed. Keep these items away from small children.

The wall or mounting surface must be capable of supporting the combined weight of the mount and the TV, otherwise the structure must be reinforced.

Never exceed the maximum load capacity of 50 kg.

Please check joint parts every two months, making sure they are tight.

Safety gear and proper tools must be used. A minimum of two people are required for this installation.

Failure to use safety gear can result in property damage, serious injury or death.

This product is intended for indoor use only.

Must be installed by professional

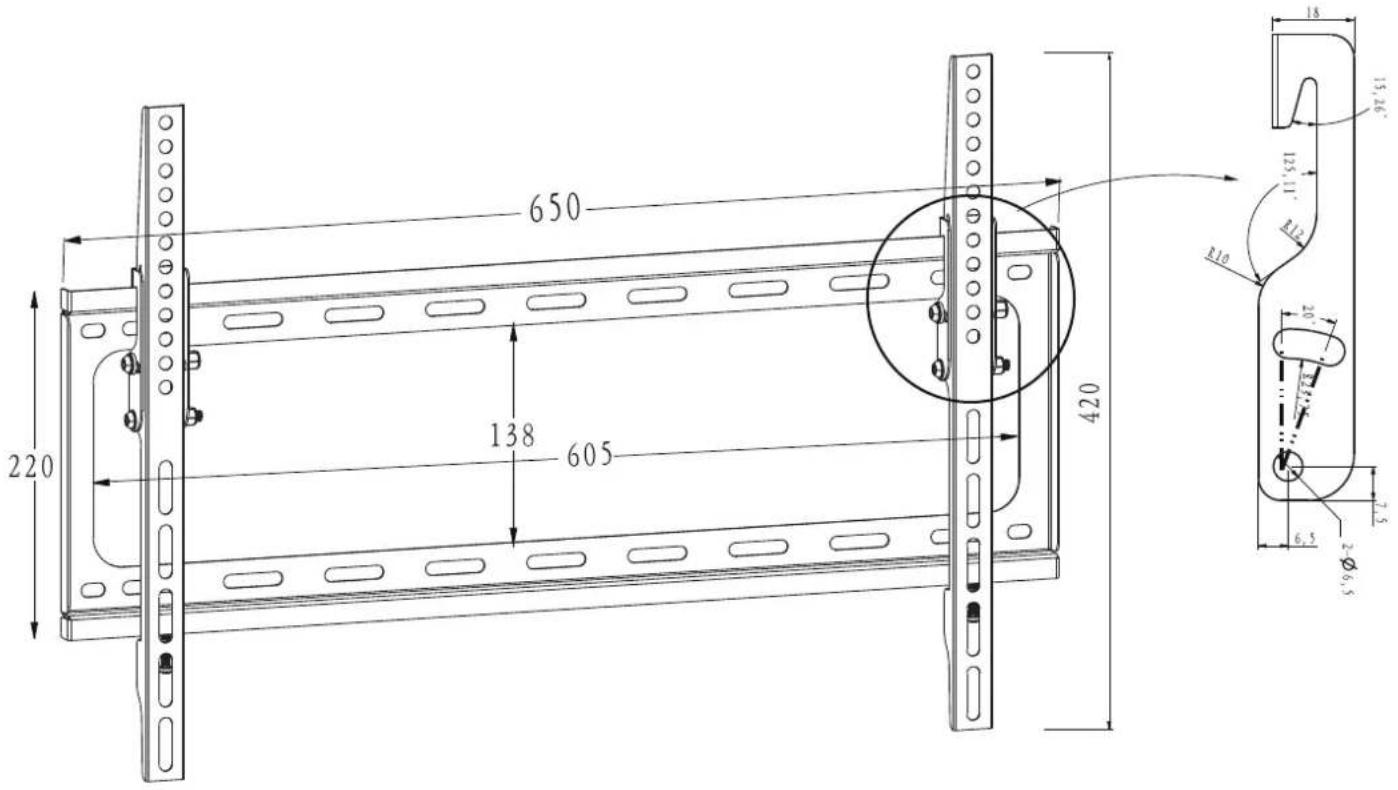

650 220 138 605 420 18 15.36 125.11 R12 20 R10 6.5 2.0 0.5 0.5

Hardware included

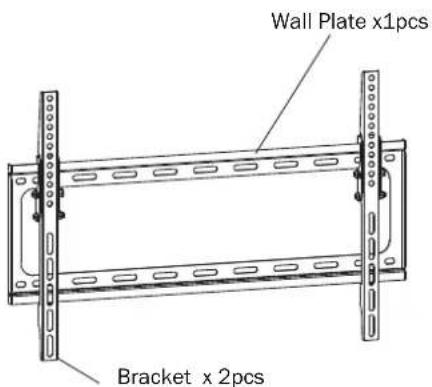

Wall Plate x1pcs Bracket x 2pcs

x4PCS

x4PCS

x8PCS

M8x50 ∅ 10x∅ 8xL50

∅ 16x∅ 8.5x1.5

x4PCS

1PCS

x4PCS

M8x10

M6x25mm

M8x25mm

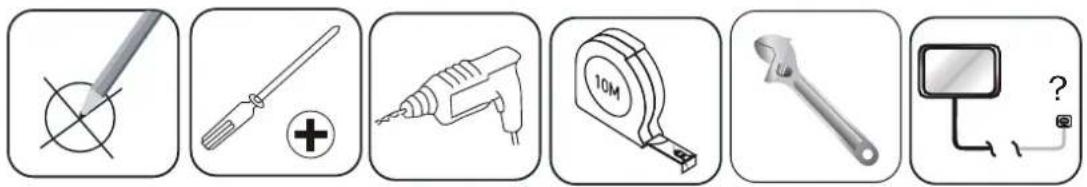

DRY WALL INSTALLATION MASONRY INSTALLATION

• Adjustable spanner/socket set
  • Philips head screwdriver
• Power drill
  • High speed drill bit

• Pencil

• Adjustable spanner/socket set
  • Philips head screwdriver
  • Power drill with hammer function

• Masonry drill bit
• Pencil
• Hammer

RY WALL & MASONRY Installation steps

1

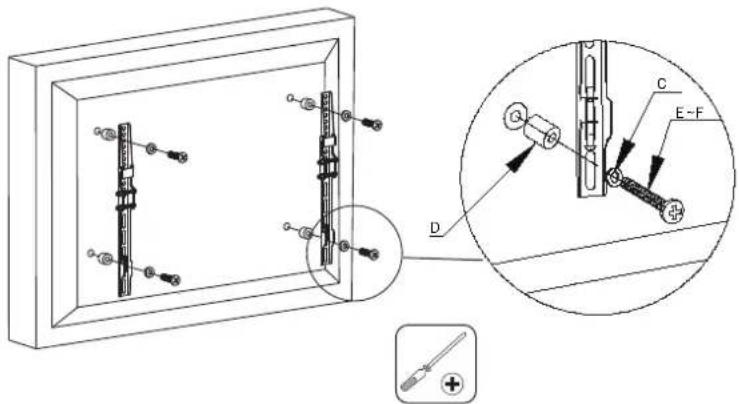

Check the back of your TV to find the appropriate mounting pattern.

Sort through the provided bolts until you find the correct size that easily fits into the back of your TV and fits snugly.

Install TV mount brackets to the back of the tv and use the hole spacer in case of non flat surfaces.

To avoid damaging TV, do not overtighten bolts.

Technical diagram showing a mechanical assembly with labeled parts and a magnified inset view of a component detail.

2

Use the template to determine the proper location to drill holes for the wall plate.

Simple line drawing of a rectangular frame with a central rod and evenly spaced circular indentations (no text or symbols)

3

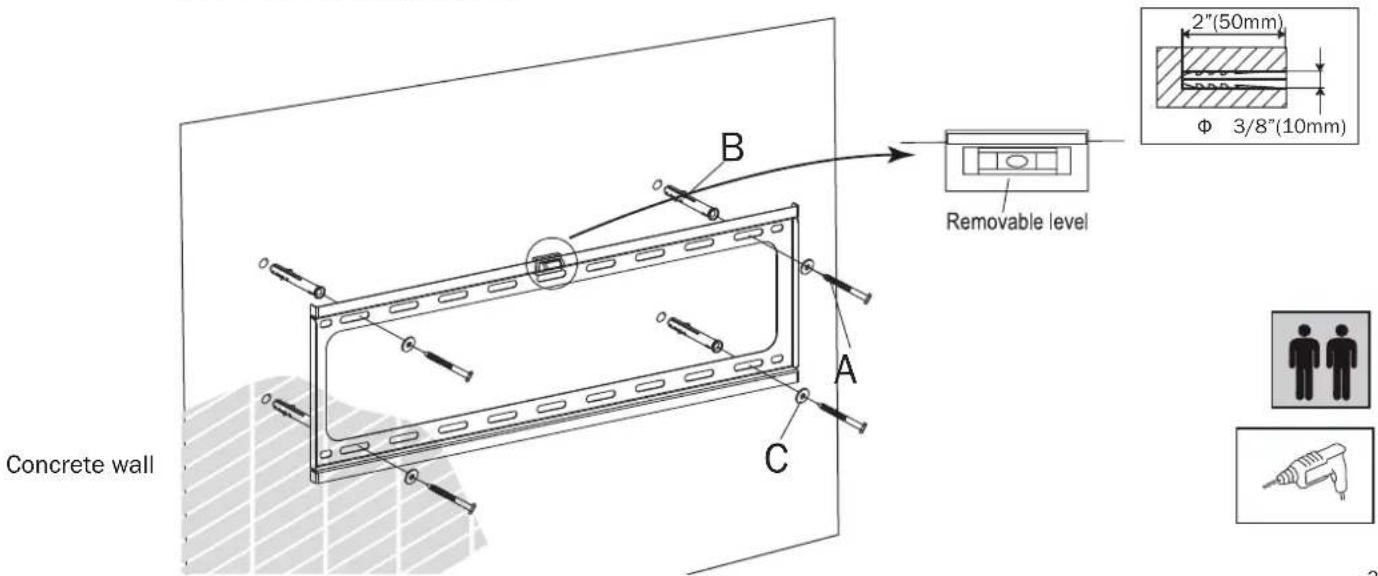

WALL MOUNTING- MASONRY

Drill 4 holes according to the provided template. Screw the base plate into the concrete wall (make sure base plate is level).

Concrete wall B A C Removable level 2"(50mm) Φ 3/8"(10mm)

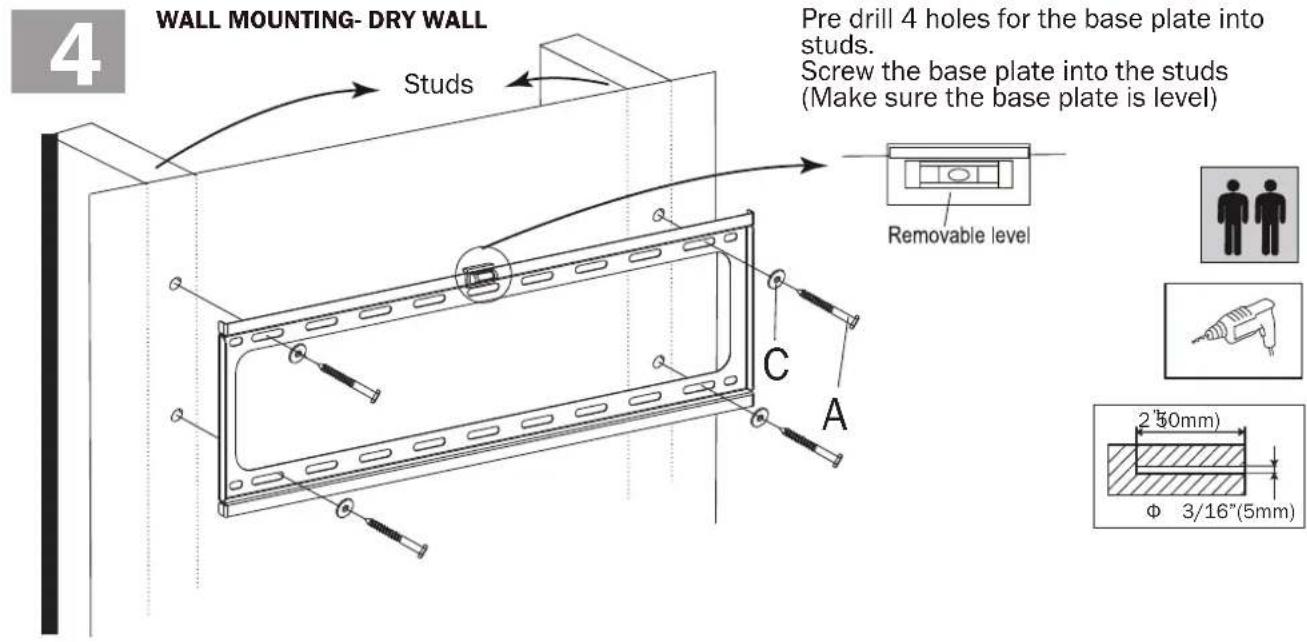

4 WALL MOUNTING- DRY WALL Studs Pre drill 4 holes for the base plate into studs. Screw the base plate into the studs (Make sure the base plate is level) Removable level C A 2'50mm) Φ 3/16"(5mm)

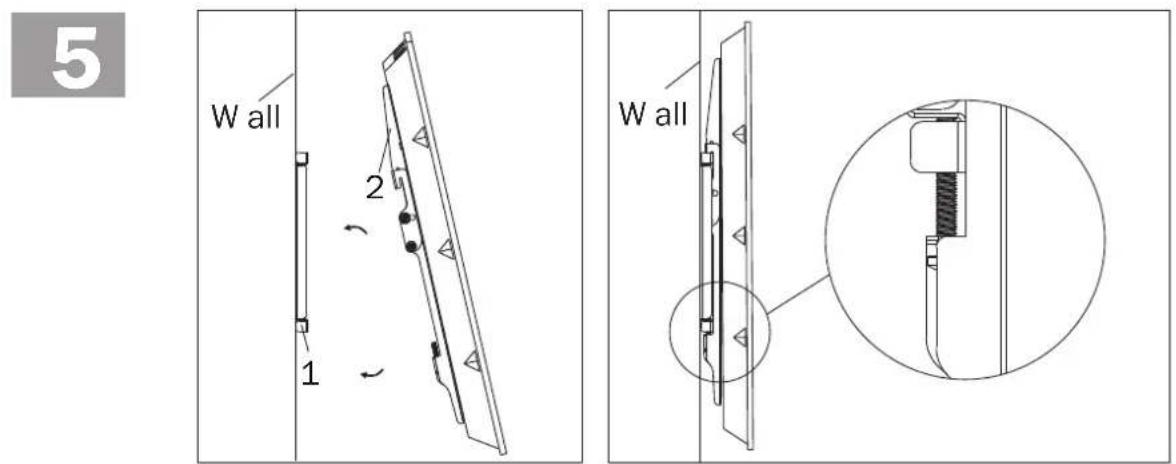

5 W all 2 1 W all

Attach the TV to base plate on the wall Set the desired angle of the screen

5 YEAR WARRANTY

Magnavox warrants that if this product purchased by you from Magnavox or a retail outlet is found by Magnavox to be defective in workmanship or materials within 5 years of the date of purchase, Magnavox will (at its election) either repair that product, replace the product, supply an equivalent product or pay the costs of repairing or replacing the product or acquiring an equivalent product. This limited warranty will not extend to or cover any expenses associated with removing, demounting the original product or installing the repaired, replaced or equivalent product or all or any of its components, you must bear these expenses. It also does not cover damage or loss resulting from intentional or unintentional misuse of, tampering with, alterations to or incorrect installation of this product or use of this product for purposes other than that for which it is designed or in a manner inconsistent with the product's instructions. This limited warranty also does not apply to damage or loss resulting from fair wear and tear or events beyond Magnavox control including but not limited to natural disasters. In order to claim under this warranty, you must contact Magnavox and return to Magnavox (via our nominated reply paid address) the product and its components and proof of purchase (including the date and location of purchase) so that Magnavox can verify the defect and your purchase. (PLEASE PROVIDE CONTACT)
