USER MANUAL 19MD311B MAGNAVOX

Thank you for choosing Magnavox.

Need help fast?

Read your Owner's Manual first for quick tips that make using your Magnavox product more enjoyable. If you have read your instructions and still need assistance, you may access our online help at www.magnavox.com/support or call 1-866-341-3738 while with your product (and Model / Serial number)

Return your Product Registration Card or register online at www.magnavox.com/support today to get the very most from your purchase.

Registering your model with MAGNAVOX makes you eligible for all of the valuable benefits listed below, so don't miss out. Complete and return your Product Registration Card at once, or register online at www.magnavox.com/support to ensure:

\*Product Safety Notification

By registering your product, you'll receive notification - directly from the manufacturer - in the rare case of a product recall or safety defect.

\*Additional Benefits

Registering your product guarantees that you'll receive all of the privileges to which you're entitled, including special money-saving offers.

Know these

safety symbols

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This “bolt of lightning” indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Visit our World Wide Web Site at www.magnavox.com/support

Wall Mount Bracket Kit

Recommended Wall Mount Bracket Kit:

Brand:	SANUS
Model #: 32MD311B/32MD301B	San25b
26MD311B/26MD301B	SAN213b
22MD311B/19MD311B/19MD301B	San10B

Do NOT use screws packed with WallMount Bracket Kit.

Recommended Screw dimension when purchased:

2MD311B/32MD301B M4×0.787" (20mm)

+Washer 0.078"(T2mm)

26MD311B/26MD301B M4×0.629" (16mm)

22MD311B/19MD311B/19MD301B M4×0.472"(12mm)

• The recommended Wall Mount Bracket Kit (sold separately) allows the mounting of the TV on the wall
• For detailed information on installing the wall mount refer to the Wall Mount Instruction Book
• Funai is not responsible for any damage to the product or injury to yourself or others if you elect to install the IV Wall Mount Bracket or mount the IV onto the Bracket on your own
  • The Wall Mount Bracket must be installed by experts

Funai not liable for these types of accidents or injury noted below.

• hsta ll the Wall Mount Bracket on a sturdy vertical wall.
- If installed onto a ceiling or slanted wall, the TV and Wall Mount Bracket may fall which could result in a severe injury
- Do not use screws that are longer or shorter than their specified length. If screws too long are used this may cause mechanical or electrical damage inside the TV set. If screws too short are used this may cause the TV set to fall
- Do not fasten the screws by excessive force; this may damage the product or cause the product to fall, leading to an injury.
- for safety reasons use 2 people to mount the TV onto a Wall Mounting Bracket
- Do not mount the IV onto the Wall Mounting Bracket while your IV is plugged in or turned on. It may result in an electrical shock injury

When installing the unit on the wall allow this much space.

Top: 11.8 inches (30cm)

Left and right side: 5.9 inches (15cm)

Bottom: 3.9 inches (10cm)

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

1. Read these instructions
2. Keep these instructions .
3. Heed all warnings
4. Follow all instructions .
5. Do not use this apparatus near water.
6. Clean with a dry cloth.
7. Do not block of the ventilation openings.
   Install in accordance with the manufacturer's instructions.
8. Do not install near meat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers), that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A rounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. When the provided plug does not fit into our outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the a pparatus.
11. O'nlise attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Iphug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, orh asb eendropped.

15. Damage Requiring Service - The appliance should be serviced by qualified service personnel when
    A. The power supply cord or the plug has been damaged;
    B. Objects have fallen, or liquid has been spilled into the appliance;
    C. The appliance has been exposed to rain
    D. The appliance does not appear to operate normally or exhibits a marked change in performance;
    E. The appliance has been dropped or the enclosure damaged.

16. Tilt/Stabilit y - All televisions must comply with recommended international global safety standards for tilt and stability properties of its cabinet design.

17. Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product

18. Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

19. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

20. PowerLines - An outdoor antenna should be located away from power lines.

21. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage suges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the groundin gelectrode. See Figure below.

22. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the endosure through operating

23. Battery Usage CAUTION - To prevent battery leakage that may result in bodily injury, property damage, ordama ge to the unit:

24. Install batteries correctly, with + and - aligned as marked on the unit

25. Do not mix batteries (old and new or carbon and alkaline, etc.)
26. Remove batteries when the unit is not used for a log time

Note to the CATV system installer : This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

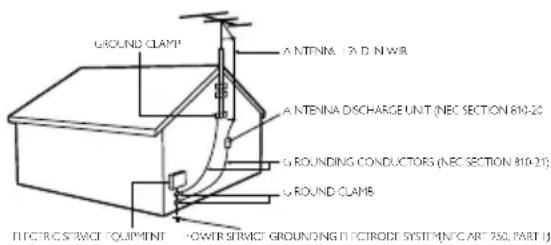

Example of Antenna Grounding as per NEC - National Electric Code

GROUND CLAMP A ANTENIA (R&D N.W.R) A ANTENIA DISCHARGE UNIT (NEC SECTION 810-20) G ROUNDING CONDUCTORS (NEC SECTION 810-21) G ROUND CLAMP ELECTRIC STRUCT EQUIPMENT - LOW SERVICE GROUNDING ELECTROPE SYSTEMS (ART 750, PART I)

FCC WARNING

This apparatus may generate or use radio frequency energy. Changes or modifications to this apparatus may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this apparatus if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This apparatus has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This apparatus generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this apparatus does cause harmful interference to radio or television reception, which can be determined by turning the apparatus off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.
2) Increase the separation between the apparatus and receiver.
3) Connect the apparatus into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.

DECLARATION OF CONFORMITY

Trade Name: MAGNAVOX

Model: 32MD311B/32MD301B

26MD311B/26MD301B

22MD311B/19MD311B/19MD301B

Responsible Party: FUNAI CORPORATION, Inc.

Address: 19900 Van Ness Avenue, Torrance, CA 90501 U.S.A.

Telephone Number: 1-866-341-3738

This Class B digital apparatus complies with Canadian ICES-003. Standard Television Receiving Apparatus, Canada BETS-7/NTMR-7

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

WARNING: Batteries (battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Disconnect the mains plug to shut off when find trouble or not in use. The mains plug shall remain readily operable.

This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 4 inches (10cm) or more around this apparatus.

WARNING To prevent injury, this apparatus must be securely attached to the wall in accordance with the instructions.

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

LASER SAFETY

This apparatus is classified as a CLASS 1 LASER PRODUCT. This apparatus employs a laser. Only a qualified service person should remove the cover or attempt to service this apparatus, due to possible eye injury.

CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Like all LCD products, this set contains a lamp with Mercury, please dispose of according to all Local, State and

Federal laws. For the disposal or recycling information, contact:

www.mygreenelectronics.com or www.eiae.org

• The American Academy of Pediatrics discourages television viewing for children younger than two years of age.

NOTE ABOUT RECYCLING

• This unit packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.
• Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes
  • For product recycling information, please visit - www.magnavox.com

WHEN CARRYING THIS UNIT

• At least 2 people are required when carrying this unit.
  • Make sure to hold the upper and bottom frames of the unit firmly as illustrated.

TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

• Do not handle the AC power cord with wet hands
• Do not pull on the AC power cord when disconnecting it from an AC outlet. Grasp it by the plug.
• Do not put your fingers or objects into the unit

Two silhouettes of two people holding a blank rectangular object (no text or symbols visible)

LOCATION AND HANDLING

• Do not install the unit in direct sunlight or in a place subject to dust or strong vibration.
• Avoid a place with drastic temperature changes.
• install the unit in a horizontal and stable position. Do not place anything directly on top or bottom of the unit. Depending on your external devices, noise or disturbance of the picture and / or sound may be generated if the unit is placed too close to them. In this case please ensure enough space between the external devices and the unit.
• Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction
• Be sure to unplug the AC power cord from the AC outlet before moving or carrying the unit.

DEW CONDENSATION WARNING G

• Dew condensation may form inside the unit in the following conditions. If so, do not use this unit at least for a few hours until its inside gets dry
• The unit is moved from a cold place to a warm place
• Under conditions of high humidity
• After heating a cold room

CHILD SAFETY:

It Makes A Difference How and Where You Use Your Flat Panel Display

Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:

Black and white circular sign with a diagonal line crossing over a building, no text or symbols present.

THE ISSUE

• The home theater entertainment experience is a growing trend and larger flat panel displays are popular purchases. However, flat panel displays are not always supported on the proper stands or installed according to the manufacturer's recommendations.
• Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and cause injury.

THIS MANUFACTURER CARES!

- The consumer electronics industry is committed to making home entertainment enjoyable and safe.

TUNE INTO SAFETY

• One size does NOT fit all. Follow the manufacturer's recommendations for the safe installation and use of your flat panel display.
• Carefully read and understand all enclosed instructions for proper use of this product.
• Don't allow children to climb on or play with furniture and television sets.
• Don't place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers.
• Remember that children can become excited while watching a program, especially on a "larger than life" flat panel display. Care should be taken to place or install the display where it cannot be pushed, pulled over, or knocked down.
• Care should be taken to route all cords and cables connected to the flat panel display so that they cannot be pulled or grabbed by curious children.

WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:

• Use a mount that has been recommended by the display manufacturer and/or listed by an independent laboratory (such as UL, CSA, ETI).
• Follow all instructions supplied by the display and wall mount manufacturers.
• If you have any doubts about your ability to safely install your flat panel display, contact your retailer about professional installation.
• Make sure that the wall where you are mounting the display is appropriate. Some wall mounts are not designed to be mounted to walls with steel studs or old cinder block construction. If you are unsure, contact a professional installer.
• A minimum of two people are required for installation. Flat panel displays can be heavy.

Prohibition sign with crossed-out circle and central monitor image, indicating no overlap or prohibition

CEA Consumer Electronics Association www.CE.org/safety

INTRODUCTION

Contents

Important Safety Instructions	3
Child Safety	5

INTRODUCTION

Trademark Information 6
Features	7
Supplied Accessories 8
Symbols Used in this Manual 8
Attaching the Base 8
Mounting the Unit on Your Furniture	9
Iilt Stand <22MD311B/19MD311B/19MD301B only>	9
Installing the Batteries	9

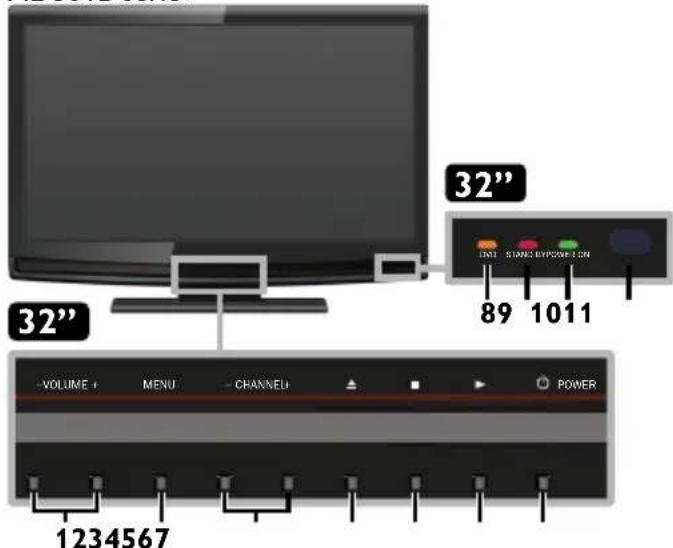

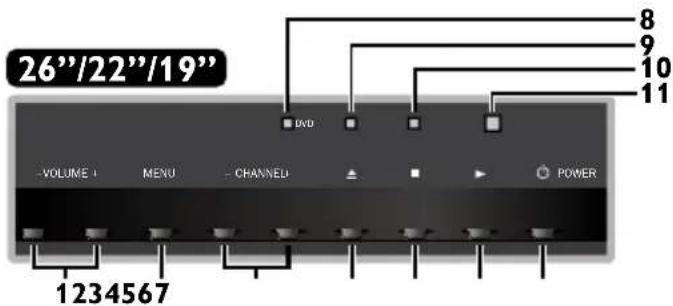

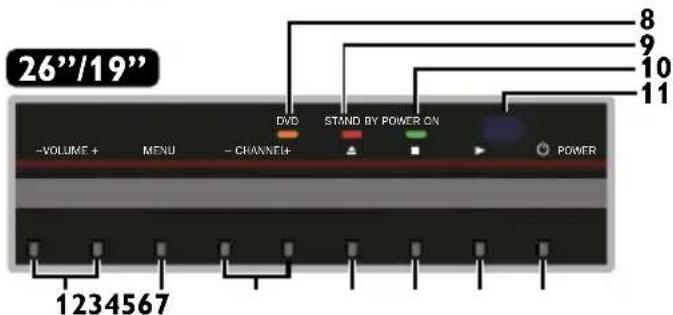

Control Panel 10

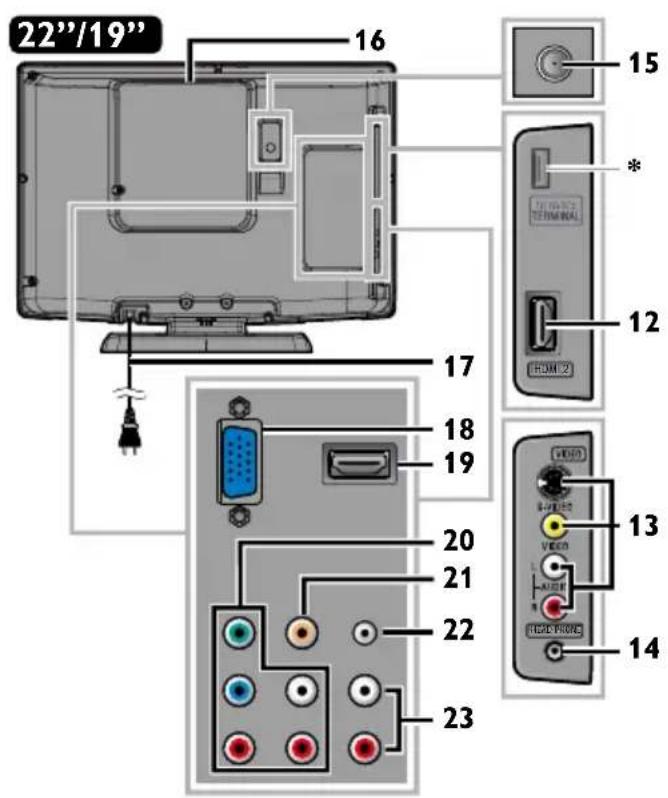

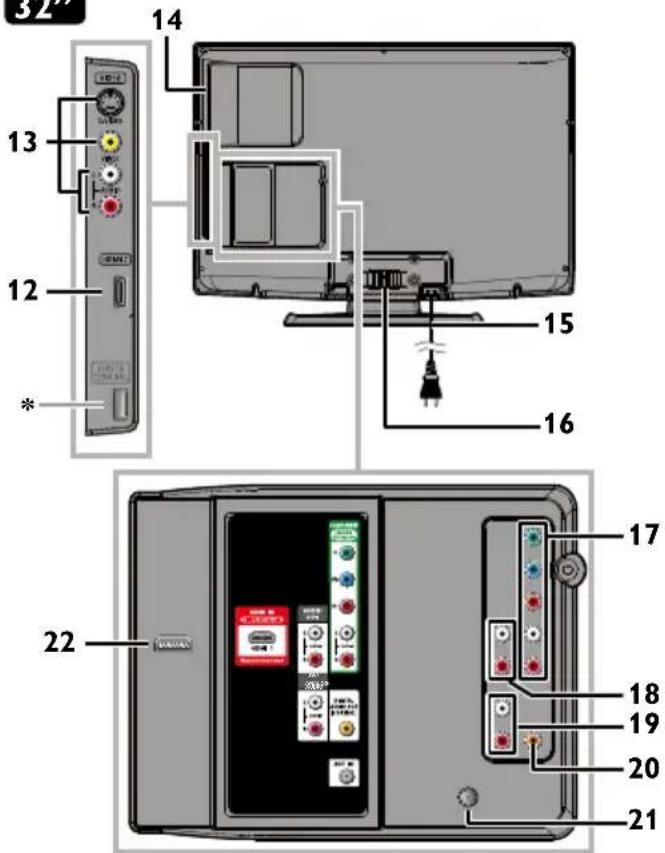

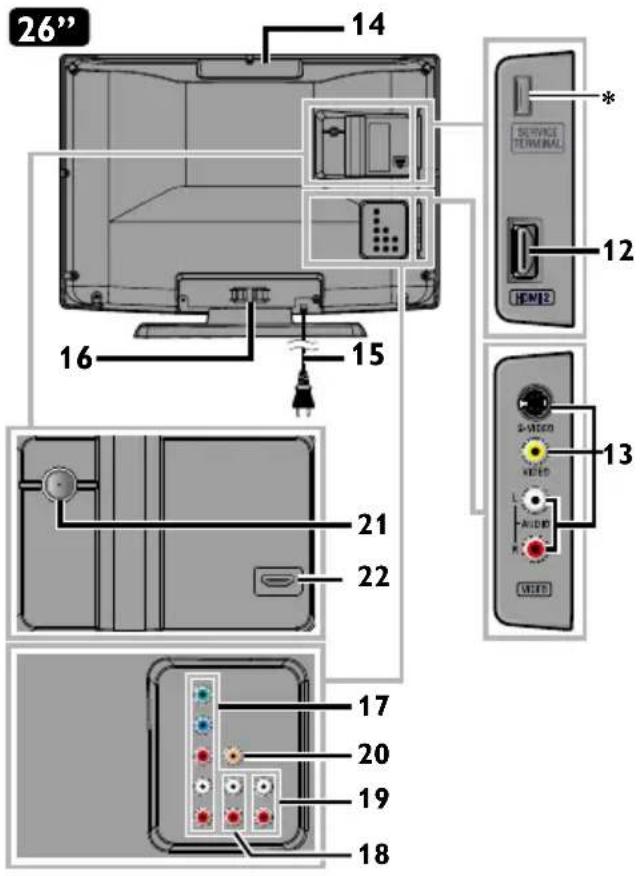

Terminals	10

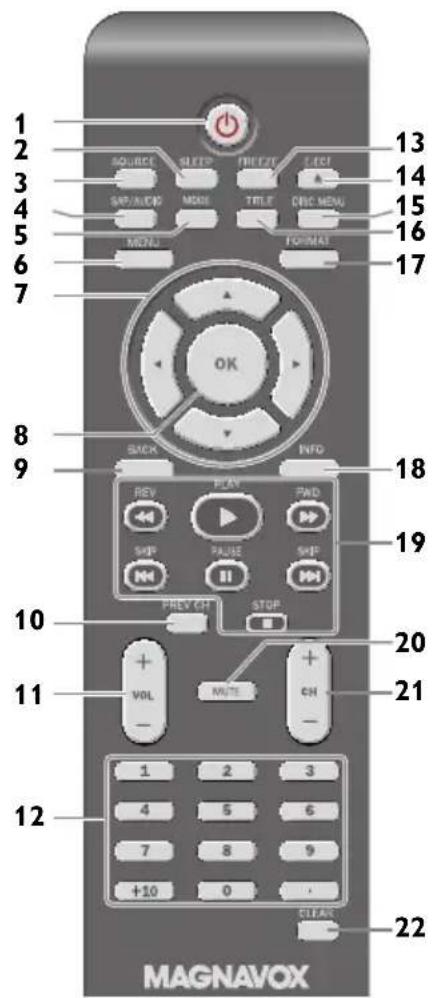

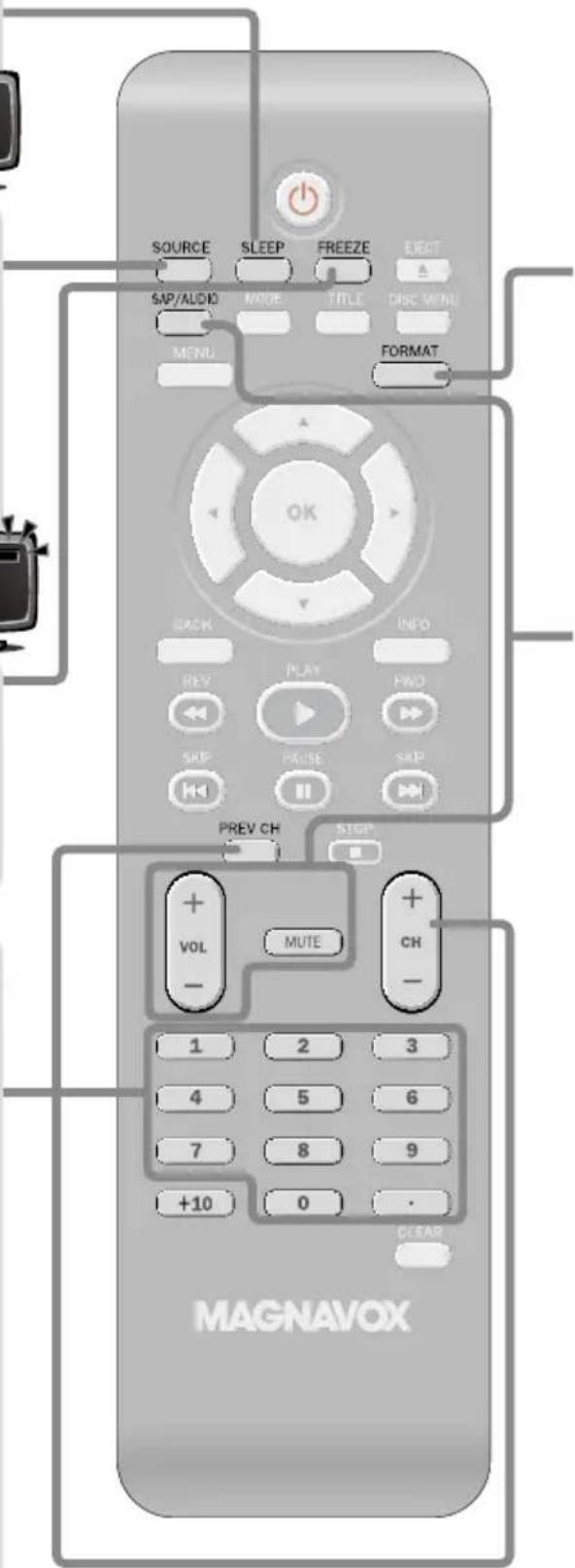

Remote Control Function 1	2

PREPARATION

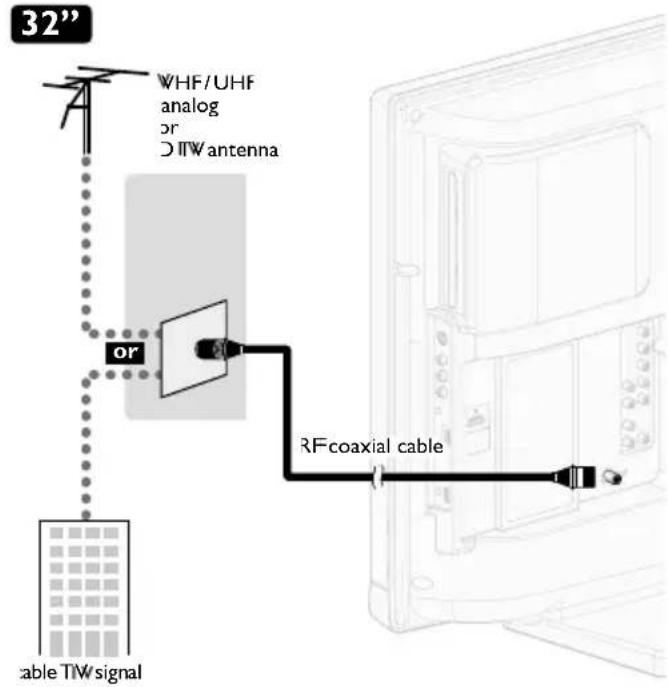

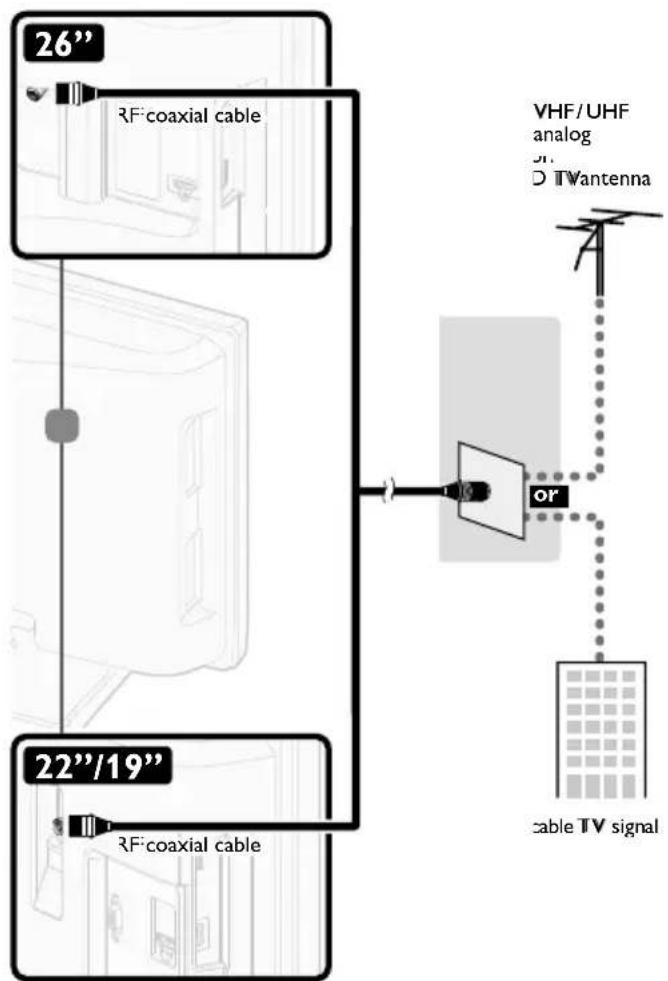

Antenna Connection 1	3

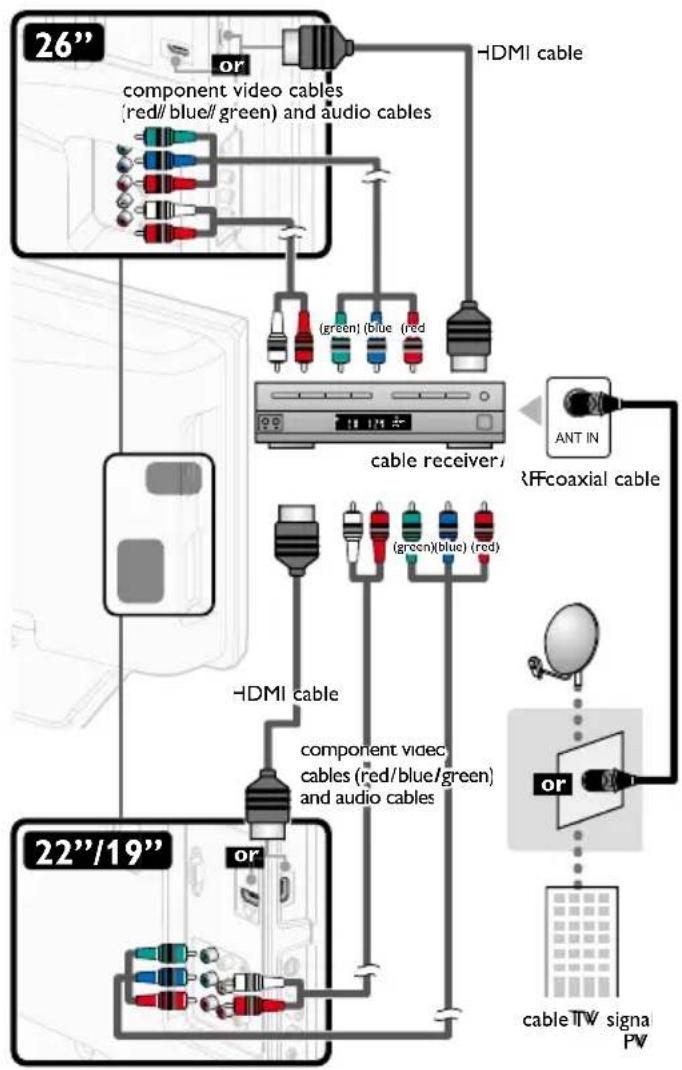

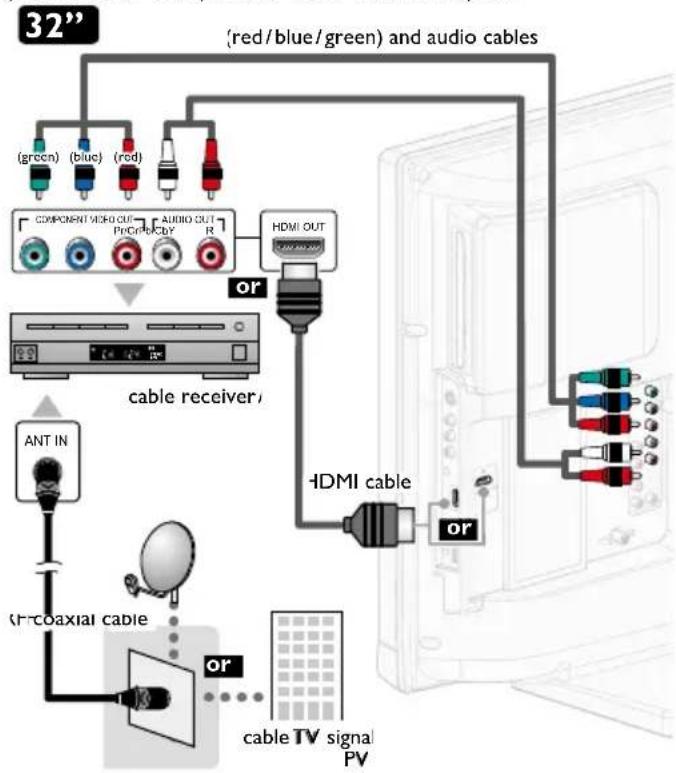

Connection to Cable Receiver or Satellite Box 1	4
Plug In the AC Power Cord 1	4

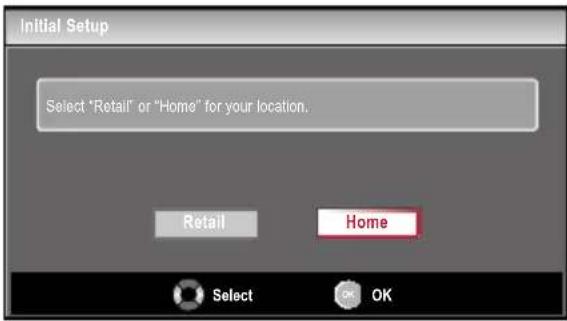

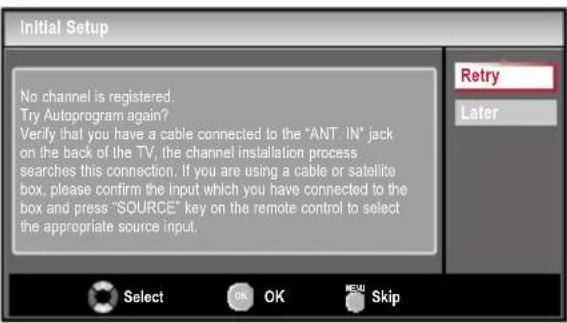

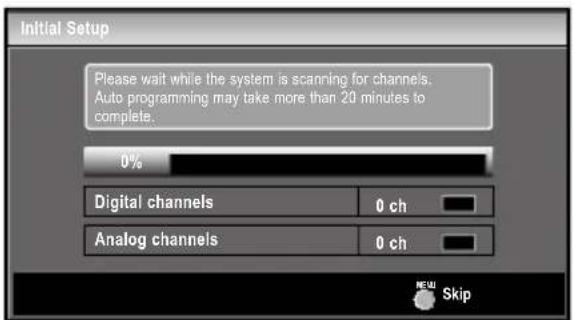

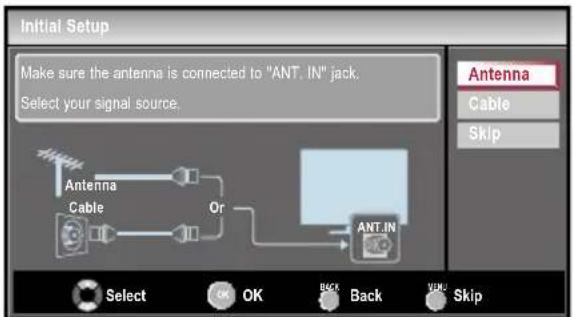

Initial Setup	15

WATCHING TV

Sleep Timer	16

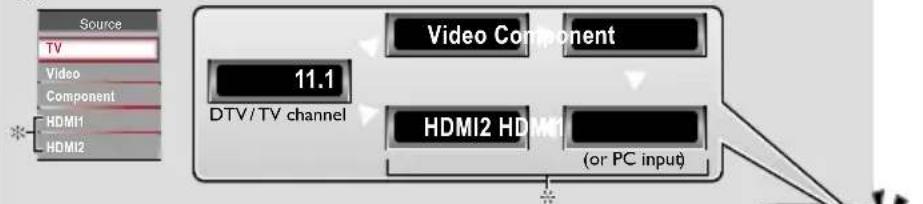

Switching Each Irp ut Mode	16
Freeze Mode	16
Channel Selection	16
TV Screen Display Mode	17
Sound Functions	17
TV Screen Information	18

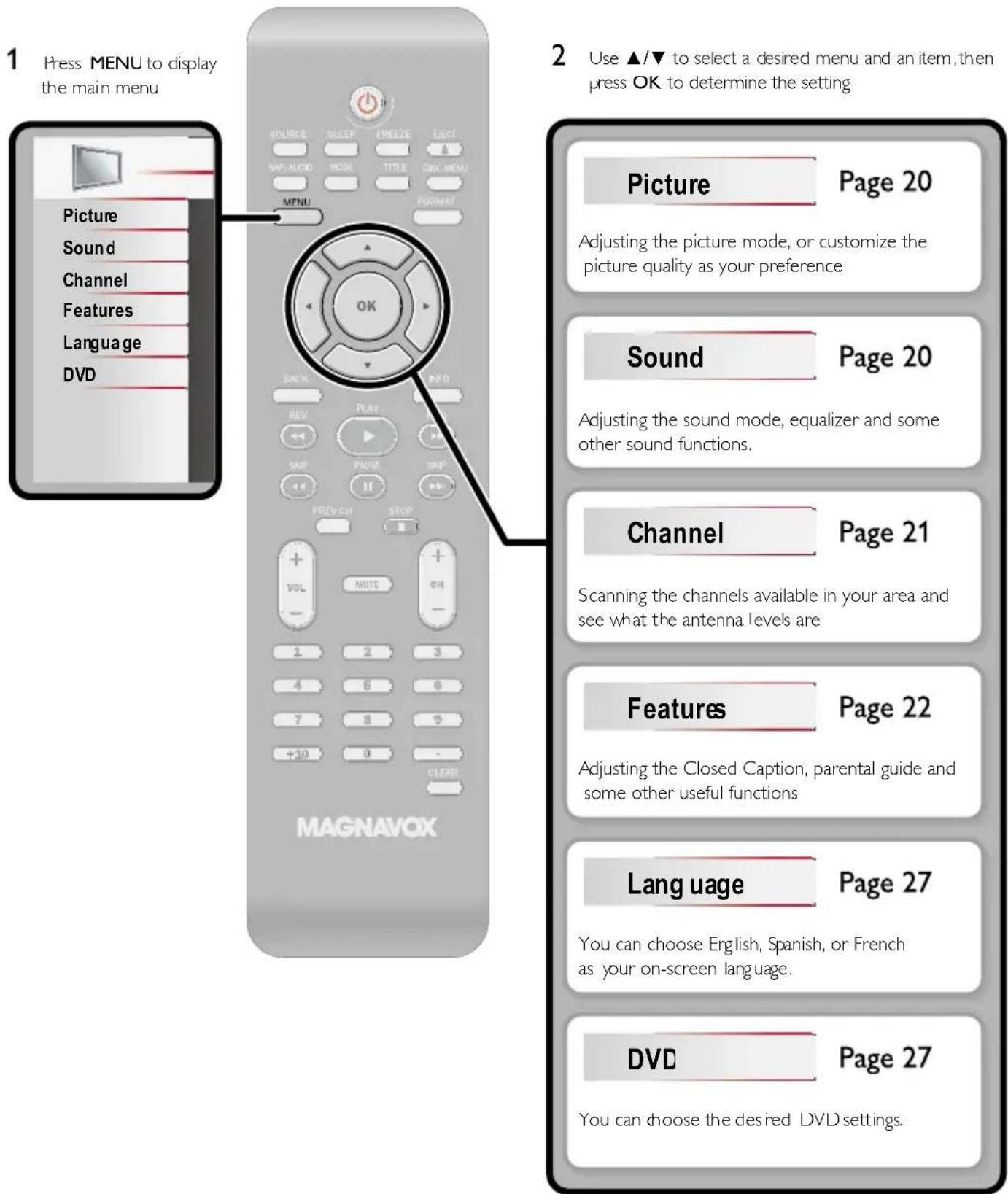

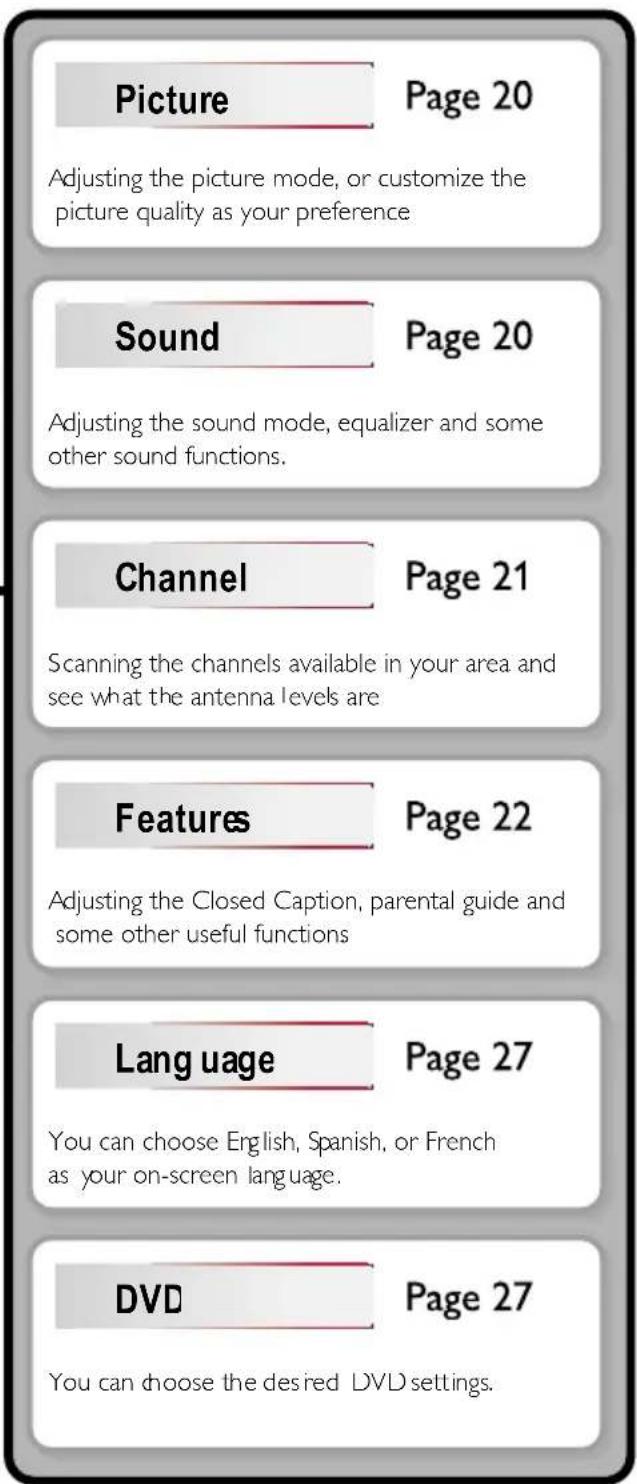

USING FUNCTIONS

Picture	20

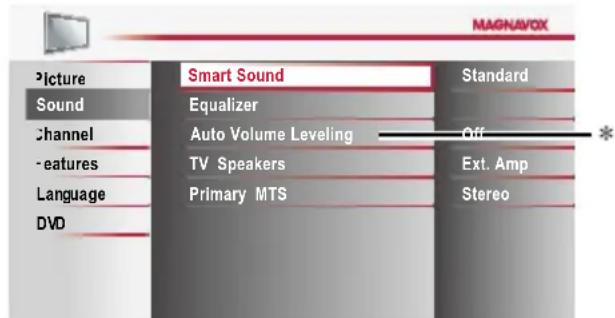

Sound	20

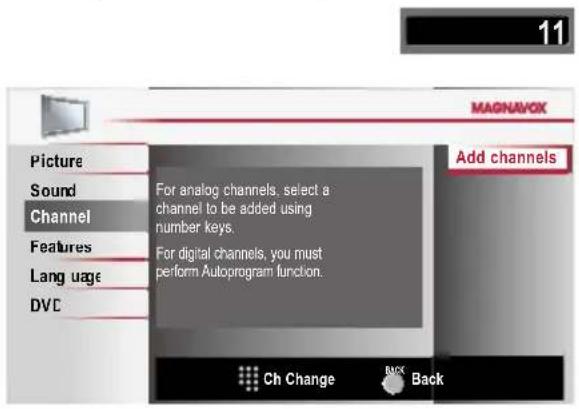

Channel	21

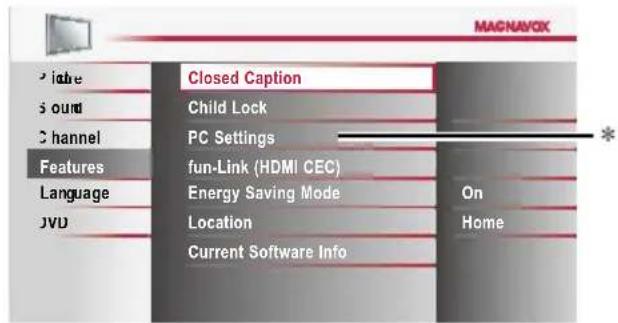

Features	22

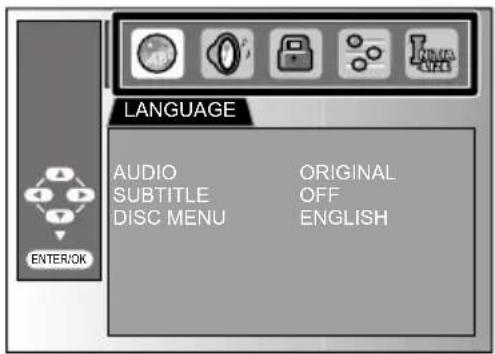

Language	27

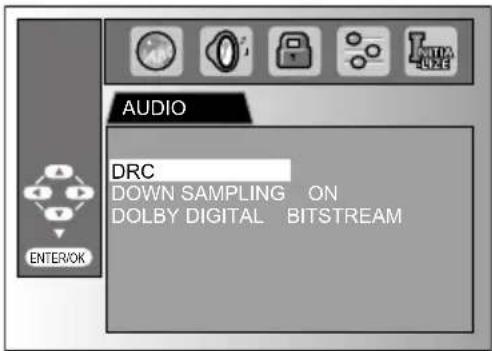

DVD	27
Language Code List	29

OPERATING DVD

Playable Media	30
Unplayable Media	30
Playback	31
Disc Menu	31
Resume Playback	31
Paused and Step-by-step Playback	31
Fast Forward/Fast Reverse	31
Slow Forward/Slow Reverse	32
Zoom	32
Search Functions	32
Repeat Playback	33
Repeat A-B Playback	33
Random Playback	33
Programmed Playback	33

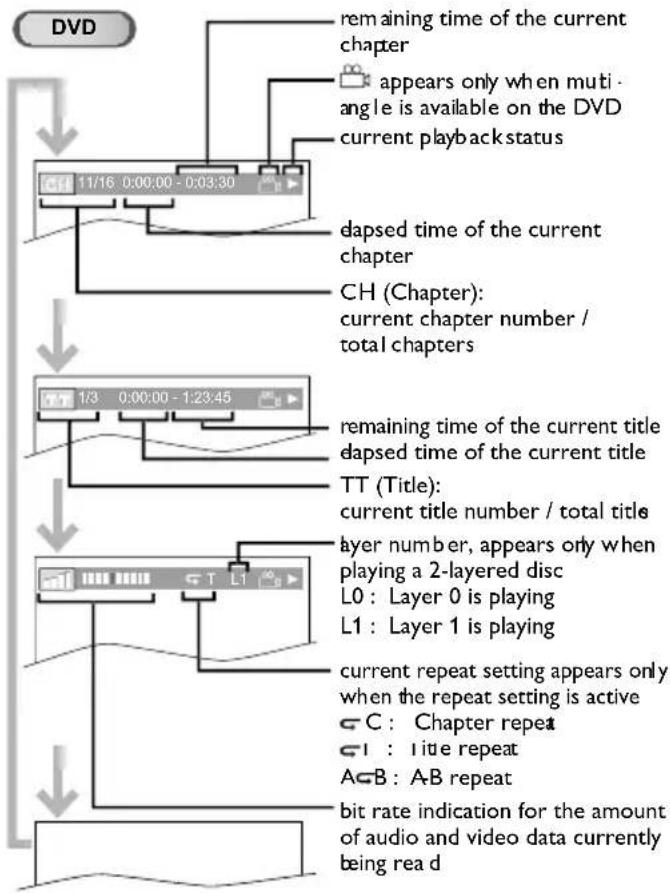

On-screen Display	34
Special Settings	34

CONNECTING DEVICES

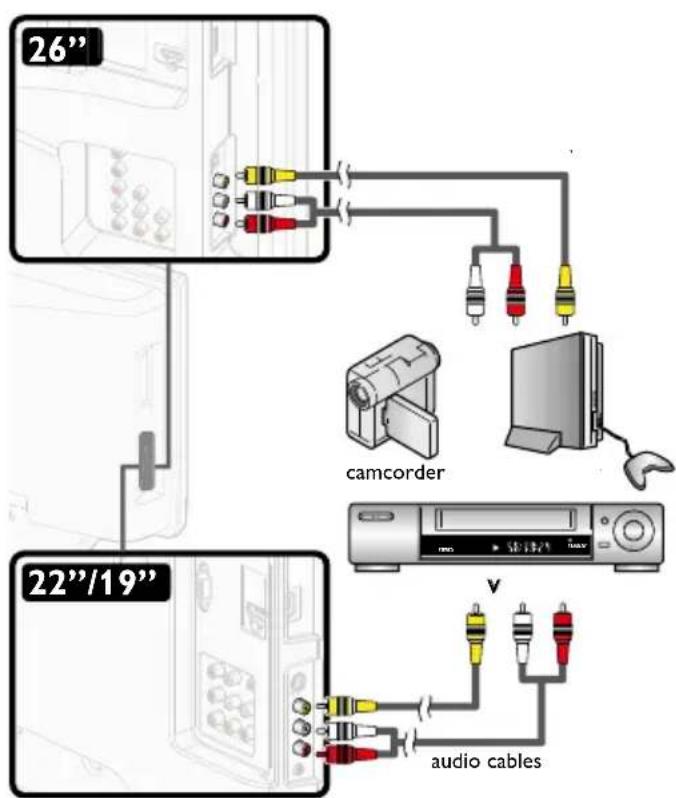

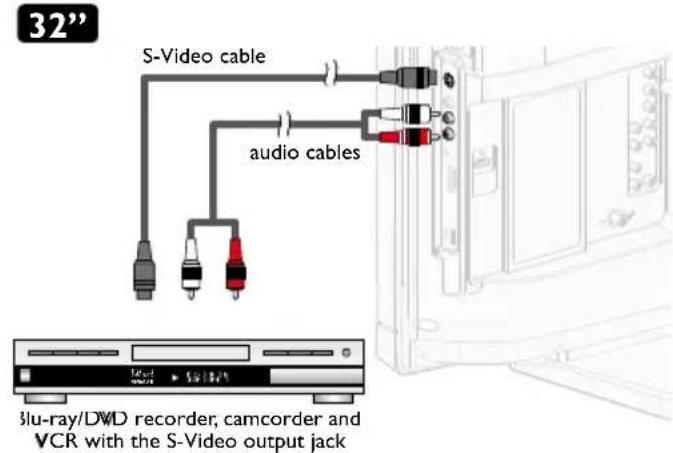

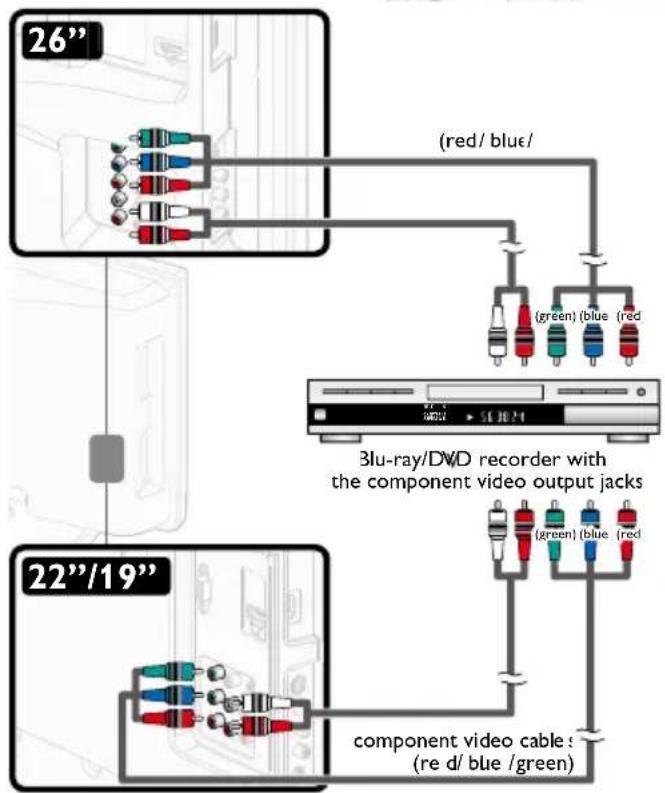

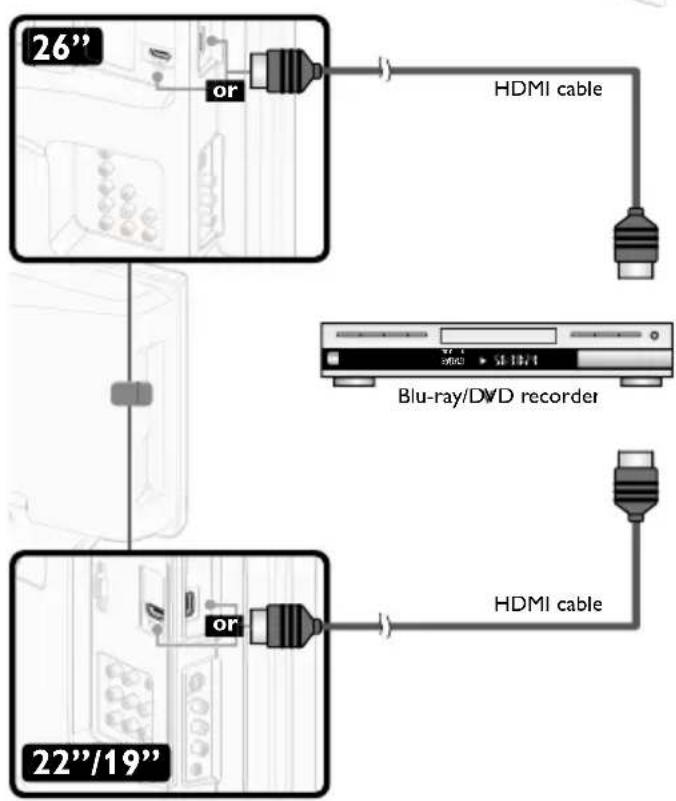

External Device Connection	36

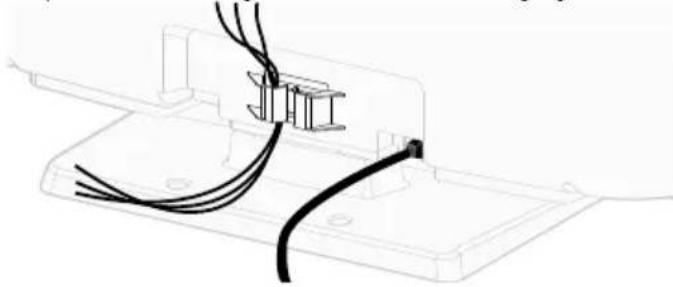

Cable Management
<32MD311B/32MD301B/26MD311B/26MD301B only>	39

USEFUL TIPS

Troubleshooting Guide	40
FAQ	42

INFORMATION

Glossary	43
Maintenance	43
General Specifications	44
Other Specifications	44
Limited Warranty	47

Trademark Information

HDMI®

HIGH DEPOSITION MULTIMEDIA INTERFACE

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries

DOLBY.

DIGITAL

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

is a trademark of DVD Format/Logo Licensing Corporation.

©2011 Funai Electric Co., Ltd

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminate d, transcri b d, downloaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited Information in this document is subject to change without notice. Funai reserves the right to charge the content herein with out the obligation to notify any person or organization of such changes

FUNAI with the design is a registered trademark of Funai Electric Co., Ltd. and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

MAGNAVOX is a registered trademark of Philips Electronics North America Corporation and is used by Funai Electric Co. Ltd. and Funai Corporation, Inc. under license from Philips Electronics North America.

Features

TV

- DTV/TV/CATV

You can use your remote control to select channels which are broadcast in digital format and conventional analog format. Also cable subscribers can access their cable TV channels.

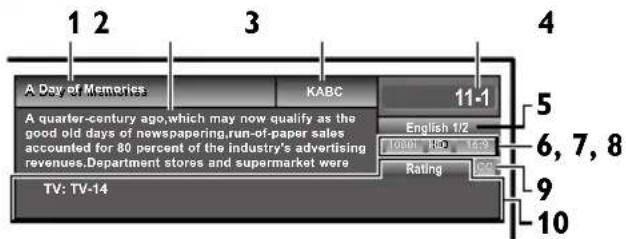

• Information Display (ATSC only)

You can display the title, contents and other information of the current DTV program on the TV screen.

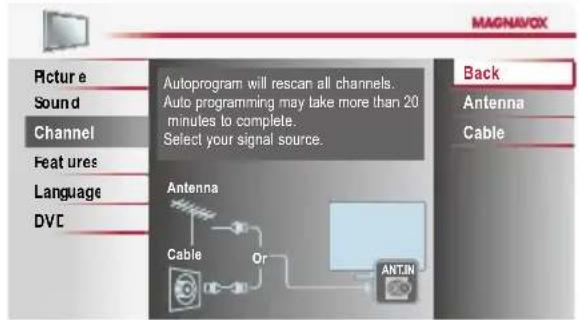

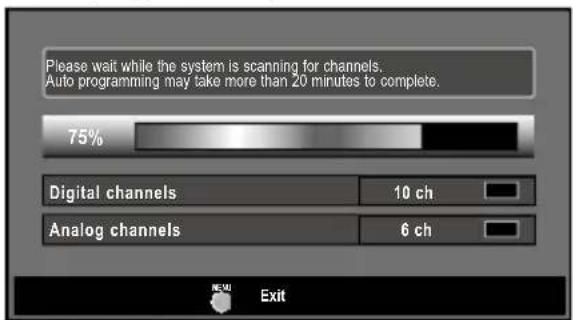

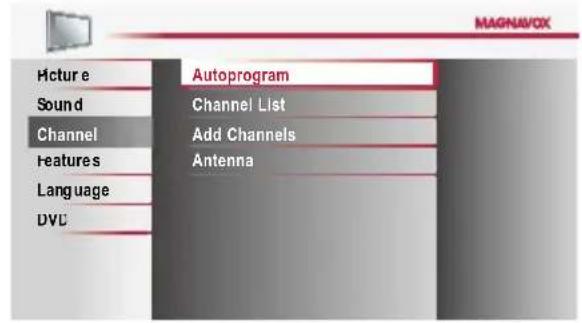

- Autoprogram

This unit automatically scans and memorizes channels available in your area, eliminating difficult setup procedures

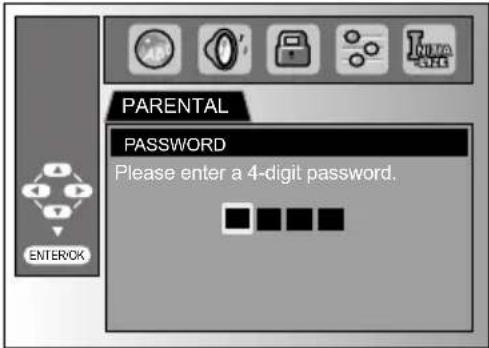

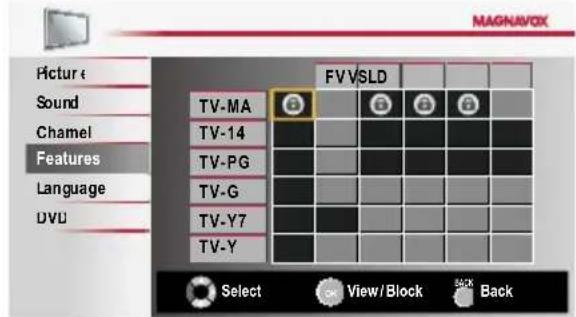

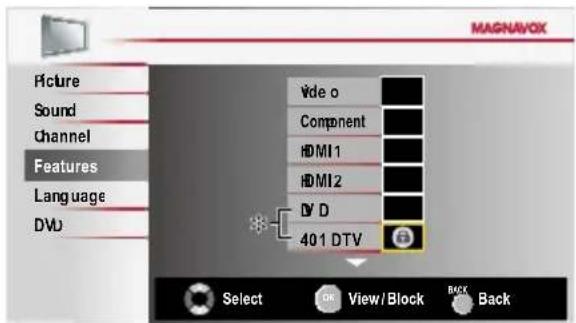

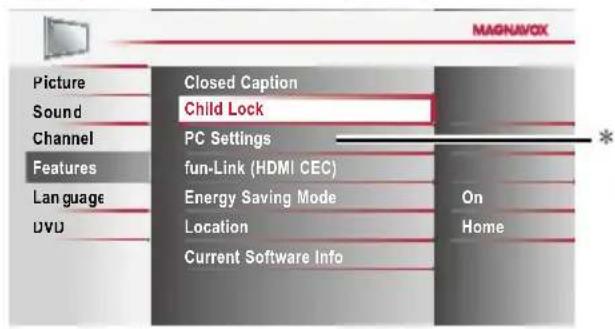

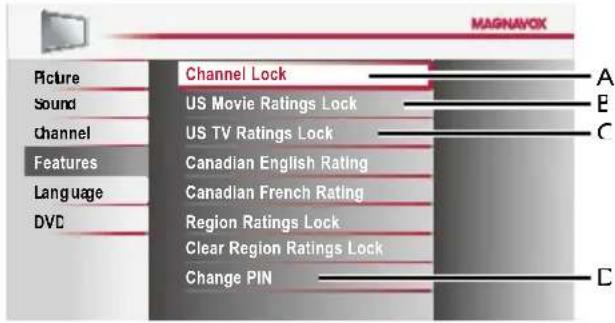

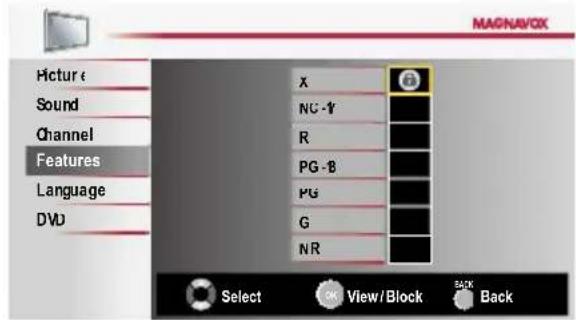

- Child Lock

This feature allows you to block children's access to inappropriate programs

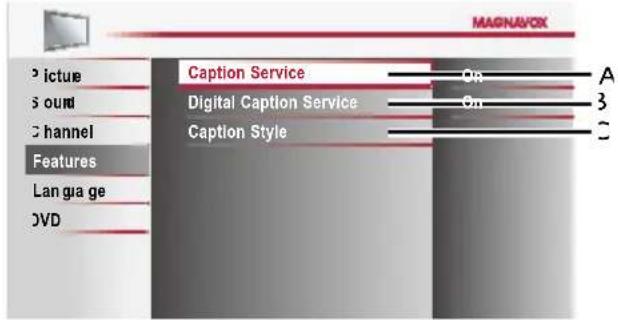

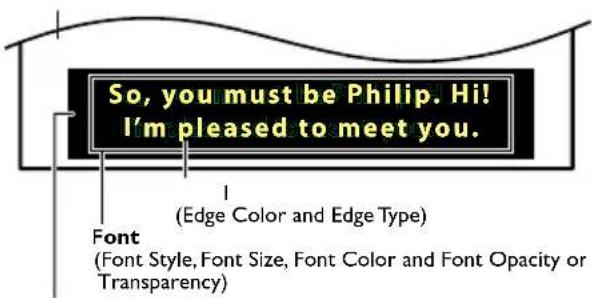

• Closed Caption Decoder

Built-in closed caption decoder displays text for closed caption supporte dprograms

MTS/SAPTuner

Audio can be selected from the remote control

- Auto Standby

If there is no input signal and no operation for 15 minutes, the unit will go into standby mode automatically

- Sleep Timer

You can set the unit to go into standby mode after a specific amount of time.

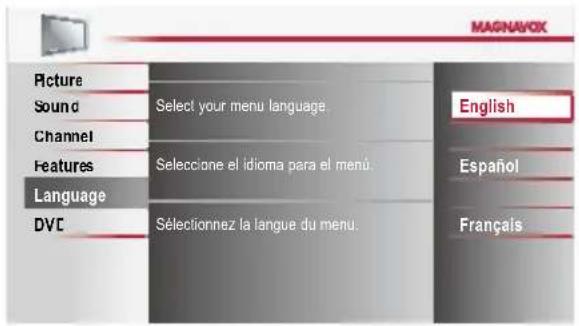

• Choices for On-screen Language

Select your on-screen language English, Spanish or French

- Stereo Sound Function

- PLL Frequency Synthesized Tuning

Provides free and easy channel selection and lets you tune directly to any channel using the number and decimal point “•” buttons on the remote control.

• Various Adjustment for Picture and Sound

Customizes image quality suitable for your room and sets your sound preference

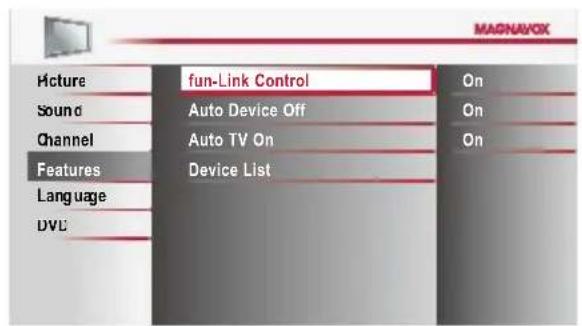

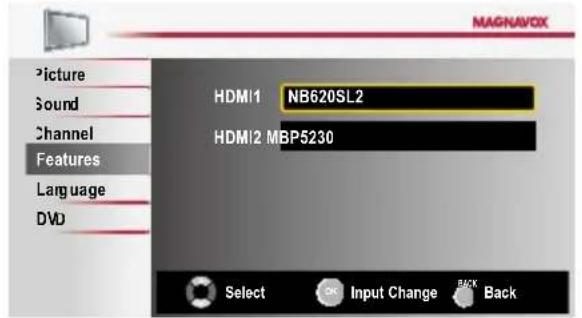

- fun-Link via HDMI Link (HDMI Cable not Included)

fun-Link allows your other HDMI link devices to be controlled by the HDMI cable connected to your TV.

- HDMI Input

- Component Video Input

- S-Video Input

- AV Input

- Digital Audio Output

<32MD311B/3 2MD301B/26MD311B/26MD301B only>

• HDMI-DVI Input

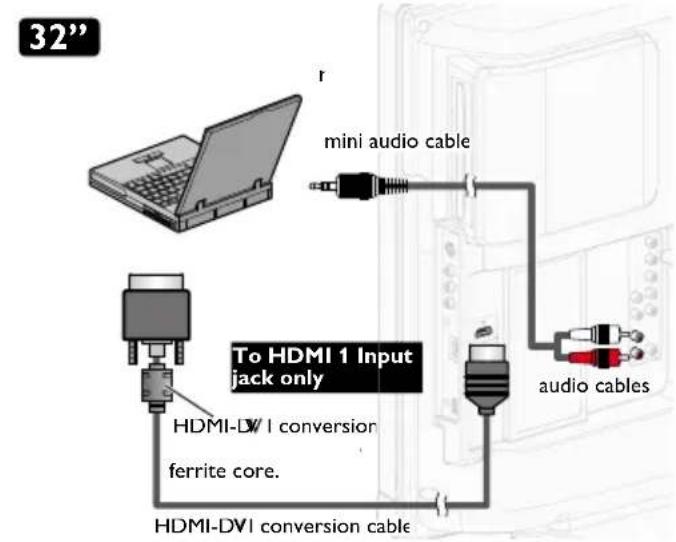

When using HDMI 1 Input, you can enjoy this unit as a PC monitor if your PC has a DVI output terminal.

- Analog Audio output

<22MD311B/19MD311B/19MD301B only>

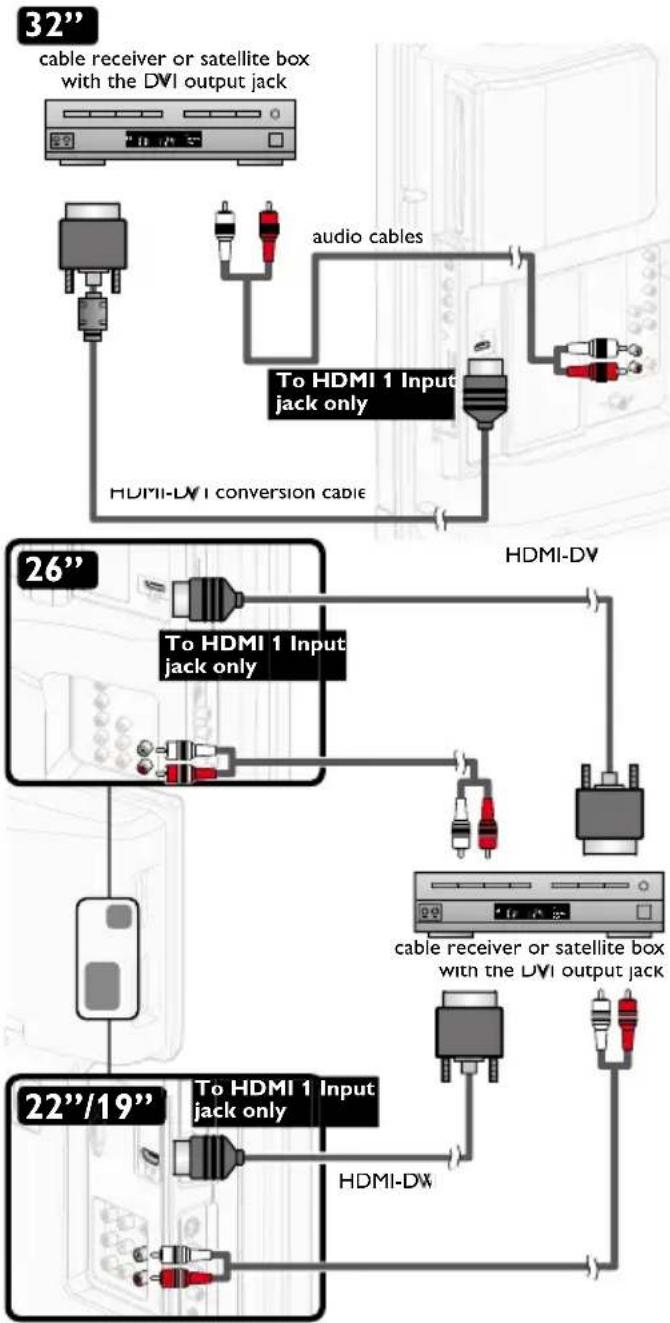

- HDMI-DVI Input

If your video device has DVI output jack, use an HDMI-DVI conversion on cable to connect the unit.

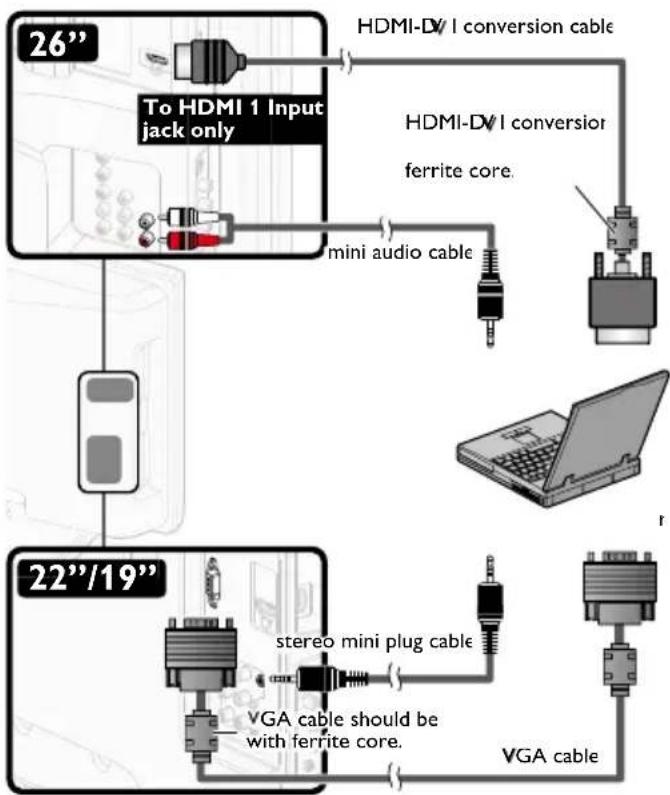

- PC Input

• Headphone Audio Output

DVD

• Dolby Digital Soun d

Enjoy Ddby Digital multi-channel surround sound when you connect the unit to your Dolby Digital decoder.

- Still/Fast/Slow/Step Playback k

Various playback modes are available including still pictures, fast forward/reverse, slow motion and step frames.

• DVD Menus in a Desired Language

You can display DVD menus in a desired language, if available on a DVD-vid eo.

• Auto standby

If there is no operation for 20 minutes, the unit will go into standby mode automatically

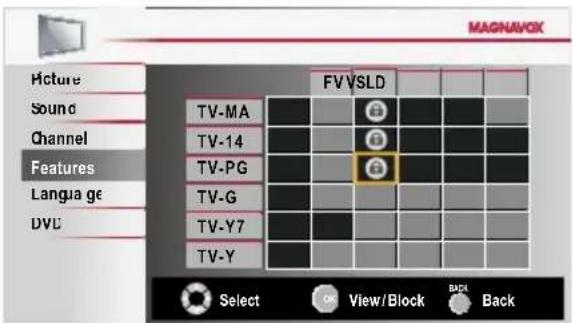

- Parental Lock

Block the viewing of a DVD-video unsuitable for children

- Resume Playback

Lets you resume playback from the point at which playback was stopped.

- Bit Rate Indication

ORC (dynamic range control)

You can control the range of sound volume.

Accessing from MODE button

Durin gplayback

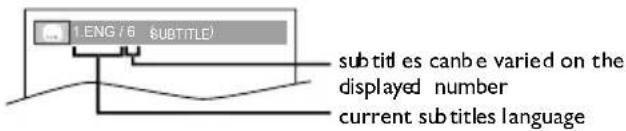

- Subtitles in a Desired Language

You can select a desired language for displaying subtitle, if that language is available on a DVD-video

- Selecting a Camera Angle

You can select the desired camera angle, if a DVD contains sequences recorded from different angles.

700m

Allows you to enlarge the size of picture image

- Black Level Adjustment

• Virtual Surround

- Search

chapter search/title search/track search/time search

- Maker

The part on the disc designated by user can be called back.

- Repeat

chapter/title/track/all/A-B

Accessing from MODE button

In stop mode

• Program Playback for audio C D

You can program the order of tracks to play them back in designated order:

• Random Playback for audio C D

This unit can shuffle the order of tracks to play them back in randomly.

Accessing from AUDIO button

During play back

- Choices for Audio Language and Stereo Sound Function

Select your desired languages or stereo sound function when different options are available on your disc

Supplied Accessories

Owner's Manual

Red and white image of a notebook cover with visible text and design elements

Quick Start Guide

Registration card

Remote Control
(NF801UD)
Batteries
(AAA, 1.5V × 2)

Black remote control with two AAA batteries beside it (no visible text or symbols on the device itself)

TV base and screws

Screws packed with this unit:

Model	Quantity	Size
32MD311B	4	M4 × 20
32MD301B
26MD311B
26MD301B
22MD311B	3	M4 × 12
19MD311B
19MD301B

Note

• If you lose the screws, please purchase the above-mentioned Phillips head screws at your local store.
• If you need to replace these accessories, please refer to the part name and No. with the illustrations and call our toll free customer support line found on the cover of this manual

When using a universal remote control to operate this unit.

• Make sure the component code on your universal remote control is set to our brand. Refer to the manual accompanying your remote control for more details
• We do not guarantee 100% interoperability with all universal remote controls.

Symbols Used in this Manual

The following is the description for the symbols used in this manual. Description refers to:

TV FUNCTIONS

ATSC :Digital TV operation

NTSC : Analog/Cable TV operation

- If neither symbol appears, the operation is applicable to both

DVD FUNCTIONS

DVD : Playback of DVD-video

CD : Playback of audio ①

- If neither symbol appears under the function heading, operation is applicable to both

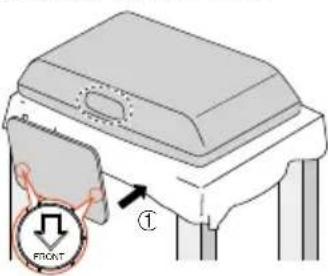

Attaching the Base

You must attach the base to the unit to have it as a table top unit. Be sure the front and rear of the base match the proper direction. At least 2 people are required for these steps.

1 Spread a thick and soft cloth over a table as shown at step 2. Hace the main unit face down onto it. Make sure not to damage the screen.
2 Insert 2 hooks under the bottom of the main unit into base holes (shown by arrow ①), then move the base in the direction as shown by arrow ② until it stops and the screw holes

②↓

FRONT

to put the AC power cord between the base and the unit

3 Drive Phillips head screws into the threaded holes at the bottom of the base until they are tight

Diagram of a mechanical component with a lever and directional arrow (no text or symbols)

To remove the base from this unit

- Unscrew the Phillip shead screws in step 3. After the screws are removed, move the base in the opposite direction as shown by arrow in step 2, then pull the base up toward the rear of the unit. Be careful not to drop the base when you remove it

Note

• When attaching the base, ensure that all screws are tightly fastened. If the base is not properly attached, it could cause the unit to fall, resulting in injuries as well as damage to the unit
• Make sure to use a table which can support the weight of this unit and is larger than this unit
  • Make sure the table is in a stable location
• When attaching the base, ensure that FRONT ↑ written on the base is upward. If it's not upward, the 2 hooks don't fit in the base

Mounting the Unit on Your Furniture

Screw this unit on your furniture tightly using wood screws (not supplied) in the 2 holes at the back of the base as shown.

• Recommended screw dimension : 0.201 x 0.788 inches (5.1 x 20 mm)

screw holes r

Note

- When you remove this unit make sure to unscrew the wood screws from your Wood Stand, Furniture and other wood item

Tilt Stand <22MD311B/19MD311B/19MD301B only>

You can adjust the stand to change the angle of the unit (-2.5° to 10°).

-2.5° 10°

Installing the Batteries

Install the batteries (AAA, 1.5V × 2) matching the polarity indicated inside battery compartment of the remote control.

Close-up of a black electronic device with a circular arrow indicating rotation or change, no visible text or symbols.

Close-up of a battery with a circular frame and a numbered label '3' in the top-left corner (no other text or symbols)

Battery Precautions:

• Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device.
• Do not mix different types of batteries together (eg. Alkaline and Carbon-Zinc, or rechargeable batteries like ni-cad, ni-mh, etc) or old batteries with fresh ones
• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage
  • Do not try to recharge batteries; they can over eat and rupture.

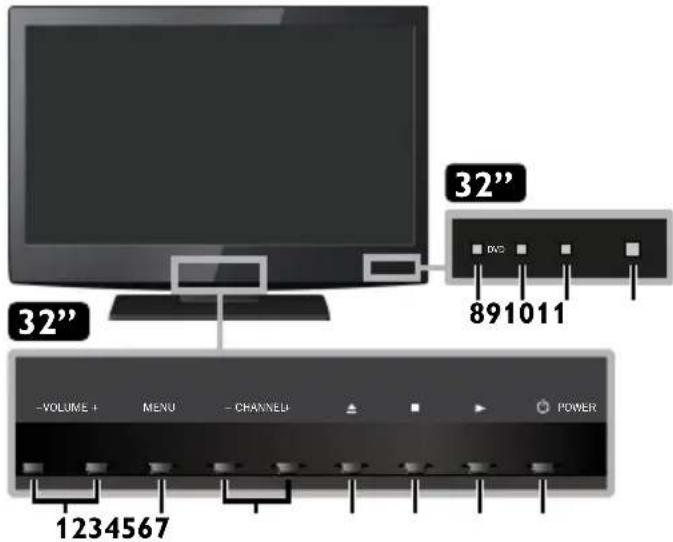

Control Panel

MD311B series

32" 891011 32" -VOLUME + MENU - CHANNEL POWER 1234567

26"/22"/19" VOLUME MENU CHANNEL DVD POWER 8 9 10 11 1234567

MD301B series

32" 32" 89 1011 -VOLUME + MENU - CHANNEL POWER 1234567

26"/19" -VOLUME + MENU - CHANNEL+ DVD STAND BY POWER ON POWER 8 9 10 11 1234567

1 VOLUME + / - p.17

Press to adjust the volume or move right (+)/left (-) through the main menu items.

2 MENU p.19

3 CHANNEL + / - p.16

Press to select channels or move up (+) / down (−) through the main menu items.

4 ▲ (eject) p.31

5 ■ (stop) p.31

6 ▶ (play) p.31

7 POWER p.15

Press to turn the unit on and go into standby mode

To completely turn off the unit, you must unplug the AC power cord

8 DVD indicator

Lights up orange when a disc is inserted.

9 STAND BY indicator

Lights up red when the unit goes into standby mode.

10 POWER ON indicator

Lights up green when power is on.

11 Infrared sensor window

Receives infrared rays transmitted from the remote control.

Terminals

32"

32 14 13 12 * 15 16 22 17 18 19 20 21

26" 14 16 15 13 12 SERVICE TERMINAL HEM12 21 22 17 20 19 18

22"/19" 16 15 * 17 18 19 20 21 22 23 12 13 14 VDD VDD VDD VDD TBD PONCE

Note for service terminal
* service terminal (service use only)

• Use this terminal only when a software update is necessary

- User should not connect any devices to the service terminal such as digital camera, keyboard, mouse, etc. (because these will not work)

- The software update is, in most cases, handled by an authorized service person or in some circumstances the user may be asked to do the software update themselves.

<32MD311B/32MD301B/26MD311B/26MD301B>

Side Panel

12 HDMI 2 Input jack p.14,36

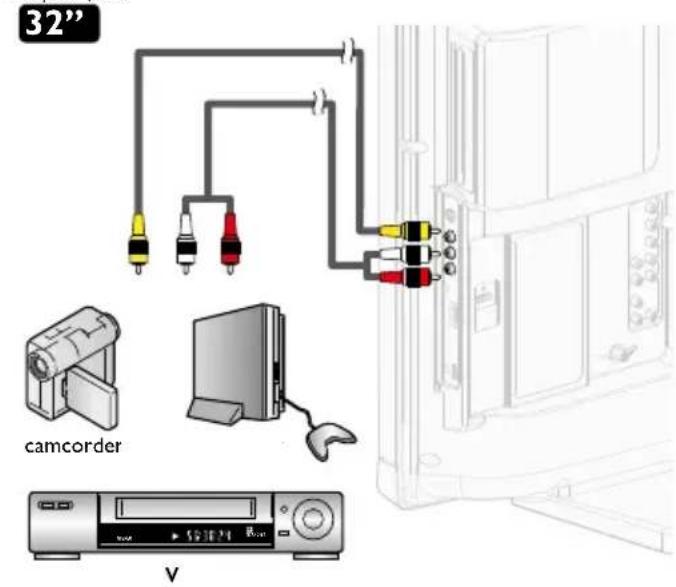

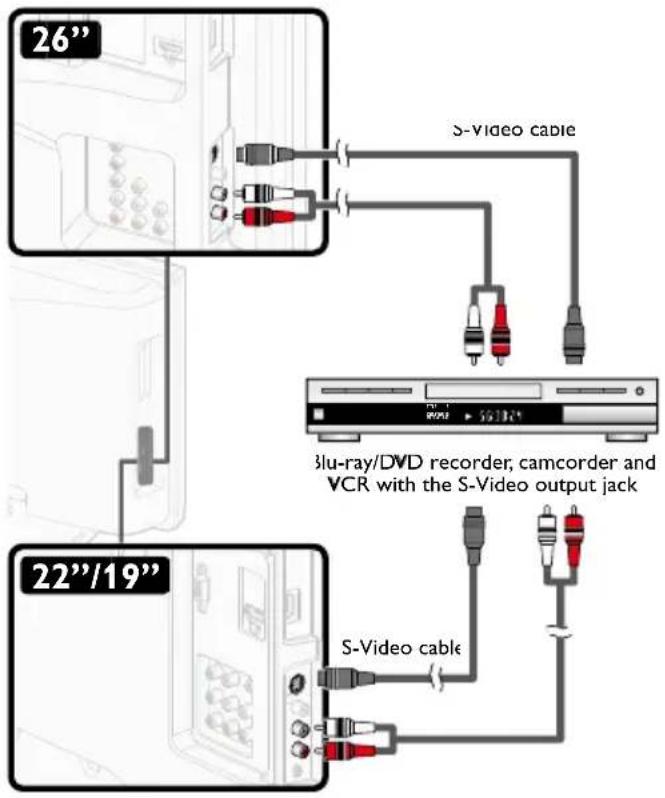

13 S-Video/Composite Video/Audio (L/R) Input jack s for VIDEO p. 37, 38

Rear Panel

14 Disc loading slot p.31
15 AC power cord p.14
16 Cable management p.39

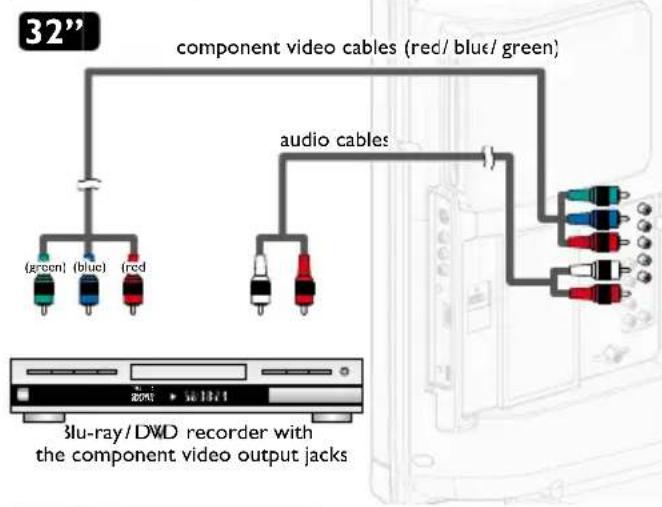

17 Component Video and Audio (L/R) Input jack p. 14, 37

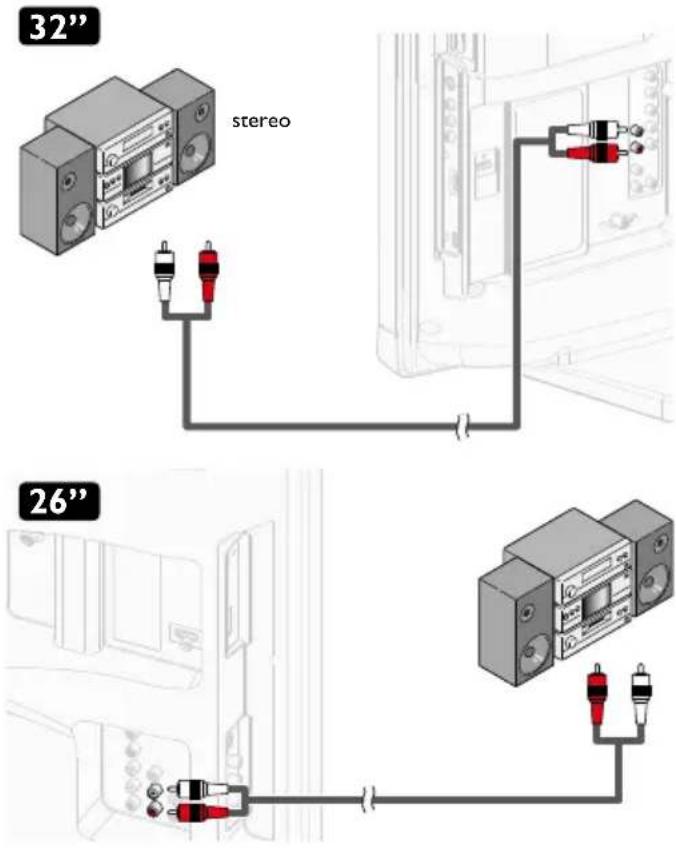

18 Analog Audio (L/R) Output jacks p.39
19 Analog Audio (L/R) Input jacks for HDMI 1 Input jack p. 36, 39 Audio cable connection from a DVI device When you connect your PC that has a DVI terminal use a stereo mini plug conversion cable as well. (For HDMI 1 Input jack only)

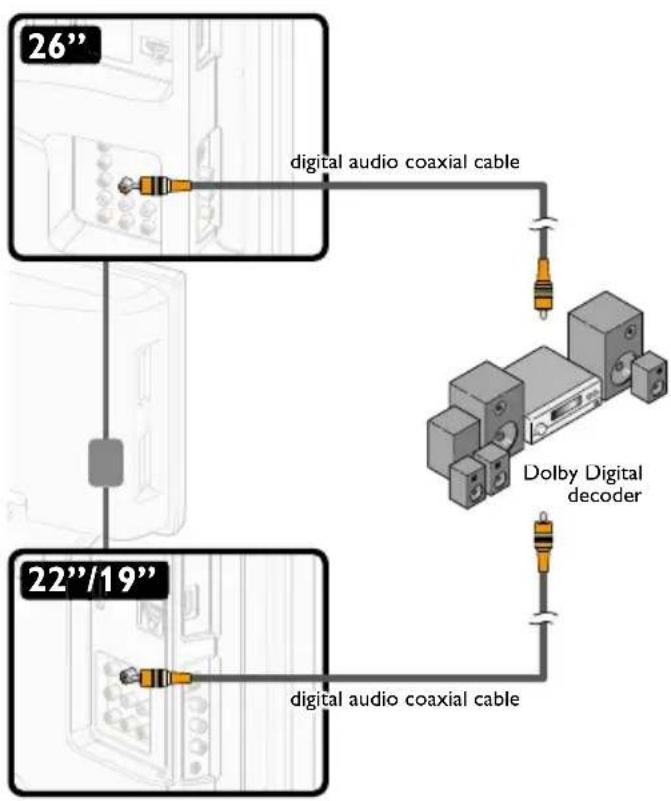

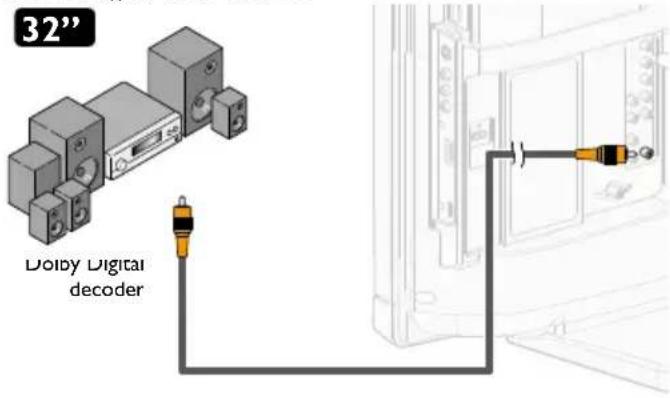

20 Digital Audio Output jack p.38
21 Antenna Input jack p.13

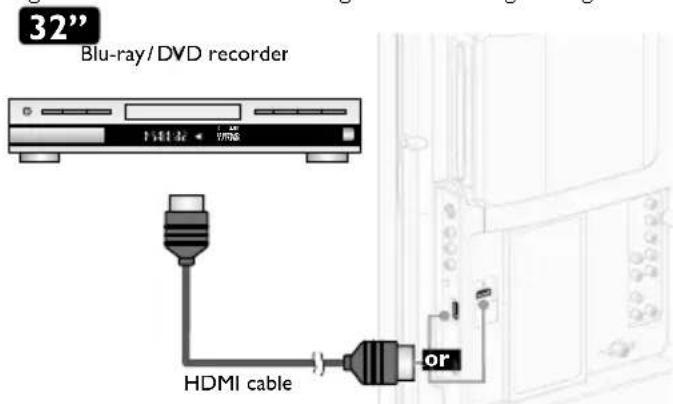

22 HDMI 1 (HDMI-DVI) Input jack p. 14, 36, 39 HDMI connection for HDMI or DVI device. When you connect your PC that has a DVI terminal, you can enjoy this unit as a PC monitor.

<22MD311B/19MD311B/19MD301B>

Side Panel

12 HDMI 2 Input jack p.14,36
13 S-Video/Composite Video/Audio (L/R) Input jacks for VIDEO p. 37, 38
14 Headphone Audio Output jak Headphone connection for personal listening.

Rear Panel

15 Antenna Input jack p.13
16 Disc loading slot p.31
17 AC power cord p.14
18 PC (VGA) Input jack p.39
19 HDMI 1 (HDMI-DVI) Input jack p. 14, 36
20 Component Video and Audio (L/R) Input jack p. 14, 37
21 Digital Audio Output jack p.38
22 Analog Audio (L/R) Input jack for PC connection p. 39 Mini-plug audio cable connection from PC
23 Analog Audio (L/R) Input jacks for HDMI 1 Input jack p.36 Audio cable connection from a DVI device (For HDMI 1 Input jack only)

Remote Control Function

1 2 3 4 5 6 7 SQUARE SLEEP FREETZ ELECT 13 14 15 16 17 SIP/ALOP MODE TITLE ORIC MENU MENI FORMAT OK BACK INFO 8 9 REV PLAY PND 18 19 PREV CH STOP PREV CH STOP 20 11 VOL WRITE CH - 12 1 2 3 4 5 6 7 8 9 +10 0 - 21 22 MAGNAVOX

1 (power) p.15 Press to turn the unit on and go into standby mode. To completely turn off the unit, you must unplug the AC power cod.

2 SLEEP	p.16
3 SOURCE	p.16
4 SAP/AUDIO	p.17

ATSC

- Press to select the audio language

NTSC

- Press to select the audio mode.

DVD CD

- Press to select the audio language (DVD), or sound mode (CD).

5 MODE

p.7

• Press to arrange the p laying order or playback randomly (CD).
• Press to set the black level (DVD) and the virtual surround on or off.
• Press to change the camera angle to see the sequence being played back from different angles (DVD).
• Press to search chapter, title (DVD), track (CD) or time
• Press to set the marker.
• Press to repeat playback chapter, title (DVD), track, disc (CD) repeatedly or between designated point A and B.
• Press to magnify the part of picture (2x and 4x : DVD).
• Press to select the subtitles on a disc (DVD).

6 MENL p.19
7 ▲/▼/◄/► (cursor) p.15
8 OK p.15
9 BACK p.18
10 PREV CH p.16
Press to return to the previously viewed channel.
11 VOL + / - p.17
12 Number buttons p.16

ATSC

NTSC

• Press to select channels.
  • (dot)
• Press to shift the subchannel from the main channel.

DVD CD

• Press to select chapter, title (DVD), or track (CD) direct 1)
  +10 button
• Press to select 10 or higher number of chapters.

13 FREEZE p.16

ATSC

NTSC

- Press to pause screen image.

14 EJECT ▲ p.31

Press to eject the disc.

15 DISC MENU p.31

Press to display the menu on adi sc.

16 TITLE p.31

Press to display the title menu (DVD).

17 FORMAT p.17

Press to select aspect ratio available for the TV screen

18 INFO p. 18, 34

19 REV ◀◀/FWD ▶▶ p.31

Press to begin slow forward or slow reverse playback during the pause mode (DVD) and search backward or forward through a disc

PLAY ▶ p.31

Press to begin the discplayback.

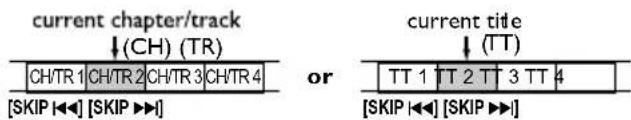

SKIP ◀◀◀/ SKIP ▶▶▶ I ➕ p.32

Press to skip backward or forward chapters, titles (DVD) or tracks (CD) of the disc.

PAUSE II p.31

Press to pause the disc playb adk.

STOP ■ p.31

Press to stop the discplayback

20 MUTE p.17

21 CH + / - p.16

22 CLEAR p.32,33

• Press to clear the numbers entered incorrectly
• Press to cancel the point A for A-B repeat
• Press to remove the track number in program input (CD).

PREPARATION

No supplied cables are used with these connections:

- Please purchase the necessary cables at your local store.

Before you connect:

3e sure your antenna or other device is connected properly before plugging in the AC power cord

Antenna Connection

Connect the RF coaxial cable on your home outlet to the antenna input jack of this unit.

32" WHF/UHF analog or D TW antenna or RFcoaxial cable cable TiW signal

26" RF/coaxial cable VHF/UHF analog or D TVantenna 22"/19" RF/coaxial cable or cable TV signal

Once connections are completed, turn on the unit and begin initial setup. Channel scanning is necessary for the unit to memorize all available channels in your area [Initial Setup]

p.15

Note

• If you have any question about the DTV's antenna, visit www.antennaweb.org for further information.
• Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters) for HD TV signal the minimum RF bandpass on these devices is 2,000MHz or 2GHz.
• For your safety and to avoid damage to this unit, please unplug the RF coaxial cable from the antenna input jack before moving the unit
• If you did use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be more effective than a set top or inside antenna
• To switch your reception source easily between antenna and cable install an antenna selector.
• If you are not receiving a signal from your cable service, contact the Cable provider.

Connection to Cable Receiver or Satellite Box

Use an HDMI or Component Video cables to connect the HDMI or the Component Video Input jacks of the unit to the HDMI or the Component Video output jacks of the cable receiver/satellite box

If you connect to the unit's Component Video Input jacks connect Analog Audio cables to the Analog Audio L/R Input jacks for the Component Video connector jacks

You can also connect this unit to the cable receiver or satellite box other than the HDMI or the Component Video output jacks or Composite Video output jack (p. 37, 38) because they might have different output jacks

Required cables and connecting methods of the cable receiver/satellite box, or the availability channel for the clear QAM may differ depending on the cable/satellite provider or local TV

)roadcaster.

- or more information, please contact your cable/satellite provider or local IV broadcaster.

Note

- Use an HDMI cable with the HDMI logo (a certified HDMI cable). High Speed HDMI cable is recommended for the better compatibility.

Make sure that the ACpower cord must be plugged to an AC outlet after all the necessary connections are made.

Caution:

- Do not connect the AC power cord to a power supply outside the indicated voltage of this unit (AC 120V). Connecting the AC power cord to a power supply outside of this range may result in fire or electrical shocks.

Note

- Each time you plug in the AC power cord, no operations will be performed for a few seconds. This is not a malfunction

These operations are accessible by remote control. Some may also be accessible by controls on the main unit.

Initial Setup

I his section will guide you through the unit's initial setting which includes selecting a language for your on-screen menu and autoprogram, which automatically scans and memorizes viewable channels.

Before you begin:

Make sure the unit is connected to antenna or cable

1 After makinall the necessary connections,

press ⏻ to turn on the unit.

• It may take a few moments to turn on the unit for the first time
• [Initial Setup] menu appears automatically after the unit is turned on.

2 Use ▲/▼ to select the on-screen language from the choices (English/Español/Français) on the right side of the IV screen, then press OK.

3 Use ▲/▼ to select [Antenna] for TV channels or [Cable] for CATV channels, then press OK

- [Autoprogram] will begin

Initial Setup Please wait while the system is scanning for channels. Auto programming may take more than 20 minutes to complete. 0% Digital channels 0 ch Analog channels 0 ch NEW Skip

4 Use ◀/▶ to select the desired location setting, then press OK.

Initial Setup Select "Retail" or "Home" for your location. Retail Home Select OK OK

• Select[Retail] store, the unit will be set up with a predefined setting for retail displays.
• 's elect[Home], the unit is set to maximize the energy efficiency for home setting and it can be adjusted through a choice of picture and sound quality according to your preference
• When the initial setup is completed, the lowest memorized channel with the confirmation message of the location setting will be displayed on the IV screen.
• You must set[Home] in step 4. Otherwise [Picture] and [Sound] settings you adjusted will not be memorized after the unit goes into standby mode.

Note

• If you are not receiving a signal from your cable service, contact the Cable provider.
• If you press ⏻ or MENU during auto program, this setup of TV channels will be canceled.
• The initial autoprogram function can be executed for either [Antenna] or [Cable] only once. When you charge the connection (Antenna/Cable), set [Autoprogram, again] p.21
• If there is no signal input from the antenna terminal and no operation for several seconds after you turn on the unit, helpful hints appears. Follow the instructions listed on the TV screen

Initial Setup No channel is registered. Try Autoprogram again? Verify that you have a cable connected to the "ANT IN" jack on the back of the TV, the channel installation process searches this connection. If you are using a cable or satellite box, please confirm the input which you have connected to the box and press "SOURCE" key on the remote control to select the appropriate source input. Retry Later Select OK OK NEU Skip

After an initial setup is completed...

• If you want to scan the channels automatically again [Autoprogram] p. 2
• You can add the desired cable and analog channels unmemorized by autoprogram

[Add Channels] p. 22

- If you want to change to another language

[Language] p. 2

- If you want to charge the location setting.

[Location] p. 26

WATCHING TV

Sleep Timer

can set the unit to go into standby mode after an incremental period of time

Press SLEEP repeatedly to change the amount of time (increases the time by 30 minutes up to 120 minutes)

Press SLEEP once to call up the display for checking the remaining time.

- To cancel sleep timer, press SLEEP repeatedly until [Sleep Off] is displayed.

Switching Each Input Mode can easily switch with the remote control between TV (ATSC or NTSC) and external devices when they are connected to the unit.

Press SOURCE or CH + repeatedly to cycle through the input modes.

e.g.) 32MD311B/32MD301B/26MD311B/26MD301B

Source TV Video Component HDMI1 HDMI2 11.1 DTV / TV channel Video Component HDMI2 HDM1 (or PC input)

- Pressing CH - reverses the direction of the put modes *These may differ depending on what product you purchased. For example, 22MD311B, 19MD311B or 19MD301B will be displayed [HDMI 1], [HDMI 2] and PC] instead

Freeze Mode can freeze the image shown on the TV screen for 5 minutes

Press FREEZE to freeze the image

• The soundoutput will not be paused.
- To cancel freeze mode, press any buttons except ⏻.

Channel Selection

Select channels by using CH + / - or the Num ber buttons

• To select the memorized channels
  use CH +/- or the Number buttons.

- To select the non-memorized channel's use the Numler buttons.

To use the Number buttons

ATSC

- When selecting digital channel 11.1 Be sure to press • before entering the subchannel number:

NTSC

- When selecting cable or analog channel 11

Press PREV CH to return to the previously reviewed channel.

Note

• [No Signa] will app ear on the TV screen after the subchannel broadcast is over.
  • [Audio only program] message will appear on the TV screen, when you receive only sound signal.

SOURCE SLEEP FREEZE ELECT SAP/ALOID MODE TITLE CISC MENU MENU FORMAT OK BACK INFO REV PLAY PWD SKIP PHASE SKIP PREV CH STOP + VOL MUTE + CH - 1 2 3 4 5 6 7 8 9 +10 0 CLEAR MAGNAVOX

TV Screen Display Mode

5 types of display modes can be selected when the broadcasting station is sending 16:9 or 4:3 video signal. And 3 types of display modes can be selected for PC input signal

Press FORMAT repeatedly to switch the TV aspect ratio.

For 16:9 video signal

Normal

4:3

Movie expand

Wd e

Zoom

Normal displays a 16:9 picture at its original size.

4:3 displays a 16:9 picture at a 4:3 size; the picture is shortened horizontally. Sidebars appear on both edges of the screen

Movie expan c displays a 16:9 picture that is vertically stretched to fill the screen. This only crops out the top of the picture.

Zoom displays a 16:9 picture at its maximum size without changing its horizontal and vertical ratio.

Wide displays a horizontally stretched picture. This crops out the left and right sides of the picture

for 4:3 video signal

Normal

16:9

Movie expand

vvi a e

Loom

Normal displays a 4:3 picture at its original size. Sidebars appear on both edges of the screen.

16:9 displays a 4:3 picture at a 16:9 size; the picture is stretched horizontally to fill the screen

Movie expand displays a 4:3 picture at a 16:9 size the picture is stretched more vertically at the top of the screen. This crops out the top of the picture.

Zoom displays a 4:3 picture at a 16:9 size; at its maximum size that is more vertically stretched to fill the screen. This crops out the top and bottom of the picture

Wide displays the picture with its center at the original size and the edges stretched horizontally to fill the screen

For PC input signal through

Input mode

Normal displays a proportionately stretched picture. Sidebars appear on both edges of the screen.

Ful displays a picture that is stretched out of proportion horizontally to fill the screen

Dot By Dot displays a picture in its original size.

Normal

Full

Dot By Dot

*For 22MD311B, 19MD311B and 19MD301B, PC input mode is available. They can only accept the PC input signal when the unit is connected to a PC (VGA) Input jack.

Sound Functions

describe how to change the audio or the audiolanguage as well as the volume.

hush

Silence Mode

Volume Adjustment

Use VOL +/− to adjust the volume.

will be displayed for a few seconds when adjusting the volume.

Press MUTE to turn off the sound temporarily.

will be disp layed for a few seconds

- Press MUTE again or VOL + / - to recover original volume.

Illustration of a computer monitor with musical notes floating above it, no text or symbols present.

Switching Audio Mode

ATSC

Press SAP/AUDIO repeatedly to cycle through the available audio languages

• Available languages differ depending on the broadcast
- [Other] is displayed when the audio language cannot be acquired, or the acquired languages are other than English, Spanish or French.

NTSC

Press SAP/AUDO to display the currently selected audio mode. While receiving an MTS broadcast, press repeatedly to cycle through the available audio channel.

vvhen all au dio are available

STEREC : Outputs stereo-audio

SAP: Outputs second audio program

MONC : Outputs mono-audio

TV Screen Information

You can display the currently selected channel or other information such as the audio mode on the TV screen. In the digital mode, the detailed broadcasting information for the current off the air channel such as program title and program guides are displayed.

1 Press INFO.

ATSC

A Day of Memories KABC 11-1 A quarter-century ago, which may now qualify as the good old days of newspapering, run-of-paper sales accounted for 80 percent of the industry's advertising revenues. Department stores and supermarket were TV: TV-14 English 1/2 Rating 1000 150 160 6, 7, 8 9 10

NTSC

4 11 SAF / STEREO 480L SD 47 TV-PIO DLSV 5 6, 7, 8 9 10

1 program title
2 program guide (Theprogram guide added to broadcasting information is displayed to a maximum of 4 lines.)
3 broadcast station
4 channelnumber
5 audio language (ATSQ)/audio mode (NTSC) [Switching Audio Mode] p.17
6 effective scanning lines and scan mode
7 TV format
8 program's image aspect ratio
9CC (not available if closed caption is set to [Off])
10 c hild lockrating

2 Press INFC or BACK to hide the information.

Note

• When the program guide consists of more than 4 lines, use ▲/▼ to scroll to the next/previous lines
• [No description provided: is displayed when the program guide is not provided.
• While the program guide is displayed, the closed caption function is interrupted.
• In external input mode, the following screen is displayed e.g.) When an external device is connected to Video Input jack.

• The information disp lay will automatically disappear in 1 minute.

USING FUNCTIONS

This section describes the overview of the main menu displayed when you press MENU.

The main menu consists of the function setting items below.

1 Press MENU to display the main menu Picture Sound Channel Features Language DVD SOURCE SLEEP FREEZE LIGHT SAP AUDIO MODE TITLE DISC MENU MENU FORMAT OK 2 Use ▲/▼ to select a desired menu and an item, then press OK to determine the setting Picture Page 20 Adjusting the picture mode, or customize the picture quality as your preference Sound Page 20 Adjusting the sound mode, equalizer and some other sound functions. Channel Page 21 Scanning the channels available in your area and see what the antenna levels are Features Page 22 Adjusting the Closed Caption, parental guide and some other useful functions Lang uage Page 27 You can choose English, Spanish, or French as your on-screen language. DVD Page 27 You can choose the desired DVD settings.

2

Use ▲/▼ to select a desired menu and an item, then press OK to determine the setting

Picture Page 20 Adjusting the picture mode, or customize the picture quality as your preference Sound Page 20 Adjusting the sound mode, equalizer and some other sound functions. Channel Page 21 Scanning the channels available in your area and see what the antenna levels are Features Page 22 Adjusting the Closed Caption, parental guide and some other useful functions Language Page 27 You can choose English, Spanish, or French as your on-screen language. DVD Page 27 You can choose the desired DVD settings.

3

When the setting is completed, press MENU to exit.


Before you begin:

You must set [Home] in [Location]. p.26

Otherwise, the setting you adjusted will not be memorized after the unit goes into standby mode.

1 Use ▲/▼ to select the item you want to adjust, then press OK

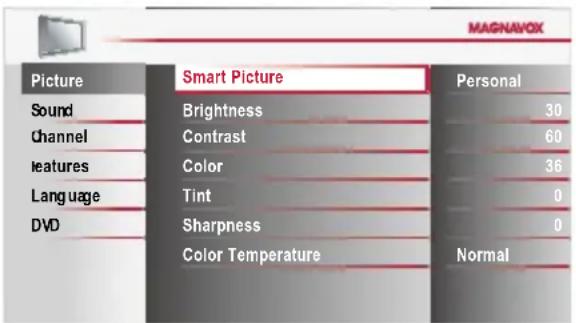

MAGNAVOX Picture Smart Picture Personal Sound Brightness 30 Channel Contrast 60 features Color 36 Language Tint 0 DVD Sharpness 0 Color Temperature Normal

2 Adjust the following items.

Smart Picture

Use ▲/▼ to select the desired setting, then press OK. ([Personal], [Standard], [Sports], [Movie], and [Game].)

Brightness, Contrast, Color, Tint, Sharpness Color Temperature

You can only adjust the following options when you set to [Personal] in [Smart Picture].

Use ▲/▼ to select the desired setting, then press OK. Then use ◀/▶ to adjust the setting

	Cursor ◀	Cursor ▶
Brightness	to decrease brightness	to increase brightness
Contrast	to decrease contrast	to increase contrast
Color	to decrease color intensity	to increase color intensity
Tint	to add red	to add green
Sharpness	to soften	to sharpen
Color Temperature	to add warm colors	to add cool colors

Sound

Before you begin:

You must set [H ome] in [Location]. ➞ p.26

Otherwise, the settings you adjusted will not be memorized after the unit goes into standby mode.

1 Use ▲/▼ to select the item you want to adjust, then press OK.

MAGNAVOX Picture Sound Channel - features Language DVD Smart Sound Equalizer Auto Volume Leveling TV Speakers Primary MTS Standard Off Ext. Amp Stereo

* [Auto Volume Leveling] will only display for 32MD311B, 32MD301B, 26MD311B and 26MD301B

2 Adjust the following items .

Smart Sound

Jse ▲/▼ to select the desired setting, then press OK. ([Personal], [Standard], [Movie], [Music] and [News])

Equalizer

Adjust tonal quality for each frequency.

Jse ◀/▶ to select the specific frequency and use ▲/▼ to adjust the level I then press OK.

Auto Volume Leveling

This function keeps a constant loudness differential between the IV commercials and the programs.

Jse ▲/▼ to select the desired option, then press OK.

On	Reduces volume differences between the TV commercials and the programs.
Off	Removes the auto volume leveling

TV Speakers

Select the audio output from the unit's speakers, or not. If your amplifier is HDMI link function compatible and connected by an HDMI cable to this unit, some sound operations such as volume up can be changed by using this unit's remote control. Make sure [fun-Link Control] is set to [On] p.26

Jse ▲/▼ to select the desired option, then press OK.

On	The sound will be output from the unit's speakers.
Off	The sound will not be output from the unit's spealers.
Ext. Amp	You can control audio output from your connected HDMI link devices by using this unit's remote control.

Note

- We do not guarantee 100% interoperability with other brands of HDMI link compli ant devices

Primary MTS

You can set the output mode as a default for the sound mode (NTSC only).

This setting is not interlocked when you change the output made by pressing SAP/AUDIO.[Sound Functions] p.17

Jse ▲/▼ to select the desired option, then press OK.

Stereo	Outputs stereo-audio
Mono	Outputs mono-audio
SAP	Outputs second audio program

Channel

Before you begin:

Make sure the unitis connected to antenna or cable.

1 Use ▲/▼ to select the item you want to adjust, then press OK

MAGNA/FOX Autoprogram Channel List Add Channels Antenna Hcture Sound Channel Features Language DVC

2 Adjust the following items

Autoprogram

If you switch wires (e.g. between antenna and CATV) or if you move the unit to a different area after the initial setting, or if you restore the DIV channels you deleted, it is recommended to use Autoprogram to perform a new channel search

1 Use ▲/▼ to select [Autoprogram], then press OK
2 Use ▲/▼ to select an appropriate option, then press OK.

Picture Sound Channel Features Language DVC Autoprogram will rescan all channels. Auto programming may take more than 20 minutes to complete. Select your signal source. Back Antenna Cable

• When connected to VHF / UHF antennaselect [Antenna]
• When connected to CATV, select [Cable].
  • [Autoprogram] will begin

Please wait while the system is scanning for channels. Auto programming may take more than 20 minutes to complete. 75% Digital channels 10 ch Analog channels 6 ch NEW Exit

- When the scanning and memorizing are completed, the lowest memorized channel will be displayed

Note

• After setting [Autoprogram], using CH + / - one remote control skips unavailable programs automatically.
- If you are not receiving a signal from your cable service, contact the Cable provider:
- If you press ☐ or MENL during autoprogram, the setup of TV channels will be canceled.
- Even if [Autoprogram] is completed, the dh and setting will be lost if the ACpower cord is urp lugged before the unit goes into standby mode by pressing 🔒.
- The PIN code will be required once you set a PIN code in the [Child Lock]. p. 23
- If you want to change your PIN code, follow the instruction of [Change PIN]. ➞ p.25

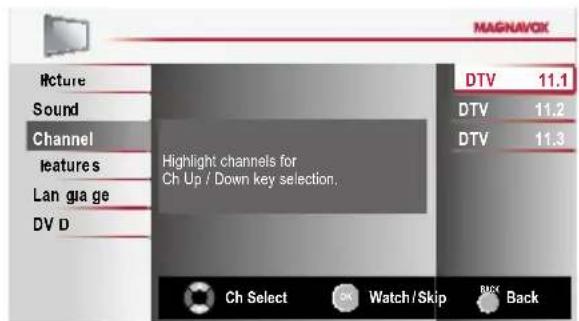

Channel List

The channels selected here can be skipped when selecting the channels using CH+/-

I hose channels can still be selected with the Number buttons

1 Use ▲/▼ to select [Channel List], then press OK.
2 Use ▲/▼ to select the channel you want to remove, then press OK.

MAGNAVOX Picture Sound Channel DTV 11.1 DTV 11.2 DTV 11.3 feature s Lan gia ge DV D Highlight channels for Ch Up / Down key selection. Ch Select Watch/Skip Back

• I he channel display for the removed channel darkens You will not be able to select the channel again using CH+/-
• To react vate a removed channel, use ▲/▼ and press OK The registered channels are highlighted.
• When you remove a main channel, its sub channels are removed as well.

Note

- The channel with the [DTV] indicated on the display is ATSC. Otherwise the channel is NTSC

Add Channels

This function lets you add the off the air along NTSC or analog Cable channels that were not added by the autoprogram due to reception conditions at the initial setting.

1 Use ▲/▼ to select [Add Channels], then press OK
2 Use the Number buttons to enter the number of the channel you want to add, then press OK.

11 MAGNAVCK Picture Sound Channel Features Language DVD For analog channels, select a channel to be added using number keys. For digital channels, you must perform Autoprogram function. Add channels Ch Change Back

Note

• If setup completes successfully [Added to the channel list.] is displayed.
• If external input is used, it is not possible to register the channel and [Unavailable] will be displayed on the TV screen.
• By using CH + / - , you can select the memorized channels only.

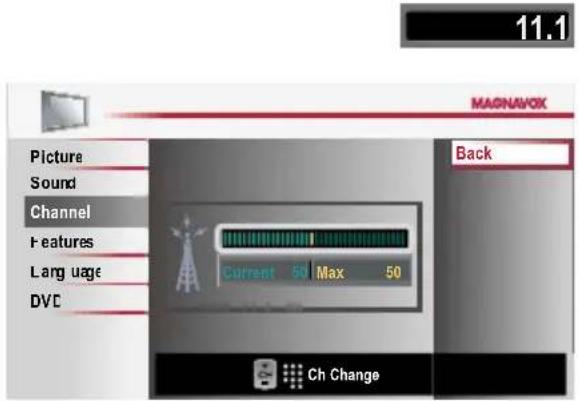

Antenna Confir rmation

ATSC

This function lets you check the digital signal strength of each channel.

1 Use ▲/▼ to select [Antenna], then press OK.
2 Use the Number buttons or CH+/- to select the channel for which you want to check the digital signal strength.

11.1 MAGNAVOX Picture Sound Channel Features Language DVD Back Current 50 Max 50 Ch Change

Note

- If the channel is set to analog channel or external input, you cannot confirm the antenna condition

Features

1 Use ▲/▼ to select the item you want to adjust, then press OK.

MAGNAVIX Picture Sound Channel Features Language JVD Closed Caption Child Lock PC Settings fun-Link (HDMI CEC) Energy Saving Mode Location Current Software Info On Home

* [PC Settings will only display for 22MD311B, 19MD311B or 19MD301B

2 Adjust the following items.

Closed Caption

You can view closed captioning (CC) for TV programs, movies and news. Closed caption refers to text of dialog or descriptions displayed on-screen

Jse ▲/▼ to select [Closed Caption], then press OK. See the following description for setting each item.

MAGNAVOX Picture Sound Channel Features Language DVD Caption Service Digital Caption Service Caption Style A B C

A. Caption Service

1 Jse ▲/▼ to select [Caption Service], then press OK.
2 Use ▲/▼ to select the desired dosed caption, then press OK.

Off	Select if you do not want caption service
CC-1 and T-1	The primary capi on and text serv ices. The e captioning or text is displayed in the same language as the program's dialog (up to 4 lines of script on the IV screen, where t d oes not ostruct relevant parts of the picture).
CC-3 and T-3	Serve as the preferred data channels.The captioning or text is often a secondary anguage
CC-2, CC-4, T-2 and T-4	Rarely aval abl e and b road casters use b em only in special conditions, such as when [CC-1] and [CC-3] o [T-1] and [T-3] are not avala be

• There are 3 display modes according to programs

Paint-on mode	Di splays input characters on the TV screen mmedi ately
Pop-on mode	Once characters are stored in memory, they are di splayed a llat once.
Roll-up mode	Di splays the characters continuously by scrdl ing (max. 4 lines)

B. Digital Caption Service

ATSC

In addition to the basic closed caption, DIV has its own closed caption called digital caption service. Use this menu to change the settings for digital caption service.

1 Use ▲/▼ to select [Digital Caption Service], then press OK.
2 Use ▲/▼ to select the desired digital caption service, then press OK.

Of	Select if you do not want digital caption service
CS-1 to CS6	Select one of these before chaging any other item in [Closed Caption] menu Choose [CS-1] und er normal circumstances.

Note

- Digital Caption Service ] that you can switch differs depending on the b road cast d esorption

Caption Style

ATSC

You can change the caption style such as font, color or size, etc.

1 Use ▲/▼ to select [Caption Style], then press OK.
2 Use ▲/▼ to select [User Setting] then press OK
3 Use ▲/▼ to select [On], then press OK
4 Use ▲/▼ to select an item, then press OK. Then use ▲/▼ to select the desired setting and press OK.

So, you must be Philip. Hi! I'm pleased to meet you. (Edge Color and Edge Type) Font (Font Style, Font Size, Font Color and Font Opacity or Transparency)

(Background Color and Background Opacity or Transparency)

- Review your setting choice made bebw by looking in the upper right corner of the displayed setting box (not all selections show the differences selected)

=ont	Font Style	Closed captioning font style, size color and opacity can be changed.
	Font Size
	Font Color
	Font Opacity
Background	Background Color	Background color and opacity of the displayed caption can be switched.
	Background Opacity
Edge	Edge Color	Edge color and type of the displayed caption can be switched.
	Edge Type

Note

• Closed caption will not be displayed when you are using an HDMI connection
• To show the closed caption on your TV screen, broadcast signal must contain the dose caption data.
• Not all TV programs and commercials have the closed caption or all types of the closed caption.
• Captions and texts may not exactly match the TV voice
• Changing channels may delay the closed caption for a few seconds.
• Adjusting or muting the volume may delay the closed caption for a few seconds
• Abbreviations, symbols and other grammatical shortcuts may be used in order to keep pace with the on-screen action. This is not a malfunction
• The caption or text characters will not be displayed while the main menu or functions display is shown.
• If a black box appears on the TV screen, this means that the closed caption is set to the text mode. To dear the box, select [CC-1], CC-2], [CC-3], [CC-4] or Off.
• If the unit receives poor quality television signals, the captions may contain errors, or there might be no captions at all. Some possible causes of poor quality signals are

- Automobile ignition noise

- Electric motor noise

- Weak signal reception

- Multiplex signal reception (ghosts or screen flutter)

- Data dropout and Pixelation (for DTV only)

• The unit retains the closed cap tion setting if the power fails.
• When the unit receives special effects playback signal (e.g Search, Slow and Still) from a VCR's video output channel (ch3 or ch4) the unit may not display the correct caption or text.

Child Lock

Child lock reads the ratings for programs, then denies access to the programs which exceed the rating level you set. With this function, you can block certain programs inappropriate for children and any channels or external input modes can be invisible

1 Use ▲/▼ to select 'Child Lock], then press OK.

MAGNAVOX Picture Sound Channel Features Language DVD Closed Caption Child Lock PC Settings fun-Link (HDMI CEC) Energy Saving Mode Location Current Software Info On Home

* [PC Settings] will only display for 22MD311B, 19MD311B ∅ 19MD301B.

2 Use the Number buttons to enter the 4-digit number for your PIN code.

Features Language Enter PIN.

• When you have not set up your PIN code, enter 0.0.00.
• When the PIN code is correct, [Child Lock] menu is displayed
  • See the following description for setting each item

MAGNAVOX Picture Sound Channel Features Language DVD Channel Lock US Movie Ratings Lock US TV Ratings Lock Canadian English Rating Canadian French Rating Region Ratings Lock Clear Region Ratings Lock Change PIN A B C D

Note

• When you select a rating and set it to [Bbck], the higher ratings will be blocked automatically. The lower ratings will be available for viewing
• When you set the highest rating to [View], all ratings turn to [View] automatically.
• Toblock any inappropriate programs, set your limits in [US Movie Ratings Lock], [US TV Ratings Lock] and [Region Ratings Lock].
• The child lock setting will be retained after a power failure or after the power is removed for longer than 10 seconds (except the PIN code reverts to 0000). [Child Lock] p.23
  • If the rating is blocked ● will appear
• [Region Ratings Look] will be available when the unit receives a digital broadcast using the new rating system
• For the United States, the unit may download the Region Ratings Lock Table, if required.
• The Canadian rating systems on this unit are based on CEA-766-A and CRTC policy

A. Channel Lock

Particular channels or external input modes can be invisible in this function.

1 Use ▲/▼ to select [Channel Lock] then press OK.
2 Use ▲/▼ to select the desired rating then press OK repeatedly to switch between [View] and [Block].

MAGNAVBOX Picture Sound Channel Features Language DVU Vide o Component HDMI1 HDMI2 D V D 401 DTV Select View/Block Back

* these may differ depending on what product you purchased. For example, 22MD311B, 19MD311B or 19MD301B will be displayed [PC] and [DVD] instead.

B. Setting US Movie ratings

US Movie ratings lock is the rating system created by MPAA

1 Use ▲/▼ to select [US Movie Ratings Lock], then press OK.
2 Use ▲/▼ to select the desired rating, then press OK repeatedly to switch between [View] and [Block].

MAGNAVOCX Picture Sound Channel Features Language DVD X NC -Y R PG -B PG G NR Select View/Block Back

Rating	Category
X	Mature audience only
NC-17	No one under 17 admitted
R	Restricted; under 17 requires accompanying parent or adult guardian
PG-13	Unsuitable for children under 13
PG	Parental guidance suggested
G	General audience
NR	No rating

C. Setting TV ratings

1 Use ▲/▼ to select [US TV Ratings Lock], then press OK.
2 Use ▲/▼/◀/▶ to select the desired rating, then press OK repeatedly to switch between [New] and [Block].

MAGNAVOX Picture Sound Chamel Features Language DVD FV VSLD TV-MA TV-14 TV-PG TV-G TV-Y7 TV-Y Select View/Block Back

Rating	Category
TV-MA	Mature audience only highe	r
TV-14	Unsuitable for children under 14	[SAD8]
TV-PG	Parental guidance suggested
TV-G	General audience
I V-I /	Appropriate for all children 7 and older
TV-Y	Appropriate for all children	lower

To set the sub ratings

As for TV-MA, TV-14, TV-PG, or TV-Y7, you can further set the sub ratings to block specific elements of programming. To set the sub ratings, follow the step below

Use ▲/▼/◄/► to select the desired rating, then press OK repeatedly to switch between [New] and [Bbck].

MAGNAVOX Picture Sound Channel Features Langu ge DVL FV-VSLD TV-MA TV-14 TV-PG TV-G TV-Y7 TV-Y Select View/Block Back

Sub Rating	Category	Rating
FV	Fantasy Violence	TV-Y7
V	Violence	TV-MAIV-14TV-PG
S	Sexual Situation
L	Coarse Language
D	suggestive Dialog	TV-14, TV-PG

Note

• Blocked sub rating will appear beside the main rating category in [US TV Ratings Loc] menu.
• You cannot block a sub rating (D, L, S or V) if the main rating is set to [View].
• Changing the category to [Bock] or [View] automatically changes all its sub ratings to the same ([Bock] or [View]).

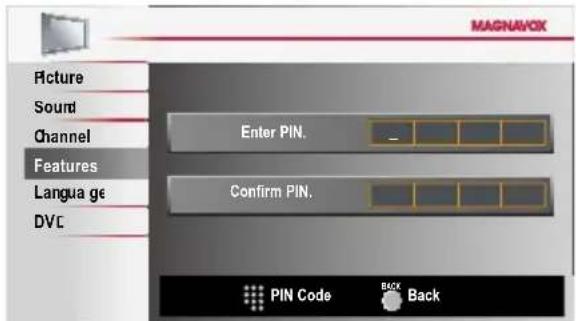

D. Change PIN

Although the default PIN code (0000) is supplied with the unit, you can set your own PIN code

1 Use ▲/▼ to select [Change PIN], then press OK
2 Press the Number buttons to enter the new 4-digit PIN code.

- Enter PIN code again in [Confirm PIN.] entry field.

MAGNAVOX Picture Sound Channel Features Langua ge DVC Enter PIN. Confirm PIN. PIN Code Back Back

Note

• Make sure new PIN code and confirm PIN code must be exactly the same. If they are different, the space is cleared for reentering
- Your PIN code will be erased and returns to the default PIN code (0000) when a power failure occurs
- If you forget the PIN code, unplug the AC power cord then wait for 10 seconds to plug the AC power cord in again The unit will restore the PIN code to 0000 as the factory default.

PC Settings <22MD311B, 19MD311B and 19MD301B only>

This function lets you adjust the PC screen position, clock and phase during PC input

1 Use ▲/▼ to select [PC Settings], then press OK.
2 Use ▲/▼ to select the setting you want to adjust, then press OK.

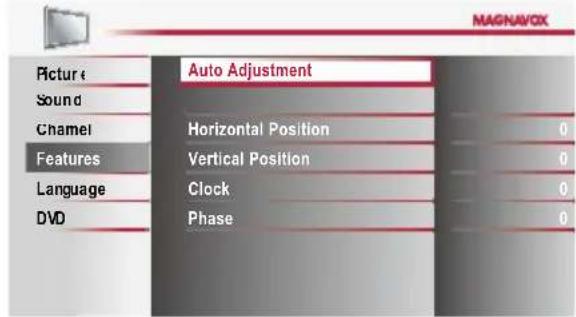

MAGNAVOX Picture Sound Chamel Features Language DVD Auto Adjustment Horizontal Position Vertical Position Clock Phase

3 Adjust the following items

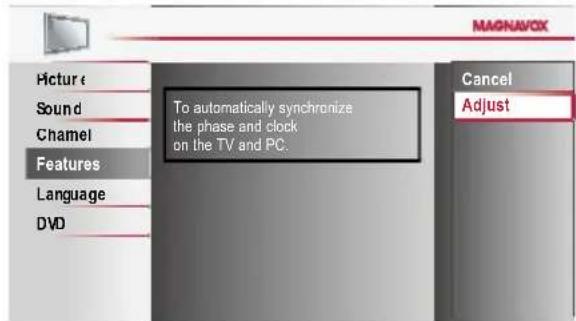

Auto Adjustment

Use ▲/▼ to select [Adjust], then press OK.

MAGNAV/CX Picture Sound Chamel Features Language DVD To automatically synchronize the phase and clock on the TV and PC. Cancel Adjust

- The horizontal/vertical position, clock and phase of the PC screen are automatically adjusted

Horizontal Position, Vertical Position

Use ◀/▶ todjust

	C ursor ◀	C ursor ▶
Horizontal Position	to move PC screen left	to move PC screen right
Vertical Position	to move PC screen down	to move PC screen up

Clock, Phase

Jse ◀/▶ to adjust [Clock] setting to stabilize the PC screen and [Phase] setting to improve the parity of the PC screen.

	C ursor ◀	C ursor ▶
C lock	to decrease setting value	to increase setting value
Ph ase

Note

• You may not obtain an appropriate screen with [Auto Adjustment] for some signals. In this case, adjust the settings manually.
• Adjust[Phase] setting after Clock] setting has been properly adjusted.

fun-Link (HDMI CEC)

This function allows you to operate the linked functions between our brand devices with a fun-Link feature and this unit connecting through an HDMI cable.

1 Use ▲/▼ to select [fun-Link (HDMI CEC)], then press OK.

MAGNAVOX Picture fun-Link Control On Sound Auto Device Off On Channel Auto TV On On Features Device List Language DVL

2 Use ▲/▼ to select the desired setting, then press OK.

3 Ajust the following items

fun-Link Control

Set the fun-Link[On] or [Off].

The following additional settings will be grayed out when you setto [Off].

Jse ▲/▼ to select the desire dsetting then press OK.

D n	selects if you have connected an external device that is compatible with the fun-Link function.
D f	Disables all fun-Link.

Auto Device Off

You can set your device to turn off by interlocking from this unit's power

Jse ▲/▼ to select the desire dsetting, then press OK.

D n	Your connected fun-Link device turns off automatically lly when the un t goes into standby mode.
D f	Your connected fun-Link device stays on even if the un t goes into standby mode

Auto TV On

This unit will turn on detected when the power on signal is sent from your connected fun-Link device.

Jse ▲/▼ to select the desire dsetting, then press OK.

On	This unit turns on automati day when you turn on your connected fun-Link device.
Of	This unit stays the standby mode even ify ou turn on your connected fun-Link device.

Device List

This function lets you see the product model number or name of connected devices

Jse ▲/▼ to select the desired HDMI device listed on the TV screen, then press OK.

MAGNAVOCX Picture Sound Channel Features Language DVD HDMI1 NB620SL2 HDMI2 MBP5230 Select OK Input Change BACK

Energy Saving Mode

You can set whether the power consumption is saved or not.

1 Use ▲/▼ to select [Energy Saving Mode], then press OK.

2 Use ▲/▼ to select the desired mode, then press OK.

D n	Red uces the power consumption.
D f	Sets the backlight brighter.

Note

- You must set [Home] in [Location]. ➡ p.26 ○ therwise, the settings you adjusted will not be memorized after the unit goes into standby mode.

Location

You must set [Home] in this setting. Otherwise [Picture] and [Sound] settings you adjusted will not be memorized after you turn off the unit.

1 Jse ▲/▼ to select[Location], then express OK.

2 Use ▲/▼ to select the desired location, then press OK.

Retail	The unit will be set upwith predefined setting for retail displays. In this setting you can set the adlight brighter.
Home	The unit is set to maximize the energy efficiency for home setting and it can be adjusted through a choice of picture and sound quality according to your preference.

Current Software Info

This function shows what version of the software currently used.

1 Use ▲/▼ to select [Current Software Info], then press OK.
2 Confirm the version of the software currently used

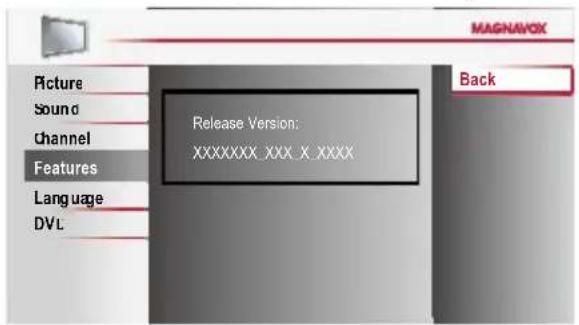

MAGNAVOX Picture Sound Channel Features Language DVL Release Version: XXXXXXXX XXX X XXXX Back

Lang uage

Use ▲/▼ to select [English], [Españor] or [Français], then press OK.

MAGNAVIX Picture Sound Select your menu language English Channel Features Seleccione el idioma para el menú. Español Language DVC Sélectionnez la langue du menu. Français

Note

- If you need the English menus instead of the Spanish or French menus, press MENU. Use ▲/▼ to select [Idioma o , [Langue], then press OK

Use ▲▼ to select [English], then press OK Press MENU to exit the main menu

DVC

Settings are only effective when the unit is in DVD mode and any discs should not be played back.

1 Use ◀/▶ to select a desired setting and an item, then press OK to determine the setting.

LANGUAGE AUDIO ORIGINAL SUBTITLE OFF DISC MENU ENGLISH ENTER:OK

2 When the setting is completed, press MENU to exit.

DVD Language Setting

You can change the desired language when playing back the disc

1 Use ▲/▼ to select the item you want to adjust, then press OK.
2 Adjust the following items

AUDIO *1,*2 (Default: ORIGINAL)

Select the desired audio language.

SUBTITLE *1, *2 (Default: OFF)

Select the desired subtitle language.

DISC MENU *1 (Default: ENGLISH)

Select the desired language in DVD menu.

Note

• To change the on-screen language, call up [Language] from the main menu and set the desired language. [Language] p.27
*1
• _language options are not available with some discs
- f [OTHER] is selected in [AUDIO].[SUBTITLE] or [DISC MENU] menu, press 4-digit number to enter the code for the desired language. [Language Code List.]. p.29
- Only the languages supported by the disc can be selected.

*2

• Language setting for Audio and Subtitle are not available with somedi scs

J se MODE to select sub titles available on the DVD. J se SAP/AUDO to select audio available on the DVD.

- If the DVD's default settings for audio and subtitle are the same language, the subtitles may not show unless you turn them on

DVD Audio Setting

Choose the appropriate audio settings for your equipment. It only affects during the playback of DVD

1 Use ▲/▼ to select the desired item, then press OK.

AUDIO DRC DOWN SAMPLING ON DOLBY DIGITAL BITSTREAM ENTER/OK

2 Adjust the following items.

DRC (dynamic range control) (Default: ON)

I his function is available only on the discs which are recorded in the Dolby Digital format

ON	Compress the range between soft and loud sounds
OFF	No effects (original sound).

DOWN SAMPLING (Default: ON)

This function is available only on digital outputting of a disc recorded in 96kHz.

ON	When outputting in 48kHz
OFF	When outputting the original sound.

Note

- When playing back a 96 kHz disc with the copy right protection or when [Virtual Surround] is set to [1] or [2], the sound will be down sampled at 48 kHz even if the [DOWN SAMPLING] is set to [OFF]. [Virtual Surround] p.35

DOLBY DIGITAL (Default: BITSTREAM)

Set to [BITSTREAM] when this unit is connected to a Doby Digital decoder.

BITSTREAM	Outputs Dolby Digital signals
PCM	Converts the Dolby Digital into PCM. (2 channel)

Parental Setting

Parental setting prevents your children from viewing inappropriate materials. (password protected.) Playback will stop if the ratings exceed the levels you set

1 Use the Number buttons to enter the 4-digit password for your password, then press OK.

PARENTAL PASSWORD Please enter a 4-digit password. ENTER/OK

• If you have set password already, use the Number buttons to enter the current 4-digit password.
• You cannot use the default password (4737) to play back a DVD

2 Use ▲▼ to select the |PARENTAL LEVEL, then press OK.
3 Use ▲▼ to select the desired item, then press OK.

PARENTALLEVEL
ALL	All parental locks are cancelled.
8 [ADULT]	All ratings (adult/g general/children) can be played back.
7 [NC-17]-2 [G]	Only DVD intended for general use and children can be played back.
1 [KID SAFE]	Only DVD intended for children can be played back.

To change the password

4 At step 2, use ▲▼ to select [PASSWORD CHANGE] then press OK.
5 Use the Number buttons to enter the new 4-digit password.

Note

• DVD-video may not respond to parental lock settings. Make sure this function works with your DVD-video
  • Record the password in caseyou for get it.
• If you forget the password, press 4.7.3.7, then enter your new password. Password will be cleared and parental levels will be set to [ALL].
  • A power failure will not erase your password

Others

You can change the other functions

1 Use ▲/▼ to select the desired item, then press OK.

OTHERS ANGLE ICON ON STILL MODE AUTO AUTO POWER OFF ON ENTER/OK

2 Adjust the following items .

ANGLE ICON

(Default: ON)

Set to [ON] to show the angle icon when multiple camera angles are available during DVD playback.

STILL MODE

(Default: AUTO)

Set the picture quality in the still mode If you select [AUTO], it automatically selects the best resolution setting ([FRAME] or [FIELD]) based on the date characteristics of the pictures.

FIELD	The picture in the still mode will be stabilized.
FRAME	The picture in the still mode will be high ydefined.

AUTO POWER OFF

(Default: ON)

Set to [ON] if there is no operation for 20 minutes, the unit goes into standby mode.

Reset to the Default Setting

You can reset all the settings except for the parental setting and on-screen menu language.

1 Use ▲/▼ to select [YES], then press OK.

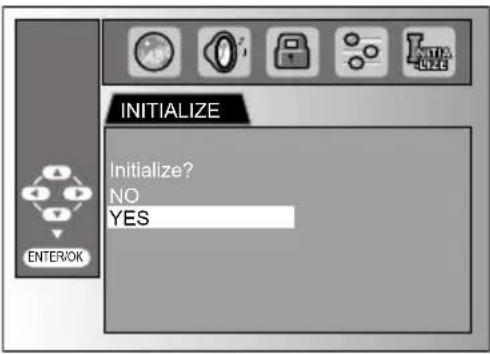

INITIALIZE Initialize? NO YES ENTER/OK

Note

- When you want to cancel the initialization, select [NO], then press OK.

Language Code List

Language	Code	Language	Code
A-B		Lithuanian	5866
Abkhazian	4748	Macedonian	595/
Afar	4747	Malagasy	5953
Afrikaans	4752	Malay	5965
Albanian	6563	Malay alam	5958
Amharic	4759	Maltese	5966
Arabic	4764	Maori	5955
Armenian	5471	Marathi	5964
Assamese	4765	Moldavian	5961
Aymara	4771	Morg olian	5960
Azerbaijani	4772	Nauru	604/
Bashkir	484/	Nepali	6051
Basque	516/	Norwegian [NOR]	6061
Bengali;Bangla	4860	O-R
Bhutani	5072	Occitan	6149
Bihari	4854	Oriya	6164
Bislama	4855	Oromo(Afan)	6195
Breton	4864	Panjabi	624/
Bulgarian	485:	Pashto Pushto	6265
Burmese	5971	Persian	524/
Byelorussian	4851	Polish POLI	6258
C-E		Portuguese [POR]	6266
Cambodian	5759	Quechua	636/
Catalan	4947	Rhaeto-Romance	6459
Chinese | CHI	7254	Romanian [RUM]	6461
Corsican	4961	Russian [RUS]	646/
Croatian	5464	S
Czech | CZE	4965	Samoan	6559
Danish |DAN |	5047	Sangho	6553
Dutch |DUT |	6058	Sanskrit	6547
English |ENG |	5160	Scots Gaelic	5350
Esperanto	5161	Serbian	6564
Estonian	5166	Serbo-Croatian	6554
F-H		Sesotho	6566
Faroese	5261	Setswana	6660
Hiji	5256	Shona	6560
Finnish |FIN |	5255	Sindhi	6550
French |FRE |	5264	Sirg halese	6555
Irishian	5271	Siswat	6565
Galician	5358	Slovak	6557
Georgian	574/	Slovenian	6558
German |GER |	5051	Somali	6561
Greek |GRE |	5158	Spanish [SPA]	5165
Greenlandic	5758	Sundanese	656/
Guarani	5360	Swahili	6569
Gujarati	536/	Swedish |SWE|	6568
Hausa	544/	T
Hebrew	5569	Tag alog	6658
Hindi	5455	Iajik	6653
Hungarian |HUN |	546/	Tamil	6647
I-K		Iatar	6666
Icelandic |ICE |	5565	Telugu	6651
Indonesian	5560	Thai	6654
Interlingua	554/	Libetan	4861
Interlingue	5551	Tig niya	6655
nupiak	5557	Tonga	6661
Irish |IRI |	534/	Isonga	6665
Italian |TA |	5566	Turkish [TUR]	6664
Japanese |JPN |	564/	Turkmen	665/
Javanese	5669	Iwi	6669
Kannada	5760	U-Z
Kashmiri	5765	Ukrainian	675/
Kazakh	575/	Urdu	6764
Kinyarwanda	6469	Uzbek	6772
Kirghiz	5771	Vietnamese	6855
Kirundi	6460	Volap uk	6861
Korean |KOR |	5761	Welsh	4971
Kurdish	576/	Wolof	6961
L-N		Xhosa	7054
Laothian	5861	Yiddish	5655
Latin	584/	Yoruba	7161
Latvian; Lettish	5868	Z ulu	726/
Lingala	5860

Note

- If you choose a language that has a 3-letter abbreviation, the code will be displayed every time you change the audio or subtitle language setting above. If you choose any other language [--] will be displayed instead. (3-letter abbreviation is written in bracket.)

OPERATING DVD

playable Media

Media Type	Logo	Recorded Signal	Media Size
DVD-VIDEO		digital video (MPEG2)	5 inches (12 cm)
DVD-RW
DVD-R
CD-DA		digital audio
CD-RW
CD-R

Region Codes

This un it has been designed to play back DVD with region 1. DVD must be labeled for ALL regions or for region 1 in order to playback on the unit. You cannot play back DVD that are labeled for other regions. Look for the symbols on your DVD. If these region symbols are not on your DVD, you cannot play back the DVD in this unit.

The number inside the globe refers to region of the world. A DVD labeled for a specific region can only be played back on the unit with the same region code.

Color Systems

DVD is recorded in different color systems throughout the world. The most common color system is NTSC (which is used primarily in the United States and Canada).

his unit uses NTSC, so DVD you pay back must be recorded in the NTSC system. You cannot play back DVD recorded in HAL color systems.

Unplayable Media

NEVER play back the following discs. Otherwise, malfunction may result!

• 3 inches (8 cm) disc
• DVD-RAM
• DVD-audio
  • CD-i
• Photo CD
• Video CD
  • DVD with region codes other than 1 or AL L
• DTS-CD
  • DVD-ROM for personal computer s
  • CD-ROM for personal computers
• The discs wt hlab ls,scratches,stains,blem ishes,etc.
  HD DVD
• Blu-ray Disc
  • DVD or CD contains MP3 / JPEG files
• KODAK Picture C D

On the following disc, the sound MAY NOT be heard.

- Super audio CD

Any other discs without compatibility indications

Note

• Unfi nalized discs cannot be played back.
• For DVD-RW/-R, discs recorded in the VR (video recording) format cannot be played back. Only the fi nalized video format discs can be played back
• Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special properties of discs
• Only the sound recorded on the normal CD layer can be delivered. The sound recorded on the high density super audio CD layer cannot be delivered
• Do not use a single CD adaptor which makes 3 inches(8 cm) to 5 inches (12 cm) disc
• You can play back discs with the mark slisted in [Phayable Media]. If you use non-standardized discs, this unit may not play them back or the sound and video quality will be compromised
• If the recorded portion of the disc is too small (less than 2.17 inches (55 mm) across), it may not play back properly

These operations are accessible by remote control. Some may also be accessible by controls on the main unit.

Playback

Before you begin:

lum on the amplifier and any other equipment which is connected to this unit. Make sure the external audio receiver (not included) are set to the correct channel

1 Press ⏻ to turn on the unit

2 Insert a disc with label facing forward

<32MD311B/32MD301B>

Illustration of a computer monitor with a hand holding a scroll labeled 'abbe' (no text or symbols on the device itself)

<26MD311B/26MD301B/22MD311B/19MD311B/19MD301B>

label

CAUTION

• Do not put coins or foreign objects into the discloading slot.

- In case the DVD was recorded on both sides, make sure the label of the side you want to play back is facing forward

3 The unit switches to the DVD mode when the unit was in IV mode and detects the type of disc.

- Press PLAY ▶ if the unit does not go to the DVD mode

4 The unit starts play back.

- If playback does not start automatically, press PLAY▶ again.

5 Press STOP ■ to stop playback temporarily

- If playback remains stopped for 20 minutes, the unit will go into standby mode automatically when [AUTO POWER OFF is set to ON].

6 Press EJECT ▲ to eject th edisc.

Note

• [O] may appear at the top-right on the TV screen when the operation is prohibited by the disc or this unit
- Some DVD may start playback from title 2 or 3 due to specific programs
- During the playback of a 2-layered disc, pictures may stop for a moment. This happens while the 1st layer is being switched to the 2nd layer. This is not a malfunction
- When you cannot remove the disc, you may try either following operations
- Press and h dd EJECT ▲ on the unit for more than 5 seconds.
- Unplug the AC power cord and plug it in again, then press EJECT▲.
It will take about 10 seconds to eject the disc, while that the unit will not respond to any key commands.

Disc Menu

DVD

Some discs contain disc menus which describe the contents of the disc or allow you to customize disc playback, or title menu which lists the titles available on the DVD

lo display the DVD menu, press DISC MENU and use

▲/▼/◄/► to select an item, then press OK (or PLAY ►).

lo disp lay the top menu, press TITLE and use

▲/▼/◄/► to select an tiem, then press OK (or PLAY►).

Note

- Menu operations may vary depending on the disc Refer to the manual accompanying the disc for more details

Resume Playback

Press STOP ■ during playback. Resume message will appear on the IV screen.

Press PLAY▶. Playback will resume from the point at which play back was stopped.

Note

• To cancel resume, press STOP ■ one more time in the stop mode. On some discs, STOP ■ will not work while the resume message appears. Please wait until the message disappears
• The resume information will be kept even when the unit goes into standby mode. However, q editing the disc will cancel the resume feature. Playback will start at the beginning the next time you insert the disc.

Paused and Step-by-step Playback

Press PAUSE III during play ack

- Playback will be paused and sound will be muted.

DVD

Each time you press PAUSE II in the pause mode, the disc goes forward one frame at a time to continue playback, press PLAY ▶.

Note

- Set [STILL MODE] to [FIELD in the OTHERS] menu if pictures in the ep ause mode are blurred p.29

Fast Forward/Fast Reverse

Press FWD ▶▶ or REV ◀◀ repeatedly during playback to select the desired forward or reverse speed

lo continue p layback, press PLAY▶

Note

• Set [STILL MODE] to [FIELD* in the OTHERS] menu if pictures in the fast playback mode are blurred p.29
• Fast forward / fast reverse speed varies with disc. Approximate speed is 1(2x), 2(8x), 3(20x), 4(50x) and 5(100x) on DVD and 1(2x), 2(8x) and 3(30x) on audio CD
  • For DVD, sound will be muted during this function
• For audio CD, sound will be intermittent during the search

Slow Forward/Slow Reverse

DVD

Press FWD▶▶ or REV◀◀ repeatedly during the paused mode to select the desired forward or reverse speed I o continue playback, press PLAY▶.

Note

• Set \$TILL MODE] to [FIELD' in the [OTHERS' menu if pictures in the slow playback mode are blurred. p.29
• Slow forward / slow reverse speed varies with disc. Approximate speed is 1(1/16x), 2(1/8x) and 3(1/2x).
  • The sound will be muted during this function

Zoom

DVD

The zoom function allows you to enlarge the video image and to pan through the enlarged image.

1 During p layback, press MODE repeatedly until [ ]appears.
• The epiculture becomes twice as large
2 Press OK repeatedly to change the zoom factor [2x] or [4x].
3 Once a desired zoom factor is set, use ▲/▼/◄/► to slide the zoomed picture across the IV screen.
4 To exit zoom, repeat steps 1 to 2 above and press OK repeatedly until [OFF] appears

Note

• The graybox with an inner blue box that shows during zoomed playback is the position guide indicates the position of the zoomed image within the overall image Position guide stays on the TV screen unit you press OK. Press OK one more time to recall the position guide when disappears
• Zoom function does not work while the disc menu is displayed
• 4x zoom is not available on some discs.
• Zoom function is also available during pause mode

Search Functions

Chapter/Title/Track Search

You can select chapters, titles or tracks on the disc.

1 During playback, press MODE repeatedly until [CH]/[TR] appears.

- If you want to perform the title search, use ▲/▼ repeatedly until [ ] appears.

2 Press the Number buttons to select your desired chapter, title or track within 60 seconds I o playb ad a single-digit chapter, title or track when there are more than 10 chapters, titles or tracks, press OK after entering the chapter, title or track number.
3 Playback will start automatically from the chapter, title or track you selected

Note

• Chapter, title or track search can only be performed during playback or when the unit has kept the resume information. It cannot be performed in the stop mode.
- The total number of chapters / titles / tracks in your disc; with less than 10 chapters/titles/tracks, press the chapter/title/track number directly. To play a double-digit chapter / title / track, press the chapter/title/track number.
- Track search is not available for programmed or random play back

Using SKIP |◀◀/▶▶|

1 During playback press SKIP |◀◀/▶▶| repeatedly until a desired chapter, title or track will be selected.

current chapter/track ↓(CH) (TR) CH/TR 1 CH/TR 2 CH/TR 3 CH/TR 4 [SKIP ◀◀] [SKIP ►►] or current title ↓(TT) TT 1 TT 2 TT 3 TT 4 [SKIP ◀◀] [SKIP ►►]

2 Playback will start automatically from the chapter, title or track you selected.

Note

- SKIP/▶▶I are not available when playback is stopped.

Time Search

You can select the desired time which the disc is played back from.

1 During playback press MODE repeatedly until [CH] / [TP] appears
2 Use ▲/▼ repeatedly until [ ] appears.
3 Press the Number buttons to select your desired time lapse within 60 seconds.
4 Playback will start automatically from the time you selected.

Note

• When there is no need to enter a number, [0] appears automatically. For example [0: 0_: _ ] appears in the time search menu if the total time of the title or track is less than 10 minutes
• Press CLEAR to erase the incorrect input at step 3.
• Time search can only be performed during playback or when the unit has kept the resume information. It cannot be performed in the stop mode

Direct Search

Press the Number buttons to select your desired chapter, title or track.

Note

• To select a single-digit chapter, title or track number, press the number directly
• To select double digit chapter, title or track number: If the disc contains more than 9 and less than 100 chapter, title or track press +1 first, then enter the double digit chapter, title or track number. (e.g., for track 26, press +1, 2 and 6)

Repeat Playback

Repeat function is available only during playback

1 During playback, press MODE repeatedly until [☐] appears.
2 Press ▲/▼ to change the repeat mode.

DVD

OFF repeat of	f
CHAPTER	current ch apter repeat
TITLE	current t it e repeat

CD

OFF re	peat of
TRACK	current track repeat
ALL	entire disc rep eat

3 Press BACK to exit.

RepeatA -B Playback

You can repeat playback between A and B on a disc

1 Durin gplayback, press MODE repeatedly until [ACB] appears.
2 Press OK at your desired starting point (A).
3 Press OK at your desired ending point (B). - Point B should be in the same title or track as point A. - Within a few seconds, the section A-B will begin to play back repeatedly
4 Io cancel repeat A-B playback, press MODE repeatedly until | A-B a pears. Press OK so [OFF] appears

Note

• Repeat setting (except [ALL]) will be cleared when moving to another title or chapter, track.
• During programmed playback, repeat setting will be effective for the tracks in the program
• Repeat playback or repeat AB playback may not available with some discs
• Repeat A-B playback does not function during other repeat mode
  • To cancel point A, press CLEAR at step 2 in [RepeatA-B Playback].
• Stopping playback will cancel repeat A-B playback

Random Playback

CD

This function shuffl es the playing order of tracks instead of playback in the sequence.

1 In stop mode, press MODE repeatedly until [RANDOM] menu appears
2 Press PLAY ▶ to start random playback.

Note

• To repeat the current track in the random mode, follow the steps 1 and 2 in [Repeat Playback] and select | TRACK ]. p.33
- To repeat the entire random selections, follow the steps 1 and 2 in [RepeatPlayback] and select [ALL]. p.33

Programmed Playback

CD

You may determine the order in which tracks will play back.

1 In stop mode, press MODE repeatedly until [PROGRAM]. menu appears
2 Use ▲/▼ to select a desired track, then press OK to store.

• Additional tracks may be on other screens. Use ▲/▼ to go on to the next / previous pages

- Repeat this step until you have selected all the tracks you wish to play back in the program.

- Up to 99 tracks can be ordered.

- If 8 or more tracks were in a program, use SKIP ◀◀◀/▶▶ to see all the tracks

3 Press PLAY ▶ to start programmed playb ack.

Note

• Press CLEAR to erase the last track in the program if you make an error.
• To erase all programme d tracks at once, select [ALL CLEAR] and press OK at step 2.
• While a program is being playedback, STOP ■ works as follows
• Pressing STOP ■ once: The track will be in the resume standby mode. Next time you press PLAY ▶, the playback will resume from the point where it is stopped in the programmed playback
• Presing STOP ■ twice: Resume mode will be canceled. Next time you press PLAY ▶, playback will restart from the first track in the original order. However, your programmed playback can be restarted when you follow the above steps. (Your programs are still stored until either the disc is ejected or the unit goes into standby mode)
• On some discs STOP will not work while the resume message appears. Please wait until the message disappears

- To repeat the current track in the program, follow the steps 1 and 2 in [Repeat Playback] and select [TRACK]. ➞ p.33

- To repeat the entire program, follow the steps 1 and 2 in [Repeat Play adk] and select [AL]. p.33

- Ejecting the disc or the unit goes into standby mode will erase the program.

- You cannot use the Number buttons to select another track during programmed playback. Use SKIP/▶/▶▶ to select other tracks in the program.

- You cannot combine random playback with programmed playback.

• You cannot alter a programmed order during playback

- you can start programme playback only while in [PROGRAM] menu

On-screen Display

You can check the information about the current disc by pressing INFO on the remote control

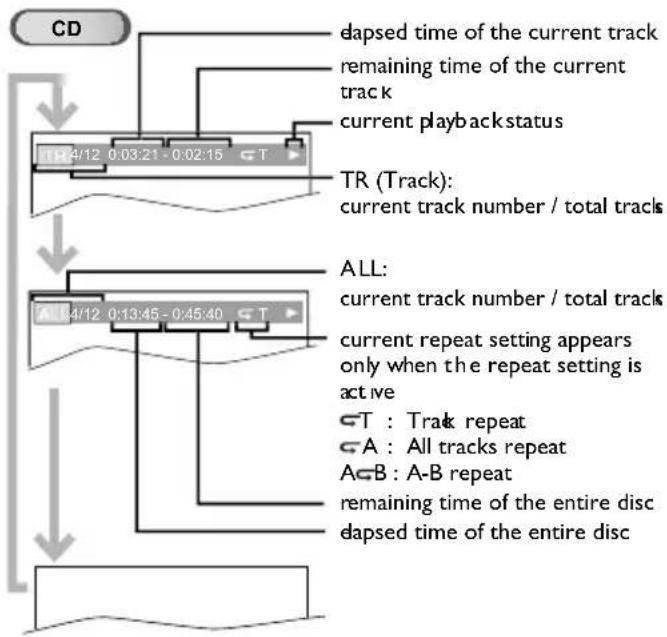

Note

- When you are playing back an audio CD in program or random mode, I [PROGRAM* (σ* | RANDOM 1) will be displayed instead o 12

Special Settings

Subtitle Language

DVD

This unit allows you to select a subtitle language (if available) during DVD playback

1 During playback, press MODE repeatedly until

[ ] appears

2 Use ▲/▼ repeatedly until your desired language appears.

1.ENG / 6 (SUBTITLE) sub titles can be varied on the displayed number current sub titles language

3 Each time you press ▲▼, the subtitle language changes as follows

OFF no su	b til e
ENG	English audio
SPA	Spanish audio

4 Press BACK to exit.

Note

• To cancel the subtitle, select OFF at step 2.
  • If your language is not shown after pressing

▲/▼ several times, the disc may not have that language. However, somediscs allow you to change sub titlel languages setting in the disc menu. (Operation varies depending on the disc, so refer to the manual along with the disc.)

• When [NOT AVAILABLE] appears on the TV screen, it means no sub title is recorded on the scene
• If you choose a language that has 3-letter-language code, the code will be displayed every time you change the special language setting. If you choose any other languages [---] will be displayed instead. p.29
• Ejecting the disc will cancel your subtitle setting.

Audio Language

DVD

This unit allows you to select an audio language (if multiple lang uages are available) during DVD playback.

1 During playback, press SAP/AUDO repeatedly until the desired language appears

1.ENG Dolby D 3/2.1ch 48k/3 audio can be varied on the displayed number current audio language

2 Each time you press SAP/AUDIO, the audi ol anguage changes as follows

ENG	English audio
SPA	Spanish audio
FRE	French audio

Note

• Some discs will only allow you to change the audio setting from the disc menu. Refer to the manual accompanying the discs for details.
• If your language is not shown after pressing SAP/AUDIO several times, the disc may not have that language However, somediscs allow you to change multip & audio languages setting in the disc menu. (Operation varies depending on the disc, so refer to the manual along with the disc)
• When [NOT AVAILABLE] appears on the TV screen, it means audio language is not available.

Camera Angles

DVD

Some DVD may contain scenes which have been shot simultaneously from various angles. You can charge the camera angle if [ ] appears on the screen. If [ANGLE ICON is set to [OFF in [OTHERS] menu [ ] will not appear r. p.29

1 During playback, press MODE repeatedly until [ ] appears
2 Use ▲/▼ repeatedly until your desired camera angle appears

1/8(ANGLE) angles can be varied on the displayed number

3 Press BACK to exit.

Black Level Setting

DVD

Adjust the black level to make the dark areas of the TV picture brighter.

1 During play back, press MODE repeatedly until [ ] appears
2 Press ▲/▼ to adjust th eblak l evd.

ON	Makes the dak areas bigh ter.
OFF	Shows the original picture as recorded.

3 Press BACK to exit.

Note

• The setting will be kept even if the unit goes into standby mode

Stereo Sound Mode

CD

This unit allows you to select a sound mode during CD play back.

1 During playback, press SAP/AUDIC repeatedly until the desired sound mode appears.
2 Each time you press SAP/AUDIC, the sound mode changes as follows

STEREO	Stereo sound with left and right channels
L-ch	Left channel sound only
R-ch	Right channel sound only.

Note

- Virtual surround cannot be changed when the sound mode is set to either [L-dh] or [R-c h].

Virtual Surround

You can enjoy virtual surround on your 2 channel stereo syst em

1 During p lay back press MODE repeatedly until [ ] appears
2 Press ▲/▼ to select the sound level.

1	Natural effect.
2 Emphasized effect
O FF	No effects (original sound).

3 Press BACK to exit.

Note

• The setting will be kept even if the unit is turned off
- or audio CD, virtual surround will not be effective if the sound model is set to something other than STEREO 1
[Stereo Sound Mode] p.35
- turn down the level or select [OFF] if the sound is distorted

Marker Setup

This feature allows you to assign a specific point on a disc to be called back later.

To set a marker

1 During p lay back press MODF repeatedly until [CH] / [IK] appears
2 Use ▲▼ repeatedly until marker search menu appears.
3 Use ◀/▶ to select an available marker within 60 seconds
4 When the playback react is the point at which you want to set a marker, press OK.
- Markeris now set

5 Press 3ACK to exit.

To return to the make rlater

1 Repeat steps 1-2 in [To set a marker]. Use ◀/▶ to lect the desired marker.
2 Press OK at the desired marker to restart playback from the specifi cpoint which you set.

Note

• Marker search menu will disappear in about 60 seconds when there is no input.
  • You can mark up to 10 points
  • To clear a marker, select the marker to be cleared, and then press CLEAR.
• Ejecting the disc or turning off the power will erase all markers
• Selecting [AC] at step 3 in the section [To set a marker] will also erase all markers.

CONNECTING DEVICES

No supplied cables are used with these connections:

- Please purchase the necessary cables at your local store.

Before you connect:

Be sure other device is connected properly before plugging in the AC power cord.

External Device Connection

HDMI Connection

HDMI connection offers the highest picture quality.

HDMI(High-Definition Multimedia Interface) transports high definition digital video and multi-channel digital au do through a single cable.

32" Blu-ray/DVD recorder HDMI cable or

HDMI-DVI Connection

Use an HDMI-DVI conversion cable to connect the unit to external video devices equipped with DVI output jack. (Use HDMI 1 Input jack only and Audio L/R below HDMI 1 Input jack on rear of TV.)

Note

- Use an HDMI cable with the HDMI logo (a certified HDMI cable) High Speed HDMI cable is recommended for the better compatibility.

For HDMI connection (use HDMI 1 or 2 Input jack)

• The unit accepts 480i, 480p, 720p, 1080i and 1080p 24/60 Hz of video signals, and 32kHz, 44.1kHz and 48kHz of audio signals
- This unit accepts 5.1 channel audio signal (Dolby Digital) and 2 channel audio signal (LPCM)
- This unit accepts only signals in compliance with EIA861

For HDMI-DVI connection

• The unit accepts 480i, 480p, 720p 1080i and 1080p video signals.
- HDMI-DVI connect on requires separate audio connections as well and the audio signals are converted from digital to analog.
- DVI does not display 480i imag e which is not in compliance with EIA/CEA-861/861B

Component Video Connection

Component Video connection offers better picture quality for video devices connected to the unit.

If you connect to the unit's Component Video Input jacks connect Analog Audio cables to the Analog Audio L/R Input jacks for the Component Video connector jacks

32" component video cables (red/ blue/ green) (green) (blue) (red) audio cables 30.1371 blu-ray/DVD recorder with the component video output jacks

Note

- The unit accepts 480i / 480p / 720p and 1080i of video signals if this connection

S-Video Connection

S-Video connection offers good picture quality for video devices connected to the unit.

If you connect to the unit's S-Video Input jack, connect audio cables to the Audio L/R jacks right below the Composite Video connector.

32" S-Video cable audio cables Blu-ray/DVD recorder, camcorder and VCR with the S-Video output jack

26" S-Video cable 3blu-ray/DVD recorder, camcorder and VCR with the S-Video output jack 22"/19" S-Video cable

Composite Video Connection

Composite Video connection offers standard picture quality for video devices connected to the unit. If you connect to the unit's Composite Video Input jack, connect audio cables to the Audio L/R Input jacks right below the Composite Video connector jacks.

When the Audio is monaural, then only connect to the Audio L Input jack.

32" camcorder V

26" camcorder 22"/19" audio cables

Note

- If you connect to the S-Video Input jack and the Composite Video Input jack at the same time, the S-Video connection will have priority

Digital Audio Output Connection

(for digital broadcasting and DVD functions only)

If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital broadcasting sound.

Use a digital audio coaxial cable to connect the unit to external digital audio devices

32" Doiby Digital decoder

26" digital audio coaxial cable 22"/19" Dolby Digital decoder digital audio coaxial cable

Analog Audio Output Connection

<32MD311B / 32MD301B /26MD311B / 26MD301B only>

(for both analog and digital broadcasting)

If you connect this unit to an external analog audio device, you can enjoy stereo (2-channel) audio.

Use audio cables to connect the unit to external analog audio devices

32" stereo 26"

PC Connection

If you connect this unit to your PC, you can use this unit as a PC monitor.

For 32MD311B, 32MD301B, 26MD311B and 26MD301B, the unit can be connected to your PC that has a DVI terminal. Use an HDMI-DVI conversion cable for this connection and it requires stereo mini plug conversion cable as well.

For 22MD311B, 19MD311B and 19MD301B, those unit is equipped with a PC input jack. Use an VGA cable for this connection and it requires stereo mini plug audio cable as well

32" r mini audio cable To HDMI 1 Input jack only HDMI-DVI conversion ferrite core. HDMI-DVI conversion cable audio cables

The following video signals can be displayed

Format	Resolution			Refresh rate
VGA	640 ×		480	60Hz
SVGA	800 ×		600
XGA	1,024 ×		768
WXGA	1,280 ×		768
	1,360 ×		768

Other formats or non-standard signals will not be displayed correctly.

Note

• Please purchase the VGA cable or HDMI-DVI conversion cable that has a finite core
  • The following operations may reduce noise.
• Attach a ferrite core to the AC power cord of your PC.
• Unplug the AC power cord and use the built-in battery of your PC

Cable Management

<32MD311B/32MD301B/26MD311B/26MD301B only>

Keep the cables through this holder to avoid tangling them

Line drawing of a cable installation with exposed components (no text or symbols)

Troubleshooting Guide
If the unit does not perform properly when operated as instructed in this manual, check the following chart and all connections once before calling for service.

Symptom Remedy
No power	Make sure the AC power cord is plugged inMake sure that the AC outlet supplies the proper voltage, plug another electrical appliance into the AC outlet to ensure that AC outlet operates normally.If a power failure occurs, unplug the AC power cord for 1 minute to allow the unit to reset itself
Control button's do not work.	Press only one button at a time. Do NOT press more than one button at the same timeEnsure that no buttons on the remote are depressed and move freely.
Power is ON but no screen image	Check whether the connection of the antenna, cable receiver or satellite box is connected correctly.Check whether all the cables to the unit are connected to the correct output jack of your device like Blu-ray/DVD recorder.Make sure that the selected input mode is connected to the working input jack.Check if your computer is NOT in sleep mode when the input mode of this unit is in PC mode. lap any key on the keyboard to wake up your computer.
No picture or sound	Check if the power is on.Check if the correct input mode is selectedCheck whether all the cables to the unit are connected to the correct output jack of your device like Blu-ray/DVD recorder.View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.Unplug the AC power cord and wait for about 1 minute, then plug the AC power cord and turn on the unit again.Check whether the connection of the antenna, cable receiver or satellite box is connected correctly.Make sure that the selected input mode is connected to the working input jack.Check if your computer is NOT in sleep mode when the input mode of this unit is in PC mode. Tap any key on the keyboard to wake up your computer.Make sure that the sound is not muted. Press MUTE so that the volume bar and current volume level will appear on the TV screen.Make sure that the volume is NOT set to [C] or [Mute]. If source VOL + / - adjust the desired volume.
No odor	View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.Adjust [Color] in the main menu
Adjusted [Picture] or [Sound settings are not effective every time the unit is turned on	You must set [Home] in [location]. p.26Otherwise, the setting you adjusted will not be memorized after the unit goes into standby mode.
Sound okay, picture poor	Electrical interference from nearby appliances may affect picture qualityAdjust [Contrast] and [Brightness] in the main menuView other TV channels. The problem might be limited to the broadcasting station or weak signal strength.For the best picture quality, with "High Definition" wide screen programs. If the HD content is not available, watch "Standard Definition" programs instead.
Picture day, sound poor	View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.Check if the audio cable is connected in correctly.
You see a distorted picture or near an unusual sound.	You may be getting interference from electrical appliances, automobiles, motorcycles or fluorescent lights.Try moving the unit to another location to see if this is the cause of the problem
Ghosts, lines or streaks in picture	Electrical interference from nearby appliances may affect picture quality.view other TV channels. The problem might be limited to the broadcasting station or weak signal strength.
You see "noise" or "trash" on the screen	When the capabilities of the unit exceed the capabilities of the digital broadcasting, the signal will be increased to match the capabilities of the display of the unit. This may cause noise or trash
Different color marks on the TV screen	View other TV channels. The problem might be limited to the broadcasting station, missing data or pixelation.
You switch to a different input and the volume changes.	This unit will memorize the volume level from the last time you adjusted itIf the volume of the sound from another device is higher or lower, then the loudness will change
You switch to a different input and the screen size changes.	This unit will memorize the viewing mode from the last time you used the particular input modes.
The display image does not cover the entire screen	For 22MD311B, 19MD311B and 19MD301B, make sure that [Horizontal Position] and [Vertical Position] in [PC Settings] are set correctly if you are using this unit as a PC monitor.If you are watching TV or using the Composite Video, Component Video or HDMI with 480i Input, press FORMAT repeatedly to switch various screen modes.
Captions are displayed as a white box. No caption is displayed in the Closed Caption-supported program.	Interference from buildings or weather conditions may cause captioning to be incomplete.Broadcasting station may shorten the program to insert advert sement.The closed caption decoder cannot read the information of the shortened program.
No caption is displayed when playing back a disc or a cassette tape containing captions	The disc or cassette tape may be illegally copied, or the caption signal might not have been read during copying
Black box is displayed on the TV screen.	The text mode is selected for caption. Select [CC-1', [CC-2', [CC-3', [CC-4] or [Off].
Completely distorted picture or black/white picture with DVD.	Make sure the disc is compatible with the unit
Picture freezes momentarily during g playback	Check the disc for finger prints/scratches and clean with a soft cloth wiping from center to edge.
Disc cannot be played.	Clean the disc.Ensure the disc is correctly inserted.Check if the disc is defective by trying another disc.Cancel the parental lock or change the control level.Insert a correct disc that plays on this unitHandle a disc with special care so that it does not have fingerprints, scratches, or dusts on its surface
Buttonsdo not wor kor the unit stops responding.	To completely reset the unit, unplug the AC power cord from the power outlet for 5-10 seconds
The unit does not respond to some operating commandsd uiring playback	Operations may not be permitted by the disc. Refer to the instructions of the disc
Angle does not switch.	The angle cannot be switched for DVD which do not contain multiple angles. In some cases multiple angles are only recorded for specific scenes
Playback does not start when the title is selected.	Check the [PA RENTAL] setting.
The password for rating level has been forgotten	Enter the default password (4737), then your forgotten password will be cleared.

Note

- The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a fixed point of blue, green or red.

This is not to be considered a defect in the LCD screen

- Some functions are not available in specific modes, but this is not a malfunction. Read the description in this manual for more details on correct operations

• Some functions are prohibited on some discs

FAQ

Question Answer
My remote control does not work What should I do?	Check the antenna or cable connection to the main unitCheck the batteries of the remote control.Check if there is an obstacle between the infrared sensor window and the remote control.Test the signal output use [IR Signal Check]. p. 43If okay, then possible infrared sensor troubleAim the remote control directly at the infrared sensor window on the front of the unit.Reduce the distance to the unitRe-insert the batteries with their polarities (+/- gins) as indicated.When there is an infrared-equipped device such as PC near this unit, it may interrupt the remote control signal of this unitMove the infrared-equipped device away from this unit, change the angle of the infrared sensor or turn off the infrared communication function.
How come the Initial setup appears every time I turn on this unit?	Connect the RF coaxial cable to the unit directly and run the initial setup.Make sure to complete the channel scan before the unit goes into standby mode .
Why can I not watch some RF signalITV programs.	Make sure [Autoprogram] has been completed. p. 21Autoprogram must be completed when you set up the unit for the first time or move it to a location where previously unavailable channels are broadcast.The selected channel may not be broadcastingWhen [Autoprogram] is interrupted and not completed, some channels will not be received. Make sure to complete the Autoprogram. p. 21The selected channel cannot be viewed by the [Child Lock] setting. p. 23The unit requires some kind of antenna input. An indoor antenna (VHF / UHF), an external antenna (VHF / UHF) or an RF coaxial cable from your wall cable/satellite box needs to be plugged into the unit.
How come there is no image from the connected external devices?	Check if the correct input mode is selected by pressing SOURCE or using CH +/-.[Switching Each Input Mode] p. 16Check the antenna or cable connection to the unitWhen using the Component Video Connection check that the Green (Y), Blue (Pb/Cb) and Red (Pr / Gr) connectors are connected to their corresponding colored jacks on the unit.
When I enter a channel number, it changes automatically.	Many digital channels have alternate channel numbers. The unit changes the numbers automatically to the ones signifyng the broadcasting station channel number. These basic numbers used for previous analog broadcasts. (e.g., input ch#30 auto changes to ch#6.1)
My disc cannot be played back.Is there any way I can play my disc?	Clean the discEnsure the disc is correctly inserted.Check if the disc is defective by trying another disc.Cancel the parental lock or change the control levelInsert a correct disc that plays back on this unitHandle a disc with special care so that it does not have fingerprints, scratches or dusts on its surface.
Why are captions not displayed entirely? Or, captions are delayed behind the dialog.	Captions that are delayed a few seconds behind the actual dialo g are common for live broadcasts. Most captioning production companies can display a dialog to maximum of 220 words per minute. If a dialo g exceeds that rate, selective editing is used dto insure that the captions remain up-to date with the current TV screen da bg.
How can I set the clock?	There is no clock function on this unit
I cannot change the [Child Lock] setting because my PIN code no longer works.	If a Power failure occurs for longer than 10 seconds the child lock setting is retained, but the PIN code is set to the default code "0000". [Child Lock] p. 23

INFORMATION

Glossary

ATSC

Acronym that stands for Advanced Television Systems Committee and the name of the digital broadcasting standards.

Aspect Ratio

The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the TV screen is almost square); widescreen models are 16:9 (the TV screen is almost twice as wide as its height).

CEC (Consumer Electronics Control)

This allows you to operate the linked functions between our brand devices with CEC feature and this unit. We do not guarantee 100% interoperability with other brands of CEC compliant devices.

Component Video

This is a video signal format that conveys each of 3 principal colors of light (red, blue and green) through different signal lines. This allows the viewers to experience picture colors as original as it is. There are several signal formats, including Y/Pb/Pr and Y/Cb/Cr.

Dolby Digital

The system developed by Dolb yLaboratories to compress digital sound. It offers stereo sound (2ch) or multi-channel audio

HDMI (High-Definition Multimedia Interface)

Interface that supports all uncompressed, digital audio / video formats including set-top box, Blu-ray / DVD recorder or digital television, over a single cable.

HDTV (High Definition TV)

Ultimate digital format that produces high resolution and high picture quality.

NTSC

Acronym that stands for National Television Systems Committee and the name of analog broadcasting standards Off the air NTSC signals are no longer being sent by major broadcasting stations in the USA

PIN code

A stored 4-digit number that allows access to parental control features

Region Code

Regions associate discs and players with particular areas of the world. This unit will only play back discs that have compatible region codes. You can find the region code of your unit by looking on the rear panel. Some discs are compatible with more than one region (or all regions).

SAP (Secondary Audio Program)

Second-audio channel delivered separately from main-audio channel. This audio channel is used as an alternate in bilingual broadcasting.

SDTV (Standard Definition TV)

Standard digital format that is similar to the NTSC picture quality

S-Video

Offers higher quality images by delivering each signal, color( ) and luminance(y) independently of each other through a single cable

Maintenance

Cabinet Cleaning

• Wipe the front panel and other exterior surfaces of the unit with a soft cloth
• Never use a solvent or alcohol. Do not spray insecticide liquid near the unit. Such chemicals may cause damage and discoloration to the exposed surfaces.

Panel Cleaning

Wipe the panel of the unit with a soft cloth. Before cleaning the panel, disconnect the AC power cord

Disc Handling

Handle the discs so that fi ingerprints and dust do not adhere to the surfaces of the discs.

• Always store the disc in its protective case when it is not used
• I o clean-off use a soft cloth.
• Do not use ah ard doth since this will mar the disc
• Wipe the disc in a straight line form center to edge.
• Never wipe with a circular motion
• Do not use detergent or abrasive clearing agents

Servicing

Should your unit become inoperative, do not try to correct the problem yourself. There are no user serviceable parts inside. Call our toll free customer support line found on the cover of this manual to locate an authorized service center.

If the Laser Optical Pickup Unit is Dirty

If the unit still does not perform properly when it is operated, while referring to the relevant sections and to [Toubleshooting Guide] in this manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit

IR Signal Check

If the remote control is not working properly, you can use a digital camera (including a cellular phone with built-in camera) to see if it is sending out an infrared signal.

With a digital camera (including built-in cell phone cameras): Point the Digital Camera towards the remote control infrared diode at the front of the remote control. Press any button on the remote control and look through the camera display. If the infrared pulsating light appears through the camera, the remote control is sending out an IR signal.

General Specifications

TV

TV format ATSC/NTSC-MTV standard

Closed Caption system

§15.122/FCC (digital CC) §15.119/FCC (analog CC)

Channel coverage (ATSC / NTSC)

Terrestrial DTV (ATSC)

VHF 2\~13

UHF 14\~51 each channel has e.g.) 2.1\~2.9, 3.1\~3.9, etc

Terrestrial Analog (NTSC)

VHF 2\~13

UHF 14\~69

CATV 2\~13

，A\~W

W+1\~W+94 (analog W+1\~W+84), A-5\~A-1, 5A

Tuning system Channel frequency synthesized tuning system

Channel acces: Direct access keyboard, Programmable scan, and up / down

DVD

Discs (playback compatibility)

DVD-video, DVD-RW/-R, audio CD, CD-RW/-R

Frequency response

DVD (linear sound) 20 Hz to 20 kHz (sample rate: 48 kHz) 20 Hz to 44 kHz (sample rate: 96 kHz) CD 20 Hz to 20 kHz

Signal-to-noise ratio (S/N ratio)

CD 90 dB (JEITA)

Total distortion factor

DVD 1 KHz 0.007% (JEITA)

CD 1 KHz 0.007% (JEITA)

Other Specifications

Terminas

Antenna Input VHF/UHF/CATV 75 Ω unbalanced (F-type)

Audio Input RCA jack (L/R) × 6 500mV mm

Composite Video Input

RCA jack x' 1V p-p (75 Ω)

S-Video Input

Mini DIN 4 pin jack x1 Y IV p-p (75 Ω

C 286mV p-p (75Ω)

Component Video Input

RCA jack x ÷ Y IV p-p (75 Ω

Pb/Cb 700 mV p-p (75Ω)

Pr/Cr 00mV p-p (75Ω)

HDMI Input HDMI 19p in x2

Digital Audio Output (coaxial)

RCA jack x 500 mV p-p (75 Ω)

<32MD311B/32MD301B/26MD311B/26MD301B only>

Analog Audio Output

RCA jack (L/R) ×2 500mV rms

<22MD311B/19MD311B/19MD301B only>

PC Input D-Sub 15 pin × 1(RGB) Mini jack ∅3.5mm × 1(audio)

Headphone Audio Output

1/8 inches × 1(3.5mm)

Remote control

Digital encoded infrared light system

Operating temperature

41^(5^) to 104^(40^)

Power requirements

120V\~AC+/-10%60Hz+/-0.5%

32"

Power consumption (maximum)

150W

LCD 32 inches (31.5 inches measured diagonally)

Audio Output 10W 8 Ω ×2

[32MD311B]

Dimensions

Width 30.0 inches (760.0 mm) 30.0 inches (760.0 mm)

Height 20.5 inches (519.3 mm) 22.2 inches (563.0 mm)

Depth 4.5 inches (114.0mm) 9. 4 inches (238.0mm)

Weight 20.29 lbs (9.20kg 21.39 lbs (9.70kg)

[32MD301B]

Dimensions

Width 30.0 inches (760.0 mm) 30.0 inches (760.0 mm)

H eight 20.5 inch (519.3 mm) 22. 2 inches (563.0 mm)

Depth 5.1 inch (127.5 mm) 9.4 inches (238.0 mm)

Weight 20.51 lbs (9.30 kg) 21.6 1 lbs (9.80 kg)

26"

Power consumption (maximum)

135W

LCD 26 inches

Audio Output 10W,8 Ω × 2

[26MD311B]

Dimensions	<without base>		<with base>
Width	25.9 inches	(656.0 mm)	25.9 inches	(656.0 mm)
Height	17.7 inches	(448.0 mm)	19.2 inches	(487.0 mm)
Depth	5.4 inches	(135.0 mm) 9.	4 inches	(238.0 mm)
Weight	16.0 lbs	(7.26 kg)	17.1 lbs	(7.76 kg)

[26MD301B]

Dimensions	<without base>		<with base>
Width	25.9 inches	(656.0 mm)	25.9 inches	(656.0 mm)
Height	17.7 inches	(448.0 mm)	19.2 inches	(487.0 mm)
Depth	5.9 inches	(148.0 mm) 9.	4 inches	(238.0 mm)
Weight	16.0 lbs	(7.26 kg)	17.1 lbs.	(7.76 kg)

22" [22MD311B]

Power consumption (maximum)

/OW

LCD 22 inches (21.6 inches measured diagonally)

Audio Output 1W, 16Ω ×2

Dimensions	<without base>		<with base>
Width	21.3 inches	(539.0 mm)	21.3 inches	(539.0 mm)
Height	14.4 inches	(364.0 mm)	15.8 inches	(400.0 mm)
Depth	5.3 inches	(132.5 mm)	8.3 inches	(210.0 mm)
Weight	10.8 lbs	(4.90 kg)	11.65 lbs	(5.30 kg)

19"

Power consumption (maximum)

57W

LCD 19 inches (18.5 inches measured diagonally)

Audio Output 1W, 16 Ω × 2

[19MD311B]

Dimensions	<without base>		<with base>
Width	18.8 inch	(477.5 mm)	18.8 inches	(477.5 mm)
Height	13.1 inch	(330.4 mm)	14.5 inches	(365.8 mm)
Depth	5.0 inch	(125.0 mm) 8.	3 inches	(210.0 mm)
Weight	9.26 lbs	(4.20 kg)	9.93 lbs.	(4.50 kg)

[19MD301B]

Dimensions	<without base>		<with base>
Width	18.8 inches	(477.5 mm)	18.8 inches	(477.5 mm)
Height	13.1 inches	(330.4 mm)	14.5 inches	(365.8 mm)
Depth	5.4 inches	(134.7 mm)	8.3 inches	(210.0 mm)
Weight	9.15 lbs	(4.15 kg) 9.7	1 lbs.	(4.40 kg)

• Designs and specifications are subject to change without notice and with out our legal obligation.
• If there is a discrepancy between languages, the default language will be English.

LIMITED WARRANTY NINETY (90) DAY LABOR / ONE (1) YEAR PARTS

WARRANTY COVERAGE:

This warranty obligation is limited to the terms asset forth below.

WHO IS COVERED:

Thisproductwarrantyisissuedtotheoriginalpurchaserorthe personreceivingtheproductasagiftagainstdefectsinmaterials andworkmanshipasedonthedateoforiginalpurchase ("WarrantyPeriod")fromanAuthorizedDealer. Theoriginal salesreceiptshowingtheproductnameandthepurchasedate fromanauthorizedretailerisconsideredsuchproof.

WHAT IS COVERED:

Thiswarrantycoversnewproductsifadefectinmaterialor workmanshipoccursandavalidclaimisreceivedwithinthe WarrantyPeriod.Atitsoption,thecompanywilleither(1) repairtheproductatnocharge,usingneworrefurbished replacementparts,or(2)exchangetheproductwithaproduct thatisneworwhichhasbeenmanufacturedfromnew,orserviceableusedpartsandisatleastfunctionallyequivalentormost comparabletotheoriginalproductincurrentinventory,or(3) refundtheoriginalpurchasepriceoftheproduct. Replacementproductsorpartsprovidedunderthiswarrantyare coveredagainstdefectsinmaterialsandworkmanshipfromthe dateofthereplacementorrepairforninety(90)daysorforthe remainingportionoftheoriginalproduct'swarranty,whichever provideslongercoverageforyou.Whenaproductorpartis exchanged,anyreplacementitembecomesyourpropertyandthe replaceditembecomescompanyproperty.Whenarefundis given,yourproductbecomescompanyproperty.

Note: Any product sold and identified as refurbished or renewed carries a ninety (90) day limited warranty.

Replacement product can only be sent if all warranty requirements are met. Failure to follow all requirements can result in delay.

WHAT IS NOT COVERED - EXCLUSIONS AND LIMITATIONS:

This Limited Warranty applies only tonew company manufac- tured products that can be identified by the trademark, trade name, or logo affixed to it. This Limited Warranty does not apply toanyhardwareproductoranysoftware, even if packagedor sold with the product, as manufacturers, suppliers, or publishers may provide a separate warranty for their own product package with the bundled product.

The company is not liable for any damage to or loss of any programs, data, or other information stored on any media contained within the product, or other additional product part not covered by this warranty. Recovery or installation of programs, data or other information is not covered under this Limited Warranty.

Thiswarrantydoesnotapply(a)todamagecausedbyaccident, abuse,misuse,neglect,misapplication,ornon-suppliedproduct, (b)todamagecausedbyserviceperformedbyanyoneotherthan companyapprovedAuthorizedServiceLocation,(c)toaproduct

or a part that has been modified without written company permission, or (d) if any serial number has been removed or defaced, or (e) product, accessories or consumable sold "ASIS" without warranty of any kind by including refurbished products sold "AS IS" by someretailers.

This Limited Warranty does not cover:

•Shippingchargestoreturndefectiveproduct.
• Laborcharges for installation or setup of the product, adjustment of customer control on the product, and installation or repair of antenna/signalsources systems outside of the product.
- Productrepairand/orpartreplacementbecauseofimproper installationormaintenance,connectionstoimpropervoltage supply,powerlinesurge,lightningdamage,retainedimagesor screen markings resulting from viewing fixed stationary contentforextendedperiods,productcosmeticappearanceitems duetonormalwearandtear,unauthorizedrepairorother causenotwithinthecontrolofthecompany.
• Damageorclaimsforproductsnotbeingavailableforuse,or forlostdataorlostsoftware.
•Damagefrommishandledshipmentsortransitaccidentswhen returningproduct.
- A product that requires modification or adaptation to enable ittooperateinanycountryotherthanthecountryforwhich itwasdesigned,manufactured,approvedand/orauthorized,or repair of products damaged by these modifications.
• A product used for commercial or institutional purposes (including but not limited to rental purposes).
- Product lost in shipment and no signature verification receipt can be provided.
•FailuretooperateperOwner'sManual.

TO OBTAIN ASSISTANCE...

ContacttheCustomerCareCenterat: 1-866-341-3738

REPAIRORREPLACEMENTASPROVIDEDUNDERTHIS WARRANTYISTHEEXCLUSIVEREMEDYFORTHECONSUMER, WITHTHEISSUINGCOMPANYNOTLIABLEFOR ANYINCIDENTALORCONSEQUENTIALDAMAGESFOR BREACHOFANYEXPRESSORIMPLIEDWARRANTYON THISPRODUCT.EXCEPTTOTHEEXTENTPROHIBITEDBY APPLICABLELAW, ANYIMPLIEDWARRANTYOFMERCHANTABILITYORFITNESSFORAPARTICULARPURPOSE ONTHISPRODUCTISLIMITEDINDURATIONTOTHE DURATIONOFTHISWARRANTY.

Somestatesdonotallowtheexclusionsorlimitationofincidentalorconsequentialdamages,orallowlimitationsonhowlonganimpliedwarrantylasts,sotheabovelimitationsorexclusionsmaynotapplytoyou.

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

FUNAI CORPORATION, Inc. 19900 Van Ness Avenue, Torrance, CA 90501
