| Product Type | Kitchen range hood |
| Brand | Bertazzoni |
| Model | KT120P1AXT |
| Dimensions (W x D x H) | 1200 x 500 x 800 mm (approx.) |
| Weight | 22 kg (approx.) |
| Power supply | 220-240 V ~ 50/60 Hz |
| Energy efficiency class | A (estimated based on performance) |
| Motor speeds | 3 speeds + Intensive (6 min) + 24h |
| Lighting | LED, maximum and medium intensity |
| Controls | Touch keys with key lock |
| Remote control | Integrated (activation/deactivation) |
| Filters | Grease metal filter (washable) + activated charcoal filter (replaceable) |
| Filter saturation alarm | Yes: 100 h for metal filter, 200 h for charcoal filter |
| Exhaust duct diameter | Min. 120 mm |
| Minimum distance from cooking surface | 650 mm (may vary depending on cooking type) |
| Delay function | Automatic delayed shutdown after 30 min |
| 24h function | Cyclic extraction 10 min/hour for 24 h |
| Noise level | 45-60 dB(A) (depending on speed) |
| Maximum airflow | 800 m³/h (approx.) |
| Maintenance | Clean metal filters every 2 months (dishwasher), replace charcoal filter every 4 months |
| Safety | Mandatory grounding, key lock, fire protection |
| Spare parts | Available through authorized after-sales service |
| Warranty | 2 years (legal standard in France) |
| Repairability | Repairability index not provided, but parts accessible |
Frequently Asked Questions - KT120P1AXT BERTAZZONI
User questions about KT120P1AXT BERTAZZONI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Basket in PDF format for free! Find your manual KT120P1AXT - BERTAZZONI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KT120P1AXT by BERTAZZONI.
USER MANUAL KT120P1AXT BERTAZZONI
DE 8
EN 13
FR 17
NL 22
ES 27
DA 32
FI 37
NO 42
SV 46
PL 51
IT
Diagram showing a shopping cart icon and a row of circular icons with plus signs, likely representing item selection or counting.6. ILLUMINAZIONE
Diagram showing a shopping cart icon and a row of circular icons with plus signs, likely representing item selection or counting.6. BELEUCHTUNG

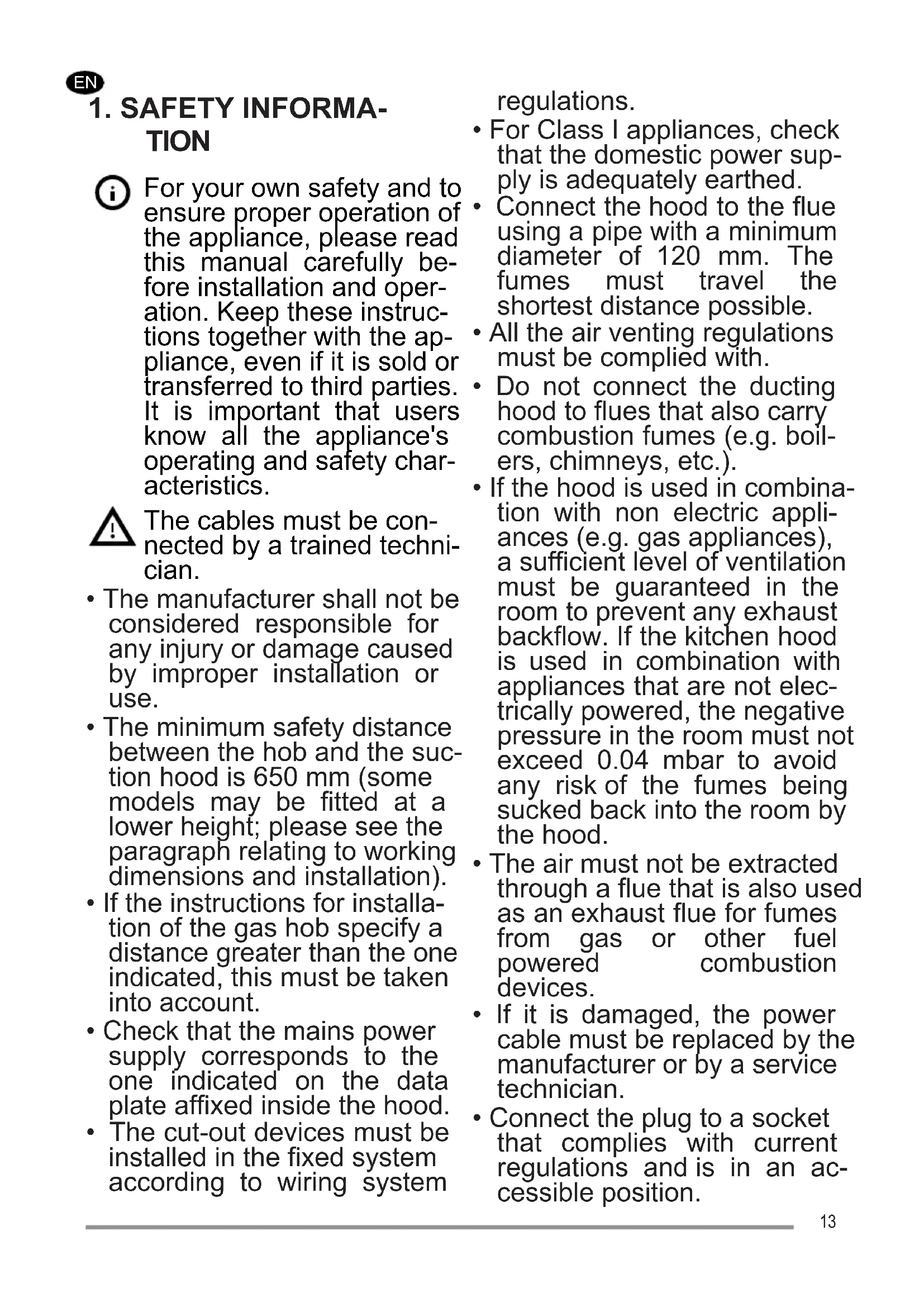

For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety characteristics.
The cables must be connected by a trained technician.
- The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.
- The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
- If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
- Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.
- The cut-out devices must be installed in the fixed system according to wiring system
regulations.
- For Class I appliances, check that the domestic power supply is adequately earthed.
- Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The fumes must travel the shortest distance possible.
- All the air venting regulations must be complied with.
- Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boilers, chimneys, etc.).
- If the hood is used in combination with non electric appliances (e.g. gas appliances), a sufficient level of ventilation must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not electrically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.
- The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.
- If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.
- Connect the plug to a socket that complies with current regulations and is in an accessible position.
- As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be complied with scrupulously.
CAUTION: remove the protective films before installing the hood.
- Only use screws and hardware of a sort suitable for the hood.
CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.
- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
- Do not flambé food under the hood: you might cause a fire.
- This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves. Make sure that children are not allowed to play with the appliance. Cleaning and maintenance to be performed by the user must not be carried out by children, unless they are under supervision.
- Supervise children, to make
sure they do not play with the appliance.
- The appliance must not be used by persons (including children) with limited psycho-physical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.
Accessible parts may become extremely hot during the use of cooking appliances
- Clean and/or replace the filters after the period of time indicated (danger of fire). See the paragraph on Maintenance and cleaning.
- The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).
- The symbol ☒ on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist re-cycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might result from its improper disposal. For more detailed information on how to re-cycle
this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.
2. USE
- The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
- Never use the hood for purposes other than those for which it was designed.
- Never leave high flames under the hood when it is in operation.
- Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.
- Deep-fryers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.
3. CLEANING AND MAINTENANCE
- The activated charcoal filter cannot be washed or regenerated, and must be changed approximately every 4 months of operation, or more frequently in the case of particularly intensive use (W).
- Avoid using alcohol or silicone-based products to clean the inside and outside of the cooker hood.
4. CONTROLS
| Key Key press Function LED | |||
| A | Short Switches the lights on/off at maximum intensity. On/Off | ||
| Long Switches the lights on/off at medium intensity. On/Off | |||
| B | Short Turns off the motor. - | ||
| Long press with all loads off (motor and lights) | Keypad Lock Function Activates/deactivates the keypad lock for hood cleaning. | All LEDs flash one at a time cyclically. | |
| C | Short Turns the motor on at the first speed. B+C on | ||
| D | Short Turns the motor on at the second speed. B+D on | ||
| E | Short Turns the motor on at the third speed. B+E on | ||
| F | Short | Turns the motor on/off at Intensivespeed. This speed is timed for 6 minutes. At the end of this time, the system automatically returns to the previously selected speed. If activated with the motor off, once the time has passed it switches to OFF mode. It is deactivated by pressing the same key or by switching off the motor. | B steady + F flashing |
| Long press with all loads off (motor and lights) | Activates/Deactivates the Activated Carbon Filters alarm. | Key B flashes twice: alarm activated.Key B flashes once: alarm deactivated. | |
| G | Short | 24h Function Activates/Deactivates the motor in the 24h mode, a speed that allows suction of 10 minutes every hour, for a 24-hour cycle.Cannot be activated if the Intensive or Delay function is active. | On/Off |
| Long | It performs the saturated Filters alarm reset. | LED B flashes 3 times. | |
| Signals the saturated Metal Grease Filters alarm and the need to wash them. The alarm is activated after 100 hours of effective hood operation. | Flashing. | ||
| Signals the saturated Activated Carbon Odour Filter alarm. The alarm is activated after 200 hours of effective hood operation. | Flashing. | ||
| H | Short | Delay Function Activates/Deactivates the Delay function, the automatic delayed shut-down of the motor and lighting system after 30 minutes.Cannot be activated if the Intensive or 24H function is active. | On/Off |
| Long press with all loads off (motor and lights) | Activates/Deactivates the remote control. | Key B flashes twice: remote control activated.Key B flashes once: remote control deactivated. | |
| R | - | Remote control receiver | - |
5. REMOTE CONTROL (OPTIONAL)
 |  |
6. LIGHTING
- Please contact the Service Department to change it ("Please contact the service department to purchase it").
