Product type	Extractor hood
Brand	ETNA
Model	HF2008
Number of speeds	4 speeds (LED indicator: green, orange, red, flashing red)
Lighting	LED, lifespan up to 10 times longer than conventional lamps
Controls	Extraction on/off buttons, +/-, light on/off
Remote control	Yes, connection and code change possible
Minimum installation distance	65 cm above the hob
Grease filters	Metal, dishwasher-safe (once a month)
Active carbon filter	Replace every 4 months; regenerable version washable at 65°C
Cleaning	Soft cloth and soapy water; no abrasive products
Power supply	Mains 220-240V, earthed wall socket
Safety instructions	Unplug before maintenance; do not use alcohol
Remote control battery	Battery of identical type, responsible disposal
Disposal	Appliance and packaging recyclable; mandatory selective sorting

Frequently Asked Questions - HF2008 ETNA

How to connect the remote control to the hood?

Unplug the hood, plug it back in, then within 5 seconds press the light button until it lights up, then press the extraction on/off button. Wait 10 seconds before use.

How to change the remote control code in case of interference?

Press the - and + buttons simultaneously for 10 seconds. The remote control LED lights up. Press them again simultaneously within 3 seconds, the LED flashes 3 times. Then follow the connection procedure.

How often to clean the grease filters?

At least once a month. They can be washed by hand or in the dishwasher with a short low-temperature cycle.

When to replace the active carbon filter?

Every 4 months. Active carbon filters are not washable (except regenerable version). The regenerable filter is washed at 65°C without detergent, then dried in the oven for 1 hour at 80°C, but must be replaced after 4 uses.

How to replace the LED lighting?

Contact after-sales service. LEDs are not user-replaceable.

What is the minimum installation height above the hob?

The lowest part of the hood must be at least 65 cm above the hob surface.

What to do if the remote control does not work?

Check the battery, replace it if necessary. If the problem persists, follow the connection procedure or change the code.

How to clean the hood?

Use a soft cloth and slightly soapy water. Rinse with clean water. Do not use abrasive products or alcohol.

Where to find after-sales service?

Addresses, phone numbers and warranty conditions are available at www.atag.be. Have the complete type number ready.

How to dispose of the appliance at end of life?

Do not dispose of the appliance with household waste. Take it to a selective collection centre or return it to a retailer. The packaging (cardboard, PE, polystyrene) is recyclable.

USER MANUAL HF2008 ETNA

MARRON = L (tension)

BLEU = N (neutre)

VERT/JAUNE = terre

Remarque :

Reading through these instructions for use will help you quickly find information about all the options you are offered by this appliance. It contains information for your safety and about the maintenance of the appliance.

Read the separate safety instructions before using the appliance!

Keep the instructions for use and the installation instructions. They will be of value to any later user of this appliance.

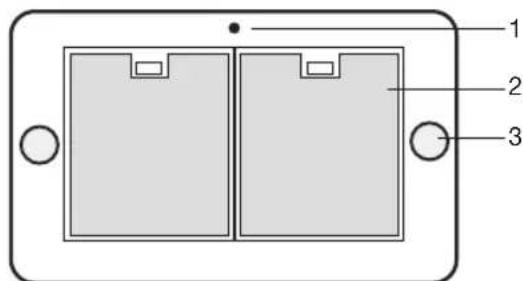

Description

1. Extraction speeds LED indication
2. Grease filter
3. Lighting
4. Lighting on/off key
5. (+) increase extraction power key
6. (-) decrease extraction power key
7. Extraction on/off key

USE

Operation

Remote control

Switching the fan on and off

1. Touch the extraction on/off key.
   The cooker hood switches on at speed 1.
2. The indicator on the cooker hood shows the selected speed:

green = speed 1;

• orange = speed 2;

red = speed 3;

red, flashing = speed 4 (maximum of 7 minutes, after which the speed switches back to speed 3).

1. If so required, select a higher speed using the ^+ key.
2. Select a lower speed using the - key.

Switching the lighting on and off

1. Touch the lighting on/off key.

The light turns on.
- Touch the on/off key again to switch the lighting off.

Linking the remote control to the cooker hood

1. Disconnect the cooker hood from the power supply by setting the group fuse in the meter cupboard to '0' or removing the fuse from the fuse holder. If present, the cooker hood can also be disconnected from the power supply with the On / Off switch located at the top of the cooker hood.

2. Reconnect the cooker hood to the mains by setting the group fuse to '1' or placing this in the fuse holder.

3. Within 5 seconds, touch the lighting key until the lighting is on.

4. Within 5 seconds, touch the extraction on/off key.

Wait at least 10 seconds before you using the cooker hood.

If the remote control is replaced, repeat the steps for linking the remote control. If present, the cooker hood can be connected to the power supply with the On/Off switch located at the top of the cooker hood.

Entering a new code for the cooker hood

When interference prevents the remote control from working properly, a new code can be entered.

1. Touch the remote control's (-) and (+) keys simultaneously for at least 10 seconds.

The LED on the remote control lights.

1. Once again, touch the (-) and (+) keys simultaneously within 3 seconds.
   The LED on the remote control flashes 3x.
2. Work through the steps for linking the remote control.

Replacing the battery

Remove the remote control's cover and replace the battery with a battery of the same type and voltage. The battery is chemical waste and must be disposed of in a responsible manner and in accordance with government regulations.

Cleaning

Note!

Before carrying out maintenance work, always disconnect the cooker hood from the power supply by setting the group fuse in the meter cupboard to '0' or removing the fuse. If present, the cooker hood can also be disconnected from the power supply with the On / Off switch located at the top of the cooker hood.

The inside and outside of the cooker hood must be cleaned at regular intervals. Do not use abrasive products. Do not clean with alcohol!

Note!

Failure to follow these instructions for cleaning the appliance and replacing the filters can result in fire. Always follow these instructions! The manufacturer is not liable for damage to the hood or damage caused by fire that is due to inexpert maintenance or the failure to follow the aforementioned recommendations and the safety instructions supplied with the appliance.

Clean the cooker hood with a soft cloth with water and a little detergent. Then wipe with clean water. Do not use corrosive cleaning agents such as soda, and do not use scouring sponges or similar. Treat with a product designed for the maintenance of stainless steel and polish in the direction of the surface finish of the stainless steel.

Metal grease filters

Metal filters must be cleaned once per month (or when the filter cleaning indicator – if present on the model – indicates that this is necessary). Clean the filters with neutral cleaning agents, by hand or in the dishwasher at low temperatures and with a short programme. Put the grease filters in the dishwasher with the openings facing down so that the water can drain. Aluminium grease filters will become dull from the cleaning agents in the dishwasher. This is normal, and does not affect the performance.

The saturation of the filter depends on the intensity of use, the manner of cooking and the regularity with which the grease filters are cleaned.

MAINTENANCE

Grease filters

Clean the grease filter at least once a month. Cleaning will result in the aluminium parts of the filters becoming dull due to the use of cleaning agents, in particular when cleaned in a dishwasher. This is normal, and is not covered by the warranty.

Removing the grease filter

1. Switch off the cooker hood.
2. Pull the handle of the grease filter towards you and tilt the front downwards.

Important:

The odor filter is clamped on top of the grease filter. Prevent the odor filter from falling on your hob by supporting it when installing and removing the filters.

Odor filter

1. Remove the grease filter.
2. Mount the odor filter.

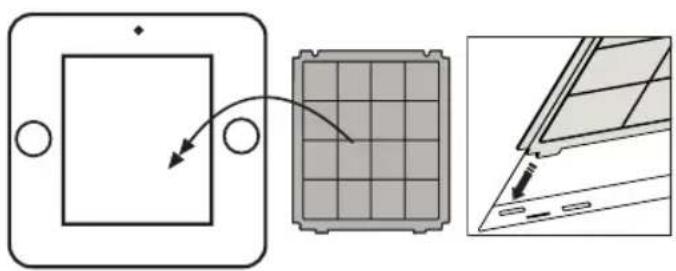

Important:

The odor filter is clamped on top of the grease filter. Prevent the odor filter from falling on your hob by supporting it when installing and removing the filters.

1. Fit the grease filter.

Important:

• The saturation of the filter depends on the intensity of use, the manner of cooking and the regularity with which the grease filters are cleaned.
  The odor filter must be replaced at least once every four months.
• Odor filters cannot be washed for reuse. Saturated carbon is not environmentally friendly, so replace the filter in time.

As a replacement odor filter you can opt for a long-life filter, recognizable by the green plastic. This filter must be cleaned every 4 months.

The filters can be washed by hand or in the dishwasher at a maximum temperature of 65^ . The washing cycle must be done without other dishes and without dishwasher detergent. Do not use any cleaning agents!

Remove excess water. Be careful to avoid damaging the filter. Place the filter in the oven to dry for at least 1 hour at a maximum temperature of 80^ . After 4 times of use (or if the filters are damaged), the filters will need to be replaced.

Lighting

• The cooker hood is fitted with LED lighting.
  LEDs guarantee you optimum lighting, a service life of up to 10 times longer than conventional lamps and energy savings of as much as 90% .
• Contact the technical department when LED lighting needs to be replaced.

General

This appliance must be connected to the mains by a recognized installer who is familiar with and works in accordance with the applicable safety regulations. This appliance meets the requirements of European regulations.

Important information:

• The lowest part of the cooker hood must be at least 65~cm above the cooking surface of the hob.
• Take account of local regulations governing the ventilation of gas appliances.
• Before drilling holes, check to make sure that there are no wires in the area.
• The installation material supplied with this cooker hood is suitable for fastening to concrete and reinforced concrete ceilings.

Connection

Electrical connections

This appliance must be plugged into an earthed wall socket.

Check to make sure that the voltage specified on the type plate matches the mains voltage. The appliance must be connected to the mains as follows:

$$ \begin{array}{l} B R O W N = L (l i v e) \ \text {B L U E} = \mathrm {N} (\text {n e u t r a l}) \ \text {G R E E N / Y E L L O W} = \text {E a r t h} \ \end{array} $$

Note:

When you wish to make a fixed connection to the mains, you must make sure that a multipolar switch with a break contact distance of at least 3mm is fitted in the power cable.

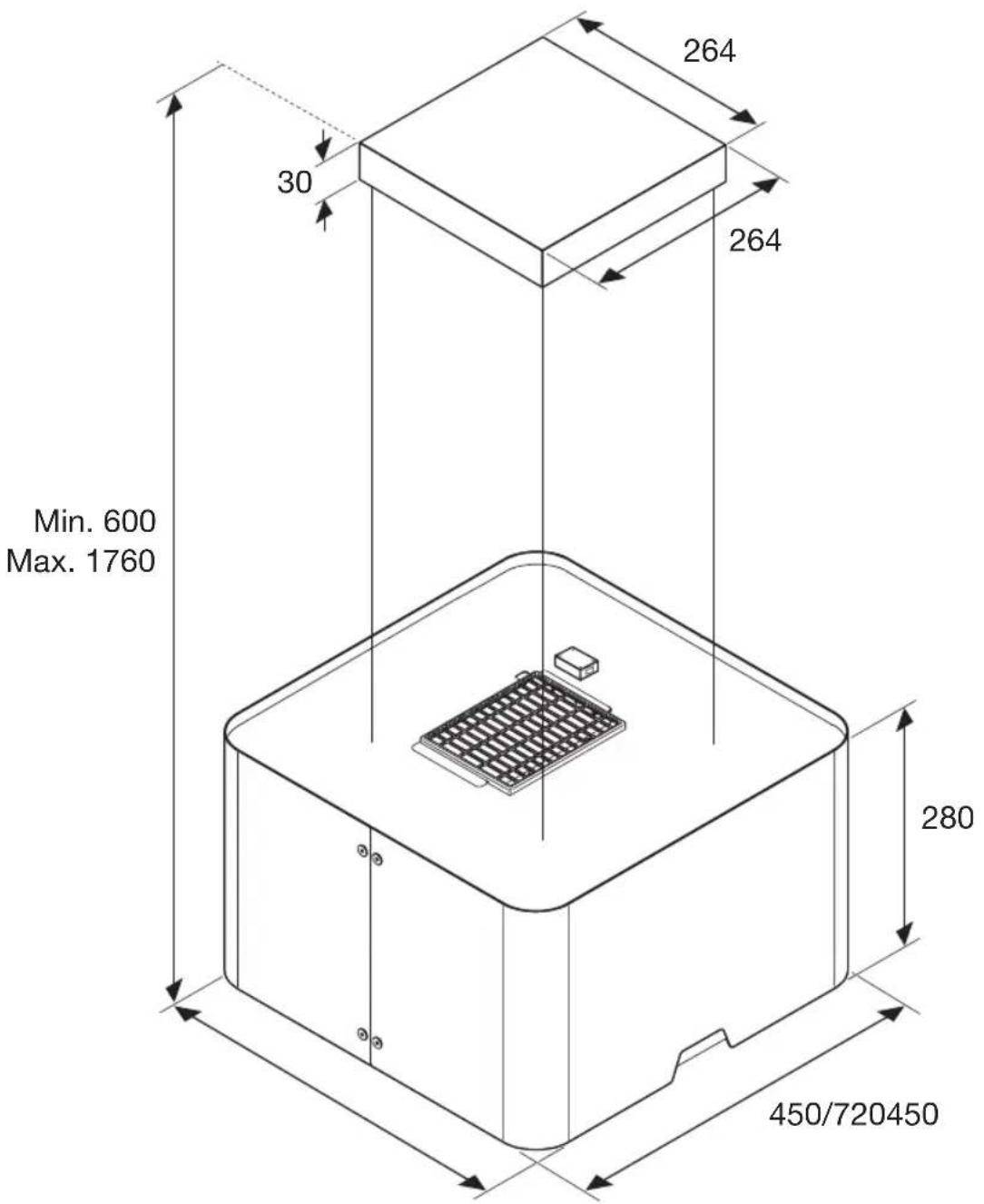

Dimensions

Assembly

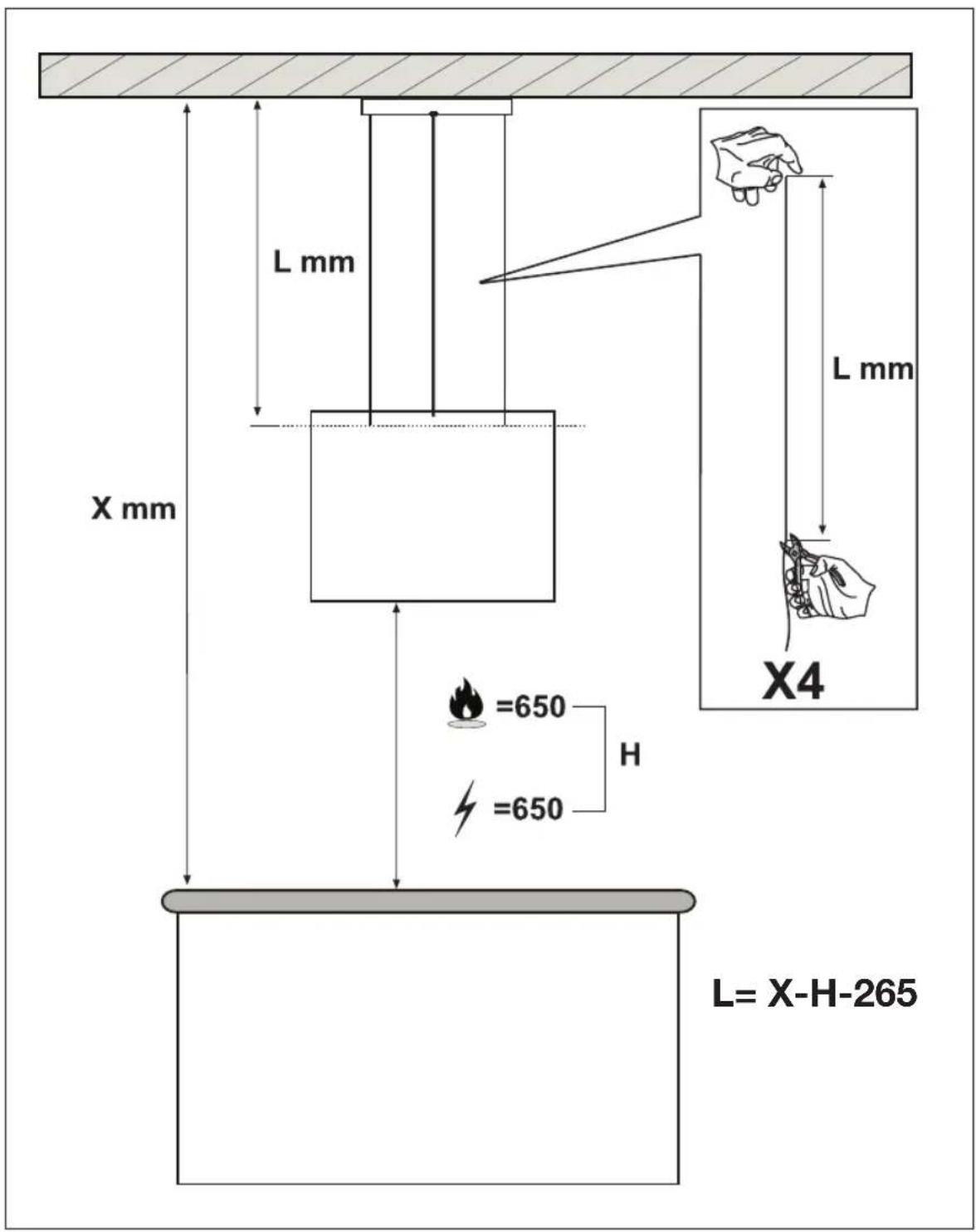

Step 1

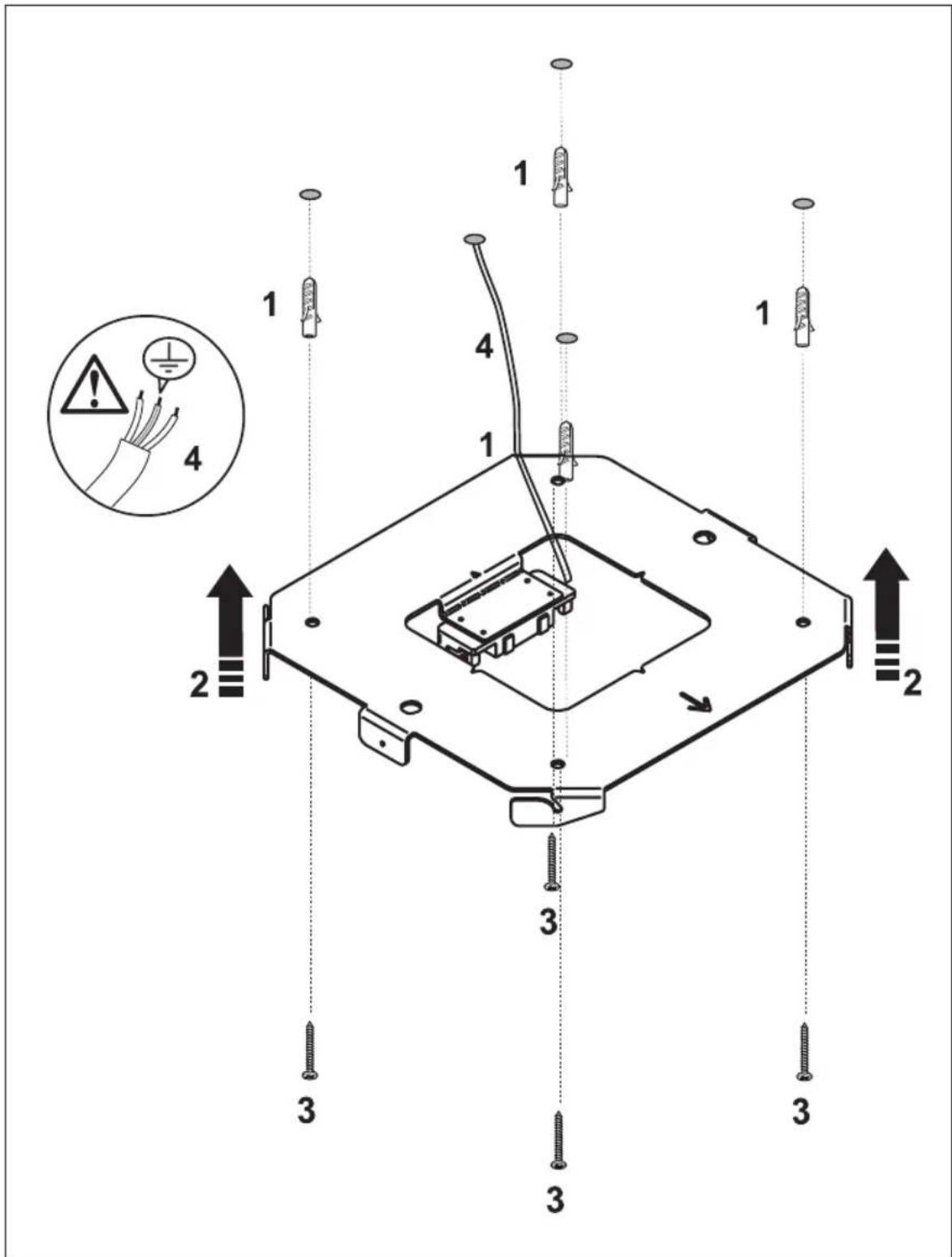

Step 2

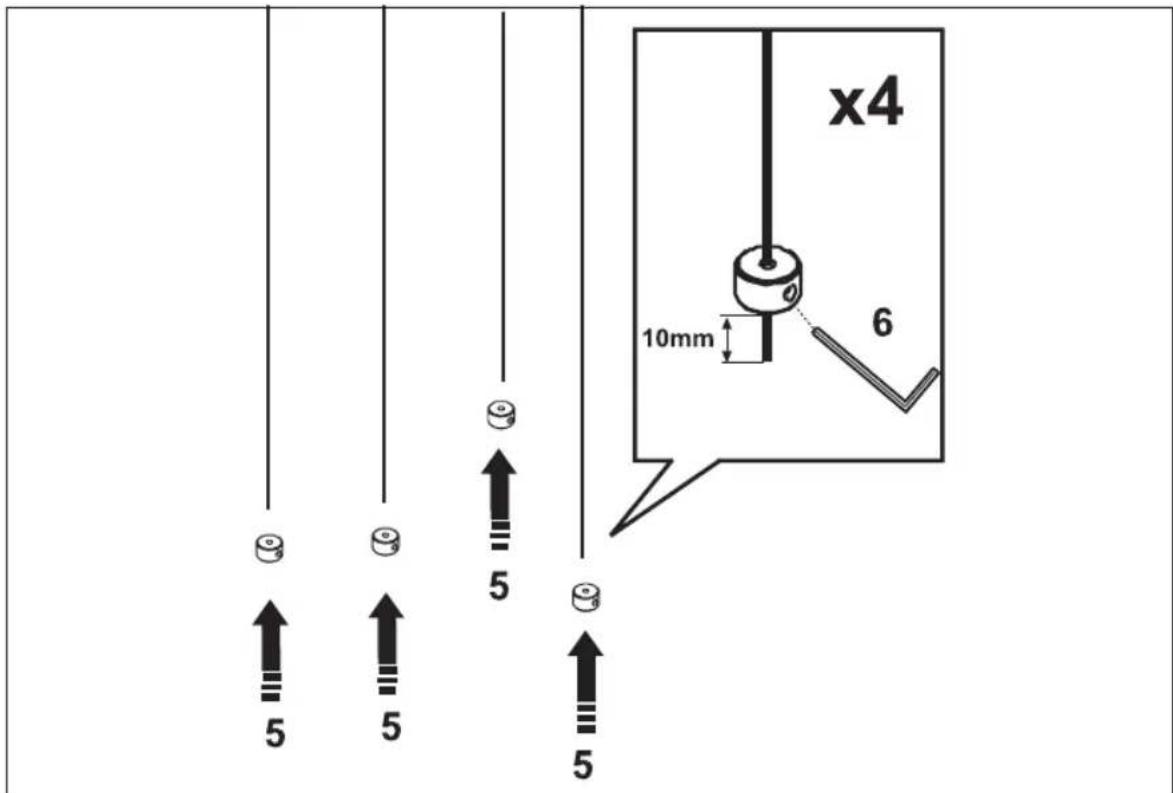

Step 3

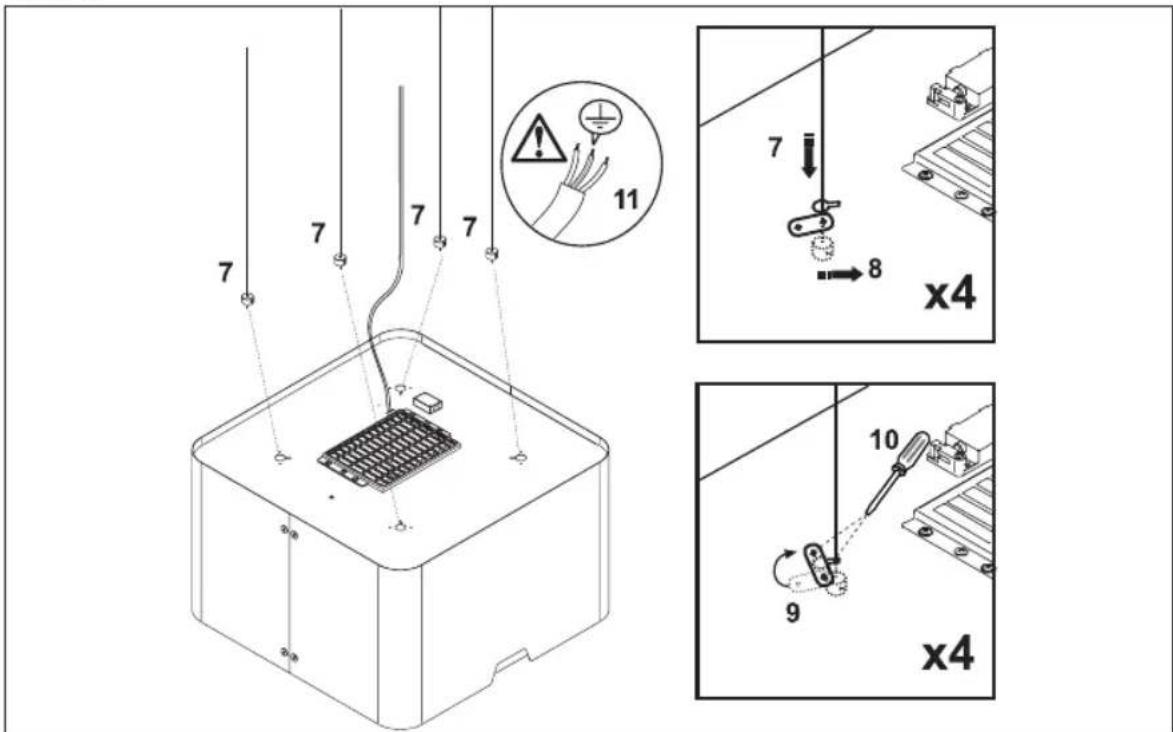

Step 4

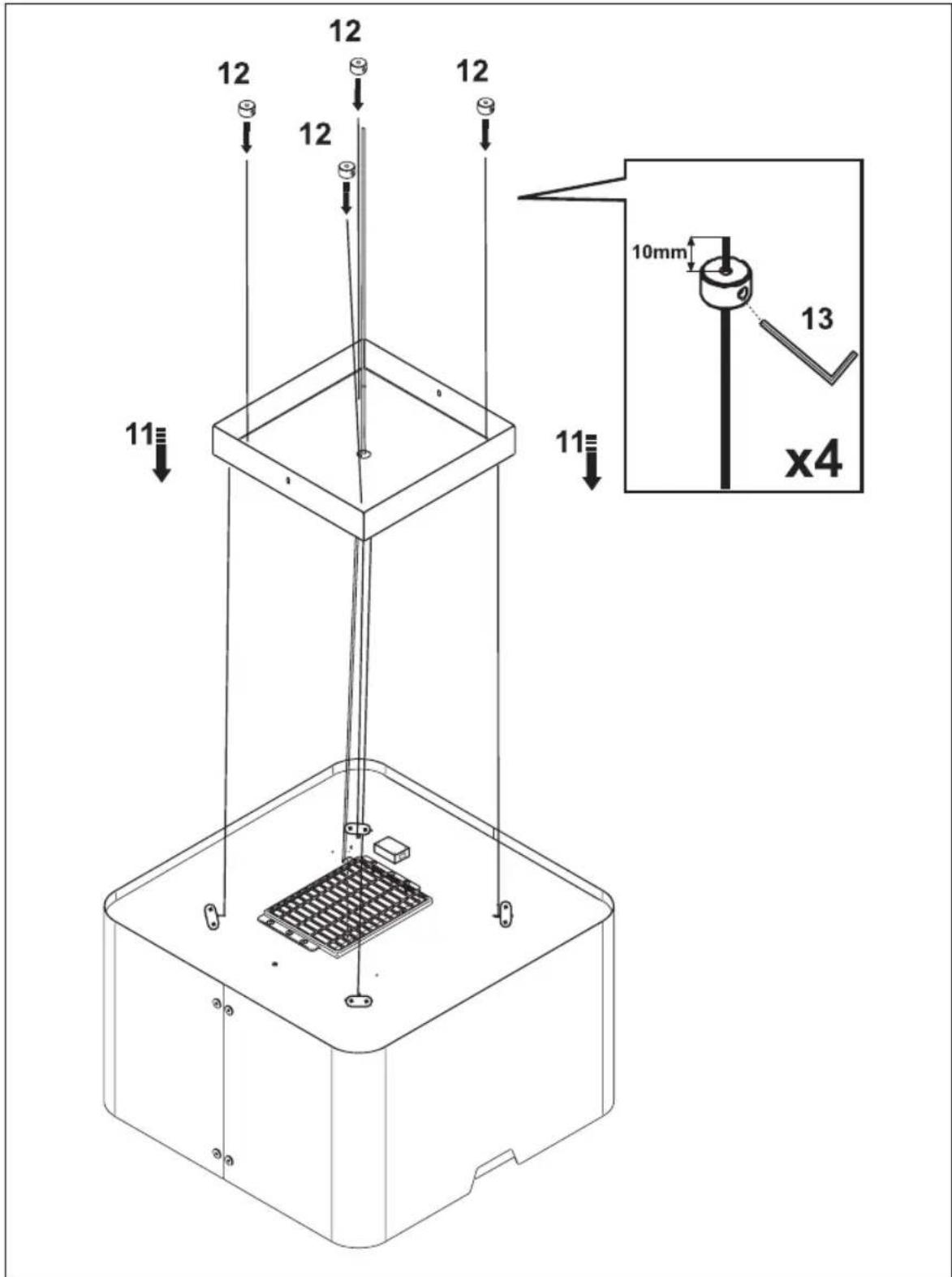

Step 5

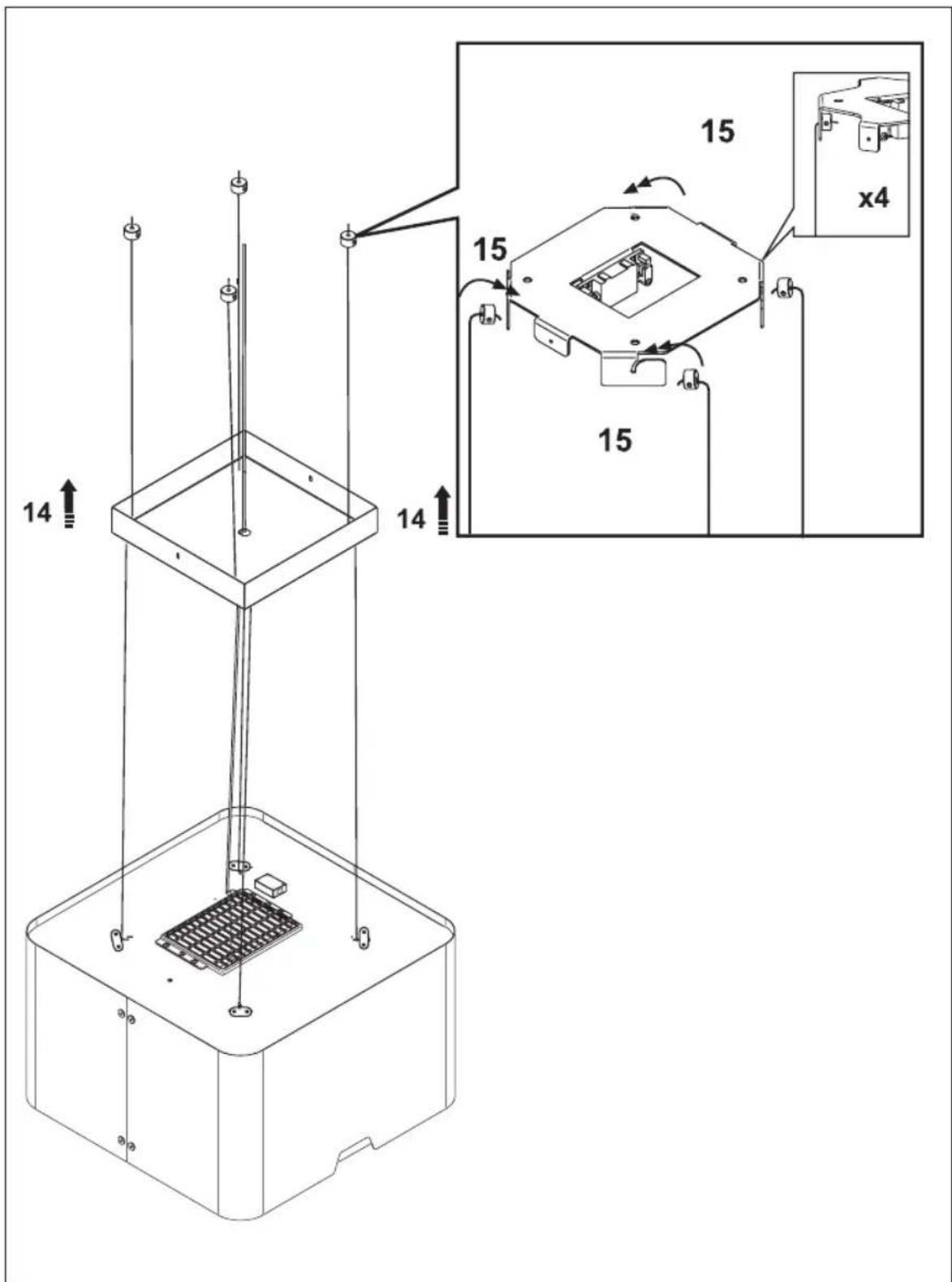

Step 6

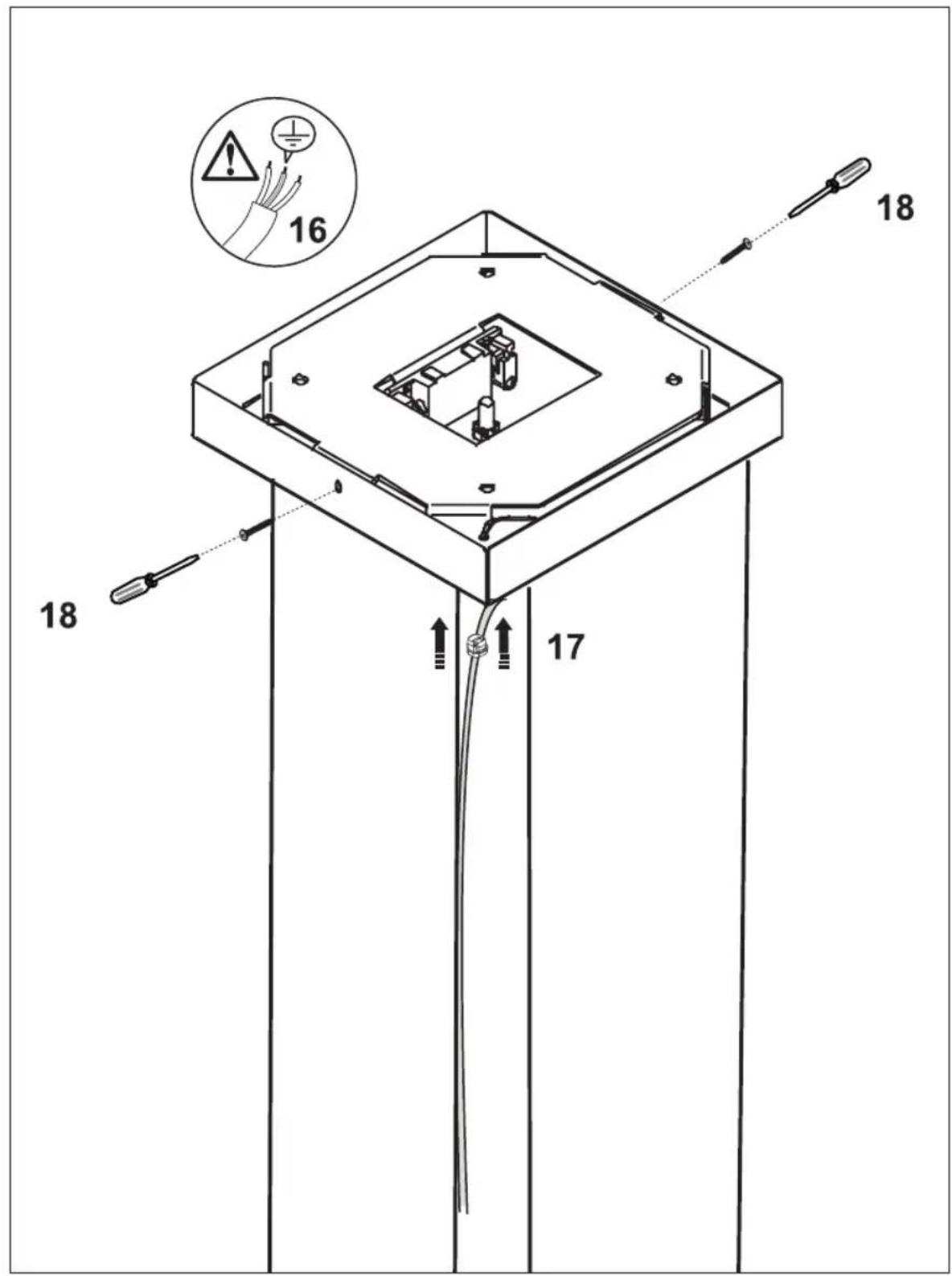

Step 7

ANNEX

Disposal

Disposal of packaging and appliance

Sustainable materials were used in the manufacture of this appliance. At the end of its life cycle, this appliance must be disposed of in a responsible manner. You can obtain more information from the authorities.

The packaging of the appliance is recyclable. The following materials may have been used:

cardboard;
polyethylene foil (PE);
CFC-free polystyrene (PS hard foam).

These materials must be disposed of in a responsible manner and in accordance with government regulations.

The appliance is marked with a crossed out wheeled bin symbol to draw your attention to the requirement for the separate disposal of domestic electrical appliances. This means that the appliance may not be disposed of in unsorted household waste at the end of its service life. The appliance must be taken to a special municipal waste processing location for separated waste or to a dealer who provides this service.

Collecting and disposing of domestic appliances separately avoids the potential detrimental consequences for the environment and health that can result from unsuitable processing. This ensures that the materials used to make the appliance can be recovered and that substantial savings in the use of energy and raw materials can be achieved.

Declaration of conformity

We hereby declare that our products conform to the applicable European Directives, Regulations and requirements, as well as all requirements in the standards to which reference is made.

Het toestel-identificatieplaatje bevindt zich aan de binnenzijde van het toestel. La plaque d'identification de l'appareil se trouve à l'intérieur de l'appareil Das Gerätotypenschild befindet sich an der Innenseite des Gerätes. The appliance rating label is located on the inside of the appliance.

When contacting the service department, have the complete type number to hand.

Addresses, phone number of the service organisation and the warranty conditions can be found at www.atag.nl or www.atag.be
