USER MANUAL Venere Signature Sonus Faber

Thank you and congratulations for having purchased Sonus faber Venere S for listening to your favourite music or for audio-video use.

Sonus faber designs its speakers to meet our customers' highest expectations immediately. As our aim is to ensure you get the best possible listening result in full safety, please read this instruction manual carefully before installation.

If you have any doubts or if you simply would like to know more, please consult the technical staff at your sales point or contact Sonus faber writing to [e-mail].

Finally, we highly recommend that you register your speaker online at www.sonusfaber.com.

Enjoy your music!

Verehrter Kunde,

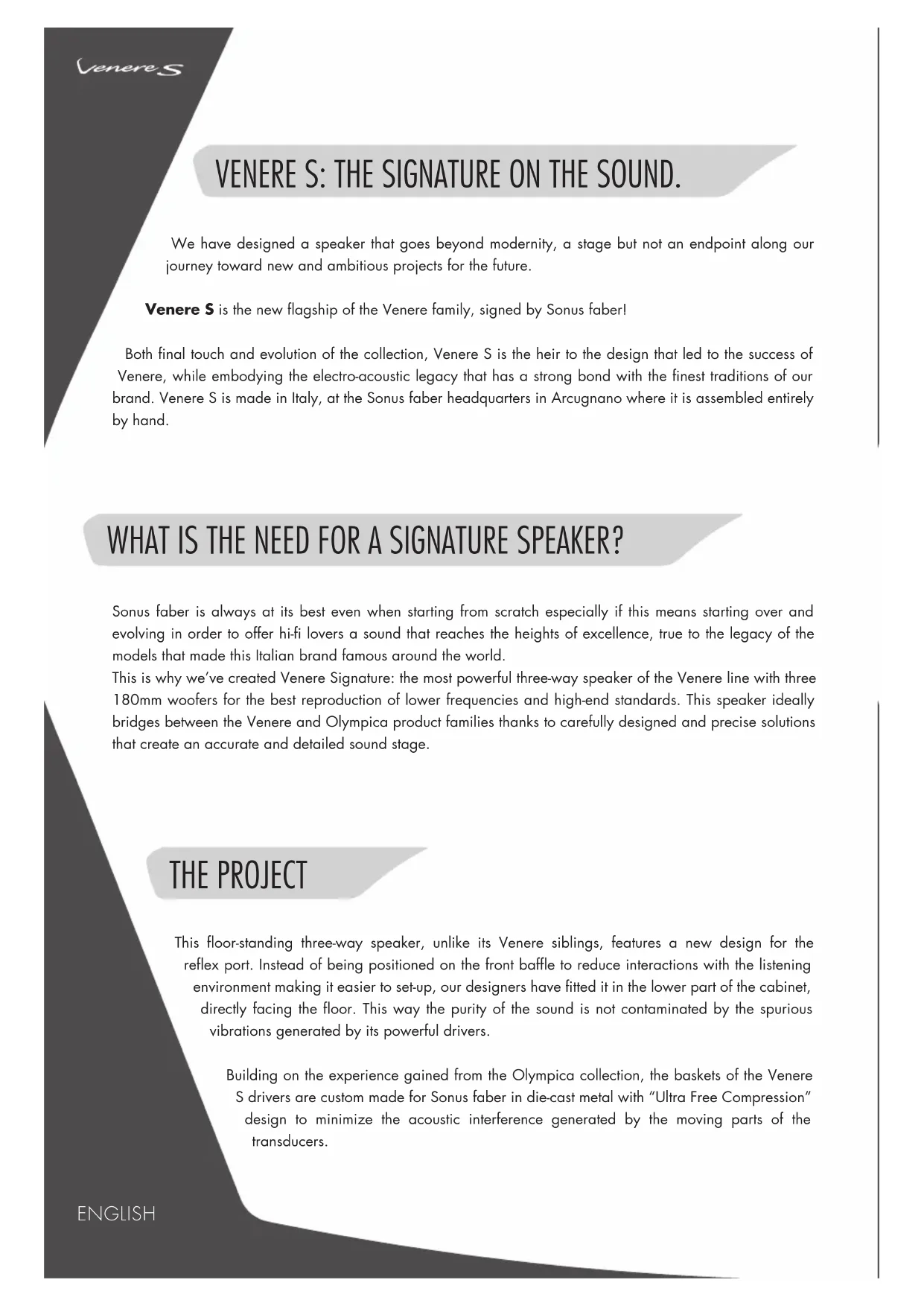

We have designed a speaker that goes beyond modernity, a stage but not an endpoint along our journey toward new and ambitious projects for the future.

Venere S is the new flagship of the Venere family, signed by Sonus faber!

Both final touch and evolution of the collection, Venere S is the heir to the design that led to the success of Venere, while embodying the electro-acoustic legacy that has a strong bond with the finest traditions of our brand. Venere S is made in Italy, at the Sonus faber headquarters in Arcugnano where it is assembled entirely by hand.

WHAT IS THE NEED FOR A SIGNATURE SPEAKER?

Sonus faber is always at its best even when starting from scratch especially if this means starting over and evolving in order to offer hi-fi lovers a sound that reaches the heights of excellence, true to the legacy of the models that made this Italian brand famous around the world.

This is why we've created Venere Signature: the most powerful three-way speaker of the Venere line with three 180mm woofers for the best reproduction of lower frequencies and high-end standards. This speaker ideally bridges between the Venere and Olympica product families thanks to carefully designed and precise solutions that create an accurate and detailed sound stage.

THE PROJECT

This floor-standing three-way speaker, unlike its Venere siblings, features a new design for the reflex port. Instead of being positioned on the front baffle to reduce interactions with the listening environment making it easier to set-up, our designers have fitted it in the lower part of the cabinet, directly facing the floor. This way the purity of the sound is not contaminated by the spurious vibrations generated by its powerful drivers.

Building on the experience gained from the Olympica collection, the baskets of the Venere S drivers are custom made for Sonus faber in die-cast metal with "Ultra Free Compression" design to minimize the acoustic interference generated by the moving parts of the transducers.

All Venere S drivers are custom built according to the specific design of Sonus faber.

The three woofers cones of Venere S are made of aluminum, providing for maximum lightness and stiffness of the transducers to achieve a fast response to transients at low frequencies.

The midrange features a CurvTM membrane, a special thermoformed polypropylene fiber that provides the ideal solution for an absolutely natural reproduction of the main part of the audio spectrum.

The high frequencies are reproduced by a tweeter with a soft dome membrane made of silk and manufactured by Dr. Kurt Mueller, the world's best producer of moving parts. The tweeter is mechanically decoupled by interposing resilient material in order to make the transducer resistant to micro-vibrations generated by the intense activity of the other drivers. The result is an improvement of the precision and micro-dynamics that allows achieving an extremely focussed sound stage.

The crossover network is assembled entirely in Italy with high-end components. Its semi-balanced configuration with a non-resonant “progressive slope” design and amplitude/phase response optimisation ensures the best time domain performance.

In addition, the woofers feature "Trilobyte Ultrafast" filtering coils and the PCB tracks are made with nano-technologies that maximize the signal transmission speed.

DESIGN

The design is faithful to that of the six models of the Venere collection, thus ensuring seamless integration into multi-channel systems.

Venere S is clearly inspired by the shape of lyre that ensures no parallel inner surfaces and air movement volume control. The overall design of the cabinet is a the result of the needs of sound reproduction. Shape and function blend together to give life to elegant - yet functional - forms to achieve perfect acoustics, all while providing proper support to the drivers.

Sleek and modern, the styling of Venere S stands out with a bolder approach compared to the collection, ideally completing it: the brushed aluminum around each driver gives a dash of character to the speaker's front facade.

The glass base found on the other Venere models is replaced by a brushed black aluminum plate with diamond edge to further energize the look of Venere S.

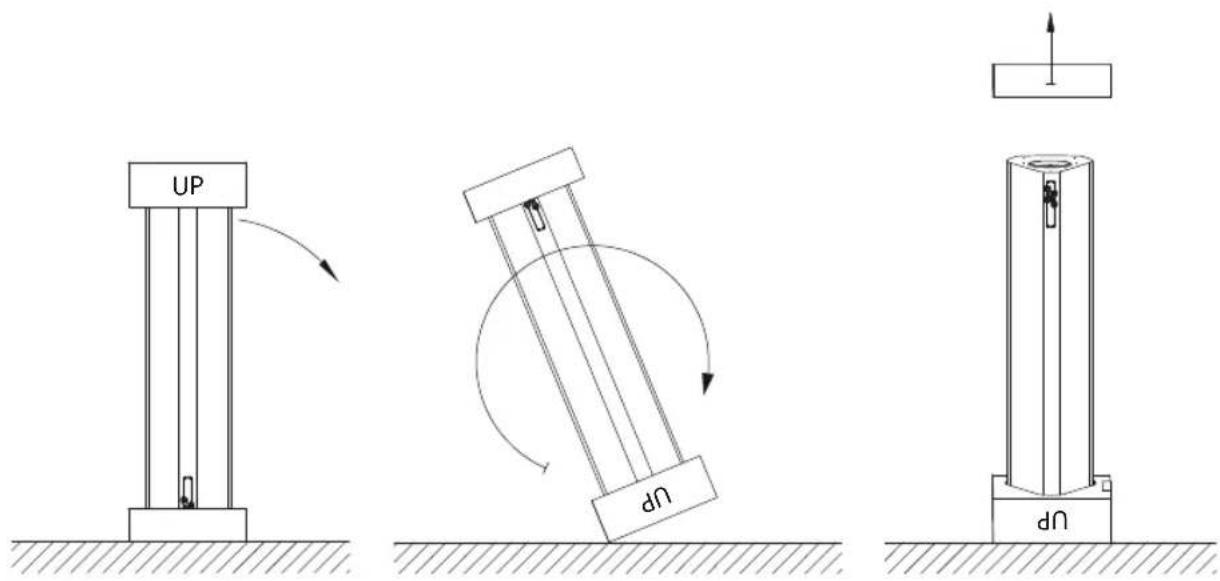

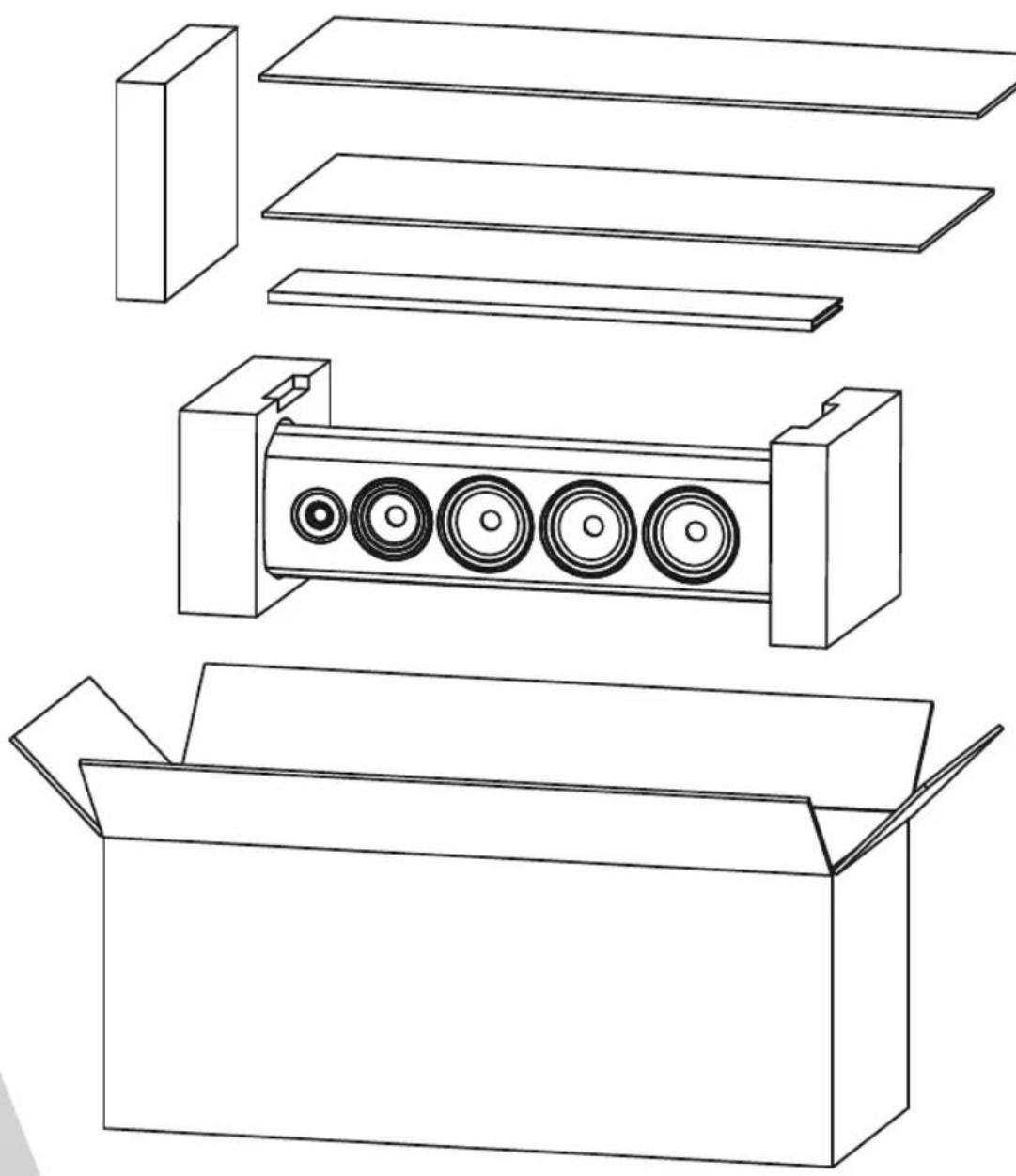

RECOMMENDATIONS FOR UNPACKING

Venere S is packed in a manner that effectively preserves it, while making simple its removal.

We suggest, however, following these general recommendations:

• Keep all packaging for future transport;
• Do not wear watches, bracelets, rings etc. to avoid scratching the speakers and their finishes. The same care will be taken to protect the speakers from any metal finishes on the clothes you are wearing, such as zips, buttons, belt clasps, rivets, etc.
• Open the package following the instructions printed on it and in fig. 1.

CONTENT OF THE PACKAGE

In addition to the speaker, the packaging contains:

A) 1 Fabric cover to protect the speaker

B) 1 Mask

C) 1 Box of accessories including:

• 1 Owner's Manual

• 4 Spike locks

- 1 Base

• 4 Floor disks

• 4 Spikes

- 7 Fixing screws

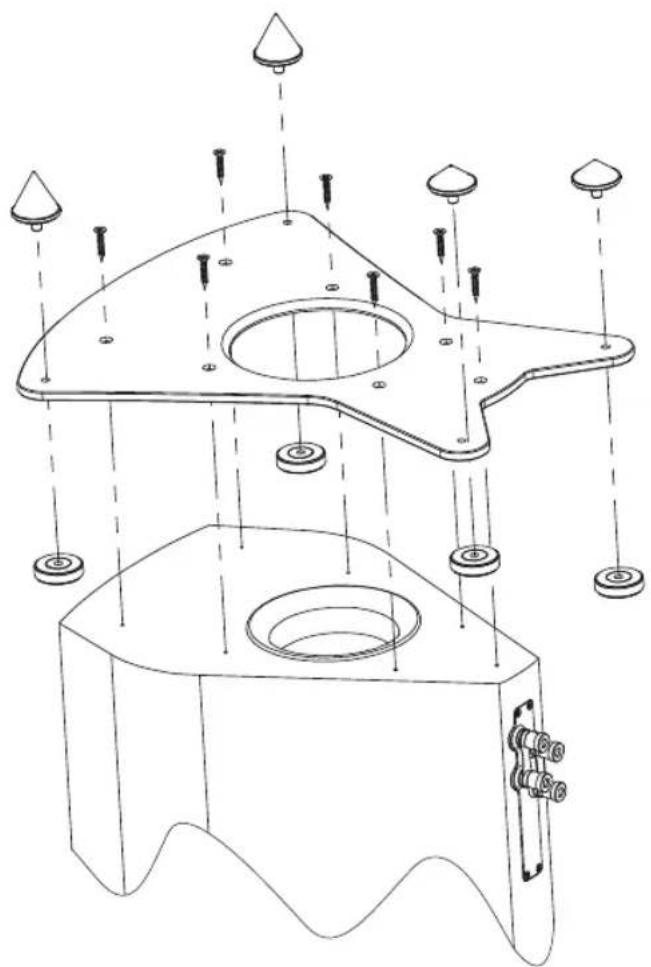

ASSEMBLY

When assembling the base of this floor-standing model, please follow the instructions and steps shown in fig. 2 and 3 carefully.

A) Turn over the speaker holding by the upper protective shell;
B) Fit the fixing screws of the aluminium base into the speaker body;
C) Fasten the spikes and spike locks to the base making sure to insert the larger ones in front and the smaller ones on the back.

CONNECTION INSTRUCTIONS

This operation must be carried out with all equipment switched off!

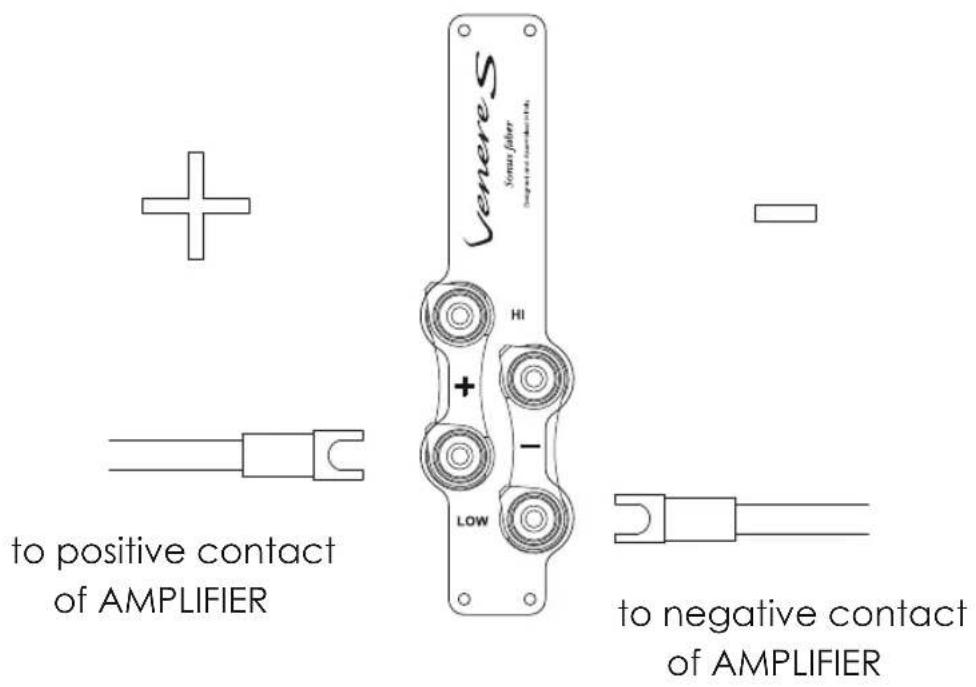

The 4 connecting clamps that accept connection with spade connectors, bananas and with the bare cable are on the rear panel of Venere S.

The connection can be made in three ways:

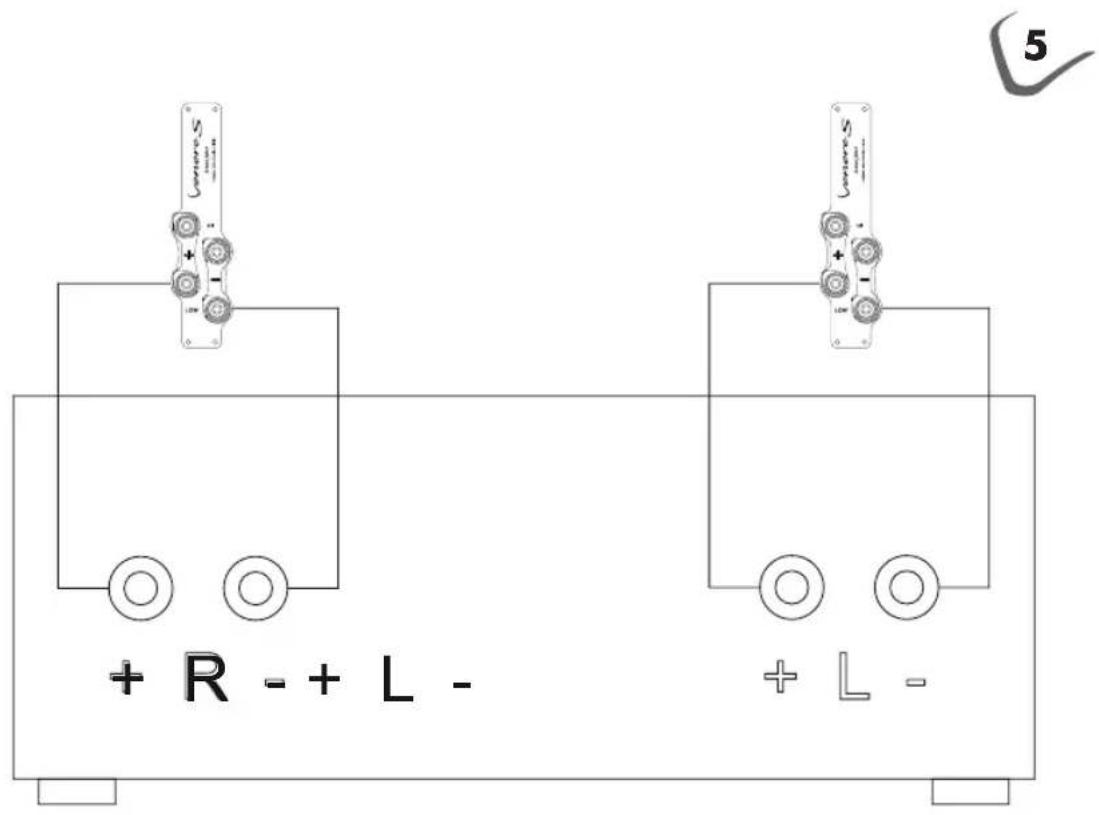

MONO-WIRING

The terminals are to remain connected to each other through bridges; connect one speaker to the output terminals of the right channel of the amplifier, and the other speaker to the output terminals of the left channel of the amplifier, following the correct polarity as shown in fig. 4 and 5.

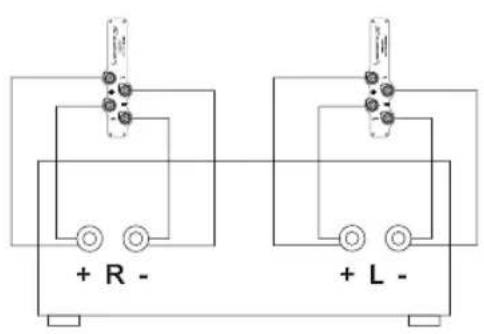

BI-WIRING

The purpose of this type of connection is to enhance general reproduction quality, and in particular the bass frequencies. This requires two pairs of power cables used as follows: remove the connections between the terminals (bridges), connect each pair of terminals separately to the amplifier as shown in fig. 6 and 7a.

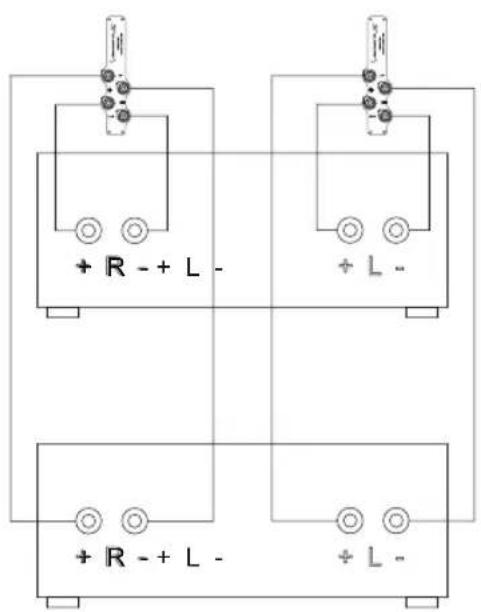

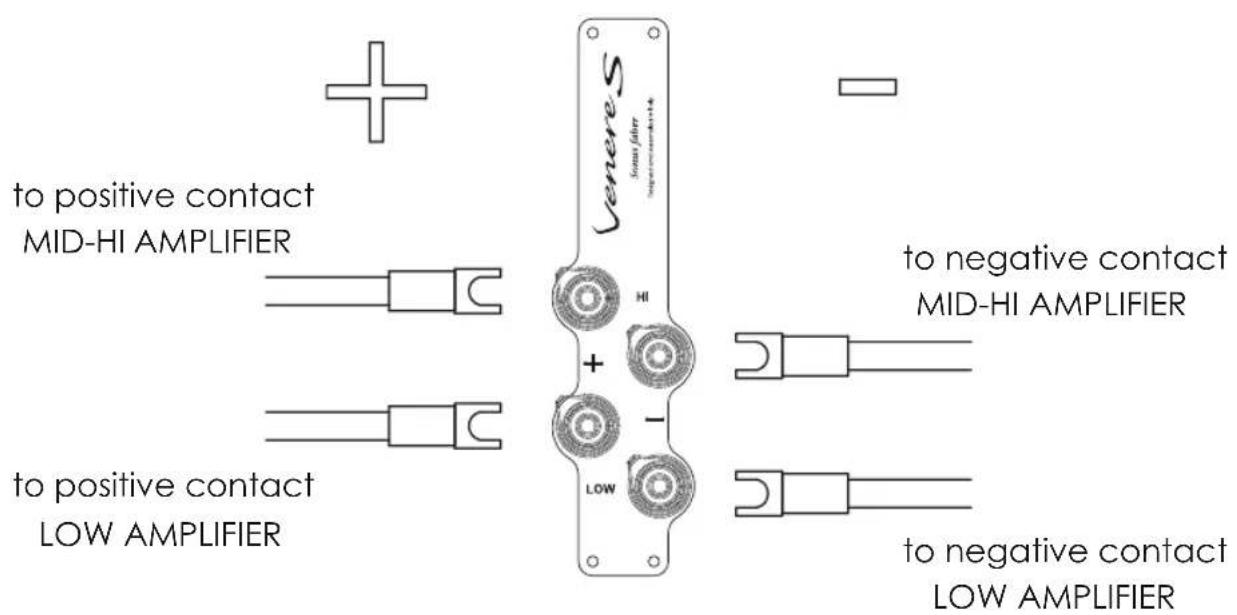

BI-AMPLIFICATION

Bi-amplification improves the sound reproduction in a general manner, and in particular gives greater dynamics and control of the bass frequencies. It requires two stereo amplifiers and two pairs of power cables and the connections between the speaker terminals must be removed. One amplifier is used to amplify the high frequencies (right and left channels), and is connected by a pair of power cables to the terminals dedicated to the high frequency drivers.

The second amplifier is used to amplify the bass frequencies (right and left channels), and is connected by a pair of cables the terminals dedicated to the bass frequency drivers. See fig. 6 and 7b.

Finally, the accurate tightening of the contacts and a periodic check of these contributes to improved performance.

SET-UP RECOMMENDATION: THE SPEAKER ON LOCATION

Venere S was designed to be easily driven by the amplifier, and just as easy to integrate into the listening environment.

The high structural rigidity and angle of the speaker for perfectly positioning the drivers are design solutions that make the interaction of the speaker with the listening environment smoother and afford great and immediate satisfaction.

For those who wish to obtain the best possible performance, these suggestions may be useful:

1. The choice of the listening room and the speaker position influence the performance of the whole system. A room with an irregular shape is preferable; this type of room improves the response in the environment because it limits the formation of standing waves.

2. Rugs and curtains (without exaggerating) positively influence the acoustic response, because they contribute to absorbing reflections and standing waves that are created in the listening room.

3. There are no hard and fast rules for every environment. A good approach to the problem, however, is to virtually divide the listening environment into three equal parts, as shown by the broken lines in fig. 8. At this point, position the speakers on the first of these lines and well away from the side walls. The listening position should be placed on the other line, as shown in fig. 8. This will ensure a good amount of

air all around the subjects involved in the stereo reproduction, because the speakers can work freely while the listener is shielded off from the acoustic reflections that generate near the walls and corners of the room. Fig. 8 also shows how the speakers should be angled to converge towards the listening point, so creating the typical 'isosceles triangle' configuration. This final adjustment, consisting of angling the speakers literally towards the ears of the listener, greatly improves the focus of the stereophonic image.

1. We are aware that many of our customers will not be able to create these quasi-ideal listening conditions because of objective problems connected with the organization of spaces and furniture in the home environment; we therefore advise positioning the speakers away from room corners and keeping them at a distance of 70-80 cm min. from the side and back walls. Keeping a distance of 150-250 cm between the speakers improves stereo reproduction.

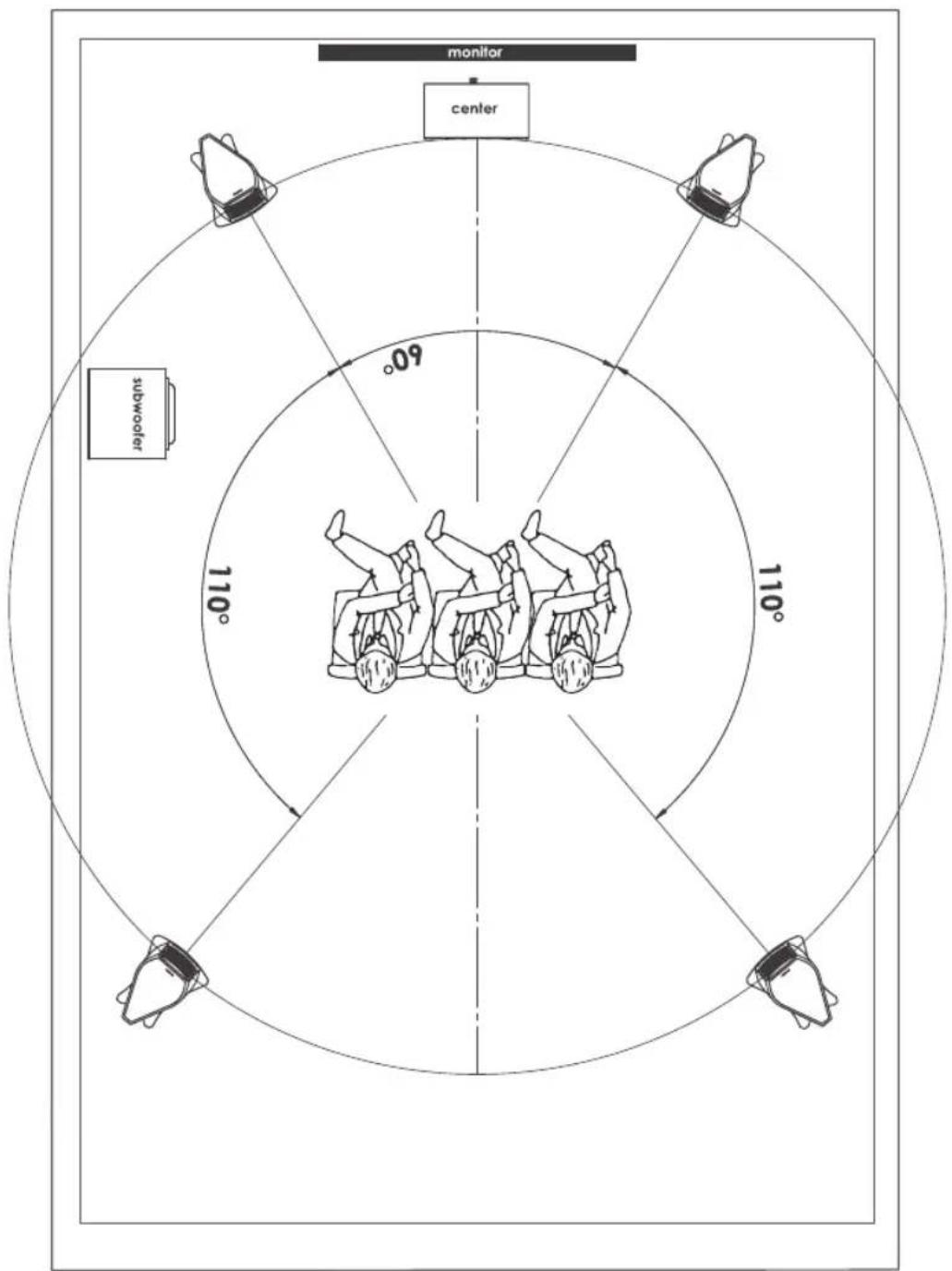

HOME THEATER AND MULTI-CHANNEL SYSTEMS

In addition to being used for traditional stereo listening, our speakers can also be used with home theater and multi-channel systems. Considering the aforementioned placement suggestions for the main channel speakers (front), those for the rear channels should be positioned as shown in fig. 9, with the center speaker exactly in line with the vertical axis passing through the center of the video screen (either above or below it).

The subwoofer can be positioned nearly anywhere in the room, although we recommend avoiding the corners. For additional suggestions on the best setup, we advise reading the indications supplied with your amplification system.

MAINTENANCE

The speakers do not require any special maintenance other than periodic general cleaning. We recommend using a soft, slightly moistened cloth to clean the wooden part of the cabinet. Any dust on the drivers must be removed using a soft paintbrush, being very careful not to damage their delicate membranes, in particular those of the tweeter.

Wood is a natural, living material that can be affected by environmental conditions. We advise keeping the speakers distant from heat sources or windows, in particular during the summer months.

We advise keeping the speakers away from direct sunlight.

These simple guidelines will help to keep your speakers perfect for many years.

WARRANTY

Venere S was designed and built in compliance with the highest quality standards.

In spite of this, should a fault or malfunction occur, the speakers you have purchased are covered by Warranty according to the regulations in force in the country in which they were purchased. Should such an event occur, please contact the Sonus faber Dealer where the speakers were purchased and refer to the aforementioned regulation.

For your benefit, please note the following:

• keep the document that proves purchase in order to show it to the retailer if necessary;
• return speakers in need of repair in their original packaging in order to transport them safely to an authorised Service Centre, together with a description of the malfunction or defect;
• the warranty covers the speakers for any construction defects as long as they have not been disassembled, modified, tampered with or used for purposes or in ways that have not been provided for in this manual.

VENERE S: VON UNS SIGNIERT

Loudspeaker System 3 way floorstanding speaker.

Tweeter	29mm high definition precoated fabric dome driver. DKM dome diaphragm visco-elastically decoupled from the baffle. Sonus faber design.
Midrange	1x150mm cone driver. Ultra free compression basket, Sonus faber design. Thermo-mouldered polypropylene textile cone (Curv). Ultra dynamic performance and linearity. Special coaxial anti-compressor is used to remove resonances and distortions. Sonus faber design.
Woofer:	3x180mm cone driver. Free compression basket. Aluminum cone for maximum speed. Ultra dynamic performance and linearity. Sonus faber design

Cross-over:

Non-resonant “progressive-slope” design, optimized phase response for optimal space/time performance, “paracors topology” on every network. (Nano-technology deposition on the pcb rails). Cross-over point: 250Hz – 2500 Hz

Frequency Response 0 Hz -25.000 Hz
Sensitivity (2.83V/1m) 90dB SPL
Nominal impendence 4 Ohm
Suggested Amplifier Power Output 40W - 300W without clipping
Long-term max input voltage (IEC-268-5) 22V rms
Total dimensions HxWxD (mm) 1.236 x 391x 477,5
Weight (kg/each) 28,8
Shipping weight (kg) 39

SUPPORT DRAWINGS

SUPPORT DRAWINGS

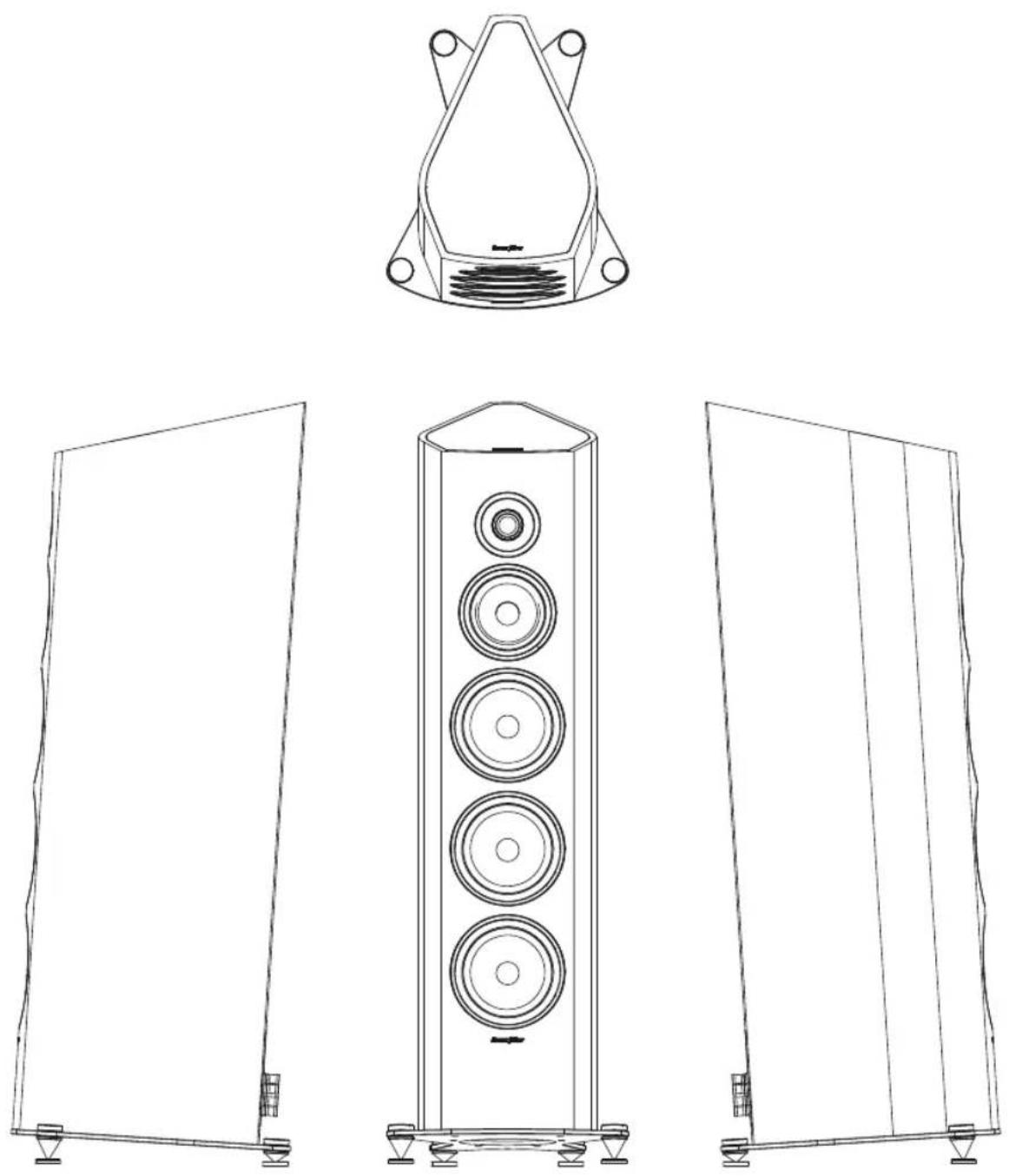

Line drawings of a box assembly showing front, side, and top views of a speaker with three circular components (no text or symbols)

UP dN dN

Technical line drawing of a mechanical component with mounting holes and internal cavities (no text or symbols)

Sonus faber

SUPPORT DRAWINGS

Venezes Sonus fader High HI + - LOW to positive contact of AMPLIFIER to negative contact of AMPLIFIER

+ R - + L - + L -

to positive contact MID-HI AMPLIFIER + - Veneres + - HI - LOW to negative contact MID-HI AMPLIFIER to positive contact LOW AMPLIFIER to negative contact LOW AMPLIFIER

+ R - + L -

+ R - + L - + L - + R - + L - + L -

SUPPORT DRAWINGS

B

A

A

B

monitor center .09 supporter 110° 110°

Install the speakers in order to achieve the best possible stability. If it's the case, adjust points/feet supports. Avoid placing heavy objects on the speaker as they can compromise its stability.

In case the speaker is placed on a surface other than the suggested stands (ex. shelves, bookcases, TV supports, etc.) or directly the floor, firstly check that it can support the weight of the speaker(s). Also check that there is enough friction between the speaker and the surface in order to avoid any movement caused through vibrations whilst in use. Where needed rubber adhesive feet can be purchased from all good hardware stores.

Do not put any objects containing water or other liquid/liquefiable substance on the speaker system.

Follow the connection diagram suggested in the instructions manual. Remember that the parallel connection of two or more speakers can damage your amplifier. If in doubt, contact your dealer.

Whilst the audio system is operative at high volumes avoid staying in close proximity to the speaker system. This can cause permanent damage to your hearing! Children should maintain a safe distance from the speaker system of at least 50cm.

The speakers produce an electromagnetic field which is harmless to humans and pets, but they can cause disturbances in the correct functioning of electronic equipment such as monitors or cathode tube TVs when placed in close proximity. If this occurs, simply and slowly distance one from the other. As a further precaution, it is not advisable to place credit cards or similar magnetically read objects on top of the speaker system.

The technology behind the functioning of the speakers is based on the principles of electromagnetism, and thus the user should avoid operating equipment that generates strong electromagnetic fields as these could affect the correct functioning of the speaker. Avoid placing transmitting devices such as mobile phones, cordless phones, intercom systems etc. on top of the speaker systems.

Do not directly connect to a constant voltage (100V, 70.7V or similar) sound distribution system. This could have as a consequence a serious system's overload with probable damages to the loudspeaker system and/or the amplifier unit.

Keep amplifier-speaker connection and power (mains) cables separate. Mains cables carry an alternating voltage at a frequency of 50Hz (60Hz in Japan and the USA) and an intensity that can be high, and thus produce an electromagnetic field even at audio frequency around them. In the case of coupling of these two types of cables an annoying hum noise will be perceived through the speakers. If this should occur, do provide an adequate distance between the cables.

Be very careful during the assembly and disassembly of the rubber string grille, if present. Check that the first metal string holder is properly inserted before tightening the strings to secure the second one.

The speaker cable terminals accept banana plugs. Remove the red and black plastic caps only if you intend to implement this type of connection and ensure that the other end of the cable is connected to the power output terminals of your amplifier. This protection is aimed at avoiding accidental connection to unprotected electrical outlets.

SICHERHEITSHINWEISE

DECLARATION OF CONFORMITY

Sonus Faber SpA with headquarter in Via Antonio Meucci, 10 - 36057 Arcugnano (VI) Italy, under its sole responsibility that the passive speaker system:

VENERE S

you have purchased which this declaration relates is in conformity to:

Directive:

2004/108/EC (EMC) Electromagnetic compatibility.

2011/65/EU (RoHS) Restriction of the use of certain hazardous substances in electrical and electronic equipment.

2012/19/EU (WEEE) Waste electrical and electronic equipment.

Standards:

EN 60065:2002 + A1:2006 + A11:2008

Audio, video and similar electronic apparatus - Safety requirements.

EN 55013:2001 + A1:2003 + A2:2006

Sound and television broadcast receivers and associated equipment - Radio disturbance characteristics.

EN 55020:2007

Immunity characteristics – Limits and methods of measurement.

EN 61000-6-1:2007

Generic standards - Immunity for residential, commercial and light-industrial environments.

EN 61000-6-3:2007 + A1:2012

Generic standards - Emission standard for residential, commercial and light-industrial environments.

Arcugnano, 22.12.2014

Mauro Grange

CEO

CE

DÉCLARATION DE CONFORMITÉ

The passive speaker system:

VENERE S

is in conformity to International standards:

IEC 60065:2001 + A1:2005 + A2:2010

Audio, video and similar electronic apparatus - Safety requirements.

UL 60065-1 7th Edition

Standard for audio, video and similar electronic apparatus - Safety requirements.

CAN/CSA-C22.2 60065-3 + A1:2006

Audio, video and similar electronic apparatus - Safety requirements.

CISPR 13:2001 + A1:2003 + A2:2006

Sound and television broadcast receivers and associated equipment - Radio disturbance characteristics - Limits and methods of measurement.

CISPR 20:2006

Sound and television broadcast receivers and associated equipment - Immunity characteristics – Limits and methods of measurement.

IEC 61000-6-1:2005

Generic standards - Immunity for residential, commercial and light-industrial environments.

IEC 61000-6-3:2006

Generic standards - Emission standard for residential, commercial and light-industrial environments.

Arcugnano, 22.12.2014

Mauro Grange

CEO

DECLARATION OF CARB COMPLIANCE

California Air Resources Board (CARB) ATCM 93120 phase 2 compliant for formaldehyde.

INFORMAZIONI PER LA TUTELA AMBIENTALE

Waste of electrical and electronic equipment Directive WEEE 2002/96/EC - RoHS 2011/65/EU

(for residents in EU Countries only)

This logo set on the product means that the recycling of this apparatus comes within the framework of the directive 2002/96/EC concerning the Waste on electrical and electronic equipment (WEEE).

The presence of dangerous substances in the electrical and electronic equipments can have potential con sequences on the environment and human health in the cycle of reprocessing this product.

Therefore, at the end of its lifetime, this product shall not be disposed with other non non-recycled waste.

As the end user, your role is of prime importance in the cycles of re-using, recycling, and other forms of valorisation of this electrical and electronic equipment.

Local authorities and resellers have set special procedures for the purpose of collecting and recycling this product.

You have the obligation to use the selective waste collection systems put in place by your local authorities.
