USER MANUAL BX30 BeamZ

MANUEL D'INSTRUCTIONS

INSTRUKCJA OBSŁUGI

ENGLISH

Congratulations to the purchase of this Beamz product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the product on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on.
• Never use the product in humid rooms or outdoors.

• During operation, the housing becomes very hot. Do not touch it during operation and immediately after.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Secure the product with an extra safety chain if the unit is ceiling mount. Use a truss system with clamps. Make sure nobody stands in the mounting area. Mount the effect at least 50cm away from inflammable material and leave at least 1 meter space on every side to ensure sufficient cooling.
• This product contains high intensity LEDs. Do not look into the LED light to prevent damage to your eyes.
• Do not repeatedly switch the product on and off. This shortens the life time.
• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Only operate the product with clean hands.
• Do not force the controls.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

DO NOT LOOK DIRECTLY INTO THE LENS. This can damage your eyes. Persons who are subject to epileptic attacks should be aware of the effects that this light effect may have on them.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ / 41^ and 35^ / 95^ .

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.
Prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Beamz cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

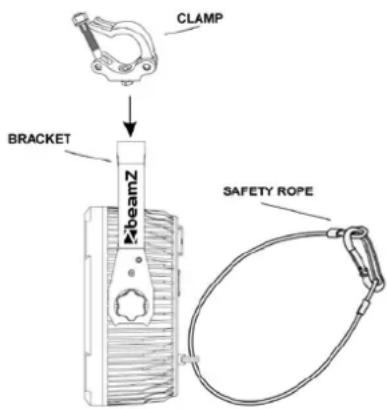

INSTALLATION

CAUTION: Please consider the respective national norms during the installation! The installation must only be carried out by an authorized employee or dealers!

Attention:

• The installation of the product has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
• The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
  Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
  The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time.
• The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.
  The fixture should be installed in the position where persons cannot reach and where persons may walk by or be seated.

CAUTION: When installing the device, make sure there is no highly in inflammable material (decoration articles, etc.) in between a distance of min 0.5 meter.

DISPLAY

The control board offers several features: you can simple set the starting address, run the pre-programmed program or make a reset. The main menu is accessed by pressing the Mode-button, browse through the submenu by pressing Up or Down.

Press the Enter-button in order to select the desired menu.

You can change the selection by pressing Up or Down. Confirm every selection by pressing the Enter-button.

You can leave every mode by pressing the Mode-button. The functions provided are described later in this manual.

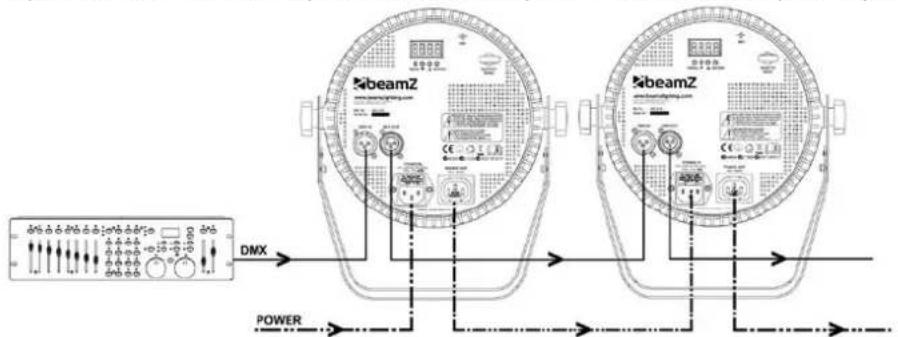

DMX-512 CONNECTION

If you are using a standard DMX controller, you can connect the DMX-output of the controller directly to the DMX-input of the first unit in a DMX-chain. Always connect the output of one unit with the input of the next unit until all units are connected. If you use a controller with 5 pin DMX connection you will need to use a 5-pin to 3-pin adapter.

At the last fixture, the DMX cable has to be terminated. Solder a 120 Ohm resistor between signal (-) and signal (+) into a 3-pin XLR connector and plug this into the DMX output of the last fixture in the chain.

The master/slave operation enables that several same units can be controlled by one "master" unit.

Connect the first unit "DMX OUT" socket with the second unit "DMX IN", using a 3pin DMX Cable. Repeat this process with the third, fourth etc. or see a above section "DMX-512 connection". Choose the unit that will control all other and set this in master-mode via display. The other units that must react on the master, you must set in slave-mode. The "Slave" will synchronously follow the "Master".

Noted: Any unit can be the "Master" or "Slave".

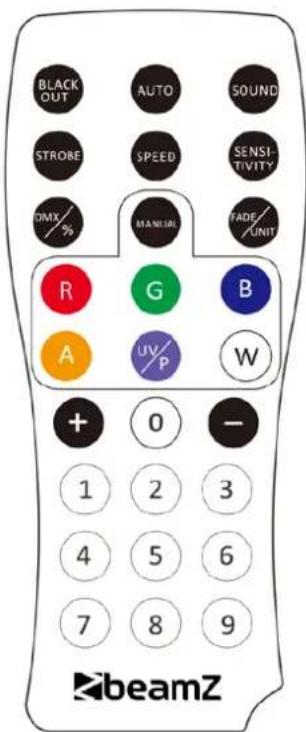

REMOTE CONTROLLER

BLACK OUT Mode

Press off existing modes. Press return the last modes.

AUTO Mode

Automatic mode will enable you to run the automatic programs on the product.

To turn on Automatic mode:
1. Press on the remote controller.
2. Press < + > or - to choose between the different auto programs.

SOUND Mode

Sound-Active mode will enable the product to respond to the music.

To turn on Sound-Active mode:
1. Press on the remote controller.
2. Press < + > or - to choose between the different sound programs.

STROBE Mode

To adjust the strobe speed of the automatic program and the sound active program.

1. Press on the remote controller.
2. Press < + > or - to either increase or decrease the speed of the program.
3. Press again to turn off the strobe.

SPEED Mode

To adjust the speed of the automatic program and the sound active program.
1. Press on the remote controller.
2. Press < + > or - to either increase or decrease the speed of the program.

SENSITIVITY Mode

To adjust sound sensitivity for in Sound-Active mode

1. Press on the remote controller.
2. Press < + > or - to either increase or decrease sound sensitivity.

DMX / % Mode

To enable DMX or disallow DMX on the product.

Press <DMX> on the remote controller, the product work on the DMX controlling modes.

MANUAL Mode

1. Press on the remote controller.
2. Press <R> , <G> , <B> or <UV> (red, green, blue or UV) to choose your colour.
3. Press again R , G , B or UV (red, green, blue or UV) to close your colour.
4. Press < + > or 一 - 一 to either increase or decrease the percentage of each colour.

FADE/UNIT Mode

To adjust the FADE speed of the automatic program, the sound active program and the manual mode.

1. Press on the remote controller.
2. Press again to turn off the Fade mode.

NUMBER 1~9

To adjust the brightness value of the automatic program, the Sound active program and Manual Mode.

Press digit < 1> to < 9> to change different brightness on the device.

The remote control is supplied with a battery inserted. An insulating foil between the battery and the battery contacts prevents the battery from being discharged during storage. Prior to the first operation remove the foil from the battery support on the rear side of the remote control. Otherwise operation of the remote control is not possible.

If the range of the remote control decreases, replace the battery. For this purpose, on the rear side of the remote control press the small bar with the groove to the right (1) and at the same time remove the battery support (2). For operation, one 3V button cell type CR 2025 is required. When inserting, pay attention that the positive pole of the button cell shows upwards in the support.

REPLACING THE FUSE

If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing.

FIXTURE CLEANING

The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit's optics.

Make sure the area below the installation place is free from unwanted persons during servicing
- Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any deformation
The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected
In order to protect the fixture from overheat the cooling fans (if any) and ventilation openings should be cleaned monthly.
The interior of the fixture should be cleaned annually using a vacuum cleaner or air-jet.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every month. Clean the internal optics at least every 30/60 days.

ATTENTION: We strongly recommend internal cleaning to be carried out by qualified worker!

NEDERLANDS

REEMPLACEMENT DU FUSIBLE

Mode	Programming		Description
DMX mode Addr		11	d001-d512
		7
		1
Static colours	Stat	S 01-17	Static colours
Auto	Auto	Au 1-4	Auto program
Sound Mode	Soun	So 1-4	Sound program
Speed	SPEE	SP 1-9	Speed
Mic Sensitivity	SEnS	SE 1-9	MIC sensitivity
PAR Edit colour	Colo	r000-255	Red (0-100%)
		g000-255	Green (0-100%)
		b000-255	Blue (0-100%)
		u000-255	UV (0-100%)
Dimming	dIMM	dl1-dl 9	Master dimming
Silent scene	SILE	on/oFF	Silent scene by sound program
Slave	SLAV	Slave	Slave
Infrared	InFr	on/oFF	Enable or disenable IR remote

DMX CHANNELS / DMX KANALEN / DMX-KANÄLE / CANALES DMX / CANAUX DMX / KANÄLY DMX / DMX KANÁLY

1 Channels

Channel	Function	Value	Description
1 Auto	/ Sound	000-009	No function
		010-039	Auto program 1 : PAR+SMD TRI+ white SMD combination
		040-069	Auto program 2 : PAR
		070-099	Auto program 3 : SMD TRI+ white SMD
		100-129	Auto program 4 : white SMD
		130-159	Sound program 1 : PAR+SMD TRI+ white SMD combination
		160-189	Sound program 2 : PAR
		190-219	Sound program 3 : SMD TRI+ white SMD
		220-255	Sound program 4 : white SMD

7 Channels

Channel	Function	Value	Description
1	Dimming	000-255	Master dimming (0-100%)
2	Strobe	000-255	Stroboscope (Rate 0-100%)
3 Colours		000-009	No function
		010-019	Red
		020-029	Green
		030-039	Blue
		040-049	UV
		050-059	Yellow
		060-069	Magenta
		070-079	Cyan
		080-089	Dark orange
		090-099	Green yellow
		100-109	Salmon
		110-119	Turquoise
		120-129	Light Green
		130-139	Orange
		140-149	Lavender
		150-159	Light blue
		160-169	Dark blue
		170-255	Pink
4 Strobe SMD		000-009	No function
		010-255	SMD Stroboscope (Rate 0-100%)
5 SMD Effect		000-009	No function
		010-149	White SMD combination
		150-255	Rainbow effect slow-fast
6 RGB Ring		000-009	No function
		010-029	Red
		030-049	Green
		050-069	Blue
		070-089	Red + Green
		090-109	Green + Blue
		110-129	Red + Blue
		130-149	Red + Green + Blue
		150-255	Rainbow effect slow-fast
7 Auto-Sound		000-009	No function
		010-039	Auto program 1: PAR+SMD TRI+ white SMD combination
		040-069	Auto program 2: PAR
		070-099	Auto program 3: SMD TRI+ white SMD
		100-129	Auto program 4: white SMD
		130-159	Sound program 1: PAR+SMD TRI+ white SMD combination n
		160-189	Sound program 2: PAR
		190-219	Sound program 3: SMD TRI+ white SMD
		220-255	Sound program 4: white SMD

11 Channels

Channel	Function	Value	Description
1	Dimming	000-255	Master dimming (0-100%)
2	Strobe	000-255	Stroboscope (Rate 0-100%)
3	Static colours	000-255	Red (0-100%)
4		000-255	Green (0-100%)
5		000-255	Blue (0-100%)
6		000-255	UV (0-100%)
7 Colours		000-009	No function
		010-019	Red
		020-029	Green
		030-039	Blue
		040-049	UV
		050-059	Yellow
		060-069	Magenta
		070-079	Cyan
		080-089	Dark orange
		090-099	Green yellow
		100-109	Salmon
		110-119	Turquoise
		120-129	Light Green
		130-139	Orange
		140-149	Lavender
		150-159	Light blue
		160-169	Dark blue
		170-255	Pink
8 Strobe SMD		000-009	No function
		010-255	SMD Stroboscope (Rate 0-100%)
9 SMD Effect		000-009	No function
		010-149	White SMD combination
		150-255	Rainbow effect slow-fast
10 RGB Ring		000-009	No function
		010-029	Red
		030-049	Green
		050-069	Blue
		070-089	Red + Green
		090-109	Green + Blue
		110-129	Red + Blue
		130-149	Red + Green + Blue
		150-255	Rainbow effect slow-fast
11 Auto / Sound		000-009	No function
		010-039	Auto program 1 : PAR+SMD TRI+ white SMD combination
		040-069	Auto program 2 : PAR
		070-099	Auto program 3 : SMD TRI+ white SMD
		100-129	Auto program 4 : white SMD
		130-159	Sound program 1 : PAR+SMD TRI+ white SMD combination
		160-189	Sound program 2 : PAR
		190-219	Sound program 3 : SMD TRI+ white SMD
		220-255	Sound program 4 : white SMD

TECHNICAL SPECIFICATION / TECHNISCHE SPECIFICATION / TECHNISCHE DATEN / ESPECIFICACIONES TECNICAS / SPECIFICATIONS TECHNIQUES / SPECYFIKACJA TECHNICZNA

Rated voltage :AC100～240V 50/60Hz

Rated power : 40Watt

LED : 3x10Watt 4-in-1 RGB-UV

White SMD LED : 27 x 0,5Watt

RGB SMD LED : 18 x 0.5Wat

Fuse :T1A

DMX Channels : 1/7/11 Channels

Function : DMX, Auto, Sound active, Master-Slave and IRC.

Dimensions per unit : 218 x 122 x 245mm

Weight (per unit) : 1.1 kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

tronios

Sound & Light

CE Declaration of Conformity

Manufacturer: TRONIOS BV

Product number: 150.735

Product Description:

BX30 DJ PAR 3x10W 4in1 RGB-UV Strobe

Trade Name: BEAMZ

Regulatory Requirement:

EN55015:2013

EN 61000-3-2:2014; -3-3:2013

EN 61547:2009

EN 61000-4-2:2009; -4-3:2006+A1:2008+A2:2010; -4-4:2012; 4-5:2014;

-4-6:2014;-4-8:2010;-4-11:2004

EN 60598-1:2015; -2-17:1989+A2:1991

EN 62471:2008

IEC 62321-1:2013

I hereby declare that the product meets the requirements stated in Directives 2014/35/EU and 2014/30/EU and conforms to the above mentioned Declarations.

Almelo,

22-09-2017

Name : M. Velders

Signature :

Specifications and design are subject to change without prior notice..

www.tronios.com

Copyright © 2017 by TRONIOS the Netherlands
