Product type	Bluetooth speaker with full front LED animation
Brand	Lenco
Model	PA200
Output power	100 W
Power consumption	50 W
Power supply	100-240 V~, 50/60 Hz; power adapter 13 V / 1.5 A
Bluetooth	Version 5.0, range not specified
FM radio	87.5 - 108 MHz, antenna included
Speakers	1 tweeter 1 inch, 1 speaker 5 inches, 1 subwoofer 6.5 inches
Frequency response	38 Hz - 20 kHz
Dimensions (W x D x H)	24 x 24.5 x 60.5 cm
Weight	5.9 kg
Operating temperature	10 - 40 °C
Inputs	USB (FAT32 drives), line input, microphone, guitar, FM (antenna)
Main functions	Bluetooth, FM radio, USB player, TWS (True Wireless Stereo), light effects (LED1-4), X Drive (bass), echo, equalizer (bass/treble), remote control
Battery	Built-in rechargeable; charging via power adapter; red flashing light when charging, solid green when fully charged

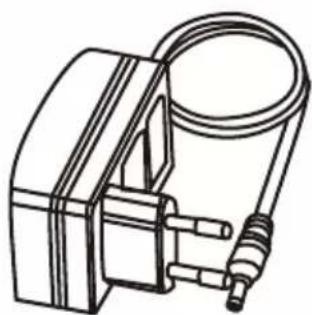

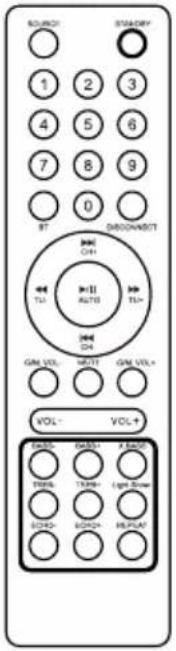

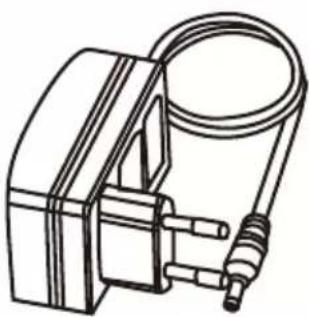

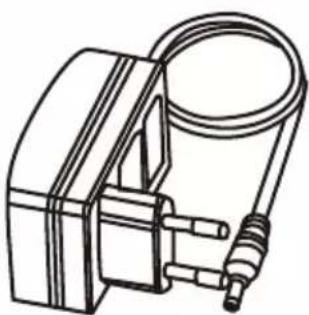

Included accessories	Remote control, FM antenna, power adapter
Maintenance and cleaning	Soft dry cloth; for stains, damp cloth with diluted detergent; do not use solvents
Safety	Do not open the device; avoid heat sources, moisture, magnetic fields; unplug during thunderstorms; use only recommended accessories
Warranty and repairability	Warranty according to European legislation; contact retailer for repair; opening by unauthorized personnel voids warranty
General information	Non-professional use; do not dispose with household waste (WEEE); EU Declaration of Conformity available online

Frequently Asked Questions - PA200 LENCO

How to pair the Lenco PA200 speaker via Bluetooth?

Power on the speaker and select the Bluetooth source (the blinking 'BL' symbol appears). On your phone, enable Bluetooth and search for devices. Select 'Lenco PA-200'. If a password is requested, enter 0000. Connection is established when the blue light stays solid.

How to use the TWS (True Wireless Stereo) function?

Turn on two PA-200 speakers and activate Bluetooth mode on both. Press the 'TWS' button on the speaker for 2 seconds. The screen displays 'b on'. Once connected, enable Bluetooth on your phone and select 'Lenco PA-200'. The music will play in stereo on both speakers.

How to adjust sound effects (bass, treble, echo)?

Press the MENU button on the top panel to scroll through options: MIC/GUITAR VOLUME, ECHO VOLUME, BASS, TREBLE. Turn the VOLUME/MULTI knob to adjust each parameter. For BASS and TREBLE, the range is -6 to +6 dB.

How to change the LED lighting mode?

Press the MODES LIGHT button on the top panel or LIGHT SHOW on the remote to cycle through LED1, LED2, LED3, LED4, and OFF.

Why won't my speaker turn on?

Check that the POWER switch is set to ON. If the battery is drained, connect the power adapter. Make sure the wall outlet works. In case of electrostatic discharge, reset the device by turning it off and on again.

How to use the FM radio?

Attach the provided FM antenna. Press SOURCE to select FM mode. Use the CH+/CH- buttons to browse stations or press the PLAY/PAUSE button to start auto search. The numeric keys on the remote allow direct frequency input.

What types of USB drives are compatible?

The USB port is designed for FAT32 formatted USB drives, preferably USB 2.0 drives. External hard drives are not supported. Compatibility with USB 3.0/3.1 is not guaranteed.

How to clean the speaker?

Use a soft dry cloth. For stubborn stains, lightly dampen the cloth with a diluted detergent solution. Never use solvents or petroleum-based products.

What to do if the battery does not charge?

Make sure the power adapter is properly connected to the speaker and a working power outlet. The charging indicator should blink red. If the light stays green, the battery is full. If the problem persists, contact your retailer.

Can I use the speaker outdoors?

The speaker is not designed for outdoor use in wet weather. Avoid exposure to rain, condensation, and extreme temperatures. Use it in a dry environment with moderate temperature (10-40 °C).

USER MANUAL PA200 LENCO

Black rectangular electronic device with textured back panel and three circular cutouts (no visible text or symbols)

User manual- Bluetooth party speaker with full front light animation

Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2") free space around the whole device.
2. Install in accordance with the supplied user manual.
3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame. The device can only be used in moderate climates. Extremely cold or warm environments should be avoided. Working temperature between 0^ and 35^ C.
4. Avoid using the device near strong magnetic fields.
5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.
6. Warning! Never insert an object into the product through the vents or openings. High voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.
7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
8. The device shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on or near the apparatus.
9. Do not use this device when condensation may occur. When the unit is used in a warm wet room with damp, water droplets or condensation may occur inside the unit and the unit may not function properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit should be dry before getting any power.
10. Although this device is manufactured with the utmost care and checked several times before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.
11. This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.
12. Keep away from animals. Some animals enjoy biting on power cords.
13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent.

14. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement.

15. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost.

16. If the unit has USB playback function, the USB memory stick should be plugged into the unit directly. Don't use an USB extension cable because it can cause interference resulting in failing of data.
17. The rating label has been marked on the bottom or back panel of the device.
18. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.
19. This product is intended for non professional use only and not for commercial or industrial use.
20. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position vibrations or shocks or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.
21. Never remove the casing of this device.
22. Never place this device on other electrical equipment.
23. Do not allow children access to plastic bags.
24. Only use attachments/accessories specified by the manufacturer.
25. Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the device, when the device has been exposed to rain or moisture, does not operate normally, or has been dropped.
26. Long exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.
27. If the product is delivered with power cable or AC power adaptor:

- If any trouble occur, disconnect the AC power cord and refer servicing to qualified personnel.

- Don't step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable's exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children's reach! When playing with the power cable, they can seriously injure themselves.

● Unplug this device during lightning storms or when unused for a long period.

● The socket outlet must be installed near the equipment and must be easily accessible.

- Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.

● Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection.

● Devices with class 2 construction do not require a earthed connection.

● Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.

- Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.

1. If the product contains or is delivered with a remote control containing coin/cell batteries:

Warning:

● “Do not ingest battery, Chemical Burn Hazard” or equivalent working.
● [The remote control supplied with] This product contains a coin/button cell battery. If the battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
- Keep new and used batteries away from children.
- If the battery compartment does not close securely, stop using the product and keep it away from children.
- If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

1. Caution about the use of Batteries:

● Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
● Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation.
● Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas.
● Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
● Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or that leakage of flammable liquid or gas.
● A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
● Attention should be drawn to the environmental aspects of battery disposal.

INSTALLATION

• Unpack all parts and remove protective material.
• Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.

Technical diagram of a portable air conditioner with numbered labels pointing to ports and control buttons

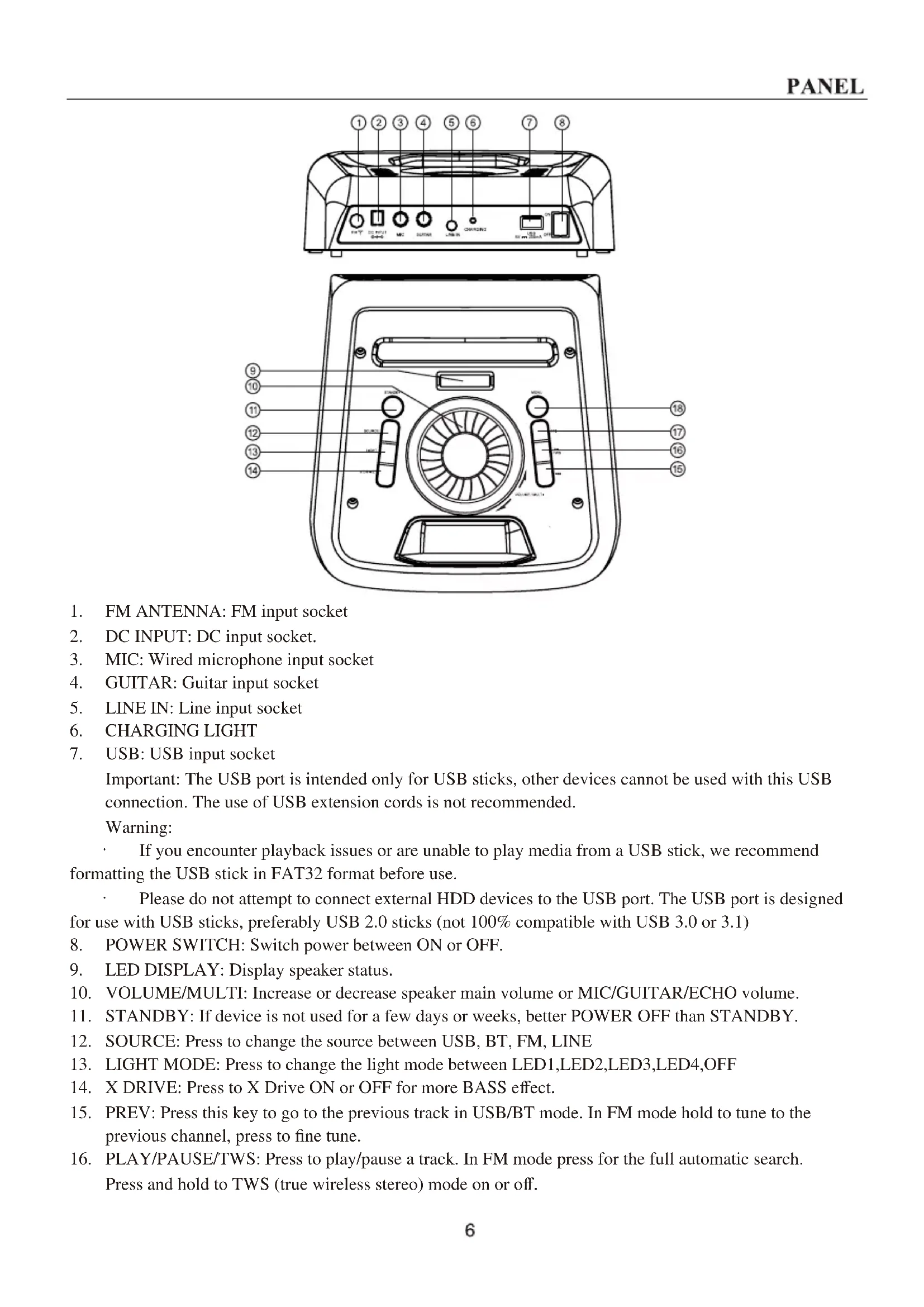

1. FM ANTENNA: FM input socket
2. DC INPUT: DC input socket.
3. MIC: Wired microphone input socket
4. GUITAR: Guitar input socket
5. LINE IN: Line input socket
6. CHARGING LIGHT
7. USB: USB input socket

Important: The USB port is intended only for USB sticks, other devices cannot be used with this USB connection. The use of USB extension cords is not recommended.

Warning:

If you encounter playback issues or are unable to play media from a USB stick, we recommend formatting the USB stick in FAT32 format before use.

Please do not attempt to connect external HDD devices to the USB port. The USB port is designed for use with USB sticks, preferably USB 2.0 sticks (not 100% compatible with USB 3.0 or 3.1)

1. POWER SWITCH: Switch power between ON or OFF.

2. LED DISPLAY: Display speaker status.

3. VOLUME/MULTI: Increase or decrease speaker main volume or MIC/GUITAR/ECHO volume.

4. STANDBY: If device is not used for a few days or weeks, better POWER OFF than STANDBY.

5. SOURCE: Press to change the source between USB, BT, FM, LINE

6. LIGHT MODE: Press to change the light mode between LED1,LED2,LED3,LED4,OFF

7. X DRIVE: Press to X Drive ON or OFF for more BASS effect.

8. PREV: Press this key to go to the previous track in USB/BT mode. In FM mode hold to tune to the previous channel, press to fine tune.

9. PLAY/PAUSE/TWS: Press to play/pause a track. In FM mode press for the full automatic search. Press and hold to TWS (true wireless stereo) mode on or off.

10. NEXT: Press this key to go to the next track in USB/BT mode. In FM mode hold to tune to the next channel, press to fine tune.

11. MENU: Press this key to change the menu between MIC/GUITAR VOLUME, ECHO VOLUME, BASS, TREBLE.

Display "2010" mean for MIC/GUITAR VOL 10, Rotate VOLUME/MULTI knob to adjust 0-30.

Display "E10" mean for ECHO VOL 10, Rotate VOLUME/MULTI knob to adjust 0-30.

Display "b 00" mean for BASS 00, Rotate VOLUME/MULTI knob to adjust ± 6 dB.

Display "L00" mean for TREBLE 00, Rotate VOLUME/MULTI knob to adjust ±6 dB.

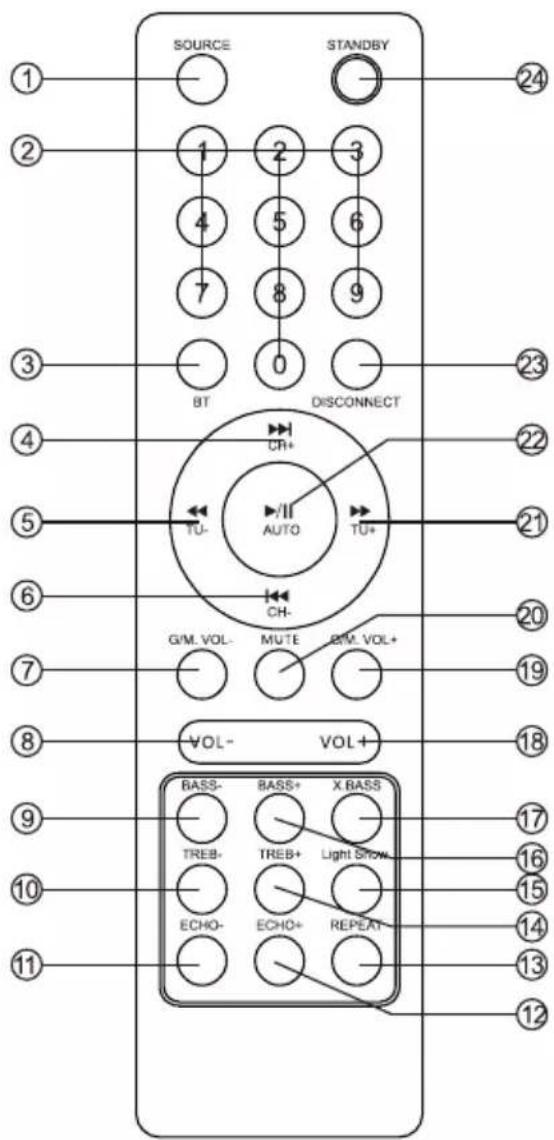

REMOTE CONTROL

SOURCE STANDBY ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉴ ㉵ ㉶ ㉷ ㉸ ㉹ ㉺ ㉻ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉟ ㉟+ - AUTO CH- MUTE BTM. VOL+ VOL- VOL+ RASS- BASS+ X BASS- TREB- TREB+ Light Show- ECHO- ECHO+ REPEAT- ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪

1) SOURCE

Press to change the source between USB, LINE, BT, FM.

2) 0\~9 NUMERIC KEYS These keys are used to play a track directly in USB source mode. Eg:

To play 12th track in the USB playlist press the numeric key"1" followed by"2". In FM, to select saved channel, or input station frequency directly

3) BT Press to enter Bluetooth pairing mode.

4) ▶▶/CH+

Play the next song by pressing "▶▶/CH+" at USB/BT input mode.

Adjust next channel by pressing "▶▶|/CH+" at FM input mode.

5) /TU-

Fast rewind a song by pressing " ◀◀ /TU-" at USB input mode.

Adjust radio frequency by pressing " ◀◀ /TU-" at FM input mode.

6) /CH-

Play the previous song by pressing" /CH-" at USB/BT input mode.

Adjust previous channel by pressing " ◀◀/CH-" at FM input mode.

7) GUITAR/MIC VOL-To decrease the guitar and MIC volume.

8) VOL- To decrease the volume.

9) BASS-

To decrease the bass effect.

10) TREB-

To decrease the Treble effect.

11) ECHO-

To decrease the echo effect

12) ECHO+ To increase the echo effect

13) REPEAT

Choose repeat mode by pressing "REPEAT" at USB input mode.

Repeat, random, single, all.

14) TREB+

To increase the Treble effect.

15) LIGHT SHOW

To change the light mode between LED1, LED2, LED3, LED4, OFF

16) BASS+

To increase the bass effect.

17) X.BASS

Press this key to turn ON/OFF the extra bass effect.

18) VOL+ To increase the volume.

19) GUITAR/MIC VOL+

To increase the GUITAR and MIC volume.

20) MUTE

Press this key to MUTE/UNMUTE the speaker volume.

21) ▶▶/TU+

Fast forward song by pressing " ▶▶ /TU+" at USB input mode.

Adiust radio frequency by pressing " ▶/TU+" at FM input mode.

22) ▶/AUTO

- Play / pause in USB/BT mode.

- In FM mode press for the full automatic search.

23) DISCONNECT In BT, Press to disconnect and pair with a new device.

24) STANDBY

Stand by ON/OFF key

Bluetooth pair and connect

• Turn off any Bluetooth devices previously paired (linked) with this unit.
• Turn on the Bluetooth features on your phone or music player.
- Turn on and set this unit to Bluetooth mode. The flashing: "BL" on LED display indicates it is in pairing mode.
- Set your phone or music player to search for Bluetooth devices.
- Select "Lenco PA-200" from search results on your phone or music player.
- Select OK or YES to pair this unit with your phone or music player.
• If protected, enter 0000 for passkey steady blue light indicates successful connection.

TWS (True Wireless Stereo) mode

1. Turn on 2 PA-200 and select both unit INPUT mode as Bluetooth
2. Press "TWS" key on speaker set for 2 seconds, it will show "b of" on display, TWS is connecting to another speaker equipment and will connect successfully after a sound indication or display shows "b1."
3. Turn on your Bluetooth feature on your mobile phone to search Bluetooth devices and select "Lenco PA-200" from the search result, select OK or YES to pair this unit with your mobile phones and a steady blue light will indicate the connection is successful and can play any music from your mobile phones
4. Press "TWS" key on speaker unit for 2 seconds and it will turn off TWS features after shows "E of " on display.

FM Radio Operation

1. Before using the radio functions, you must attach the supplied antenna. Adjust the antenna to obtain optimum reception.

Press [SOURCE] repeatedly to select FM mode.

1. Press the CH+/CH- key on the remote control or Hold down the key “|<</>>” on the top panel to skip to the preset station.

2. Press the TU+/TU- key on the remote control or press the key “/” on the top panel to adjust the radio frequency manually.

The number key on the remote control can directly select the frequency

1. Press the key “▶ll” on the top panel or remote, the machine will scan radio channels from low-frequency to high-frequency by itself and memorize the channels one by one.

BATTERY

In AC (power) mode the battery will automatically charge. A slow red flashing light indicates that the battery is charging. When fully charged a green light will be displayed.

In DC (battery) mode a green light indicates that the battery level is full. If the battery level is low a red light will be displayed. This indicates that the battery must immediately be charged or the speaker will turn off.

Power on

Line drawing of a mobile phone connected to a wall-mounted device (no text or symbols)

SPECIFICATION

Frequency Response 38Hz-20KHz

Power Source 100-240V\~, 50/60Hz

Power Consumption 50W

Output power 100W

Bluetooth V5.0

FM radio 87.5-108

MHz Unit Size (W x D x H)

24x24.5x60.5cm Tweeter size

1 x 1 inch Woofer size

1 x 5 inch Subwoofer

size 1 x 6.5 inch Unit

weight 5.9kg

Working Temperature 10-40°C

■ The specification presents only as a reference. The value of weight and size are approximation.
■ Our product is improved ceaselessly and the specification and function may be changed without prior notice.

Power supply adaptor (For EU only)

Manufacturer: GUANGZHOU GUANG ER ZHONG ELECTRONIC TECHNOLOGY CO.,LTD Model number: GPUSW1301500WD00

Use only the power supply listed in the user instructions

Information	Value and and precision
Manufacturers name or trade mark, commercial registration and address
Model Identifier	13V/1.5A
Input voltage	AC100-240V, DC13V
Input AC frequency	50/60Hz
Output voltage	13 V
Output current	1.5A
Output Power	19.5W
Average active efficiency	80%
Efficiency at low load (10%)	75 %
No load Power consumption	0.15W

Accessories-included

Remote control

SOUND STANDARD 1 2 3 4 5 6 7 8 9 0 RT DISCONNECT CH+ THI ALTS TI+ D4 GAN VOL- NETT GAN VOL+ VOL- VOL+ RMS RMS+ X CLK TSSL TSSR Light Range FLOOD FLOOD+ H-PLAY

Antenna

Simple line drawing of a coiled tube or wire with a looped end (no text or symbols)

User manual

Simple line drawing of an open book with no text or symbols visible

AC adapter

Line drawing of a mechanical device with a coiled cable and two ports (no text or symbols)

1. Guarantee

Lenco offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer.

Important note: It is not possible to send products that need repairs to Lenco directly.

Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

2. Disclaimer

Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual.

3. Disposal of the Old Device

Symbol of a trash bin crossed with a diagonal line and a black rectangular block below (no text or labels)

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).

4. DECLARATION OF CONFORMITY

Hereby, Commaxx declares that the radio equipment type [Lenco PA-200] is in compliance with directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

https://commaxx-certificates.com/doc/pa-200_doc.pdf

Type RF	Frequency range (MHz)	Power (dBm)
Bluetooth	2402-2480	<6
FM 87.5	108 -

5. Service

For more information and helpdesk support, please visit www.lenco.com Commaxx B.V. Wiebachstraat 37, 6466 NG Kerkrade, The Netherlands.

Nederlands

LET OP:

Technical diagram of a portable air conditioner with numbered labels pointing to ports and control buttons

Line drawing of a device with an electrical outlet connected to a front-mounted device (no text or symbols present)

SPECIFICATIES

Frequentierespons 38 Hz - 20 KHz

Voedingsbron---- 100-240 V\~, 50/60 Hz

Stroomverbruik 50 W

Simple line drawing of a coiled tube or wire with a looped end (no text or symbols)

Simple line drawing of an open book with no text or symbols visible

Line drawing of a mechanical device with a coiled cable and two ports (no text or symbols)

1. Garantie

Technical diagram of a portable refrigerator with numbered labels pointing to various control buttons and ventilation system.

Line drawing of a device with an electrical outlet connected to a rectangular device (no text or symbols)

SPEZIFIKATIONEN

Frequenzgang 38 Hz - 20 kHz

Simple line drawing of a coiled tube or wire with a looped end (no text or symbols)

Bedienungsanleitung

Simple line drawing of an open book with no text or symbols visible

Netzadapter

Line drawing of a mechanical device with a coiled cable and two ports (no text or symbols)

1. Garantie

Technical diagram of a portable air conditioner with numbered labels pointing to ports and control buttons

Line drawing of a mobile phone connected to a wall-mounted device (no text or symbols present)

CARACTÉRISTIQUES

Simple line drawing of a coiled tube or wire with a looped end (no text or symbols)

Mode d'emploi

Simple line drawing of an open book with no text or symbols visible

Adaptateur secteur

Line drawing of a mechanical device with a coiled cable and two ports (no text or symbols)

1. Garantie

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Technical diagram of a portable air conditioner with numbered labels pointing to ports and control buttons

Line drawing of a mobile phone connected to a wall-mounted power outlet (no text or symbols)

ESPECIFICACIONES

Simple line drawing of a coiled tube or wire with a looped end (no text or symbols)

Manual del usuario

Simple line drawing of an open book with no text or symbols visible

Adaptador CA

Line drawing of a mechanical device with a coiled cable and two terminal ports (no text or symbols)

1. Garantía

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical diagram of a toaster front panel with numbered labels pointing to various control buttons and fan components.

Line drawing of a device with an electrical outlet connected to a rectangular device (no text or symbols)

SPECIFIKATIONER

Frekvensområde---- 38 Hz-20 kHz

Strømkilde----100-240 V, 50/60 Hz

Strømforbrug----50 W

FM-radio----87,5-108,0 MHz

Simple line drawing of a coiled tube or wire with a looped end (no text or symbols)

Simple line drawing of an open book with no text or symbols visible

Line drawing of a mechanical device with a coiled cable and two ports (no text or symbols)

1. Garanti

Technical diagram of a portable air conditioner with numbered labels pointing to the interior panel.

Line drawing of a device with an electrical outlet connected to a rectangular device (no text or symbols)

SPECIFIKATIONER

Simple line drawing of a coiled tube or wire with a looped end (no text or symbols)

Bruksanvisning

Simple line drawing of an open book with no text or symbols visible

Nätadapter

Line drawing of a mechanical device with a coiled cable and two ports (no text or symbols)

1. Garanti

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)
