USER MANUAL FC9152 PHILIPS

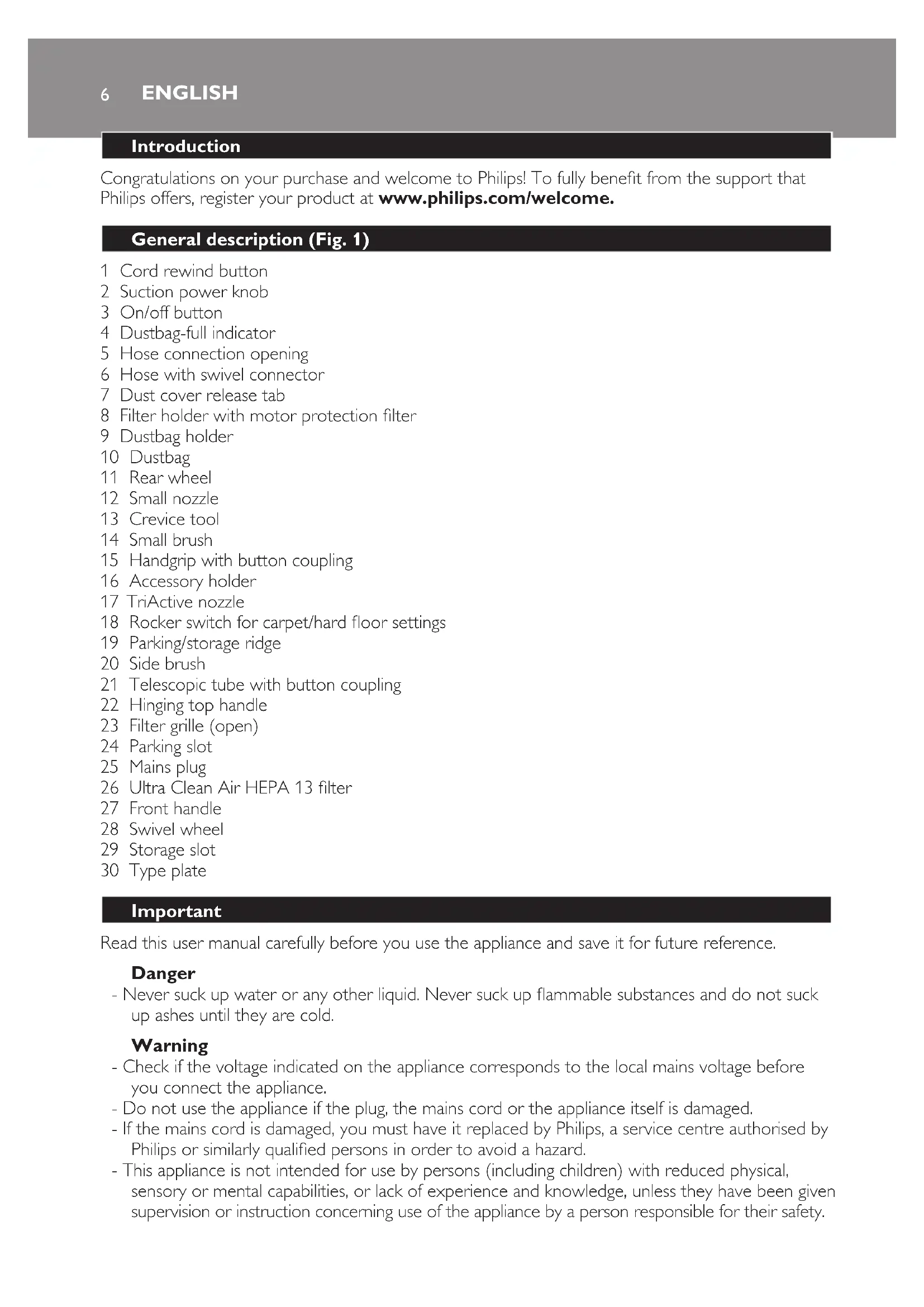

Register your product and get support at www.philips.com/welcome FC9150-FC91591FC9150-FC9159 English 6 Dansk 12 DEutsCh 18 Ελληνικα 24 Español 31 suomi 37 Français 43 italiano 49 nEDErlanDs 55 norsk 61 português 67 svEnska 73 türkçE 796 Introduction Congratulations on your purchase and welcome to Philips! To fully benet from the support that Philips offers, register your product at www.philips.com/welcome. General description (Fig. 1) 1 Cord rewind button 2 Suction power knob 3 On/off button 4 Dustbag-full indicator 5 Hose connection opening 6 Hose with swivel connector 7 Dust cover release tab 8 Filter holder with motor protection lter 9 Dustbag holder 10 Dustbag 11 Rear wheel 12 Small nozzle 13 Crevice tool 14 Small brush 15 Handgrip with button coupling 16 Accessory holder 17 TriActive nozzle 18 Rocker switch for carpet/hard oor settings 19 Parking/storage ridge 20 Side brush 21 Telescopic tube with button coupling 22 Hinging top handle 23 Filter grille (open) 24 Parking slot 25 Mains plug 26 Ultra Clean Air HEPA 13 lter 27 Front handle 28 Swivel wheel 29 Storage slot 30 Type plate Important Read this user manual carefully before you use the appliance and save it for future reference. Danger - Never suck up water or any other liquid. Never suck up ammable substances and do not suck up ashes until they are cold. Warning - Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance. - Do not use the appliance if the plug, the mains cord or the appliance itself is damaged. - If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualied persons in order to avoid a hazard. - This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. ENGLISH- Children should be supervised to ensure that they do not play with the appliance. - The plug must be removed from the socket-outlet before you clean or maintain the appliance. - Do not point the hose, the tube or any other accessory at the eyes or ears nor put it in your mouth when it is connected to the vacuum cleaner and the vacuum cleaner is switched on. Caution - When you use the vacuum cleaner to vacuum ashes, ne sand, lime, cement dust and similar substances, the pores of the dustbag become clogged. As a result, the dustbag-full indicator will indicate that the dustbag is full. Replace the dustbag, even if it is not full yet (see chapter ‘Replacing the dustbag’). - Never use the appliance without the motor protection lter. This could damage the motor and shorten the life of the appliance. - Only use Philips s-bag

synthetic dustbags. - During vacuum cleaning, especially in rooms with low air humidity, your vacuum cleaner builds up static electricity. As a result you can experience electric shocks when you touch the tube or other steel parts of your vacuum cleaner. These shocks are not harmful to you and do not damage the appliance. To reduce this inconvenience we advise you: 1 to discharge the appliance by frequently holding the tube against other metal objects in the room (for example legs of a table or chair, radiator etc.); (Fig. 2) 2 to raise the air humidity level in the room by placing water in the room. For example, you can hang containers lled with water from your radiators or place bowls lled with water on or near your radiators (Fig. 3). Electromagnetic elds (EMF) This Philips appliance complies with all standards regarding electromagnetic elds (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientic evidence available today. Preparing for use Hose 1 Toconnectthehose,pushitrmlyintotheappliance(‘click’)(Fig.4). 2 Todisconnectthehose,pushthebuttonsandpullthehoseoutoftheappliance(Fig.5). Telescopic tube 1 Toconnectthetubetothehandgrip,insertthehandgripintothetube.Fitthespring-loaded lockbuttonintotheopeninginthetube(Fig.6). - To disconnect the tube from the handgrip, press the spring-loaded lock button and pull the handgrip out of the tube. 2 Adjustthetubetothelengthyoundmostcomfortableduringvacuuming(Fig.7). TriActive nozzle and accessories 1 ToconnecttheTriActivenozzleoranaccessorytothetube,pressthespring-loadedlock buttononthetube(1)andinsertthetubeintothenozzleoraccessory(2).Fitthespring- loadedlockbuttonintotheopeninginthenozzleoraccessory.(Fig.8) Note: You can also connect the accessories directly to the handgrip of the hose in the same way. 2 Todisconnectthenozzleoranaccessoryfromthetube,pressthespring-loadedlockbutton andpullthenozzleoraccessoryoffthetube. ENGLISH 7TriActive nozzle The TriActive nozzle is a multi-purpose nozzle for carpets and hard oors. - The side brushes catch more dust and dirt at the sides of the nozzle and allow you to clean better along furniture and other obstacles (Fig. 9). - The opening at the front of the nozzle allows you to vacuum larger particles (Fig. 10). 1 Tocleanhardoors,pushtherockerswitchontopofthenozzlewithyourfoot(Fig.11). , Thebrushstripforcleaninghardoorscomesoutofthehousing.Atthesametime,the wheelisliftedtopreventscratchingandtoincreasemanoeuvrability. 2 Tocleancarpets,pushtherockerswitchagain(Fig.12). , Thebrushstripdisappearsintothenozzlehousingandthewheelisloweredautomatically. Accessories 1 Youcanconnectthecrevicetool(1),thesmallnozzle(2)orthesmallbrush(3)tothetube ordirectlytothehandgripofthehose(Fig.13). - Use the crevice tool to clean narrow corners or hard-to-reach places. - Use the small nozzle to clean small areas, e.g. the seats of chairs and sofas. - Use the small brush nozzle to clean computers, bookshelves etc. Accessory holder 1 Snaptheaccessoryholderontothehandgrip(Fig.14). 2 Snap two accessories into the accessory holder: - Crevice tool and small nozzle (Fig. 15). Note: The small nozzle must be placed in the accessory holder as shown in the picture. - Crevice tool and small brush (Fig. 16). Using the appliance 1 Pullthecordoutoftheapplianceandputthemainspluginthewallsocket. 2 Press the on/off button on top of the appliance with your foot to switch on the appliance(Fig.17). Adjusting suction power During vacuuming, you can adjust the suction power. - Use maximum suction power to vacuum very dirty carpets and hard oors. - Use minimum suction power to vacuum curtains, table carpets, etc. Suction power knob - During vacuum cleaning, you can adjust the suction power with the suction power knob on top of the appliance (Fig. 18) Pausing during use 1 Ifyouwanttopauseforamoment,inserttheridgeonthenozzleintotheparkingslotto parkthetubeinaconvenientposition(Fig.19). Storage 1 Slide the tube parts into each other to reduce the tube to its shortest length. 2 Switchofftheapplianceandremovethemainsplugfromthewallsocket. 3 Pressthecordrewindbuttontorewindthemainscord(Fig.20). ENGLISH84 Tostoretheapplianceinuprightposition,inserttheridgeonthenozzleintothestorage slot(Fig.21). 5 AlwaysputtheTriActivenozzleinthecarpetsettingwhenyoustoreit(brushstripretracted intothenozzle).Alsopreventthesidebrushesfrombecomingbent(Fig.12). Replacing the dustbag Always unplug the appliance before you replace the dustbag. Note: In some cases, the dustbag-full indicator can indicate that the dustbag is full, even though it is not. This may occur if the pores of the dustbag are clogged (e.g. when you have vacuumed ashes, ne sand, lime, cement dust and similar substances) or if something blocks the nozzle, tube and/or hose. If the pores of the dustbag are clogged, you have to replace the dustbag, even if it is not full yet. If the dustbag is not clogged but not full either, something blocks the nozzle, tube and/or hose. In this case, do not replace the dustbag but remove the obstruction. Replacing the dustbag - Replace the dustbag as soon as the dustbag-full indicator has changed colour permanently, i.e. even when the nozzle is not placed on the oor (Fig. 22). 1 Pullthecoverupwardstoopenit(Fig.23). 2 Liftthedustbagholderoutoftheappliance(Fig.24). Makesureyouholdtheholderwiththedustbaginhorizontalpositionwhenyouliftitoutofthe appliance. 3 Pullatthecardboardtagtoremovethefulldustbagfromtheholder(Fig.25). , The dustbag is sealed automatically. 4 Slidethecardboardfrontofthenewdustbagintothetwogroovesofthedustbagholderas faraspossible.(Fig.26) 5 Putthedustbagholderbackintothevacuumcleaner. Note: If you have not inserted a dustbag, you cannot close the cover. Cleaning and maintenance of lters Theplugmustberemovedfromthesocket-outletbeforeyoucleanormaintaintheappliance. Note: Only wipe the body of the appliance with a moist cloth. Permanent motor protection lter To guarantee optimal performance, clean the permanent motor protection lter every time you replace the dustbag. Note: Replace the motor protection lter once a year. 1 Removethedustbagholderwiththedustbag(Fig.24). 2 Pressthelterholderreleasetab(1)andtakethelterholderoutoftheappliance(2).Take themotorprotectionlteroutofthelterholder.(Fig.27) 3 Shakethelteroveradustbintocleanit. 4 Putthecleanlterbackintothelterholder.Fitthetwolugsofthelterholderbehindthe ridgeatthebottomtoensurethatittsproperlyatthetop(1).Thenpresshomethelter holder(2)(Fig.28). ENGLISH 95 Placethedustbagholderwiththedustbagbackintotheappliance. Ultra Clean Air HEPA 13 lter This appliance is equipped with the Ultra Clean Air HEPA 13 lter. This lter is located in the back of the appliance and is able to remove 99.9% of all particles down to 0.0003mm in size from the outlet air. This not only includes normal house dust, but also harmful microscopic vermin such as dust mites and their excrements, which are well-known causes of respiratory allergies. Note: Replace the HEPA 13 lter once a year. Replacing the HEPA 13 lter 1 Opentheltergrille(Fig.29). 2 Removetheoldlter(Fig.30). 3 Insertthenewlterintotheappliance. 4 Closetheltergrilleandpushthebottomcornersuntiltheysnaphome(Fig.31). Ordering accessories If you have any difculties obtaining lters or other accessories for this appliance, contact the Philips Consumer Care Centre in your country or consult the worldwide guarantee leaet. Ordering dustbags - Philips s-bag

classic long performance dustbags last 50% longer than standard dustbags, thanks to their non-clogging material. Available under type number FC8021. - Philips s-bag

anti-allergy dustbags reduce the exposure to allergens. Their HEPA 10 ltration level gives you a clean and healthy home environment. Available under type number FC8022. - Philips s-bag
