THL 1597 - Cooker Rommelsbacher - Free user manual and instructions

Product type	Portable cooking plate
Brand	Rommelsbacher
Model	THL 1597
Heating technology	Cast iron plate
Number of cooking zones	1
Diameter of cooking zone	18 cm
Nominal power	1375-1635 W (depending on voltage)
Voltage	220-240 V ~
Power supply	Earth socket
Control type	Continuous thermostat
Indicator light	Indicates heating phase
Energy consumption	195 Wh/kg
Functions	Heat, cook, reheat, keep warm
Intended use	Domestic and similar environments (staff kitchens, hotels, etc.)
Safety	Safe shutdown by unplugging; do not use with external timer
Child safety	Keep children under 8 years old away
Hot surfaces	Risk of burns; use oven mitts
Maintenance	Clean with a damp cloth and a little dish soap
Cleaning	Do not use abrasives, steel wool, sharp objects; do not immerse
Repairability	Have repairs done by an authorized specialist; do not open yourself

Frequently Asked Questions - THL 1597 Rommelsbacher

How to clean the cooking plate?

Unplug the appliance and let it cool down. Clean with a damp cloth and a little dish soap. Never use abrasives, steel wool, or sharp objects. Never immerse the appliance in water.

Can I use glass or porcelain cookware?

Yes, provided they are oven-safe. Ensure the bottom is smooth, clean, and dry, and of a diameter suitable for the plate (18 cm).

What is the maximum power of the THL 1597?

The nominal power is 1375-1635 W depending on the supply voltage (220-240 V).

How to set the temperature?

Use the continuous thermostat (scale from 1 to 12). The plate heats at full power until it reaches the desired temperature, then the thermostat maintains the temperature. The indicator light is on during heating phase.

Can I leave the appliance unattended?

No, always supervise the appliance while it is on, especially when cooking with oil or fat (risk of fire).

What to do if the power cord is damaged?

Unplug the appliance immediately. The cord must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any danger.

Can this appliance be built-in?

No, the appliance is not intended for built-in installation. It must be placed on a flat, stable, and heat-resistant surface with sufficient clearance around it.

Can a child use this appliance?

Children aged 8 years and older may use it under supervision. Children under 8 must be kept away. Cleaning and maintenance must not be done by children without supervision.

How to save energy with this plate?

Use appropriately sized cookware, cover pots, heat only the necessary water, and use residual heat by turning off the appliance before the end of cooking.

Why is there smoke during first use?

This is normal. Before first use, heat the plate at maximum power for about 5 minutes without cookware. Slight smoke may appear, it is harmless and comes from the protective coating.

USER MANUAL THL 1597 Rommelsbacher

Circular abstract pattern with interlocking vertical lines (no text or symbols)

ROMMELSBACHER

D Bedienungsanleitung
GB Instruction manual
F Mode d'emploi
I Instruzioni per l'uso
NL Handleiding

Serie THLSerie THL

Serie AKSerie AK

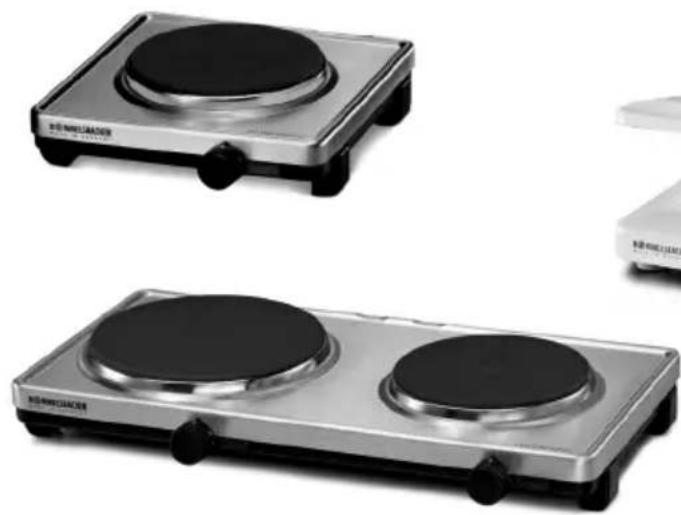

Two electric cooktop models with black and silver shades, placed side by side (no visible text or symbols)

White portable electric stove with black top and control knob (no visible text or symbols)

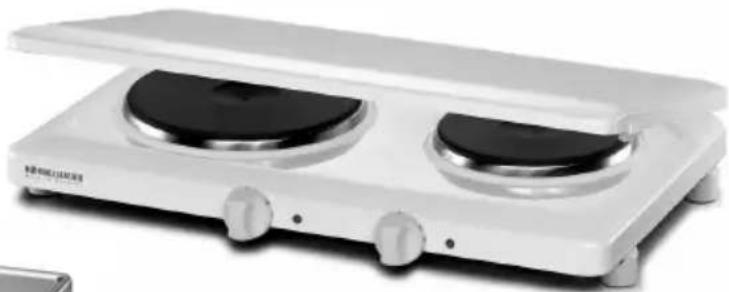

White portable stove with two black ovens and a lid, no visible text or symbols

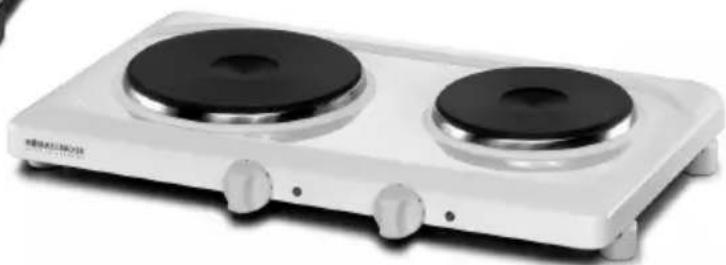

White portable electrical stove with two black burners on top (no visible text or symbols)

We are pleased you decided in favour of this product, manufactured in Germany, and would like to thank you for your confidence. To make sure you can enjoy using this cooking plate for a long time, please read through the following notes carefully and observe them. Keep this instruction manual safely. Hand out all documents to third persons when passing on the appliance. Thank you very much.

Intended use

The appliance is designed to be used in the household and similar areas, like for example:

• in staff kitchens, shops, offices and other small commercial areas,
• in agricultural holdings,
• by guests in hotels, motels, bed & breakfast and further similar living environments.

Other uses or modifications of the appliance are not intended and may constitute considerable risks of accident. For damage arising from any improper use, the manufacturer does not assume liability.

The appliance is designed for warming, heating and preparing food. The appliance is not intended for commercial use.

Technical data

Only connect the appliance to an isolated ground receptacle installed according to regulations. The rated voltage must comply with the details on the rating label. Only connect to alternating current.

Model Nominal voltage	Nominal power	1st Heating plate	2nd Heating plate
AK 1599/E 230 V 1500 W 14	5 mm ∅ 1500 W	-
AK 2099/E 230 V 2000 W 18	0 mm ∅ 2000 W	-
AK 3099/E 230 V 3000 W 14	5 mm ∅ 1500 W	180 mm ∅ 1500 W
THL 1097 220-240 V 915-10	90 W 145 mm ∅	915-1090 W -
THL 1597 220-240 V 1375-1	635 W 180 mm ∅	1375-1635 W -
THL 2297 THL 2297/A	220-240 V	2010-2395 W	145 mm ∅915-1090 W
THL 2597 THL 2597/A	220-240 V 22	90-2725 W 145 mm ∅915-1090 W	180 mm ∅1375-1635 W
THL 3097/A	220-240 V	2750-3265 W	145 mm∅ 1375-1635 W

The models THL 2597/A, THL 2297/A and THL 3097/A are provided with a cover, which can be removed for cleaning. The models THL 2597 and THL 2297 can be retrofitted with a cover. If required, please contact your local dealer.

Scope of supply

Check the scope of supply for completeness as well as the soundness of the product immediately after unpacking.

Warning: Read all safety advices and instructions. Nonobservance of the safety advices and instructions may cause electric shock, fi re and/or bad injuries!

General safety advices:

• Always keep children under 8 away from the product and the power cord.
• Cleaning and maintenance by the user must not be carried out by children unless they are 8 years of age or older and are supervised.
• These appliances can be used by children aged 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they use the appliance safely.
• Never leave the appliance unattended during operation.
  • Children must not play with the device.
• Packing material like e. g. foil bags should be kept away from children.
• Do not at all operate this unit with an external timer or a separate telecontrol system.
• Prior to each use, check the appliance and the accessories for soundness. It must not be operated if it has been dropped or shows visible damage. In these cases, the power supply must be disconnected and the appliance has to be checked by a specialist.
• When laying the power cord, make sure that nobody can get entangled or stumble over it so that accidentally pulling the appliance down can be avoided.
• Keep the power cord away from hot surfaces, sharp edges and mechanical forces. Check the power cord regularly for damage and deteriorations.
• If the power cord of this device is damaged, it must be replaced by the manufacturer or its customer service department or a similarly qualified person in order to avoid hazards.
• For disconnecting the appliance from the mains, only use the plug, never the cord!
• Never immerse appliance, power cord or plug in water for cleaning.
• Do not store the appliance outside or in dump rooms.
• This electrical appliance complies with the relevant safety standards. In case of signs of damage to the appliance or the power cord, unplug the appliance

immediately. Repairs may be effected by authorised specialist shops only. Improper repairs may result in considerable dangers for the user.

• If the power cord of this device is damaged, it must be replaced by the manufacturer or its customer service department or a similarly qualified person in order to avoid hazards.
• Improper use and non-observance of the instruction manual will void warranty.

Safety advices for using the appliance:

Warning: Hazard of injury and burns!

Casing surfaces and heating plates become hot during use and fi rstly stay hot after switch-off!

Thus, act with caution:

• We recommend using pot cloths and appropriate cooking utensils!
• Do not use the appliance's upper side as depositing rack or working top as it will get hot when operating the appliance! As protection against fi re, do generally not put objects made of paper, plastic, fabric or other infl ammable material on hot surfaces!
• Only use suitable pots or pans with sound, even bottom and appropriate diameter (also fi re-proof glass or porcelain). If the pot bottom is uneven or too small, you will waste energy. The heating plate and the pot bottom must always be clean and dry.
• Do not use cooking vessels made of plastic, inferior enamel, porcelain or aluminium foil.
• Attention! Hazard of fire! Overheated fats and oils can inflame. Therefore, food containing fats and oils may only be prepared under supervision!
• Never splash cold water on the hot heating plate!
• Appliance and accessories must have cooled completely before cleaning or moving them!
• The cover can be removed for cleaning. Please ensure that he cover will only be closed when the appliance is switched off and the heating plates have cooled down.
• Observe the following when setting up the appliance:

o Place the appliance on a heat-resistant, stable and even surface (no varni-shed surfaces, no table cloths etc.).
o Place it beyond children's reach.
o Leave an appropriate ventilation distance to all sides to avoid damage by heat or fat splatters and to grant an unobstructed work area. Unhindered air supply has to be ensured.

o Do not operate the appliance in the vicinity of sources of heat (oven, gas flame etc.) or in explosive environments, where inflammable liquids or gases are located.

• Attention! Hazard of fire! This appliance is not qualified for installation.
• Do not use the appliance as space heater.

ATTENTION: Pull the power plug after each use for safe switch-off.

Operating the appliance

• Before the first use, heat up each heating plate without a pot for approximately 5 minutes at maximum temperature. Thus, the plate coating gets its optimal protection effect. Please disregard the temporary formation of harmless smoke.

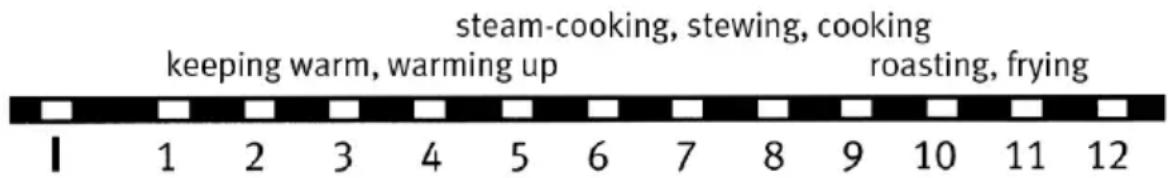

• The cooking plates are equipped with a thermostatic system that allows a continuous fine adjustment.
• Your cooking plate always heats up with the full power until the temperature is reached, which corresponds to the selected setting. Through the whole heating period the pilot lamp glows up. It turns off as soon as the adjusted temperature is reached. By the time the heating plate heats again to maintain the adjusted temperature, the pilot lamp glows up again. This illumination/extinction repeats consistently.
• After a while you will certainly find the applicable settings for your dishes. Then readjustment is not necessary anymore. The following scale is suitable for orientation:

Switch off your appliance in time, and use the residual heat stored in the heating plates for keeping dishes warm.

Cleaning and maintenance

CAUTION: Risk of injury or burns!

• Always unplug the power cord before cleaning!

CAUTION: Risk of injury or burns!

• Always allow the device to cool down before cleaning!

CAUTION: Risk of injury or burns!

- Do not immerse the device, power cord or power plug in water or clean them under running water!

Clean the appliance with a damp cloth and some dishwashing detergent.

• Keep the heating plates dry. Moisture and vapor leads to rust.
• Treat the surface of the heating plates with a suitable care product from time to time.
• Never use abrasives, solvents, steel wool or pointed objects!
• Never treat the appliance with a steam cleaner!

Extended product information in accordance with the EU regulation 66/2014 (Energy Saving Regulations)

Model identifi cation	AK 1599/E, THL 1097	AK 2099/E, THL 1597	AK 3099/E, THL 2297, THL 2297/A THL 2597, THL 2597/A, THL 3097
Hob type free standing free standing free standing
Number of cooking zones 1 1 2
Heating technology solid hot plate solid hot plate solid hot plate
Diameter 14.5 cm 18 cm 14.5 cm and 18 cm
Energy consumption of the cooking zone, kg each	195 Wh/kg	195 Wh/kg	14.5 cm ∅: 195 Wh/kg18 cm ∅: 195 Wh/kg
Energy consumption of complete cooking hob, kg each	195 Wh/kg	195 Wh/kg	195 Wh/kg

Test procedure

The product was tested according to the test standard DIN EN 60350-2: Household electric cooking appliances – Part 2: Hobs – Methods for measuring performance.

User information – Saving energy and resources – Tips for energy saving:

• Both, cooking zone and pot bottom must be clean and free of residues, in order to guarantee best the possible heat transfer.
• Always place the cookware on the cooking zone before switching the appliance on.
• Position the cookware in the middle of the cooking zone.
• The bottom of the cookware and the cooking zone should be about the same size.
• Using cookware with a too small diameter you will waste energy.
• When heating water, only heat the amount you actually require.
• During cooking, it is recommended to cover the cookware with a lid, if possible.
• Switch off the cooking zone in time and use the residual heat for keeping warm, melting, etc.

Disposal/recycling

Packaging material

Do not simply throw the packaging material away but recycle it. Deliver paper, cardboard and corrugated cardboard to waste paper collection points. Also put plastic packaging material and foils into the specific collection containers.

The printed or embossed markings indicate the materials which were used: PE stands for polyethylene (code 02 means high-density PE, 04 stands for low-density PE), PS stands for polystyrene and CPE for chlorinated polyethylene. PAP 20 means corrugated cardboard and PAP 21 other cardboard.

All plastics are thermoplastics which are very easy and efficient to produce. They are also very easy to recycle and therefore can even have a smaller ecological footprint than comparable cardboard packaging.

Disposal information

According to the Waste Electrical and Electronic Equipment Directive (2012/19/EU), this product may not be disposed of with other household waste at the end of its service life. Therefore please submit it e.g. at a municipal collection point (e.g. recycling center) according to the laws of your country of residence for the recycling of electrical and electronic appliances. Your municipality or city administration will inform you about the disposal options.
