BT Go - Bluetooth headphones MIDLAND - Free user manual and instructions

Product type	Bluetooth audio headset for scooters and motorcycles
Brand	Midland
Model	BT Go
Bluetooth version	3.0 with HFP, A2DP, AVRCP profiles
Power	2.5 mW
Talk time	8 hours
Charging time	2 hours
Battery type	Rechargeable lithium
Motorcycle-to-motorcycle intercom range	Up to 200 meters (depending on conditions)
Driver-passenger intercom	Full duplex
Water resistance	Completely waterproof
Noise reduction	DSP anti-noise technology
Main functions	Phone calls, stereo music (A2DP), GPS navigation, intercom
Box contents (Jet version)	BT Go unit, USB cable, spare microphone foam, speaker velcro
Box contents (Universal version)	BT Go unit, wired microphone (full-face helmet), boom microphone (open-face helmet), USB cable, spare microphone foam, speaker and microphone velcro
Equipment warranty	24 months
Accessories warranty	6 months
Care and cleaning	Clean with a soft, dry cloth. Avoid chemical products.
Safety	Do not expose to extreme temperatures or pressurized water. Use only the provided cable.
Spare parts and repairability	Contact Midland customer service at www.midlandeurope.com

Frequently Asked Questions - BT Go MIDLAND

How to turn the Midland BT Go on and off?

To turn on, press the Vol + and Vol - buttons simultaneously for 1 second. A voice message 'Power ON' confirms power on. To turn off, repeat the same action, you will hear 'Power OFF'.

How to pair the headset with a phone?

Make sure the headset is off. Hold the Vol + button for 5 seconds until the LED flashes alternately red and blue. On your phone, search for Bluetooth devices and select 'Midland BT GO'. If a PIN is requested, enter 0000.

How to answer a phone call?

When you receive a call, briefly press the Vol + button for 1 second to answer. To hang up, press Vol + again for 1 second.

How to enable or disable auto-answer?

To enable auto-answer (the headset answers after 8 seconds), hold Vol + for 7 seconds until you see a 1-second blue flash. To disable, do the same until 3 blue flashes.

How to use driver-passenger intercom?

To open or close the intercom, briefly press the Vol - button. One beep confirms opening, two beeps closing. The communication is full duplex.

How to pair two Midland BT Go intercoms?

On the first headset (off), hold Vol + for 5 seconds to enter pairing mode. On the second headset, follow the same procedure or refer to its manual for universal intercom pairing. Once connected, open the intercom by pressing Vol + for 3 seconds.

How to listen to streaming music?

Pair the headset with your phone or MP3 player. To play or pause, briefly press Vol +. To skip to next track, double-press Vol +; for previous track, double-press Vol -.

How to charge the Midland BT Go?

Use the provided micro USB cable and plug it into a USB wall adapter or PC port. Full charge time is about 2 hours. The LED indicates charging and turns off when complete.

What to do if the headset does not turn on?

Check that the battery is charged. Plug in the USB cable and let it charge for at least 30 minutes. If the problem persists, reset the pairings by holding Vol + and Vol - for 7 seconds while the device is off.

How to reset Bluetooth pairings?

Make sure the headset is off. Press Vol + and Vol - simultaneously for 7 seconds. The blue LED lights up for 3 seconds, then all pairings are erased.

USER MANUAL BT Go MIDLAND

Description of BT GO Jet 13
Description of BT GO Universal. 14
Installation 14
BT GO UNI 15
Charging. 15
BT GO main functionality 16

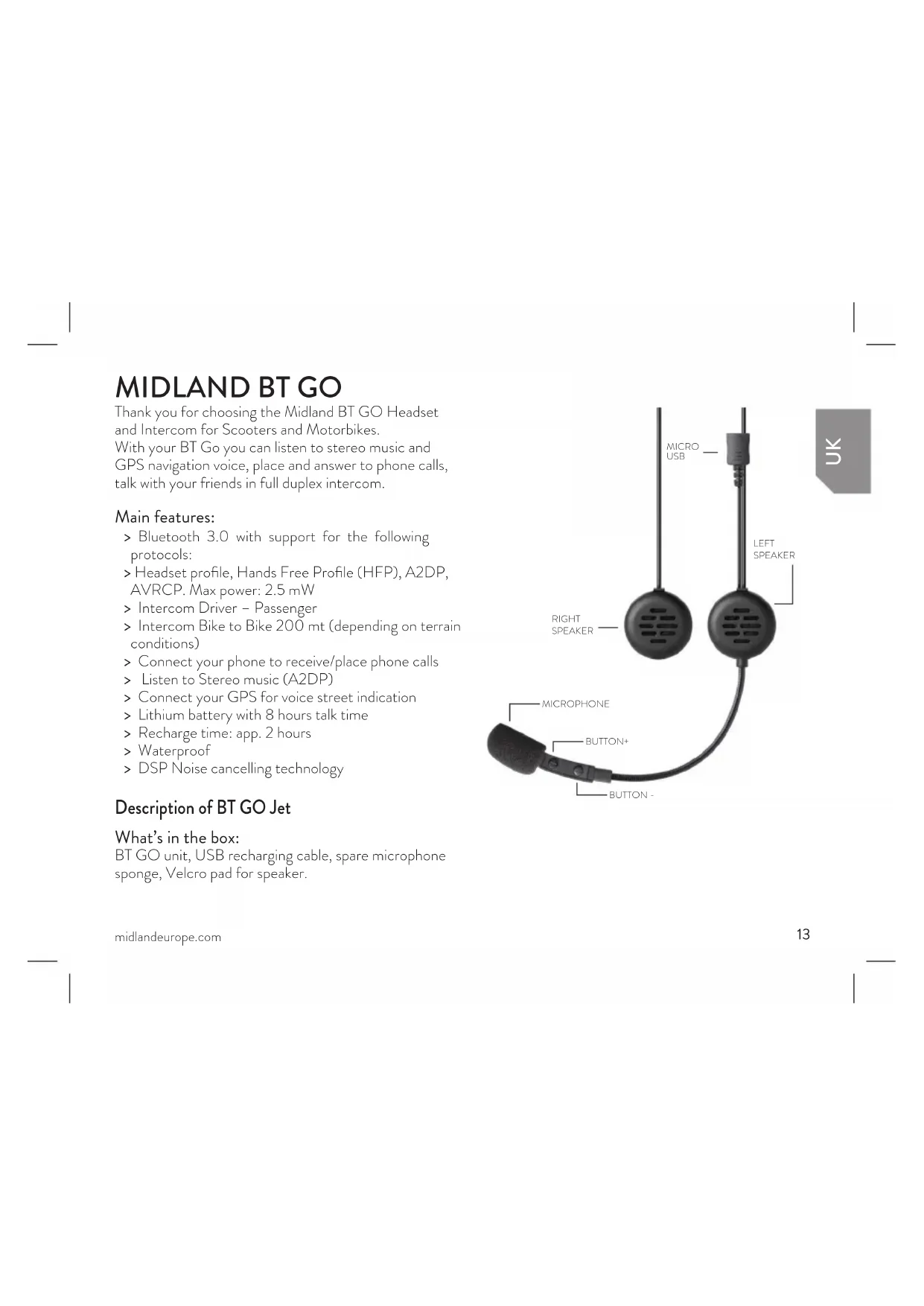

MIDLAND BT GO

Thank you for choosing the Midland BT GO Headset and Intercom for Scooters and Motorbikes. With your BT Go you can listen to stereo music and GPS navigation voice, place and answer to phone calls, talk with your friends in full duplex intercom.

Main features:

Bluetooth 3.0 with support for the following protocols:
Headset profile, Hands Free Profile (HFP), A2DP, AVRCP. Max power: 2.5 mW
Intercom Driver-Passenger
Intercom Bike to Bike 200 mt (depending on terrain conditions)
Connect your phone to receive/place phone calls
Listen to Stereo music (A2DP)
Connect your GPS for voice street indication
Lithium battery with 8 hours talk time
Recharge time: app. 2 hours
Waterproof
DSP Noise cancelling technology

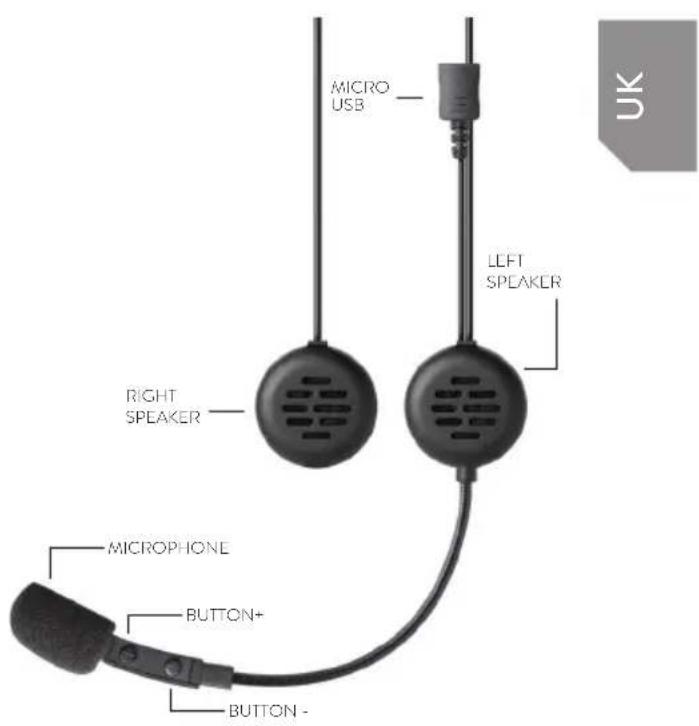

Description of BT GO Jet

What's in the box:

BT GO unit, USB recharging cable, spare microphone sponge, Velcro pad for speaker.

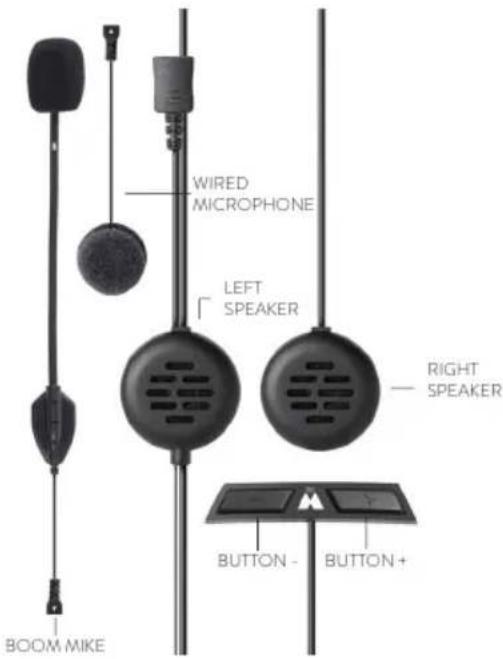

Description of BT GO Universal

What's in the box

BT GO unit, one wired microphone for full helmet, one microphone for open helmet, USB recharging cable, spare microphone sponge, Velcro pad for speakers and microphone.

Installation

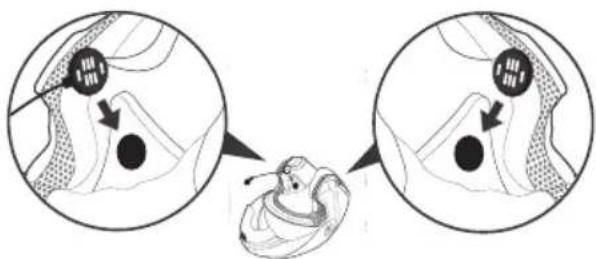

BT GO Jet

Place the speaker -boom mike on the left side of your helmet. You can fix the speaker-boom mike in the deep ear pocket of your helmet using the velcro pad. In the box you will find the velcro pad for the right speaker.

Keep the speaker as much as possible close and centered to your ear.

Place the microphone sponge as closely as possible to your mouth when wearing the helmet

You can hide the speaker wire under the helmet padding

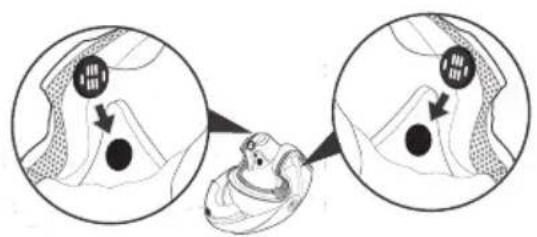

BT GO UNI

Place both speakers in the deep ear pocket of your helmet. You can fix the speakers using the velcro pad. In the box you will find the velcro pad for the right speaker.

Place both speakers as much as possible close and centered to your ear. Place the wired microphone in front of your mouth using the adhesive Velcro pad.

If you are using the half-boom microphone, fix the

boom on the left side and keep the sponge as closely as possible to your mouth when wearing the helmet. Be sure the white arrow is facing your mouth.

Place the external button on the left side of your helmet using the 3M adhesive

You can hide the speaker wire under the helmet padding

Charging

You can charge your BT GO using any standard USB wall adapter or PC port connecting to the microUSB port

Only the USB cable is supplied inside the box. It takes about 2 hours to fully charge.

BT GO main functionality

Midland BT GO is a full duplex intercom communication system for Driver to Passenger and Bike to Bike communication with a maximum distance of 200 mt (depending on terrain conditions). In addition you can listen to Stereo music, place and answer to phone calls or receive voice street indications from the GPS.

If, during intercom communication you receive a phone call, the intercom is closed and reopens as soon as the phone call is over.

If, while you are listening to music, the intercom communication is open, the music will be paused. When the intercom is closed, the music is automatically resumed.

If, while you are listening to music, a phone call arrives, the music is paused. When the phone call is closed, the music is automatically resumed.

ATTENTION: Midland BT GO automatically answers to an incoming phone call after 8 sec. You can disable this feature and manually answer to the incoming calls. Enable auto answer Vol+ for 7 sec (LED light: full blue 1 sec)

Disable auto answer Vol+ for 7 sec (LED light blink blue 3 time)

Basic Functionalities

Turn ON Vol+ and Vol- for 1 sec Voice prompt: “Power on” and “battery status”

Turn OFF Vol+ and Vol- for 1 sec Voice prompt: “Power off”

Volume adjustment Vol+ or Vol- for 1 sec

Pairing to a phone/GPS
Start pairing on BT GO	Unit is off Vol+ for 5 sec Red and Blue LED blink alternate Voice: “PAIRING” when starts, “PAIRING successful” when finishes
Start pairing on Bluetooth devices (phone/GPS/MP3)	Searches for Bluetooth device and select “Midland BT GO” from the list
PIN (if requested)	“0000”
How to use a phone
Answer call Vol+ for 1 sec when ringing
End call Vol + for 1 sec
Reject call Vol + for 3 sec when ringing
Voice dial Vol - double click
Redial Vol + double click (voice prompt:redial)
Cancel redial Vol + double click
Auto answer feature By default the “Auto answer” is active, that means the BT GO will automatically answer to an incoming call after 8 sec.

How to use a music player

Play/Pause music Vol + short press

FWD song Vol + double click

BWD song Vol - double click

Pairing to another BTGO Unit

Start pairing on both BT GO Units

Unit is in stand by mode, press Vol- for 5sec on both units, Red and Blue LED blink alternate. Voice prompt : “PAIRING successful”

How to use the intercom

Open/Close intercom

Vol- short press

Pairing to another Intercom

It is possible to pair the BTGO to another model/brand intercom, if the other unit supports the Universal Intercom feature. The BT GO will use the phone pairing to connect to the Universal Intercom of the other unit.

Start pairing on BT GO Unit	Unit is power off Vol+ for 5 sec Red and Blue LED blink alternate
Start pairing on other Intercom	Follow the manual for UNIVERSAL INTERCOM PAIRING on the other unit

How to use the Universal Intercom

Open/Close Intercom

Vol + for 3 sec / Vol + for 1 sec

Special Action

Reset all pairing	Unit is power off: Vol- and Vol+ for 7 sec (LED full blue for 3 sec)
Cancel Pairing	When pairing is in progress, double click on Vol+ or Vol-
Enable auto answer	Vol+ for 7 sec (LED light: full blue 1 sec)
Disable auto answer	Vol+ for 7 sec (LED light: blink blue 3 times)

Voice prompt/Beep/Light

ACTION VOICE PROMPT BEEP ALERT LED LIGHT
When you turn on the unit	Power ON + battery status Blinking Blue
When you turn off the unit	Power OFF Blinking Red 3 times
During PAIRING Pairing Red /Blue alternate
After PAIRING Pairing successful
Answer phone call 1 Beep
End phone call 1 Beep
Reject phone call 2 Beep
Voice command 1 Beep
Redial	Redial
Play/pause		1 Beep 1 Beep
FWD		1 Beep
BWD		1 Beep
Intercom open 1 Beep
Intercom close		2 Beep
Adjust volume		1 Beep
Charging			Blinking red
Full charge			Full blue
Enable auto answer	On		Full blue 1 sec
Disable auto answer	Disable Blink blue 3 times

Warranty

The warranty lasts 24 months for the main device and 6 months for the accessories (batteries, chargers, antennas, headsets, microphones).

For further information about the warranty, please visit www.midlandeurope.com

European CE Notice Certification and Safety Approval Information

This product is CE marked according to the RED directive 2014/53/UE and is free use in all the EU countries.

Users are not permitted to make any changes or modifications to the device.

Modifications which are not expressly approved by the producer invalidate the warranty card.

For further information, please go to our website: www. midlandeurope.com

Inhalt

Haupteigenschaften: 22
Uberlick BT GO Jet. 22
Uberlick BT GO Universal 23
Installation 23
Laden 24
Ansage/Signalton/LED 28

MIDLAND BT GO

Ansage/Signalton/LED

Hereby Cte International Srl declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/UE. The declaration of conformity is available on the web site http://www.midlandeurope.com/it/page/10090-certifications

AT/DE/CH/LI

midlandeurope.com/it/pagea/10090-certifications

FR/LU/CH

http://www.midlandeurope.com/it/page/10090-certifications

PT

• All articles displaying this symbol on the body, packaging or instruction manual of same, must not be thrown away

into normal disposal bins but brought to specialised waste disposal centres. Here, the various materials will be divided by characteristics and recycles, thus making an important contribution to environmental protection.

• Alle Antikel, die auf der Verpackung oder der Gebrauchanweisung these Symbol tragen, dürfen nicht in den normalen Mülltonnen entsorgt werden, sondern müssen an gesonderten Sammelstellen abgegeben werden. Dort werden die Materialien entsprechend ihrer Eigenschaften getrennt und, um einen Beitrag zum Umweltschutz zu liefern, wiederverwertet.
• Todos los articulos que exhiban este símbolo en el cuerpo del producto, en el embalaje o en el manual de instrucciones del本身就是, no deben ser desechados jusqu'à los residuos urbanos normales sino que deben ser depositados en los centros de recogida especializados. En thesecentros, los materiales se dividirán en base a sus caracteristicasyearan reciclados, para asipoder contribuirde manera im-portante a la proteccion y conservacion del medio ambiente.
  Tous les articles presentant ce symbole sur le corps, l'em ballage ou le manuel d'utilisation de celui-ci ne doivent pas etre jets dans des poubelles normales mais etre amenes dans des centres de traitement spécialisés. La, les differents materiaux seront séparés par caractéristiques et

Produced or imported by: CTE INTERNATIONAL srl

Via.R.Sevardi 742124 Reggio Emilia - Italy.

Read the instructions carefully before installation and use.
