Retro ST19020 - Toaster SWAN - Free user manual and instructions

Product Type	Toaster
Brand	Swan
Model	Retro ST19020
Dimensions (approx.)	28 x 17 x 19 cm
Weight (approx.)	1.2 kg
Power Supply	220-240 V ~ 50/60 Hz
Power (approx.)	900 W
Capacity	2 slices of bread
Housing Material	Stainless steel and plastic
Browning Levels	6 adjustable levels (1-6)
Special Functions	Defrost (Frozen Bread), Bagel, Cancel
Motorized Pop-up	Yes
Crumb Tray	Removable, slide-out
Safety	Automatic shut-off if jammed, non-slip base, overheat protection
Power Cord	Short (approx. 70 cm) with storage
Care and Cleaning	Empty crumb tray after each use, clean exterior with a damp cloth and mild detergent
Spare Parts and Repairability	Crumb tray available, repair by authorized center
Warranty	2 years (domestic)
General Information	Domestic use only, do not immerse, unplug after use

Frequently Asked Questions - Retro ST19020 SWAN

How to use the toaster for the first time?

Unpack the appliance and remove all packaging. Place it on a flat, heat-resistant surface. Set the browning level to 3 or 4. Insert one or two slices of bread, lower the lever and wait for the toast. A slight odor may occur during first use, this is normal.

How to clean the toaster?

Unplug the appliance and let it cool completely. Remove the crumb tray by sliding it out, empty and clean it. Wipe the exterior with a soft cloth dampened with soapy water. Do not use abrasive cleaners and never immerse the appliance in water.

What to do if bread gets stuck in the toaster?

Unplug the appliance immediately and let it cool. Never use metal utensils to remove the bread. Gently turn the toaster upside down to dislodge crumbs or use wooden tongs.

How to use the defrost function?

Insert frozen bread into the slots, lower the lever, then press the Frozen Bread button. The toasting cycle will be adapted to defrost and toast the bread simultaneously.

What is the Bagel function for?

The Bagel function warms the outer crust and toasts the cut side of bagels or English muffins. Insert the bagel cut side facing inward, lower the lever and press the Bagel button.

How to stop the toaster during operation?

Press the Cancel button to immediately interrupt the toasting cycle. The lever will automatically rise.

What are the important safety precautions?

Do not touch hot surfaces, use handles. Never immerse the appliance, cord or plug in water. Supervise when used by children. Unplug after use and before cleaning. Do not use outdoors.

Why does my toaster emit an odor on first use?

This is due to the evaporation of light manufacturing oils. It is a normal phenomenon that disappears after the first use and does not affect the taste of the toast.

What is the length of the power cord and can I use an extension cord?

The cord is short to avoid tangling hazards. You can use an extension cord, but it must have a power rating at least equal to that of the appliance and be arranged so that it does not drape over the table.

How to contact customer service?

For any questions, contact Salton Canada at 514-685-3660 (extension 226) or by email at [e-mail]. Before returning the appliance, attach proof of purchase and a completed form with a payment of $12.50 for shipping costs.

USER MANUAL Retro ST19020 SWAN

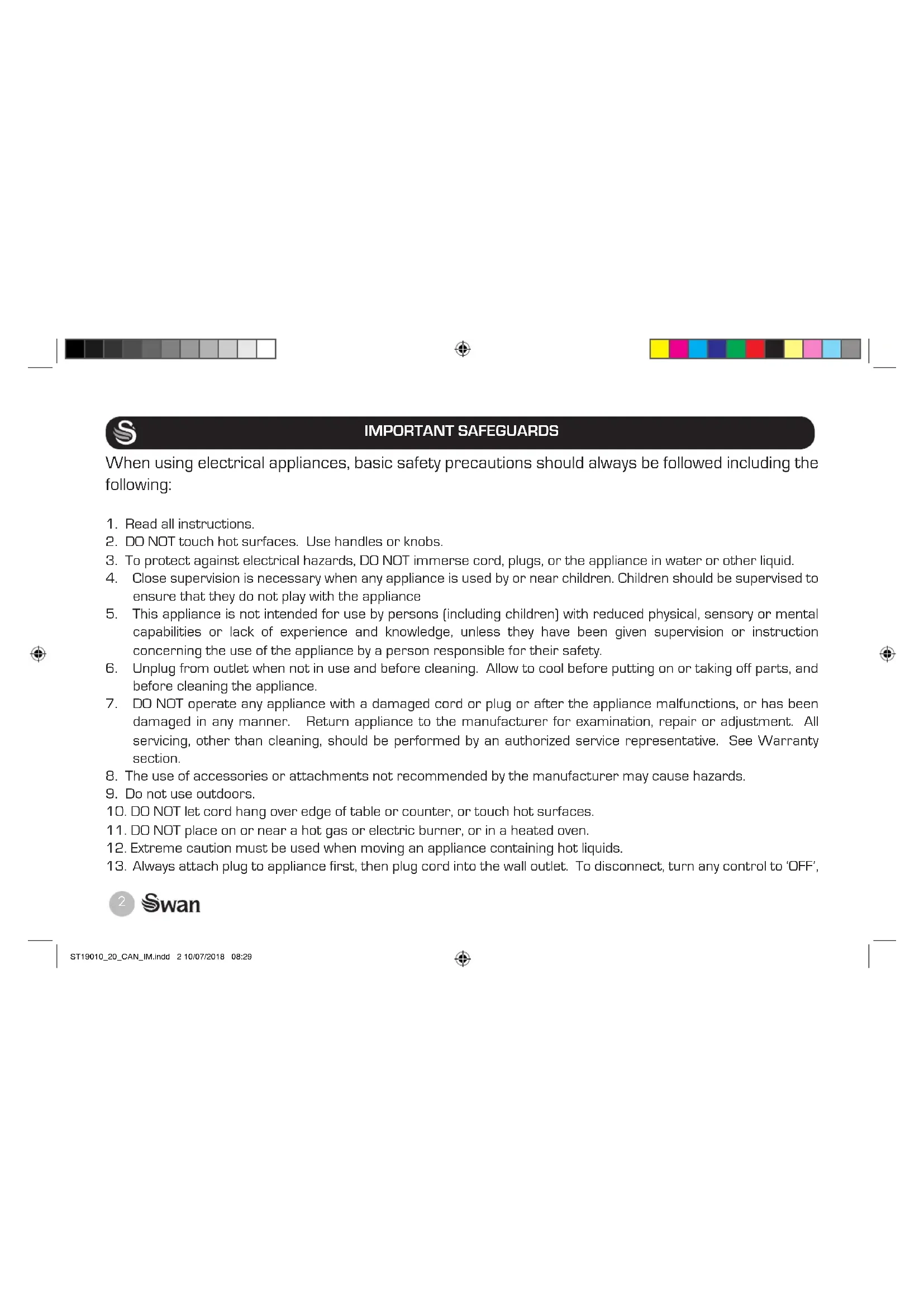

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.
2. DO NOT touch hot surfaces. Use handles or knobs.
3. To protect against electrical hazards, DO NOT immerse cord, plugs, or the appliance in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance
5. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
7. DO NOT operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the manufacturer for examination, repair or adjustment. All servicing, other than cleaning, should be performed by an authorized service representative. See Warranty section.
8. The use of accessories or attachments not recommended by the manufacturer may cause hazards.
9. Do not use outdoors.
10. DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
11. DO NOT place on or near a hot gas or electric burner, or in a heated oven.
12. Extreme caution must be used when moving an appliance containing hot liquids.
13. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'OFF',

Swan

IMPORTANT SAFEGUARDS

then remove plug from wall outlet.

1. DO NOT use appliance for other than intended use.
2. DO NOT leave unit unattended while in use.
3. Oversize foods, metal foil packages, or utensils must not be inserted in a toaster as they may involve a risk of fire or electric shock.
4. A fire may occur if toasters are covered or touching flammable material, including curtains, draperies, walls and the like, when in operation.
5. DO NOT attempt to dislodge food when toaster is plugged in.
6. DO NOT place any bread or object on top of the toaster. This will block airflow and cause fire or damage to the toaster.

SAVE THESE INSTRUCTIONS

HOUSEHOLD USE ONLY

GROUNDED PLUG

To reduce the risk of electric shock this appliance has a grounded plug [2 blades and 1 pin]. If the plug does not fit fully into the electrical outlet contact a qualified electrician. Do not modify the plug in any way or use an adaptor.

Swan 3

HOW TO USE

BEFORE FIRST USE

Unpack the toaster and remove all packaging materials etc.

• Place the toaster on a suitable, level, heat resistant surface. Set the browning dial to 3 or 4.
• Place one or two slices of bread into the toaster slots.
• Press down the carriage lever. NOTE: The carriage lever will only stay down if the product is connected to the electricity supply. The toast will pop up when it is ready

THINGS TO NOTE:

On first use, you may notice a slight odour. This is caused by the evaporation of light oils used in manufacture. This only occurs on the first use and does not affect the taste of your toast.

OTHER FUNCTIONS:

The Defrost bread setting is perfect for defrosting and toasting frozen bread. To use this function, press the carriage lever down then press the Frozen Bread button.

The Bagel setting warms the outside crust and browns the cut side of the bagel, English muffin, etc.

The Cancel function interrupts the toasting process in any mode

CLEANING & MAINTENANCE

ALWAYS ENSURE THE PRODUCT IS UNPLUGGED AND COMPLETELY COOL BEFORE CLEANING.

• This product requires very little maintenance.
• The toaster is equipped with a crumb tray which slides out from the bottom of the toaster. This should be removed and the crumbs discarded after each use. Excessive build up of crumbs can cause an unpleasant odour and - in extreme cases - pose a fire hazard.
• For cleaning external surfaces, a soft cloth moistened with a mild detergent solution is all that is required.

DO NOT USE ABRASIVE OR STRONG CHEMICAL CLEANERS

DO NOT IMMERSE ANY PART OF THE PRODUCT IN WATER

All servicing, other than cleaning, should be performed by an authorized service representative. See Warranty section

POWER CORD

A short supply cord is provided to reduce the hazards of becoming entangled in or tripping over a long cord. Extension cords may be used if care is exercised in their use. If an extension cord is used, the marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance. If the appliance is of the grounded type, the extension cord should be va grounded 3-wire cord. The extension cord should be arranged so that it will not drape over the counter top or table top, where it can be pulled on by children or tripped over.

LIMITED WARRANTY

**The original sales receipt is the only acceptable proof of purchase**

Salton Canada warrants that this appliance shall be free from defects in material and workmanship for a period of two (2) years from the date of original purchase. Salton Canada, at its sole discretion during this warranty period, will repair or replace a defective product or issue a refund. Any refund to the purchaser will be at a pro-rated value based on the remaining period of the warranty. All liability is limited to the amount of the purchase price. This warranty covers normal domestic usage and does not cover damage which occurs in shipment or failure which results from alteration, accident, misuse, abuse, glass breakage, neglect, improper maintenance, use contrary to the operating instructions or commercial use. This warranty is not available to retailers or other commercial purchasers or owners.

TO OBTAIN PROMPT WARRANTY SERVICE:

Contact one of our many Service Centers found on our website: www.salton.com/customer-care

or

Securely package and return the appliance to us. Please enclose:

Original proof of purchase
The completed form below with a $12.50 Return Shipping & Handling fee - either a cheque, money order or credit card (A personal cheque will delay return shipping by 2-3 weeks)

For added protection, we suggest that you use an insured delivery service with tracking information when returning your product. Salton Canada will not be held responsible for in-transit damage or for packages that are not received. This warranty does not include the cost of shipping, which is to be borne by the customer.

Swan

WARRANTY FORM

Name

Address

City

Prov/State

Postal/Zip Code

Daytime Phone No.

Email

Product defect:

Type of payment: Cheque/Money Order

Viss

MasterCard

Name on card

Expiry Date CSV No

Card No.

To contact our Customer Service Department:

SALTON CANADA

81A Brunswick,

Dollard-des-Ormeaux, Quebec H9B 2J5 Fax: [phone]

Canada

Telephone: [phone] (Ext

E-mail: [e-mail]

www.salton.com

Swan

INFORMATIONS DE SECURITE IMPORTANTES

Scan this QR code to hear about our story

We love what we do

we're proud of our quality

Find us on Facebook

Distributed by / Distribué par: Salton Appliances [1985] Corp. 81A Brunswick, Dollard-des-Ormeaux, Quebec, Canada H9B 2J5
