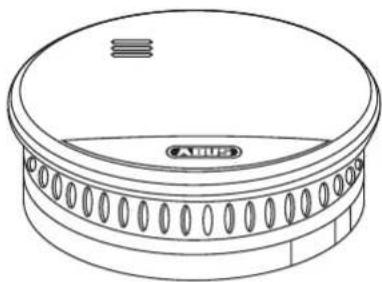

USER MANUAL RWM90 ABUS

Please read carefully through this instruction for use before starting up! Smoke detectors help save lives! Please keep save this instruction for use.

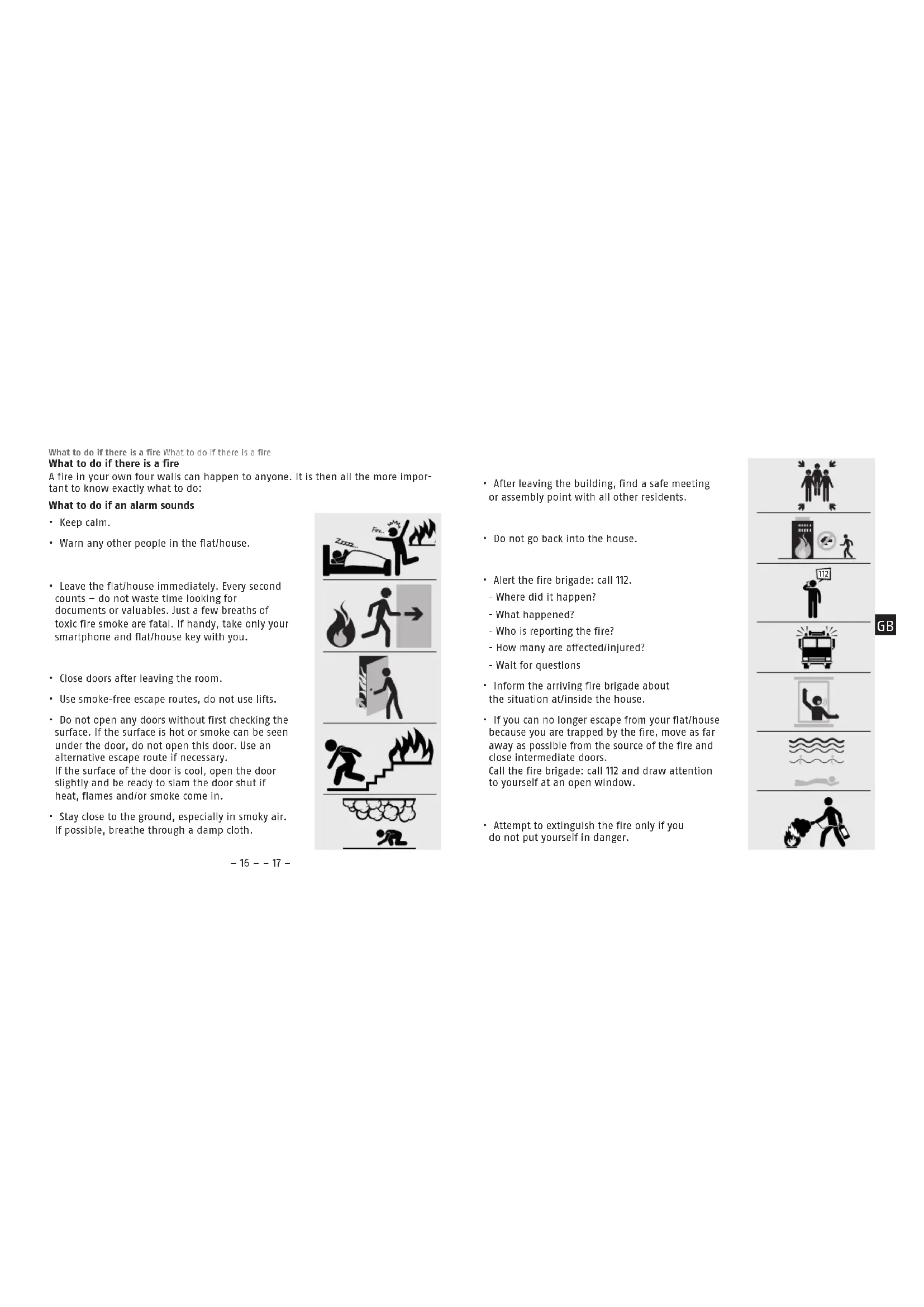

0333-CPR-292100-5 EN14604-2005/AC-2008– 16 – – 17 – What to do if there is a fire A fire in your own four walls can happen to anyone. It is then all the more impor- tant to know exactly what to do: What to do if an alarm sounds

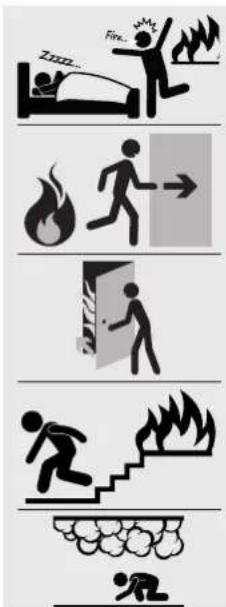

• Warn any other people in the flat/house.

• Leave the flat/house immediately. Every second counts – do not waste time looking for documents or valuables. Just a few breaths of toxic fire smoke are fatal. If handy, take only your smartphone and flat/house key with you.

• Close doors after leaving the room.

• Use smoke-free escape routes, do not use lifts.

• Do not open any doors without first checking the surface. If the surface is hot or smoke can be seen under the door, do not open this door. Use an alternative escape route if necessary. If the surface of the door is cool, open the door slightly and be ready to slam the door shut if heat, flames and/or smoke come in.

• Stay close to the ground, especially in smoky air. If possible, breathe through a damp cloth.

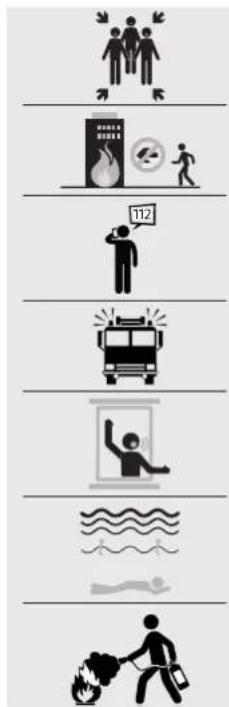

• After leaving the building, find a safe meeting or assembly point with all other residents.

• Do not go back into the house.

• Alert the fire brigade: call 112. - Where did it happen? - What happened? - Who is reporting the fire? - How many are affected/injured? - Wait for questions

• Inform the arriving fire brigade about the situation at/inside the house.

• If you can no longer escape from your flat/house because you are trapped by the fire, move as far away as possible from the source of the fire and close intermediate doors. Call the fire brigade: call 112 and draw attention to yourself at an open window.

• Attempt to extinguish the fire only if you do not put yourself in danger.

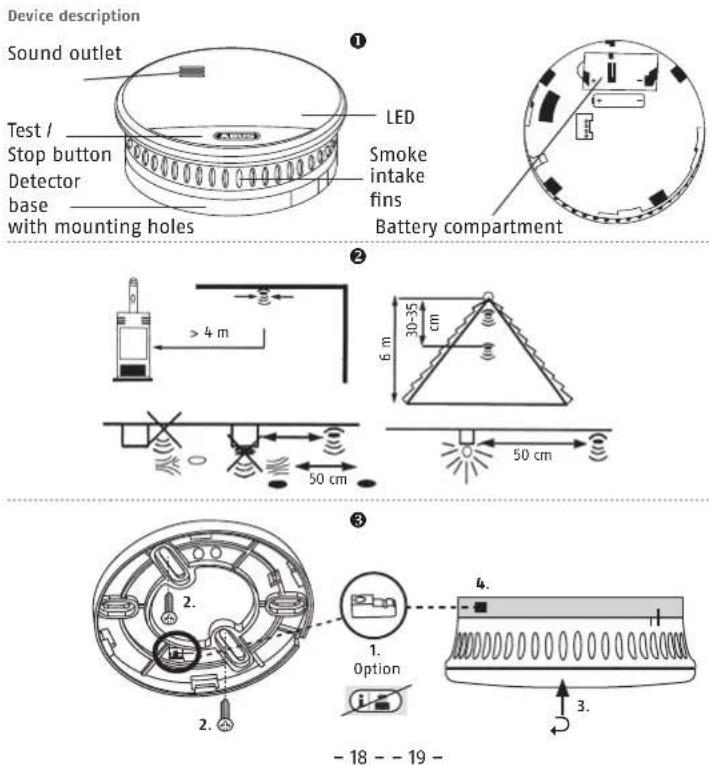

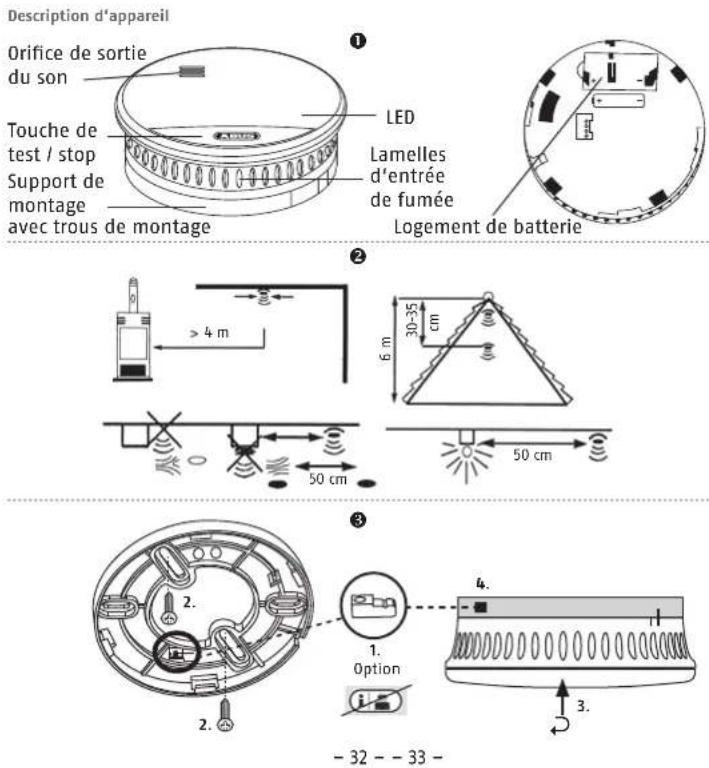

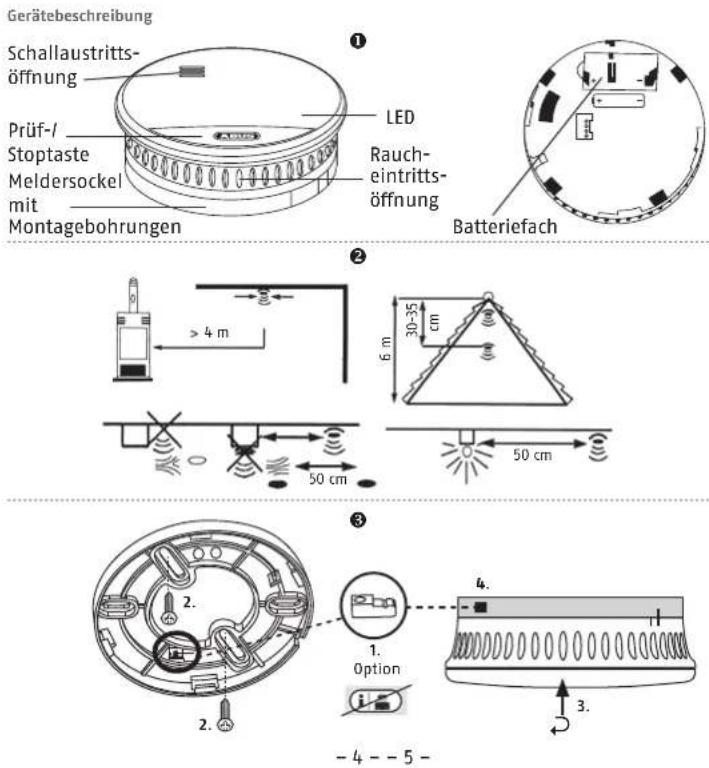

What to do if there is a fire What to do if there is a fire GB– 18 – – 19 – Device description 4 m 6 m 30-3550 cm50 cm

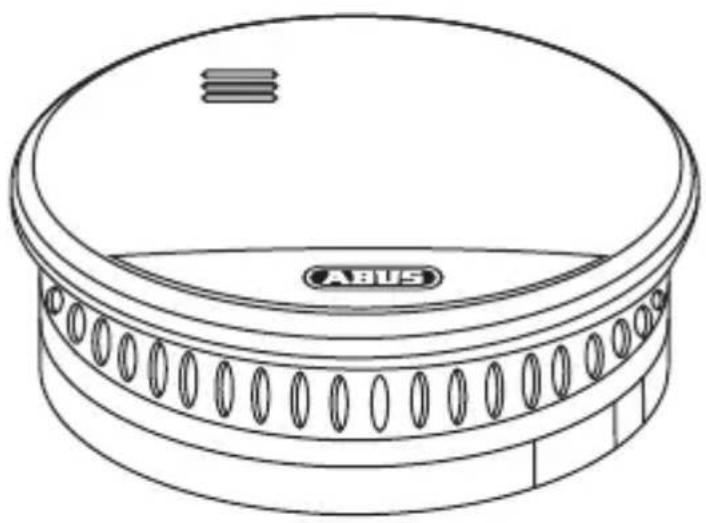

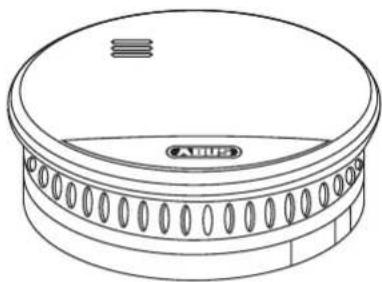

Scope of delivery RWM90 smoke detector, including battery and installation material, this user manual Device description, see diagramm The status lamp (LED) is under the cover and shines through it. Press the lower section of the housing cover to actuate the Test/Stop button. Function and features Smoke detection Photoelectric reection Sound level At least 85 dB at a distance of 3 metres Optical alarm display LED ashes every 6 Minutes Temperature range -10°C to +45°C Humidity 10% to 90% Power supply 1 x 3 V lithium battery Power consumption max. 25 mA Environmental conditions Only approved for indoor use Battery service life up to 5 years Audible battery warning Approx. 30 days before discharge Height 36 mm Diameter 102 mm Applied standards Area of application EN 14604-2005 DIN 14676 Device description

Battery compartment Sound outlet Detector base with mounting holes Test / Stop button LED Smoke intake

GB– 20 – – 21 – Explanation of symbols The following symbols are used in this manual and on the device: Warning

• The smoke detector does not detect gas, steam, heat or fire/flames. Detectors with special sensors are required for this. People with hearing impairments may not be able to hear the alarm. Special alarms with visible signalisation are available for such cases.

• Smoke detectors help save lives. Therefore, for safety’s sake, you should regularly test the battery and the operation of the detector. For day-to day use, remember that the smoke detector cannot prevent fires but simply provides signalization in the event of one. For your own safety, please replace smoke detectors every ten years at the latest.

• Very high electromagnetic radiation can cause malfunctions. Therefore, do not install the detector near strong magnets or devices which produce electromagnetic radiation. The smoke detector works optically by measuring smoke particles that penetrate into its measurement chamber. When the alarm threshold is exceeded, a loud alarm sounds. The alarm is switched off as soon as there is Symbol Signal word Meaning Warning Indicates risk of injury or health hazards. Warning Indicates risk of injury or health hazards caused by electrical voltage. Important Indicates possible damage to device/accessories. Note Indicates important information. Device description Safety information no more smoke in the measuring chamber.

• Automatic battery state monitoring

• Battery compartment check (the smoke detector can only be installed when the battery is fitted) Proper use Only use the device for the purpose which is was designed and built for. Any other use is considered inappropriate. This device may only be used for the following purpose(s):

• Detecting fire/smoke in private households Warning Observe the following instructions to prevent any failure of the device:

• Do not cover the device.

• Do not paint over the device or cover it with wallpaper.

• Never open the device or attempt to repair it, as its function can then no longer be guaranteed. Failure to observe this instruction will invalidate the warranty.

• Do not use the device if it has been dropped or damaged in any other way.

• If you pass on the device to someone else, you must include this user manual. Before operation Warning

• Keep children away from the packaging – there is a risk of suffocation.

• Remove all packaging material before using the device. Safety information GB– 22 – – 23 – For recommended installation locations, see the diagram

• Position the smoke detector directly on the ceiling in the centre of the room.

• Priority rooms: living rooms, bedrooms and children’s playrooms.

• If you have more than one bedroom, each one should be fitted with a smoke detector.

• To monitor corridors, you should also fit smoke detectors there, because stairwells are particularly susceptible to fires due to the chimney effect. Long corridors might require several smoke detectors.

• The distance between smoke detectors should not be more than 8 metres.

• When fitting on the ceiling, make sure that the smoke detectors are at least 15 cm from the side walls and 60 cm from the corners. Warning Avoid the following locations to prevent malfunctions of the smoke detector:

• Places where expected temperature variations are greater than the ambient operating temperature (-10°C to +45°C).

• Places where draughts can keep smoke away from the detector, such as near windows, doors or ventilation shafts.

• Places where vapour, increased air humidity or exhaust fumes may trigger false alarms, e.g. in kitchens, bathrooms or garages.

• Places where dust or dirt could impair the function of the smoke detector.

• The highest point in rooms with gable ceilings. The distance to the highest point of the gable should be at least 30 cm. Safety information For installation and attachment, see the diagram Warning

• When marking out the drill holes, make sure there are no electrical wires or cables, pipes or other important components behind them.

• If in doubt, consult an expert before drilling.

• If you are fitting the smoke detector in a vehicle (such as a camper or caravan), you must contact the manufacturer or your local dealer first for information on the most suitable location.

1. Loosen the smoke detector from the base of the housing by turning it

anticlockwise. Mark the drill holes through the base.

2. Drill the holes, put in the plugs and screw in the base.

3. Remove the transport safety device (discharge protection for the battery) on

the negative battery terminal of the detector (see the diagram ) and fasten the smoke detector by twisting it clockwise onto the base. The detector has a safety device that prevents installation without a battery.

4. If you cannot fasten the smoke detector to the base:

Check whether the battery is correctly inserted and connected. Operation and function (test)

• The smoke detector is ready for use as soon as you put in the battery.

• Under the housing cover there is an indicator lamp which flashes about every 6 minutes to show that the battery is correctly inserted and is delivering enough power to generate an alarm.

• Check the function of the smoke detector at regular intervals. Press the lower section of the housing cover for 5 seconds. If you hear a signal, the device is working properly and can be fastened.

• By testing the device electronics, the mute function is automatically activated for 9 minutes, during which time the LED will flash once every 10 seconds. After this 9-minute period, the detector will automatically Installation Puting into operation GB– 24 – – 25 – Putting into operation return to normal operating mode, in which the LED will again flash once approximately every 6 minutes.

• Alternatively, you can use the RM test spray available from ABUS to test the smoke detector. If the RM test spray enters the detection chamber, an alarm should sound, so that you can test whether the detector is working properly. Attention, loud alarm sound, hearing protection use! Replacing the battery

• If the battery is low, the smoke detector beeps once every 43 seconds (for up to 30 days) to remind you to replace the battery.

• You must change this battery when you hear this signal.

• Loosen the detector from the detector base by turning it in an anticlockwise direction, remove the old battery and insert a new battery into the detector with the correct polarity (see diagram 1).

• Even so, the smoke detector remains functional in this condition.

• You must test the smoke detector each time you change the battery.

• Carry out the test as detailed above. Note To ensure a long service life and reliable operation, we recommend using high-quality batteries. Alarms and error signals When the alarm threshold is exceeded, a loud alarm sounds. The alarm continues sounding as long as there is smoke in the detection chamber. The alarm is only switched off when there is no more smoke in the detection chamber. What to do if there is a false alarm? A false alarm can occur due to very high air humidity, the build-up of smoke whilst cooking or a large build-up of dust, or smallest insects for example. If the alarm sounds, first get yourself to safety. If you are certain that it is a false alarm, you can switch the alarm mute for about 9 minutes by pressing the test/stop button. The smoke detector will switch off automatically once the smoke particles have left the smoke chamber inside the detector. Mute The alarm can be deactivated by pressing the test/stop button temporarily for about 9 minutes. If the mute function is active, the red LED will flash once approximately every 10 seconds. If, after this 9-minute mute period, fire smoke is still detected in the smoke measuring chamber, the acoustic alarm will sound again. Only activate the alarm mute function when you are absolutely sure that you can exclude a cause of fire! Maintenance and inspection A smoke detector must always be at least once a year in accordance with DIN 14676 are checked for functionality. A functional test can be triggered by prolonged activation of the test/stop button with this smoke alarm (5 in figure 1). The LED then flashes quickly and it is a confirmation tone. Cleaning

• Dusty detectors must be cleaned. You can clean dust from the air vents of the detector using a vacuum cleaner or compressed air. If necessary, you can remove the dust with a brush.

• When changing the battery, carefully clean the detection chamber with a vacuum cleaner to remove any dust or dirt.

• You can clean the surface using a cloth slightly dampened in soapy water. Important

• Do not allow water to penetrate inside the device.

• Do not clean the device in a dishwasher.

• Do not use sharp, pointed, abrasive or corrosive cleaning materials or hard brushes.

• Do not use chemicals.

• Do not use flammable liquids for cleaning.

• Protect the device from dust, dirt and moisture. Alarm Maintenance and inspectionAlarm GB– 26 – – 27 – Warranty Battery instructions This product contains a 3 V lithium battery. Keep batteries out of the reach of children. Children may put batteries in their mouths and swallow them. This can cause serious harm to their health. Seek immediate medical attention in this event! Batteries must be inserted with the correct polarity (+ and -). Empty batteries must be removed or replaced immediately. The battery terminals must not be short-circuited. Risk of burns from contact with leaking or damaged batteries! In these cases, use suitable protective gloves and clean the battery compartment with a dry cloth. Batteries must not be dismantled, punctured, damaged, short-circuited, heated, charged or thrown into an open re (risk of explosion!). Do not use or store the product in areas where the temperature could reach below -10°C or above +45°C. Do not expose the product to direct sunlight for long periods of time. Warranty ABUS products are designed, manufactured and tested in accordance with applicable regulations with great care. The warranty exclusively covers faults that are caused by material or manufacturing defects. If a material or man- ufacturing defect can be proven, the product will be repaired or replaced at the discretion of the warrantor. In such cases, the warranty ends with the termination of the original warranty period. Any further claims are expressly excluded. ABUS assumes no liability for defects or damage that has been caused by ex- ternal inuences (e.g. transport, external forces), improper use, normal wear and tear or non-compliance with this operating and installation instructions document. If a warranty claim is asserted, the product must be returned with the original receipt with date of purchase and a brief written description of the fault. Battery instructions Disposal Declaration of Performance | Declaration of Conformity Disposal This product contains valuable raw materials. At the end of its service life, dispose of the product in accordance with the applicable legal requirements. Electrical appliances, rechargeable batteries and batteries must not be dispo- sed of with household waste. Disposal must be carried out in accordance with Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), or Directive 2006/66/EC on batteries and accumulators and waste batteries and accumulators. Batteries must be removed from electrical appliances and disposed of separately before disposal. Dispose of the packaging according to type. Separate the cardboard, foil and plastic elements for recycling. Please contact the local authority responsible for disposal if you have any queries. You can obtain information on collection points for your old appliances, for example, from the local municipal or city administration, the local waste disposal companies, or your specialist dealer. Declaration of Performance 2019RWM90 This smoke alarm has been tested and certified as a construction product in accordance with EU Regulation 305/2011. It has been manufactured subject to monitoring by regular and independent inspections for continued compliance with legal and normative requirements. The declaration of performance can be found at www.abus.com/eng/Service/Declarations-of-Performance. Declaration of Conformity ABUS August Bremicker Söhne KG hereby declares that the device type RWM90 complies with Directives 2014/30/EU and 2011/65/EU. The full text of the EU Declaration of Conformity can be requested by contacting info@abus.de Subject to technical alterations. No liability for mistakes and printing errors. GBRWM90 Dispositif d'alarme de fumée Veuillez lire attentivement cette notice d´utilisation avant la mise en service ! Les détecteurs avertisseur de fumée contribuent à sauver des vies ! Conserver cette notice durant toute la durée de vie du produit.
