USER MANUAL Rising Sun Mono Blumfeldt

Note: The device is only suitable for outdoor use.

Patio Heater

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

SICHERHEITSHINWEISE

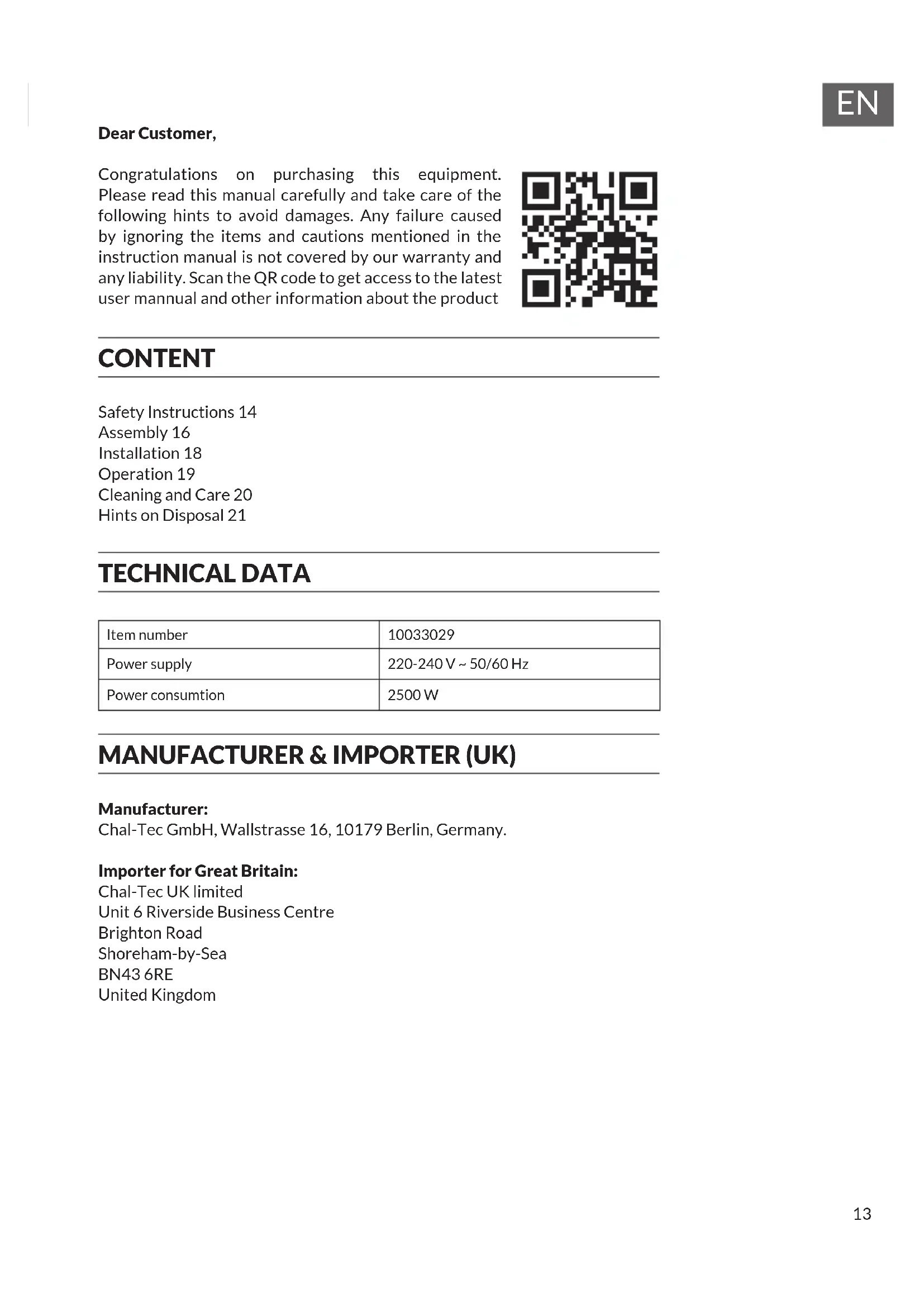

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product

CONTENT

Safety Instructions 14

Assembly 16

Installation 18

Operation 19

Cleaning and Care 20

Hints on Disposal 21

TECHNICAL DATA

Item number	10033029
Power supply	220-240 V ~ 50/60 Hz
Power consumption	2500 W

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Brita

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

SAFETY INSTRUCTIONS

• Read all instructions before using this unit.
• Do not leave this unit unattended when in use.
• This heater will get hot when in use. Do not touch hot surfaces.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given when children and vulnerable people are present.

• Do not move the unit when in use. Wait until the heater is completely cool before moving and check that it has been unplugged from the power supply.
• Position the unit at least 1m away from highly combustible materials such as furniture, trees, leaves, dry grass and bushes.
• The heater must not face with the heating element pointing upwards towards a ceiling. The heater element must be facing the area it is to heat.

Note: In order to avoid overheating do not cover the heater. It is not for drying clothes.

• Keep children and pets at a safe distance from the unit.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Do not operate the heater if any signs of damage or malfunction manifest themselves.
• Do not attempt to repair or adjust any electrical or mechanical functions on this unit. The unit does not contain any user serviceable parts. Only a qualified electrician should perform servicing or repairs. Attempting to repair the unit yourself will void your warranty.

• If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Do not handle the element with bare hands. If it is inadvertently touched, remove finger marks with a soft cloth and methylated spirits or alcohol, otherwise the marks will burn into the element causing premature heater failure.

• Do not replace or attempt to replace the element in this product.
• This product is suitable for outdoor use. Do not use this heater in the immediate surroundings of a bath, shower or swimming pool.
• This product must not be left outdoors exposed to the elements for long periods of time.
• Do not touch the plug with wet or damp hands.
• Do not run the power cable under carpeting. Do not cover the power cable with rugs, runner, or similar coverings. Arrange the power cable away from foot traffic and where it will not be tripped over.
• Do not wind the power cable around the unit.
• Do not insert or allow foreign objects to enter any ventilation or opening on the heater, as this may result in electric shock, fire, or damage to the heater.
• To prevent a possible fire, do not block the air vents.
• A heater has hot and arcing or sparking parts inside. Do not use in areas where petrol, paint, explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames.
• Where possible, avoid the use of an extension cable as this may overheat and cause a fire. However, if you have to use an extension cable, ensure it is suitable for the purpose, has been tested for outdoor use and preferably has an RCD device fitted or attached.
• Always ensure the heater is plugged into a suitable socket, one that is tested for outdoor use.
• Always unplug the unit and ensure the unit is completely cold before moving, cleaning or storing.
• This heater is intended for domestic use only and should not be used commercially for contract purposes. Any alternative use, not recommended by the manufacturer, may result in fire, electric shock, or injury to persons.
• The use of attachments on the heater is not recommended.
• Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

ASSEMBLY

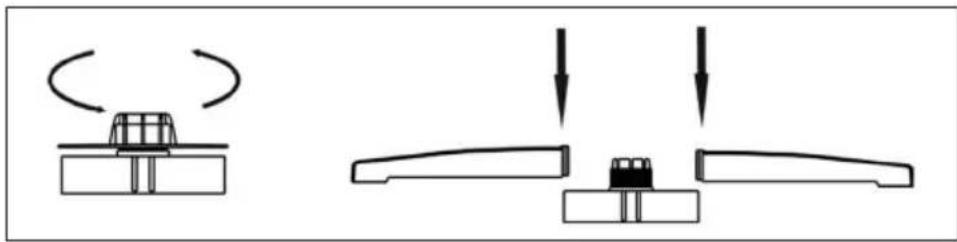

1. Screw out the base cover and fix four legs to the base as below.

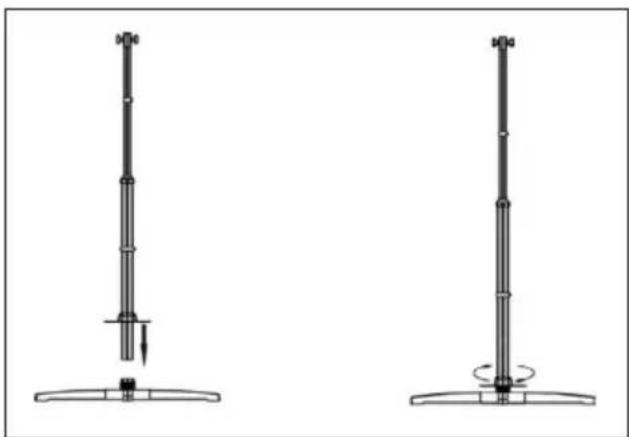

1. Fix the stand to the base by using the base cover as below.

1. Adjust the stand height as below.

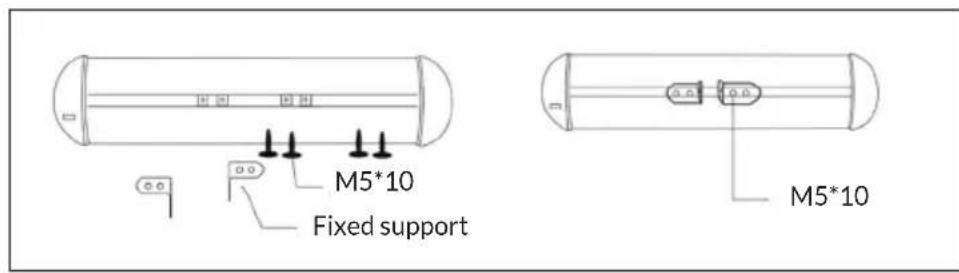

1. Using four M5^*10mm to fix two bracket to the product as below.

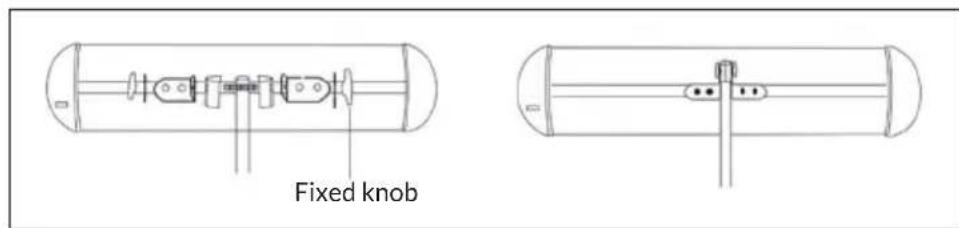

1. Using fixed knob to fix the product to the stand as below.

EN

INSTALLATION

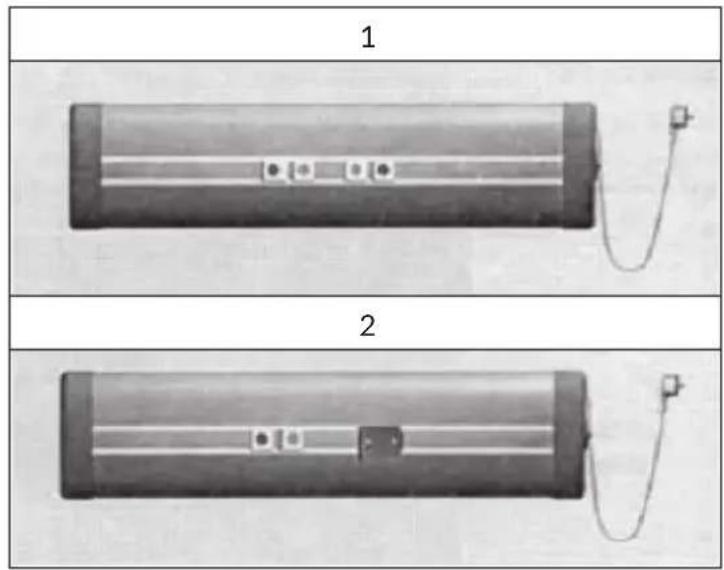

1. There are 4 brackets and fasteners used with the heater. Furthermore, in the canal of back side of the heater there are 4 square fastener washers 25 × 25 ~mm . Take the square washers (Figure 1) and fasten 2 brackets to the canal of the backside of the heater by the help of screws (Figure 2).

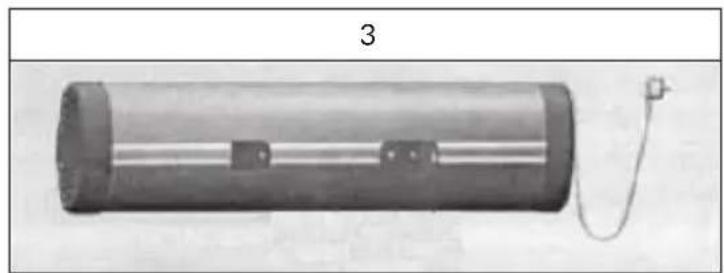

1. Attach the brackets at a distance of 45-55 cm (Figure 3).

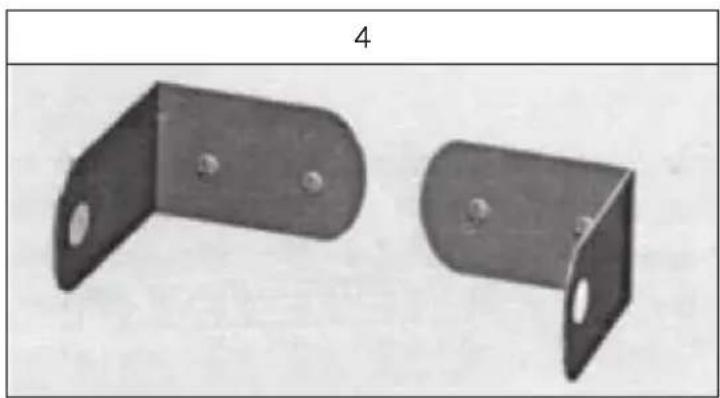

1. Two other brackets are fastened by the help of fasteners at the appropriate distance on the wall parallel to the floor, at least 1.8m from the floor and 0.5m from the ceiling (Figure 4).

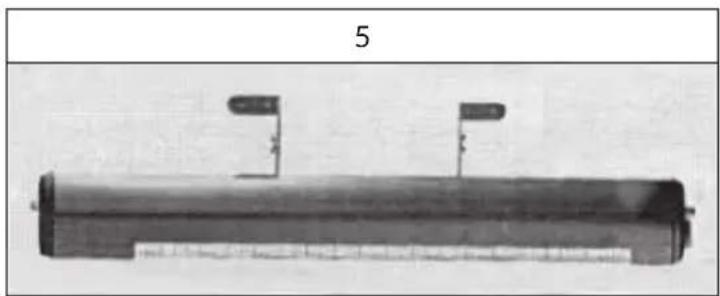

1. Join the brackets on the heater with the brackets, fastened on the wall, with the help of figured screw-nuts (Figure 5). Install the heater under necessary angle (in the direction to the area being heated).

OPERATION

• Connect the power line and the power strip.
  Control power on/off by adjust the thermostat on right side.

CLEANING AND CARE

Cleaning

• Unplug your power cable for your safety before cleaning your appliance.
• Take out the front grid wire through the inlets on the frame using a slotted screwdriver.
• Make sure that the power is off for your safety. Power cable plug must be unplugged.
• The reflector and filament must be cleaned with a soft cloth, a smooth brush or cool or dry air. The cloth may be damp but never too wet and the cleaner should not include any chemical.
• Refrain from using cleaning material likely to damage the reflector (cleanser etc.).
• Insert the wire grid using a slotted screwdriver.

Care

• Check the cleanliness of the Reflector and IR-Filament at least once a month. If necessary, apply cleaning and maintenance instructions.
• The number of checks may be increased considering the amount of the dust in the environment.
• Check the deformation of the Reflector, Wire and Frame visually while cleaning the appliance. In case of any deformation, consult a qualified technician.
• Check the power cable and plug visually while cleaning the appliance. In case of any deformation, consult a qualified technician.
  It is recommended to change the reflector every 2 years for more efficient operation.

HINTS ON DISPOSAL

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
