High Chair - High chair BabyBjörn - Free user manual and instructions

Product type	High chair
Brand	BabyBjörn
Model	High Chair
Recommended age	From 6 months up to about 3 years
Max child weight	15 kg
Max child height	95 cm
Dimensions in use (H)	83 cm
Transport dimensions (H x W x D)	50 x 44 x 26 cm
Product weight	5 kg
Materials	Plastic and steel
Color	Lagoon (example, depending on version)
Safety standard	EN14988:2017
Main features	Adjustable safety tray with 3 positions, safety harness, removable tray, removable legs, foldable
Adjustments	Tray depth adjustment
Maintenance and cleaning	Frame: damp cloth; tray: machine washable or hand wash
Safety	Two-step lock, secure tray, safety harness, anti-tip
Spare parts and repairability	Removable tray replaceable; no info on other parts (consult manufacturer)
General information	Do not use if child cannot sit up unassisted; always supervise the child

Frequently Asked Questions - High Chair BabyBjörn

What is the recommended age for using the BabyBjörn High Chair?

The high chair is designed for children from 6 months (when they can sit up unassisted) up to about 3 years, with a maximum weight of 15 kg and height of 95 cm.

How to assemble the BabyBjörn high chair?

Insert the legs one by one, aligning the pin into the hole. Extend the legs until they click and ensure the red 'LOCKED' indicator is visible. Lower the safety tray until it locks.

How to fold the high chair for storage?

Place the tray in the locked use position. Press the red adjustment button under the tray, pull the folding lock, then lift the tray. Then press the leg lock to fold the legs.

How to adjust the safety tray?

Press the red adjustment button under the tray and push the tray forward or backward to adjust it close to the child. The tray has three positions.

How to remove the child from the high chair?

Hold the child securely. Press the safety lock and turn the knob to open the tray. Unfasten the safety harness before removing the child.

How to clean the BabyBjörn High Chair?

The frame can be cleaned with a damp cloth. The removable tray can be hand washed or placed in the dishwasher. Remove the tray by pulling the white handles.

What are the safety standards of this high chair?

The BabyBjörn high chair complies with standard EN14988:2017. It features a unique safety tray, a two-step lock, and a safety harness.

Can I use the high chair without the safety harness?

No, the safety harness must always be fastened when the child is seated, and the tray must be locked in the use position.

What risks should be avoided with this high chair?

Never leave the child unattended. Avoid placing the chair near a table or heat source. Do not move the chair with the child in it. Ensure the legs are not obstructed.

Where to find spare parts for the BabyBjörn High Chair?

The removable tray is replaceable. For other parts, contact the manufacturer or consult the manual. In case of a broken or missing part, do not use the product.

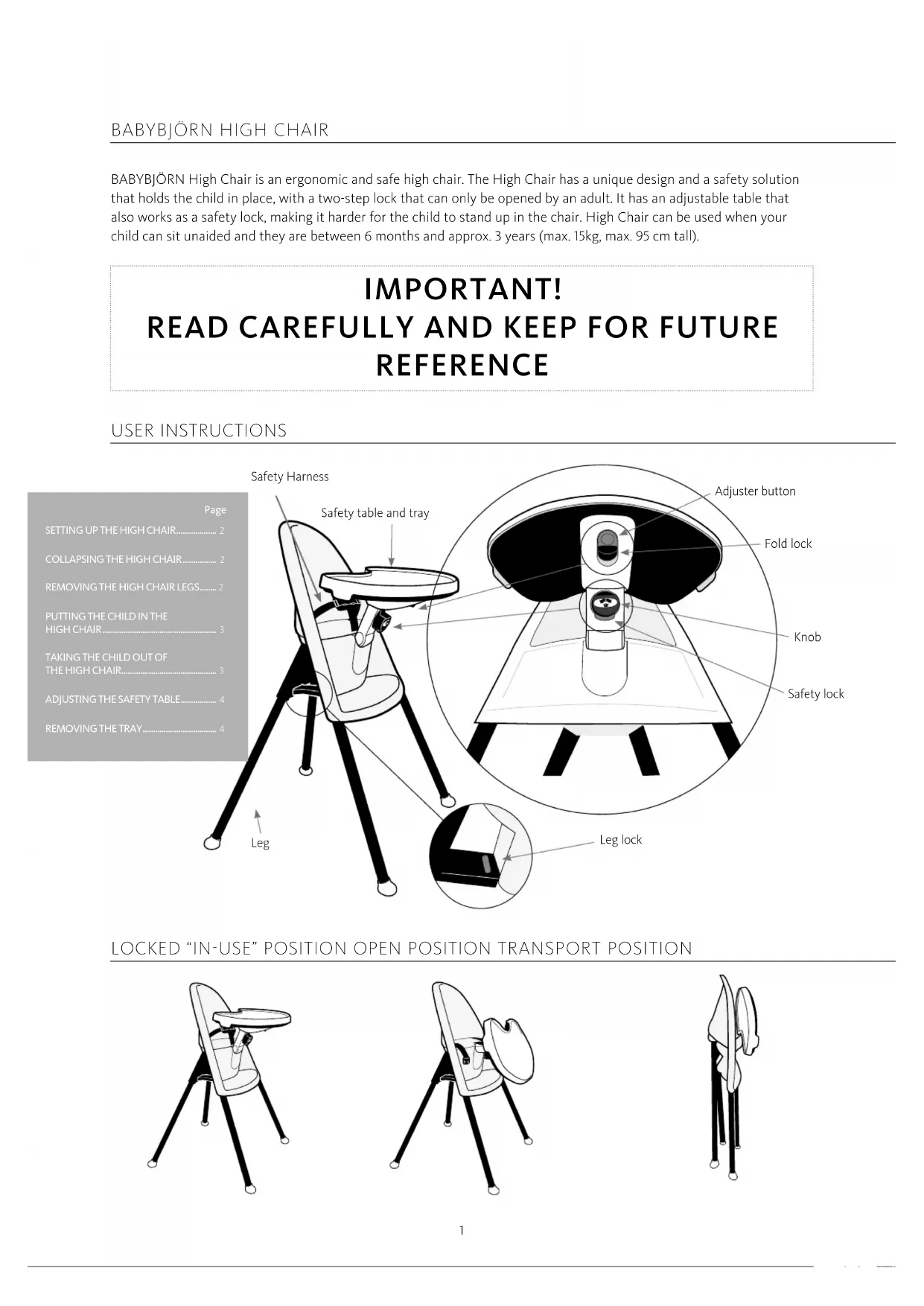

USER MANUAL High Chair BabyBjörn

BABYBJÖRN High Chair is an ergonomic and safe high chair. The High Chair has a unique design and a safety solution that holds the child in place, with a two-step lock that can only be opened by an adult. It has an adjustable table that also works as a safety lock, making it harder for the child to stand up in the chair. High Chair can be used when your child can sit unaided and they are between 6 months and approx. 3 years (max. 15kg, max. 95 cm tall).

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

USERINSTRUCTIONS

LOCKED "IN-USE" POSITION OPEN POSITION TRANSPORT POSITION

SETTING UP THE HIGH CHAIR

1. Push the legs in, one at a time.
Make sure that the pin snaps into place in the hole.

2. Fold out the legs until they lock into position. You should hear a click. Turn the high chair over and make sure that every part of the red panel ("LOCKED") is fully visible on the leg lock.

3. Fold down the safety table until it locks firmly into the "in-use" position.

COLLAPSING THE HIGH CHAIR

Please note!

The safety table must be in its furthest out position before it can be fully collapsed. Adjust the position by holding the red adjustment button on the underside and pulling the safety table inwards or outwards.

1. Start with the safety table in its locked "in-use" position.

2. Push in the adjuster button under the safety table and then pull the fold locks outwards. Fold up the safety table as far as it will go.

3. Press the leg locks together so that the legs can be collapsed.

REMOVING THE HIGH CHAIR LEGS

Push the pin in and pull the chair legs out, one at a time.

Important!

Remember to hold the child securely at all times when putting them into or taking them out of the chair.

1. Push in the safety lock first, and then turn the knob so that the safety table falls down into the open position.

2. Put the child in the high chair. Hold the child securely at all times and make sure that their feet and legs are correctly positioned.

Important!

The safety table must always be in the locked "in-use" position and the safety harness must always be fastened when the child is sitting in the high chair.

Fasten the safety harness and make sure it's adjusted to fit snugly around the child's body.

Close the safety table and lock it into position. Make sure that the safety table is in the locked "in-use" position before letting go of the child.

Hold the child securely and open the safety table by pushing in the safety lock and turning the knob.

Unfasten the safety harness and lift out the child.

The safety table has three positions. You can adjust the position by holding the red adjustment button on the underside and pulling the safety table inwards or outwards.
Important! The safety table is designed to hold the child securely in the chair. Adjust it so that it fits snugly against the child.

Pull outwards on the tray's white handles and lift the tray off for cleaning. The detachable tray can be washed by hand or in a dishwasher.

WARNING!

FALL HAZARD!

• Keep children away when unfolding and folding the product to avoid injury
• Never leave the child unattended
• Do not use the product until the child can sit up unaided
• Hold the child securely at all times when lifting them in or out of the chair. Make sure that the safety harness is fastened and the safety table is in the locked "in-use" position before you let go of the child
  Always adjust the safety harness and safety table snugly against the child to prevent them from climbing out of the product

• This product is not a toy. Strap loops can cause strangulation. Never let children play with the chair or use it unsupervised.

• Falling hazard: Prevent your child from climbing on the product

• The child must not sit in the product when the safety table is in the open position
• Never attempt to move the product while the child is still in the chair
  The product should be placed on a level, horizontal floor. To avoid the risk of the high chair tipping over, make sure that the chair's feet can slide on the floor
• Be aware of the risk of tilting when your child can push its feet against a table or any other structure
• Do not use the product unless all components are correctly fitted and adjusted
• Be aware of the risk of open fires and other sources of strong heat in the vicinity of the product
• To avoid the risk of pinching, ensure that the child is wearing - at a minimum - a nappy/diaper or trousers when sitting in the product
• Never push down on the safety table - doing so risks pinching the knees of larger children
• Do not use the product if any component is broken or missing

CLEANING

Wipe the high chair using a clean, damp cloth. The detachable tray can be washed by hand or in a dishwasher.

SAFETY APPROVAL

BABYBJÖRN High Chair complies with the EN14988:2017 safety requirements.

TECHNICAL INFORMATION

Weight: 5kg

Height/width/depth in transport position:

50× 40× 26cm

Height when standing: 83 cm

Material: Plastic and coated steel

To find the answers to most questions and contact our customer service, please visit www.babybjorn.com

BABYBJÖRN

Art. 067. The mark BABYBJÖRN and the product's distinctive shape are protected by trademark registrations in several countries. US TM Reg. No. 1,385,135. US TM Appl. Nos 85/847.901. This product is protected by patent and design registrations in several countries. US Design Patent No. D577,081. High Chair © BabyBjörn AB, 2009. For more information, please contact [e-mail] © BabyBjörn AB, 2015. BabyBjörn AB, Kulltorpsvagen 49, 333 74 Bredaryd, Sweden. This product features the characteristic BABYBJÖRN parallel lines design.

www.babybjorn.com
