USER MANUAL LMO 3646 Battery Set Kärcher

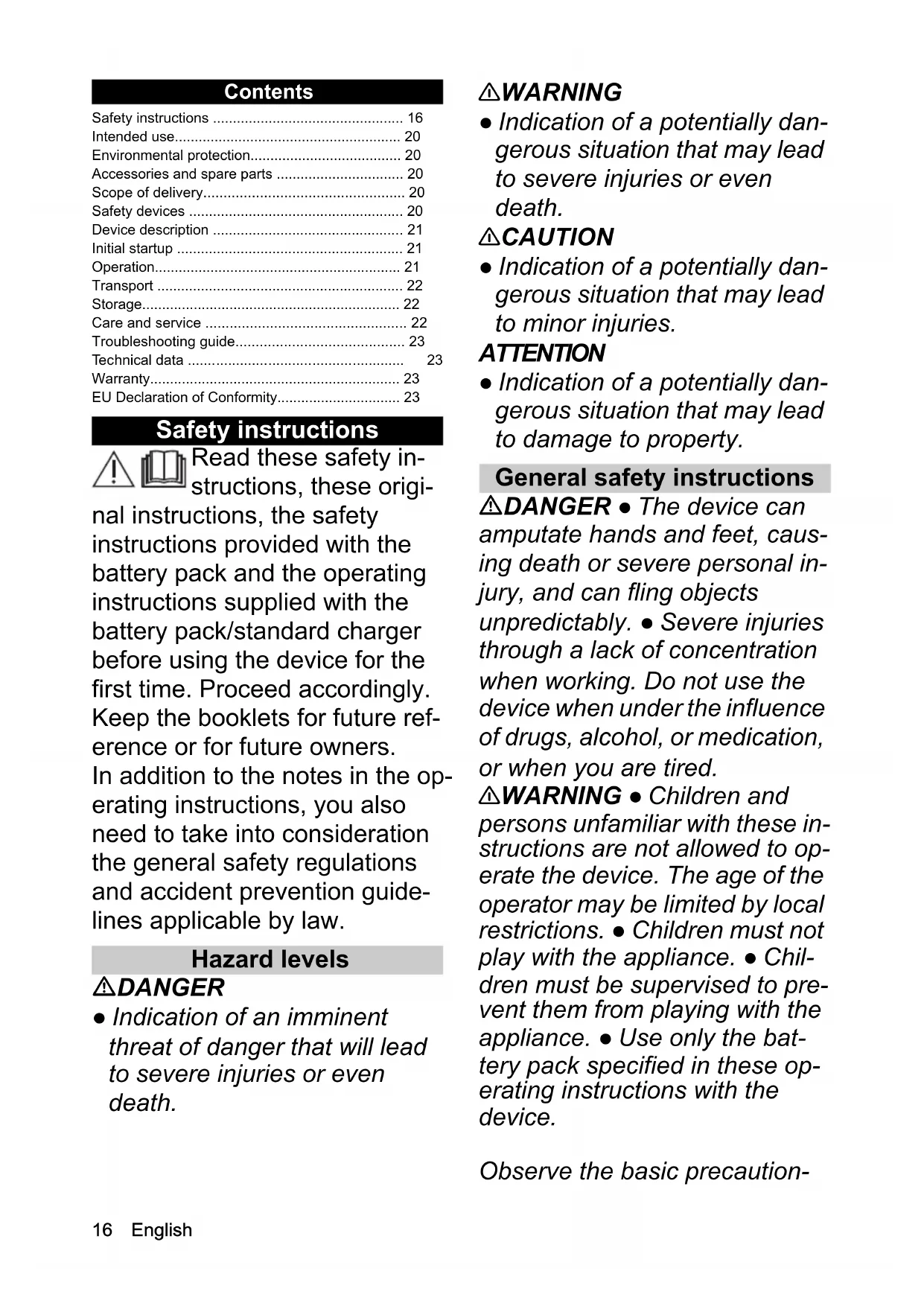

• Gewicht (ohne Akkupack) kg 19,8 Chairman of the Board of Management Director Regulatory Affairs & Certification H. Jenner S. Reiser16 English Contents Safety instructions Read these safety in- structions, these origi- nal instructions, the safety instructions provided with the battery pack and the operating instructions supplied with the battery pack/standard charger before using the device for the first time. Proceed accordingly. Keep the booklets for future ref- erence or for future owners. In addition to the notes in the op- erating instructions, you also need to take into consideration the general safety regulations and accident prevention guide- lines applicable by law. Hazard levels DANGER ● Indication of an imminent threat of danger that will lead to severe injuries or even death. 몇 WARNING ● Indication of a potentially dan- gerous situation that may lead to severe injuries or even death. 몇 CAUTION ● Indication of a potentially dan- gerous situation that may lead to minor injuries. ATTENTION ● Indication of a potentially dan- gerous situation that may lead to damage to property. General safety instructions DANGER ● The device can amputate hands and feet, caus- ing death or severe personal in- jury, and can fling objects unpredictably. ● Severe injuries through a lack of concentration when working. Do not use the device when under the influence of drugs, alcohol, or medication, or when you are tired. 몇 WARNING ● Children and persons unfamiliar with these in- structions are not allowed to op- erate the device. The age of the operator may be limited by local restrictions. ● Children must not play with the appliance. ● Chil- dren must be supervised to pre- vent them from playing with the appliance. ● Use only the bat- tery pack specified in these op- erating instructions with the device. Observe the basic precaution- Safety instructions p. 16
• Intended use p. 20
• Environmental protection p. 20
• Accessories and spare parts p. 20
• Scope of delivery p. 20
• Safety devices p. 20
• Device description p. 21
• Initial startup p. 21
• Operation p. 21
• Transport p. 22
• Storage p. 22
• Care and service p. 22
• Troubleshooting guide p. 23
• Technical data p. 23
• Warranty p. 23
• EU Declaration of Conformity English 17 ary measures when using bat- tery operated devices, to reduce the risk of injuries, fire and a leaking battery. ● Wear long, heavy trousers, clothing with long arms and non-slip boots when working with the device. Do not work barefoot. Do not wear sandals or short trousers. Avoid wearing loose clothing or clothing with cords and straps. ● Wear protective goggles or safety goggles with side protec- tion. ● Always guide the device along the face of a gradient. Danger of severe injuries when you guide the device up and down a gradient. ● Do not run but rather walk when working with the device. Maintain a solid and safe footing and keep your balance, especially when work- ing on gradients. ● Danger of accident due to slipping. Do not use the device at the edges of steep slopes or trenches, on steep slopes or embankments. 몇 CAUTION ● Familiarise your- self with the controls and the correct use of the device. Occupational safety DANGER ● Severe injuries when objects are flung by the cutting blade or when the cutting tool becomes entangled in wires or cords. Inspect the work area thoroughly for objects such as stones, sticks, metal, wires, bones or toys and remove these before using the device. ● Never use the device when persons, especially children, are within a radius of 15 m of the working ar- ea, because the danger exists of objects being flung out by the cutting blade. ● Danger of explo- sion. The device creates sparks that may ignite dust, gas or va- pours. Do not operate the device in explosive atmospheres, such as in the presence of flammable liquids, gases or dusts. ● Severe accidents with children. Children can be attracted by the device and your activities. Keep an eye on children because they do not always remain where you have last seen them. 몇 WARNING ● Do not operate the device on wet grass or in the rain. ● Do not use the device if there is a danger of lightning. ● Always mow in daylight or un- der good artificial lighting. ● Keep children away from the mowing area and have them su- pervised by an adult who is not the operator, be alert and switch the device off if a child enters the mowing area. ● Be careful when approaching blind corners, bushes, trees or objects that might restrict your view. ATTENTION ● The device oper- ator is responsible for accidents with other people and their prop- erty.18 English Safe operation DANGER ● Check that the blade, blade bolts and blade unit are undamaged each time be- fore using the device. ●  Never lock the On/Off switch in the ON position, this is extremely dan- gerous. ● Pull the device back- wards only when absolutely necessary. If you need to pull the device away from a wall or obstacle, first pull downwards to prevent yourself from stumbling or pulling the device over your feet. ● Danger of coming into contact with the open blade or being hit by flung objects. Do not tip the device when starting the motor or while the motor is run- ning. If tipping is absolutely nec- essary, e.g. to make starting easier, then you can raise the front of the device by 5 cm. Press the handle carefully downwards for this. You must return the device to the normal operating position (i.e. all four wheels on the ground) before starting to mow. ● Knives that come into contact with a live ca- ble may energize exposed metal parts of the device and cause an electric shock. 몇 WARNING ● The blades on the device are sharp. Wear stur- dy protective gloves and work carefully when installing, replac- ing, cleaning or checking the seating of screws. ● Replace worn or damage parts as a complete set to main- tain the correct balance. ● En- sure that the device is in a safe condition by regularly checking that all bolts, nuts and screws are screwed tight. ● Replace any worn or damaged parts be- fore operating the device. ● Never use the device if the on/ off switch on the handle does not switch on and off correctly. ● Do not forcefully operate the device. ● Stop the motor, in or- der to stop the blade when transporting the device to and from the mowing area or when tipping the device for crossing ground that is not covered with grass. ● Stop the blade before crossing gravel surfaces. ● Nev- er use the device with defective or absent protective devices, such as e.g. deflectors and/or the grass catcher. ● Do not bring your hands or feet in the vicinity of, or underneath rotating parts. Switch the motor on according to the operating instructions. ● Never lift or carry the device while the motor is running. ● Un- even terrain carries an in- creased risk of slipping and accidents. Avoid holes, furrows, uneven areas, stones and other hidden objects. ● Start the de- vice only when you are posi- tioned in the safe area behind the handle.English 19 All four wheels are on the ground. The grass ejection chute is not open but rather protected by the grass catcher or the ejec- tion chute cover. The hands and feet of all per- sons are away from the cut- ting housing. Switch the motor off and re- move the safety key. Ensure that all moving parts have completely stopped moving: Always when you leave the device unattended, including the periods when disposing of the mown grass. Before removing a blockage or cleaning the ejection chute. Before checking, cleaning or working on the device. After hitting a foreign object. First check the device for damage and repair any dam- age before restarting the de- vice. Before removing the grass catcher or the grass ejection chute cover. When the device starts to vi- brate unusually. Immediately check the device: – For loose parts. Tighten any loose parts if necessary. – For damage, especially to the blade. Repair or replace any damaged parts. 몇 CAUTION ● Check the grass catcher regularly for wear and tear. ATTENTION ● Take care to en- sure that the motor control cable is not jammed or damaged in any other way during installation or when folding the handle. Residual risks 몇 WARNING ● Certain residual risks remain present, even when the device is operated in the prescribed manner. The following dangers can be present when using the device: Vibration can cause injuries. Use the correct tools for the job, use the handles provided and restrict the working time and hazard exposure time. Noise can cause hearing inju- ries. Wear hearing protection and limit the duration of expo- sure. Injuries through contact with the blades. Injuries due to flung objects. Risk reduction 몇 CAUTION ● Using the device for longer pe- riods can cause poor circula- tion in the hands due to vibrations. A general period of use cannot be set, because this depends on several influ- encing factors:20 English Personal tendency to suffer from poor circulation (fre- quently cold fingers, tingling sensation in the fingers) Low ambient temperature. Wear warm gloves to protect your hands. Holding the device too tightly hindering blood circulation. Continuous operation is more harmful than operation inter- rupted by work breaks. You should see a doctor if us- ing the device regularly and for lengthy periods of time, and in the event of repeated occur- rences of symptoms such as tingling in the fingers or cold fingers. Intended use DANGER Improper use Danger of death from incision injuries Only use the device for its proper use. Use the battery lawnmower in private households only. The device is intended for outdoor use only. The device is designed for mowing private lawns. The device is designed for being pushed by hand or for being used with the Power Assist function. The device should not be pulled. Riding on the device is prohibited. Any other use is prohibited. The user carries full liability for damage resulting from improper use. Environmental protection The packing materials can be recycled. Please dispose of packaging in accordance with the en- vironmental regulations. Electrical and electronic appliances contain valu- able, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential threat to human health and the environ- ment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of togeth- er with the household rubbish. Notes on the content materials (REACH) Current information on content materials can be found at: www.kaercher.com/REACH Accessories and spare parts Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely. Information on accessories and spare parts can be found at www.kaercher.com. Scope of delivery The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your deal- er. Safety devices Symbols on the device Overload protection The device is equipped with an overload protection sys- tem. The device switches off automatically when an overload is detected. Follow all warning notices and safety instruc- tions. Read and comprehend all instructions before using the product. Watch out for flung or flying objects. Keep all spectators, especially children and pets, at least 15 m away from the work area. Watch out for the sharp blade. The blades continue rotating after the motor has been switched off. Remove the safety key before performing any maintenance. Wear suitable eye protection and hearing protection when performing work. Do not work on steep slopes. Do not subject the device to rain or moist conditions.English 21 Device description The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging). For the illustrations, refer to the graphics page. Illustration A 1 Front wheel 2 Cutting height adjustment lever 3 Battery flap 4 Type plate 5 Battery pack release 6 Telescopic handle 7 Grass catcher filling level indicator 8 Push Assist bracket 9 Starter button 10 ON/OFF switch 11 Motor control cable 12 Handle lock 13 Grass catcher 14 Quick-release catch 15 Rear wheel 16 Mulch plug 17 *Charger 18 *Rechargeable battery pack 19 Safety key p. 23

• optional Rechargeable battery pack The device can be 36V Kärcher Battery Power operat- ed with a battery pack. Initial startup Adjusting the handle

1. Fold over the telescopic handle out until it audibly

latches into place. Illustration B

2. Unlock the handle locks.

3. Pull the telescopic handle out completely.

4. Lock the handle locks.

Note The device only functions when the telescopic han- dle has been completely pulled out and the handle locks are locked.

5. Adjust the inclination angle of the handle if neces-

sary. a Loosen both quick-release catches. Illustration D b Choose the inclination angle. c Lock the quick-release catches. Attaching the mulch plug The mulch plug is used when the mown grass is to re- main on the lawn.

2. Insert the mulch plug into the ejection chute.

3. Close the ejection chute flap.

Installing the grass catcher The grass catcher is used when the mown grass is to be collected for disposal.

3. Install the grass catcher on the ejection chute. Take

care to ensure that the ejection chute flap locks the grass catcher in place. Illustration G Installing the battery pack

1. Open the battery flap.

2. Push the battery pack into the mounting on the de-

3. Insert the safety key.

4. Close the battery flap. Take care to ensure that the

battery flap is latched closed. Operation General information on handling the lawnmower The run time of the battery depends on several factors: The condition, length and density of the grass The cutting height setting The maximum surface performance, depending on the state of the grass, with a 5 Ah battery pack: approx. 650 m

The results of the mowing process can be optimised as follows: Cut at a maximum of one third of the grass height. Reduce the speed at which push the device when mowing tall grass. Note Do not mow wet grass. Wet grass sticks to the under- side of the lawnmower and prevents correct collection of the grass in the grass catcher or ejection of the grass. Mowing lawns 몇 WARNING Lifting or tipping the lawnmower during operation Incision injuries The blade of the lawnmower rotates approximately par- allel to the ground over which it moves. Take care to en- sure that all four wheels touch the ground when mowing.

1. Install the grass catcher or mulch plug (see Chapter

ment lever. Illustration I Choose the cutting height according to the condi- tion, length and density of the grass (see Chapter General information on handling the lawnmower). Illustration J

3. Press the start button and the ON/OFF switch.

Illustration K The device starts.22 English

4. Release the start button and hold the ON/OFF but-

ton pressed. Empty the grass catcher regularly when using the grass catcher, otherwise the ejection chute can become clogged with cut grass (see Chapter Emptying the grass catcher). Push Assist function The Push Assist function activates the device’s self- driving function. Note Only use the Push Assist function on even surfaces. On gradients or uneven surfaces, you must push the device as there is a risk that the wheels may start to slip. The ON/OFF switch is pressed.

1. Press the Push Assist bracket.

Illustration L The Push Assist function is activated. The device moves forwards without having to be pushed by the operator.

2. Release the Push Assist bracket.

Illustration M The Push Assist function is deactivated. The device continues to mow, however it must be pushed by the operator. Mowing edges Lawn edges, e.g. along a wall, can also be mown using the device.

1. Push the lawnmower along the wall, close to the wall.

Illustration N The side inlet ensures that the grass is pulled into the cutting zone. Illustration O Finishing operation

1. Release the ON/OFF switch.

Illustration P The motor stops. Removing the battery pack

1. Open the battery flap.

2. Remove the safety key.

3. Press the battery pack release.

4. Remove the battery pack.

5. Close the battery flap.

Emptying the grass catcher The flap on the grass catcher filling lever indicator clos- es when the grass catcher is full. Empty the grass catch- er in this case.

2. Remove the grass catcher.

Take care to ensure that the motor control cable re- mains in the cable holder when removing the grass catcher.

3. Empty the grass catcher.

Transport 몇 WARNING Sharp blade Incision injuries Be careful when tipping or lifting the device. Keep all parts of your body away from the cutting blade.

1. Switch the device off (see Chapter Finishing opera-

2. Ensure that the blade is no longer rotating.

3. Allow the device to cool down.

4. Remove the safety key (see Chapter Removing the

5. Remove the battery pack.

6. Secure the device against slipping and tipping over

when transporting in vehicles. Storage Clean the device before storing (see Chapter Cleaning the device).

1. Remove the safety key.

2. Remove the battery pack (see Chapter Removing

3. Unlock the handle locks.

4. Push the telescopic handle in completely.

5. Lock the handle locks.

6. Release the quick-release catch and fold down the

handle. Illustration T

7. Place the grass catcher on the handle and the de-

vice. Illustration U

8. Store the device in a dry, well ventilated location.

Keep away from corrosive substances such as gar- den chemicals and defrosting salt. Do not store the device outdoors. Care and service 몇 WARNING Sharp blade Incision injuries Be careful when tipping or lifting the device. Keep all parts of your body away from the cutting blade. Cleaning the device

1. Remove the safety key.

2. Remove the battery pack (see Chapter Removing

3. Clean the exterior of the device with a soft, damp

cloth or brush each time after use. Illustration V Clean the blade before longer storage periods.

4. Tip the device onto the side.

5. Clean the blade and the underside of the device us-

ing a brush. Illustration X Removing blockages 몇 WARNING Removing blockages Incision injuries from the sharp blade or sharp-edged objects Wear protective gloves when checking for blockages or removing blockages.

1. Switch the device off and wait until the blade comes

2. Remove the safety key.

3. Remove the battery pack (see Chapter Removing

4. Remove the grass catcher and check for blockages.

Remove any blockages.

5. Check the ejection shaft for blockages. Remove any

6. Tip the device onto the side.English 23

7. Check the underside of the device and the blade for

blockages. Be careful when removing blockages be- cause the blade can move while doing this. Replacing the blade

1. Remove the safety key.

2. Remove the battery pack (see Chapter Removing

3. Clean the underside of the device (see Chapter

Cleaning the device).

4. Lock the blade and then loosen the screw.

5. Remove and dispose of the blade.

6. Fit the new blade into the holder.

7. Lock the blade and then tighten the screw.

Illustration AB Troubleshooting guide Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service. The device switches off The device overload protection system has triggered.

1. Release the ON/OFF switch.

2. Press the start button and the ON/OFF switch.

The battery pack overheating protection has triggered.

1. Wait until the battery pack temperature lies within

2. Charge the battery pack if the device cannot be

switched on. Technical data Subject to technical modifications. Warranty The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possi- ble malfunctions on your appliance within the warranty period free of cost, provided that a material or manufac- turing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site. (See overleaf for the address) EU Declaration of Conformity We hereby declare that the machine described below complies with the relevant basic safety and health re- quirements in the EU Directives, both in its basic design and construction as well as in the version placed in cir- culation by us. This declaration is invalidated by any changes made to the machine that are not approved by us. Product: Battery-operated lawnmower Type: LMO 36-46 Battery 1.444-4xx.0 Currently applicable EU Directives 2000/14/EC (+2005/88/EC) 2014/30/EU 2006/42/EC (+2009/127/EC) 2011/65/EU Harmonised standards used EN 50581: 2012 EN 55014-1: 2017 EN 55014-2: 2015 EN 60335-1:2012+A11:2014+A13:2017 EN 60335-2-77:2010 EN 62233: 2008 Conformity evaluation procedure used 2000/14/EC and amended by 2005/88/EC: Annex VI Sound power level dB(A) Measured: 88,9 Guaranteed: 92 Name and address of the notified body involved Société Nationale de Certification et d’Homologation 2a. Kalchesbruck L-1852 Luxembourg ID no. 0499 The signatories act on behalf of and with the authority of the company management. Documentation supervisor: S. Reiser Alfred Kärcher SE & Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Ph.: +49 7195 14-0 Fax: +49 7195 14-2212 Winnenden, 2018-11-01 Device performance data Nominal voltage V 36 Cutting width cm 46 Cutting height mm 20-70 Grass catcher volume l 55 Idle speed /min 2800 ± 10% Determined values in acc. with EN 60335-2-77 Sound pressure level L
