USER MANUAL HD 10234 SX Plus Kärcher

Register your product www.kaercher.com/welcome HD 10/23-4 S HD 10/23-4 SX

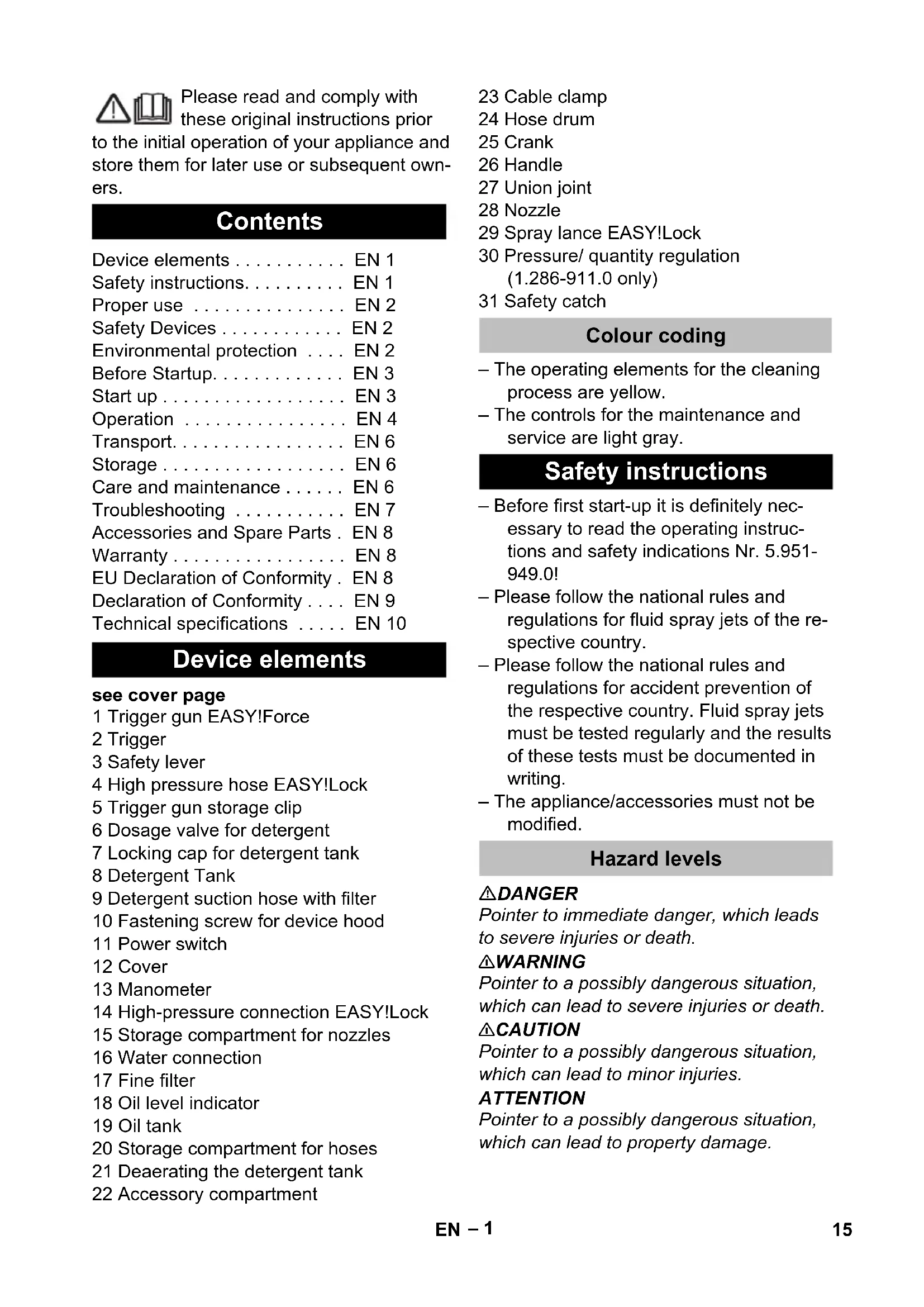

• dB(A) 87 Betriebsstoffe Ölmenge l 1,2 Ölsorte SAE 90 Maße und Gewichte Länge x Breite x Höhe mm 560 x 500 x 1090 Gewicht ohne Zubehör (SX) kg 66(68) Inhalt Reinigungsmitteltank l 6 Ausnahmegrund nach Verordnung (EU) 2019/1781 Anhang I Abschnitt 2 (12): j) 14 DE– 1 Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent own- ers. see cover page 1 Trigger gun EASY!Force 2 Trigger 3 Safety lever 4 High pressure hose EASY!Lock 5 Trigger gun storage clip 6 Dosage valve for detergent 7 Locking cap for detergent tank 8 Detergent Tank 9 Detergent suction hose with filter 10 Fastening screw for device hood 11 Power switch 12 Cover 13 Manometer 14 High-pressure connection EASY!Lock 15 Storage compartment for nozzles 16 Water connection 17 Fine filter 18 Oil level indicator 19 Oil tank 20 Storage compartment for hoses 21 Deaerating the detergent tank 22 Accessory compartment 23 Cable clamp 24 Hose drum 25 Crank 26 Handle 27 Union joint 28 Nozzle 29 Spray lance EASY!Lock 30 Pressure/ quantity regulation (1.286-911.0 only) 31 Safety catch – The operating elements for the cleaning process are yellow. – The controls for the maintenance and service are light gray. – Before first start-up it is definitely nec- essary to read the operating instruc- tions and safety indications Nr. 5.951- 949.0! – Please follow the national rules and regulations for fluid spray jets of the re- spective country. – Please follow the national rules and regulations for accident prevention of the respective country. Fluid spray jets must be tested regularly and the results of these tests must be documented in writing. – The appliance/accessories must not be modified. DANGER Pointer to immediate danger, which leads to severe injuries or death. 몇 WARNING Pointer to a possibly dangerous situation, which can lead to severe injuries or death. 몇 CAUTION Pointer to a possibly dangerous situation, which can lead to minor injuries. ATTENTION Pointer to a possibly dangerous situation, which can lead to property damage. Contents Device elements EN 1 Safety instructions EN 1 Proper use EN 2 Safety Devices EN 2 Environmental protection EN 2 Before Startup EN 3 Start up EN 3 Operation EN 4 Transport EN 6 Storage EN 6 Care and maintenance EN 6 Troubleshooting EN 7 Accessories and Spare Parts . EN 8 Warranty EN 8 EU Declaration of Conformity . EN 8 Declaration of Conformity EN 9 Technical specifications
• EN 10 Device elements Colour coding Safety instructions Hazard levels 15EN– 2 High-pressure jets can be dan- gerous if improperly used. The jet may not be directed at persons, animals, live electrical equipment or at the appliance itself. According to applicable regula- tions, the appliance must never be used on the drinking water net without a system separator. A suit- able system separator by KÄRCHER or al- ternatively a system separator according to EN 12729 type BA must be used. Water that was flowing through a system separator is considered non-drinkable. 몇 CAUTION Always connect the system separator to the water supply, never directly to the appli- ance! Use this high pressure cleaner exclusively for – Cleaning using low pressure jet and de- tergent (for e.g. for cleaning machines, cars, buildings, tools), – For cleaning using high pressure jet without detergent (for e.g. for cleaning facades, terraces, garden appliances). For stubborn dirt, we recommend the use of the dirt blaster as a special accessory. Quality requirements for water: ATTENTION Only clean water may be used as high pressure medium. Impurities will lead to in- creased wear and tear or formation of de- posits in the appliance. If recycled water is used, the following limit values must not be exceeded. Safety devices serve to protect the user and must not be rendered in operational or their functions bypassed. While reducing the water supply/quantity regulation at the pump head, the overflow valve opens and part of the water flows back to the pump suck side. If the pulling lever on the trigger gun is re- leased the pressure switch turns off the pump, the high-pressure jet is stopped. If the pulling lever is pulled the pump is turned on again. The overflow valve and pressure switch are set and sealed at the factory. Setting only by customer service. The motor protection switch switches off the device if the power consumption is high. Symbols on the machine Proper use pH value 6,5 ,5 electrical conductivity * Conductivity fresh water +1200 µS/cm settleable solids ** < 0,5 mg/l total suspended solids *** < 50 mg/l Hydrocarbons < 20 mg/l Chloride < 300 mg/l Sulphate < 240 mg/l Calcium < 200 mg/l Total hardness < 28 °dH < 50 °TH < 500 ppm (mg CaCO p. 9

• Maximum total 2000 µS/cm ** Test volume 1 l, settling time 30 min *** no abrasive substances Safety Devices Overflow valve with pressure switch Environmental protection The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling. 16 EN– 3 Electrical and electronic devices often con- tain components which could potentially pose a danger to human health and the en- vironment if handled or disposed of incor- rectly. However, these components are necessary for the proper operation of the device. Devices marked with this symbol must not be disposed of with regular house- hold rubbish. Notes about the ingredients (REACH) You will find current information about the ingredients at: www.kaercher.com/REACH – Check the contents of the pack before unpacking. – In case of transport damage inform ven- dor immediately. Read the oil level display when the de- vice is not running. The oil level must be above the two pointers. Unscrew the fastening screws of the device hood; remove the device hood. Cut off tip of oil container cover Fasten the device hood. Note: The EASY!Lock system joins com- ponents with a quick-fasten thread solidly and securely with just one turn. Insert the high pressure nozzle onto the spray lance. Install union nut and hand-tighten it (EASY!Lock). Join the spray lance with the trigger gun and tighten until hand-tight (EASY!Lock). Join the high-pressure hose with trigger gun and high-pressure connection of the appliance and tighten until hand- tight (EASY!Lock). Lock a cable clip in the side-hole on the handle. Insert the crank in the hose drum shaft and lock it in. Before rolling up, stretch out the high pressure hose. Wind the high pressure hose in uniform layers on the hose drum by rotating the crank. Select the rotation direction in such a way that the high pressure hose does not get bent. Join the high pressure hose with trigger gun and tighten until hand-tight (EASY!Lock). 몇 WARNING Risk of injury! Appliance, accessories, sup- ply lines and connections must be in fault- free condition. If they are not in a perfect state then the appliance must not be used. Old appliances contain valuable materials that can be recycled; these should be sent for recy- cling. Batteries, oil, and similar substances must not enter the environment. Please dispose of your old appliances using appro- priate collection systems. Before Startup Unpacking Check oil level Activate deaeration of oil container Install hand spray gun, spray lance and nozzle Attaching the Accessories In devices without hose drum: In devices with hose drum: Start up

17EN– 4 몇 DANGER Danger of injury by electric shock. – It is imperative to connect the appliance to the electric mains by means of a plug. It is forbidden to permanently connect the appliance to the power supply. The plug serves for the disconnection from the mains. – The appliance may only be connected to alternating current. – Minimum fuse strength of the socket (see Technical Data). – The highest allowed net impedance at the electrical connection point (refer to technical data) is not to be exceeded. In case of confusion regarding the power impedance present on your connection, please contact your utilities provider. – Use the extension cord that has an ad- equate cross-section (see "Technical Data") and unwind it fully from the cable drum. For connection values, see type plate/tech- nical data. Unwind the mains cable and place it on the floor. Insert the mains plug into a socket. 몇 WARNING Observe regulations of water supplier. According to applicable regula- tions, the appliance must never be used on the drinking water net without a system separator. A suit- able system separator by KÄRCHER or al- ternatively a system separator according to EN 12729 type BA must be used. Water that was flowing through a system separator is considered non-drinkable. For connection values refer to technical specifications. Connect the supply hose (minimum length 7.5 m, minimum diameter 3/4“) to the water connection point of the ma- chine and at the water supply point (for e.g. a tap). Note: The supply hose is not included. Open the water supply. Screw the suction hose with filter (order no. 4.440-238.0) to the water connec- tion. Deaerate the appliance: Unscrew the nozzle. Switch on the appliance and let it run until the water exiting is bubble-free. Switch off the appliance and fit the noz- zle again. DANGER Risk of injury! Never use the appliance without the spray lance attached. Check and ensure proper fitting of the spray lance prior to each use. The screw connection of the spray lance must be finger-tight. Risk of explosion! Do not spray flammable liquids. If the appliance is used in hazardous areas (e.g. filling stations) the corresponding safety regulations must be observed. Risk of injury! Hold the hand spray gun and the spray pipe firmly with both hands. Risk of injury! The trigger and safety lever may not be locked during the operation. Risk of injury! Contact Customer Service if the safety lever is damaged. Risk of injury from high-pressure water jet. Slide the safety catch on the trigger gun for- ward before performing any work with the appliance. 몇 CAUTION Clean engines only at places with corre- sponding oil separators (environmental safety). ATTENTION Risk of blocking. Place the nozzles in the accessory compartment with their joint pointing upward. Electrical connection Water connection Connection to the water supply Drawing in water from open reservoirs Operation 18 EN– 5 To open the trigger gun: Actuate the safety lever and trigger. To close the hand spray gun: Release the safety lever and trigger. Note: The appliance is equipped with a pressure switch. The motor starts up only when the trigger gun is open. Roll off the high pressure hose totally from the hose drum. Set the appliance switch to "I". Control lamp glows green. Release the trigger gun. To do so, push the safety catch towards the back. Open the hand spray gun. Only 1.286-911.0: DANGER When adjusting the pressure/quantity regu- lation, make sure that the screw connection of the spray lance does not become loose. Set working pressure and flow rate through turning (runless) at the pres- sure- and amount regulation (B) (+/-). 몇 WARNING Unsuitable detergents can cause damage to the appliance and to the object to be cleaned. Use only those detergents that have been approved by Kärcher. Observe the dosage and other instructions provided with these detergents. For considerate treatment of the environment use detergent economically. Follow the safety instructions for using de- tergents. Kärcher detergents ensure smooth func- tioning. Please consult us or ask for our cat- alogue or our detergent information sheets. Fill detergent tank. DANGER Risk of injury! Switch the appliance off prior to replacing nozzle and activate hand spray gun until device is pressureless. Secure the trigger gun. To do so, push the safety catch towards the front. Replace high pressure nozzle with a low pressure nozzle (size 250, attach- ment). Set dosing value for detergent to the desired concentration. Detergent concentration [%] (for max. flow quantity) Spray the detergent sparingly on the dry surface and allow it to react, but not to dry. Spray off loosened dirt with the high- pressure ray. After operations, dip the filter in clear water. Turn the dosing valve to the highest detergent concentration. Start the appliance and rinse for one minute. Close the hand spray gun. The appliance switches off. Secure the trigger gun. To do so, push the safety catch towards the front. After the interruption: Release the trigger gun. To do so, push the safety catch towards the back. Open the hand spray gun. The appliance will switch on again.

Shut off water supply. Open the hand spray gun. Switch on the pump with the power switch and allow to run for about 5-10 seconds. Close the hand spray gun. Set the appliance switch to "0/OFF“. Pull main plug out of socket with dry hands only. Remove water connection. Opening/closing the trigger gun High pressure operation Operation with detergent Position of the dos- ing valve

Detergent concen- tration [%] (for max. flow quantity) 0,5 2,5 5,0 7,0 Recommended cleaning method Interrupting operation Turn off the appliance 19EN– 6 Activate hand spray gun until device is pressure less. Secure the trigger gun. To do so, push the safety catch towards the front. DANGER Danger of scalding on account of hot water. The water remaining in the switched off de- vice can get heated up. When you remove the hose from the water inlet, the heated water can spray out and cause scalding. Do not remove the hose before the device has cooled down. Insert the hand-spray gun in the holder. Wind up the high-pressure hose and hang it over the hose storage.

Wind up the high-pressure hose on the hose drum. Push in the handle of the crank to block the hose drum. Wind the connection cable around the cable holder. ATTENTION Frost will destroy the not completely water drained device. Store the appliance in a frost free area. Emptying the detergent tank (see "Care and Maintenance/ as required"). Drain water. Pump in conventional frost protection agents through the appliance. Note: Use normal glycol-based anti-freezing agents for automobiles. Observe handling instructions of the anti- freeze agent manufacturer. Operate device for max. 1 minute until the pump and conduits are empty. 몇 CAUTION Risk of personal injury or damage! Mind the weight of the appliance during transport. ATTENTION Protect the trigger from damage during transport. Pull the device behind you at the handle for transporting it over longer distances. Empty the detergent tank before trans- porting in horizontal position. When transporting in vehicles, secure the appliance according to the guide- lines from slipping and tipping over. 몇 CAUTION Risk of personal injury or damage! Consid- er the weight of the appliance when storing it. This appliance must only be stored in inte- rior rooms. DANGER Risk of injury by inadvertent startup of ap- pliance and electrical shock. Prior to all work on the appliance, switch off the appliance and pull the power plug. Note: Used oil must only be disposed of by the designated collection points. Please turn in used oil there. Polluting the environment with used oil is prosecutable. You can sign with your dealer a contract for regular safety inspection or even sign a maintenance contract. Please take advice on this matter. Check connection cable for damages (risk of electrical shock); get the dam- aged connection cable replaced imme- diately by an authorised customer ser- vice person/ electrician. Check the high pressure hose for dam- ages (risk of bursting). Please arrange for the immediate ex- change of a damaged high-pressure hose. Storing the Appliance Frost protection If you cannot store it in a frost-free place: Transport Storage Care and maintenance Safety inspection/ maintenance contract Before each use 20 EN– 7 Check appliance (pump) for leaks. 3 drops per minute are permitted and can come out from the lower side of the appliance. Call Customer Service if there is heavy leakage. Check oil level Please contact Custom- er Service immediately if the oil is milky (water in oil). Clean the fine filter. Unpressurize the appliance. Unscrew the fastening screws of the device hood; remove the device hood. Unscrew lid with filter. Clean the filter with clean water or com- pressed air. Reinstall in reverse sequence. Clean filter at the detergent suck hose. Have the maintenance of the device performed by the customer service. Oil change. Note: See "Specifications" for oil volume and type. Unscrew the fastening screws of the device hood; remove the device hood. Turn out the oil drain screw at the front on the motor casing. Drain the oil in a collection basin. Screw in the oil drain screw. Fill in new oil slowly; air bubbles should go out. Attach the lid of the oil container. Fasten the device hood. Empty and clean the detergent tank. Pull out the locking cap for the deter- gent tank along with the suction hose. Lay the device on the reverse. Empty and clean the detergent tank. DANGER Risk of injury by inadvertent startup of ap- pliance and electrical shock. – Prior to all work on the appliance, switch off the appliance and pull the power plug. – Get the electrical components checked and repaired only by authorised cus- tomer service persons. – Contact an authorised customer service person in case of problems not men- tioned in this chapter or if you are in doubt or when you have been explicitly asked to do so. Check connection cable for damages. Call Customer Service in case of elec- trical defects. Install the high pressure nozzle. Clean/ replace nozzle. Clean the fine filter; replace it, if neces- sary. Deaerate the appliance (see "Start-up") Check water supply level (refer to tech- nical data). Check all inlet pipes to the pump. Contact Customer Service if needed. 3 drops per minute are permitted and can come out from the lower side of the appli- ance. Call Customer Service if there is heavy leakage. With stronger leak, have device checked by customer service. Check suction pipes for water and de- tergent and ensure that they are leak- proof. Deaerate the appliance (see "Start-up") Clean the fine filter. Contact Customer Service if needed. Weekly Every 500 operating hours, at least annually Oil change If required Troubleshooting Appliance is not running Pressure does not build up in the appliance Pump leaky Pump is vibrating 21EN– 8 Replace the high-pressure nozzle with the included low-pressure nozzle. Check/ clean detergent suction hose with filter. Clean/ replace backflow valve in the connection of the detergent suction hose. Open or check/clean detergent dosing valve. Clean the deaerating hole of the deter- gent tank in the casing. Contact Customer Service if needed. Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device. For information about accessories and spare parts, please visit www.kaerch- er.com. The warranty terms published by the rele- vant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in man- ufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service center. Please submit the proof of purchase. We hereby declare that the machine de- scribed below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval. The signatories act on behalf of and with of the authority of the company management. Documentation supervisor: S. Reiser Alfred Kärcher SE & Co. KG Alfred-Kärcher-Straße 28-40 71364 Winnenden (Germany) Tel.: +49 7195 14-0 Fax: +49 7195 14-2212 Winnenden, 2021/05/01 Detergent is not getting sucked in Accessories and Spare Parts Warranty EU Declaration of Conformity Product: High pressure cleaner Type: 1.286-xxx Type: 1.292-xxx Relevant EU Directives 2000/14/EG 2006/42/EG (+2009/127/EG) 2011/65/EU 2014/30/EU 2009/125/EG Applied regulations (EU) 2019/1781 Applied harmonized standards EN 60335–1 EN 60335–2–79 EN 55014–1: 2017 + A11: 2020 EN 55014–2: 2015 EN 62233: 2008 EN 61000–3–2: 2014 EN 61000–3–3: 2013 EN IEC 63000: 2018 Applied conformity evaluation method 2000/14/EC: Appendix V Sound power level dB(A) Measured: 85 Guaranteed: 87 Chairman of the Board of Management Director Regulatory Affairs & Certification 22 EN– 9 We hereby declare that the product de- scribed below complies with the relevant provisions of the following UK Regulations, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the product is modified without our prior approval. The signatories act on behalf of and with of the authority of the company management. Documentation supervisor: S. Reiser Alfred Kärcher SE & Co. KG Alfred-Kärcher-Straße 28-40 71364 Winnenden (Germany) Tel.: +49 7195 14-0 Fax: +49 7195 14-2212 Winnenden, 2021/05/01 Declaration of Conformity Product: High pressure cleaner Type: 1.286-xxx Type: 1.292-xxx Currently applicable UK Regulations S.I. 2001/1701 (as amended) S.I. 2008/1597 (as amended) S.I. 2012/3032 (as amended) S.I. 2016/1091 (as amended) S.I. 2010/2617 (as amended) Commission Regulation(s) (EU) 2019/1781 Applied designated standards EN 60335–1 EN 60335–2–79 EN 55014–1: 2017 + A11: 2020 EN 55014–2: 2015 EN 62233: 2008 EN 61000–3–2: 2014 EN 61000–3–3: 2013 EN IEC 63000: 2018 Applied conformity assessment proce- dure S.I. 2001/1701 (as amended): Schedule 8 Sound power level dB(A) Measured: 85 Guaranteed: 87 Chairman of the Board of Management Director Regulatory Affairs & Certification 23EN– 10 Technical specifications HD 10/23-4 S 1.286-922.0 1.286-923.0 HD 10/23-4 S 1.286-911.0 HD 10/23-4 SX 1.286-924.0 Main Supply Voltage V 400 220 Current type Hz 3~ 50 3~60 Connected load kW 9,0 Protection (slow, char. C) A 13 25 Type of protection IPX5 Maximum allowed net impedance Ohm (0,189+j0,118) (0,145+j0,090) Extension cable 10 m mm

Sound pressure level L
