USER MANUAL Azura Desk Bike Capital Sports

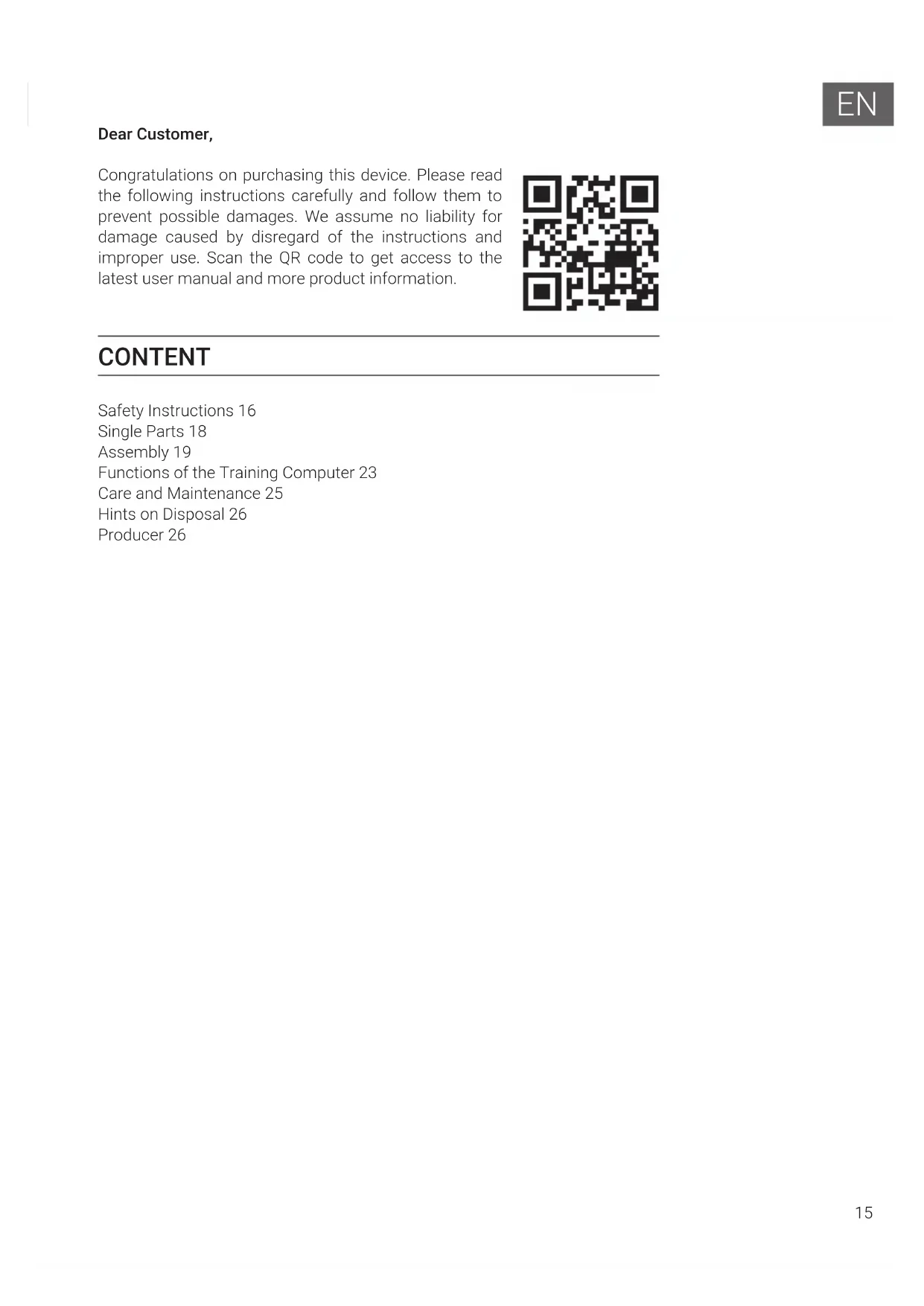

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. CONTENT Safety Instructions 16 Single Parts 18 Assembly 19 Functions of the Training Computer 23 Care and Maintenance 25 Hints on Disposal 26 Producer 2616

SAFETY INSTRUCTIONS Before operating this unit, please read this manual carefully to ensure optimum performance and safety. This is manual should be kept available for future reference. For product improvement, the company reserves the right to change the design and specication at any time without prior notice. Pictures are for reference use only and may differ from the actual product.

• Please keep this manual in a safe place for your reference when necessary.

• Please do not assembly or use this equipment until you read this manual thoroughly & carefully. The safety and efciency only can be achieved when the equipment is assembled ,maintained and used properly. It is your responsibility to ensure that all the users are informed of all the warnings and precautions.

• For totally safe use, a stable , leveled surface is required. Protect your floor with a mat. Do not use the equipment in a damp areas such as swimming pool sauna, etc. For safety space, the equipment must have at least 0.6meter of free space all around it.

• Before starting any exercise program you must consult your doctor to determine if you have any physical or health conditions that could create a risk to your health and safety, or prevent you from using the equipment properly. Your doctor‘s advice is essential if you are taking medication that affects your heart rate, blood pressure or cholesterol level.

• Be aware of your body‘s signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experienced any of the following symptoms: pain, tightness in your chest, irregular heartbeat, extreme shortness of breath, feeling light headed, dizzy or nauseous. If you do experience any of these conditions you must consult your doctor before continuing with your exercise program.

• Do not workout immediately after meals.

• Keep children and pets away from the equipment, the equipment must be assembled and used by adults only.

• The equipment is designed for home use only.

• The equipment is not suitable for therapeutic use, may only be used for exercises indicated in the training instructions

• Wearing proper clothing and athletic shoes while using the equipment, Avoid wearing loose clothing that may get caught in the equipment or that may restrict or prevent movements.

• Keep your back straight while exercising.17

• Before using the equipment, check the handle bar, seat, and the nuts & bolts are securely tightened.

• For adjustable parts, bear the maximum position in your mind, do not exceed the mark „stop“, otherwise will cause risk.

• Always use the equipment as indicated. If you nd any defective components while assembling or checking the equipment ,or if you hear any unusual noises coming from the equipment during use, stop immediately. Do not use the equipment until the problem has been solved.

• Care must be taken when lifting or moving the equipment so as not to injure your back. always use proper lifting techniques and /or seek assistance if necessary.

• All moveable accessories(e.g. pedal, handlebar, saddle...etc.) require weekly maintenance. Check them before use every time. If anything broken or loose, please x them immediately. You may continue using them only after they return to good conditions.

• Keep power cord away from heat sources.

• Do not insert or drop any object into any opening.

• Unplug exercise bike before moving or cleaning it. To clean, wipe surfaces down with mild detergents and a slightly damp cloth only; never use solvents.

• Do not use the exercise bike in any location that is not temperature controlled, such as, but not limited to, garages, porches, pool rooms, bathrooms, car ports or outdoors.

• Use the equipment only as described in this manual.

• Incorrect repair and structural modications(e.g. removal or replacement of original parts) may endanger the safety of the user.

• This product is not designed for use by persons (including children) who have reduced physical, sensory or mental capacities or persons with no experience or knowledge, unless they are instructed and supervised in the use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Before use, check the voltage on the device badge. Only connect the device to sockets that correspond to the voltage of the device. Note: Maximum weight of the user is 100 kg.18

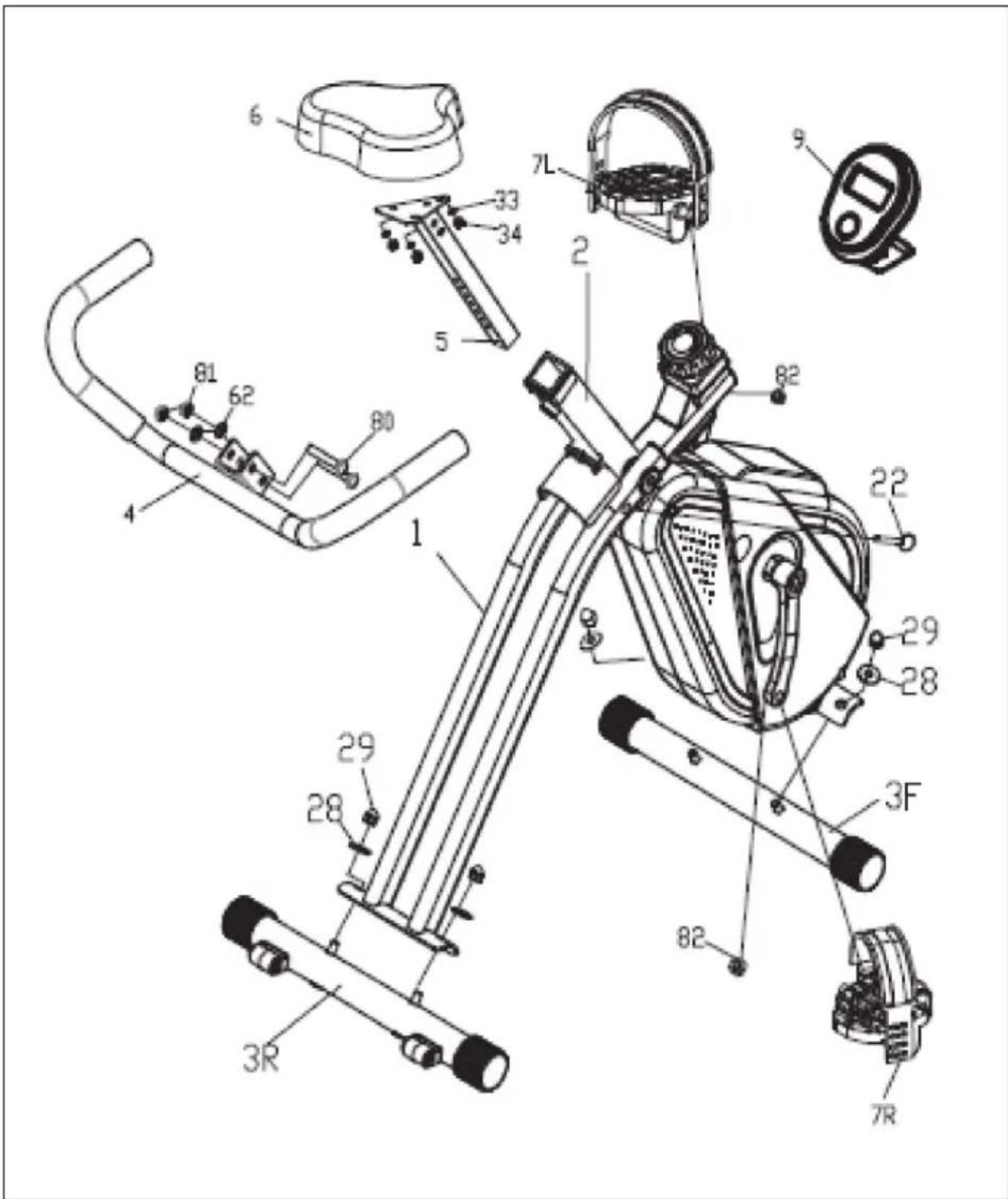

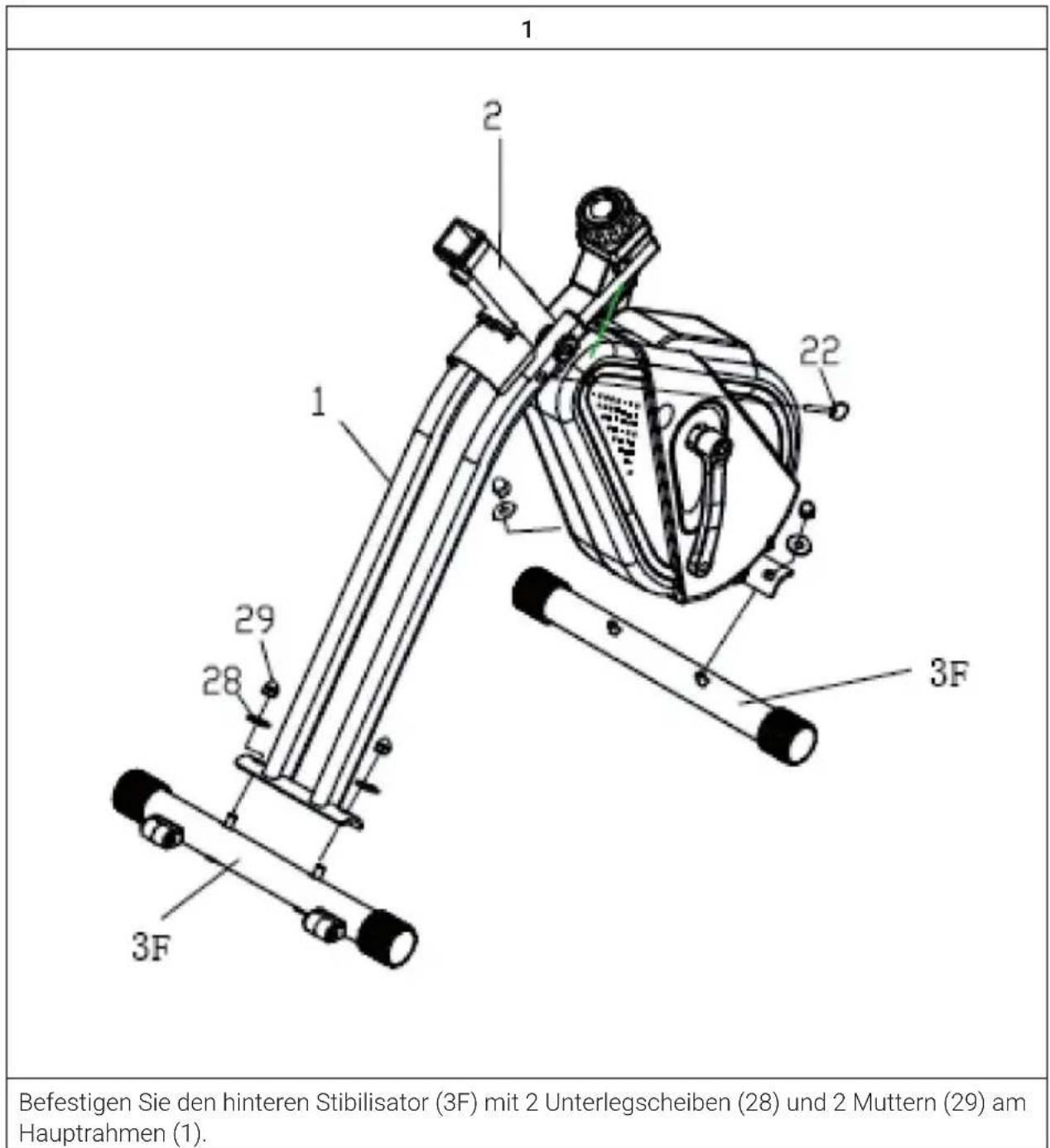

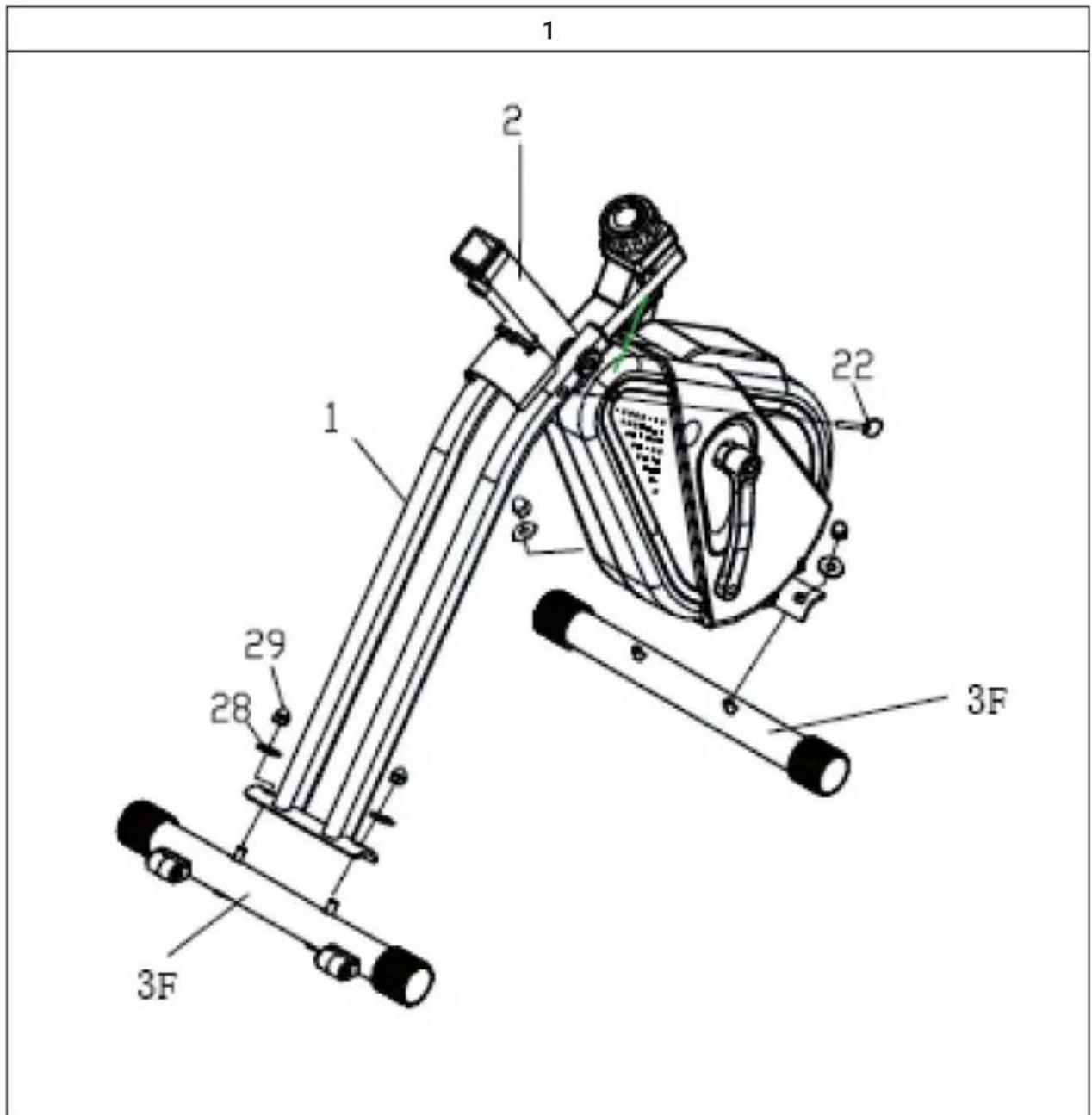

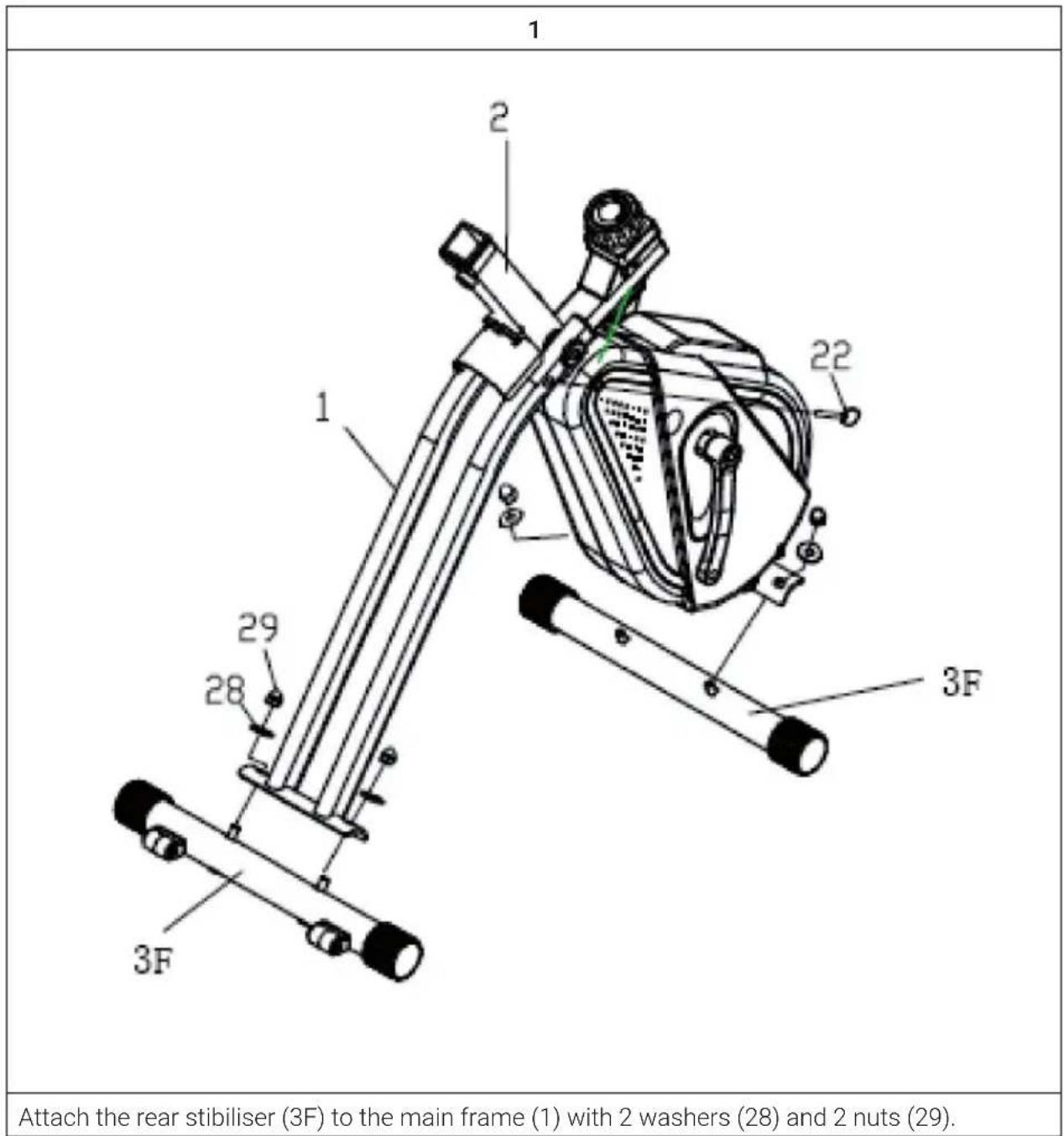

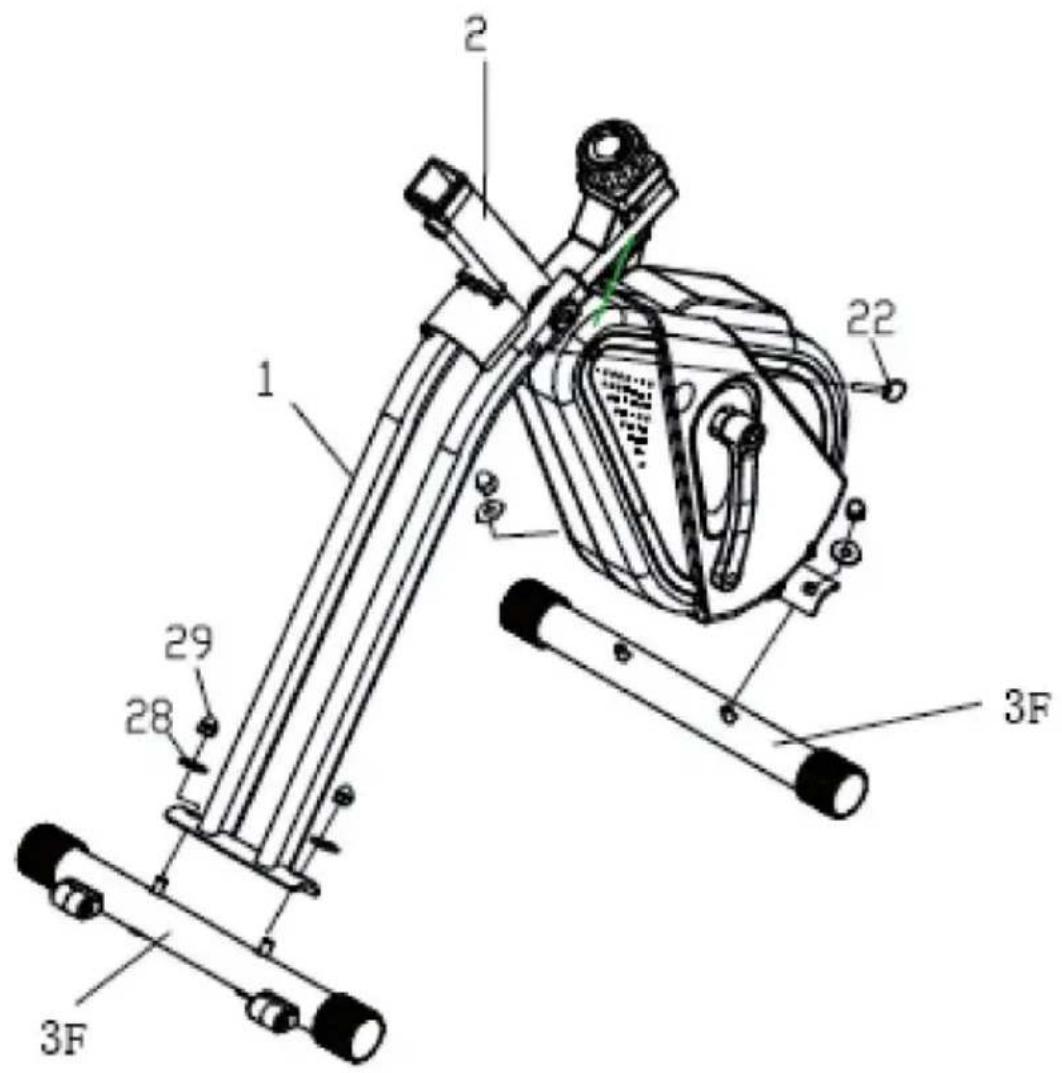

Attach the rear stibiliser (3F) to the main frame (1) with 2 washers (28) and 2 nuts (29).20

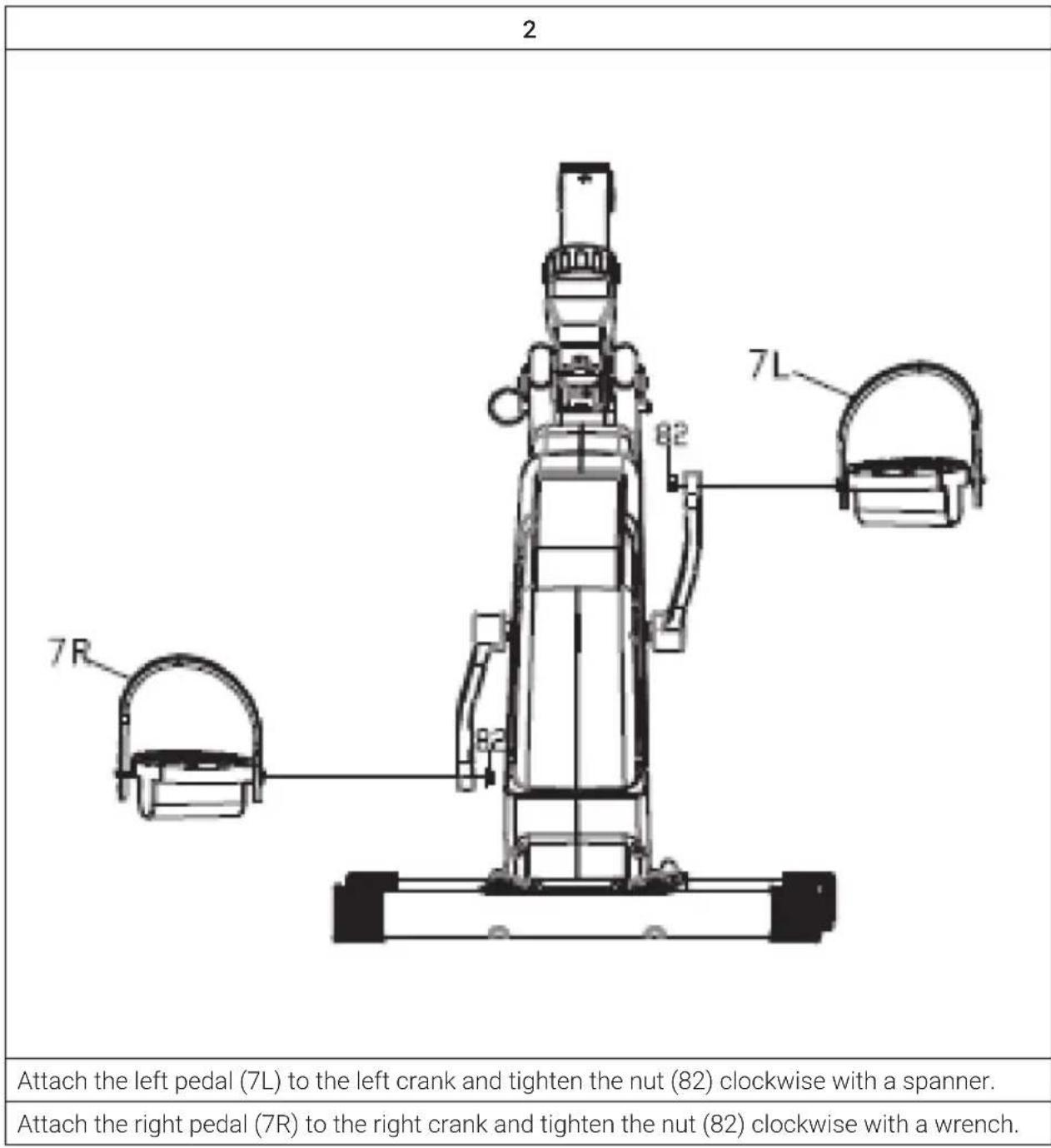

Attach the left pedal (7L) to the left crank and tighten the nut (82) clockwise with a spanner. Attach the right pedal (7R) to the right crank and tighten the nut (82) clockwise with a wrench.21

Secure the saddle (6) to the upper seat post (5) with 3 washers (33) and 3 nuts (34). Place the upper seat post (5) on the main frame, adjust to the desired height and secure the seat post with the quick release button (14).22

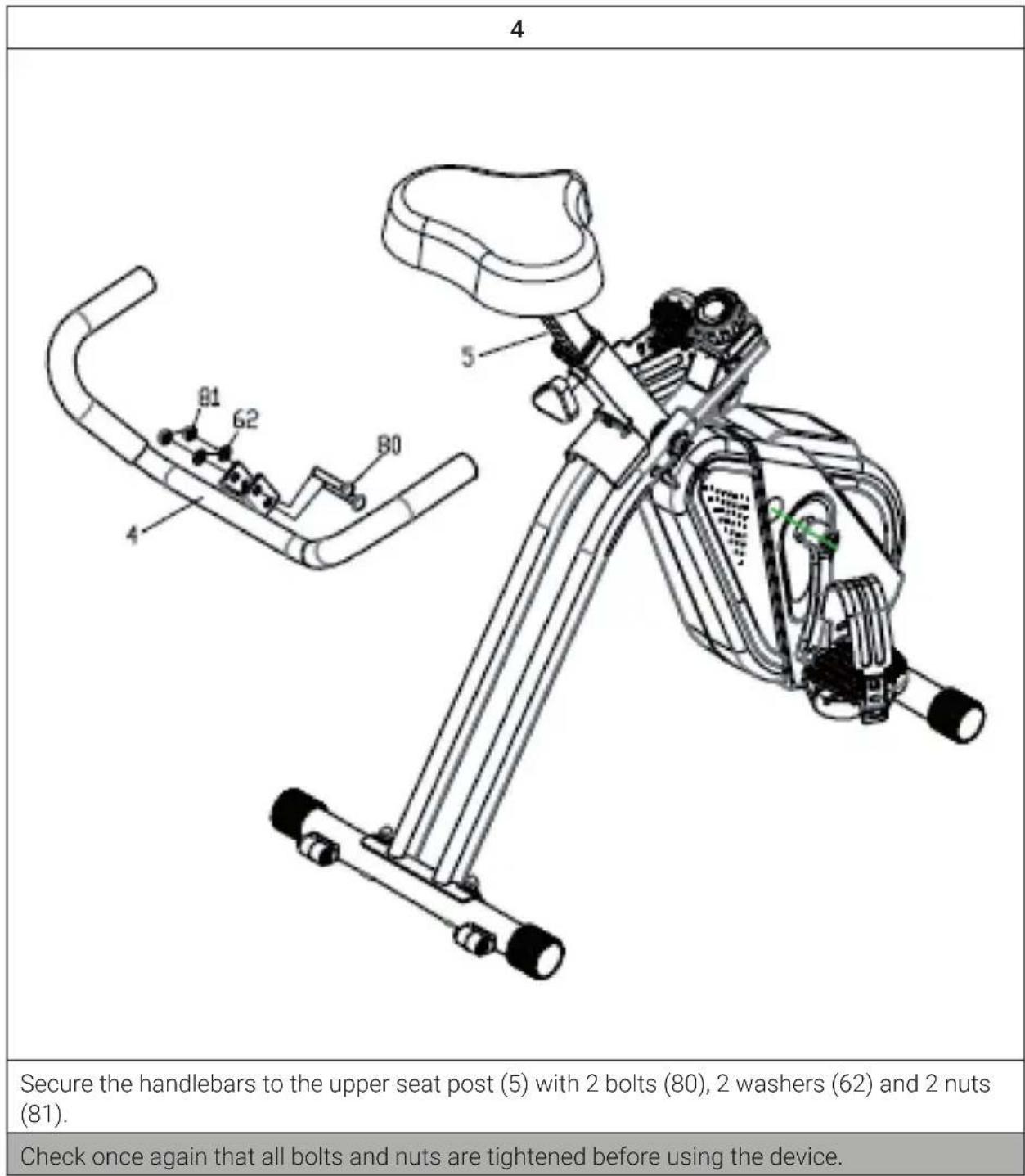

Secure the handlebars to the upper seat post (5) with 2 bolts (80), 2 washers (62) and 2 nuts (81). Check once again that all bolts and nuts are tightened before using the device.23

Use the MODE button to select between the functions. Press and hold the MODE button for a long time to reset all data (except ODO) to 0. SCAN Press MODE to access the SCAN function. The display automatically changes every 6 seconds between all available function displays. SPEED Display of the current speed. When the computer receives a signal, the speed is displayed. If no signal is received for more than 4 seconds, the display stops. The range that can be displayed is between 0.0-999.9 km/h. DIST Display of the training distance. When the computer receives a signal, the distance is counted. If no signal is received for more than 4 seconds, counting stops. The displayable range is between 0.0-9999 km. TIME Display of the training duration. When the computer receives a signal, the time is counted. If no signal is received for more than 4 seconds, counting stops. The displayable range is 0:00-99:59. ODO Display of the total distance travelled since start-up. It is cleared when the battery is changed. The displayable range is between 0.0-9999 km. CAL Display of the calories consumed so far. When the computer receives a signal, the calories are counted. If no signal is received for more than 4 seconds, the counting stops. The displayable range is 0-999.9 kcal.24

Notes on using the training computer

• If there is no signal, the display will automatically turn off after 4-5 minutes.

• When a signal is received, the display automatically turns on again.

• If the display is weak or blurred when turned on, replace the batteries. Two special AAA batteries are required for the training computer.

• Please replace the transmitter battery if the data is unstable. For the transmitter you need CR2032/3V battery. The transmitter is located below the resistance control on the main frame.25

Note: As with all training machines with mechanical, moving components, screws may loosen due to frequent use. We therefore recommend that you check them regularly and, if necessary, retighten them with a suitable key. Clean your training device regularly with a damp cloth to clean the surfaces from sweat and dust.

• When you don’t use the exercise bike for a long time, please take out the console battery to avoid running out of battery.

• Often clean the exercise bike with clean cloth to keep the clean appearance.

• The safety level of the equipment only can be maintained if it is regularly examined for damage and or /wear and tear.(e.g. handle bar, pedals and seat ...etc.).It is vital that any faulty parts are replaced and the it is not used until completed repaired.

• Regularly check that the elements fastened with nuts and bolts are correctly tightened.

• Remember regularly to grease moving parts.

• Special attention to the component, most of them are susceptible to wear like brake system, foot pad etc.

• As sweat is very corrosive, do not allow it to come into contact with the enameled or chromed parts of the equipment, particularly the computer. Immediately wipe the equipment after using. The enameled parts can be cleaned using a damp sponge. All aggressive or corrosive products must be avoided.

• Storing the equipment in a clean and dry environment away from children.26

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailled information about recycling of this product, please contact your local council or your household waste disposal service. Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health. MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Chal-Tec UK limited Unit 6 Riverside Business Centre Brighton Road Shoreham-by-Sea BN43 6RE United Kingdom27
