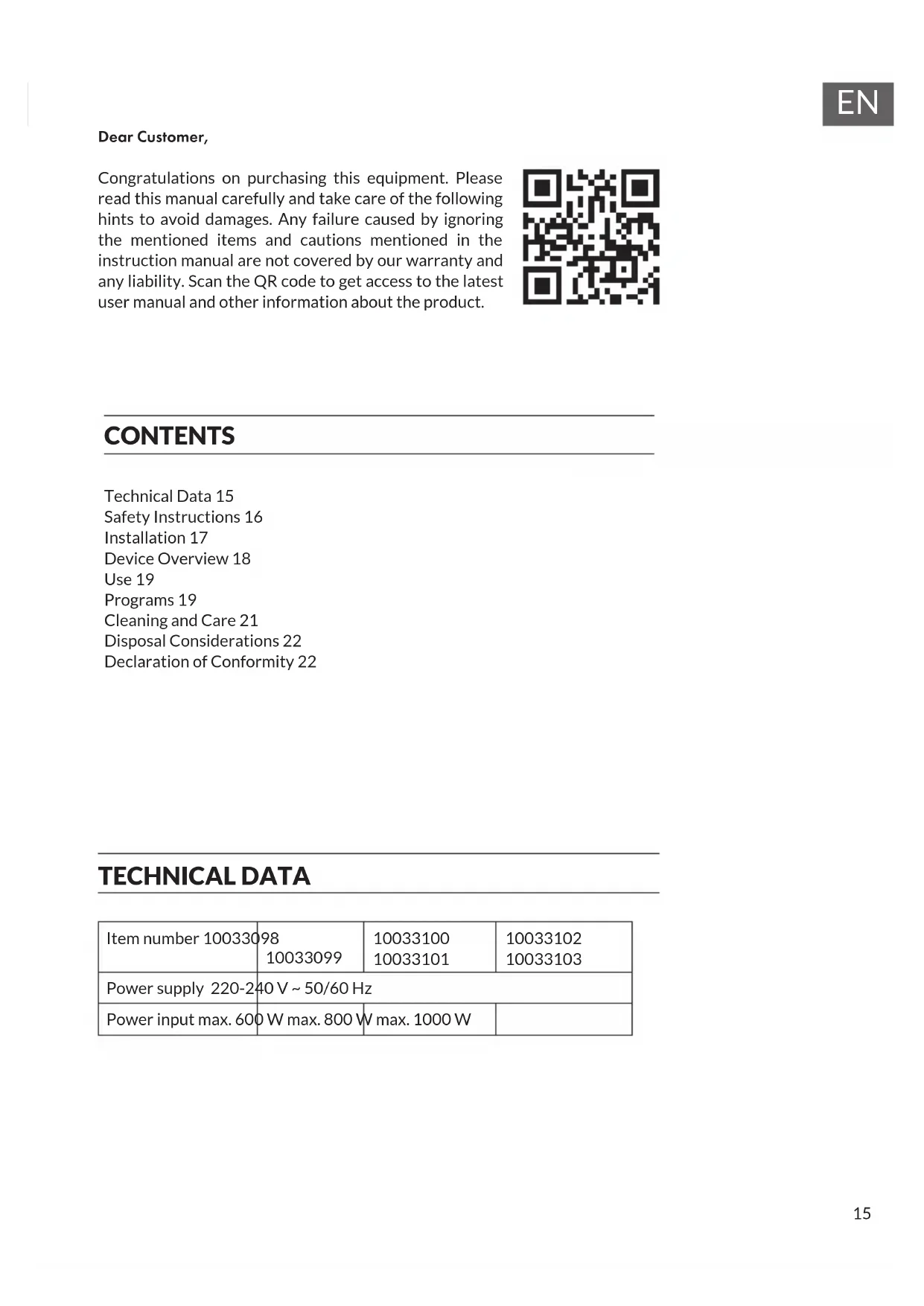

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Technical Data 15

Safety Instructions 16

Installation 17

Device Overview 18

Use 19

Programs 19

Cleaning and Care 21

Disposal Considerations 22

Declaration of Conformity 22

TECHNICAL DATA

Item number 1003309810033099	1003310010033101	1003310210033103
Power supply 220-240 V ~ 50/60 Hz
Power input max. 600 W max. 800 W	W max. 1000 W

SAFETY INSTRUCTIONS

Read the safety instructions carefully and keep them for future reference. To prevent the risk of fire, electric shock, burns and other injuries, it is important to take basic measures when using equipment.

• In order to avoid overheating, do not cover the heater.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- The heater must not be located directly below a socket-outlet.

- Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

- Children of less than 3 years should be kept away unless continuously supervised.

- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- This heater is filled with a certain amount of special oil. Repairs that require the oil container to be opened may only be carried out by the manufacturer or his service partner, who should be contacted in the event of an oil leak. When recycling the heater, observe the regulations for the disposal of oil and gas.

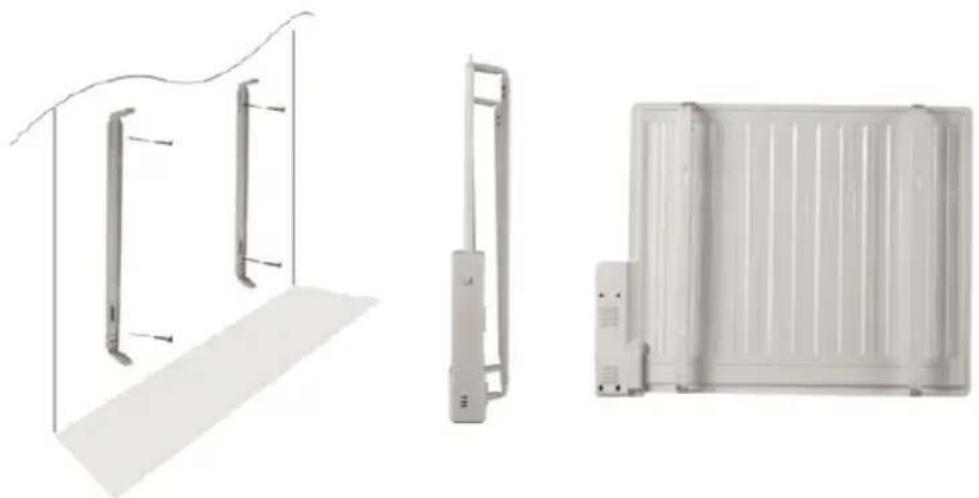

INSTALLATION

Please note: A gap of at least 60 mm from the floor and 100 mm to any window frame above must be maintained. Minimum distance to any corner must also be 100 mm. To the ceiling, the distance should keep 650 mm at least. Always check that the radiator is horizontal. The radiator must Not be installed below a permanent wall socket.

1. Put the wall brackets on the wall as a guide ruler (please make sure the holes at parallel level), Then mark the position of the holes
2. Drill holes on the wall with 8-mm drill bit and insert the plastic wall plug
3. Fasten the hanging rack on the wall with the screws, make sure the hanging rack is in correct direction
4. Insert the heater body of the bottom to the hanging rack first and then push the heater body to be hooked on the whole hanging rack

WARNING: Risk of personal injury

When drilling holes, always check to ensure there is no wiring, pipework, etc. in the area to be drilled.

Before plugging in the unit make sure the radiator is properly attached to the wall. Otherwise problems can occur.

Three white industrial air conditioner units shown from different angles: front panel, side panel, and side panel (no text or symbols visible)

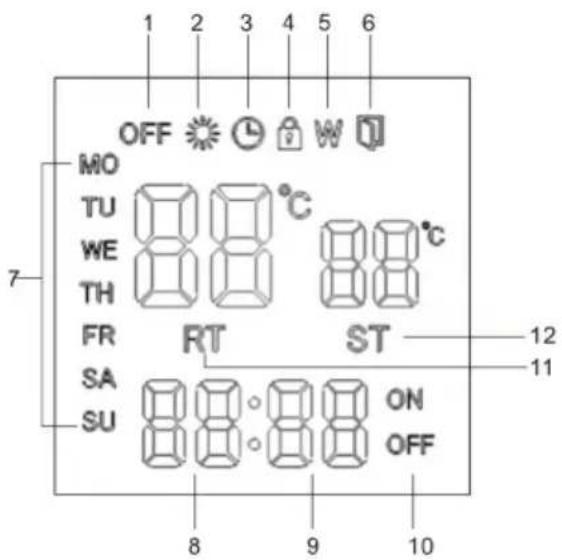

DEVICE OVERVIEW

1 2 3 4 5 6 OFF MO TU WE TH FR RT ST 12 11 SA SU ON OFF 8 9 10

1 Status keypad on/off
2 Status radiator light up----heater work
3 Timer 1-24 hours
4 Child lock
5 Weekly timer
6 Open window function
7 Week day
8 Hour
9 Minute
10 Set on/off time (P3)
11 Room temperature
12 Setting temperature

Keyboard

USE

Start using

Plug the appliance to AC 220-240 V 50 - 60 Hz socket. Push ⏻ switch on the side of heater, the display light on.

Real time setting

• Press "ON/OFF", then press "SET" to set temperature by press "+" or "-" when display flashing.
• Press "SET" 3 times, "flashing set the day by press "+" or "-".
• Press "SET" 4 times, hour flashing set the hour by press "+" or "-"
• Press "SET" 5 times, minute flashing set the minute by press "+" or "-"

NOTE: The clock and calendar will be resent to factory default if without power supply.

Heating mode

Press "MODE" choose P1, P2, P3, P4 by press "+" or "-"

Comfort mode is (22 °C)
ECO mode is 18 (18 °C)

PROGRAMS

P1 : (Monday - Sunday) is preset program

P1 0 3 6 9 12 15 18 21 24h

P2: (Monday - Friday) is preset program

P2 0 3 6 9 12 15 18 21 24h

P2: (Saturday - Sunday) is preset program

P2 0 3 6 9 12 15 18 21 24h

P3: Monday-Sunday: Open/Free to user to set program----factory default setting 18-22 18-22 °C.

P3 0 3 6 9 12 15 18 21 24h

Press MODE 1 x Choose	P3 program by press “+” or “-”.
Press MODE 2 x “MO”	flashing. Set the day.
Press MODE 3 x Set hour	by “+” or “-”.
Press MODE 4 x set minute	by “+” or “-”.

Set all days up to Sunday, then set temperature for each day.

Press MODE 1 x	Set comfort temperature for Monday by press “+” or “-”.
Press MODE 2 x Set Tuesday	day temperature.
Press MODE 3 x Set Wednesday	day temperature.
Set each day up to Sunday.

P4: Anti-frost, "P4 Fr" shows in screen

4-7: , 24hour, 7days a week

Attention: In the above setting process, if you do not operate for 5 seconds, exit the setting mode directly and retain the setting data.

Child lock

Press “+” and “-” at the same time, child lock turn on, the indicator 🔒 light. Press “+” and “-” at the same time again child lock turn off.

Open window function

Press “MODE” 3 second, the buzzer rings once, indicator 📋 on, open window function turn on.

Press “MODE” 3 second, the buzzer rings once, indicator “” on, open window function turn on. Press “MODE” 3 second again, open window function turn off When this function is activated, the heater will stop working when the room temperature is dropping 3 °C in 1 minutes.

Timer 1-24 hours

The heater can be operated for 1-24 hours.

Press "MODE" 2 times, indicator Ⓤ light, set hours by press "+" or "-"

CLEANING AND CARE

Cleaning

1. Always disconnect the appliance and let it completely before any maintenance.
2. Use a vacuum cleaner to remove dust on grilles.
3. Clean the outside of the unit with a damp cloth and then dry it with a dry cloth. Never immerse the unit in water, not let water drip into the unit.

Storage

1. Always disconnect the appliance, let it completely cool and clean it before storing.
2. If you do not use the device for a long period, put back the unit and the instruction manual to the original carton and store in a dry and ventilated place.
3. Do not place any heavy items on top of carton during storing as this may damage the appliance

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service..

Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany

This product is conform to the following European Directives::

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

Technical parameters

Model identifier(s):	10033098, 10033099
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space					heaters only
Nominal heat output P	nom	0,6 kW	manual heat	charge control, with integrated thermostat		no
Minimum heat output P	min	0,6 kW	manual heat	charge control with room and/or outdoor temperature feedback		no
Maximum continuous heat output	Pmax	0,6 kW	electronic heat	heat charge control with room and/or outdoor temperature feedback		no
Auxiliary electricity consumption					fan assisted heat output no
At nominal heat output el	max	0,000 kW			Type of heat output/room temperature control
At minimum heat output el	min	0,000 kW	single stage	heat output and no room temperature control		no
In standby mode el	SB	0,0006	kW Two or more manual stages, no room temperature control			no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	yes
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	yes
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Technical parameters

Model identifier(s):	10033100, 10033101
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space					heaters only
Nominal heat output P	nom	0,8 kW	manual heat	heat	charge control, with integrated thermostat	no
Minimum heat output P	min	0,8 kW	manual heat	heat	charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	P_max	0,8 kW	electronic heat	heat	charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption					fan assisted heat output no
At nominal heat output el	max	0,000 kW			Type of heat output/room temperature control
At minimum heat output el	min	0,000 kW	single stage	heat	heat output and no room temperature control	no
In standby mode el	SB	0,0006	kW Two or more manual stages, no room temperature control			no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	yes
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	yes
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Technical parameters

Model identifier(s):	10033102, 10033103
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space					heaters only
Nominal heat output P	nom	1,0 kW	manual heat	charge control, with integrated thermostat		no
Minimum heat output P	min	1,0 kW	manual heat	charge control with room and/or outdoor temperature feedback		no
Maximum continuous heat output	Pmax	1,0 kW	electronic heat	heat charge control with room and/or outdoor temperature feedback		no
Auxiliary electricity consumption					fan assisted heat output no
At nominal heat output el	max	0,000 kW			Type of heat output/room temperature control
At minimum heat output el	min	0,000 kW	single stage	heat output and no room temperature control		no
In standby mode el	SB	0,0006	kW Two or more manual stages, no room temperature control			no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	yes
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	yes
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany
